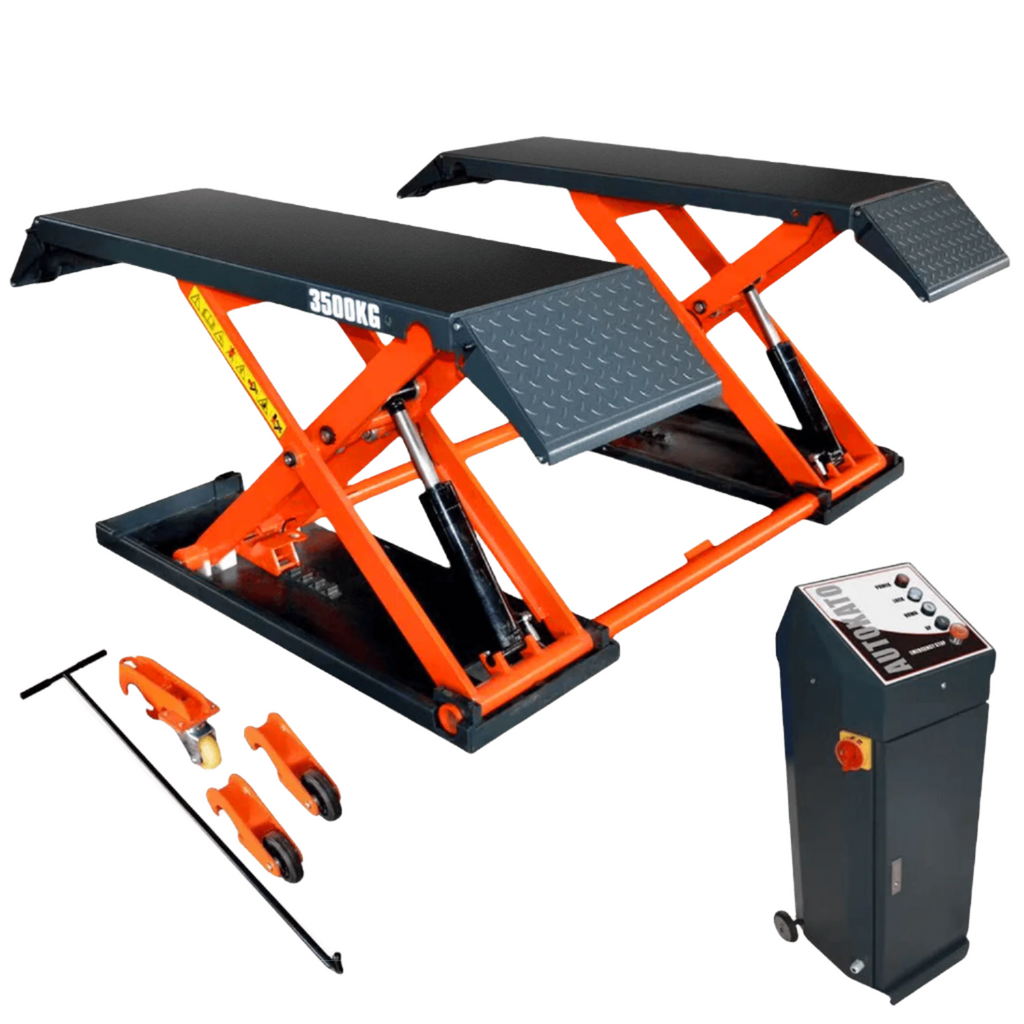

KT-X80 Mid-rise Scissor Lift, Pneumatic Release (Two variations for voltage, 110v and 220v)

Elevate your workspace with this compact yet powerful lift, boasting pneumatic efficiency for quick and hassle-free operation. With a generous lifting capacity, the X80 effortlessly raises your vehicle to a comfortable working height, perfect for tire changes, brake repairs, and more. The scissor lift design ensures stability, while the pneumatic mechanism adds a touch of convenience to your garage. Embrace efficiency without compromising on performance – the X80-Pneumatic Mid-Rise Scissor Lift is your go-to choice for precision and ease in automotive care.
User Manual

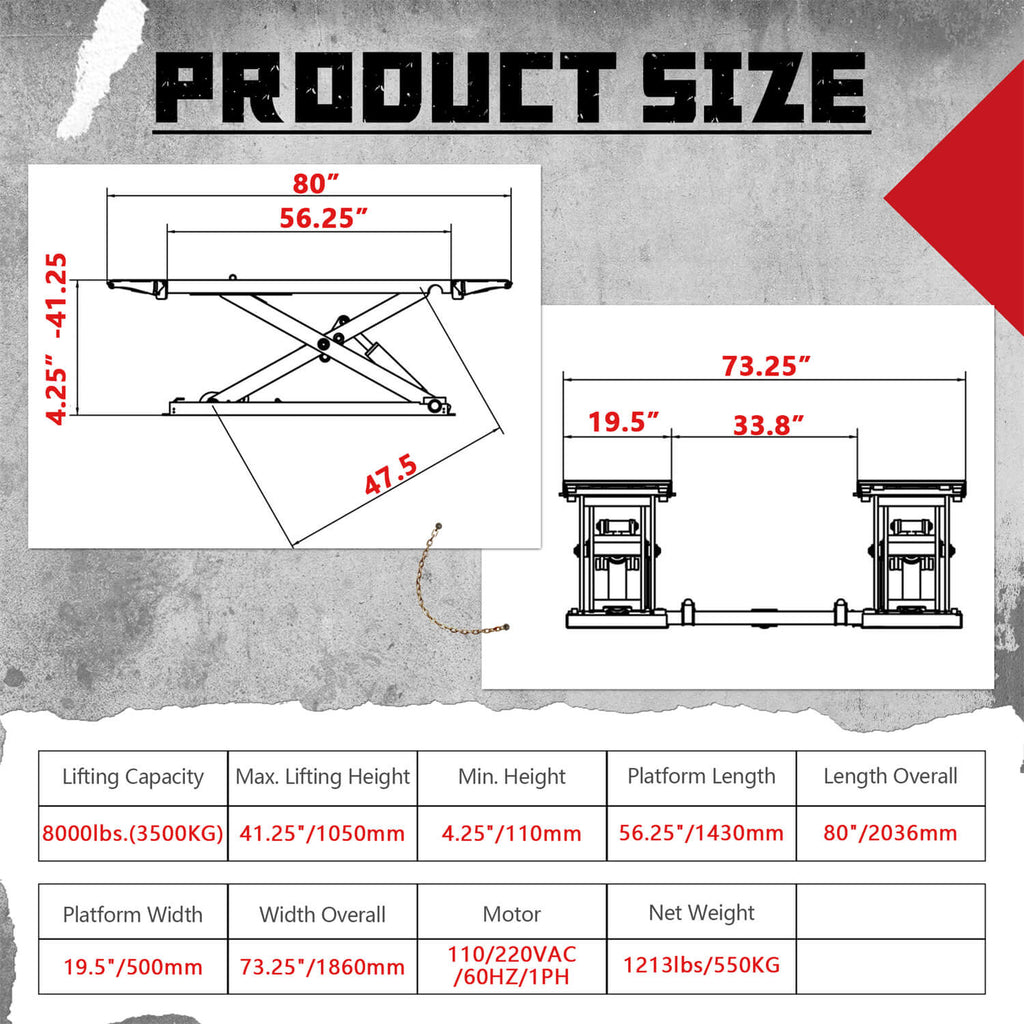

Specifications

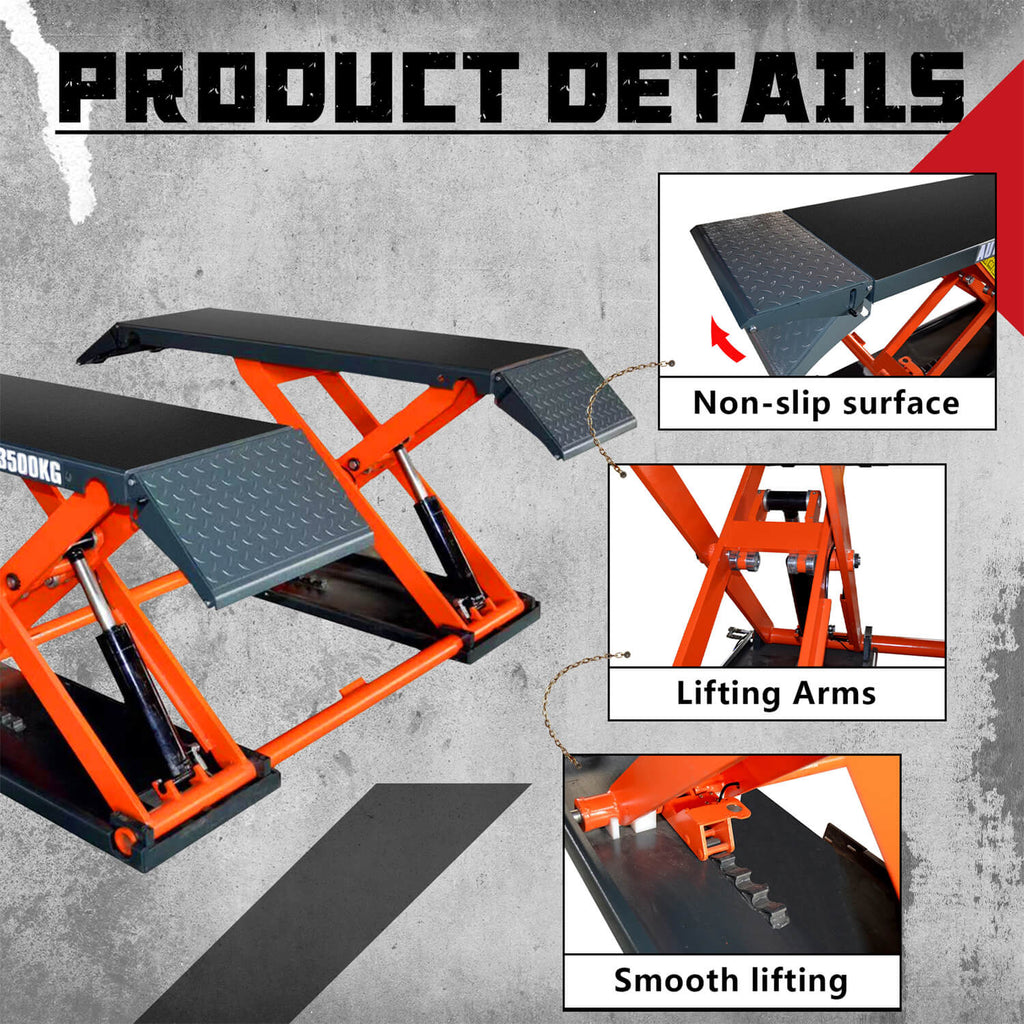

Feature

• 8000lbs(3500KG) lifting capacity.
• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
• Mobile or fixed mount design.
• Starting-up system design.
• Pneumatic safety release.
• 24V safe control system.
• Height limit switch.
• Composite rubber lifting blocks included.
• Comes with self-lubricated bushing and bearing.
• Drive-up ramps lock design as platform extension for long vehicles.
• The portable, mobile kit included making the lift move in your garage easily.
• Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH.
• The unit needs to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

Package Size

• LxWxH (inch):
  Box A: 78x63x9;
  Box B: 17x15x43.
• Weight (lb):
  Box A: 1190;
  Box B: 132.
• A forklift or equivalent is required for unloading
