Description

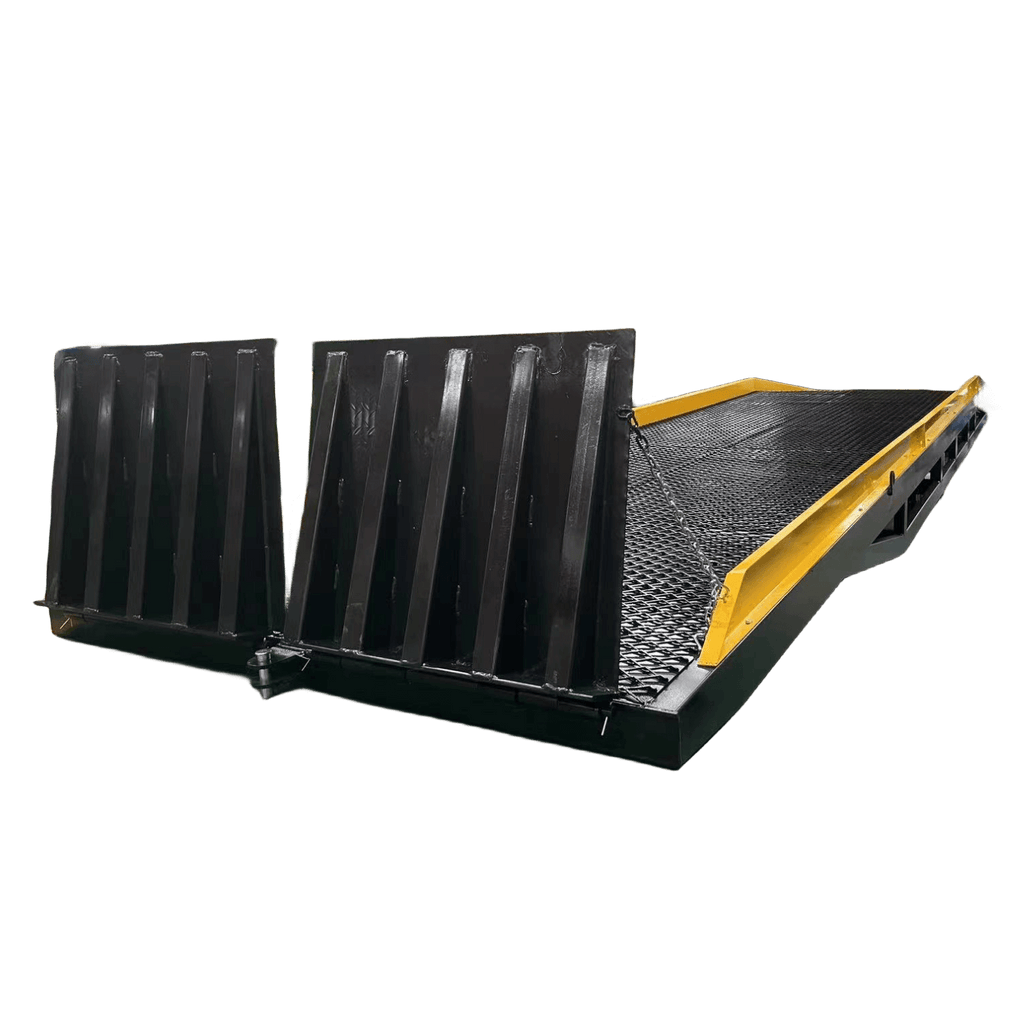

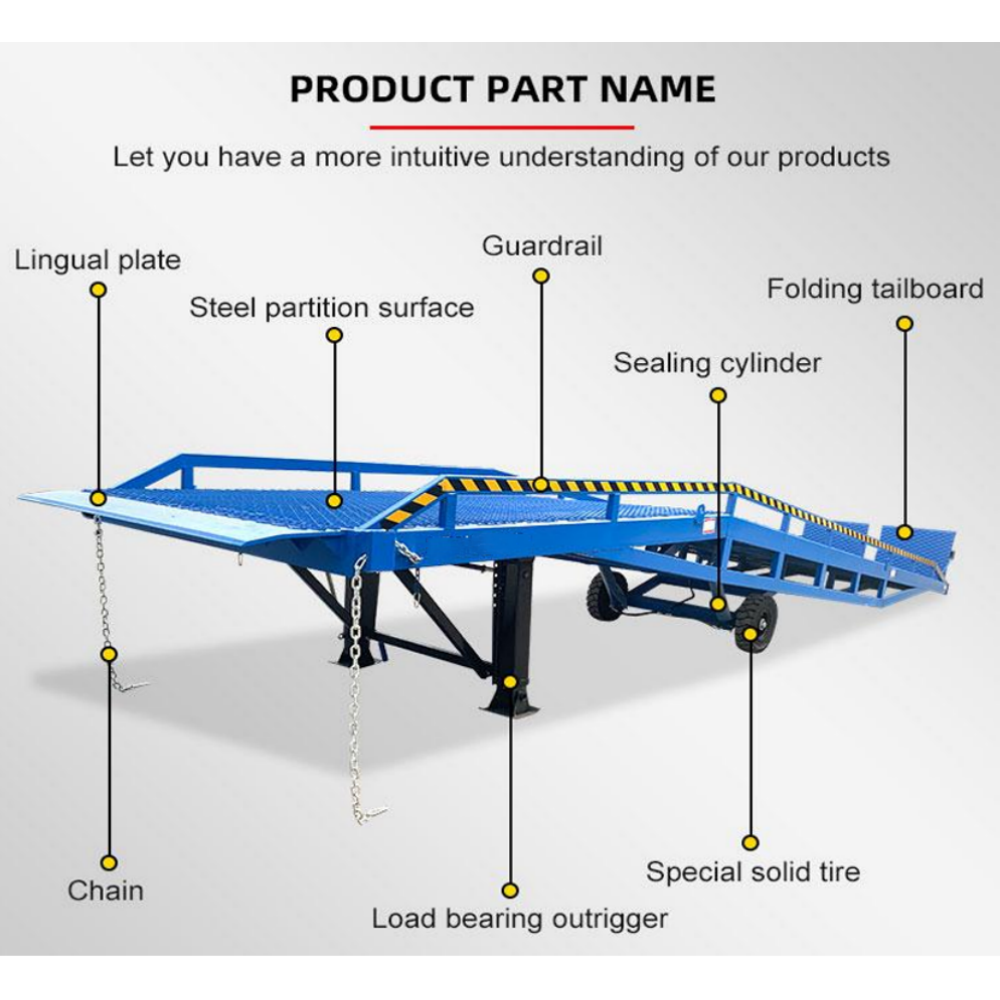

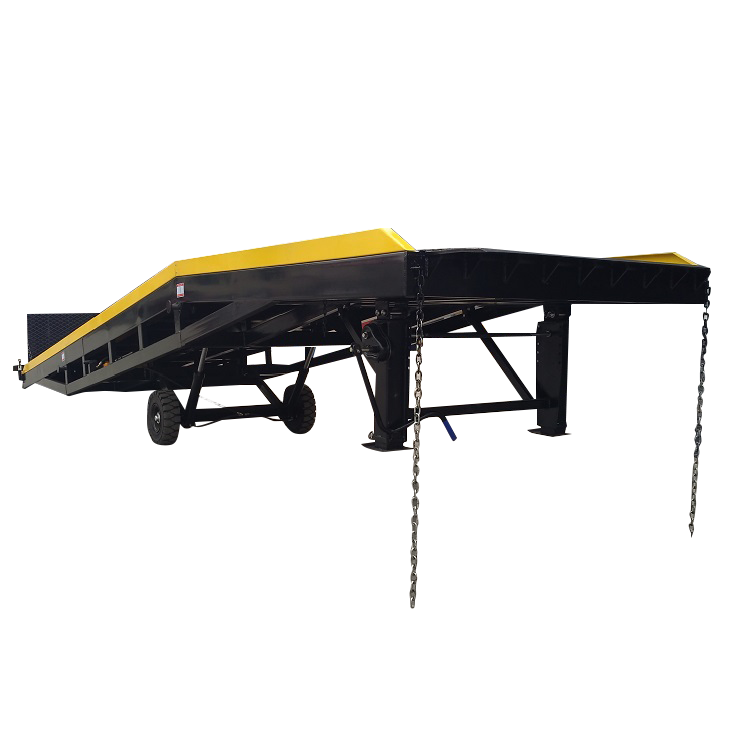

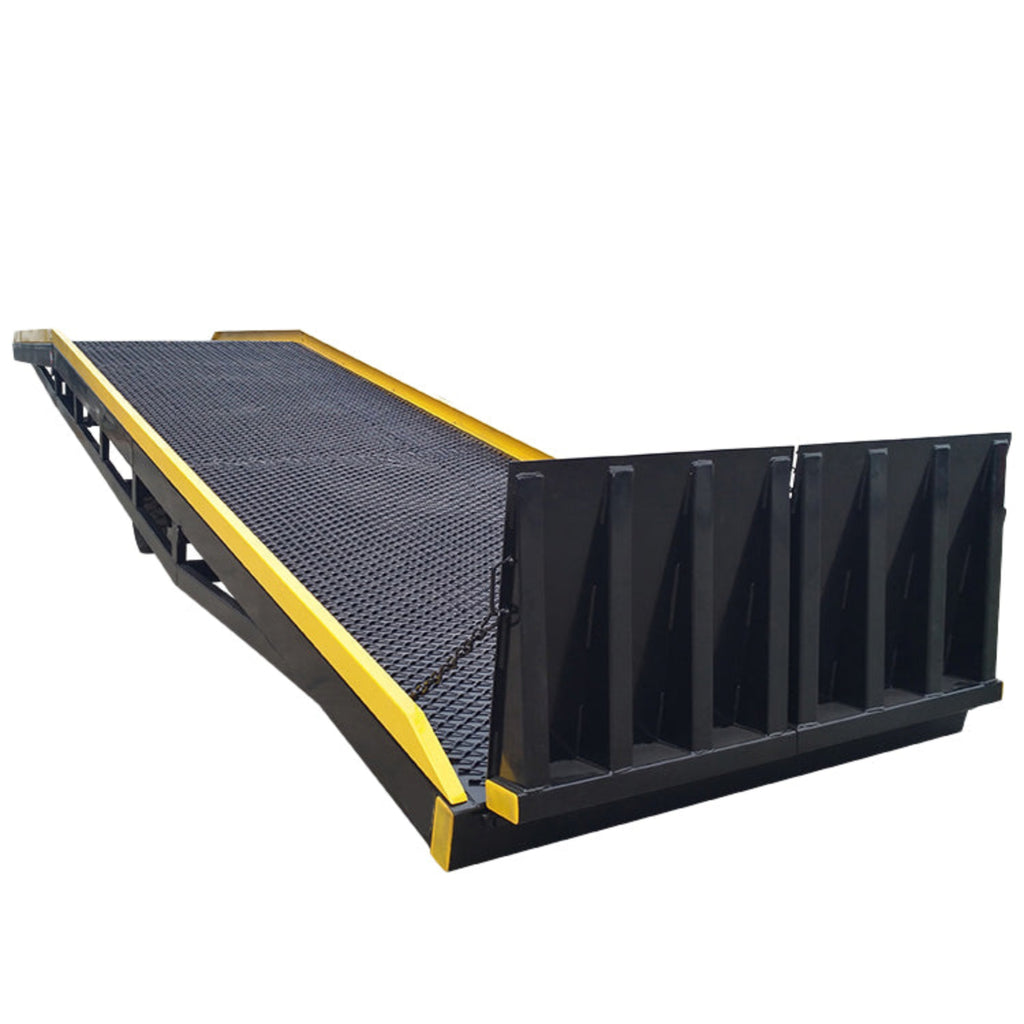

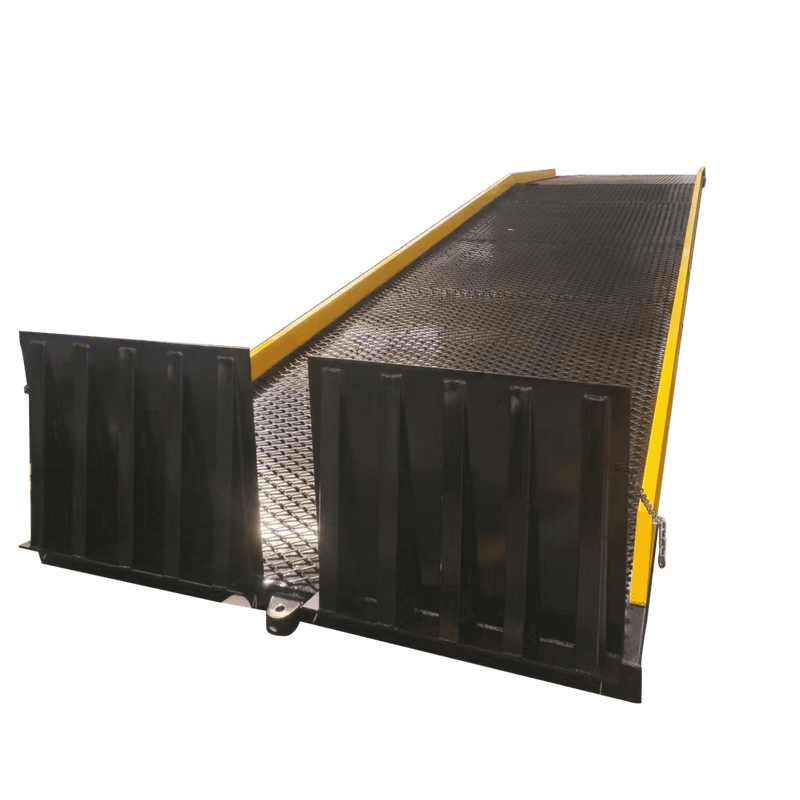

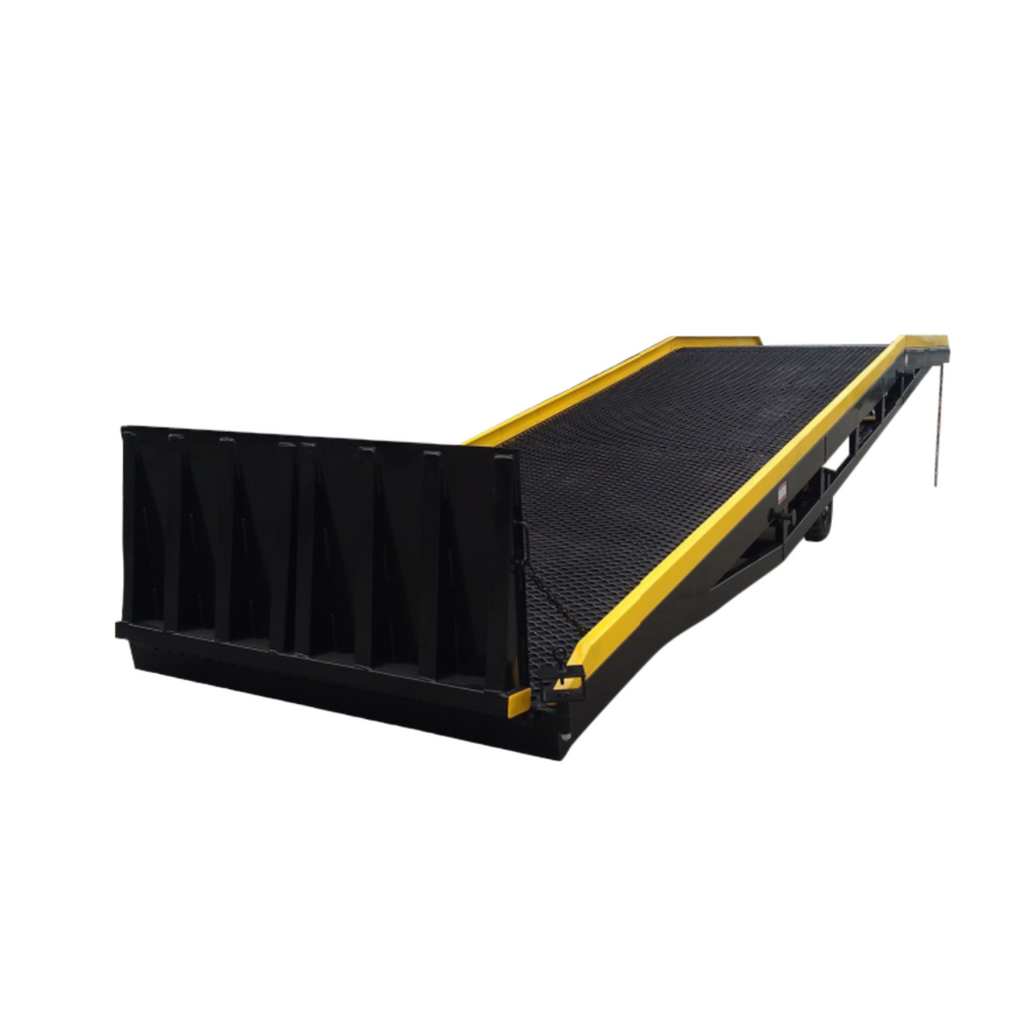

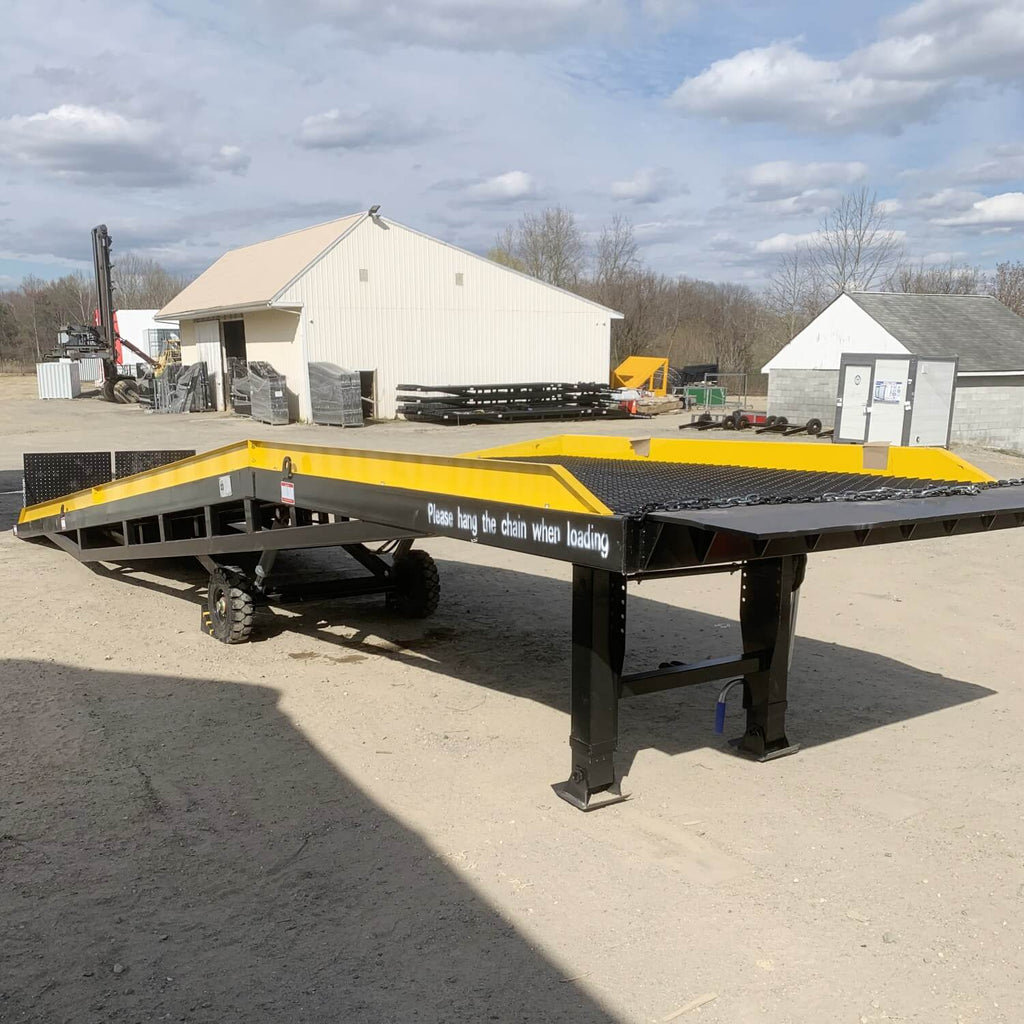

Introducing our Portable Loading Dock Ramp Yard Ramp, featuring an impressive 26,500 lb. capacity to handle heavy loads with ease. Crafted from durable steel, this ramp is built to last and withstand demanding environments. Equipped with guardrails for added safety, and the ability to attach two chains to the truck for securement, this ramp ensures a secure loading and unloading process. Ideal for warehouses, distribution centers, and facilities requiring robust loading solutions. Improve efficiency and safety with this versatile and reliable portable ramp.
Necessary for unloading: A forklift or crane with a load capacity of 5000 kg.

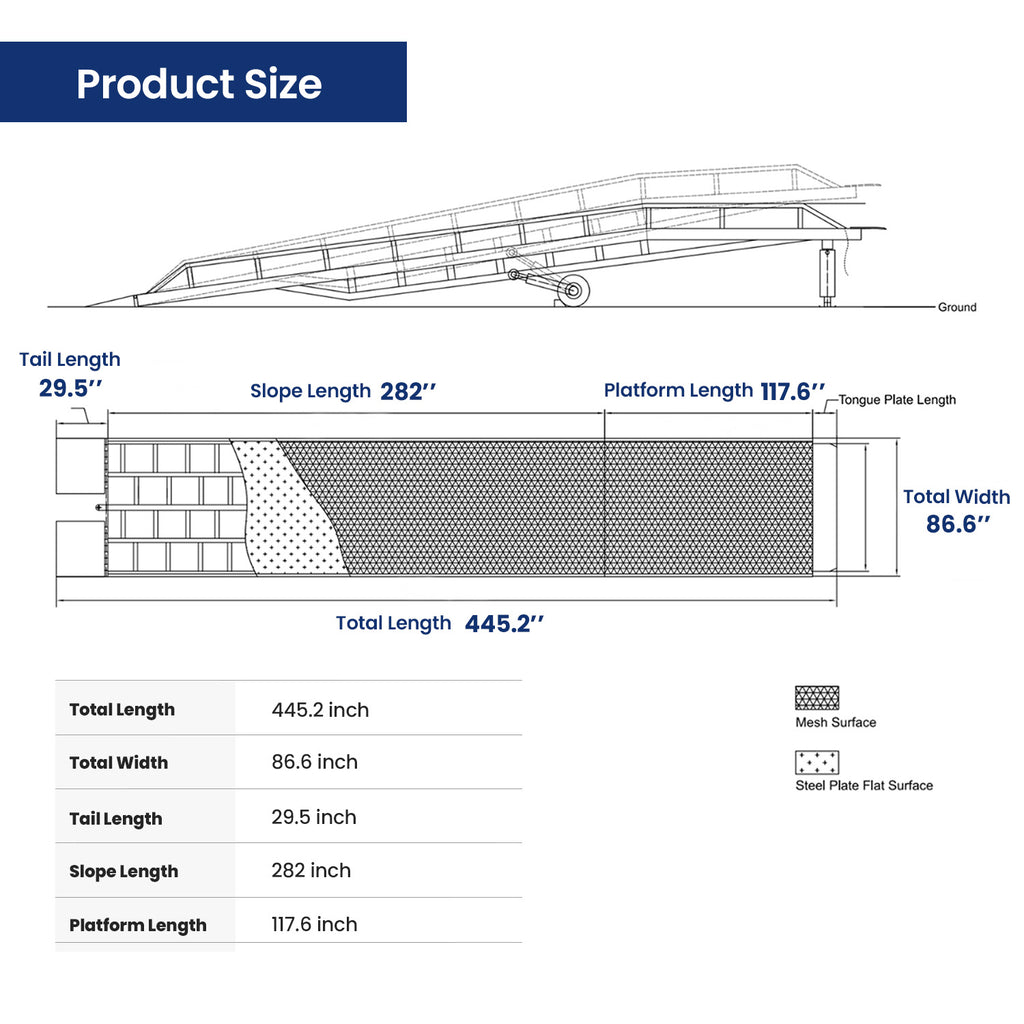

Specification
| Material | Steel |
| Length | 37.1' |
| Width | 86.6" |
| Minimum Height | 43.3" |
| Maximum Height | 71" |
| Weight | 7,275 lbs |
| Maximum Capacity | 26,455 lbs |
| Slope Length | 281.5" |
| Platform Length | 118.1" |
| Tail Plate Length | 29.5" |
| Tip Plate Length | 15.7" |
| Steel Plate Thickness | 5 mm |
| Steel Mesh Thickness | 8 mm |
| Lip Thickness | 16 mm |
| Power | AC(380V/220V/110V) |
| Main Beam | 200x100x5mm rectangular pipe2 pcs, 200x100x4mm rectangular pipe3 pcs, Total 5 main beams. |
| Vice Beam | 100x50x4mm |
| Lift Type | Dual Cylinder Hydraulic |
| Hydraulic Cylinder | Φ80xΦ45（2 pcs） |
| Hydraulic Oil Pipe | 32Pma |
| Solid Tire Size | 700-9 |
| Guard Rail Height | 5.5" |
| Safety Chains | 51" |
Feature

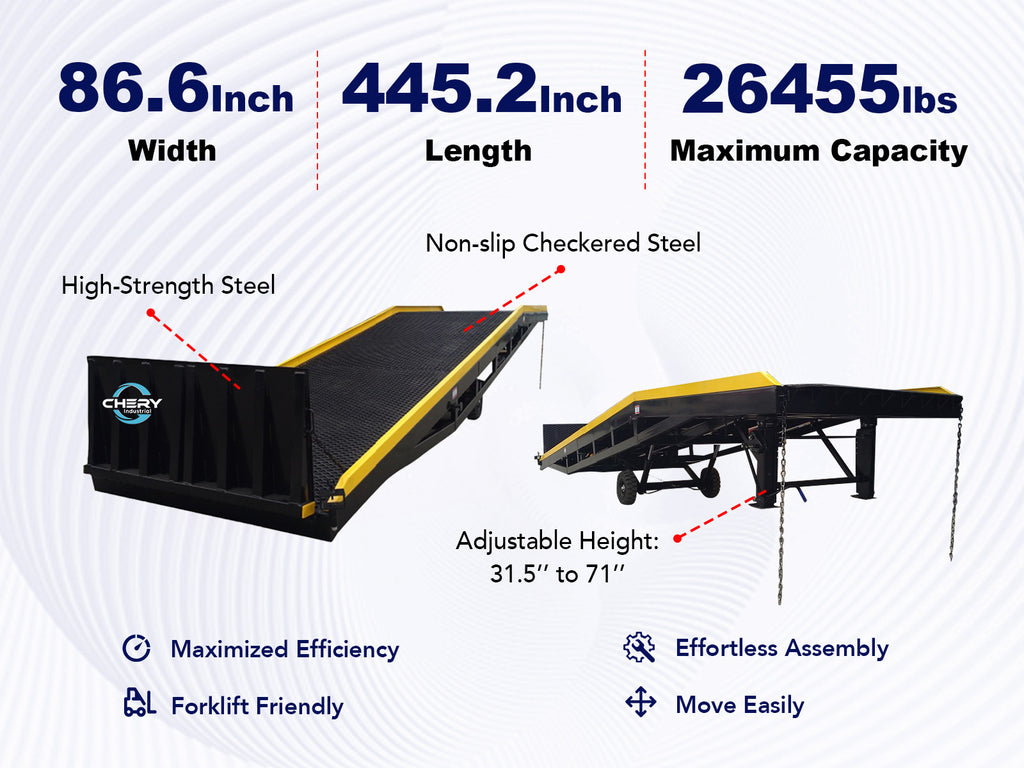

- Height Adjustment: Enjoy seamless operation with height adjustability from 43.3" to 71" (110 cm - 180 cm), allowing this ramp to easily accommodate various truck and dock heights, maximizing efficiency.
- Unrivaled Strength: Supporting a massive 26,455 lbs (12,000 kg), this ramp provides the robust support you need for heavy-duty material handling, reducing downtime and improving productivity.

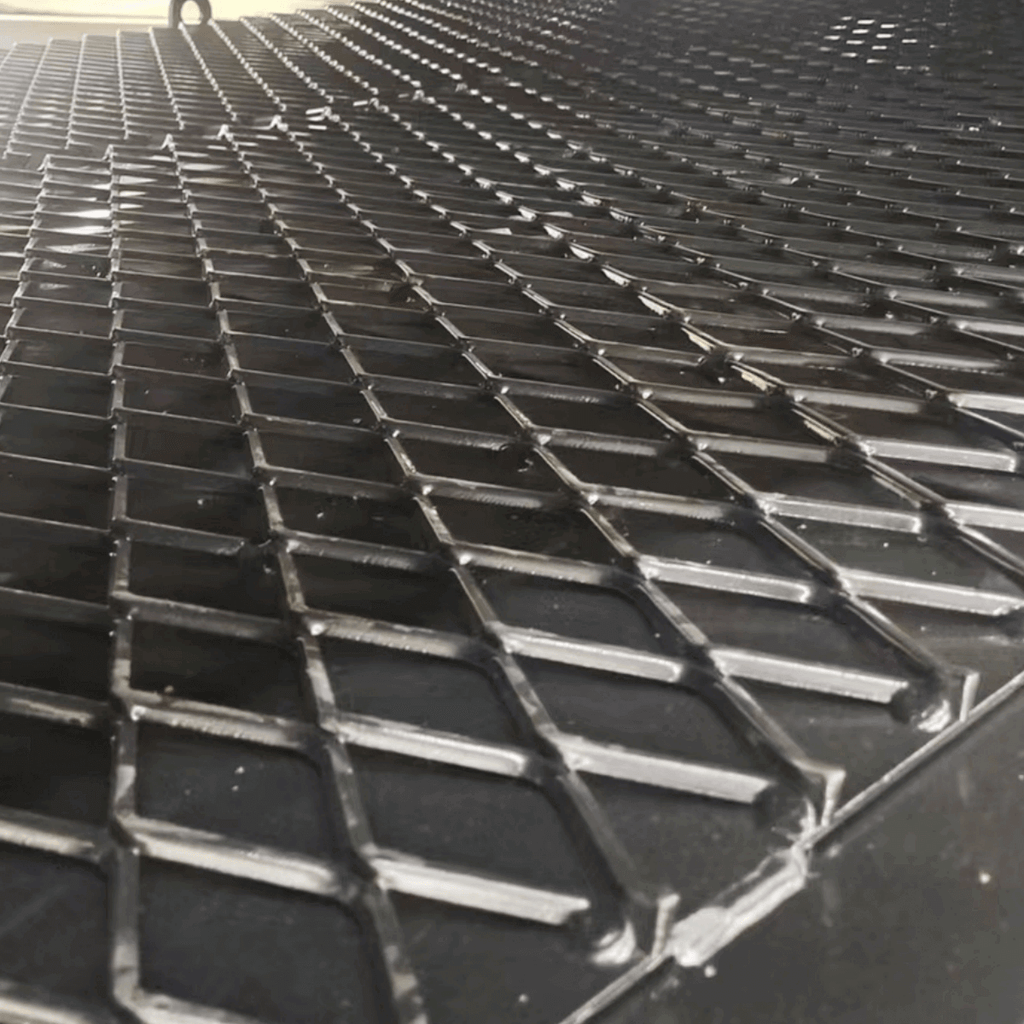

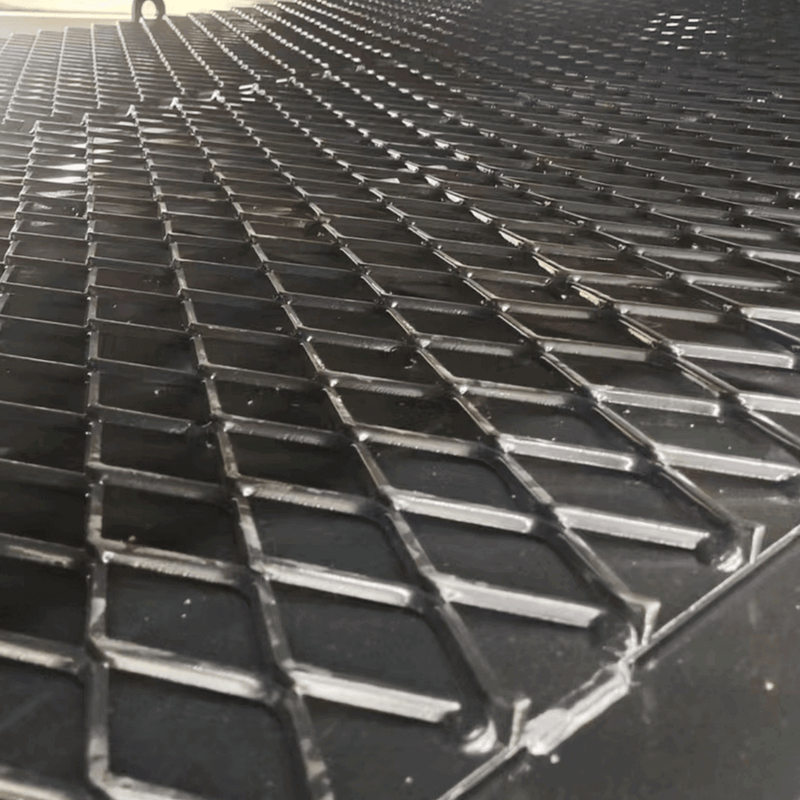

- Secure Grip: The non-slip, checkered steel surface ensures confident operation by providing superior traction, significantly reducing the risk of accidents and enhancing safety during loading and unloading.

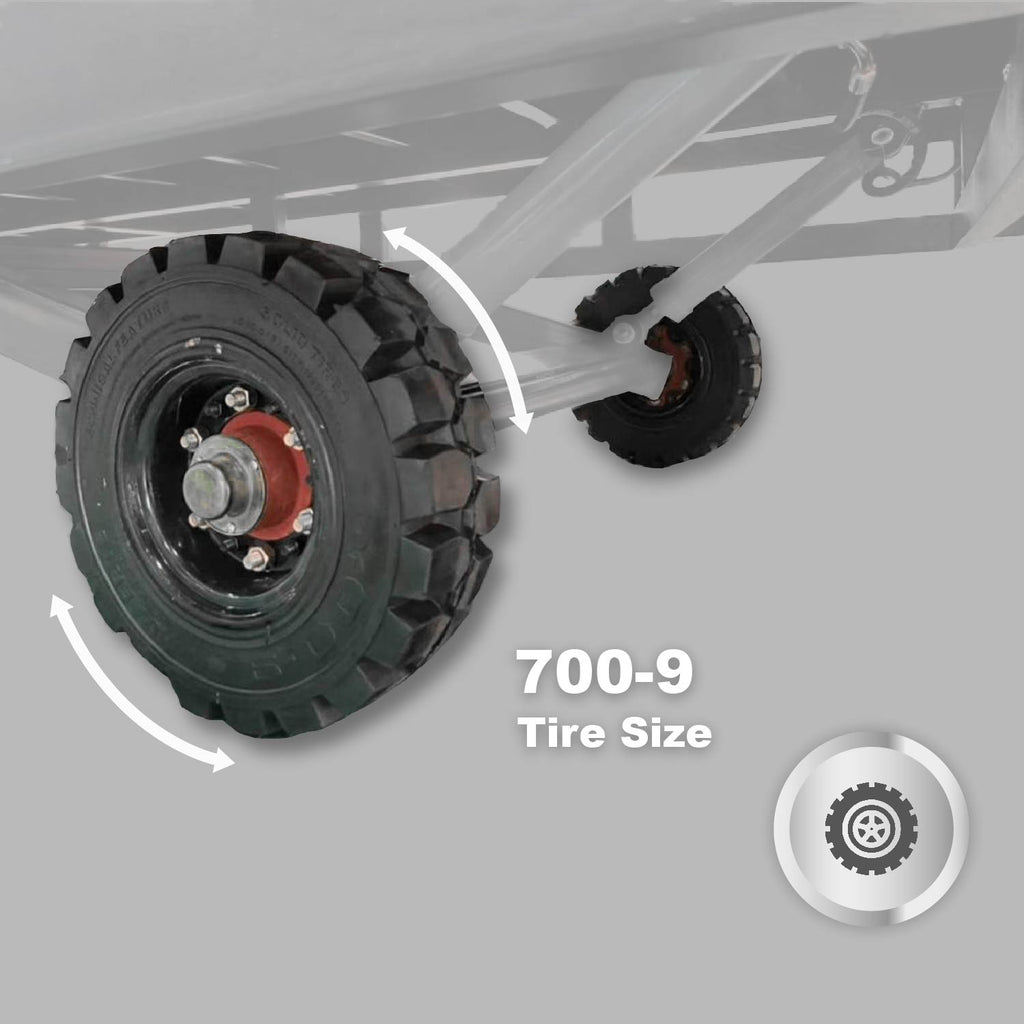

- Enhanced Mobility: For easy positioning and maneuverability, the ramps are fitted with durable 700-9 solid tires. These tires are maintenance-free and provide stable support, allowing you to easily move the ramp wherever it’s needed within your facility.
Package Size
- LxWxH (inch):
- Weight (lb):
- A forklift or equivalent is required for unloading.
