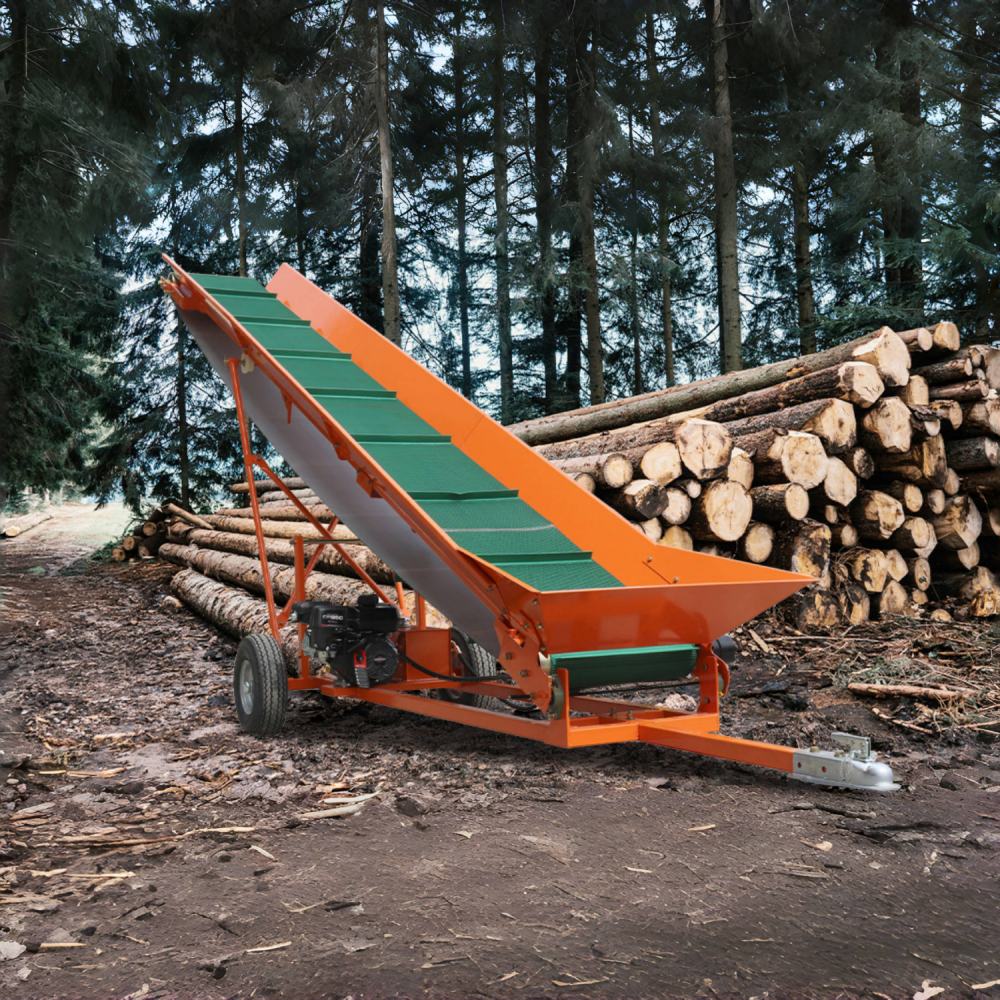

  • Firewood Conveyor 6.5HP Wood Conveyor with B&S Engine and 19.7" PVC Belt Scene-forest
1 14

6.5HP Firewood Conveyor Max. 9.3ft Lift Height with B&S Engine and 19.7" PVC Belt

6.5HP Firewood Conveyor Max. 9.3ft Lift Height with B&S Engine and 19.7" PVC Belt

Chery Industrial SKU: N818P194902O
Max. Height
9.3ft
Engine
B&S
Belt Width
19.7"
$2,999.00
$2,999.00

Pre-Order Please wait 3-4 months

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

This powerful Firewood Conveyor, featuring a 6.5HP 208cc B&S Gas Engine, easily lifts and moves logs. With a 19.7" wide PVC belt and a max height of 111.4", it handles up to 132 lbs efficiently and safely, making firewood handling a breeze.

Hydraulic-driven system with B&S Engine: This wood conveyor equipped with a 6.5HP B&S gasoline-powered hydraulic-driven system, can operate with high efficiency and consistent performance. And the B&S Engine is EPA certified.
19.70-inch wide PVC belt: Our firewood conveyor features 19.7 inch wide and 0.2 inch thick PVC belt. The belt speed is about 0.7m/s.
Adjustable height: The height of this wood conveyor ranges from 75.6 inches to 111.4 inches, adapting to different applications. The height can be adjusted by a manual winch and locked at the maximum height. And max load capacity is up to 132lbs.
Easy mobility: The firewood elevator is built on two 5.7"-8" tubeless rubber tires, easy to move to anywhere you need it.
Versatile: The firewood conveyors allow you to easily load the wood, waste, or building materials into a truck. With a heavy duty steel construction, it is perfect for use in gardens, farms, and forestry areas.

Video

Load video:
Firewood Conveyor Operating Instruction
Load video:
Firewood Conveyor Assembly Instruction

Specifications

Dimension(LxWxH)
216.54x42.83x76.77 inch
Main Material
Carbon Structural Steel
Certification(S)
EPA
Engine
6.5 HP 208cc B&S CR950 Engine
Engine Type
Single Cylinder, 4-stroke, Air-Cooled, OHV
Power Type
Gasoline Powered
Start Type
Recoil Start
Gasoline
87+ Octane Required
Fuel Tank Capacity
2.64 Gallon
Max. Height
9.3 FT
Min. Height
6.3 FT
Load Capacity
132 lbs
Height Adjusted Method
Manual winch
Winch Load Capacity
1500 lbs
Belt Speed
0.7 m/s
Belt Material
PVC
Belt Width
19.7 inch
Belt Thickness
0.20 inch
Tire
5.7-8 Tubeless Rubber Tire

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 89x32x30
• Weight (lb): 849
• A forklift or equivalent is required for unloading.
• Freight Liftgate delivery is available.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Belt Adjust Instruction

Usage Tips
Max total load:
19.7" belt conveyor: ≤ 132 lbs
12" belt conveyor: ≤ 110 lbs
Max single item weight: 66 lbs
Suitable materials: Solid, block-type items such as firewood, sandbags, and bricks; securely sealed bagged liquids

Not recommended: Loose grains, fine particles, unpackaged liquids, or small granular materials
These guidelines help ensure smooth conveying performance and safe operation.
