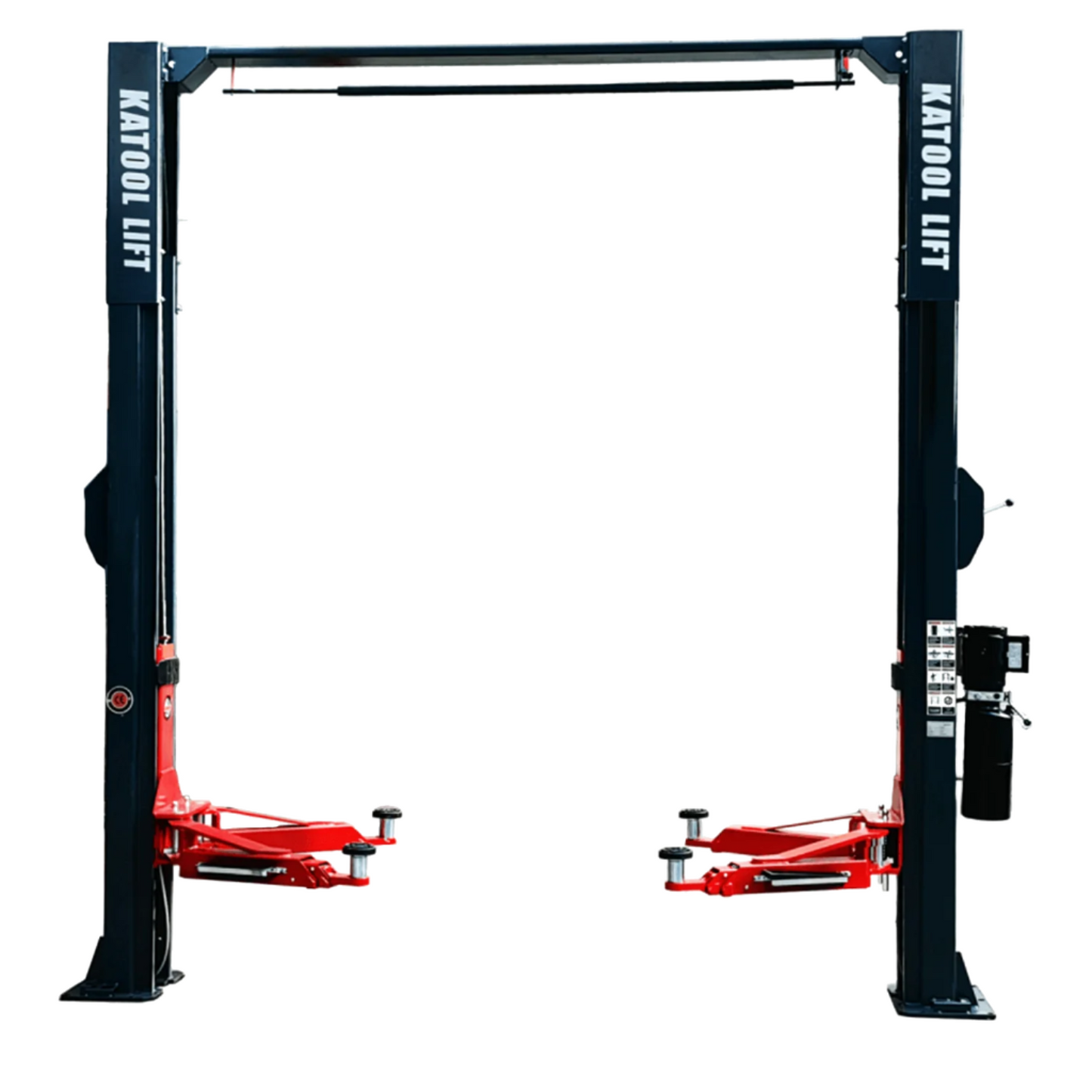

KT-AS110D Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release


Sale price$3,269

In stock


Introducing the KT-AS110D Two Post Asymmetrical Vehicle Lift, a powerhouse designed for automotive excellence. With an 11,000lbs capacity and Single Point Lock Release, it effortlessly handles diverse vehicles. Featuring Direct Drive Cylinders for robust lifting power, its single-sided unlock streamlines operation. Ideal for professional garages and dedicated DIY enthusiasts, the KT-AS110D excels in scenarios like comprehensive repairs and routine maintenance. This lift offers unmatched efficiency with its user-friendly design, ensuring precision and safety in every elevation. Elevate your automotive workspace with the reliability and innovation of the KT-AS110D for an unparalleled lifting experience.
User Manual

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.


Net weight 1323 lbs
Lifting Capacity 11000lbs/4990KG

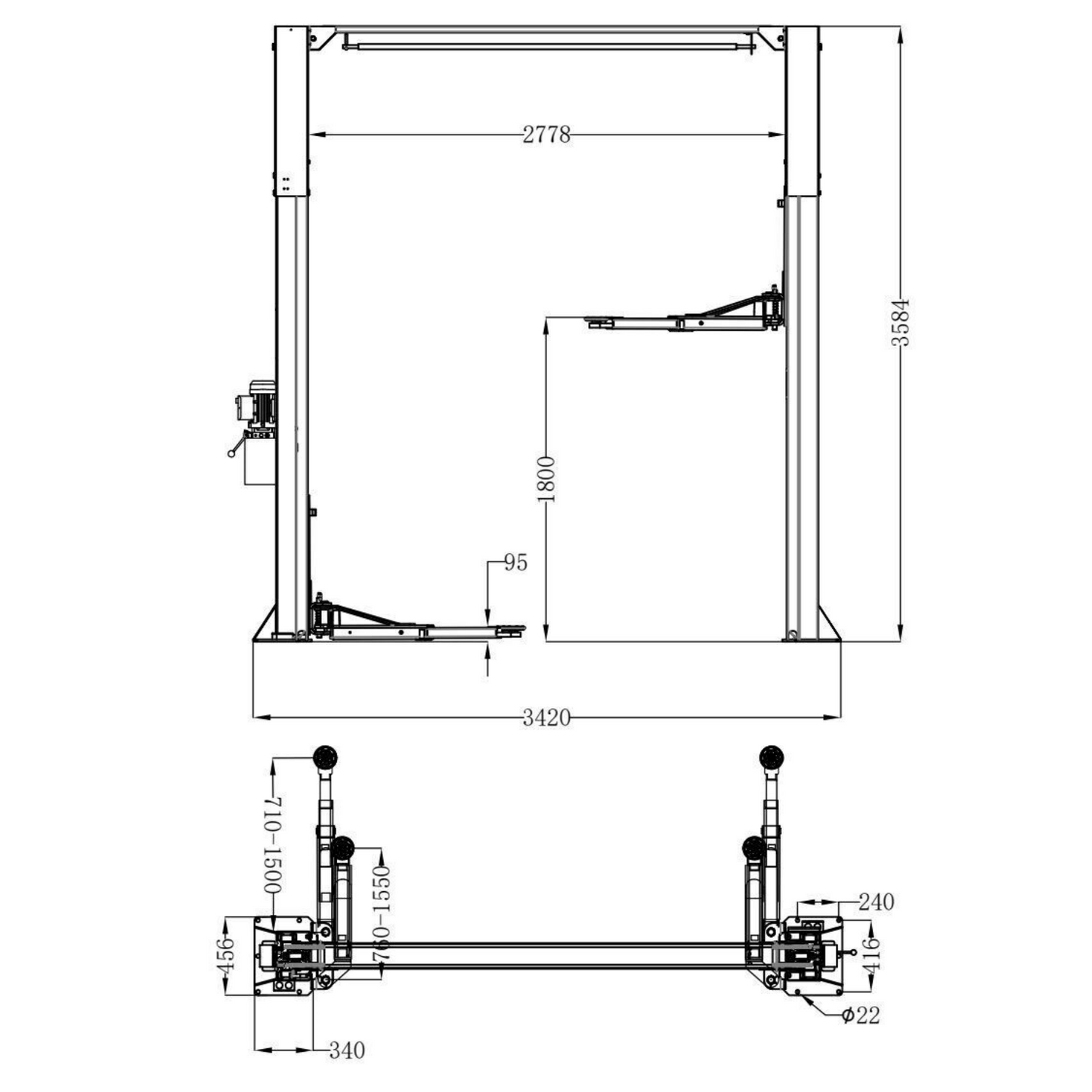

Max. Lifting Height 70.75" / 1800mm
Min. Height 3.74" / 95mm
Height Overall 141.25" / 3587mm
Width Overall 134.65" / 3420mm
Outside Column 120.4" / 3058mm
Inside Column 109.37" / 2778mm

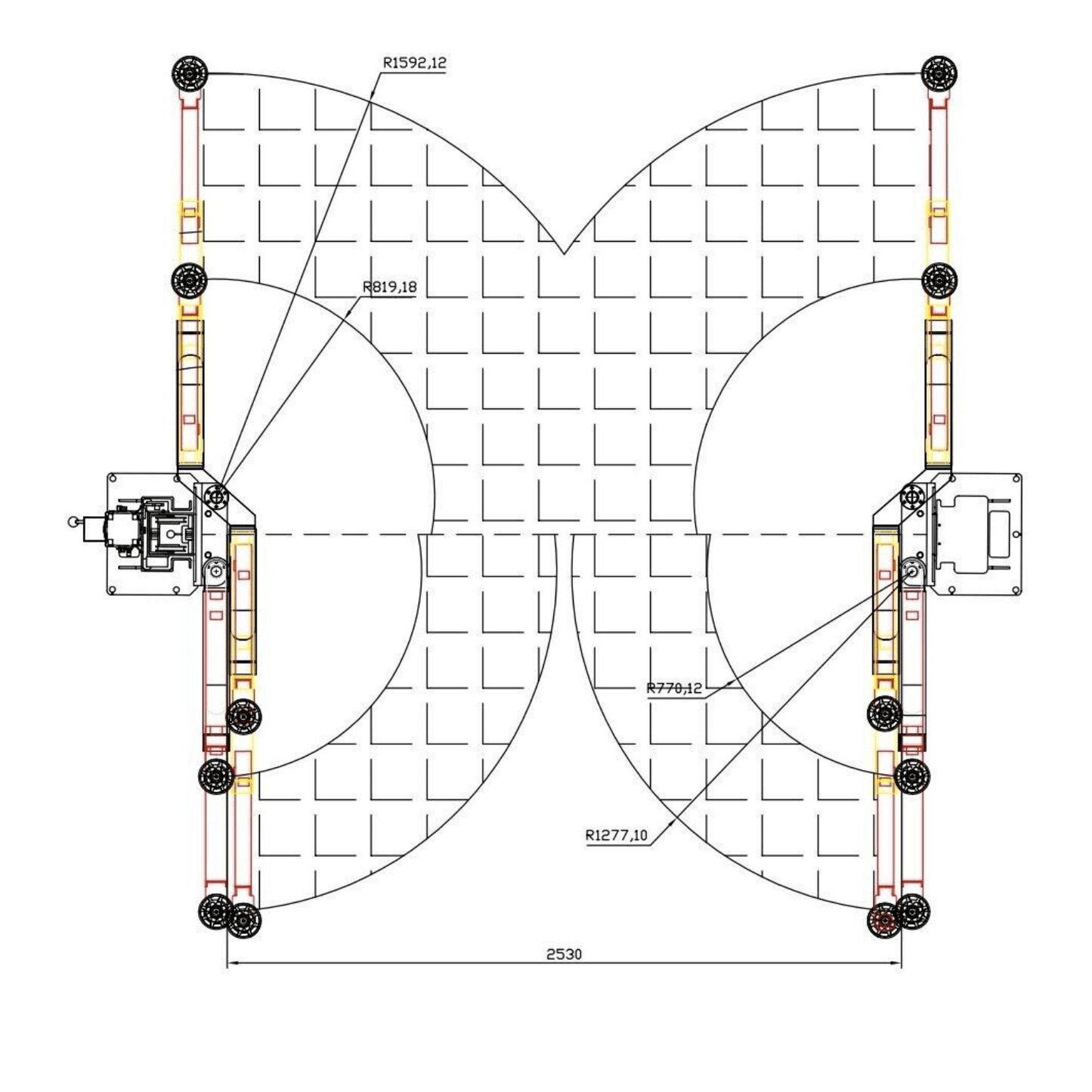

Drive-Thru Clearance 99.61" / 2530mm
Motor 220VAC/60HZ/1PH


  • 11000 lbs (4990 KG) lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Single Point Lock Release.

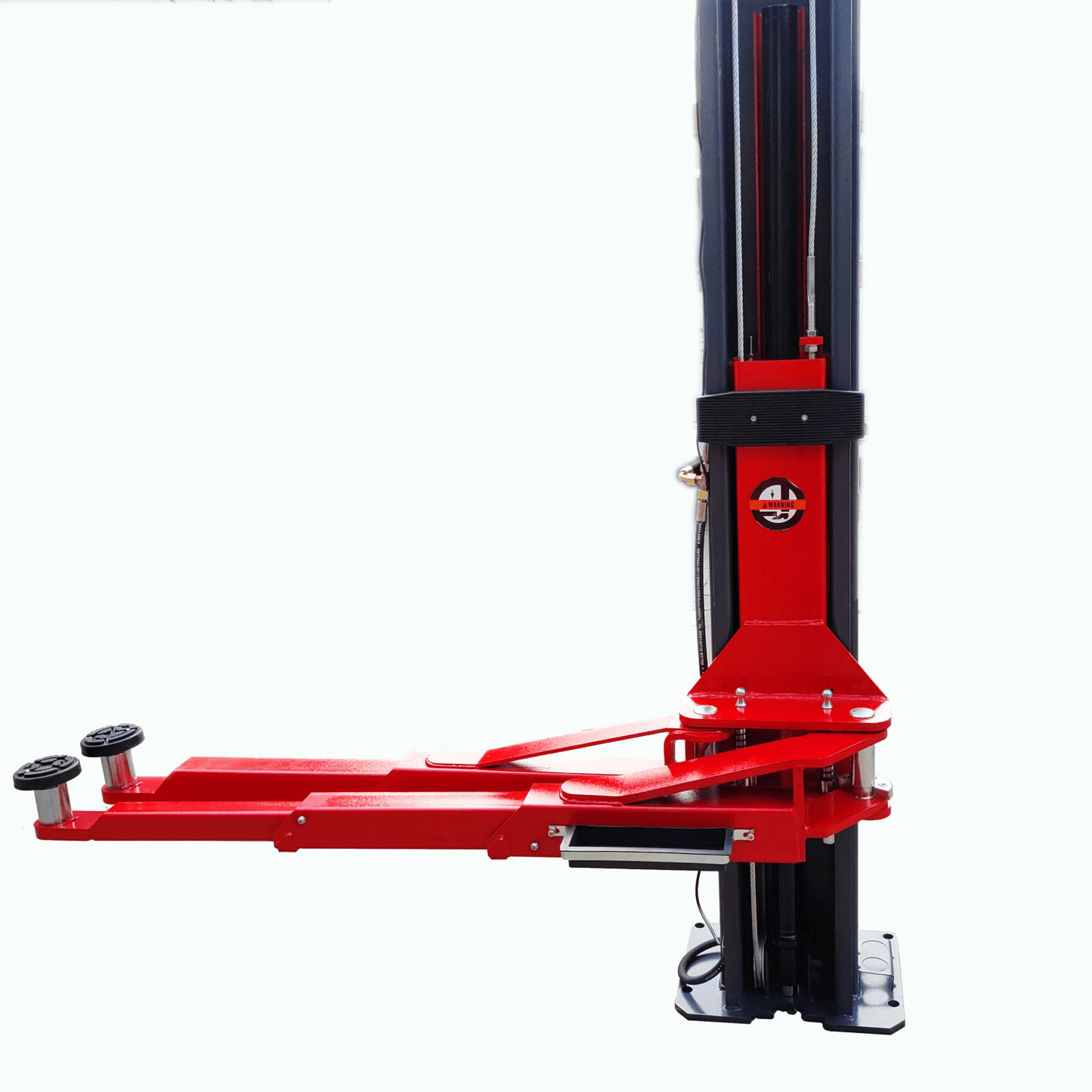

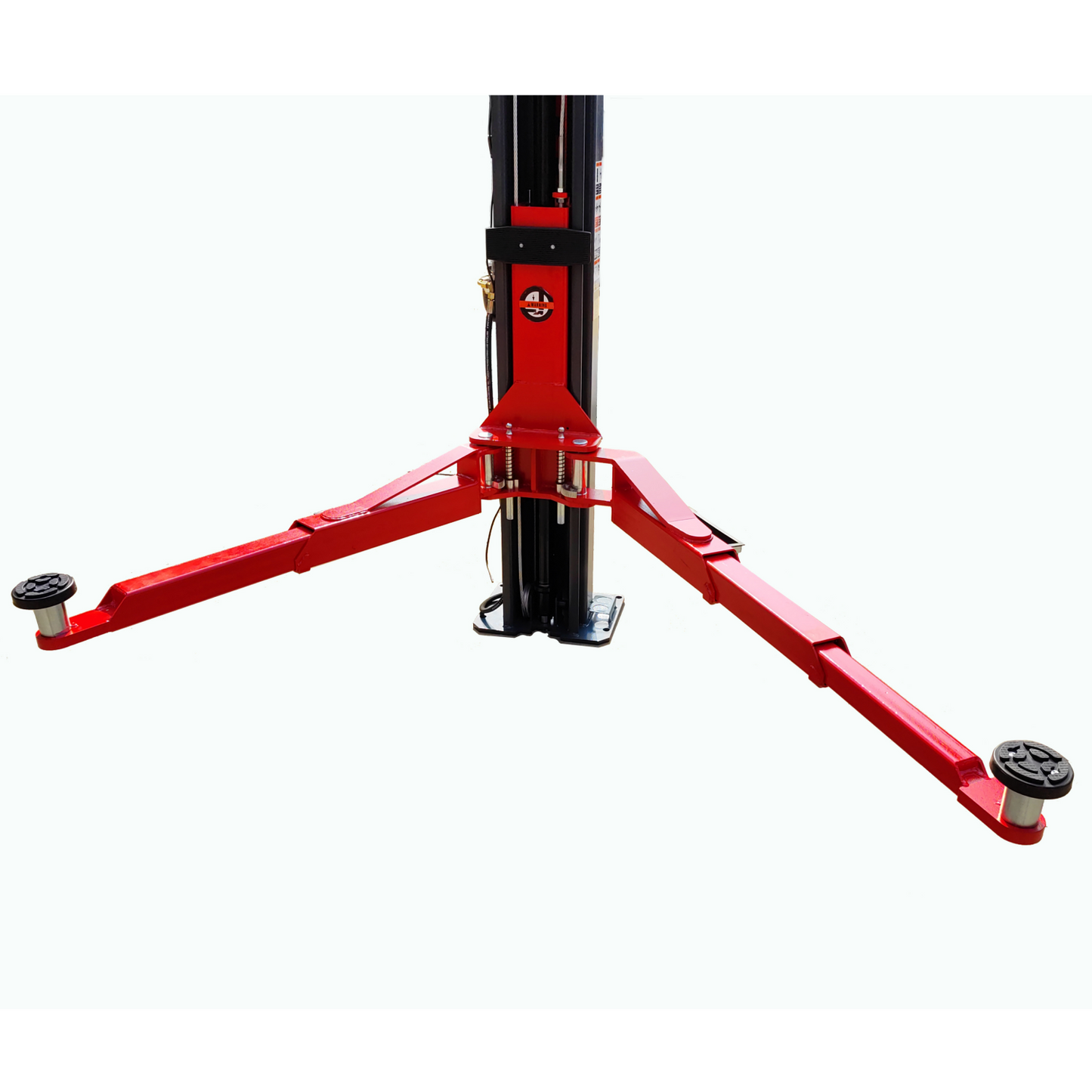

  • Asymmetric arms.
  • Direct Drive Cylinders.
  • Rubber pad door opening protection.

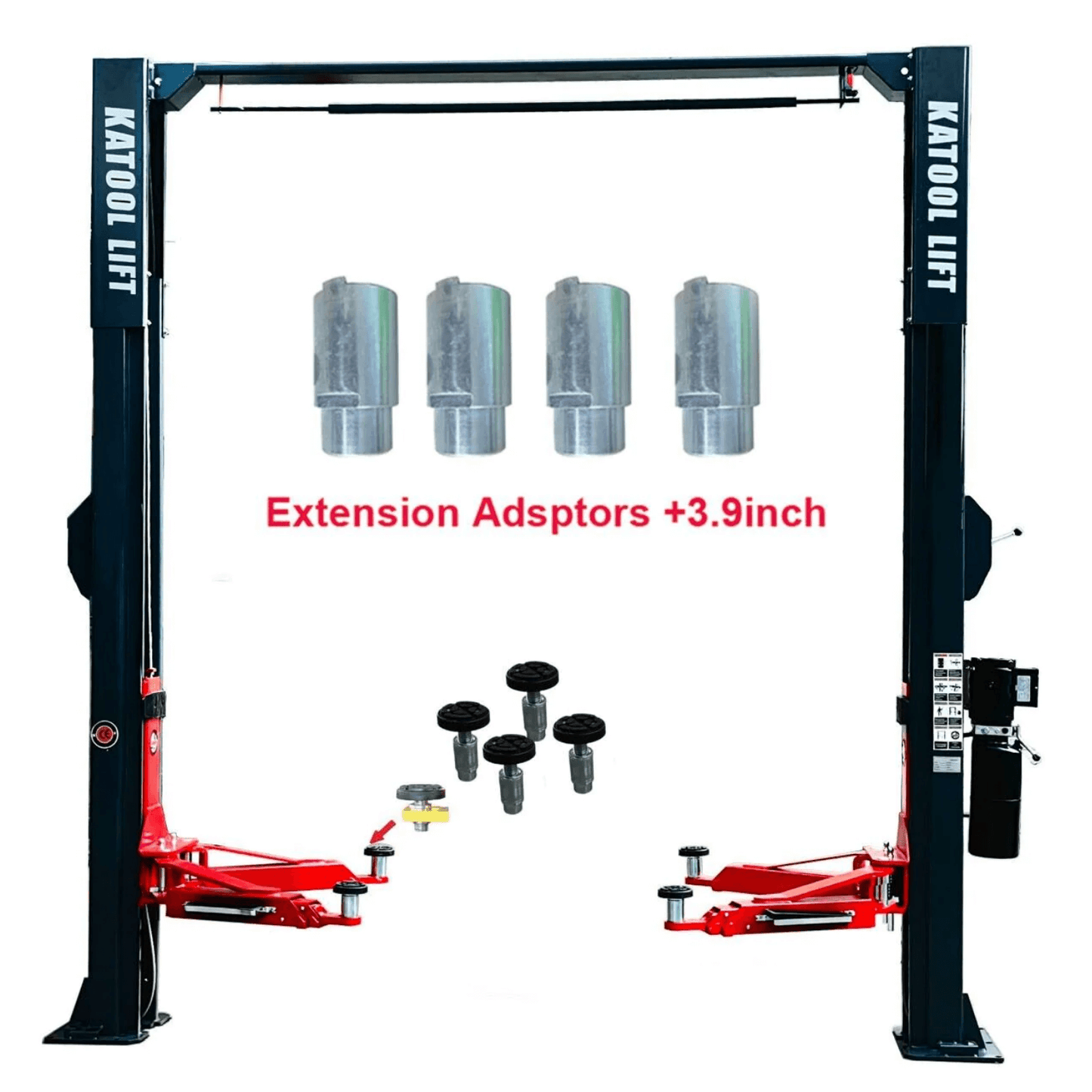

  • Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
  • Overhead safety shutoff bar.
  • Feet-protection safety guardrails with toolbox.
  • High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional).

                        Package Size

                        • LxWxH (inch): 112"x18"x36"
                        • Weight (lb): 1350
                        • A forklift or equivalent is required for unloading
