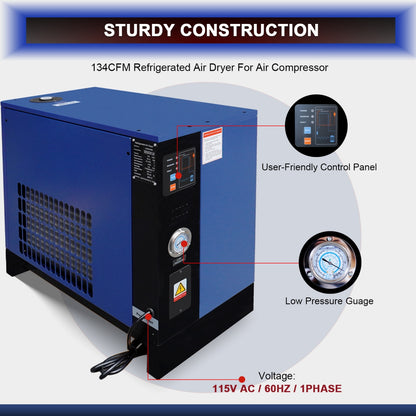

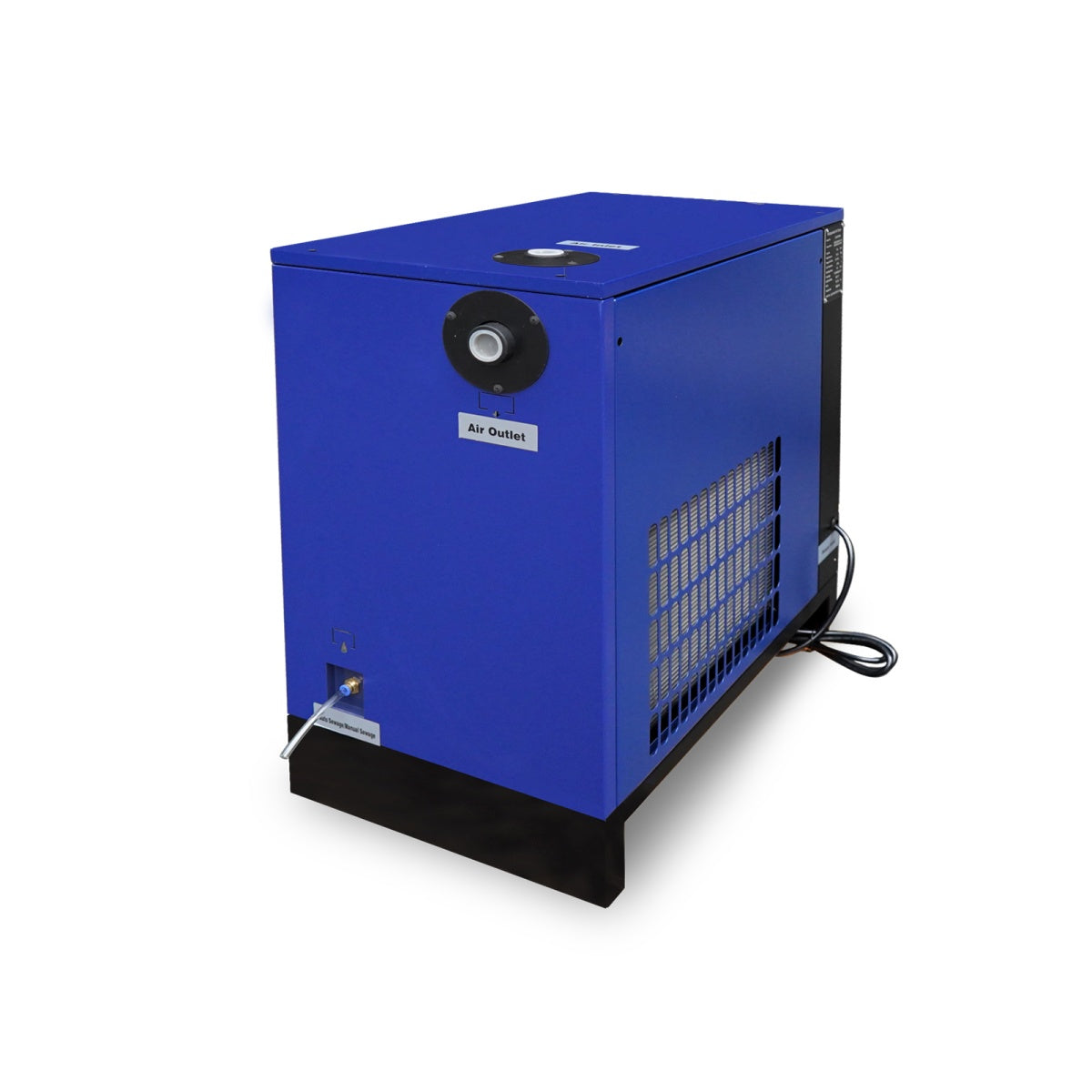

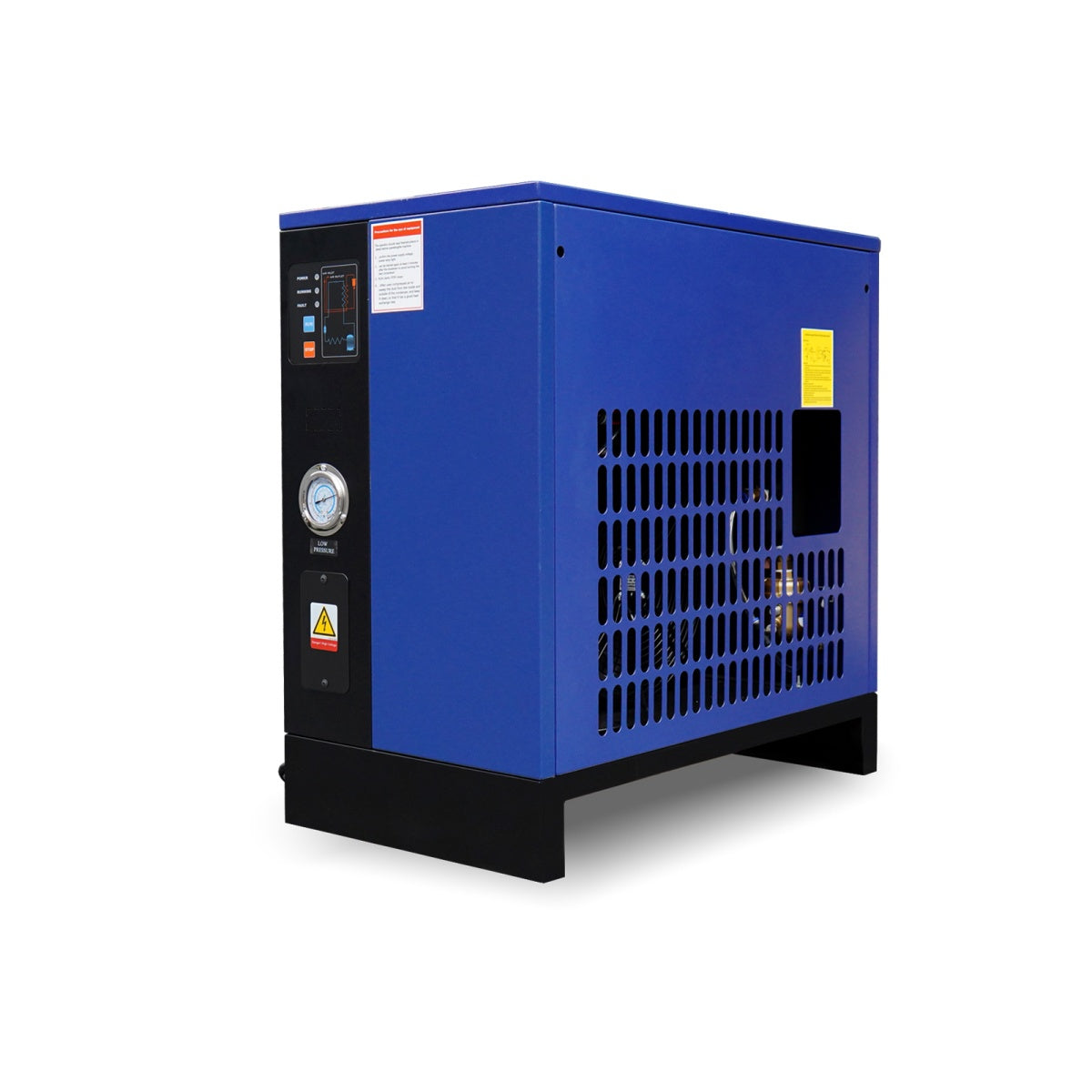

134CFM Refrigerated Air Dryer for 20HP & 30HP Compressors

134CFM Refrigerated Air Dryer for 20HP & 30HP Compressors

Chery Industrial SKU: N818P370119S
Max Flow
134CFM
Rated Pressure
101.5PSI
$1,799.00
$1,799.00

In Stock

Pickup available
TX, MD, CA, NC

134CFM Refrigerated Air Dryer for 20HP & 30HP Compressors

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

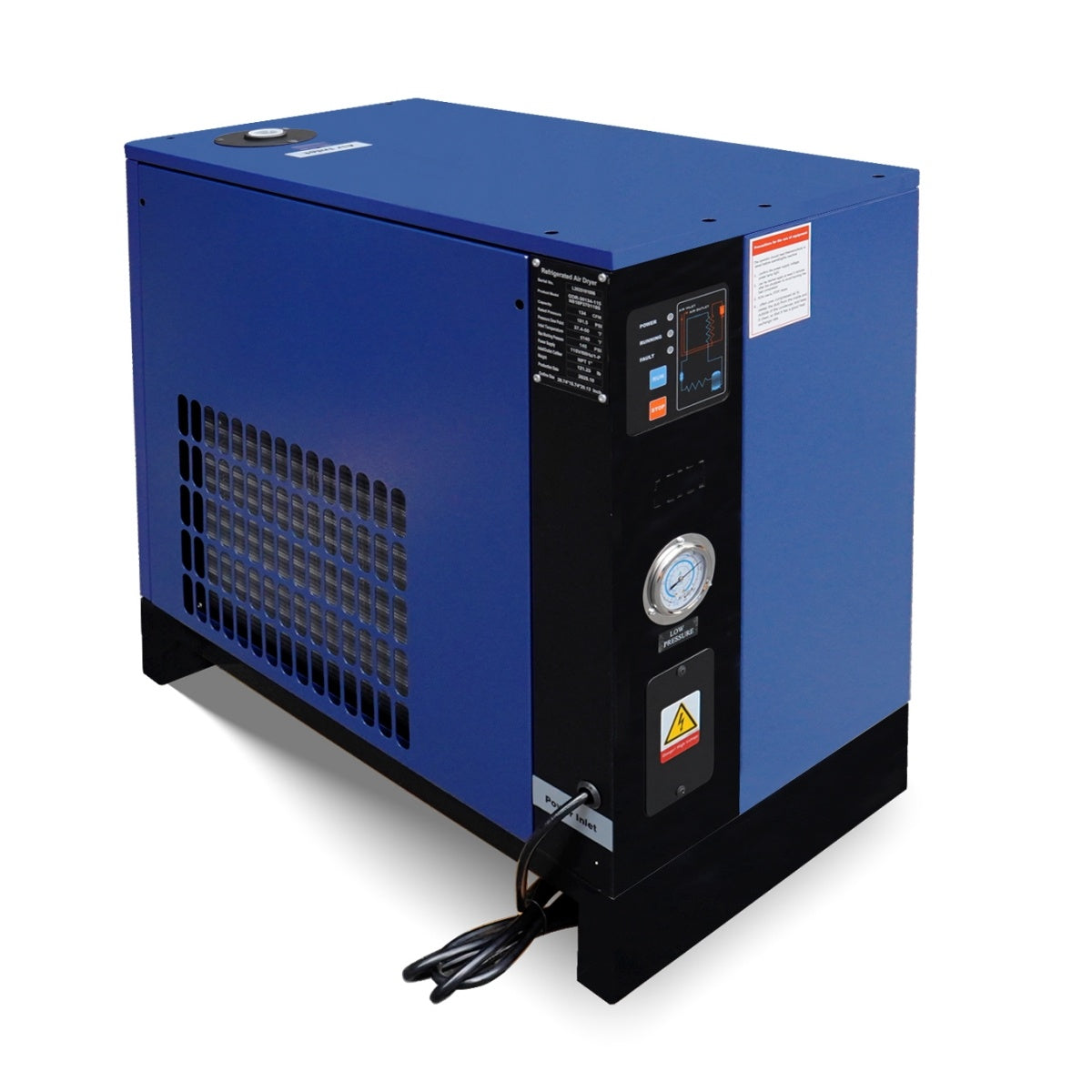

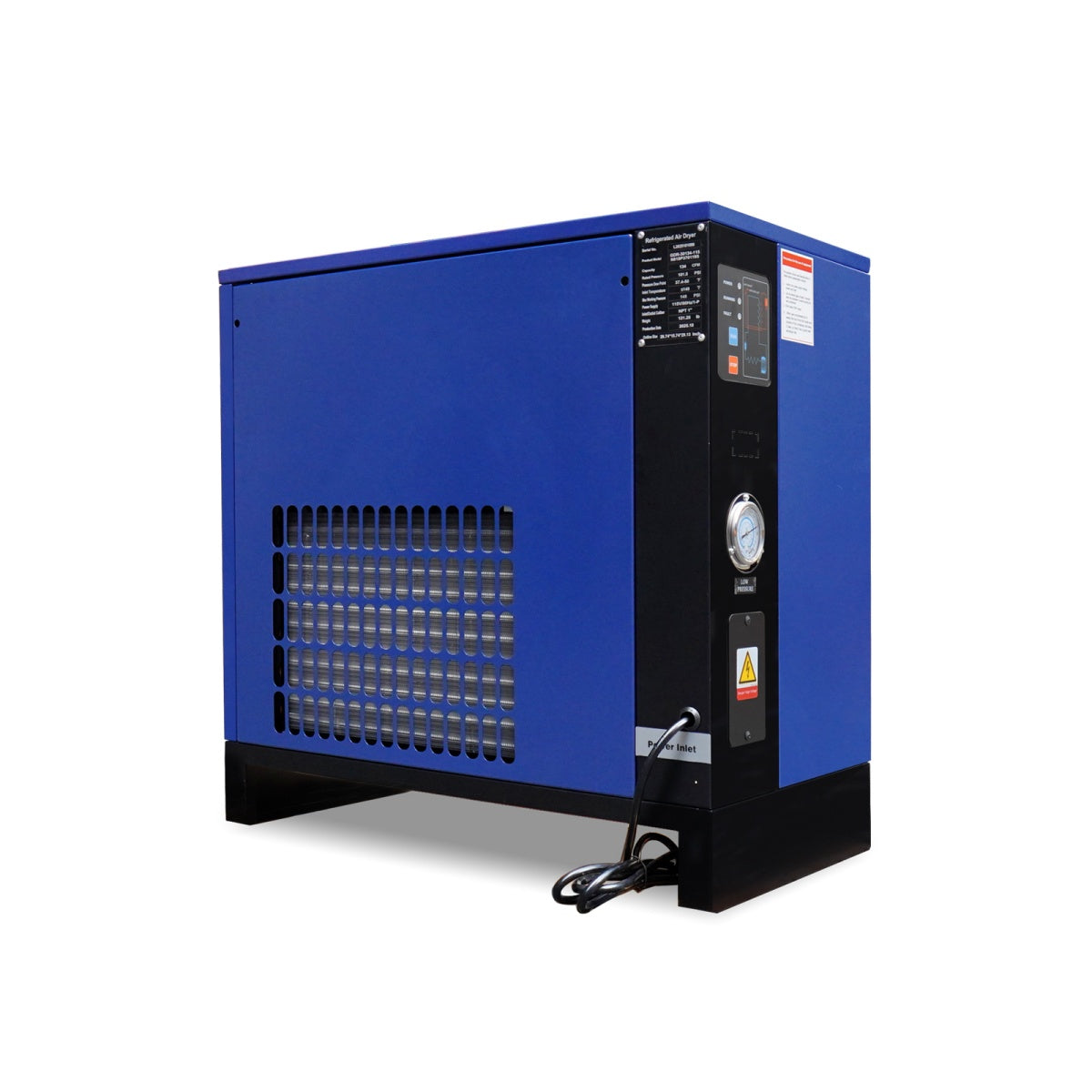

Safeguard your high-output systems with our 134 CFM refrigerated air dryer, designed for 20HP & 30HP compressors. Operating on 1-phase 115V power, it efficiently removes moisture to prevent corrosion and ensure clean, dry air. This industrial-grade unit is essential for protecting pneumatic tools and maximizing productivity.

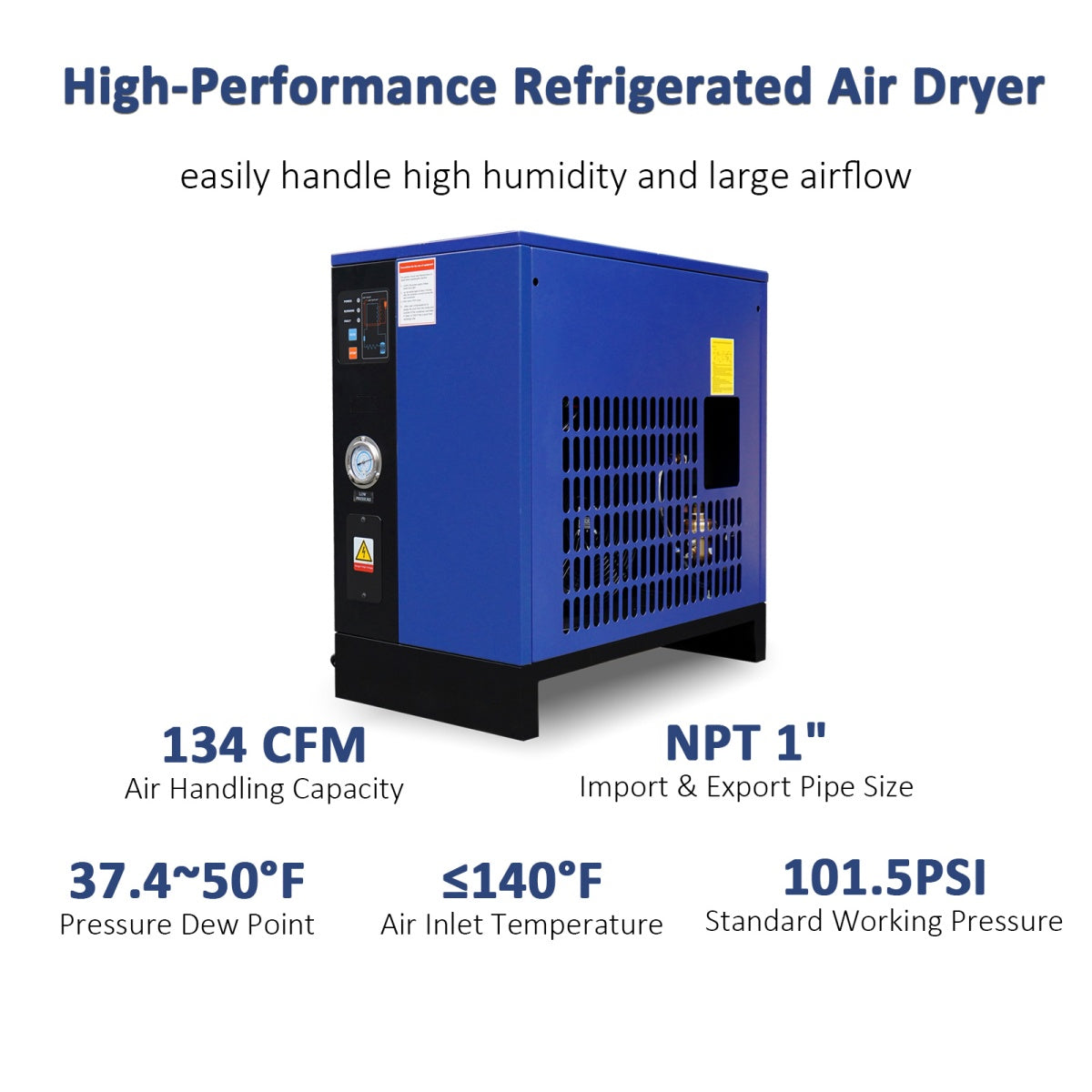

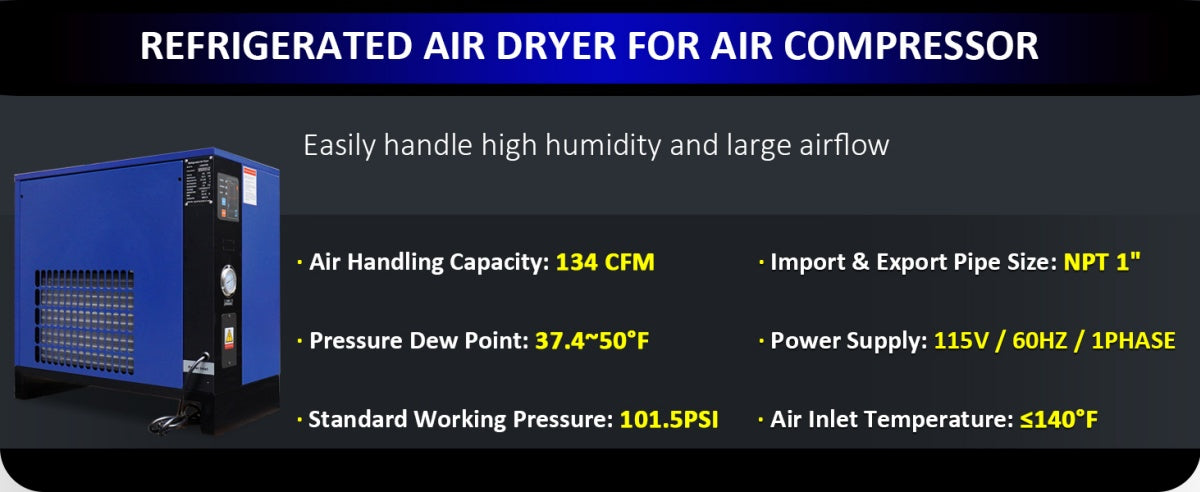

  • Air handling capacity: 134 CFM, pressure dew point: 37.4-50°F.
  • Standard working pressure: 101.5 PSI, maximum working pressure: 145 PSI.
  • Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F.

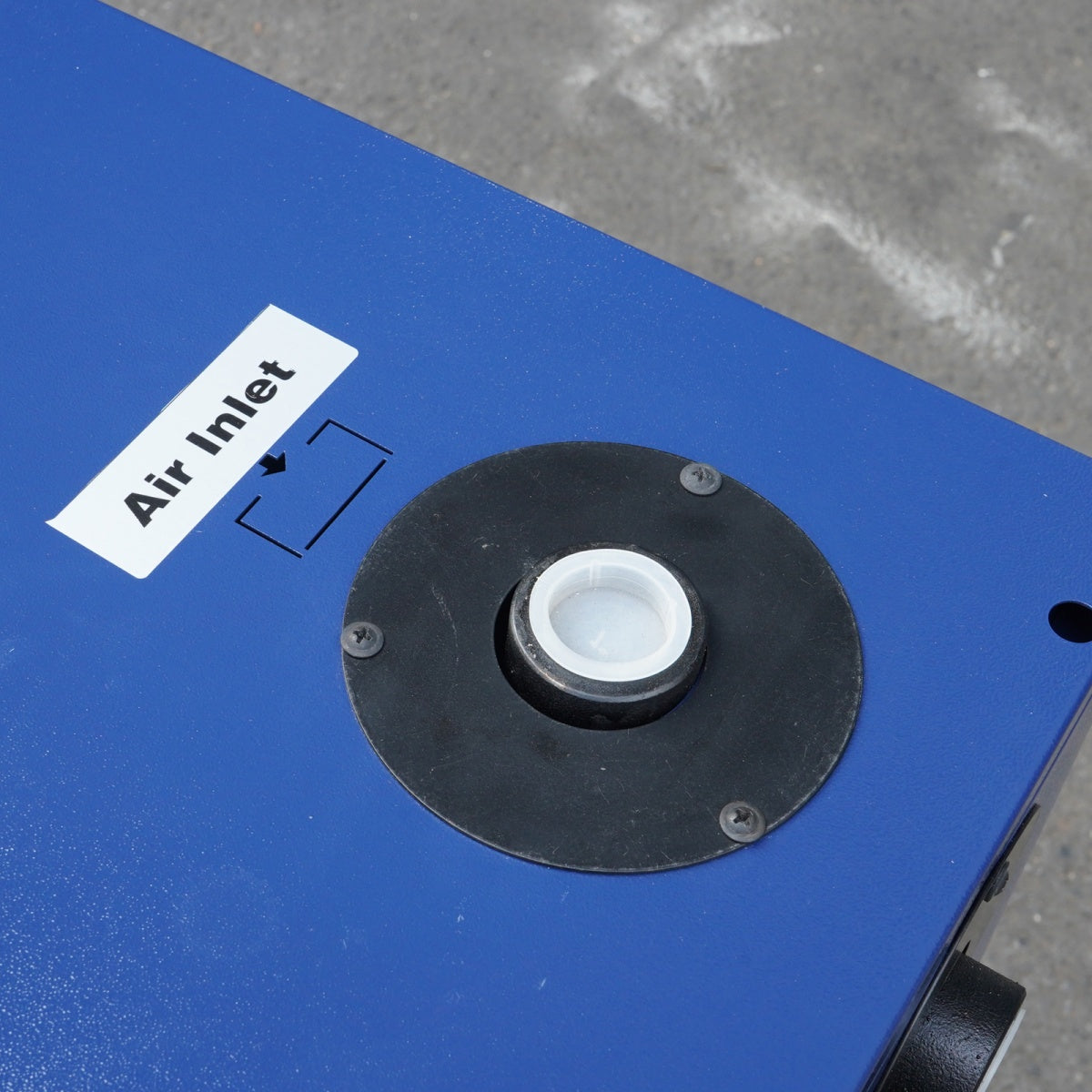

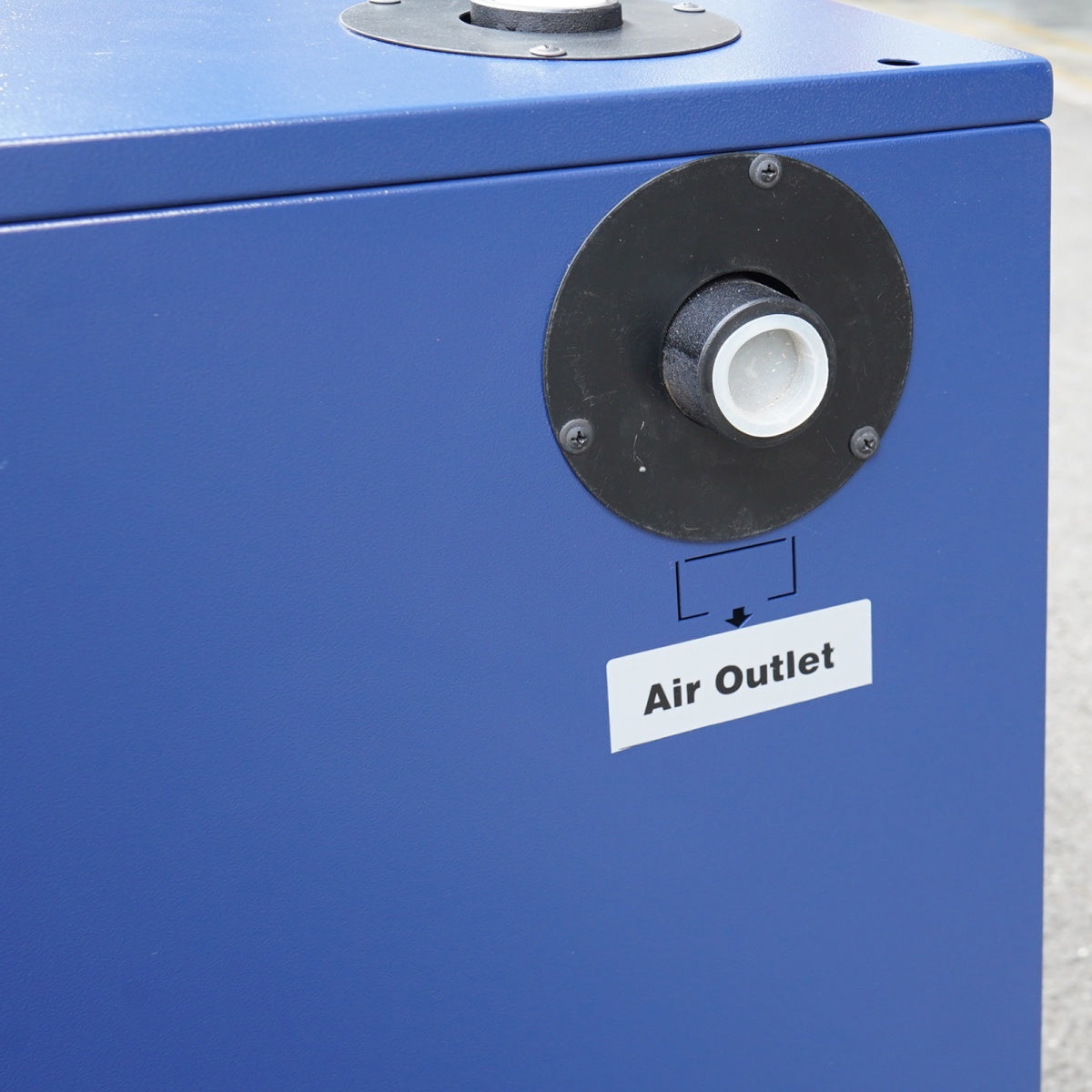

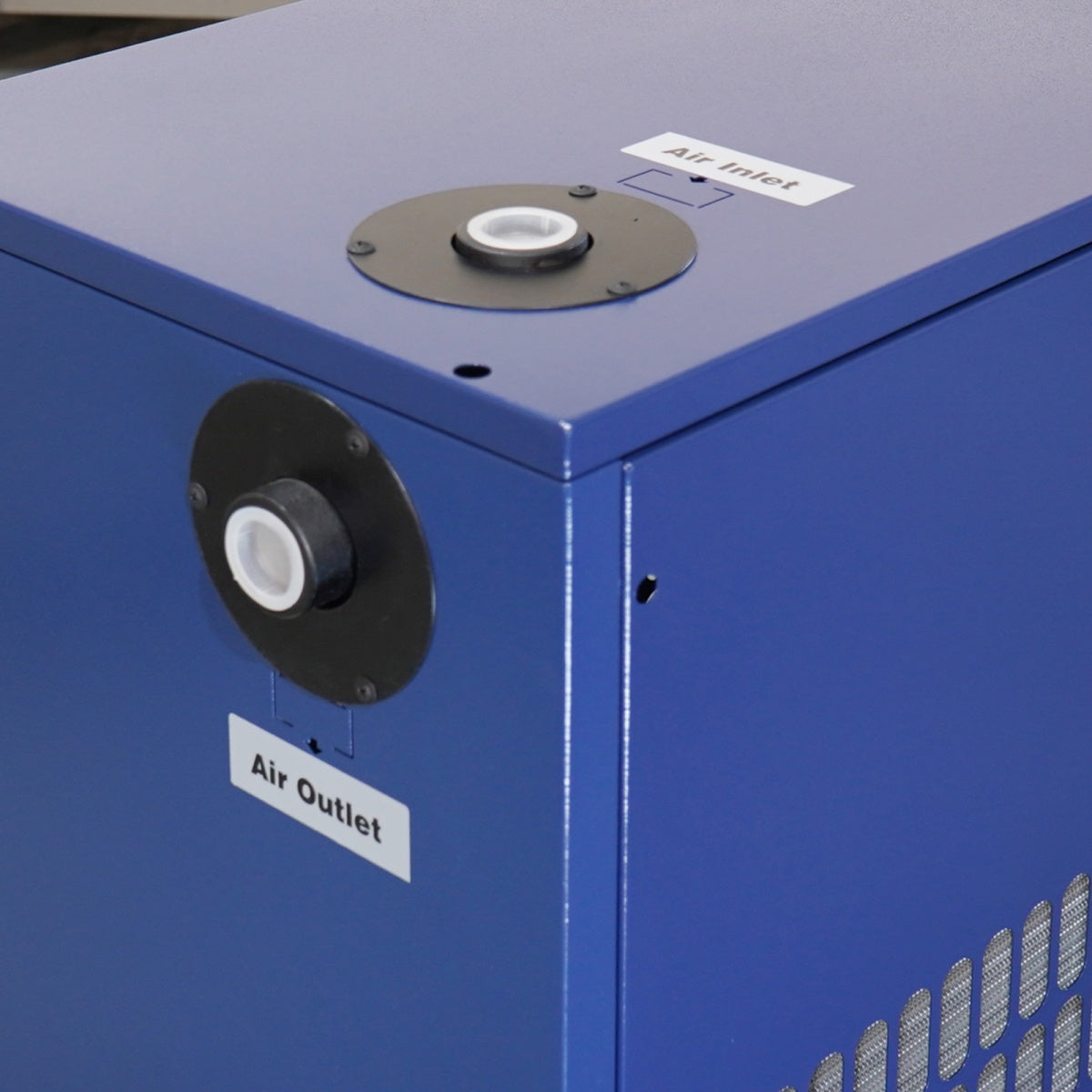

  • Adaptation to the work system: continuous work, import and export pipe size: NPT 1".

Specifications

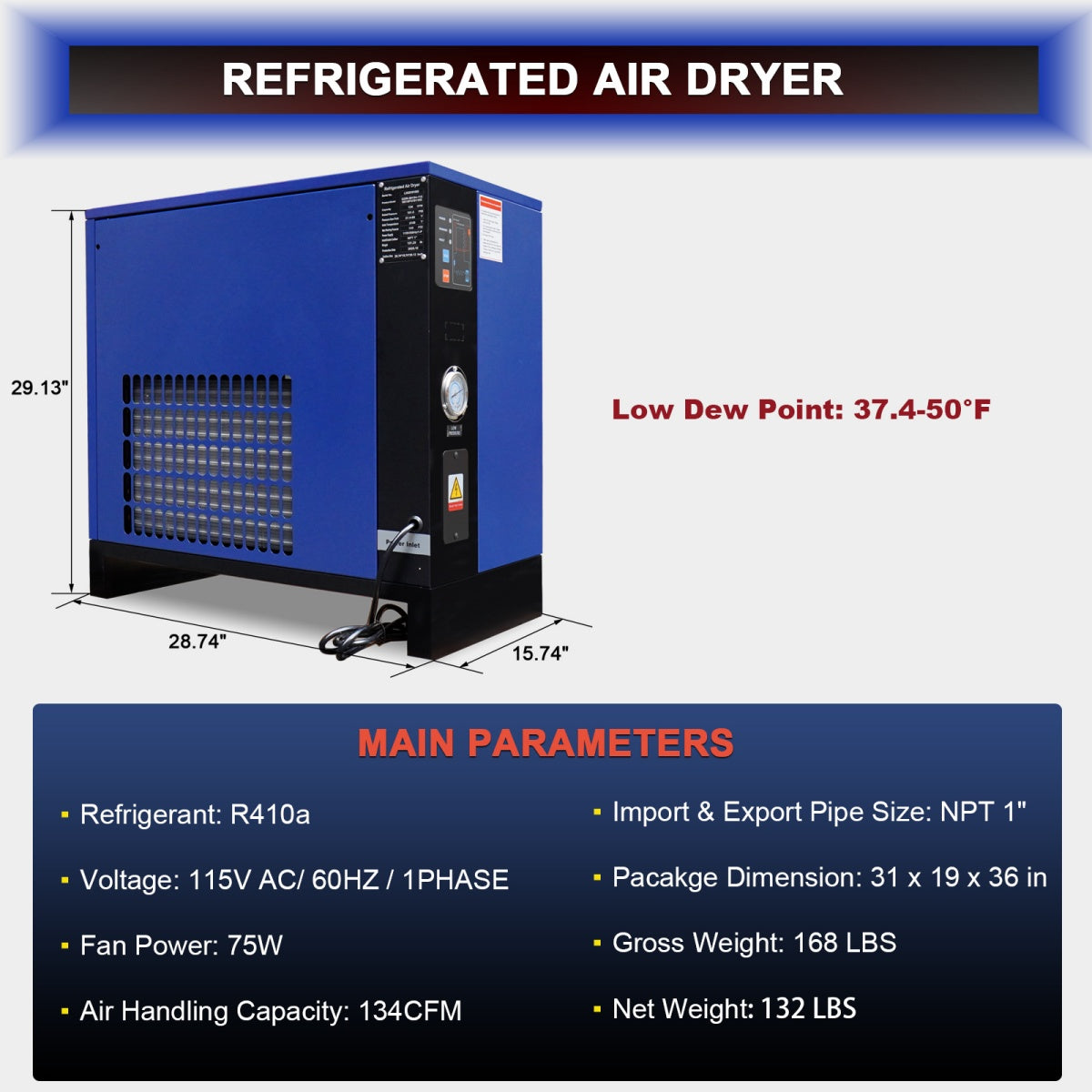

Dimension
28.74X15.74X29.13 inch

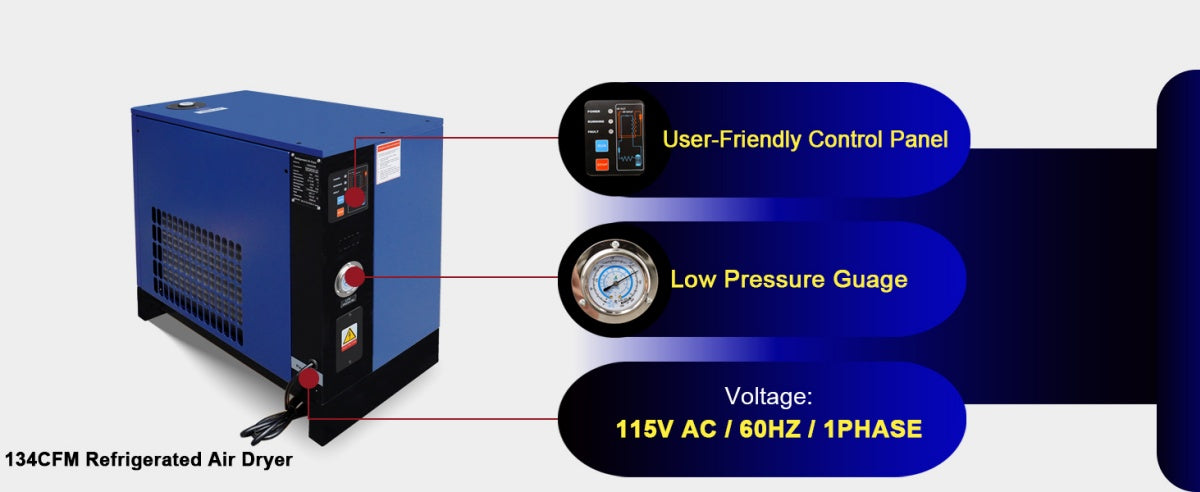

Voltage

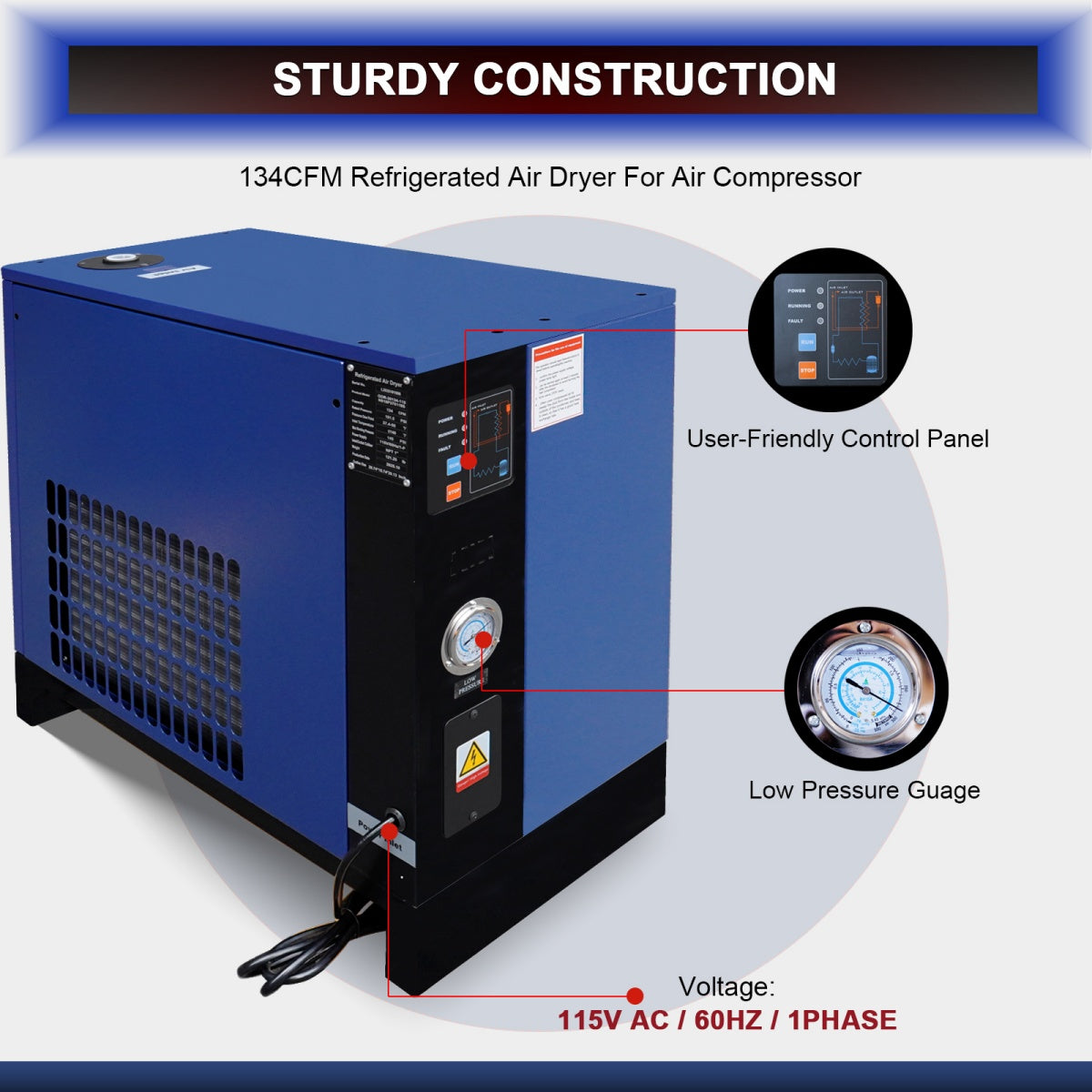

115V 1Phase 60HZ
Max Flow
134CFM
Rated Pressure
101.5PSI
Maximum Pressure
145PSI

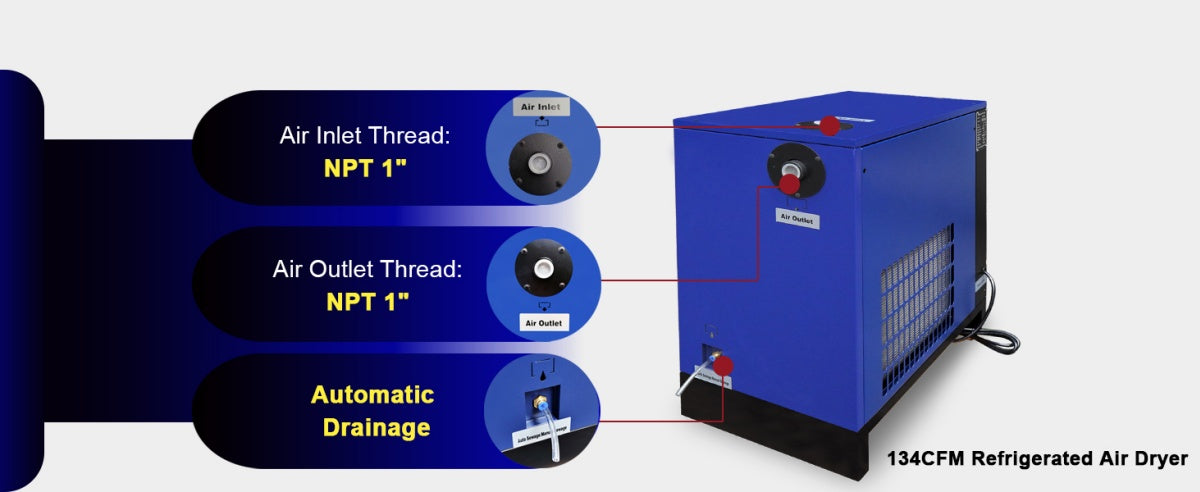

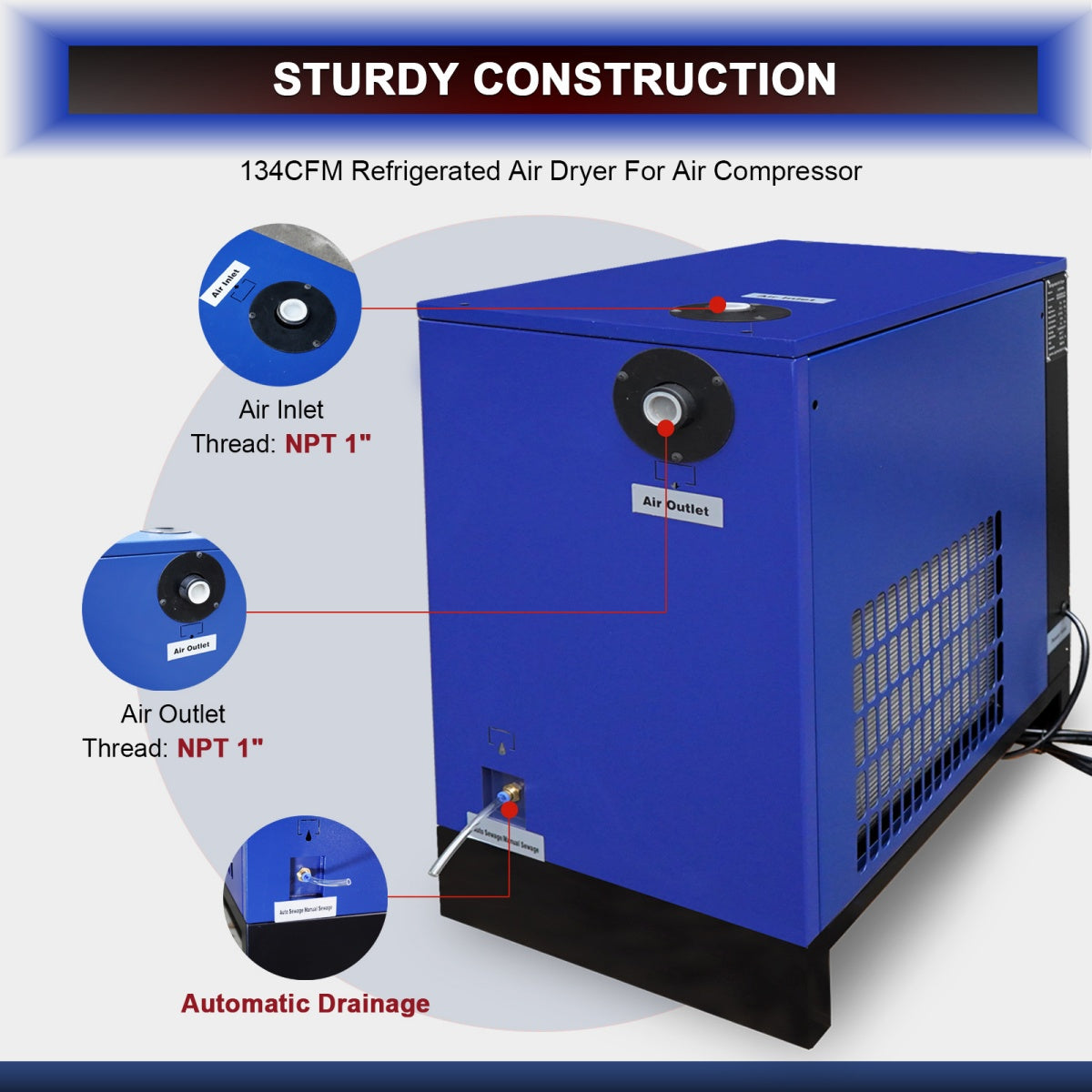

Air Inlet Thread
1" NPT
Air Outlet Thread
1" NPT
Pressure Dew Point
37.4-50°F
Air Inlet Temperature
≤140°F
Ambient Temperature
≤100.4°F

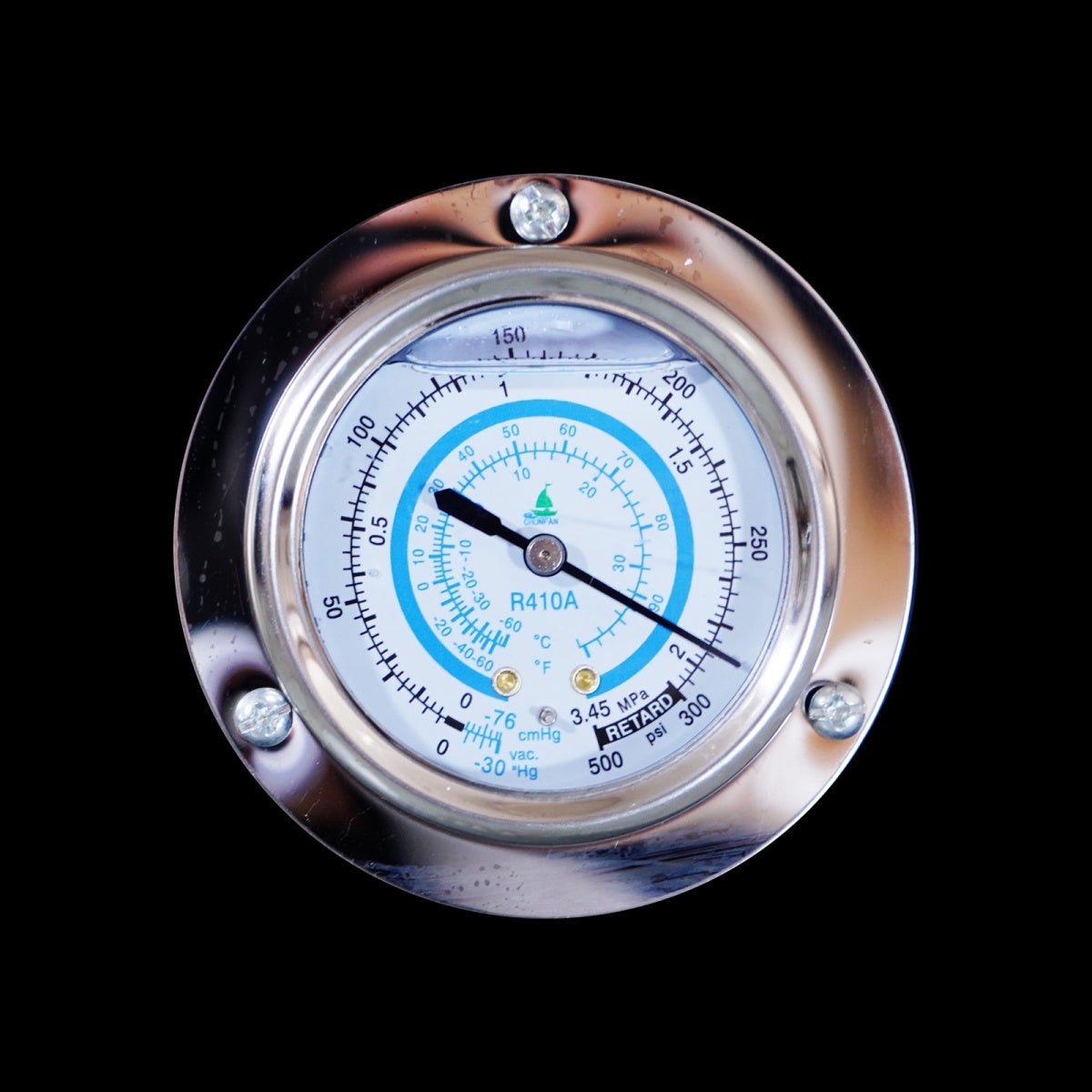

Refrigerant
R410a
Fan Power
75W
Cooling Power
0.5HP
Blowdown Valve

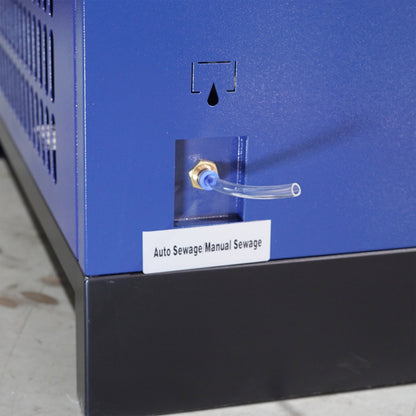

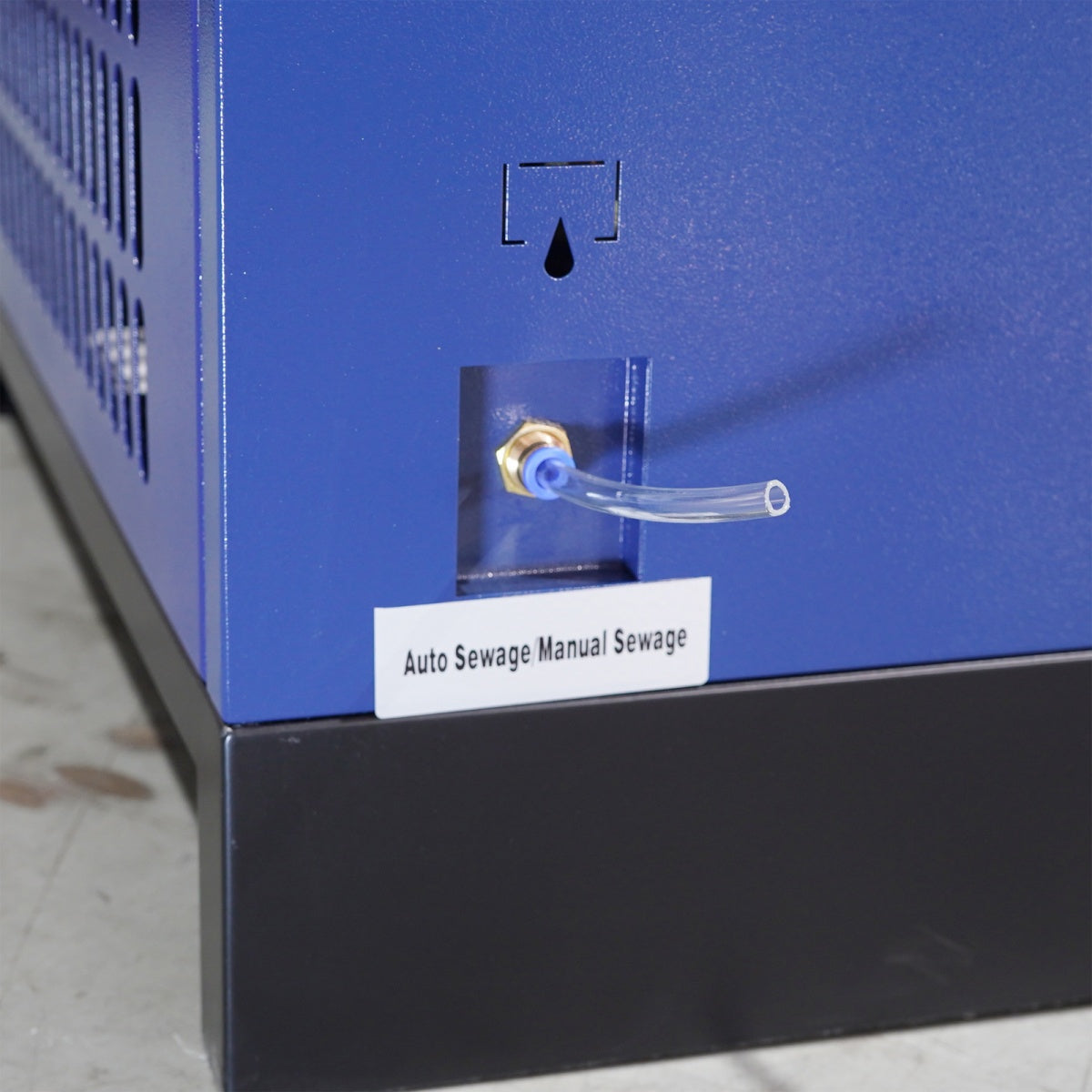

Electronic blowdown valve

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 32x19x37
• Weight (lb): 168
• A forklift or equivalent is required for unloading.
