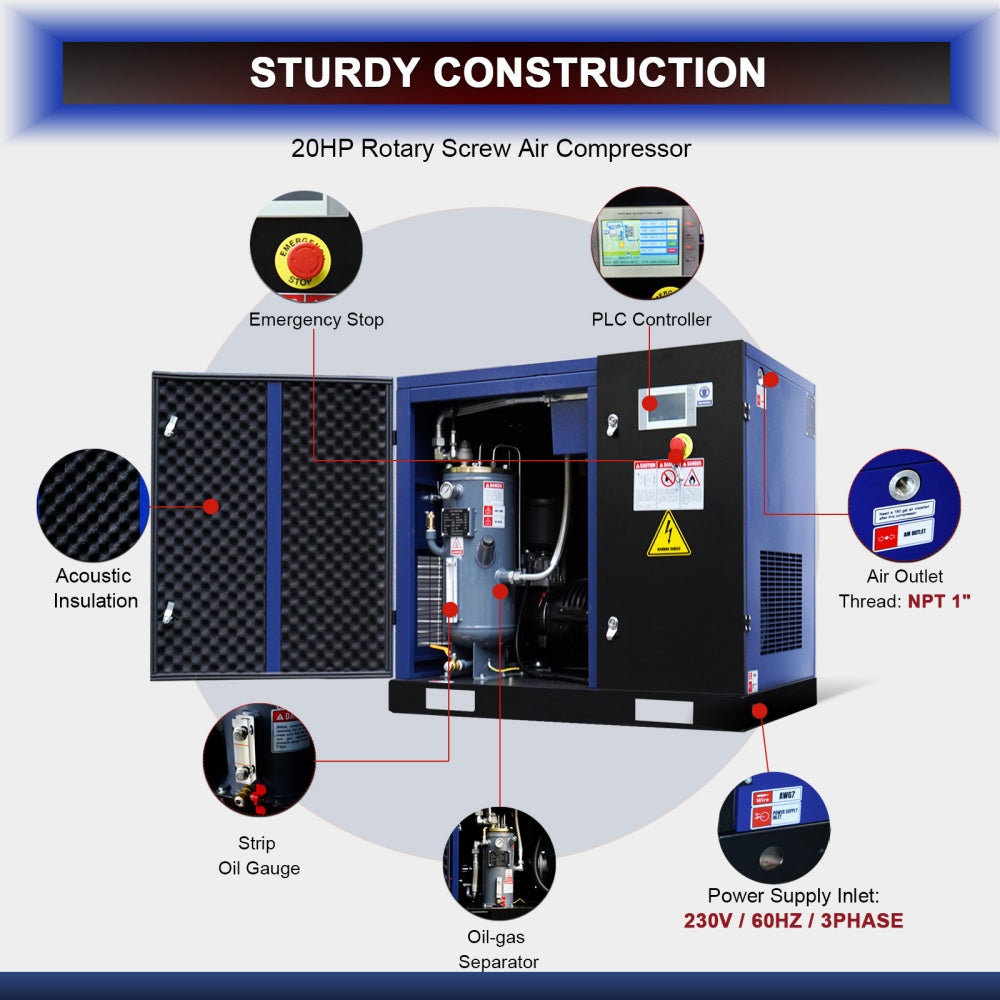

  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, Features
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, Dimension
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
  • 20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ
1 20

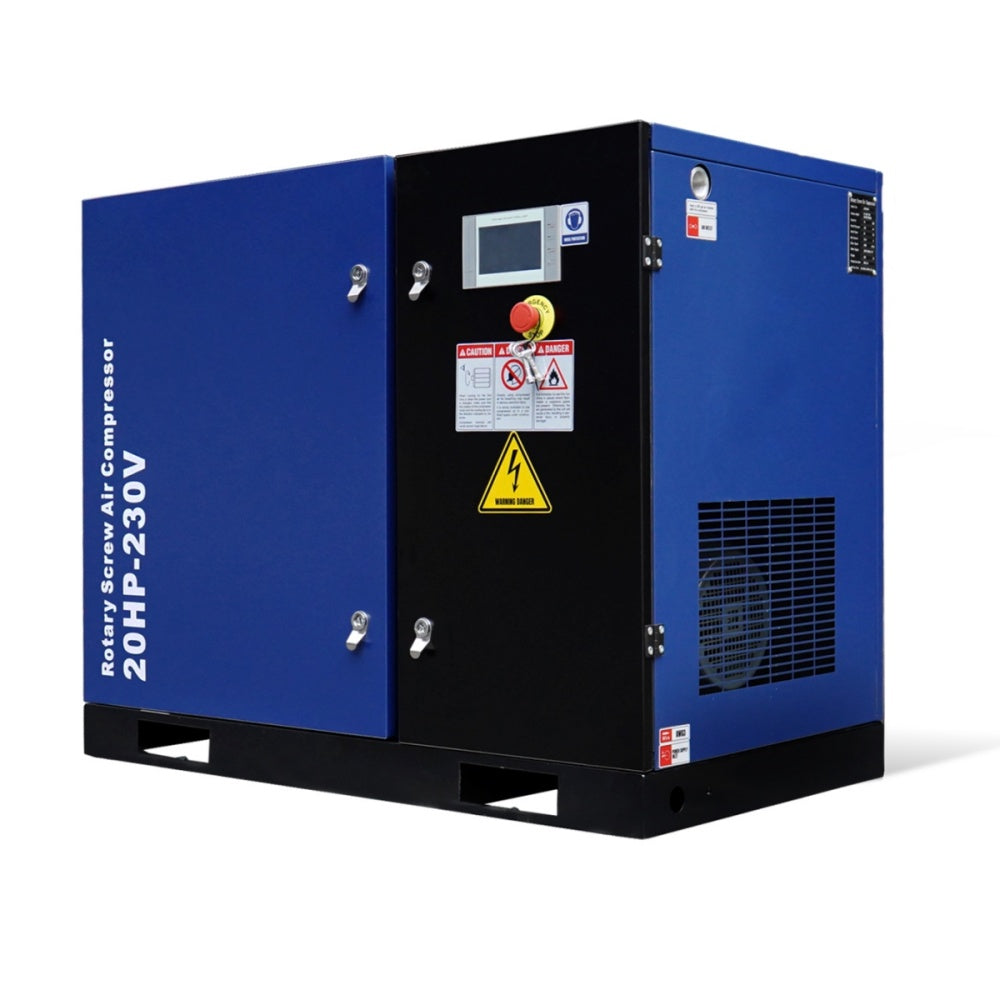

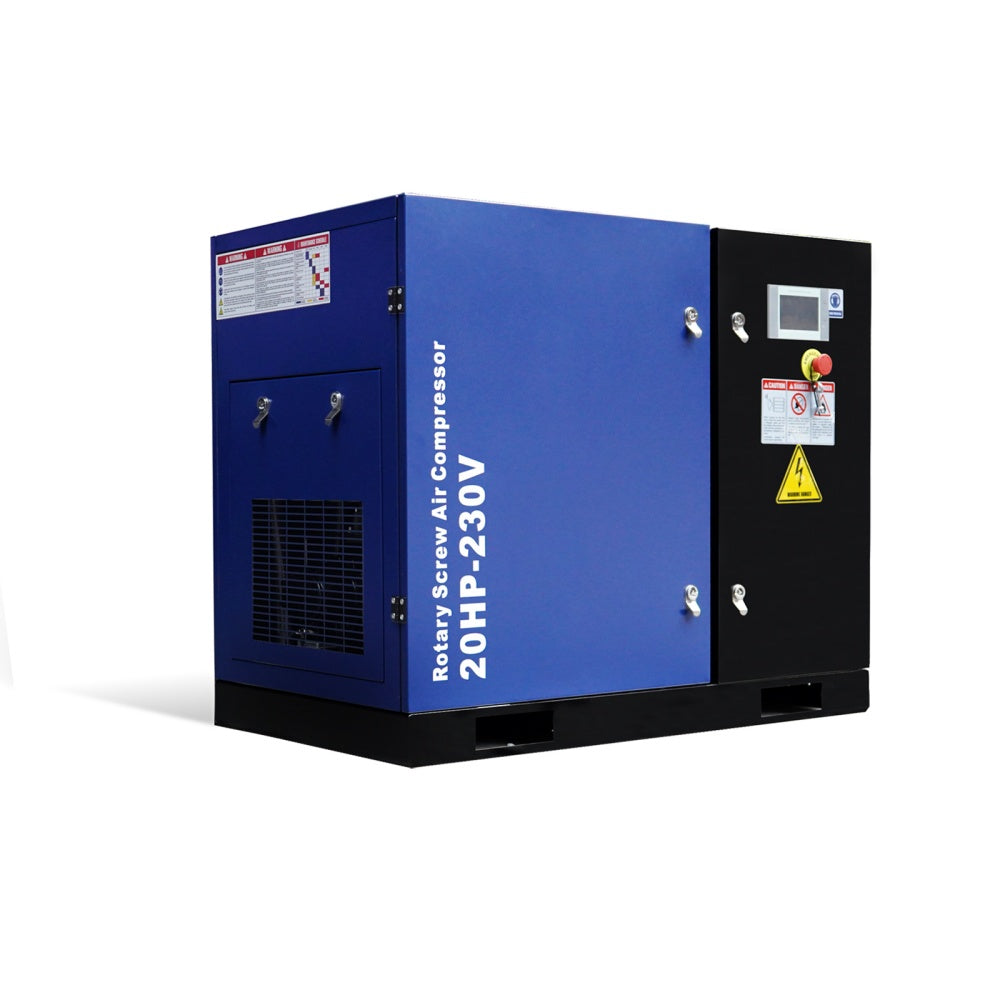

20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ

20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ

Chery Industrial SKU: N818P370090S
Air Flow Capacity
74CFM
Rated Pressure
125PSI
$3,999.00
$3,999.00

In Stock

Pickup available
MD, CA

20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 230V 3PHASE 60HZ

  • TX

    Pickup unavailable

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup unavailable

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

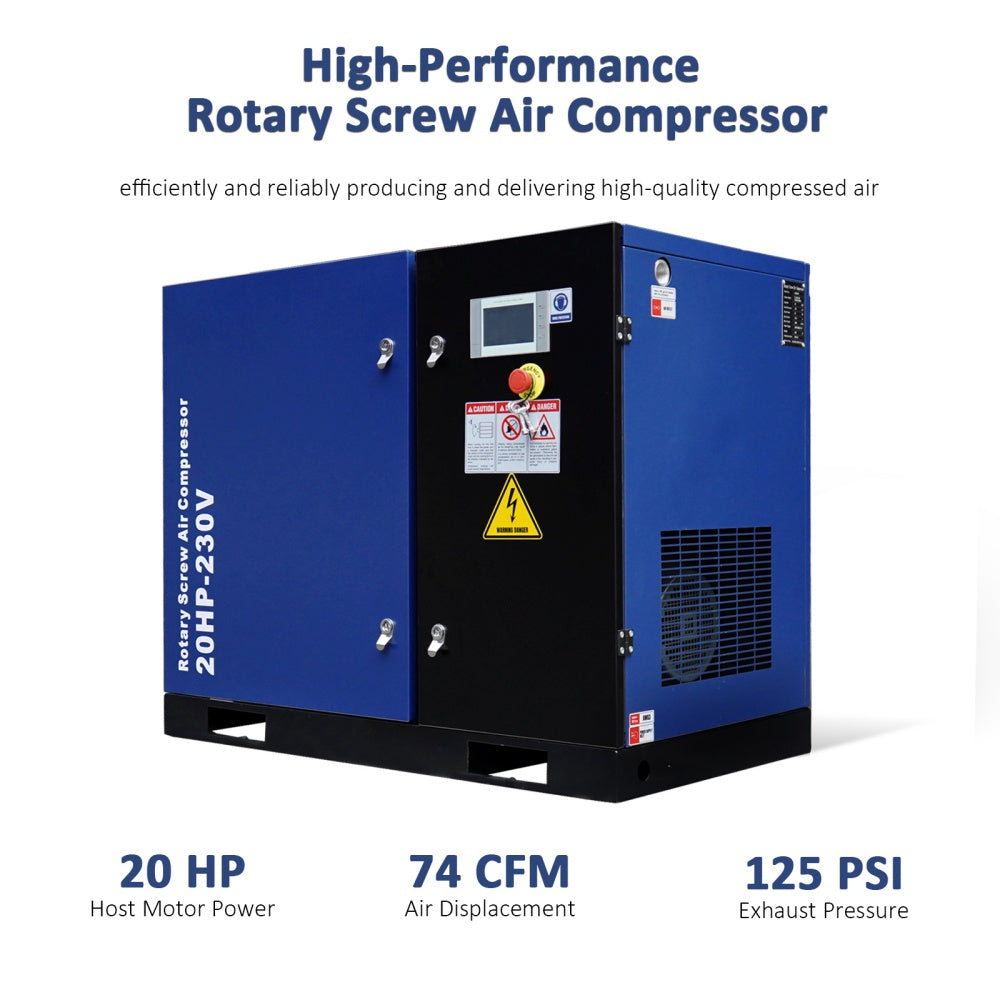

Meet your production demands with our industrial-grade 20HP rotary screw air compressor. Delivering a robust 74 CFM at 125 PSI, this heavy-duty, fixed-speed system is engineered for continuous, reliable performance in demanding facilities. Optimized for efficiency with 230V 3-phase 60Hz power.

  • Air displacement: 74 CFM, exhaust pressure: 125 PSI.
  • Host motor speed: 3500 r/min, start method: star-triangle start.
  • Host motor power: 15 kW / 20 HP, power supply: 230V/ 60HZ / 3 PHASE.
  • Pipe diameter: NPT 1", max current: 55.8 A, aspiration state temperature: 0～104°F.
  • Discharge temperature: ≤A-temperature+59°F.

Specifications

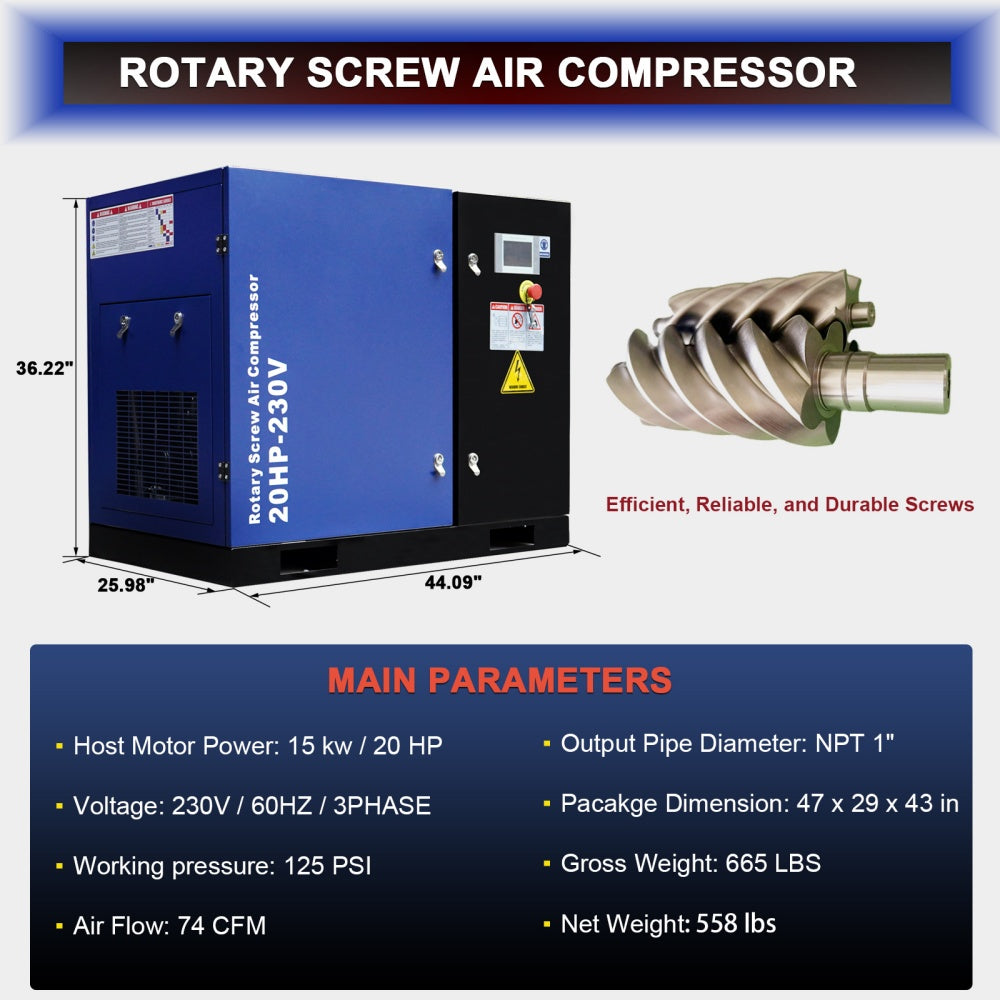

Dimension
44.09x25.98x36.22 inch
Voltage
230V 3Phase 60HZ
Air Flow Capacity
74CFM
Rated Pressure
125PSI
Maximum Pressure
130.5PSI

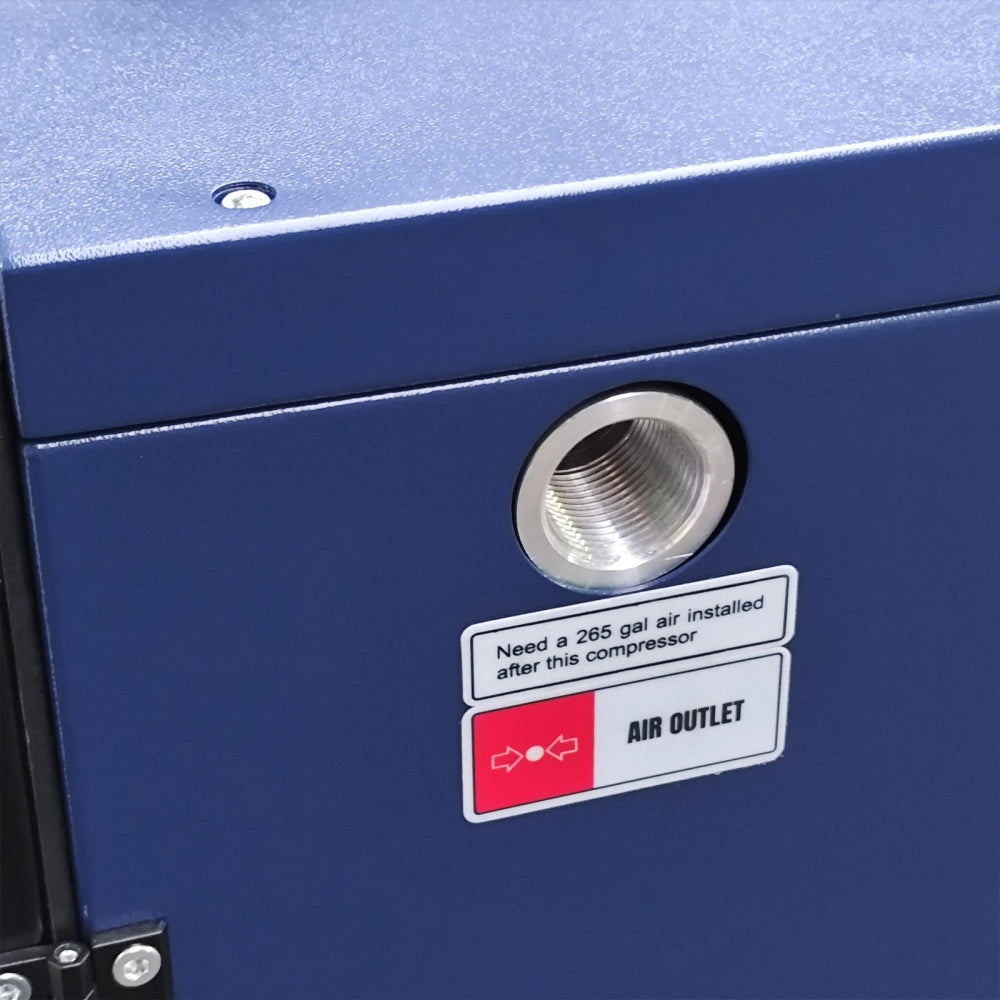

Air Outlet Thread
1" NPT
Maximum Current
55.8A
Rated Power
20HP
Motor Speed
3500RPM
Noise Level
62±2dB(A)

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 48x30x44
• Weight (lb): 665
• A forklift or equivalent is required for unloading.
