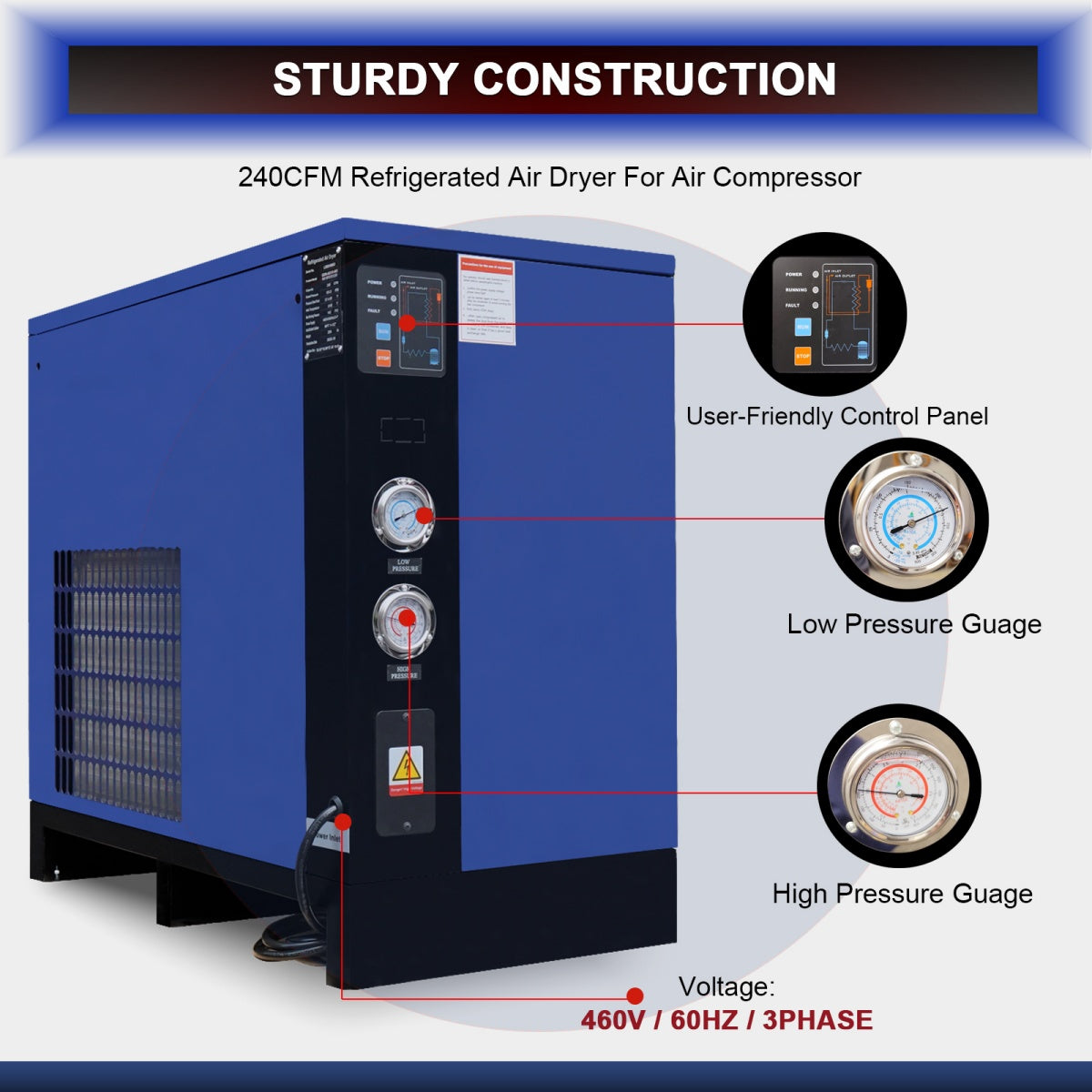

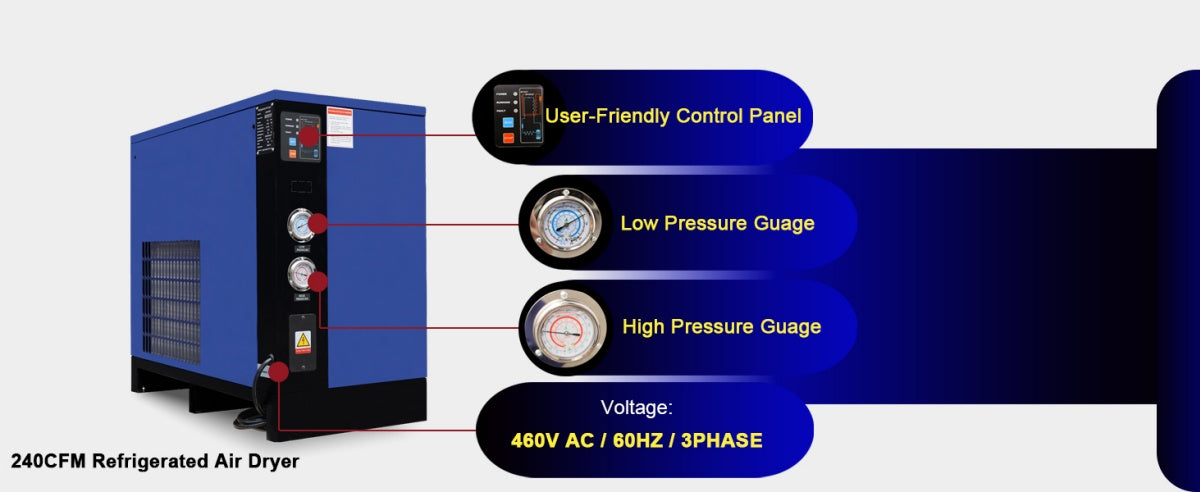

240CFM Refrigerated Air Dryer 3Phase 460V For Air Compressor

240CFM Refrigerated Air Dryer 3Phase 460V For Air Compressor

Chery Industrial SKU: N818P370120S
Max Flow
240CFM
Rated Pressure
101.5PSI
$2,099.00
$2,099.00

In Stock

Pickup available
CA

240CFM Refrigerated Air Dryer 3Phase 460V For Air Compressor

  • TX

    Pickup unavailable

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup unavailable

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup unavailable

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

Deliver reliable power for demanding industrial applications with our 50HP rotary screw air compressor. Providing a substantial 220 CFM at 125 PSI, this 460V 3-phase, 60-gallon receiver unit is engineered for continuous duty. Its robust design ensures maximum uptime and efficiency for your most critical operations.

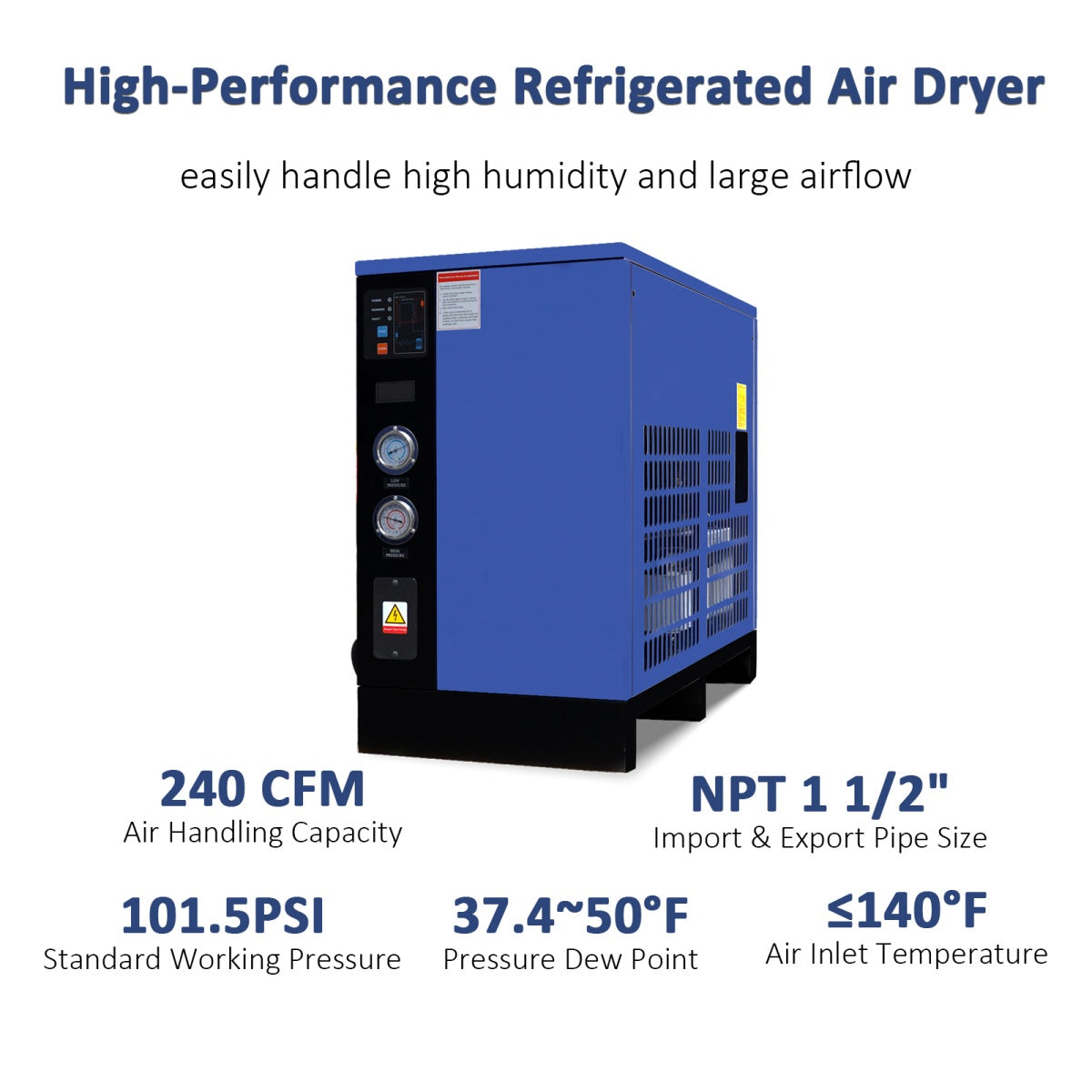

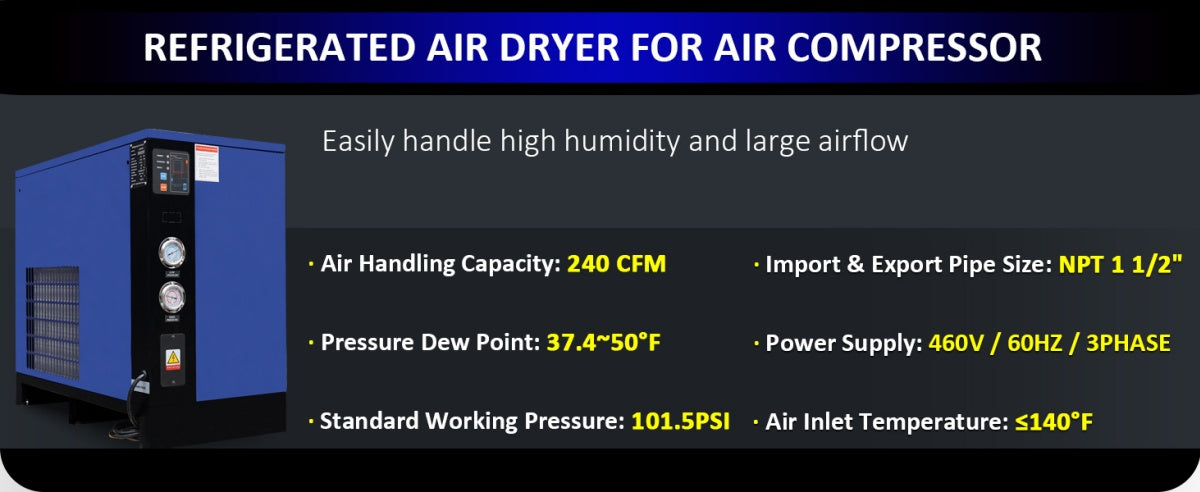

  • Air handling capacity: 240 CFM, pressure dew point: 37.4-50°F.
  • Standard working pressure: 101.5 PSI, maximum working pressure: 145 PSI.
  • Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F.
  • Adaptation to the work system: continuous work, import and export pipe size: NPT 1 1/2".

Specifications

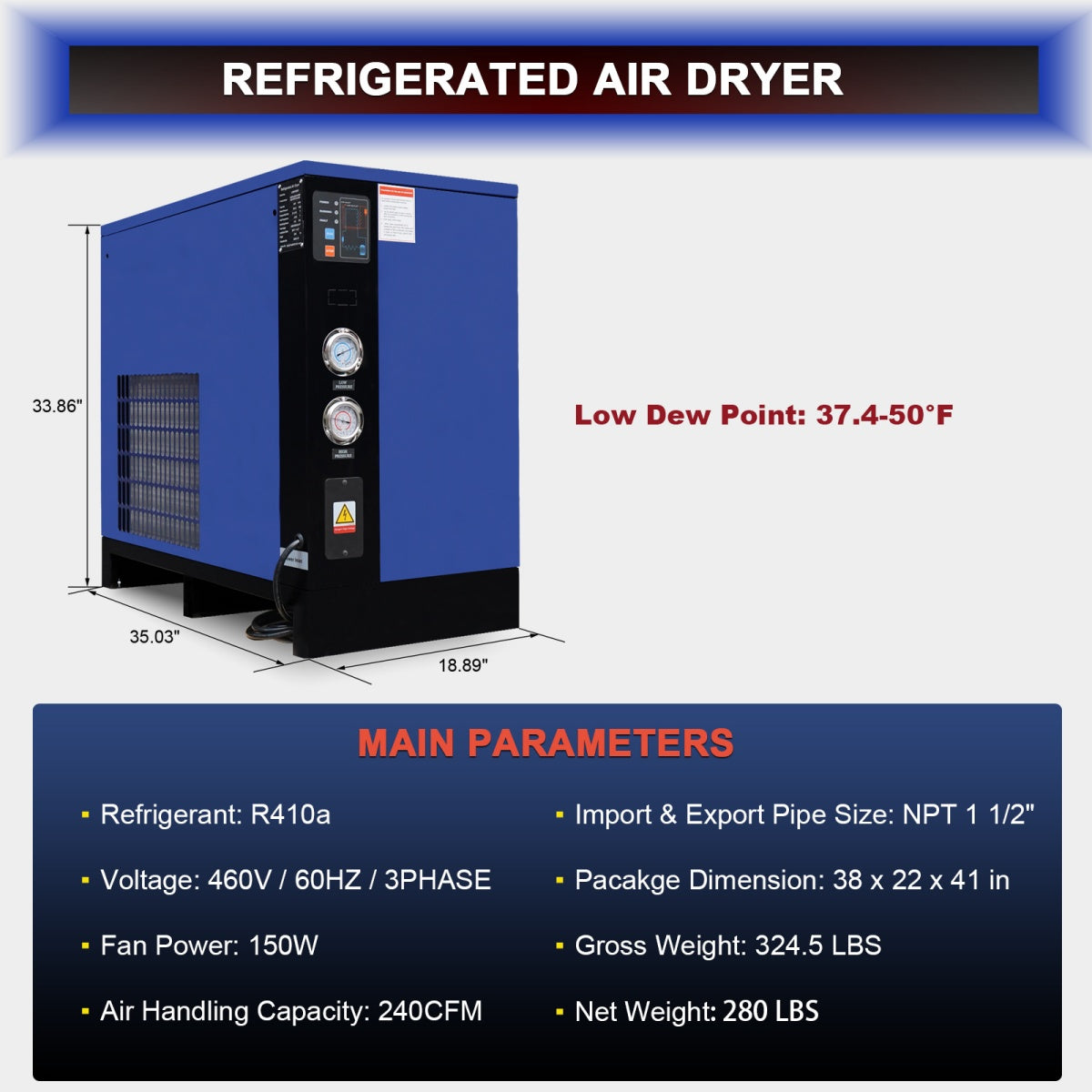

Dimension
35.03x18.89x37.4 inch
Voltage
460V 3Phase 60HZ
Max Flow
240CFM
Rated Pressure
101.5PSI
Maximum Pressure
145PSI

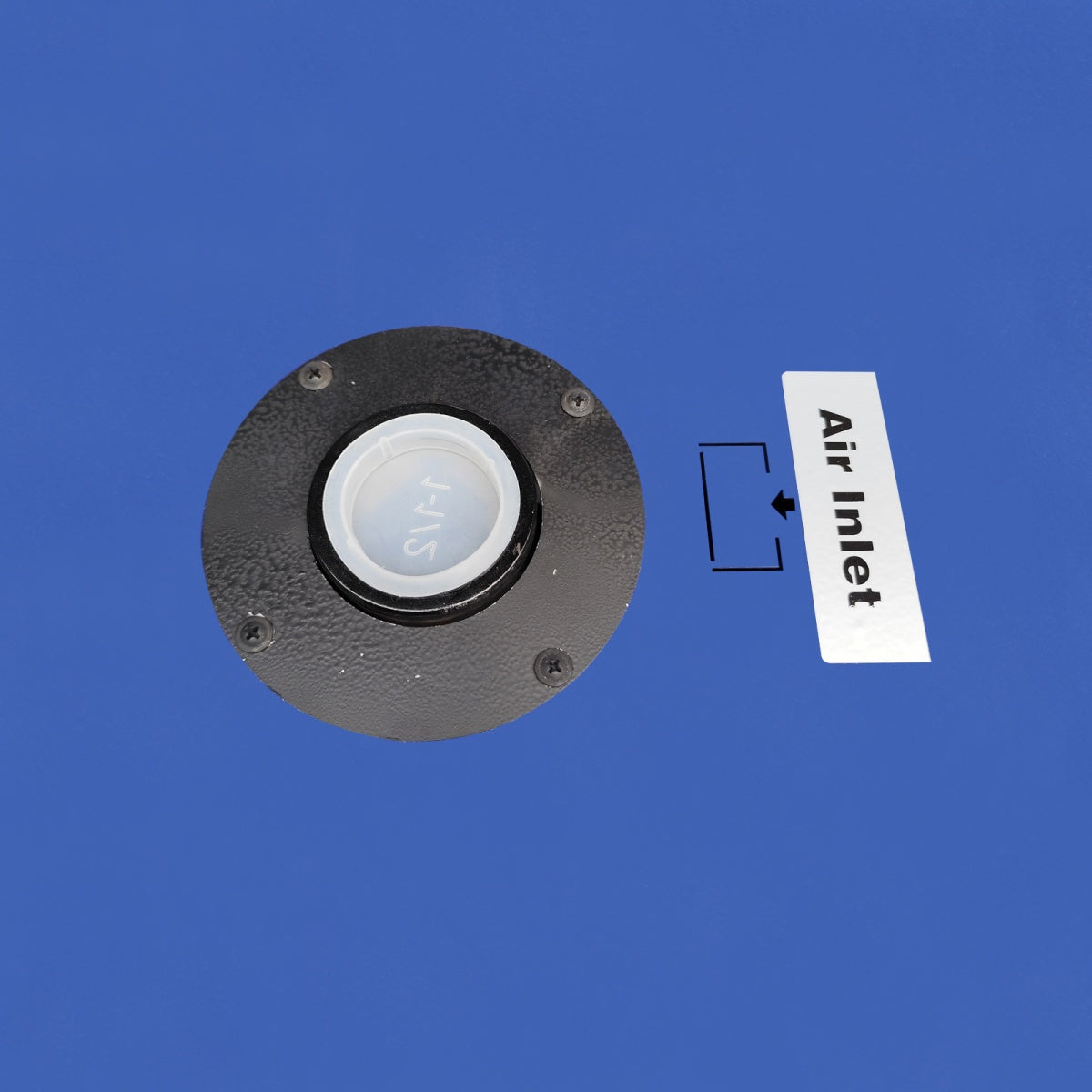

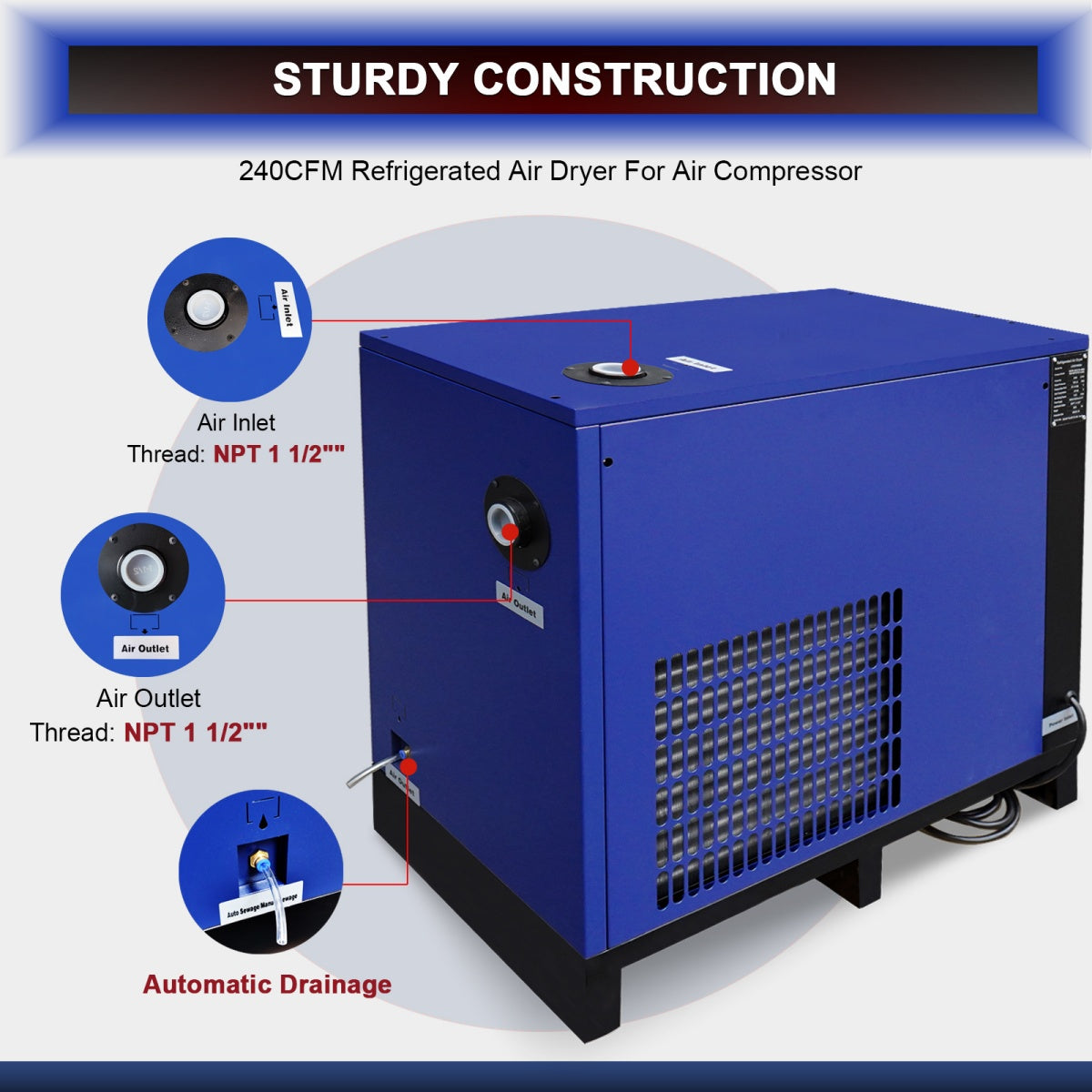

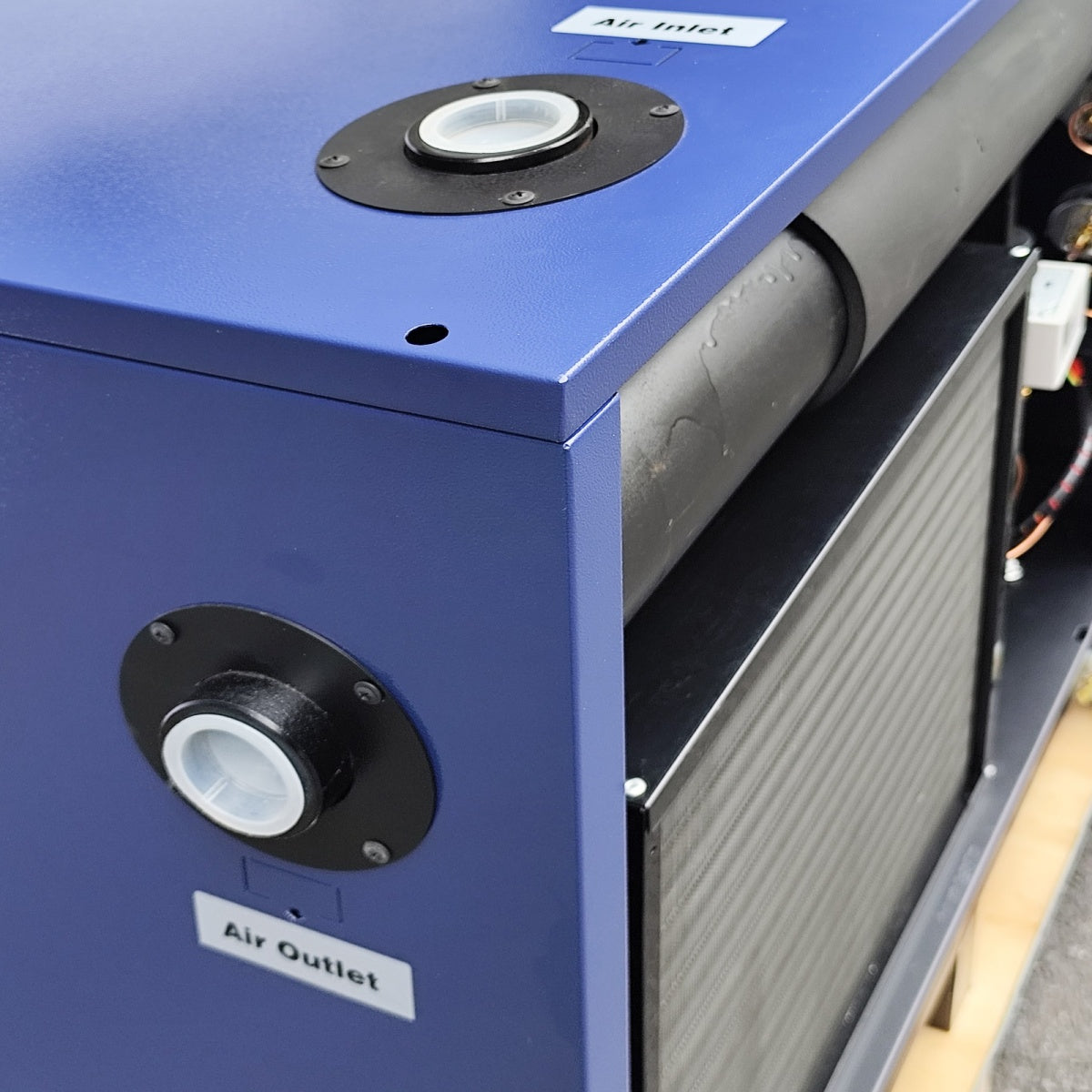

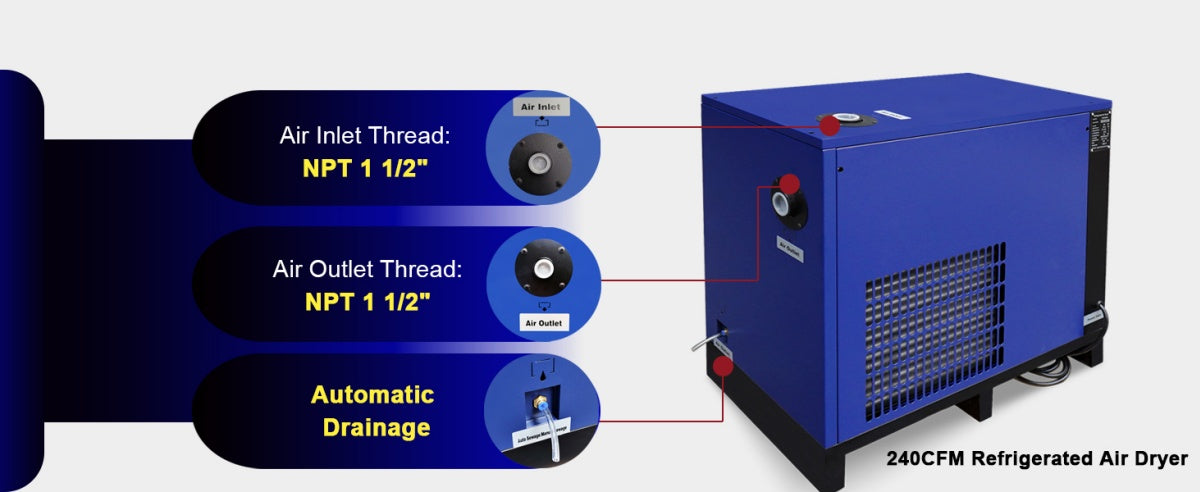

Air Inlet Thread
1 1/2" NPT

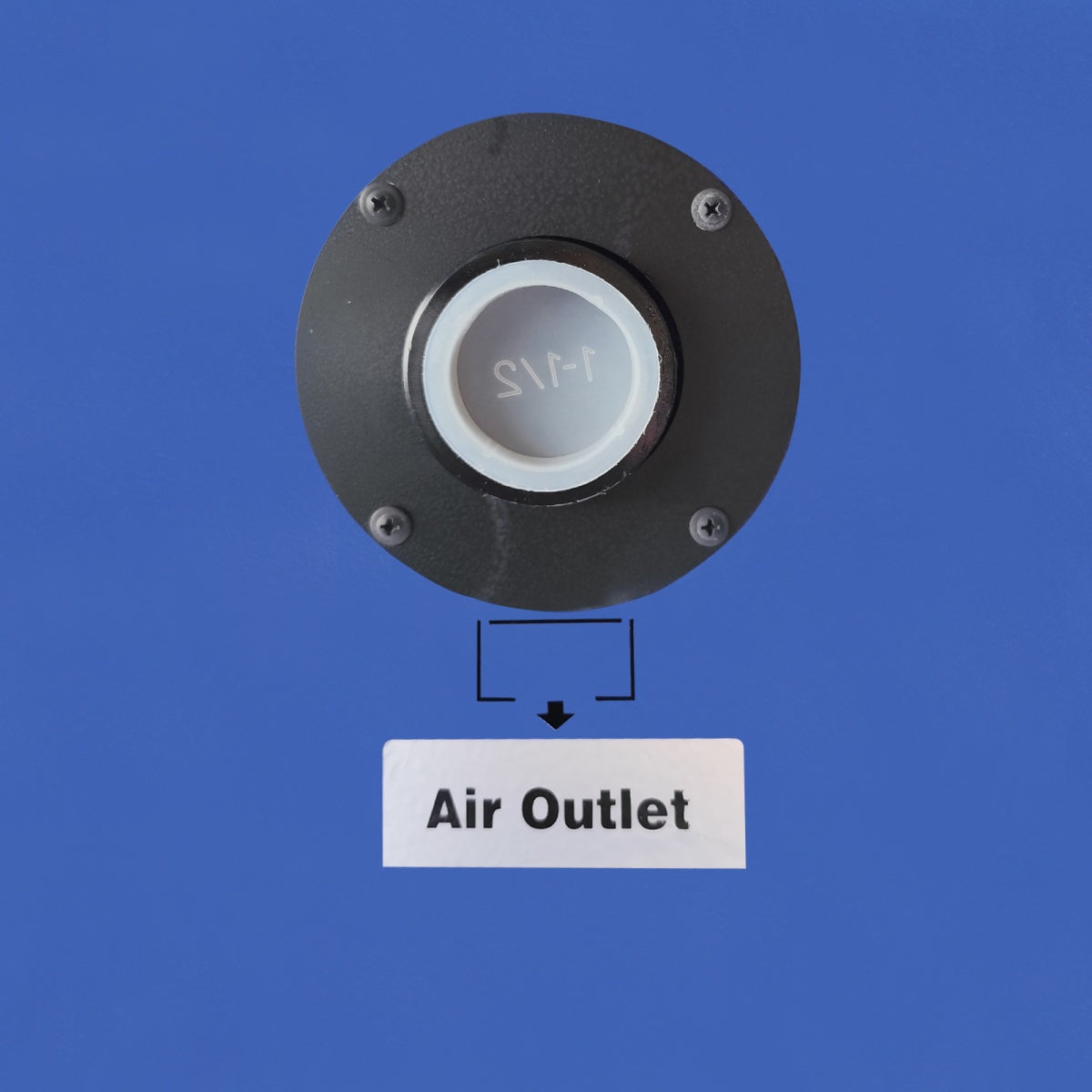

Air Outlet Thread
1 1/2" NPT
Pressure Dew Point
37.4-50°F
Air Inlet Temperature
≤140°F
Ambient Temperature
≤100.4°F

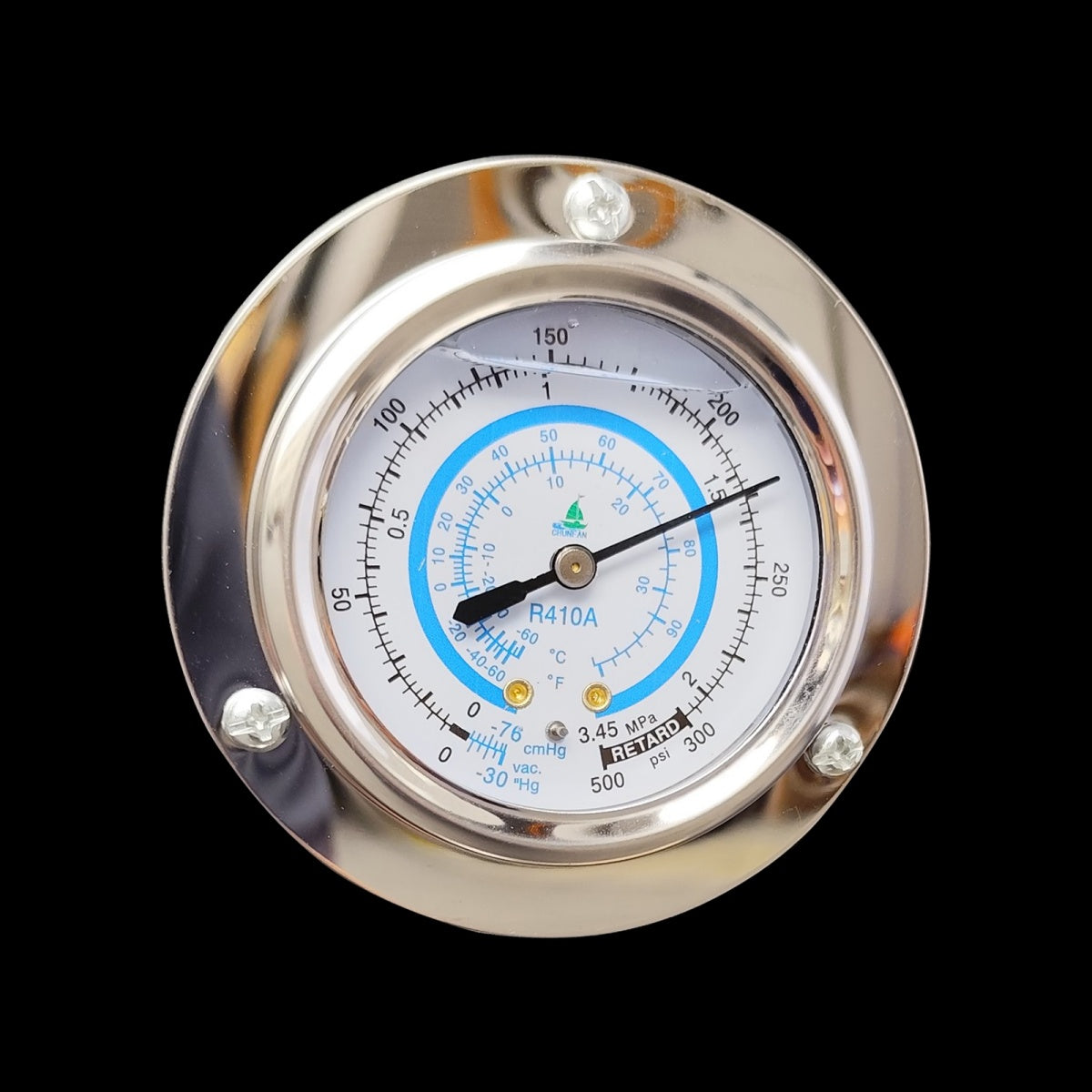

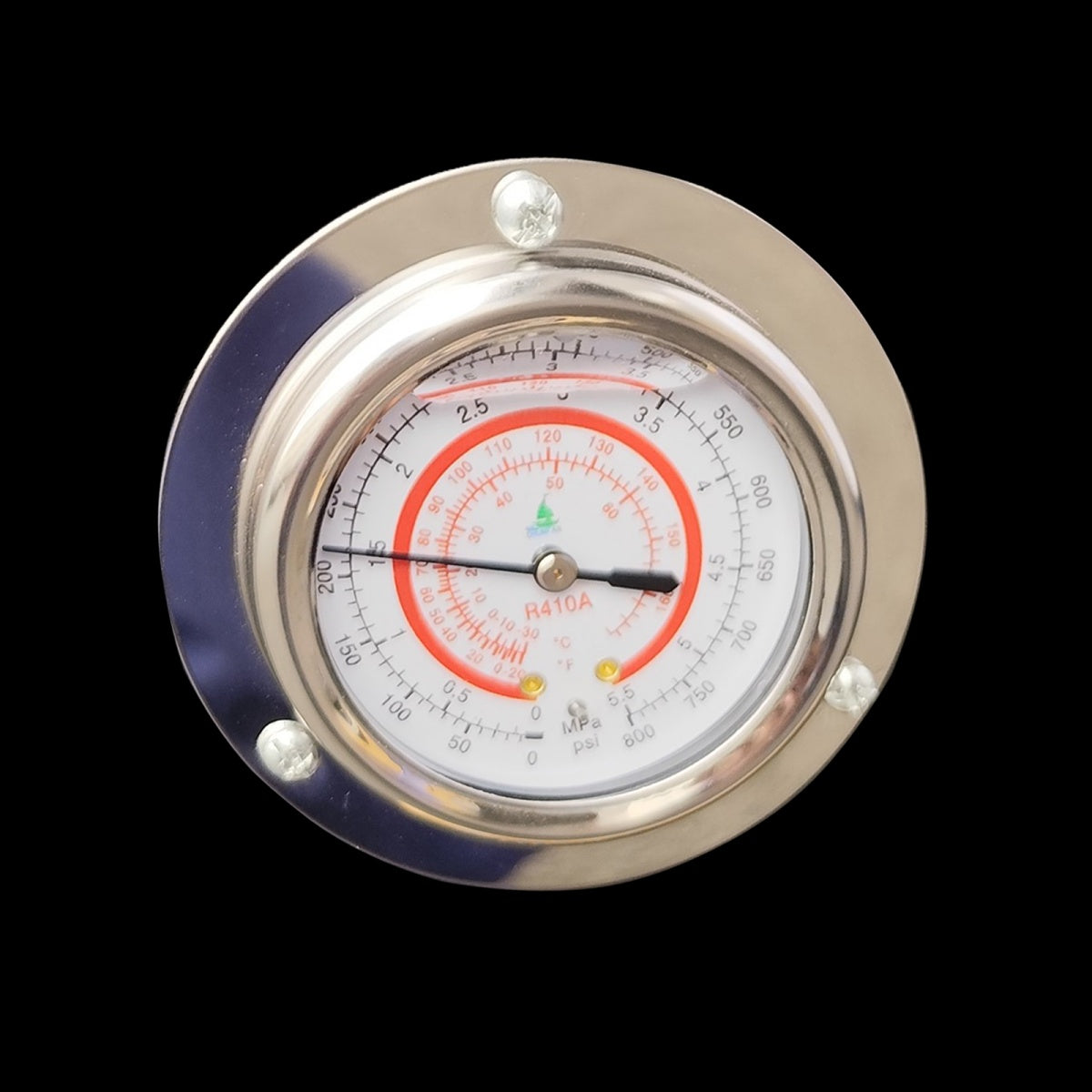

Refrigerant
R410a
Fan Power
150W
Cooling Power
1.5HP
Blowdown Valve
Electronic blowdown valve

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 38x22x41
• Weight (lb): 326
• A forklift or equivalent is required for unloading.
