Portable Loading Dock Ramps Yard Ramp - 26,500 lb. Capacity

Portable Loading Dock Ramps Yard Ramp - 26,500 lb. Capacity

Chery Industrial SKU: SUILP12TP
Width
86.6"
Length
37.1'
Capacity
26,455 lbs
$20,799.00
$20,799.00
Style: Electric Pump

Low Stock

Pickup available
CA

Portable Loading Dock Ramps Yard Ramp - 26,500 lb. Capacity

Style: Electric Pump

  • TX

    Pickup unavailable

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup unavailable

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Features

Portable Loading Dock Ramps Yard Ramp - 26,500 lb. Capacity-Feature

Introducing our Portable Loading Dock Ramp Yard Ramp, featuring an impressive 26,500 lb. capacity to handle heavy loads with ease. Crafted from durable steel, this ramp is built to last and withstand demanding environments. Equipped with guardrails for added safety and the ability to attach two chains to the truck for securement, this ramp ensures a secure loading and unloading process. Ideal for warehouses, distribution centers, and facilities requiring robust loading solutions. Improve efficiency and safety with this versatile and reliable portable ramp.

Height Adjustment
Enjoy seamless operation with height adjustability from 43.3" to 71" (110 cm - 180 cm), allowing this ramp to easily accommodate various truck and dock heights, maximizing efficiency.

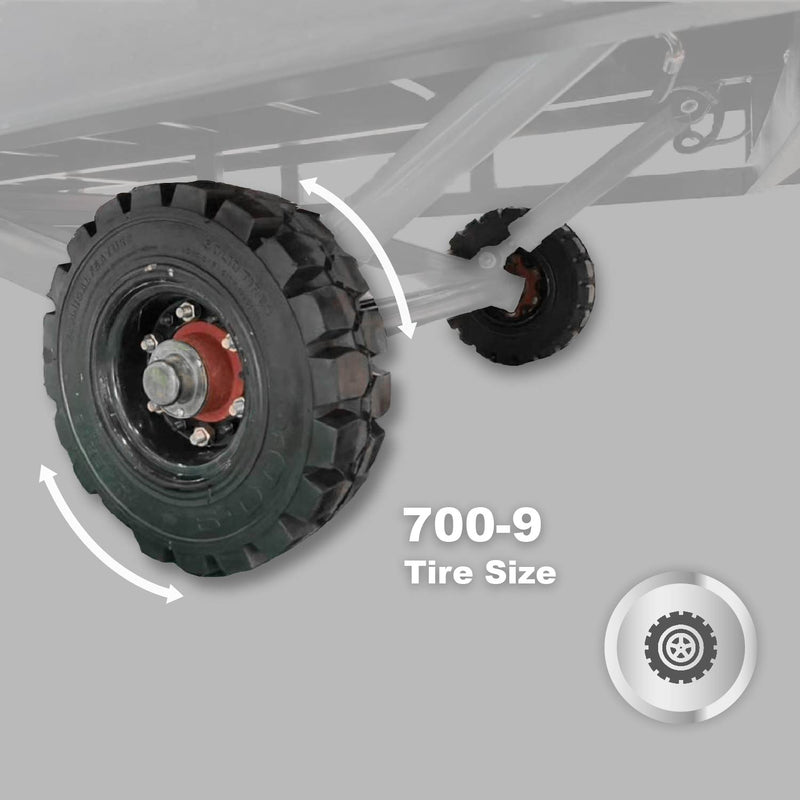

Enhanced Mobility
For easy positioning and maneuverability, the ramps are fitted with durable 700-9 solid tires. These tires are maintenance-free and provide stable support, allowing you to easily move the ramp wherever it’s needed within your facility.

Secure Grip
The non-slip checkered steel surface ensures confident operation by providing superior traction, significantly reducing the risk of accidents and enhancing safety during loading and unloading.

Specifications

Material
High-strength Steel
Length
37.1'
Width
86.6"
Adjustable Height
43.3" to 71"
Weight
7,275 lbs
Maximum Capacity
26,455 lbs
Slope Length
281.5"
Platform Length
118.1"
Tail Plate Length
29.5"
Tip Plate Length
15.7"
Steel Plate Thickness
5 mm
Steel Mesh Thickness
8 mm
Lip Thickness
16 mm
Power
AC(380V/220V/110V)
Main Beam
200x100x5mm rectangular pipe2 pcs, 200x100x4mm rectangular pipe3 pcs, Total 5 main beams.
Vice Beam
100x50x4mm
Lift Type
Dual Cylinder Hydraulic
Hydraulic Cylinder
Φ80xΦ45 (2 pcs)
Hydraulic Oil Pipe
32Pma
Solid Tire Size
700-9
Guard Rail Height
5.5"
Safety Chains
51"

Shipping

US warehouse dispatch, 1-2 days processing, 10-15 days delivery.

• LxWxH (inch):
• Weight (lb):
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Installation and Usage Tips

  • ONLY trained personnel are to operate or service the ramp.
  • NEVER exceed 5 mph when driving on the ramp.
  • NEVER exceed the rated capacity of the ramp.
  • NEVER travel on the ramp unless the lip is securely on the dock or carrier floor and properly attached safety chains in accordance with this manual.
  • Visually check that the lip is supported and has a minimum of 4" of overlap onto the dock or carrier floor.
  • Please DO NOT use this unit to dock heights outside its intended working range.
