Description

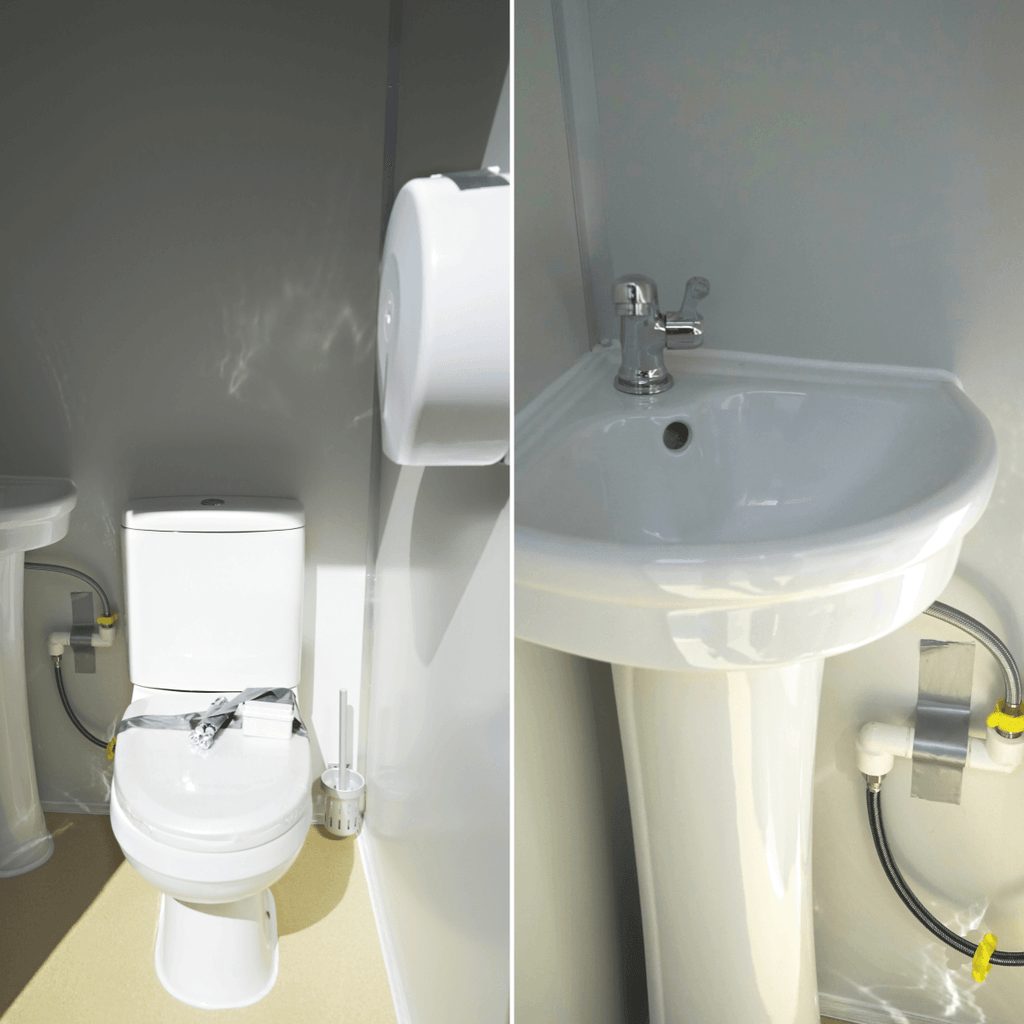

This Bastone Portable Restroom with a Sink is equipped with a toilet, a sink, a light, an extractor, a paper towel holder, and is wonderful for the outdoors. We understand that you want to find a comfortable and clean spot as a lavatory. For an intimate wedding party or any outdoor event, this Bastone portable restroom with a sink will be the best choice for you. The fresh style and perfect finishing touch make this mobile restroom popular and welcoming.
Specification
| Description | Specifications |
| Model | Portable Restroom w/ Sink |
| Dimension (LxWxH) | 43.3"x51"x93" |
| Interior Dimension (LxWxH) | 37.2"x43.8"x 83" |
| Door Size | W 33" x H 77" |
| Net Area | 11.3 ft² |
| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |
| Roof Material | 2-inch EPS fire-resistant & insulated roof panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 7.09~8.27 |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |
| Wiring Instructions | White Wire: Neutral Wire Black Wire: Live Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature |
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7"x H3" Distance between forklift pocket: 13.5" |
| Lifespan | 15+ Years |
| Warranty | 1 Year |
Set up
There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply and Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
If this Bastone Portable Restroom w/ Sink is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
- If it's a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it's a soil floor, please use 20 inches - 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.
Unloading reference
Feature
- Portable Toilets / Porta Potty with Sink
- Toilet booth, toilet kiosk, mobile toilet
- Material: High-Temperature Resistant Paint
- Door: Security Door
- No water tank reserve comes with this unit
Package Size
- LxWxH (inch): 51x43x93
- Weight (lb): 829
- A forklift or equivalent is required for unloading
