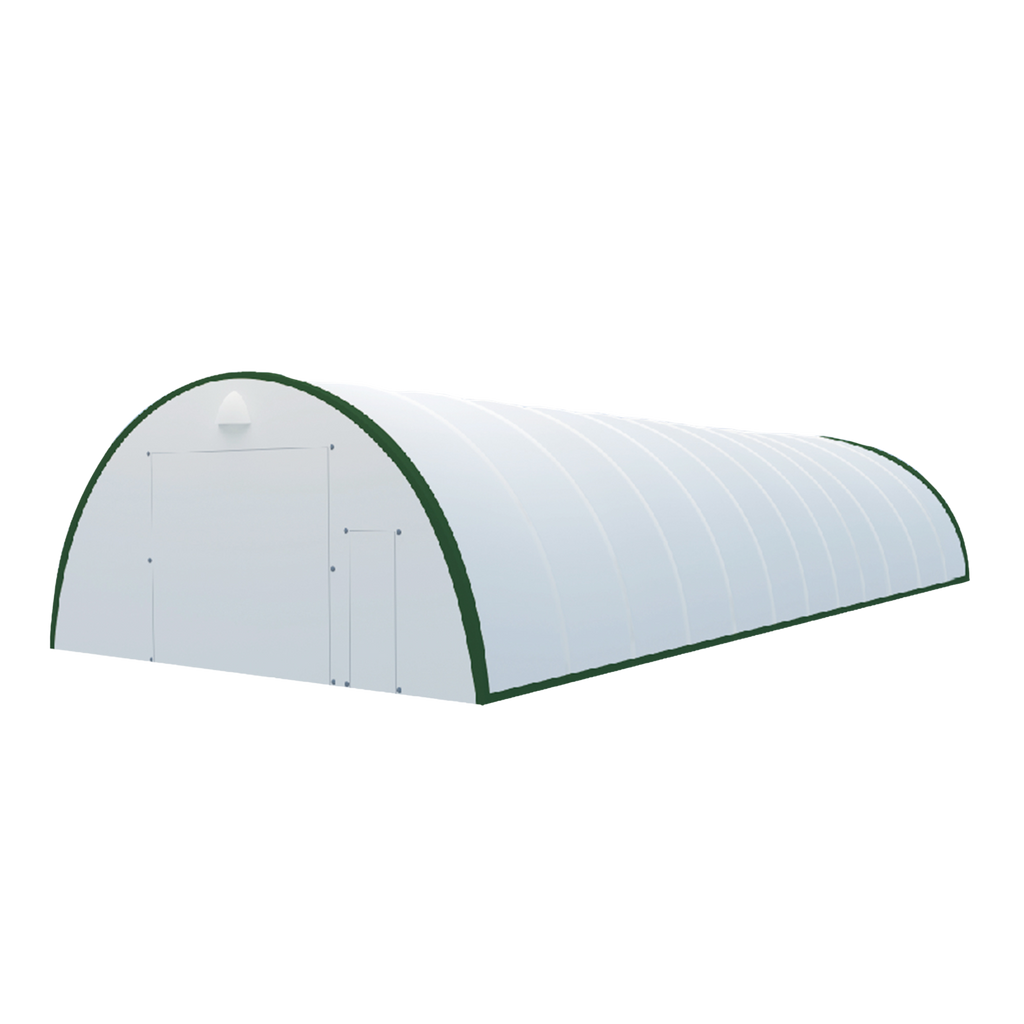

Gold Mountain Single Truss Arch Storage Shelter W40'xL80'xH20'

Gold MountainSKU: SS000156

Material: 11oz PE
Price:
Sale price$11,500

Shipping and tax calculated at checkout

Stock:
In stock

Description

This Gold Mountain Single Truss Arch Storage Shelter W40’xL80’xH20’ is a good option for outdoor agricultural and industrial storage. You can use it for warehouse, workshop, storage for grain, sand, coal, and raw material, equipment, livestock, and others. This canopy storage shelter is in the width of 40 ft, length of 80 ft, and height of 20 ft. With a 2 year limited warranty, you can be confident in the quality of your purchase.

It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tighten before next winter.

It’s the owners' responsibility to take off snow immediately if not slide off by itself.

This product is 300g/11 oz PE material, white color green edge design. For other options, please contact our customer service.

clbh1pwf2000201s67uwb9166

Specification

Model

S408020R

Dimensions

40ft  x 80ft x 20ft

Door dimension

W13.1 ft x H14.8 ft,side door: 2.7ft x 6.3ft

Arch Interval

6.6 ft (2m)

Truss Tubes (mm)

Ø86x56x 2.0

Purlin Tubes (mm)

Ø48*1.5

Snow Rating

1.77 kpa /  37  pounds per sq. foot

Max. Wind Speed

50 miles per hour

Frame

Galvanized steel tubes

Fabric cover

  • 300g (11oz) PE (Cover price: $4,275)
  • 450g (16oz) PVC (Cover price: $6,500)
  • 650g (23oz) PVC (Cover price: $8,100)
  • 750g (26oz) PVC (Cover price: $9,200)
  • 900g (32oz) PVC (Cover price: $10,800)

Color

White color and green edges



 Snow Rate Test Result:

408020R

Test Load

Deflection

Lb

Kpa

Point A (inch)

Point B (inch)

Point C (inch)

Step 1

0

0

0

0

0

Step 2

1005

1.52

1.4

1.6

1.2

Step 3

1507

2.28

2.2

2.3

1.6

Step 4

Keep the test load until 30 minutes

Step 5

Remove the test load

0.6

1.1

1.2

Step 6

The test sample can withstand the applied test load without damage.

Feature

  • Resistant toward water, UV and fading
  • There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
  • Style: Freestanding
  • Mechanical doors at two ends
  • Huge capacity for trucks, automobiles, and more bulk storage
  • Protect belongings from wind, snow and rain
  • CSA/TUV Snow Rating Test Report
  • SGS fabric Certificate
  • Type: Prefabricated Building
  • Certificate: SGS
  • Condition: New

Package Size

  • L*W*H (inch): Box A: 116*30*39; Box B: 116*30*44
  • Weight (lb):4895
  • Please have a forklift or equivalent ready for unloading
