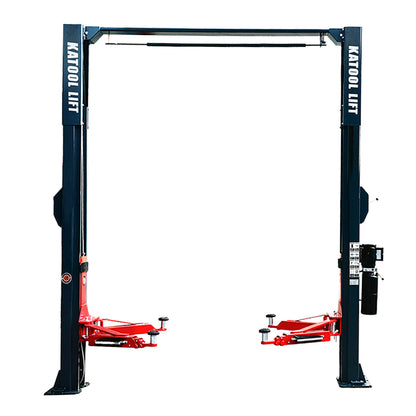

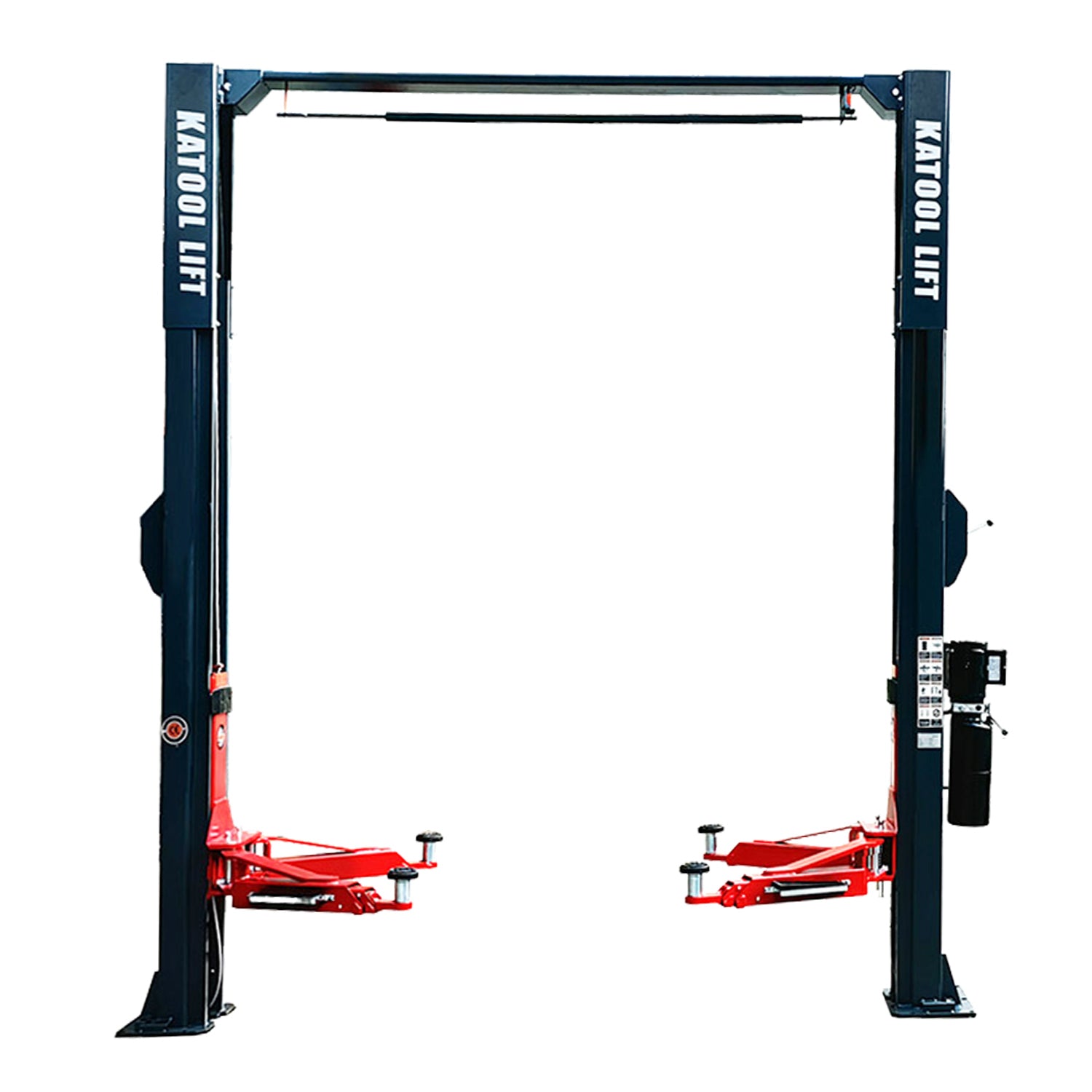

  • KT-AS110D 11,000 Lbs 2 Post Asymmetrical Car Lift

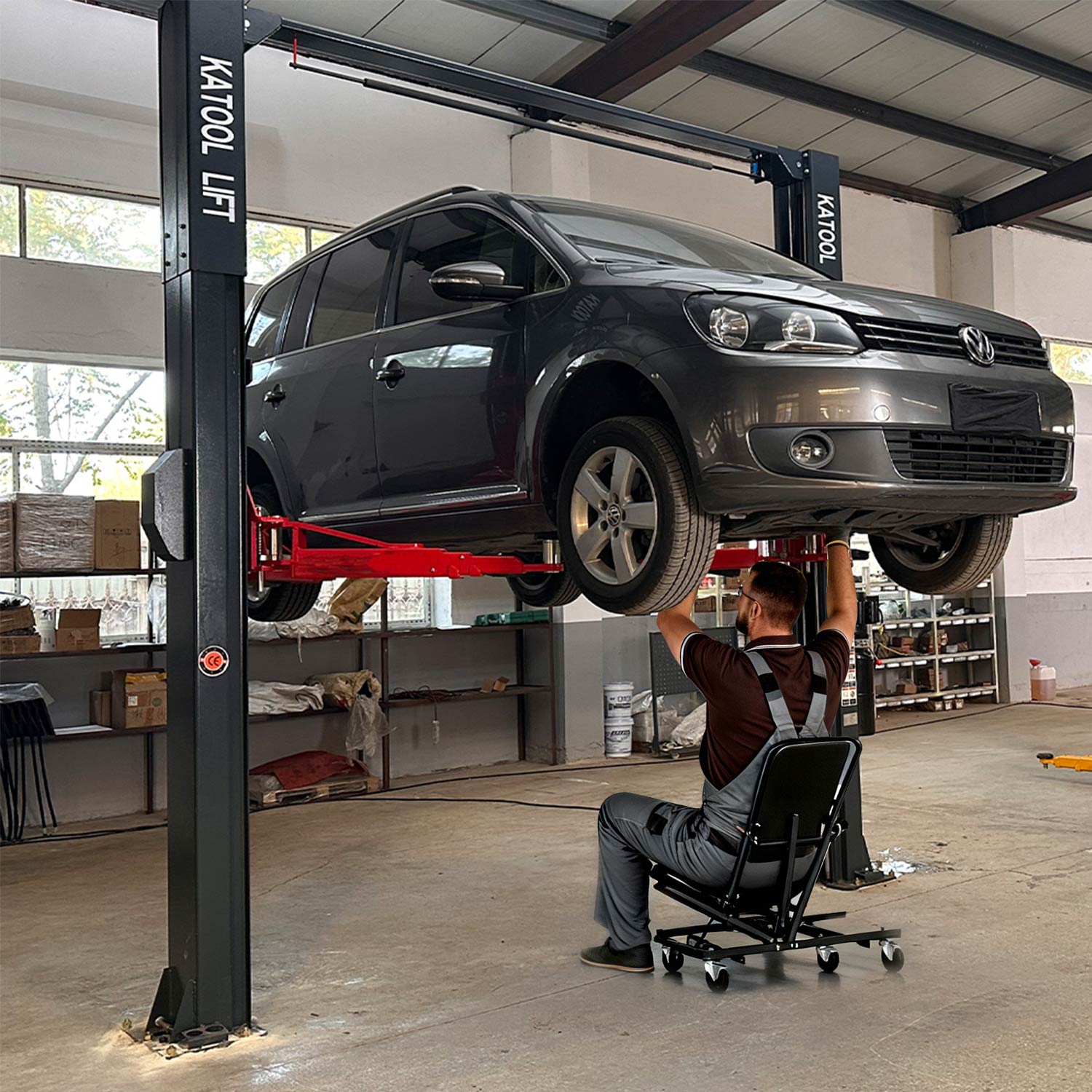

  • The car lift makes it easy to access undercar parts for vehicle repair and maintenance
  • KT-AS110D 11,000 Lbs Asymmetrical 2 Post Car Lift
  • KT-AS110D dimensions
  • KT-AS110D Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release

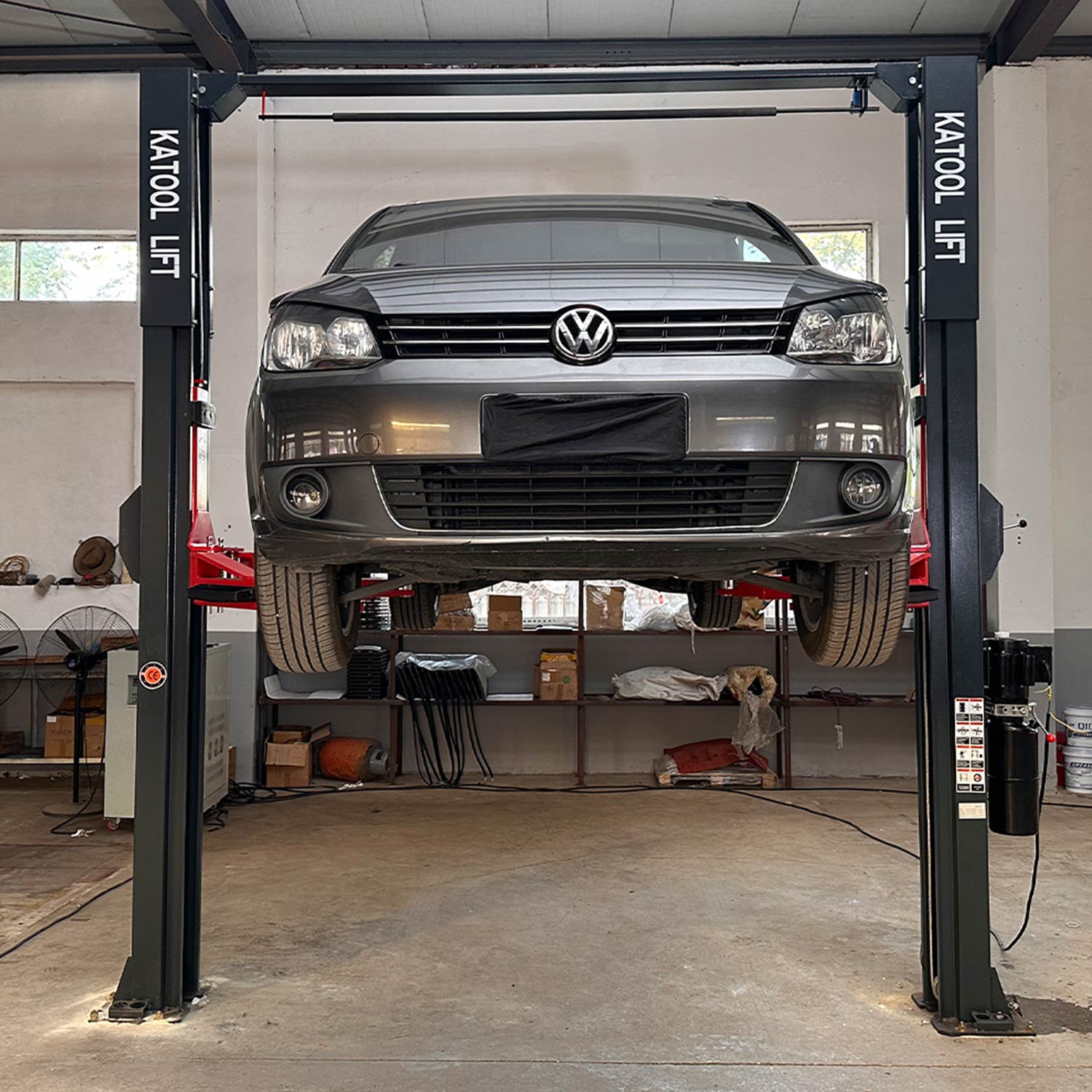

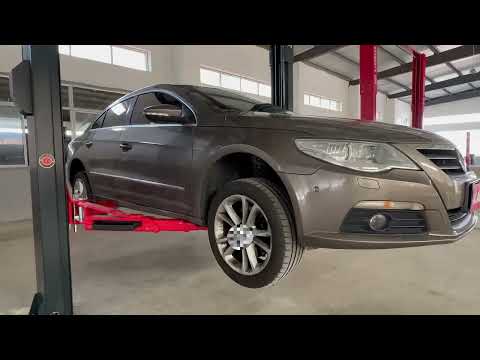

  • The KaTool 2 post lift is lifting a car stably

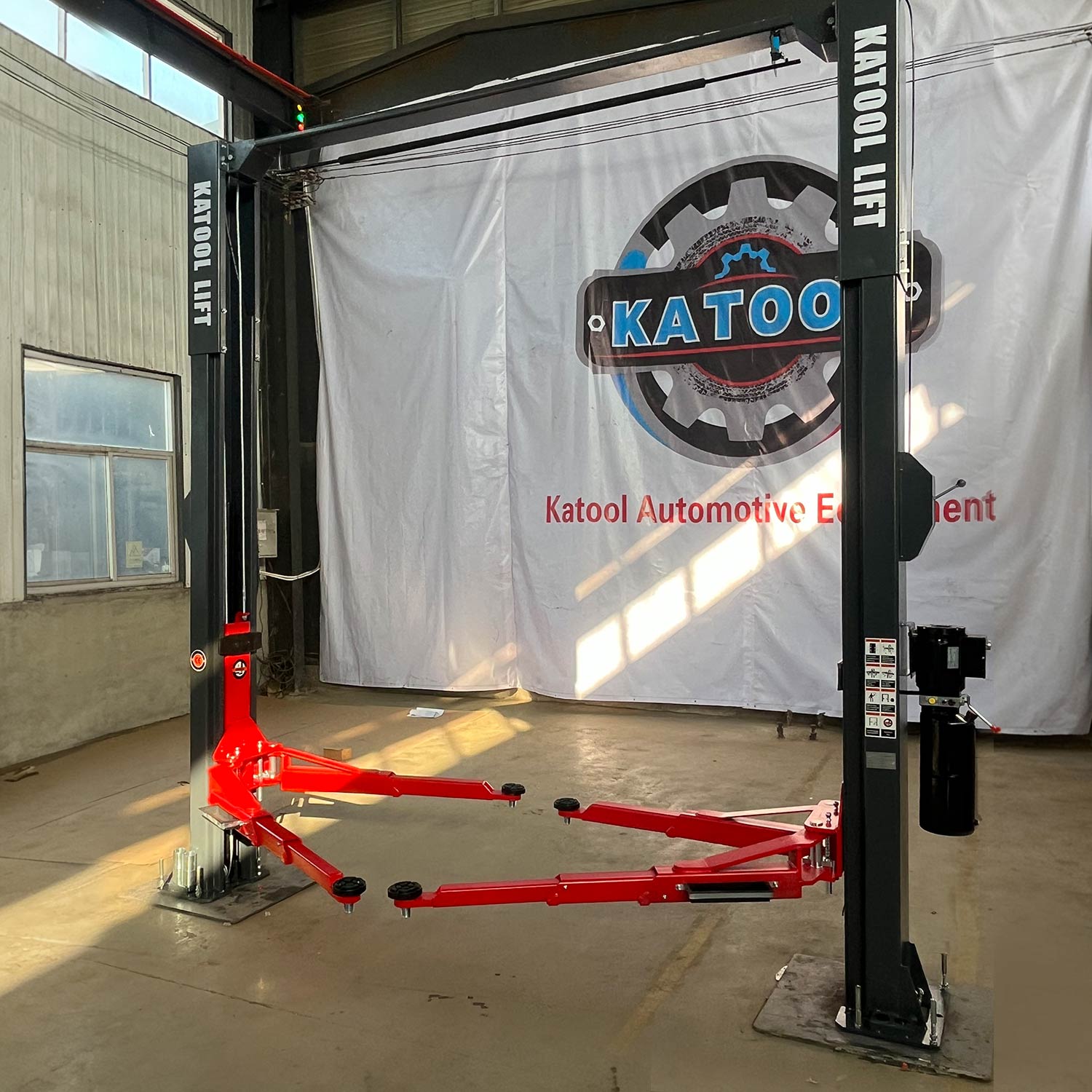

  • Get an view of the KT-AS110D 2 post hoist

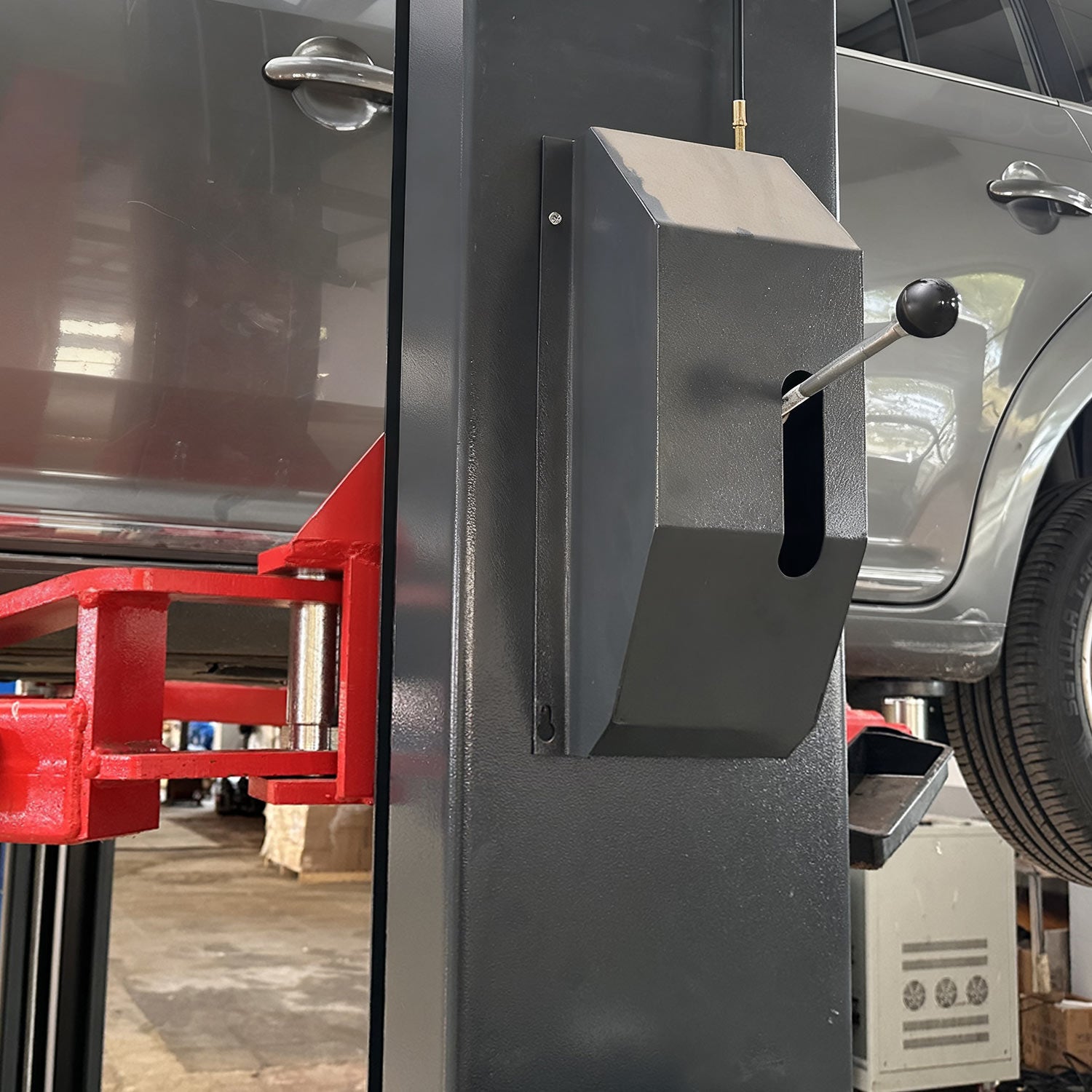

  • One point lock release for efficient lifting

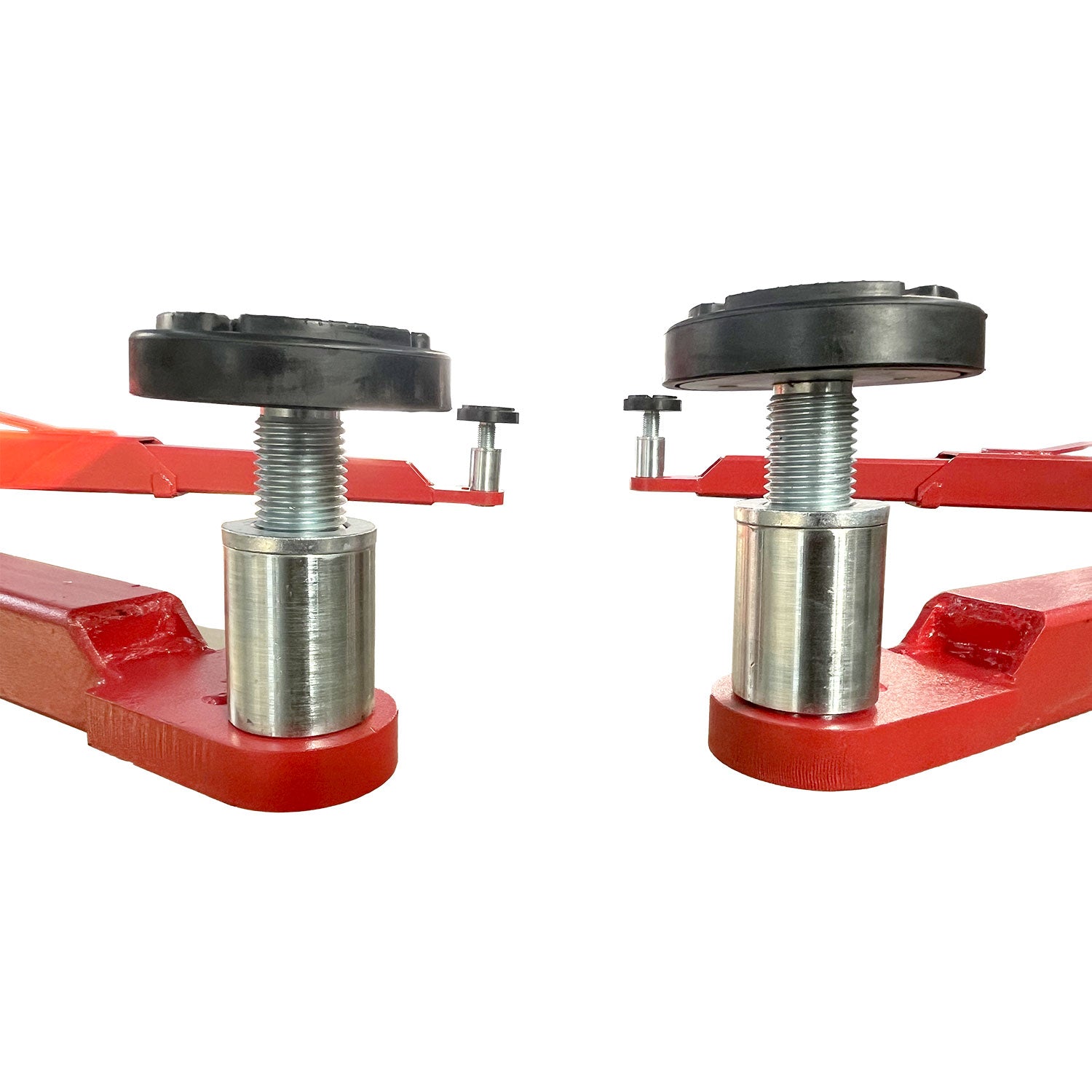

  • 70 mm/2.8 inch high adapters and rubber contact pads

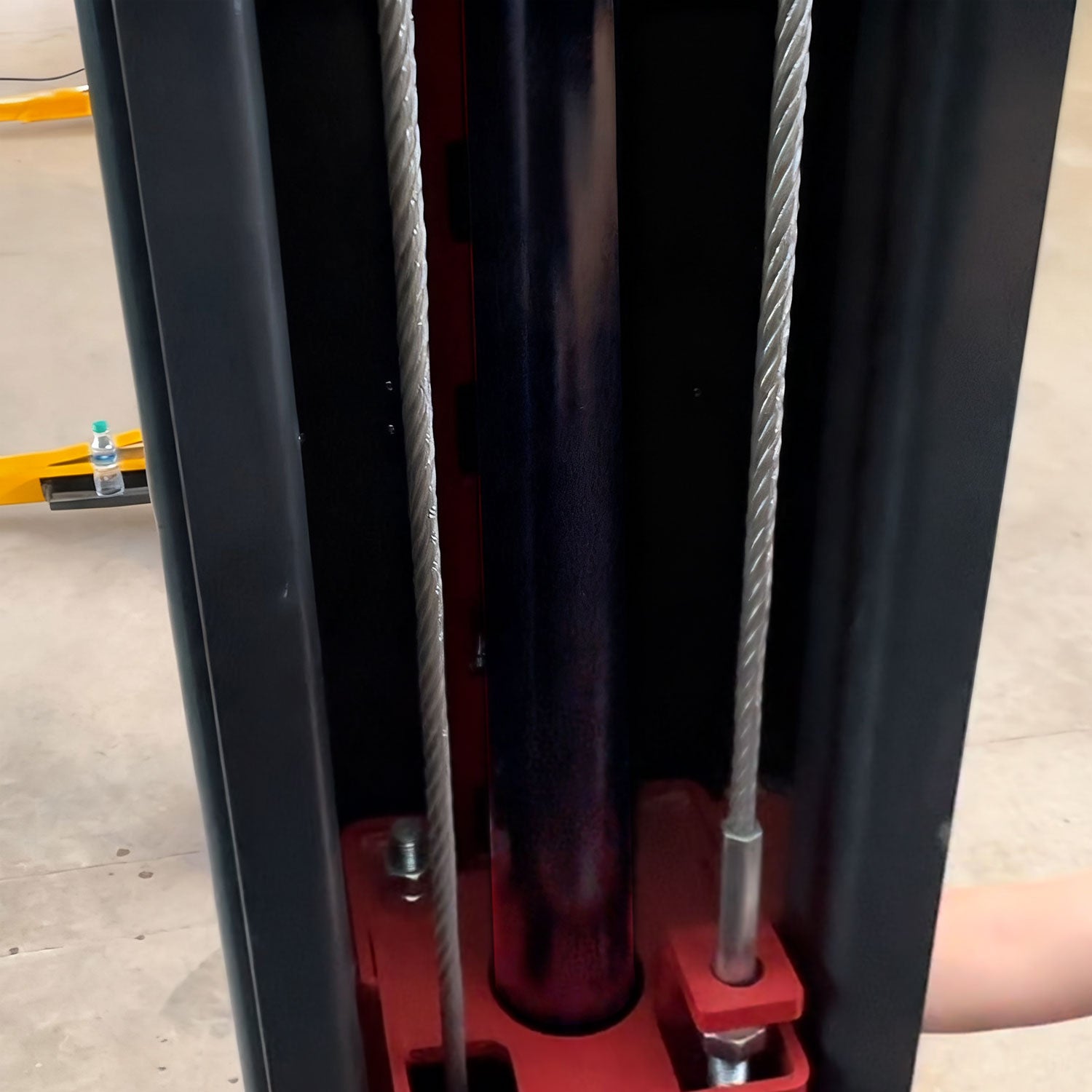

  • Hydraulic direct-drive cylinders
  • This car lift can be widely used across various occasions.

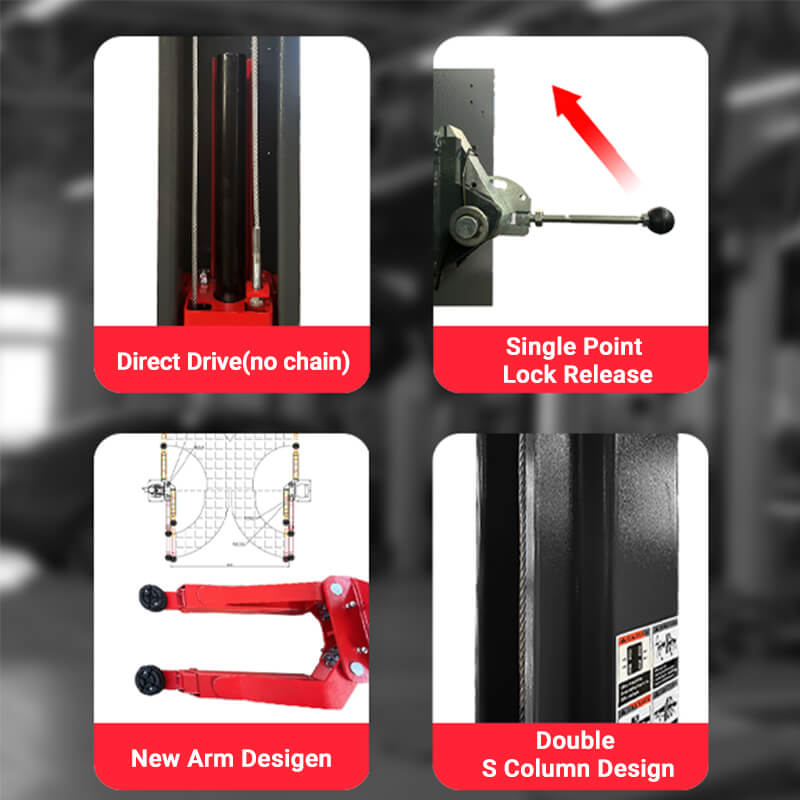

  • KT-AS110D key features

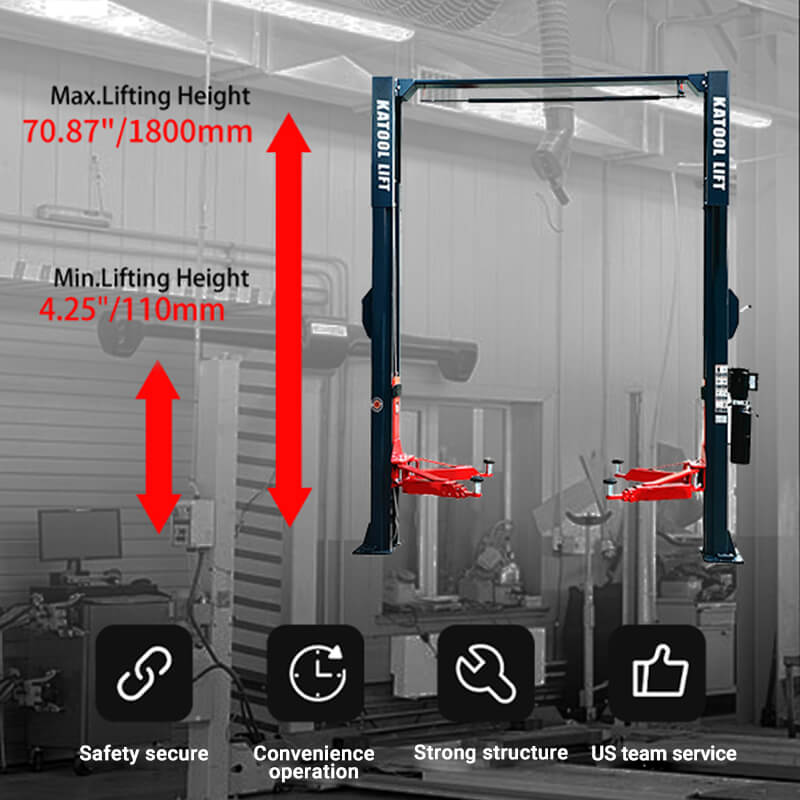

  • KT-AS110D key features

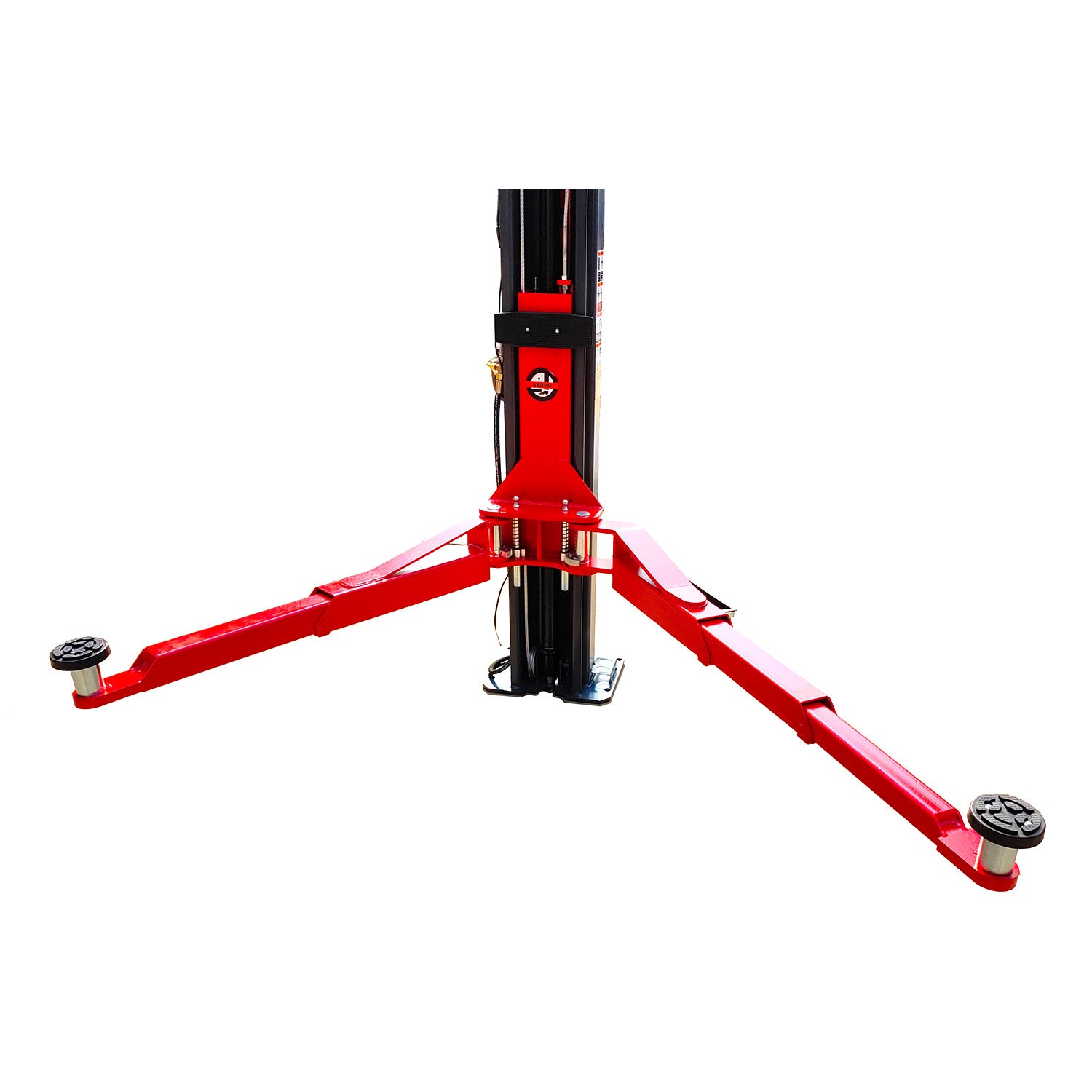

  • Triple-Telescoping front arms & double-telescoping rear arms

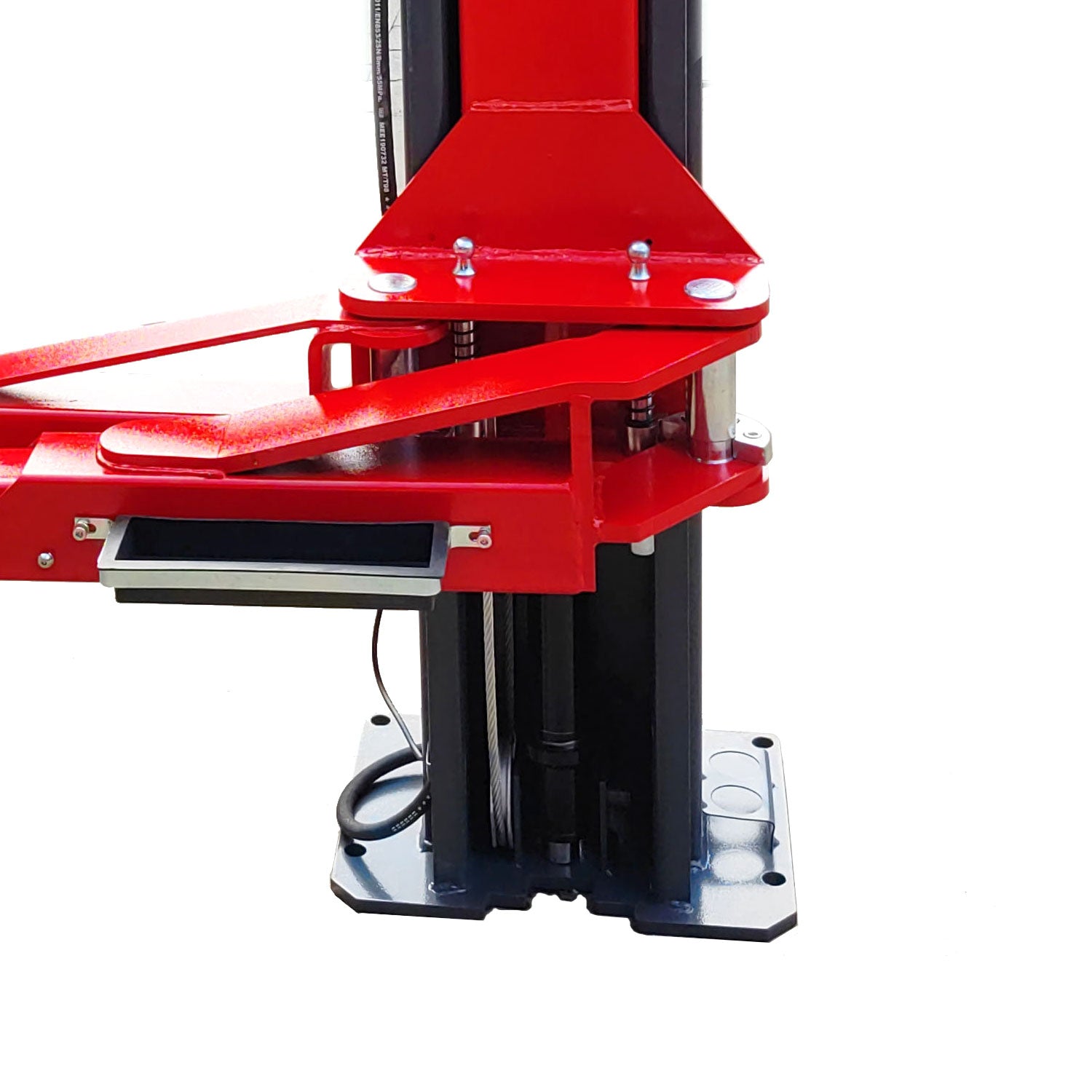

  • Strong carriage
  • Multiple locking postions

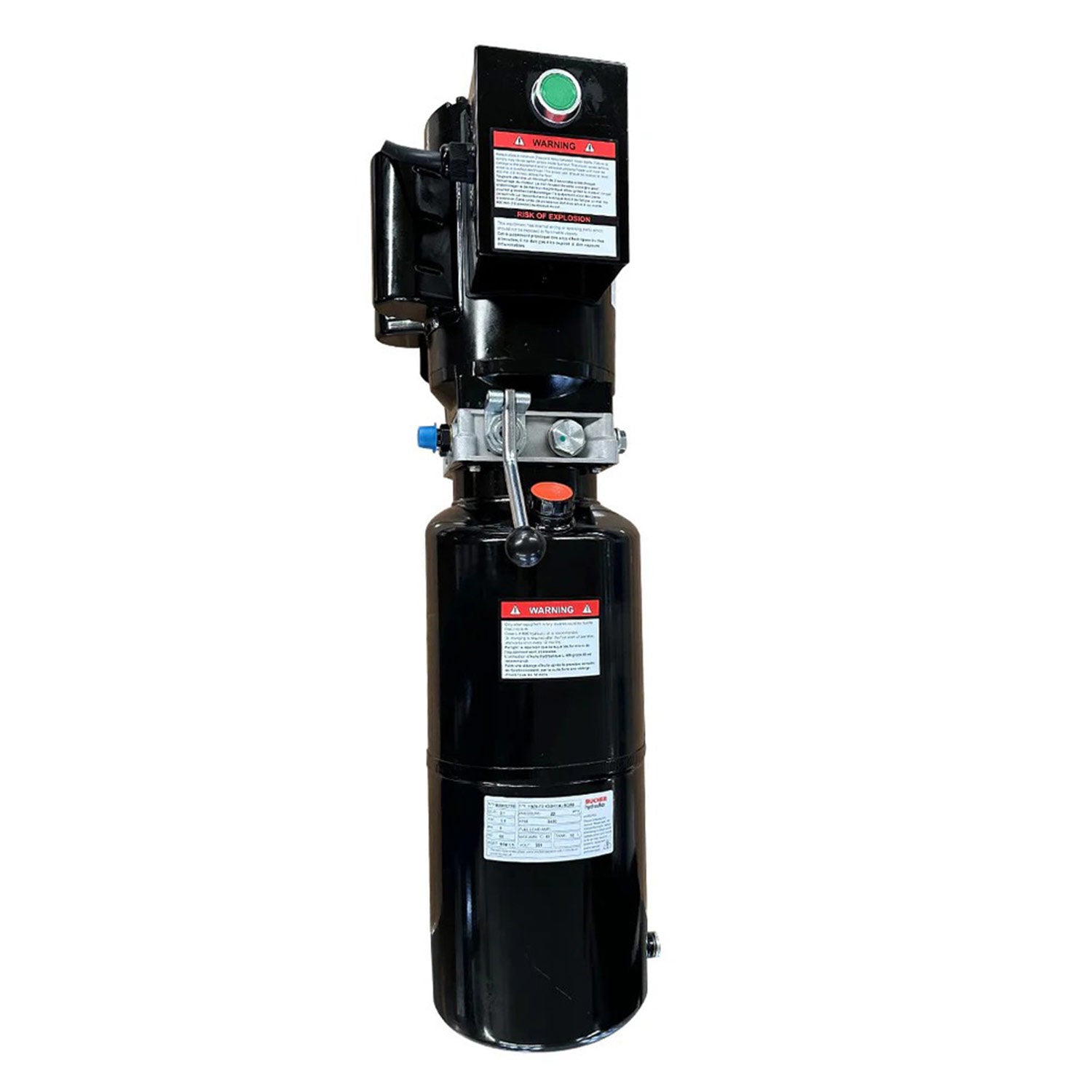

  • Top-level hydraulic system with 220V motor

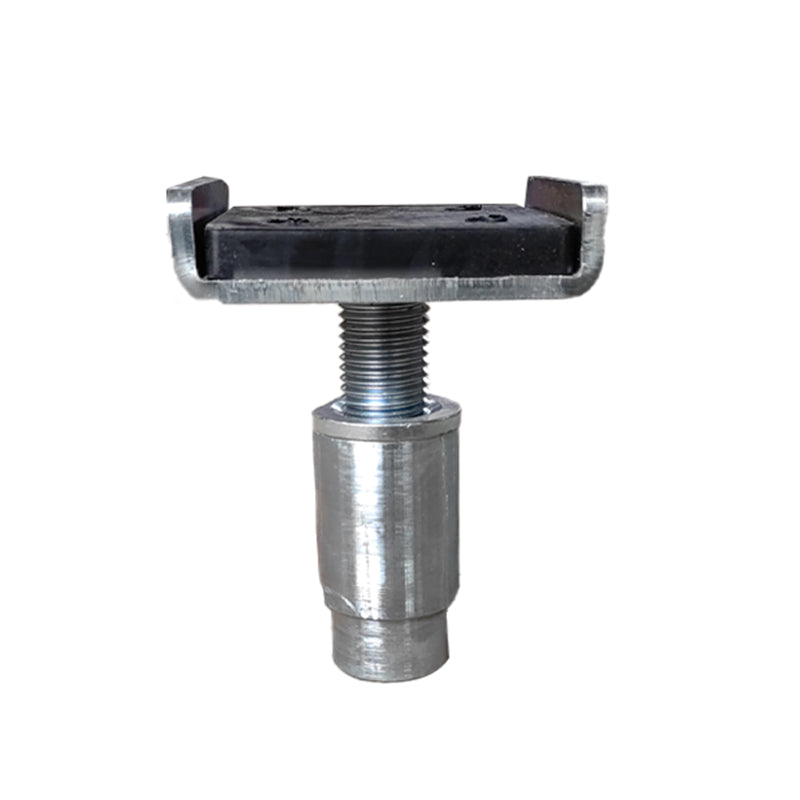

  • Cradle pad
1 18

KT-AS110D 11,000 Lbs Asymmetrical 2 Post Car Lift

KT-AS110D 11,000 Lbs Asymmetrical 2 Post Car Lift

KATOOL SKU: KT-AS110D
$3,099.00
$3,099.00

In Stock

Pickup available
TX, CA - 777, MD, NC

KT-AS110D 11,000 Lbs Asymmetrical 2 Post Car Lift

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • CA - 777

    Pickup available, usually ready in 24 hours

    3850 El Camino Real
    Atascadero CA 93422
    United States

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

The Katool KT-AS110D Two Post Asymmetrical Vehicle Lift combines convenience, strength, and safety. Featuring a single-point lock release system, this 2-post hoist makes lifting vehicles effortless. With an 11,000 lbs capacity, it accommodates most cars, SUVs, and light trucks. Its direct-drive system reduces wear and requires minimal maintenance, while asymmetrical arms allow easy door access. Whether you’re a professional or a DIY enthusiast, this 2 post car lift can support your routine maintenance and comprehensive repairs. Upgrade your workspace with this hoist for a reliable lifting experience now.

Durable steel construction with rust-resistant powder-coated finish
High quality, CE approved and certified
Lift up to 11000lbs, accommodating most types of vehicles
Triple telescoping rear arms easily reach the vehicle’s rear for stable support
Dual hydraulic direct-drive cylinders deliver stable performance and extended durability
Single point lock release makes the lifting process easier

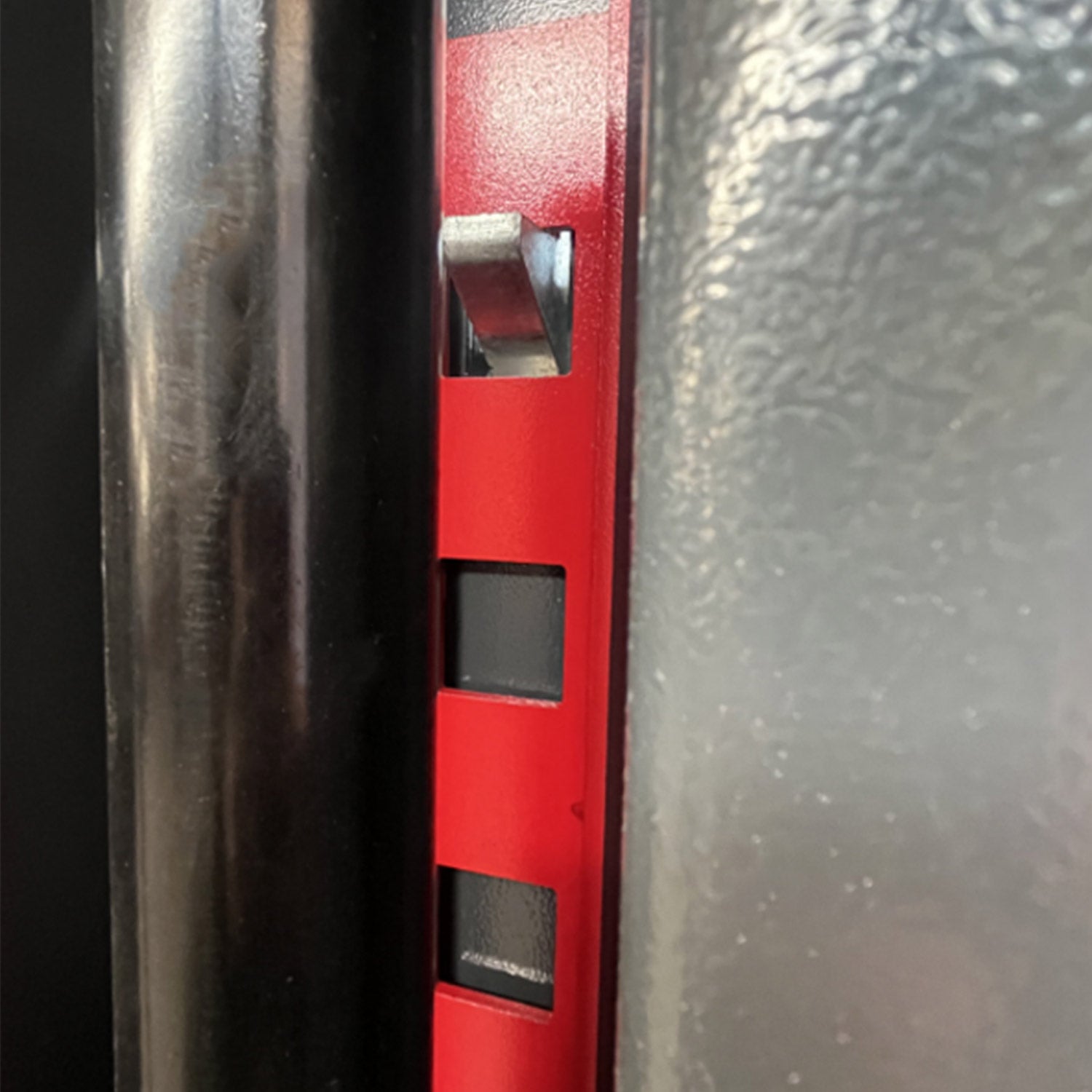

Multiple safety locking positions allow you to secure the lifting arm at a desired height
70.8" maximum lifting height and clear-floor design provide easy access to undercar components
Free 4 pieces of 70mm stackable adapters extend lift height and accommodate high-profile vehicles

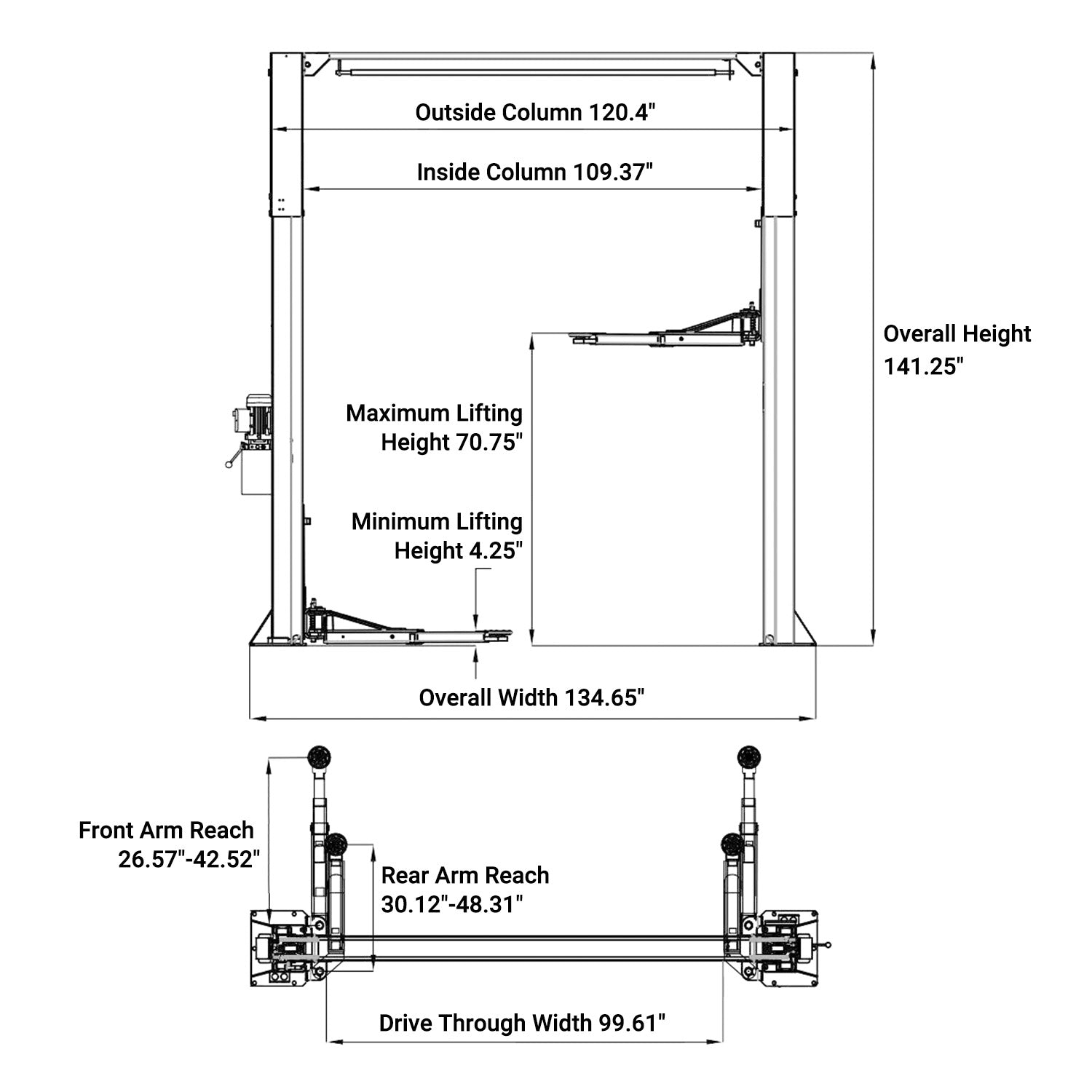

Specifications

Model
KT-AS110D
Material
steel
Net weight
1323 lbs
Lifting Capacity
11000lbs/4990KG
Overall Height(inch)
141.25
Overall Width(inch)
134.65
Drive Through Width(inch)
99.61
Driving Mode
Dual hydraulic direct-drive cylinders
Locking Mechanism
single point release lock
Locking Positions
20 locking postions, one every 2.8 inch
Outside Column(inch)
120.4
Inside Column(inch)
109.37
Cross Beam(inch)
108.27 x 9.84
Minimum Lifting Height(inch)
4.25
Maximum Lifting Height(inch)
70.75
Front Arm Reach(Min)
27.16 inch
Front Arm Reach(Max)
43.31 inch
Rear Arm Reach(Min)
30.75 inch
Rear Arm Reach(Max)
50.39 inch
Adapter Height
2.76 inch
Motor
220VAC/60HZ/1PH
Time to Full Rise
≤50s
Warranty
3 years on product structure, 1 year on all product parts

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• Package Size LxWxH: 112"x18"x36"
• Package Weight: 1350 lbs

We don't provide unloading services including the liftgate service, please ensure a forklift or equivalent equipment is available for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

User Manual

Note:
Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Maintenance tips:
Clean the hydraulic oil tank and replace the oil after six months of initial use.
Clean the hydraulic system and replace the oil once a year.
If the lift will not be used for a long period, disconnect the power supply, lubricate all moving parts, and drain all oil or liquids.
