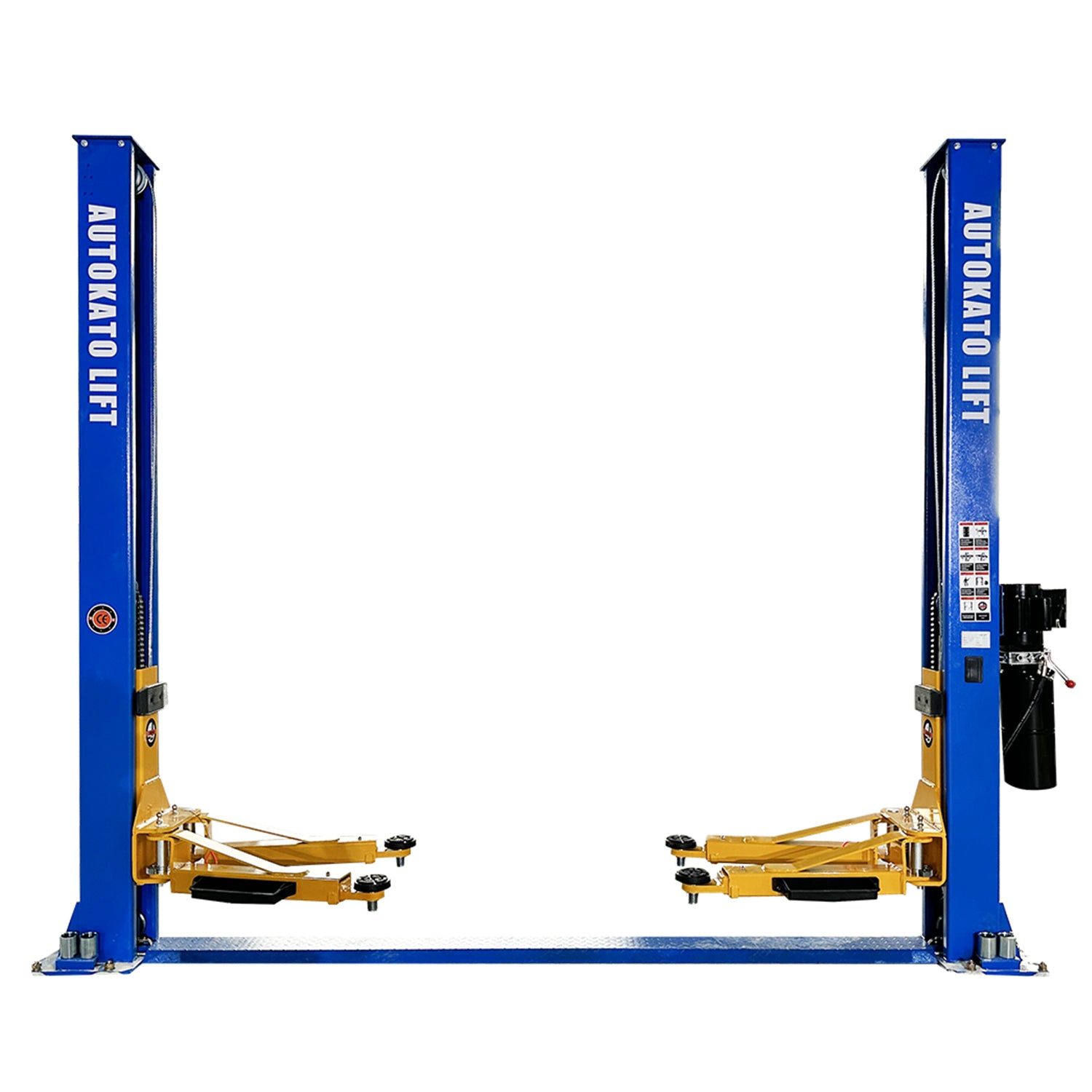

  • KT-H105 10,000 lbs Floorplate 2 Post Car Lift

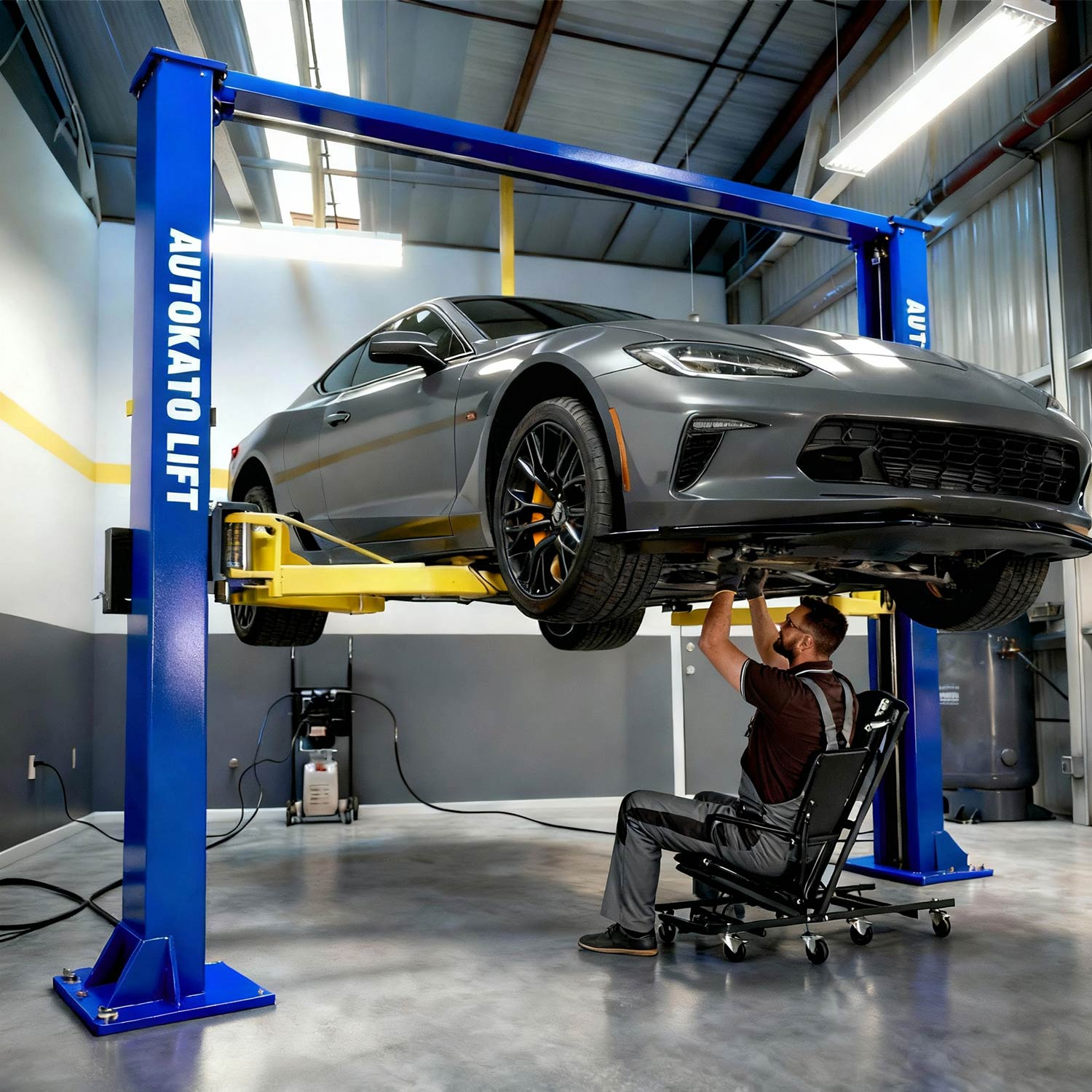

  • This 2 post car lift makes it easy to access undercar components

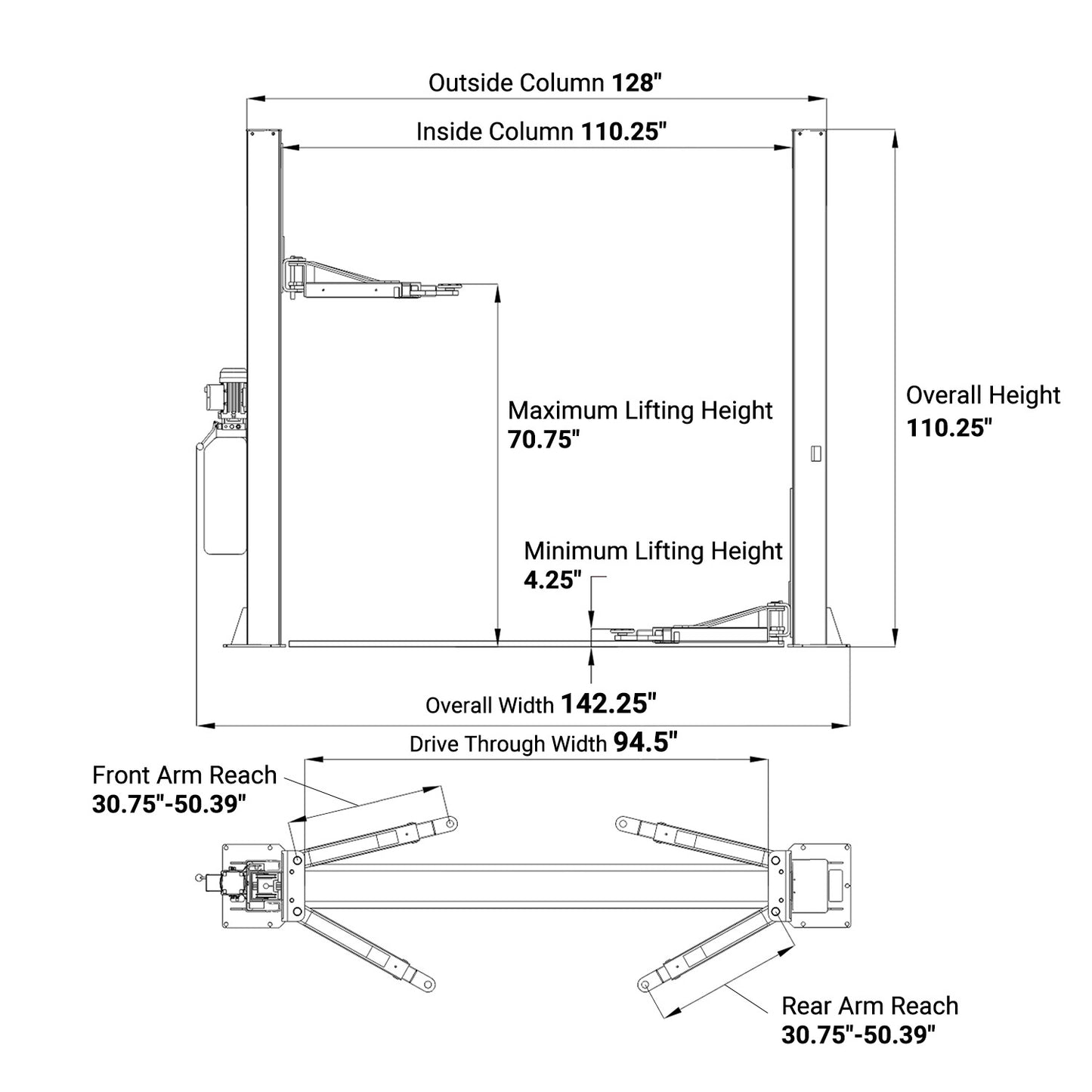

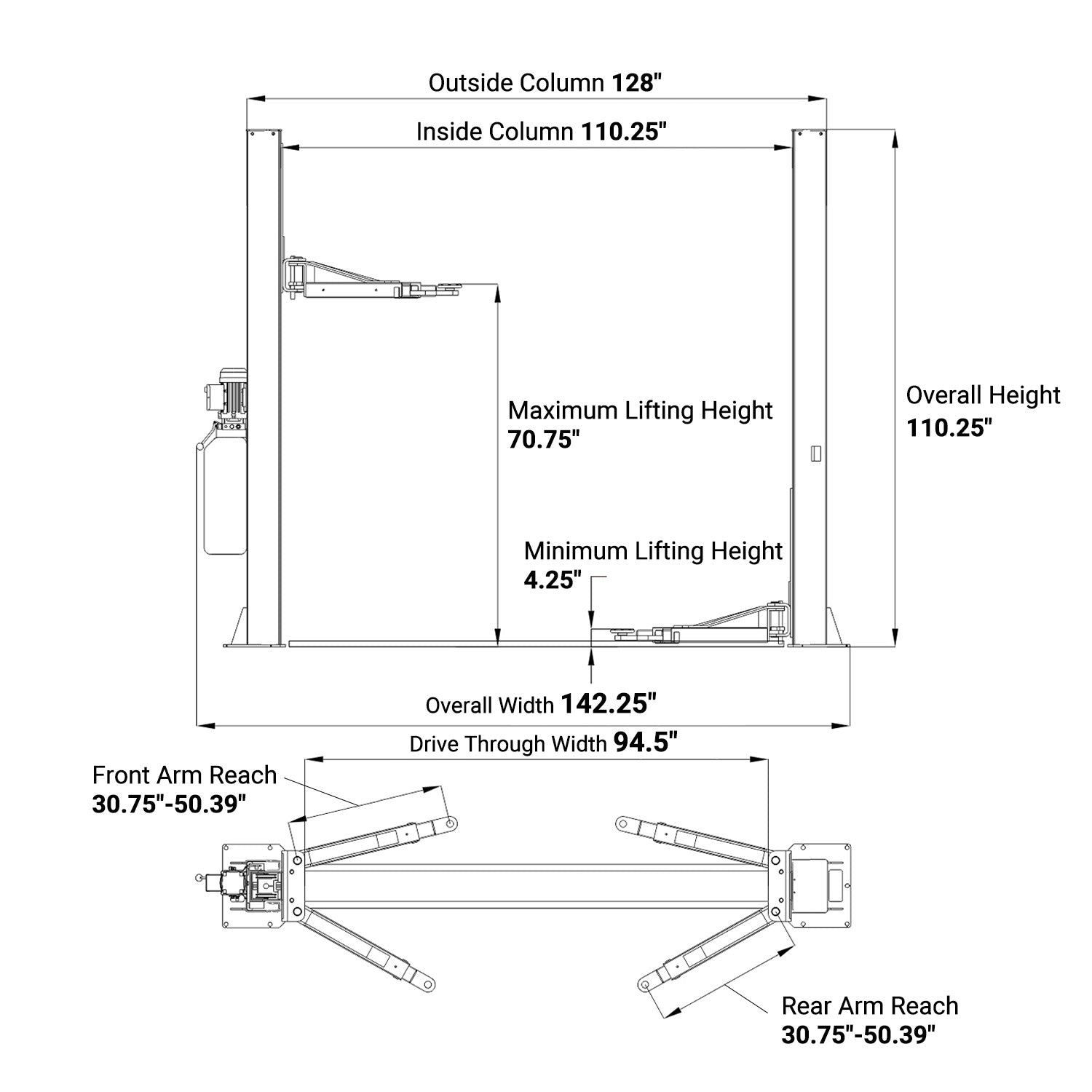

  • KT-H105 Dimensions

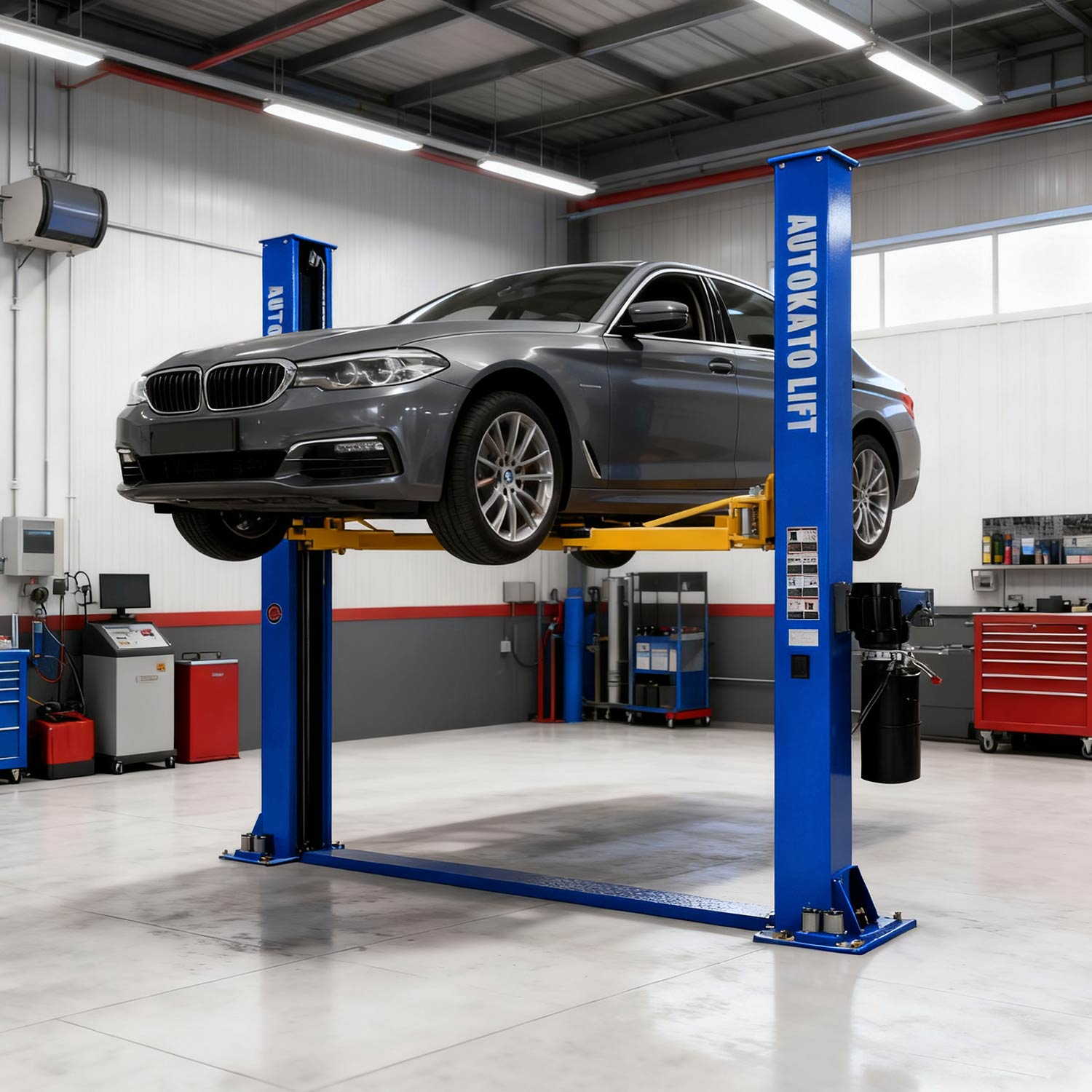

  • Two symmetric arms lift various vehicles steadily and safely

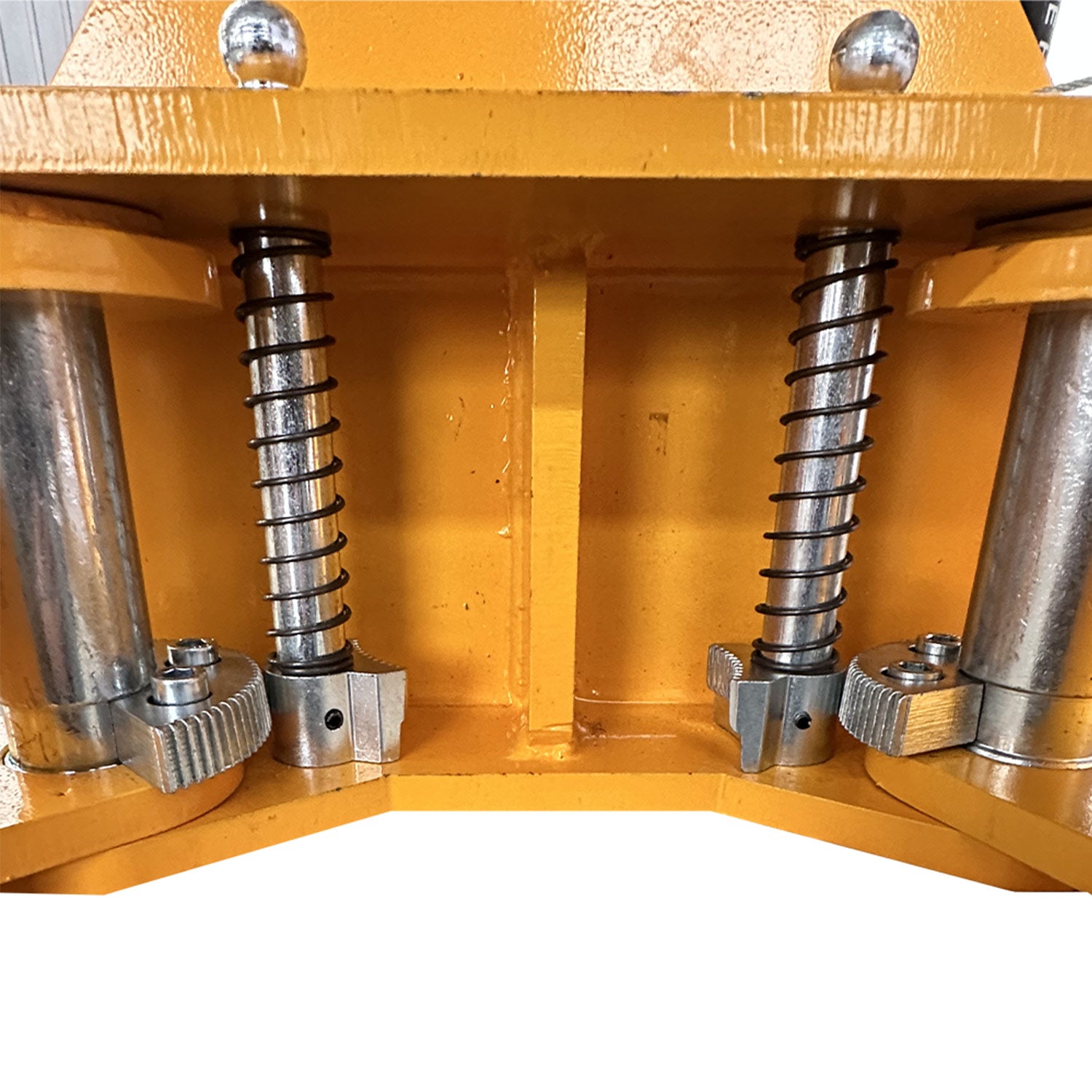

  • Automatic arm restraints for enhanced safety

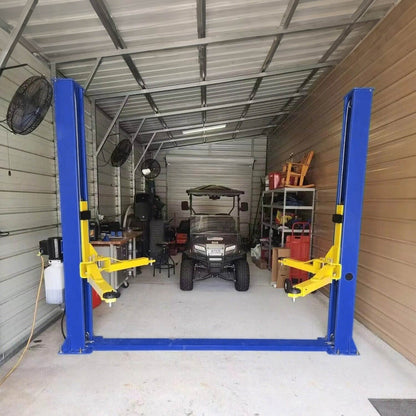

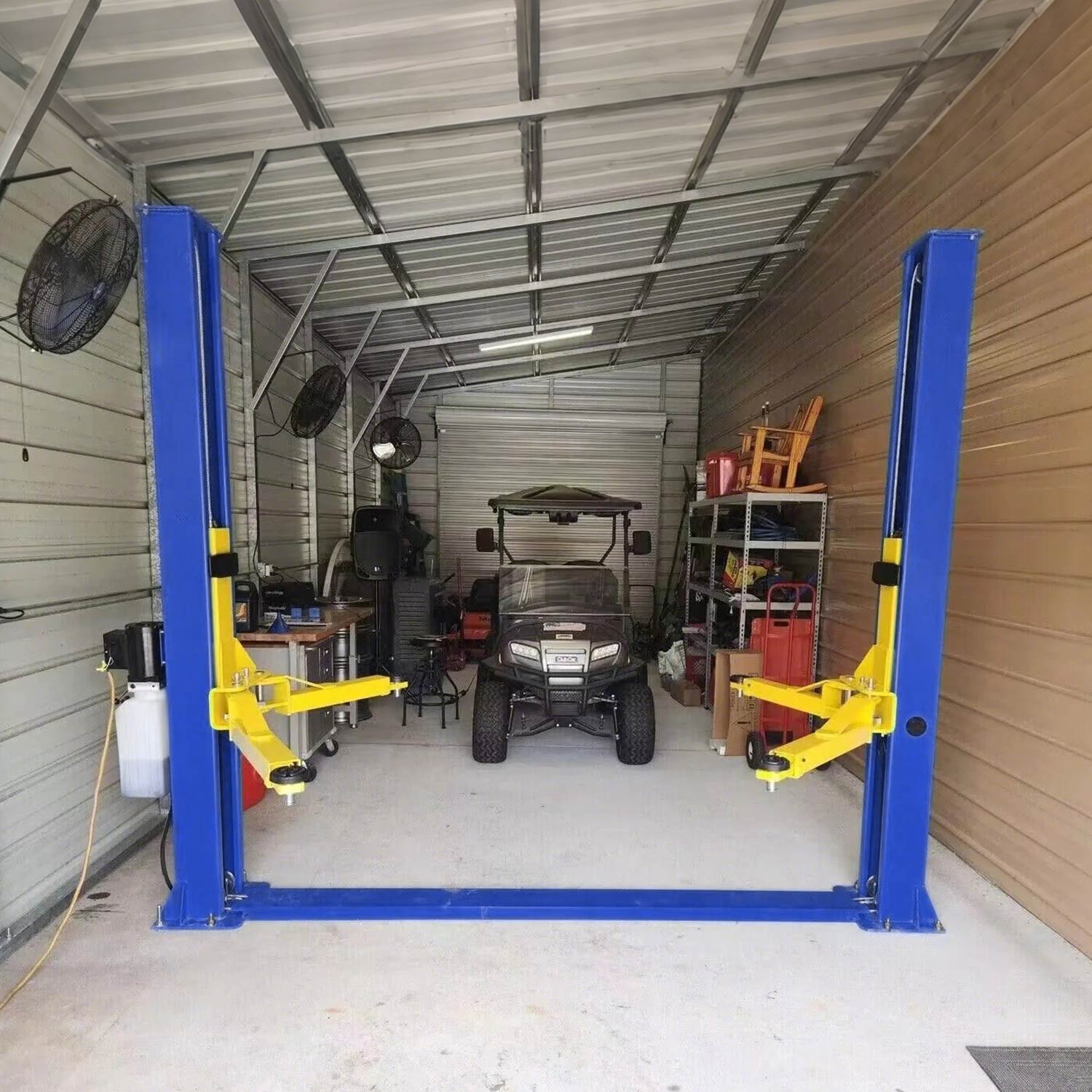

  • KT-H105 2 post car lift in a garage

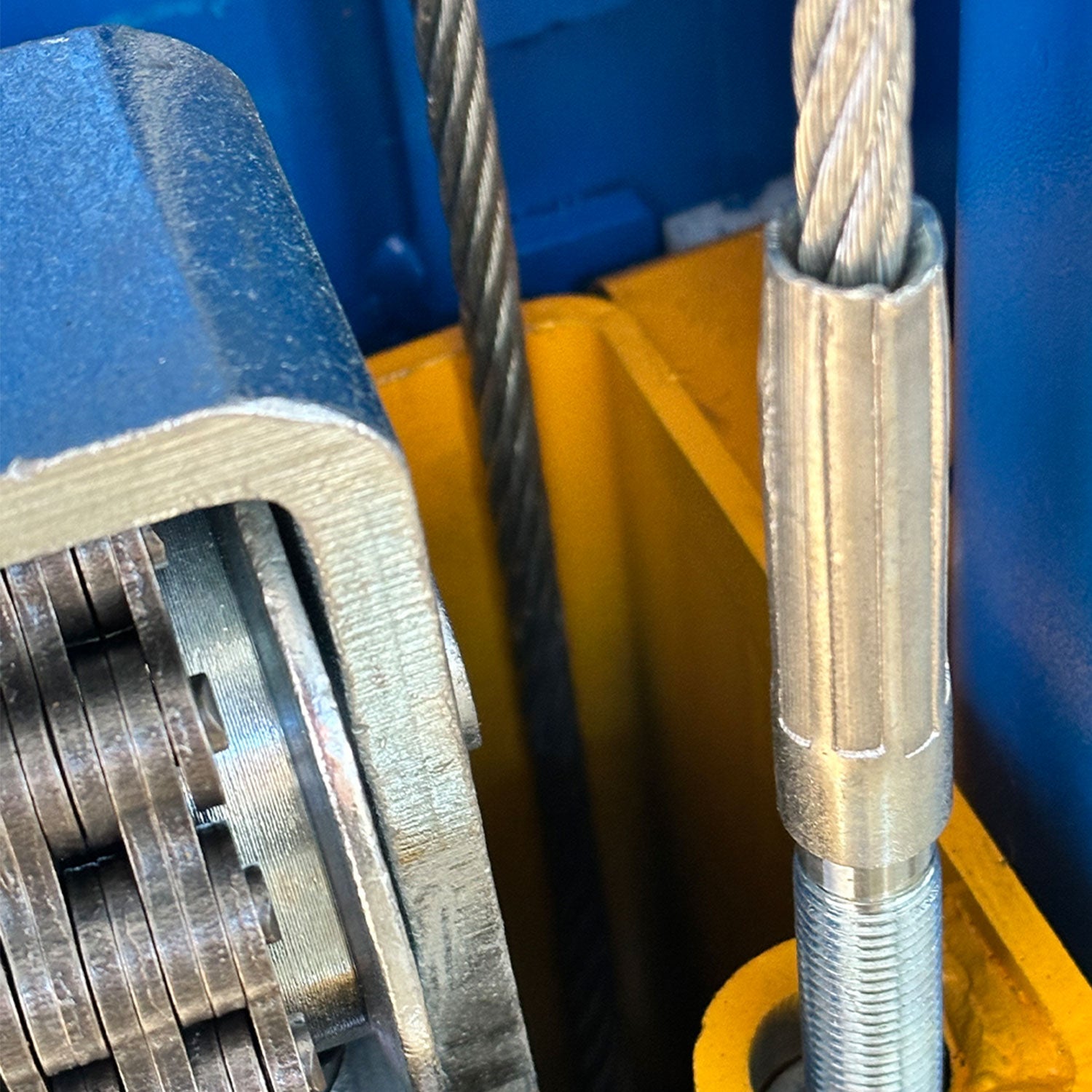

  • Sturdy chain link

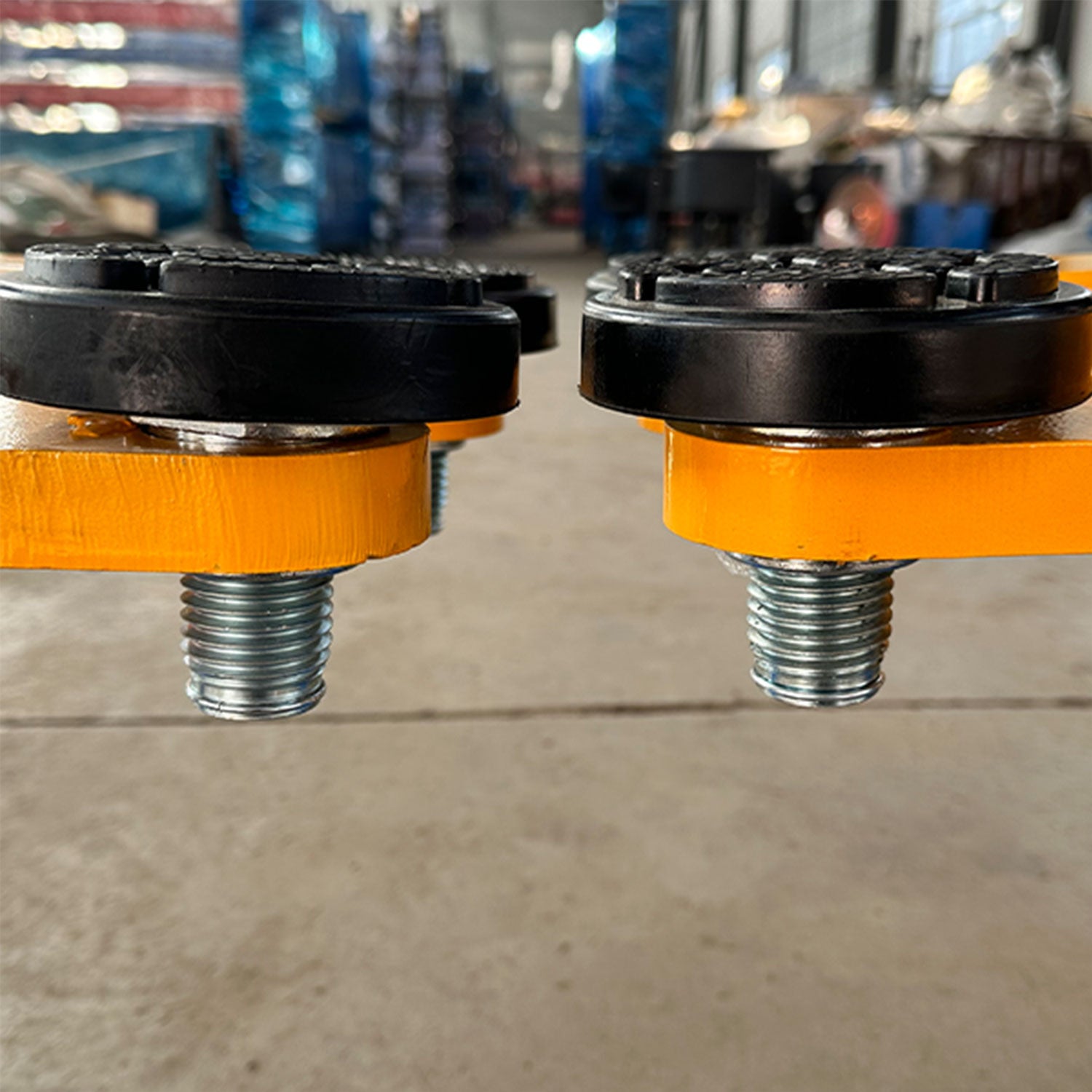

  • The car lift features rubber contact pads

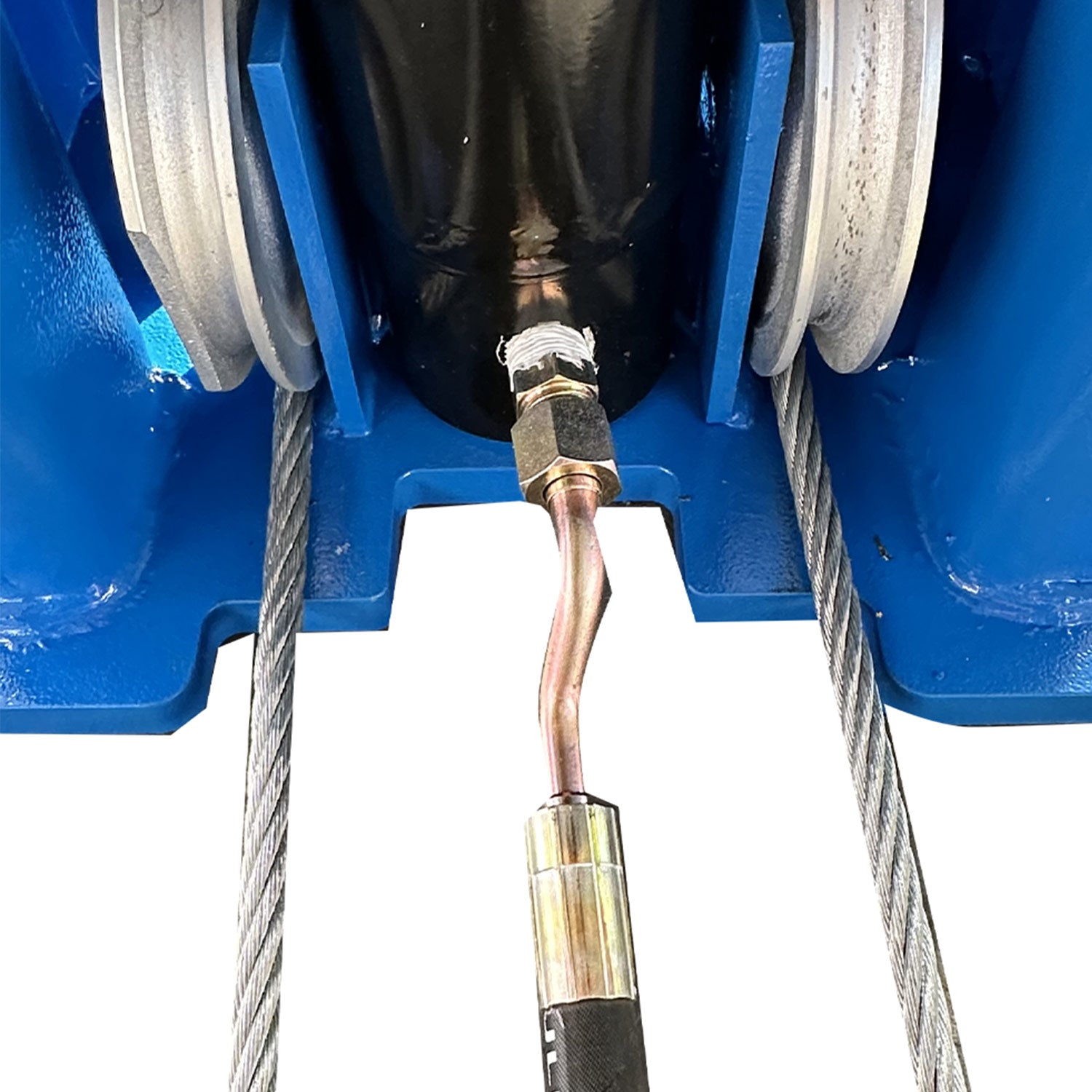

  • The chain sheave reduces friction between the chain links for smoother movement

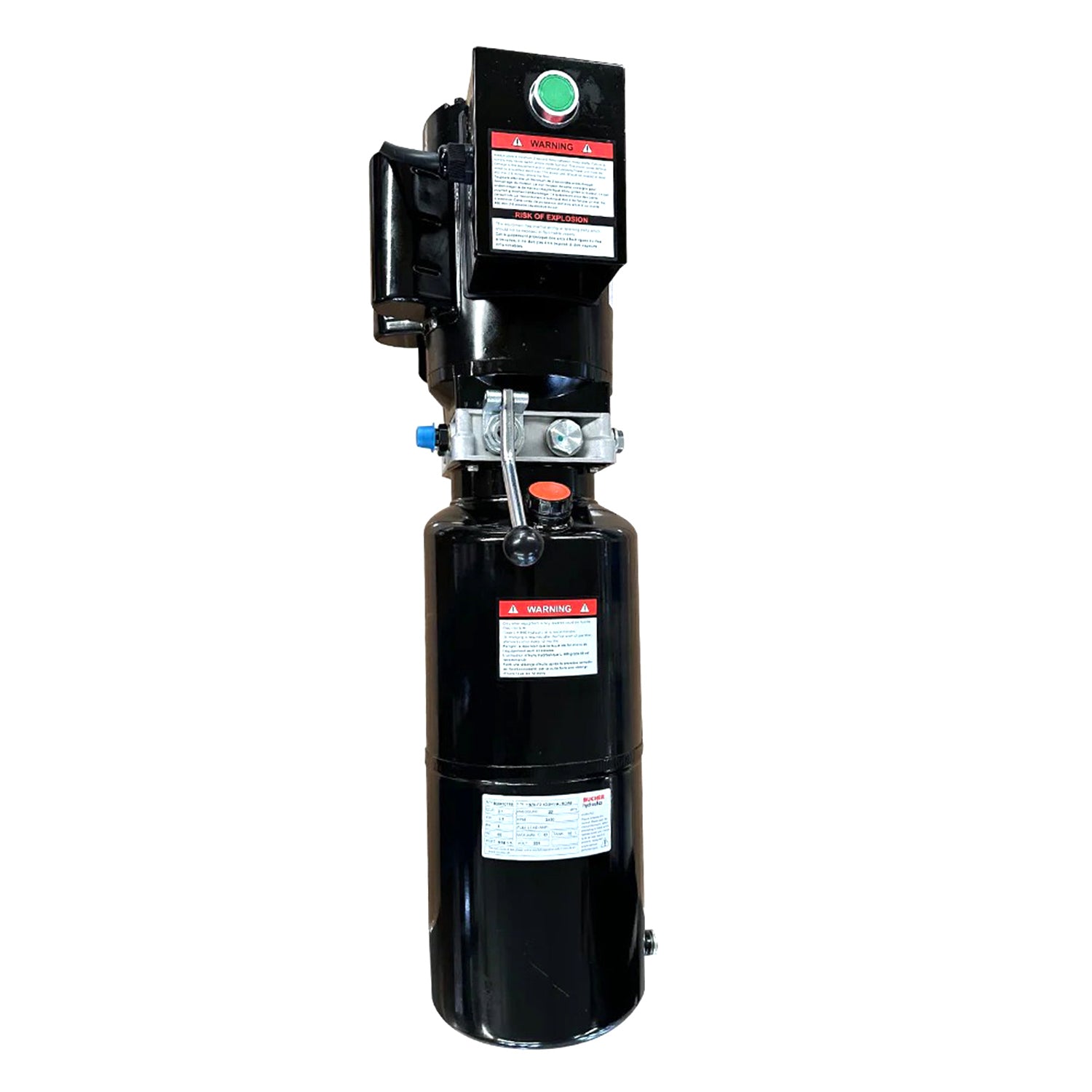

  • The car lift is equipped with top-level hydraulic system and motor

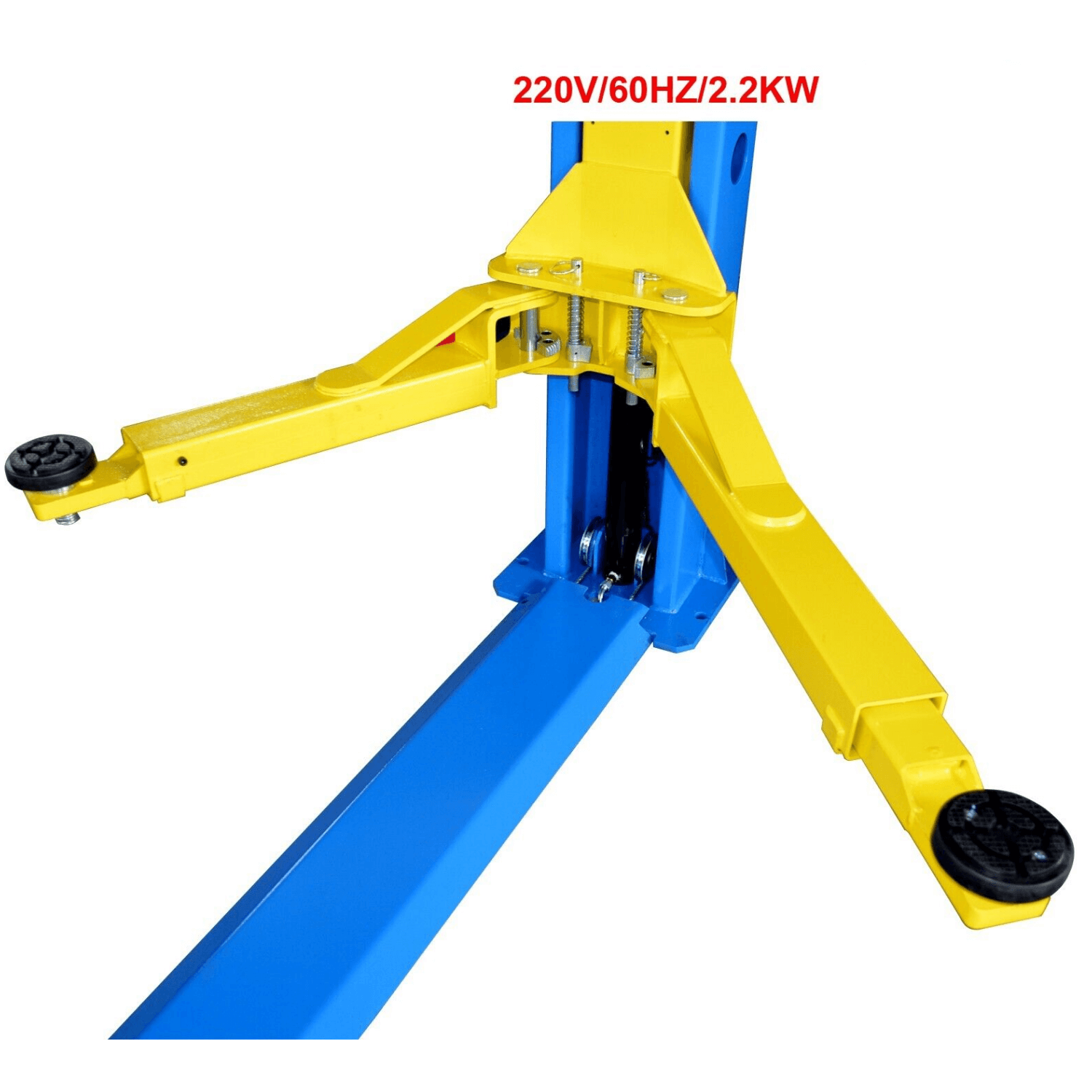

  • KT-H105 Two Post Vehicle Lift has double-telecoping arms
1 11

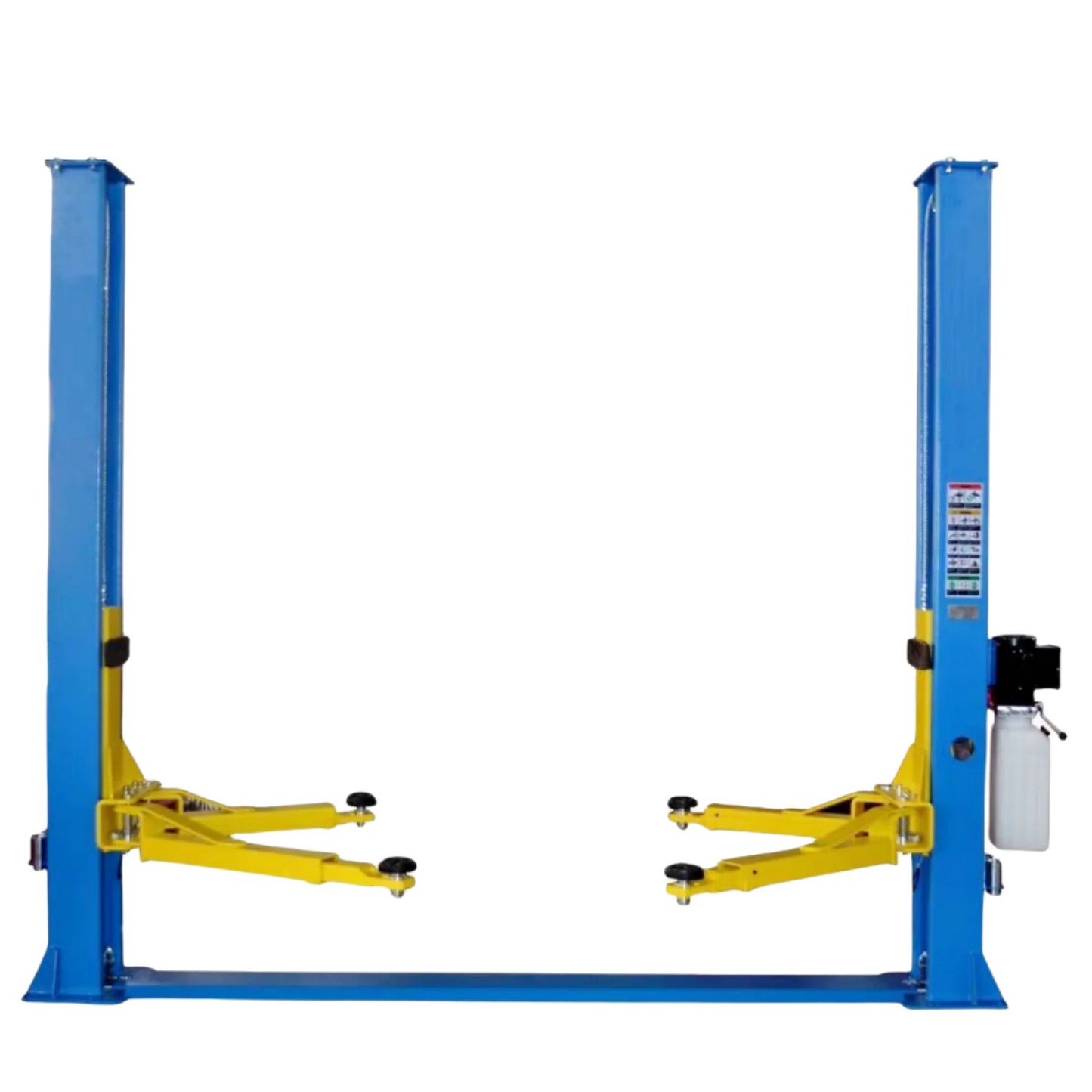

KT-H105 10,000 lbs Floorplate 2 Post Car Lift, Symmetric

KT-H105 10,000 lbs Floorplate 2 Post Car Lift, Symmetric

KATOOL SKU: H105
$2,199.00
$2,199.00

In Stock

Pickup available
TX, MD, NC

KT-H105 10,000 lbs Floorplate 2 Post Car Lift, Symmetric

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

The Katool KT-H105 2 post car lift is the ultimate lifting solution for home garages, car ports, and professional shops. Built with symmetrical arms and a 10,000 lbs lifting capacity, it provides stable, balanced support for a wide range of vehicles. Its dual-point release lock guarantees synchronized control, prioritizing safety during every lift. Whether you are a seasoned automotive professional or a DIY enthusiast, you can use this 2 post lift for vehicle maintenance, repairs, and inspections.

Durable steel construction with rust-resistant powder coating
High quality, CE approved and certified
Lift up to 10000 lbs, accommodating most cars, SUVs & light trucks
Double-telescoping arms extend outward to reach lift points on a wide range of vehicles
The open top design is well-suited for low ceiling settings
Dual hydraulic chain-drive cylinders deliver stable performance on both sides
Symmetrical arms and manual dual-point release ensure steady and safe lifting
70.8" maximum lifting height, providing easy access to undercar components
94.5" drive-through width makes vehicle positioning easier

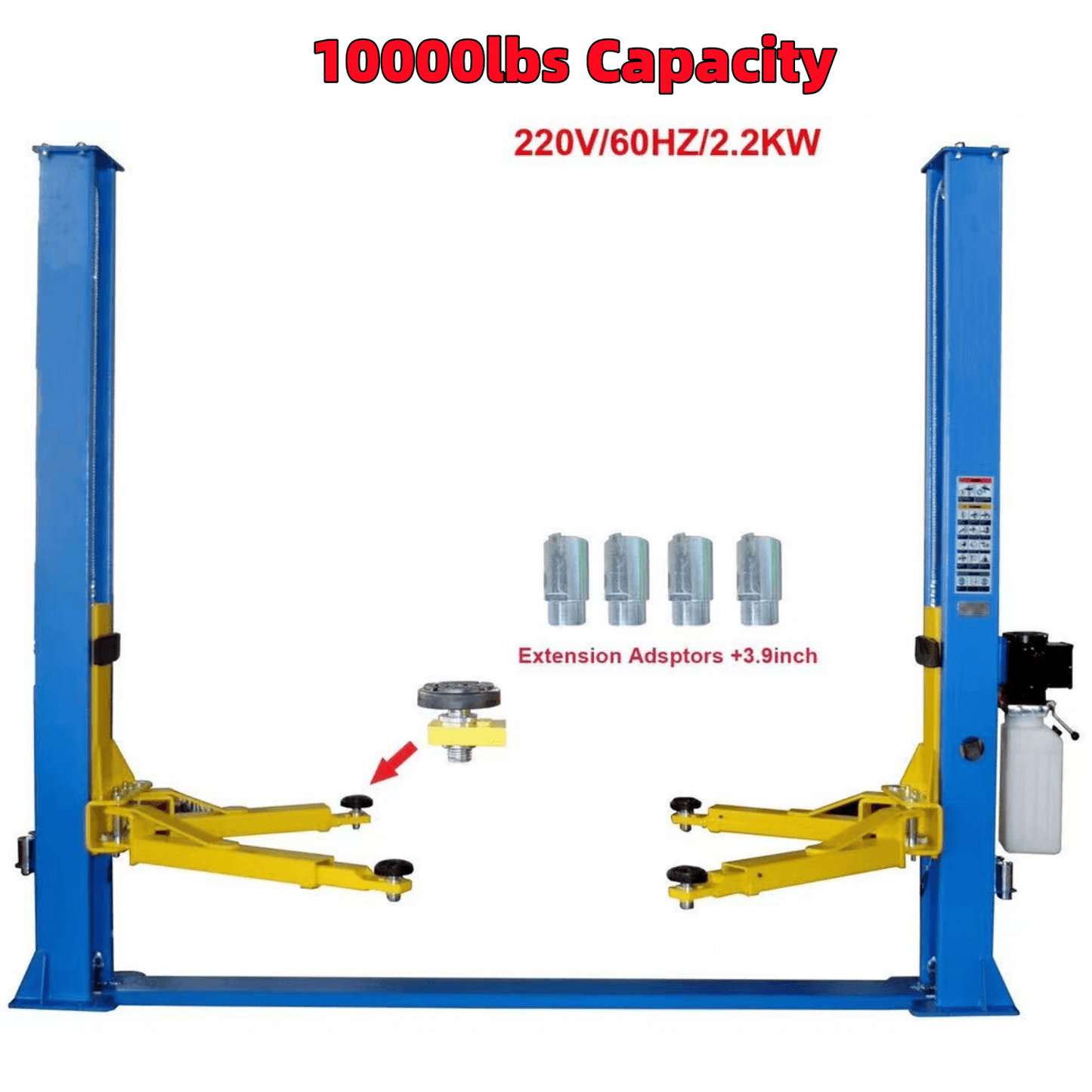

Free 4 pieces of 70mm stackable adapters extend lift height and accommodate taller vehicles
Safety locks in each column spaced every 2.8", allowing you to secure the car lift at your desired height

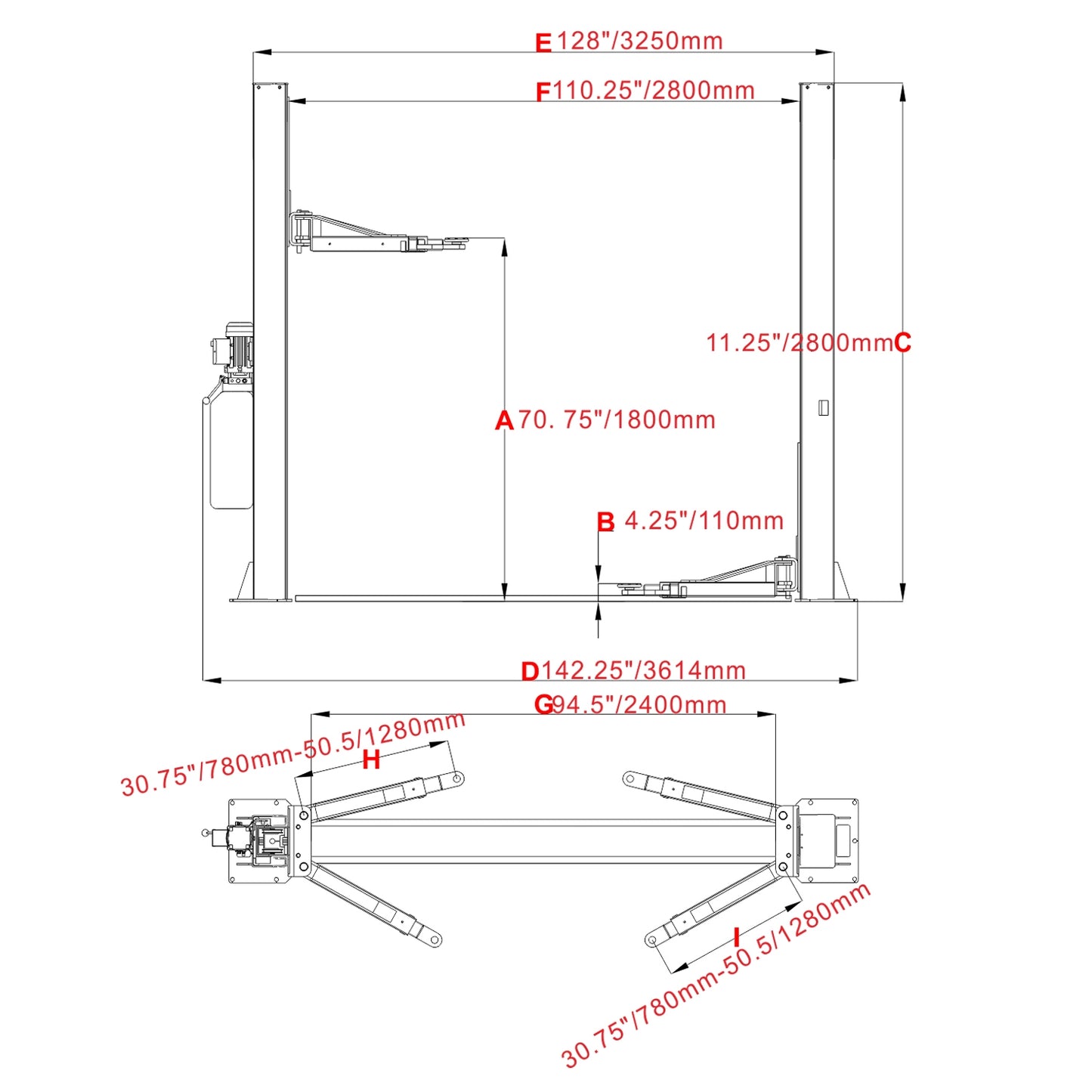

Specifications

Model
KT-H105
Material
steel
Net weight
1256 lbs
Lifting Capacity
10000lbs/4500KG
Overall Height( inch)
110.25
Overall Width( inch)
142.25
Drive Through Width( inch)
94.5
Driving Mode
dual hydraulic chain-drive cylinders
Locking Mechanism
two point release lock
Locking positions
20 locking postions, one every 2.8 inch
Outside Column( inch)
128
Inside Column( inch)
110.25
Floor plate( inch)
107.87 x 9.06
Minimum lifting height( inch)
4.25
Maximum lifting height without adapter( inch)
70.8
Front Arm reach(Min)
30.75 inch
Front Arm reach(Max)
50.5 inch
Rear Arm reach(Min)
30.75 inch
Rear Arm reach(Max)
50.5 inch
Motor
220VAC/60HZ/1PH/2.2KW
Time to Full Rise
≤50s
Adapter Heights
70mm, 4 pieces
Warranty
3 years on product structure, 1 year on all product parts

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

•Package Size LxWxH: 112"x18"x35.4"
•Package Weight: 1257 lbs

We don't provide unloading services including the liftgate service, please ensure a forklift or equivalent equipment is available for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

User Manual

Note:
Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Maintenance tips:

Clean the hydraulic oil tank and replace the oil after six months of initial use.

Clean the hydraulic system and replace the oil once a year.

If the lift will not be used for a long period, disconnect the power supply, lubricate all moving parts, and drain all oil or liquids.
