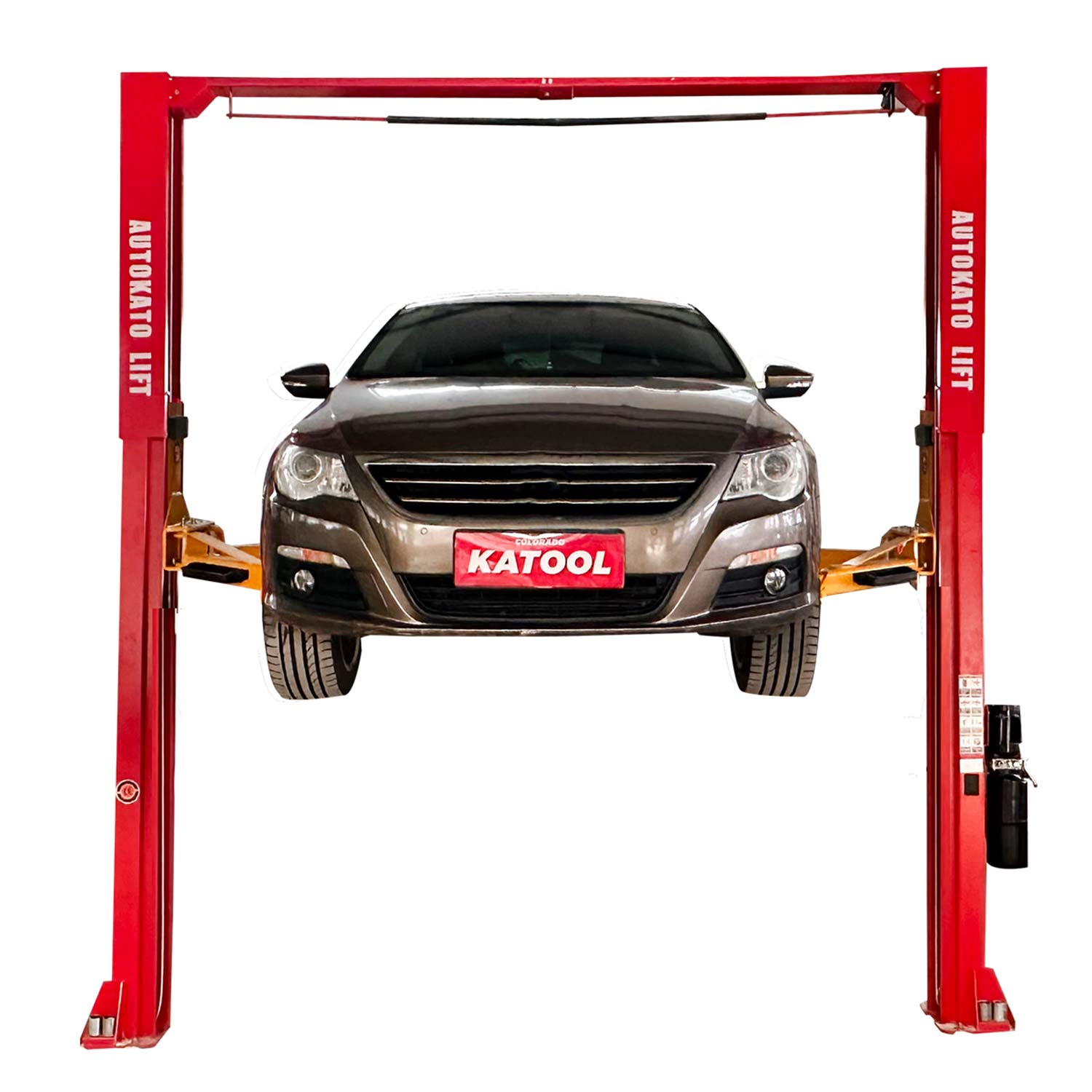

  • The Katool 2 post lift is lifting a car stably and safely
  • KT-M120 2 post car lift for car repairing

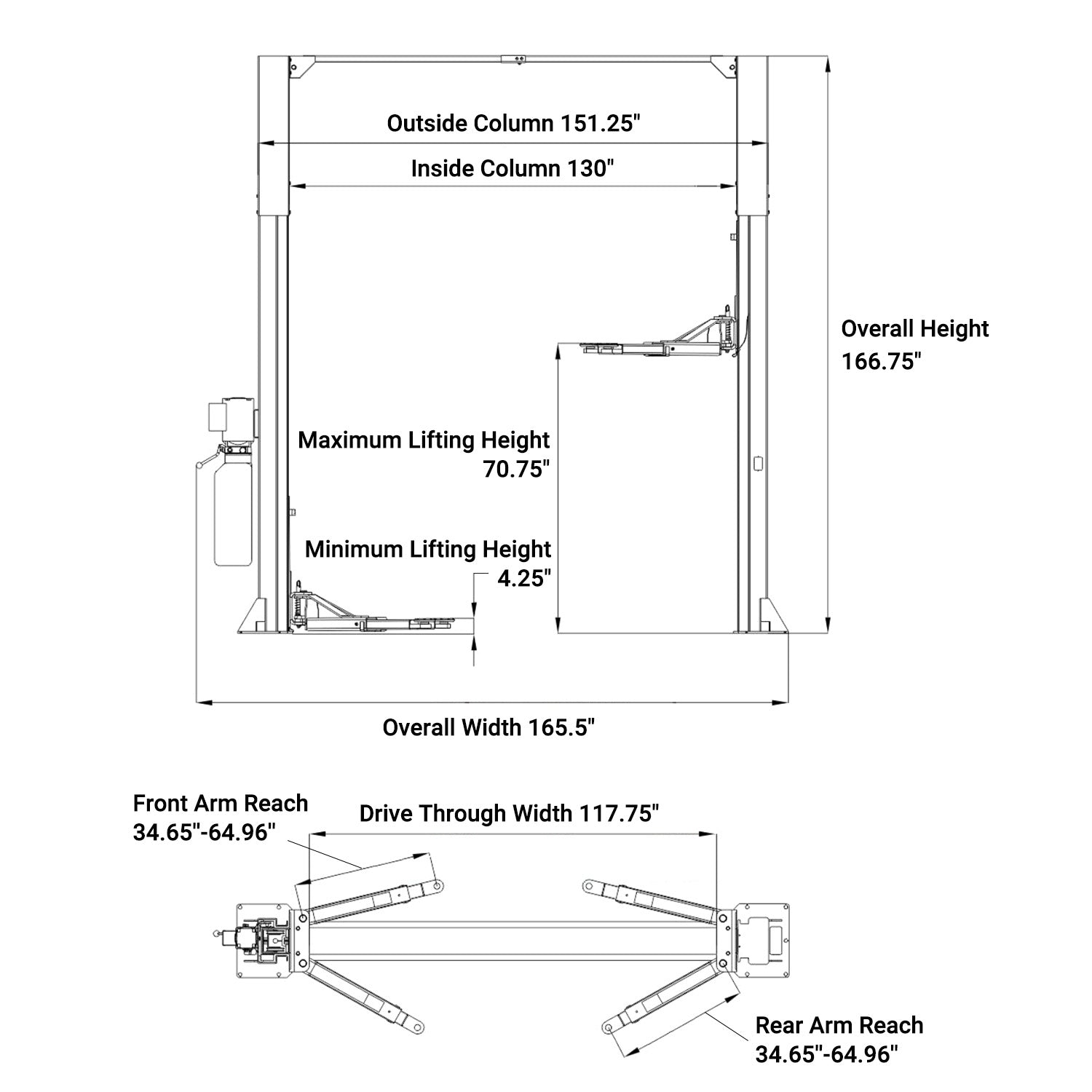

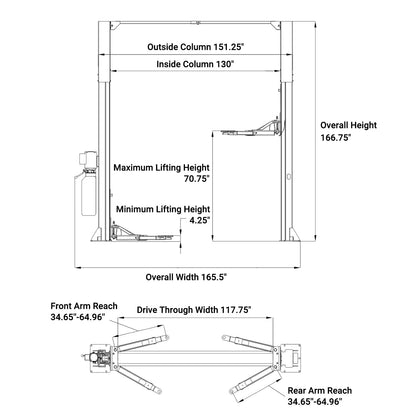

  • KT-M120 dimensions

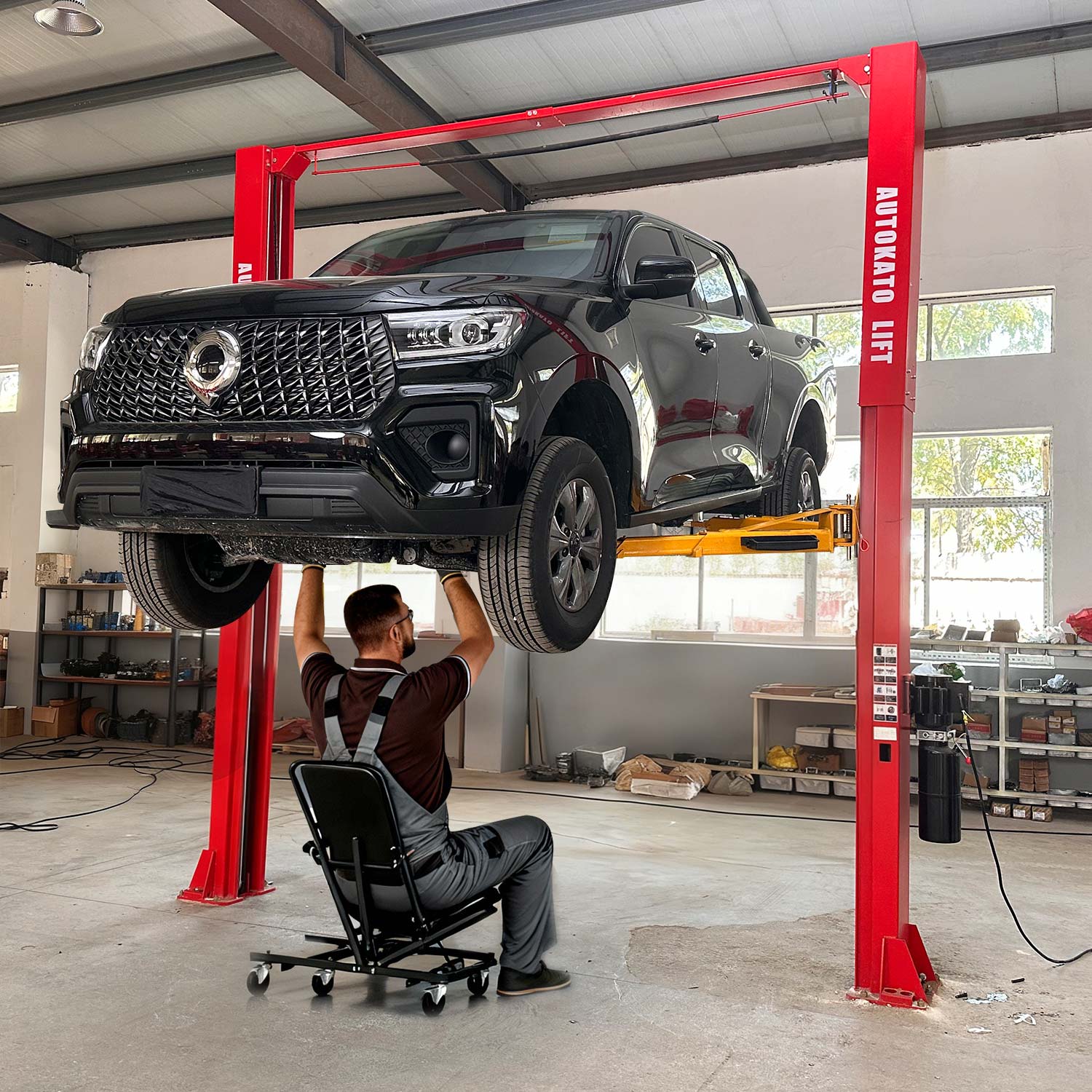

  • The KT-M120 car lift makes it easy to access undercar parts for vehicle repair and maintenance
  • KT-M120 12,000 Lbs Clear-floor 2 Post Car Lift, Symmetric

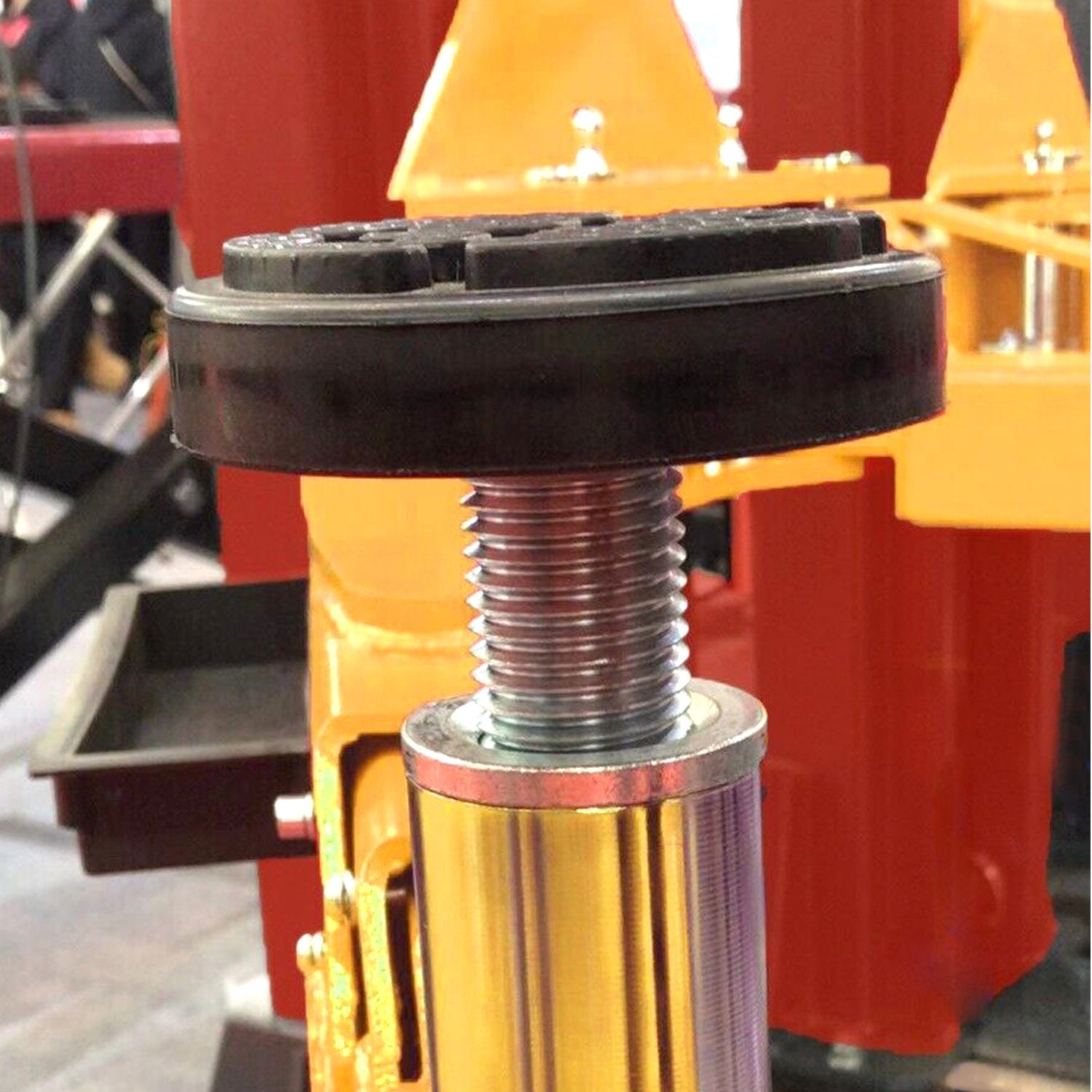

  • Rubber contanct pad

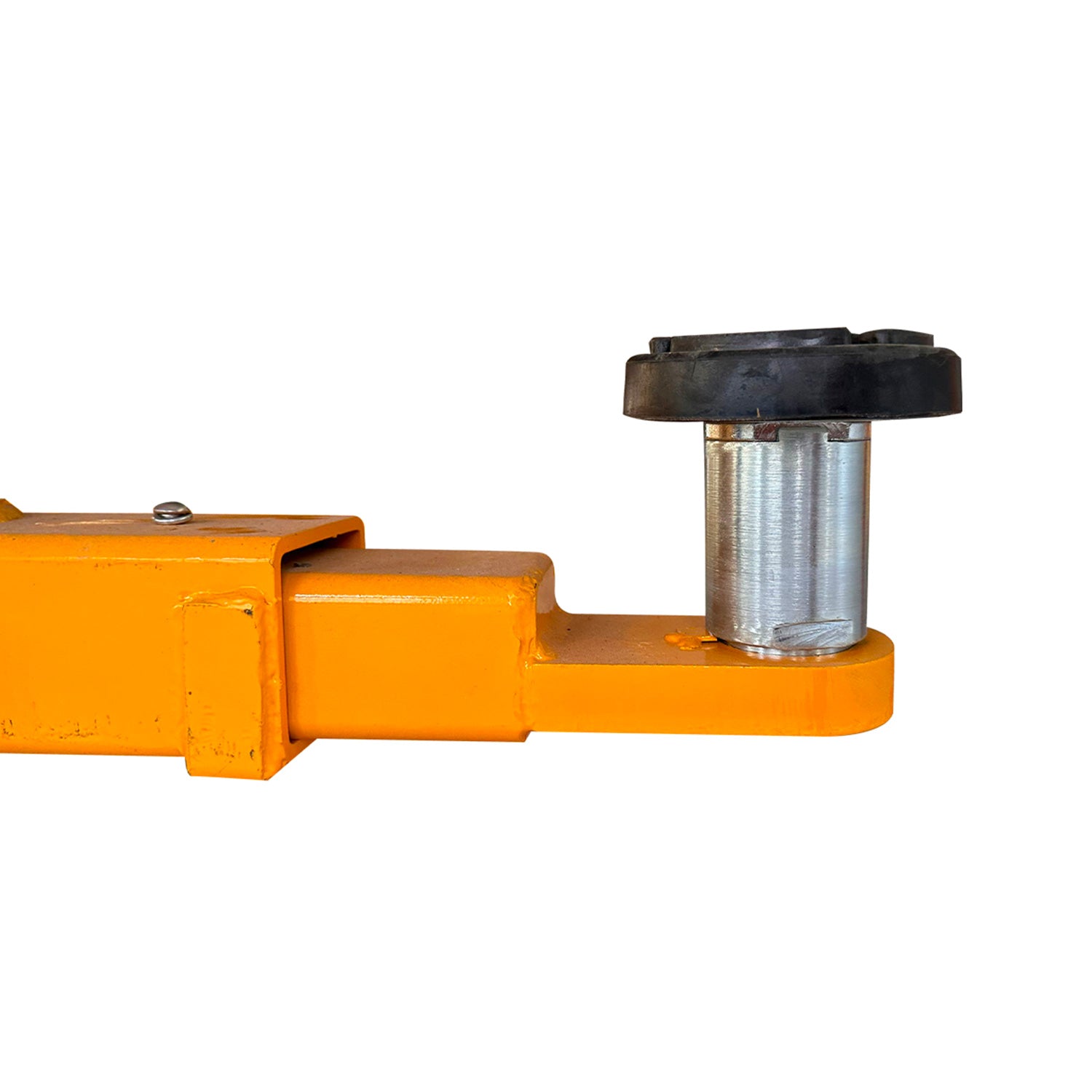

  • The car lift is equipped with adapters for extended height

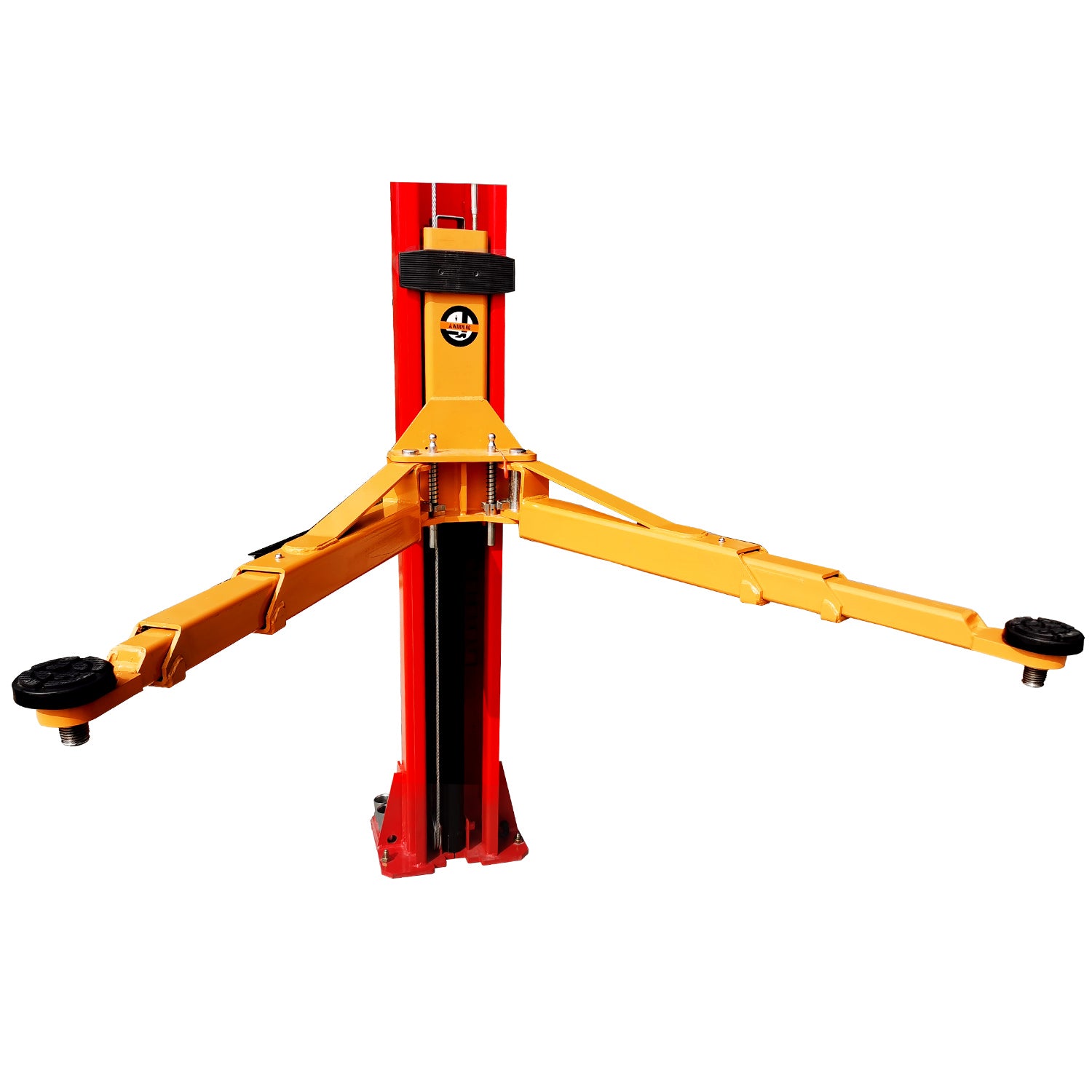

  • Triple-telecoping arms

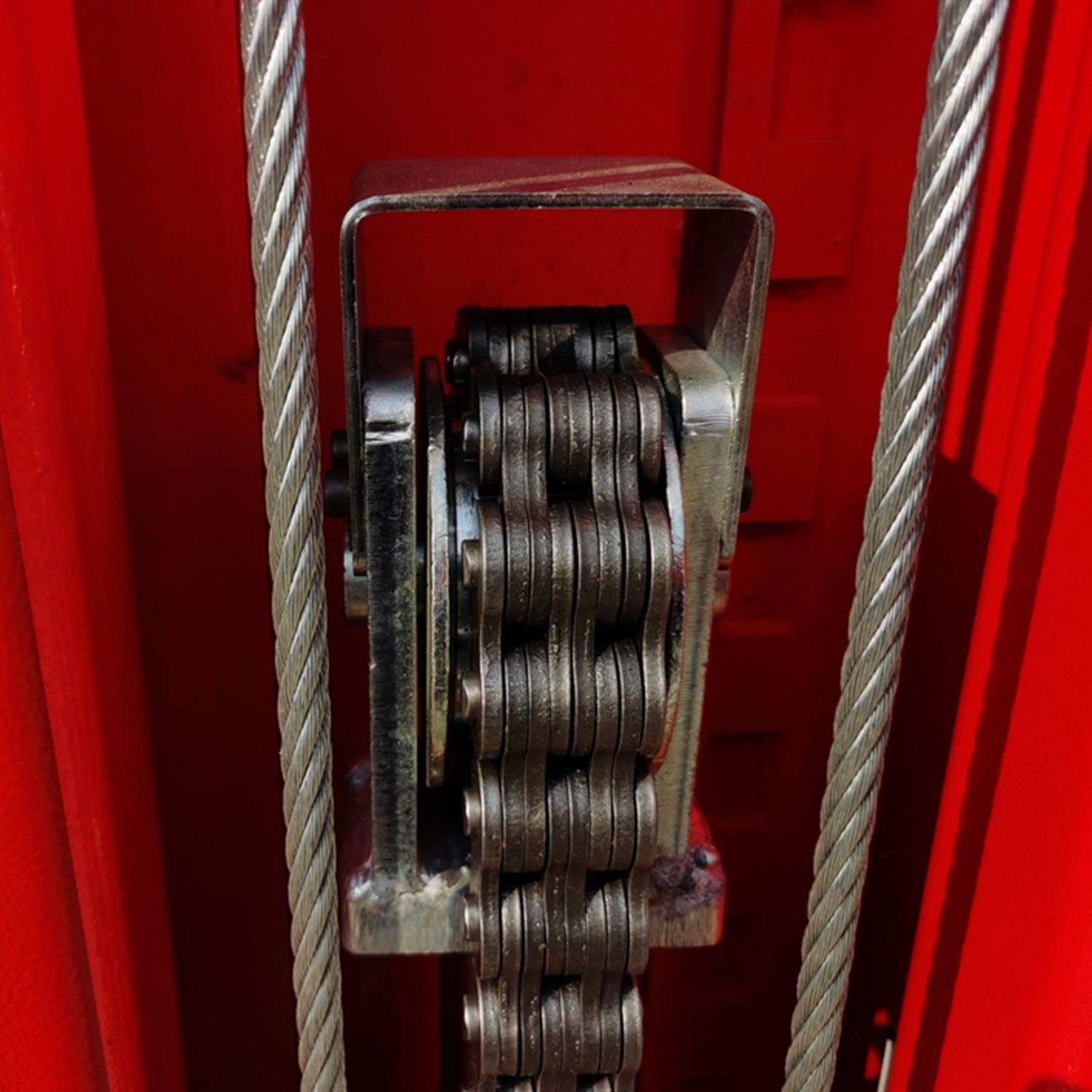

  • Cable sheave

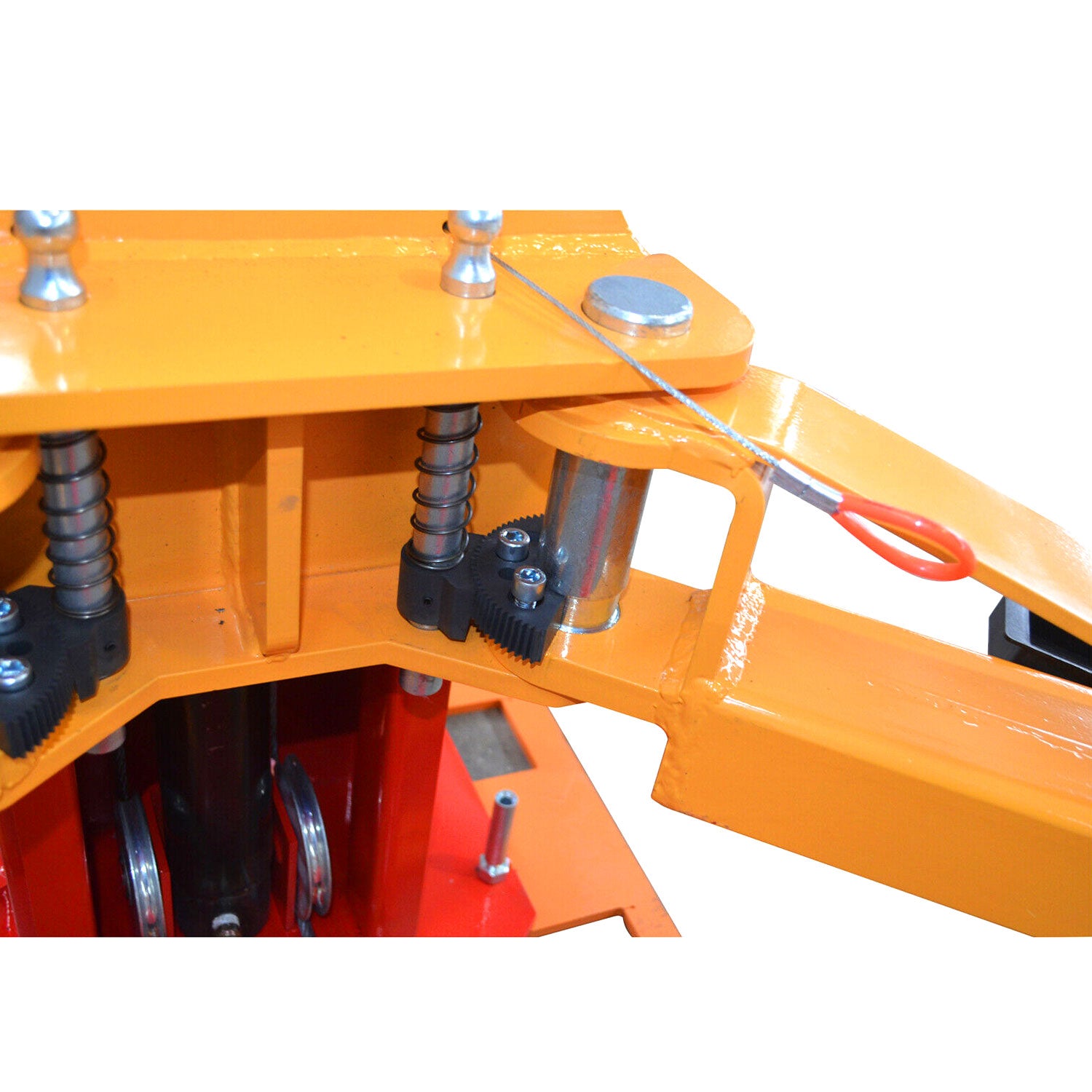

  • Strong lift carriage

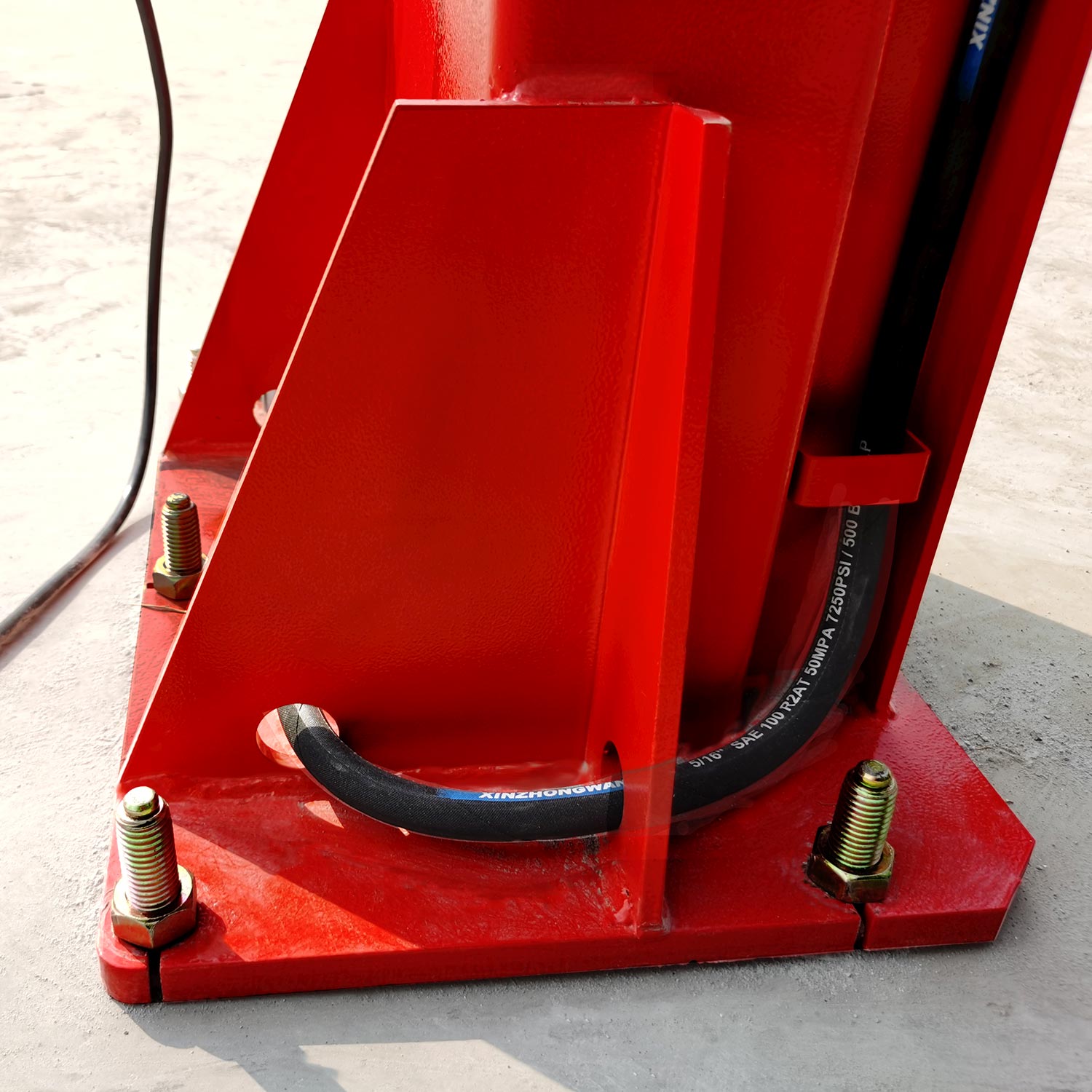

  • Heavy duty foot plate

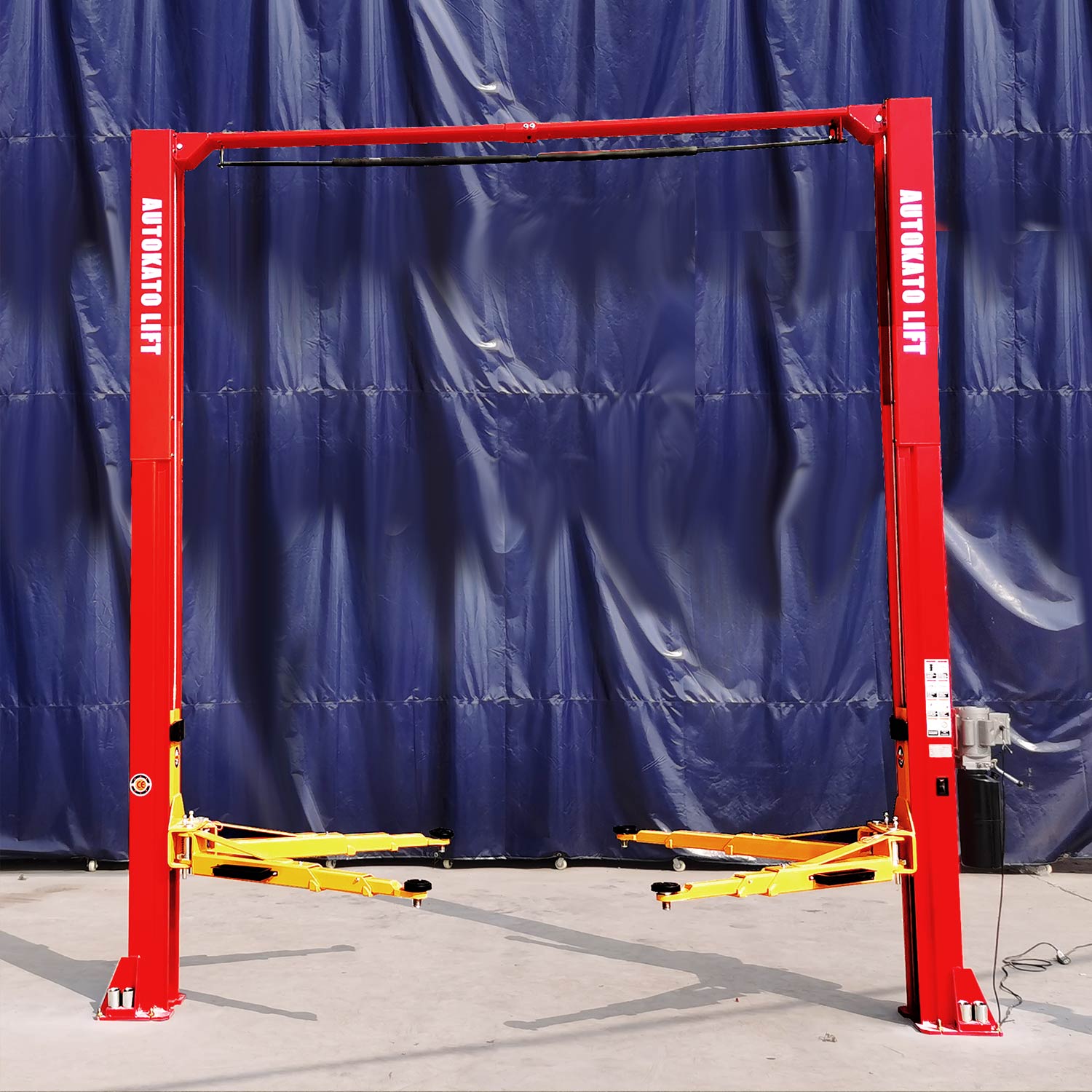

  • An view of the KT-AS110D 2 post hoist
1 12

KT-M120 12,000 Lbs Clear-floor 2 Post Car Lift, Symmetric

KT-M120 12,000 Lbs Clear-floor 2 Post Car Lift, Symmetric

KATOOL SKU: KT-M120
$3,199.00
$3,199.00

In Stock

Pickup available
TX, MD, NC

KT-M120 12,000 Lbs Clear-floor 2 Post Car Lift, Symmetric

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

Elevate your lifting experience with the Katool KT-M120 Two Post Clear-floor Vehicle Lift. With symmetrical arms and a robust 12,000 lbs capacity, it guarantees a secure, balanced lift for a wide range of vehicles. The double point lock release ensures precise control during operation. The clear-floor design provides unobstructed access to undercar parts. Ideal for professional workshops and home garages, this 2-post car lift helps you work safely and efficiently.

Durable steel construction with rust-resistant powder-coated finish
High quality, CE approved and certified
Lift up to 12000lbs, accommodating most cars, SUVs, and light trucks
Triple telescoping arms extend outward to reach lift points on various vehicles
The clear-floor design reduces tripping hazards
Dual hydraulic chain-drive cylinders deliver stable performance on both sides
Symmetrical arms and manual dual-point release ensure steady and safe lifting
70.8" maximum lifting height provides easy access to undercar components
117.75" drive-through width makes vehicle positioning easier
Free 4 pieces of 2.76" stackable adapters extend lift height
Safety locks in each column spaced every 2.8", allowing to secure the car lift at a desired height

Specifications

Model
KT-M120
Material
steel
Net weight
1653 lbs
Lifting Capacity
12000lbs/5500KG
Overall Height(inch)
166.75
Overall Width(inch)
165.5
Drive Through Width(inch)
117.75
Driving Mode
dual hydraulic chain-drive cylinders
Locking Mechanism
two point release lock
Locking Positions
20 locking postions, one every 2.8 inch
Outside Column(inch)
151.25
Inside Column(inch)
130
Cross Beam(inch)
133.46 x 9.84
Minimum Lifting Height(inch)
4.25
Maximum Lifting Height(inch)
70.75
Front Arm Reach(Min)
34.65 inch
Front Arm Reach(Max)
64.96 inch
Rear Arm Reach(Min)
34.65 inch
Rear Arm Reach(Max)
64.96 inch
Adapter Height
2.76 inch
Motor
220VAC/60HZ/1PH
Time to Full Rise
≤50s
Warranty
3 years on product structure, 1 year on all product parts

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• Package Size LxWxH: 112"x18"x35.4"
• Package Weight: 1750 lbs

We don't provide unloading services including the liftgate service, please ensure a forklift or equivalent equipment is available for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

User Manual

Note:
Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Maintenance tips:
Clean the hydraulic oil tank and replace the oil after six months of initial use.
Clean the hydraulic system and replace the oil once a year.
If the lift will not be used for a long period, disconnect the power supply, lubricate all moving parts, and drain all oil or liquids.
