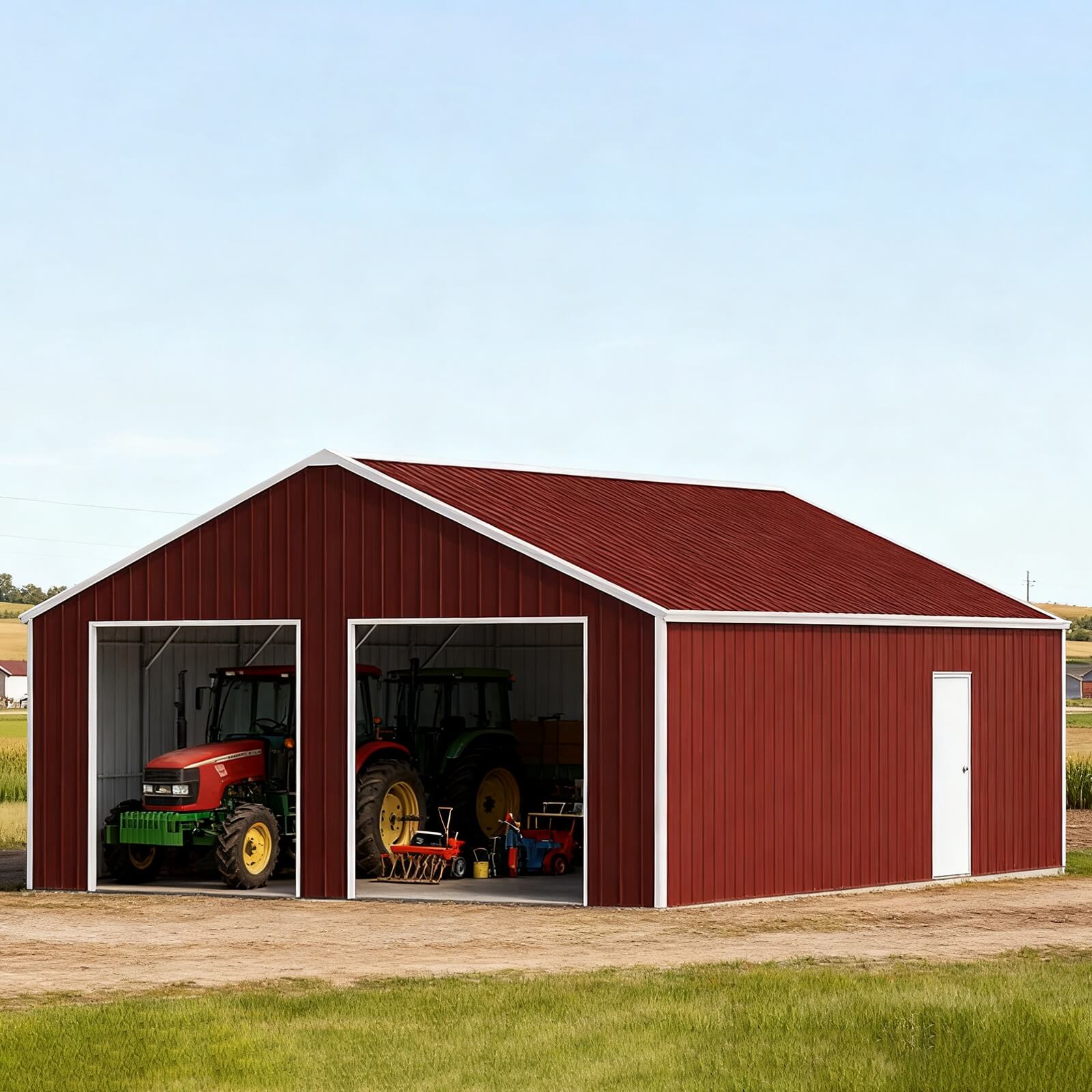

• Red metal barn with open doors showing tractors and equipment on a clear day.

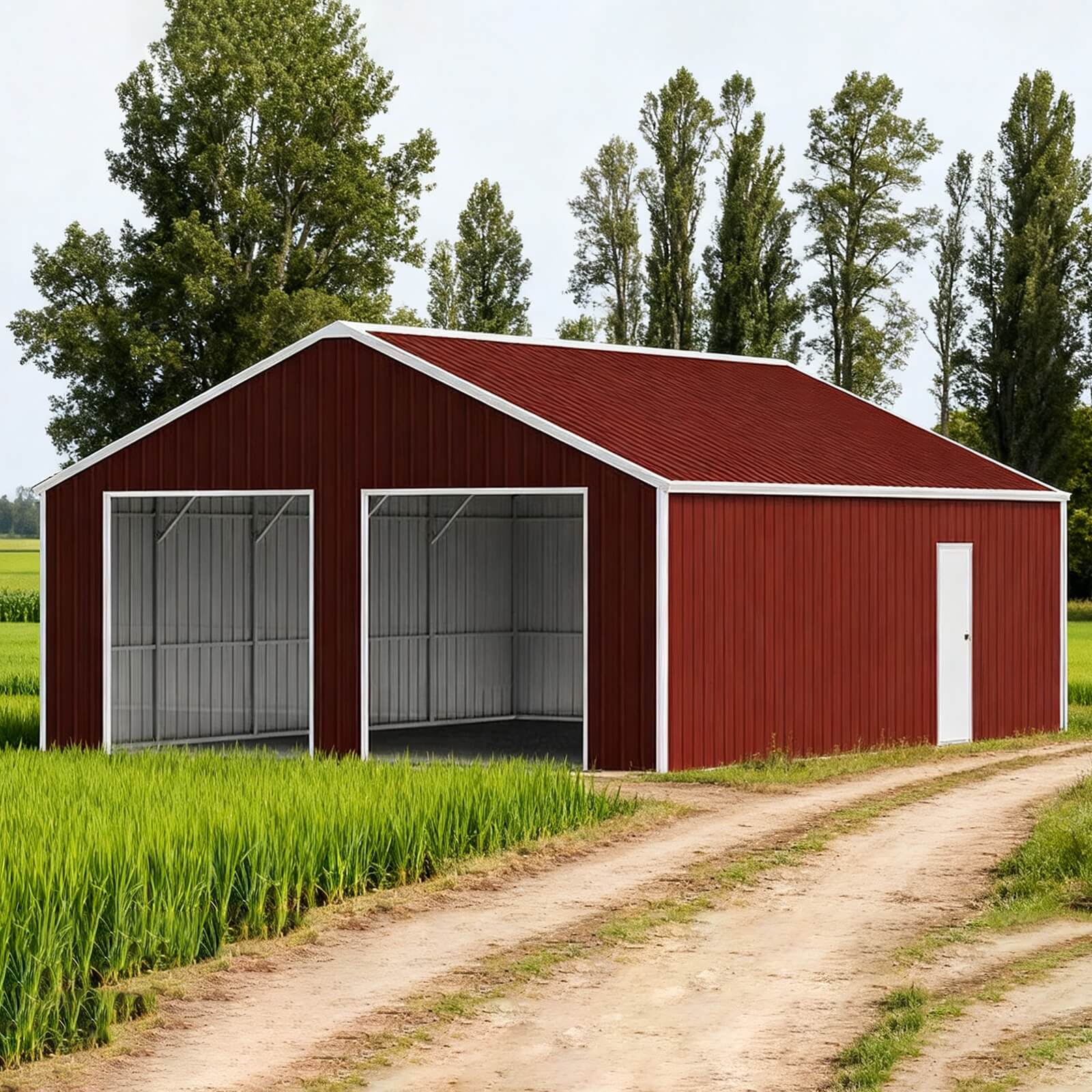

  • Red metal barn with open sides on a rural landscape with trees and fields.

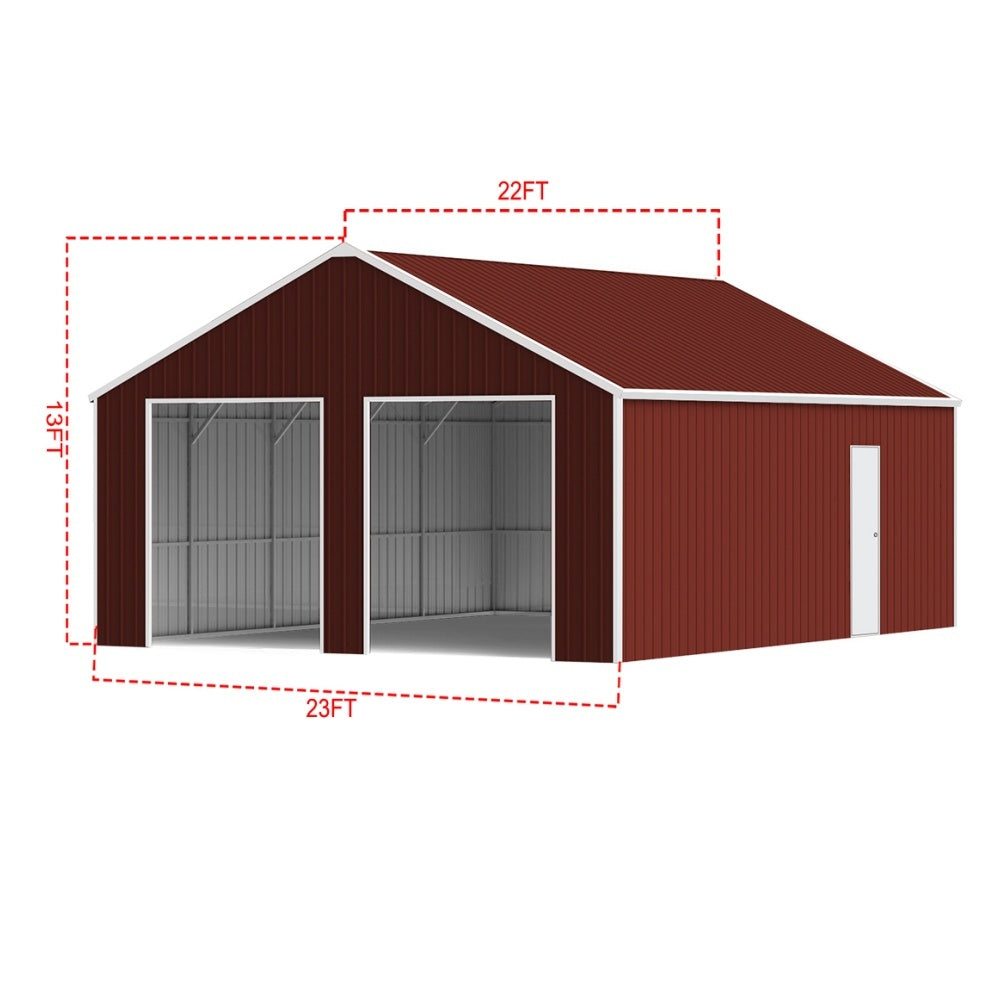

  • Red metal garage with dimensions on a white background

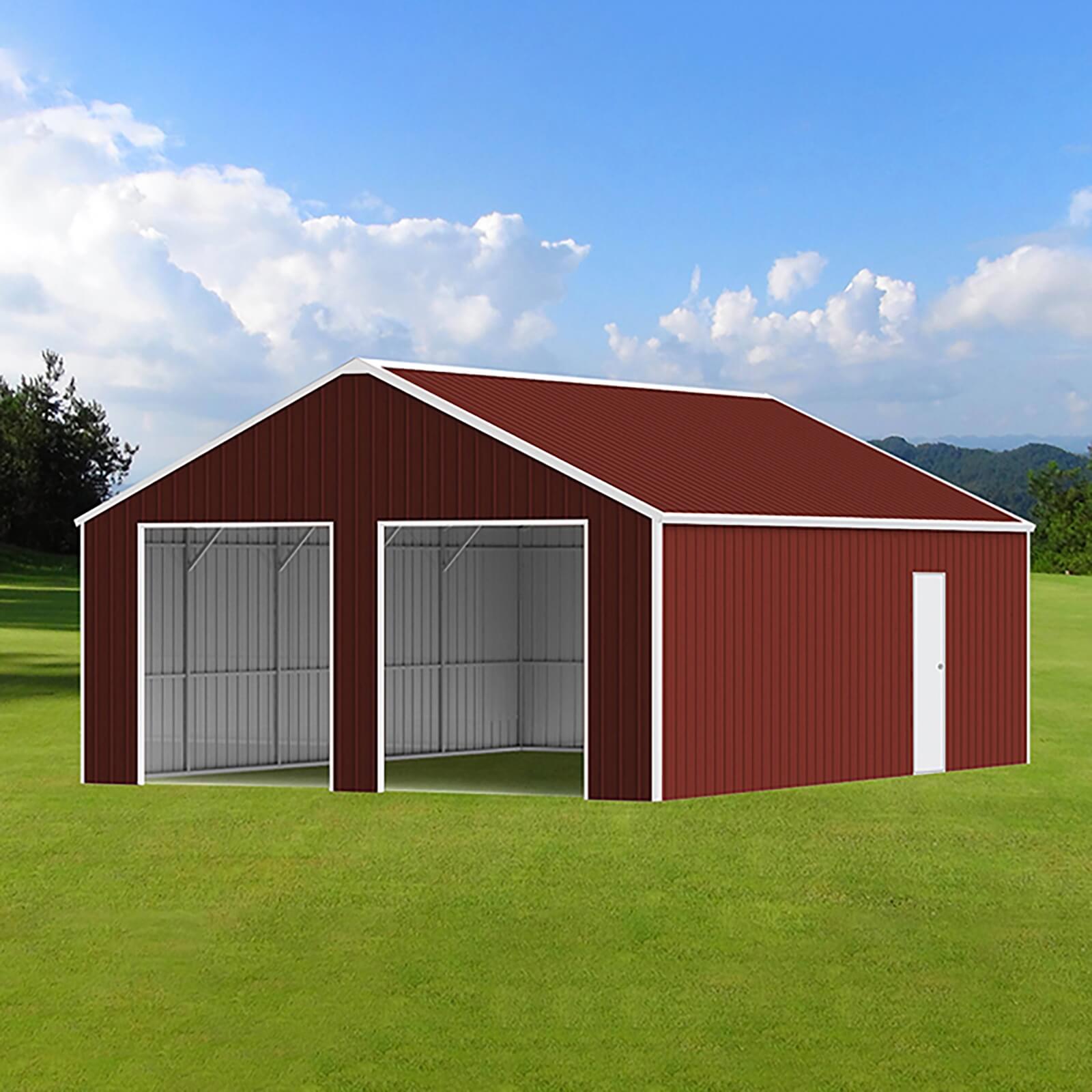

  • Red metal garage with white trim on a grassy field under a blue sky.

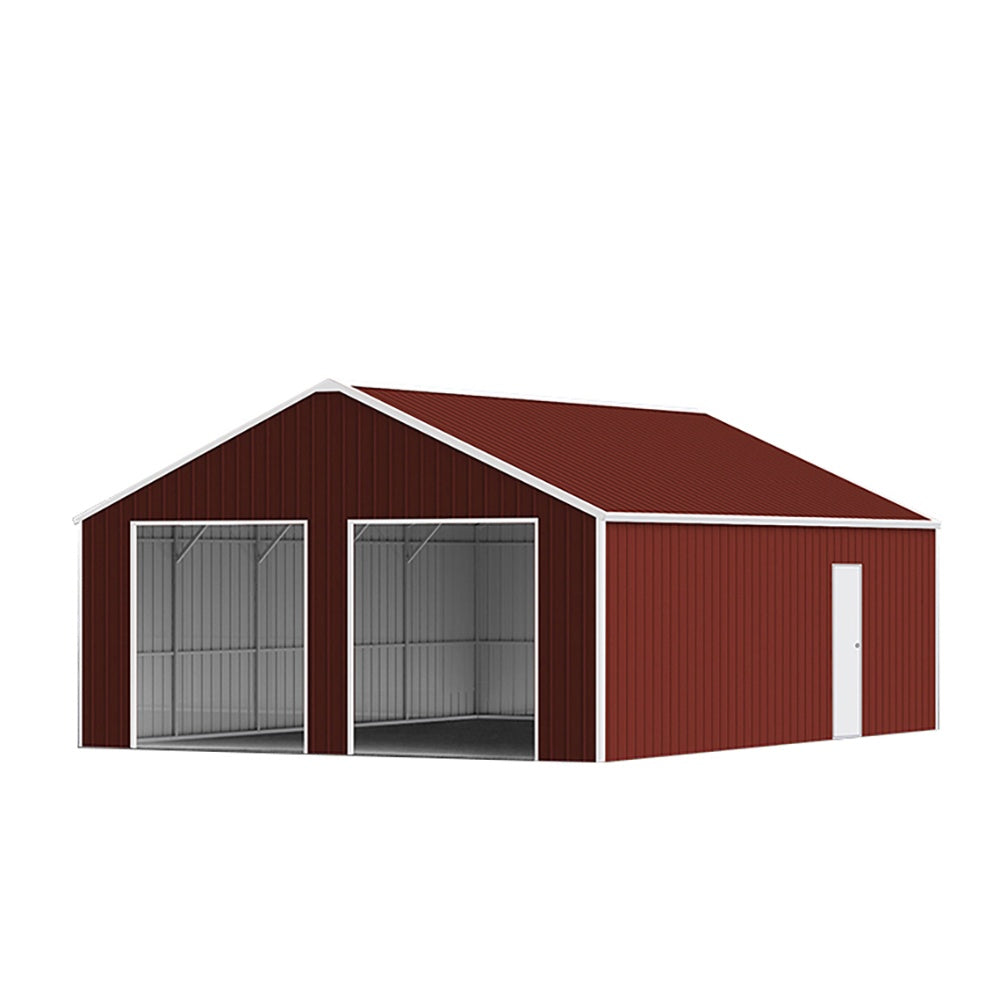

  • Red metal garage with white trim on a white background
1 10

23'×22' Heavy-Duty Steel Double Garage Barn Shed

23'×22' Heavy-Duty Steel Double Garage Barn Shed

KJ SKU: W5281P417869
$4,990.00
$4,990.00
Color: Reddish Brown

In Stock

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

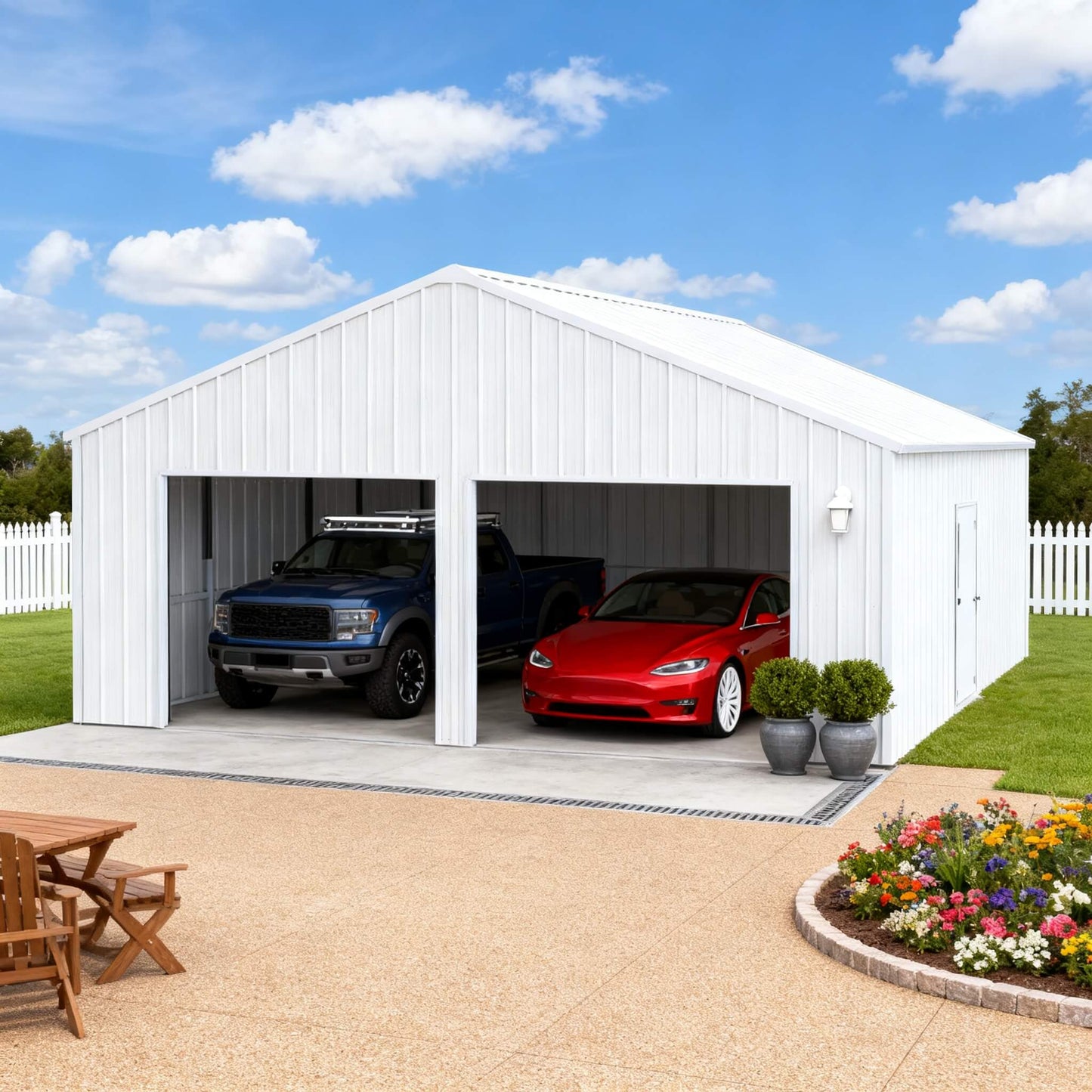

Protect your vehicles and equipment with the 22×23 Heavy-Duty Steel Double Garage Barn Shed.
Built with a rugged 14-gauge galvanized steel frame and durable 26-gauge panels, this structure delivers reliable performance in all weather conditions. Its reinforced roof system enhances stability, while the cream white-gray finish adds a clean, modern look.

Heavy-Duty Steel Construction
✔ 14-gauge galvanized steel frame with 26-gauge panels ensures superior strength, rust resistance, and long-term durability.

Spacious Double Garage Design
✔ 506 sq. ft. interior space fits two vehicles, ATVs, lawn equipment, and workshop storage with ease.

Reinforced Roof System
✔ Strengthened roof structure improves load capacity and wind resistance for year-round protection.

Easy Access & Modern Finish
✔ Extra-wide double doors (94" × 88") plus side entry door for convenience, finished in an attractive cream white-gray coating.

Specifications

Dimension

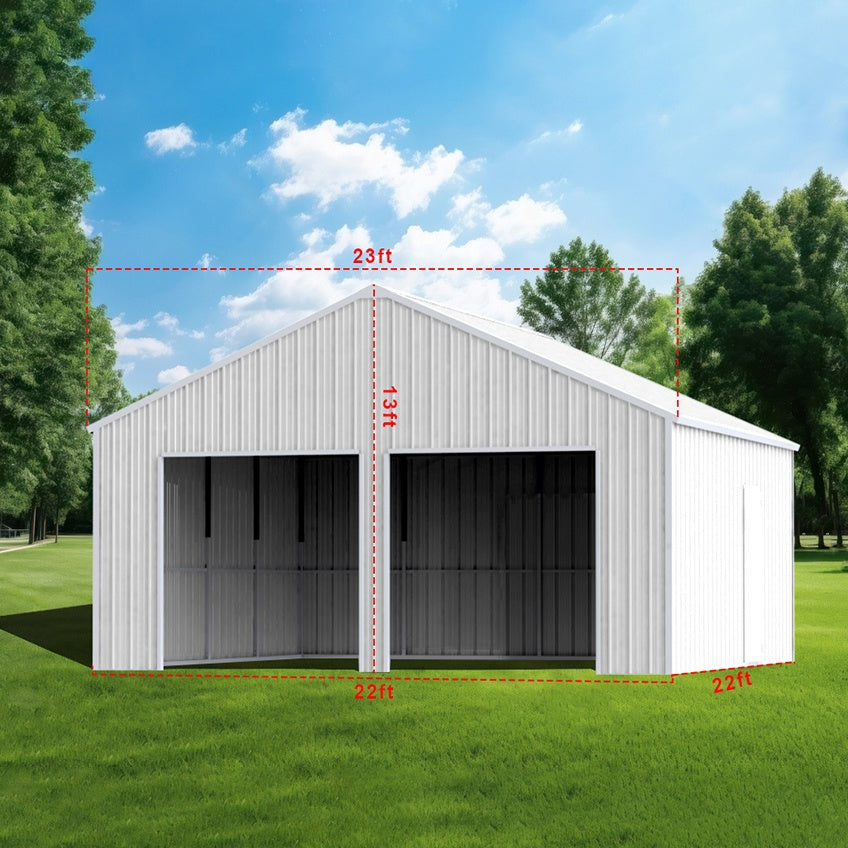

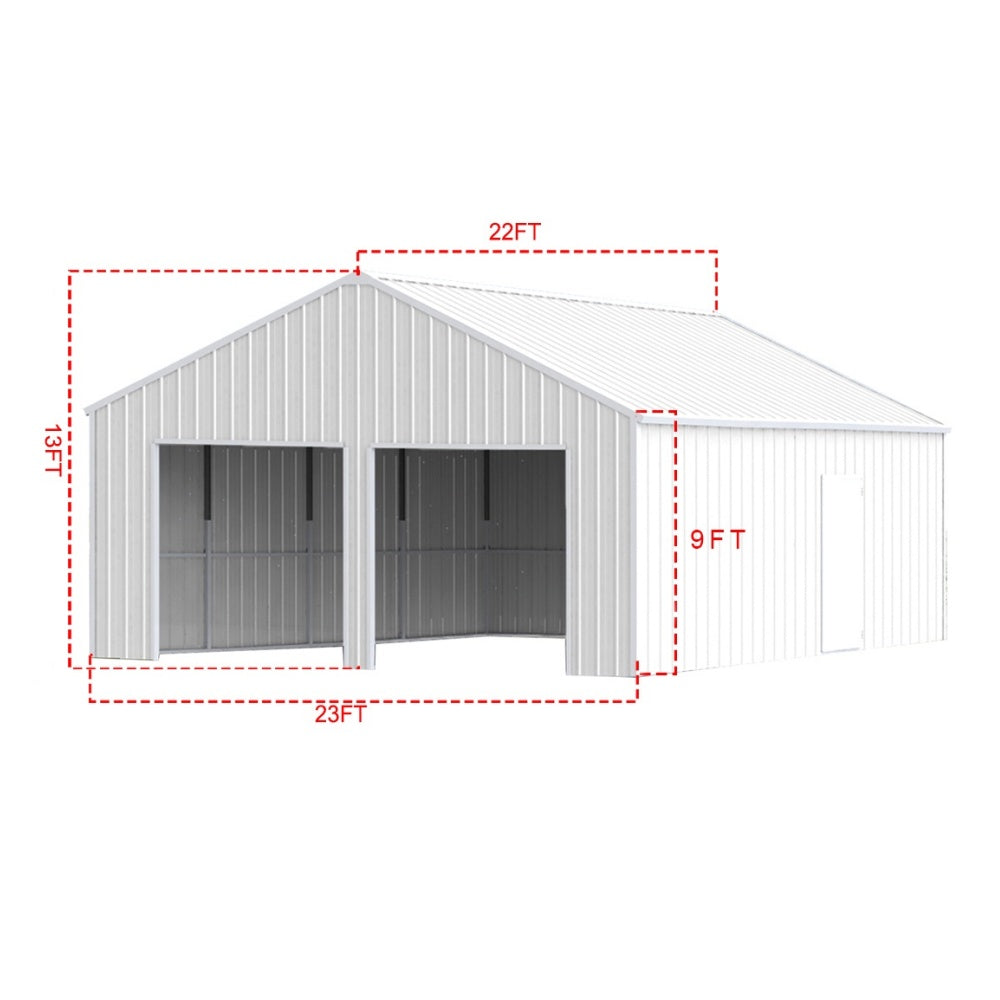

23' W × 22' D × 13' H
Storage Area
Approx. 506 sq.ft.
Main frame
14-Gauge Galvanized Steel
Panel
26-Gauge Steel Sheet
Peak Height
13 ft
Eave height
8.4 ft
Main Door Opening
94" W x 88" H
Side Entry Door
35" W x 75" H
Wind Load
110 miles/h
Snow Load
35 lbs/ft²
Concrete Anchor
6 in (L) × 1/2 in (Dia.)
Frame Lifespan
15+ years

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 88x40x21
• Weight (lb): 2068
• A forklift or equivalent is required for unloading. Liftgate delivery is NOT available for this item due to its size and weight.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Instruction

Installation Notes

  1. Teamwork: You need two or more people to work together to assemble and finish your building.
  2. Please check all parts one by one according to the Parts List and make sure no parts are missing.
  3. Make sure the colored panels are facing outwards, and all the holes match. The panels are textured. Please install the panels in the order specified in the instructions. All lines and holes should be matched to make the storage shed more stable.
  4. For waterproof purposes, pls make sure to use waterproof gasketsfor each screw. Waterproof tape must be applied when assembling the ridge.
  5. Please ensure that all screws are tightened to prevent theproduct from falling apart.

For regions with heavy snowfall, it is essential to clear snow from the roof promptly to prevent structural damage.
