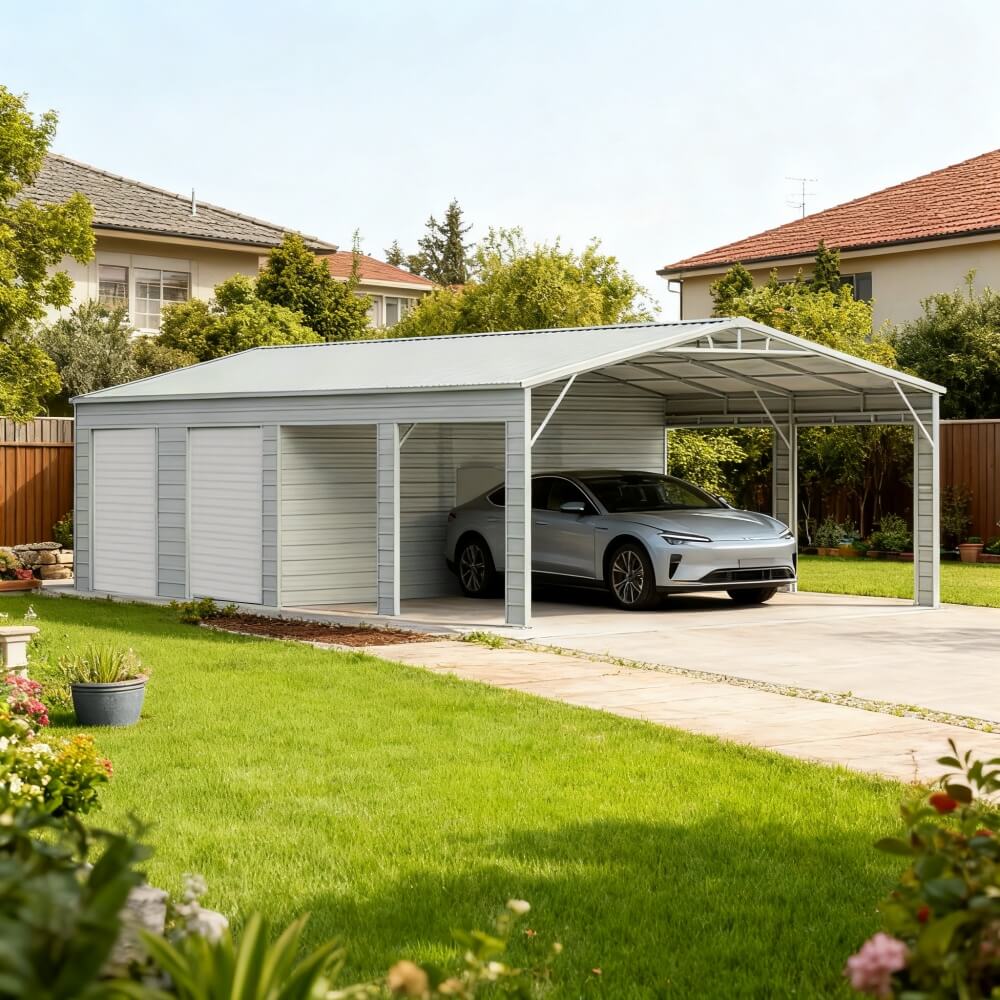

• Carport with a car parked inside, surrounded by a garden and houses.

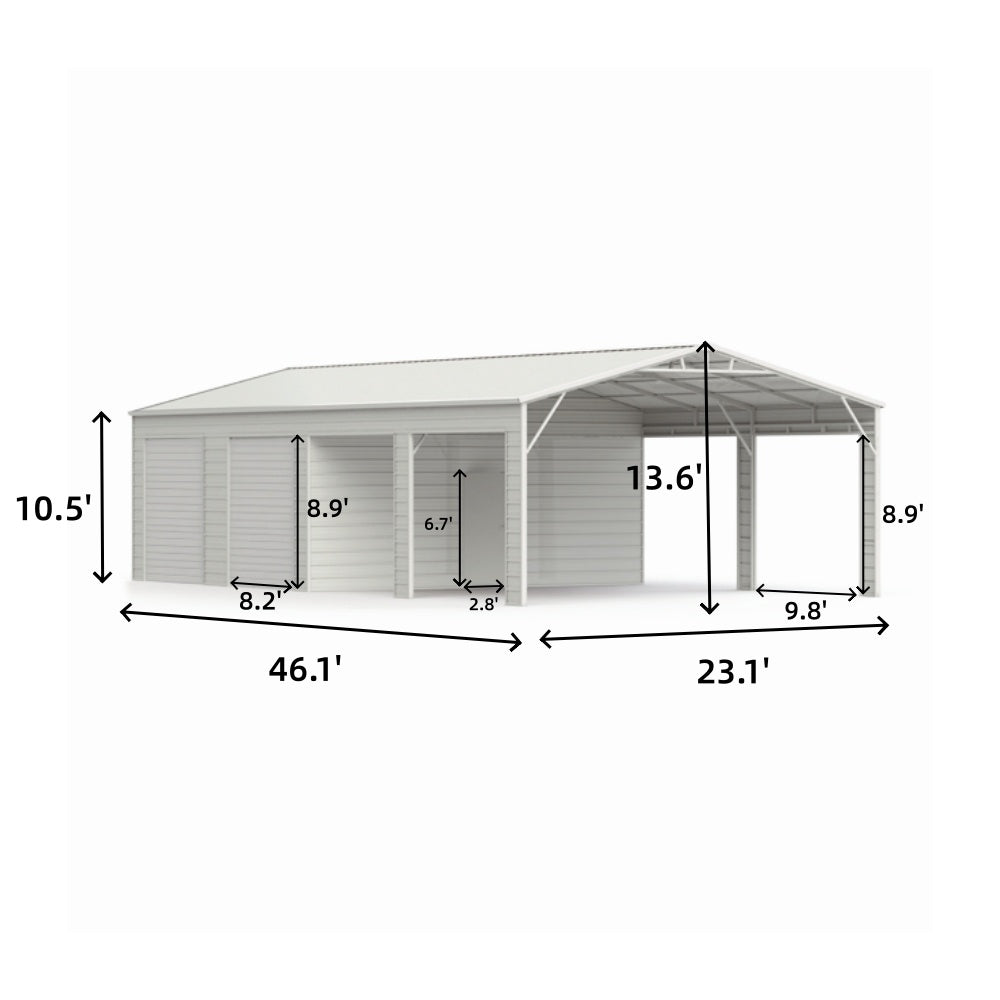

  • Measurement chart of a metal carport with dimensions labeled.
  • Metal storage building with a tractor parked under it in a rural setting.
  • Metal storage building with a tractor inside, set against a green field.
  • Metal carport structure with a clear sky background

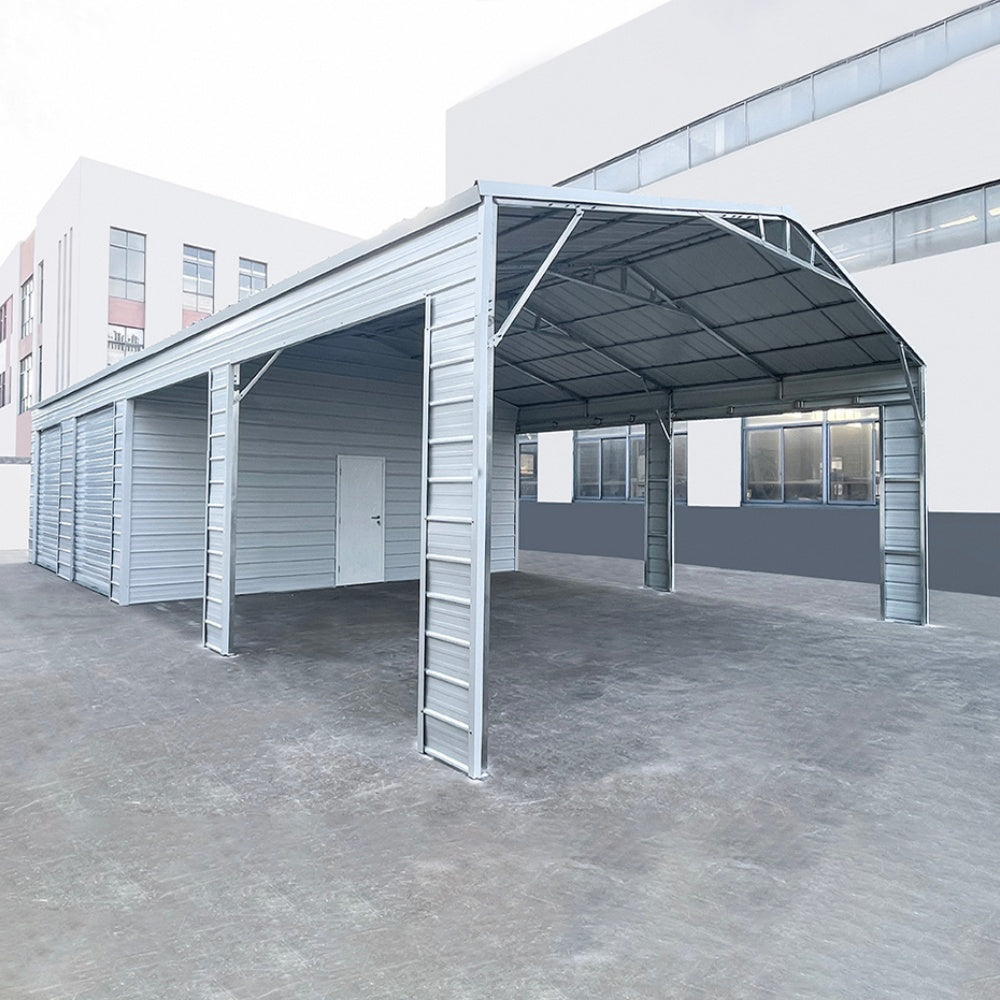

  • Metal carport structure in front of a building

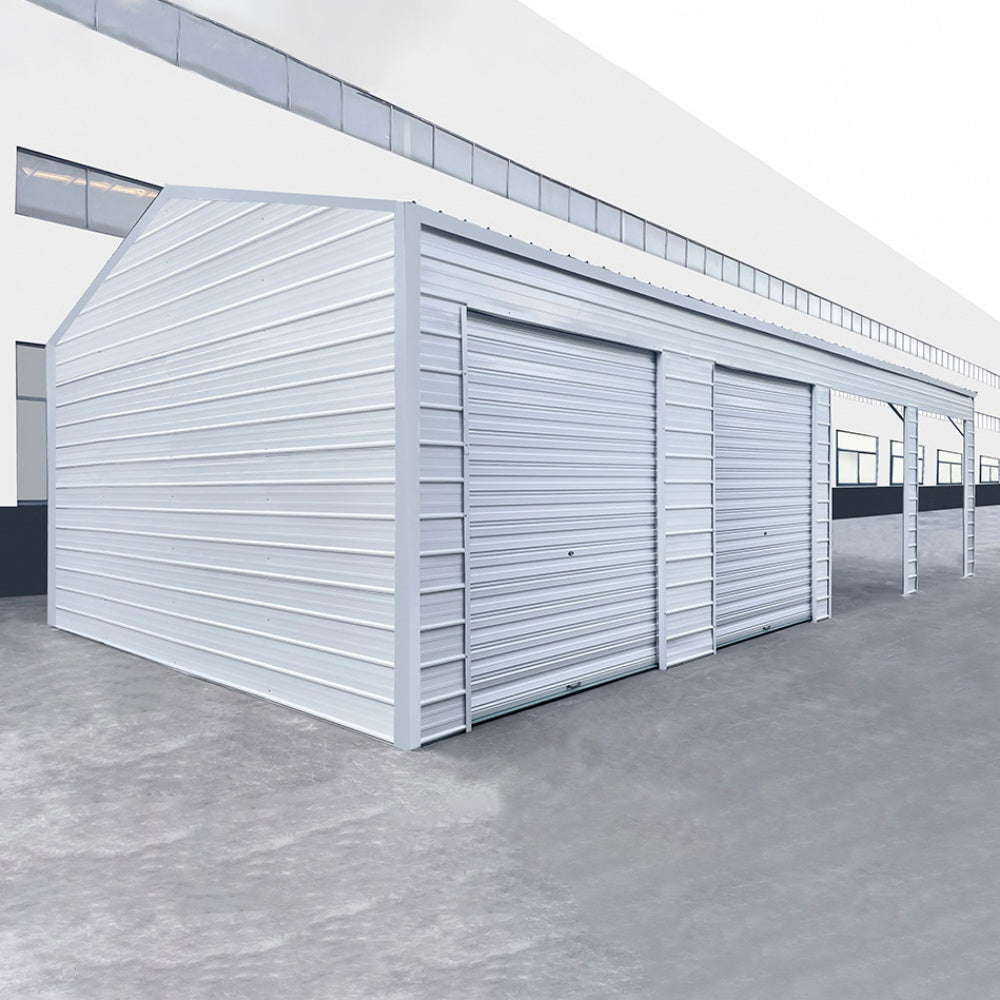

  • Modern storage unit with roller shutters in a concrete area

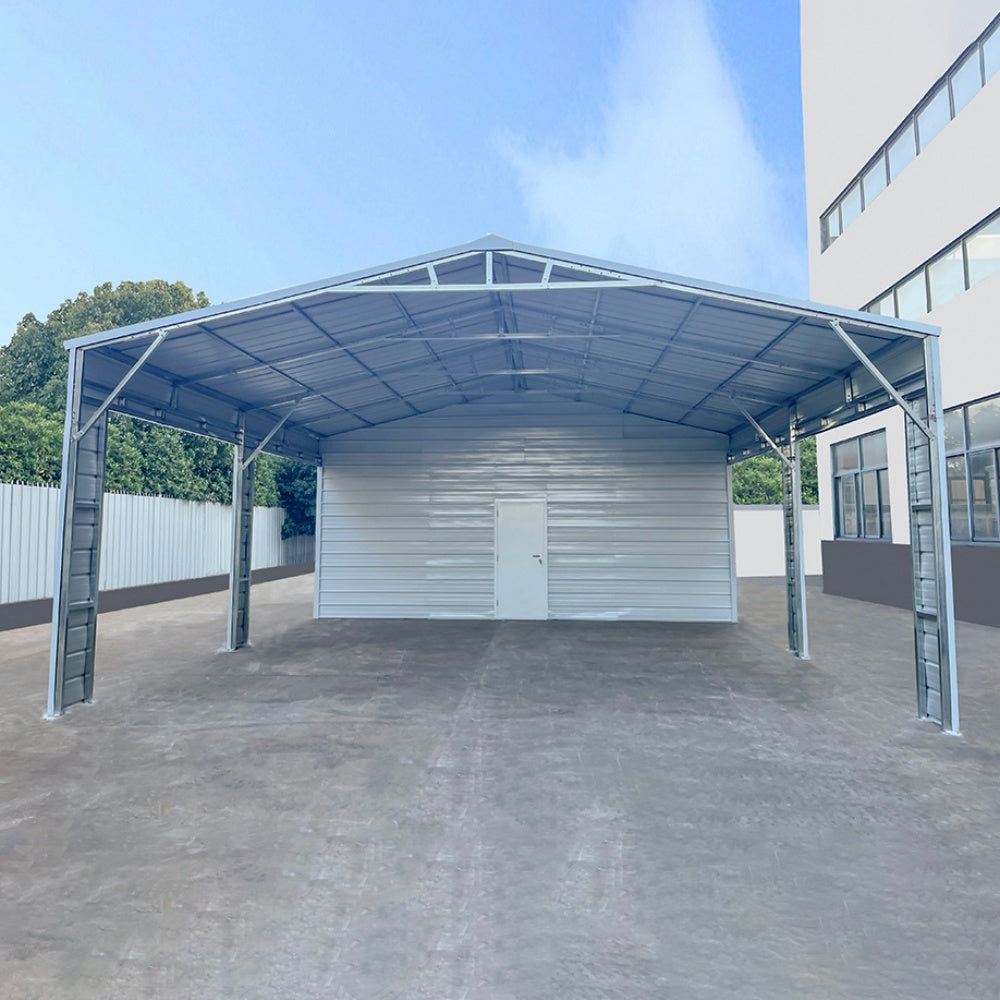

  • Metal carport with a white door on a concrete surface, surrounded by trees and buildings.

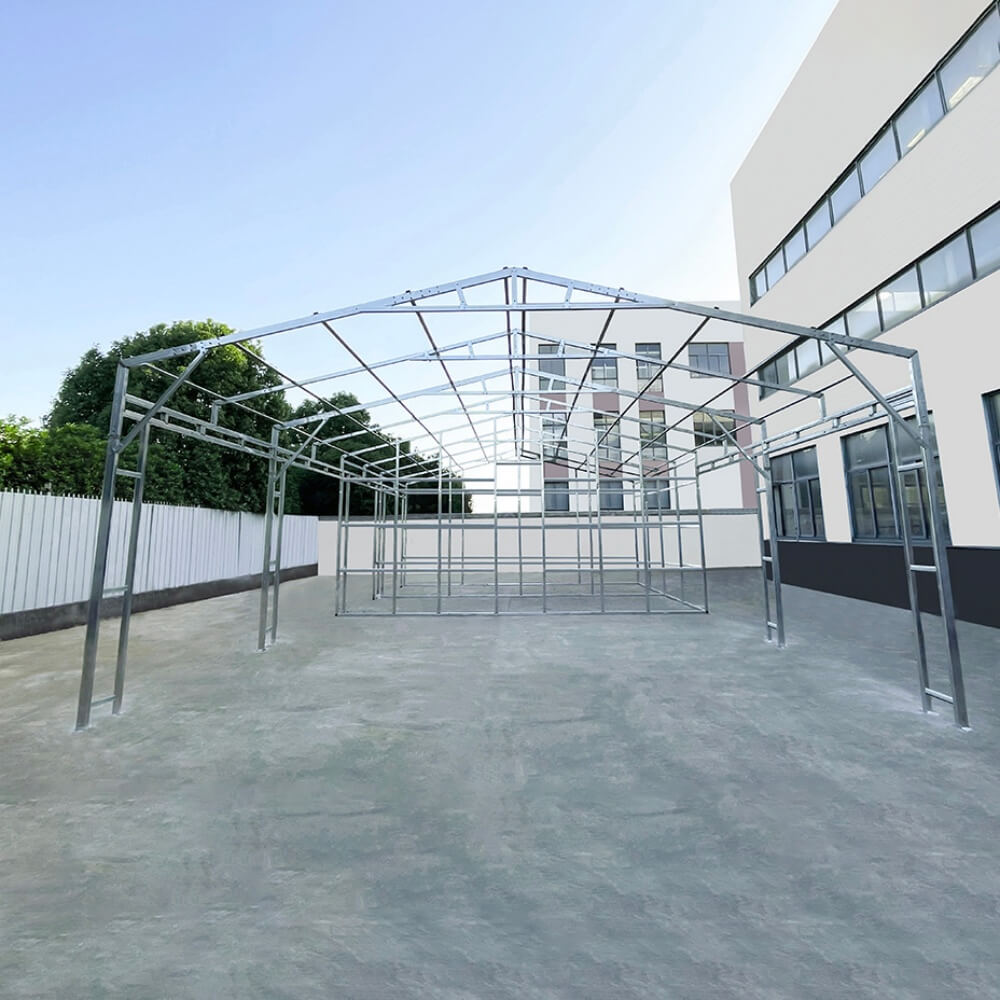

  • Metal frame structure on a concrete surface with a building in the background
  • Glass roof structure with metal framework against a blue sky

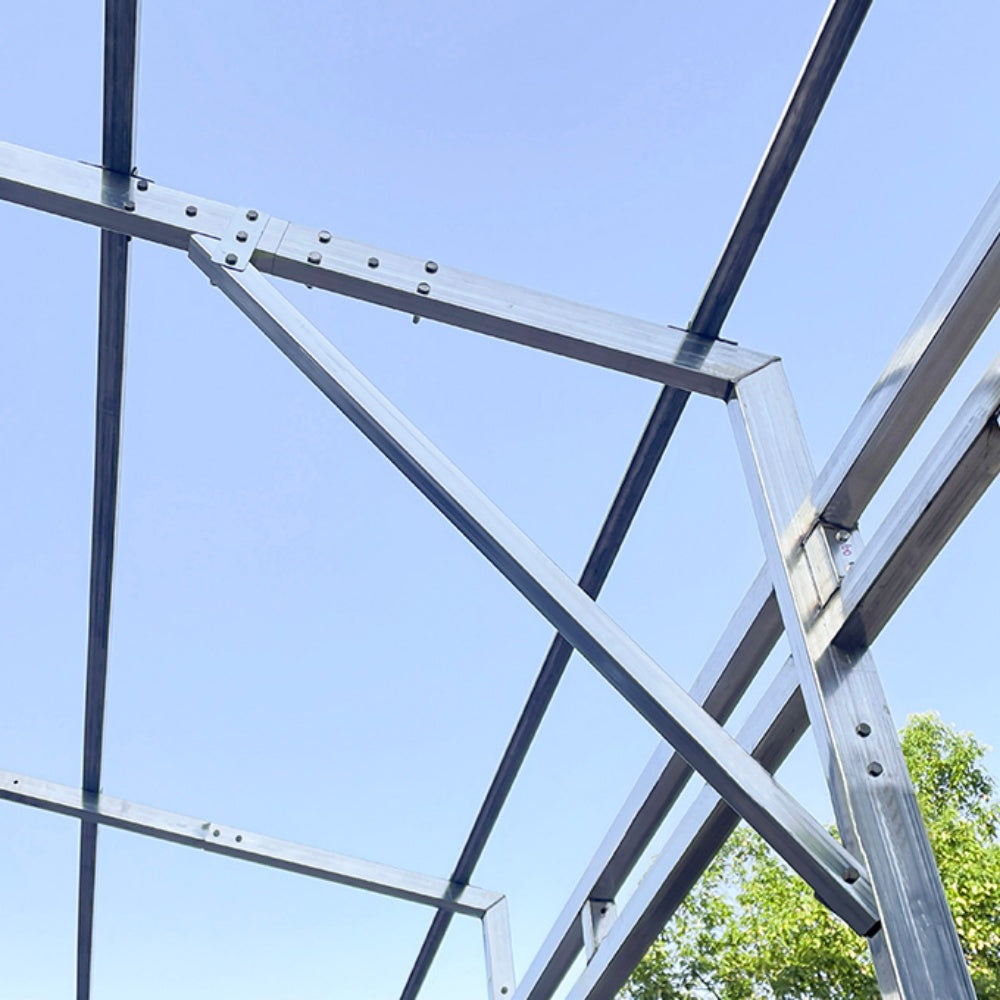

  • Metal frame structure against a clear blue sky

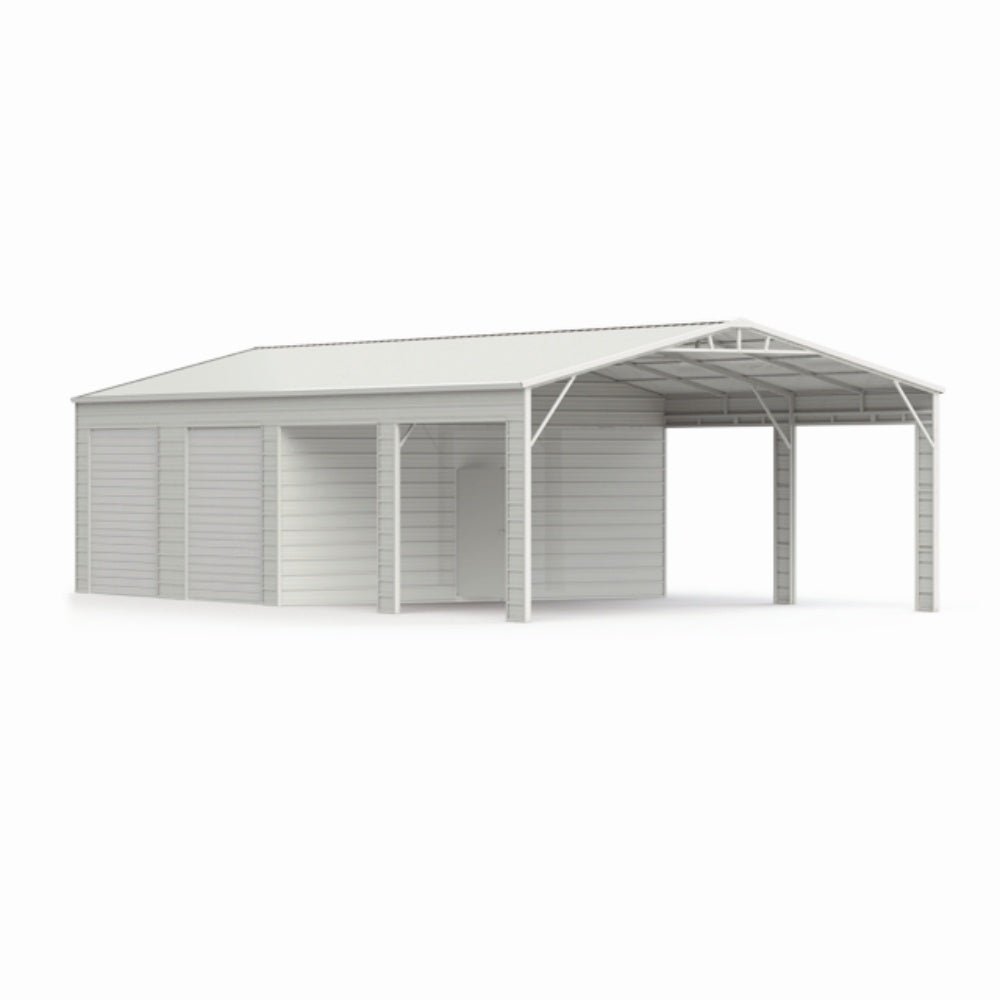

  • Metal carport structure on a white background
1 12

23'x46' Large Metal Garage Shed for Vehicles, Equipment & Workshop Use

23'x46' Large Metal Garage Shed for Vehicles, Equipment & Workshop Use

KJ SKU: W5281S00009
$8,990.00
$8,990.00
Color: White

Pre-Order

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

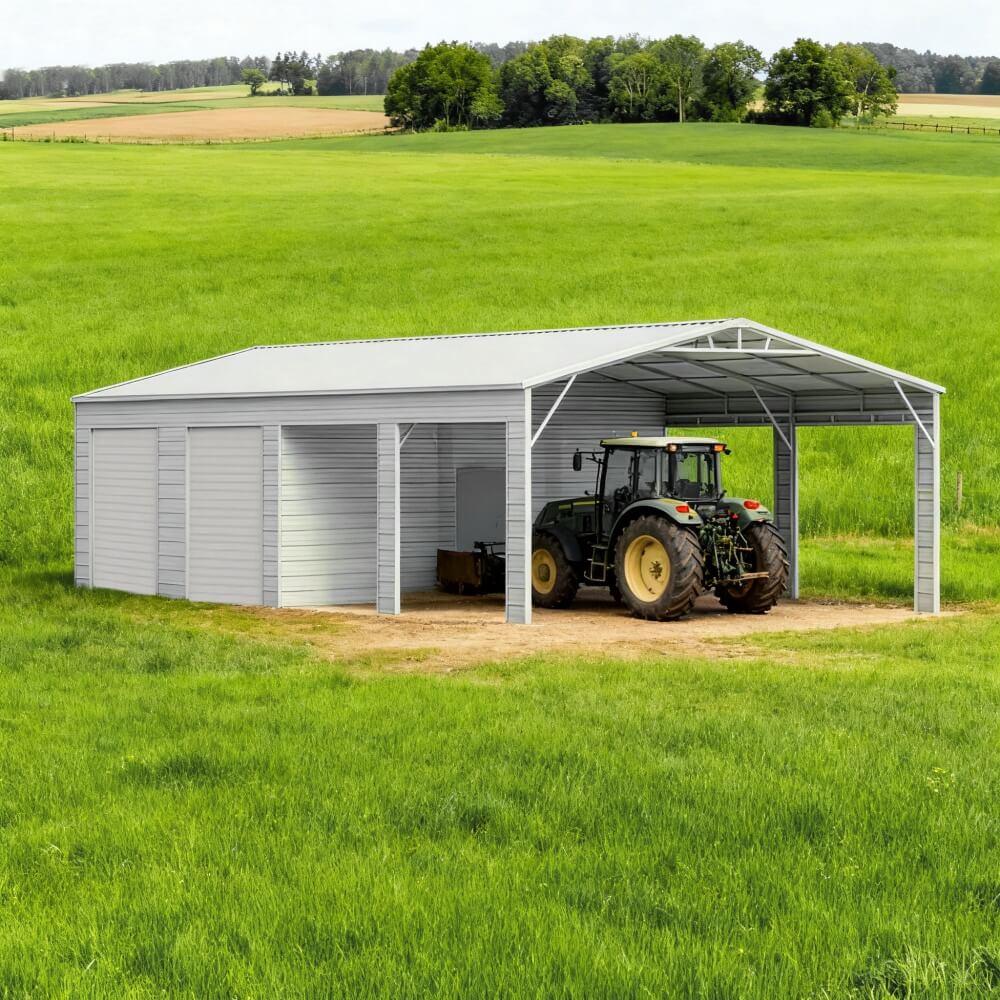

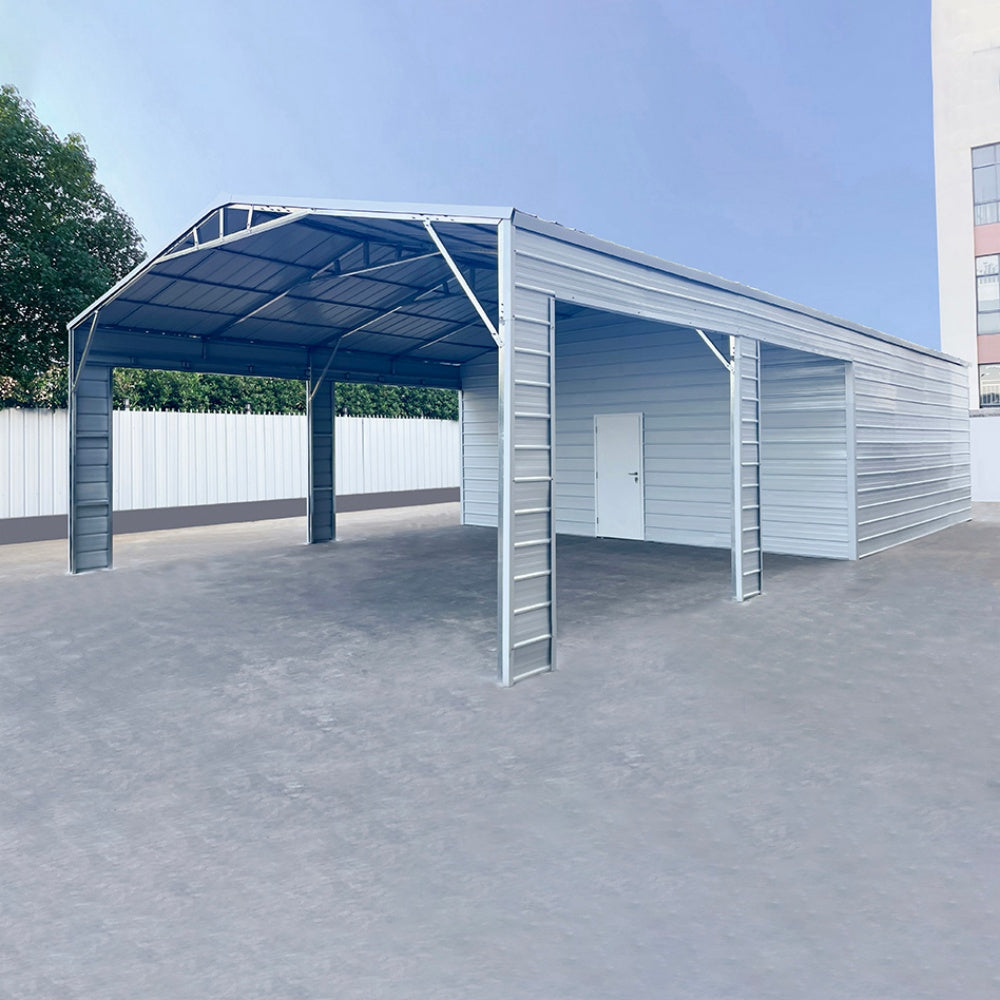

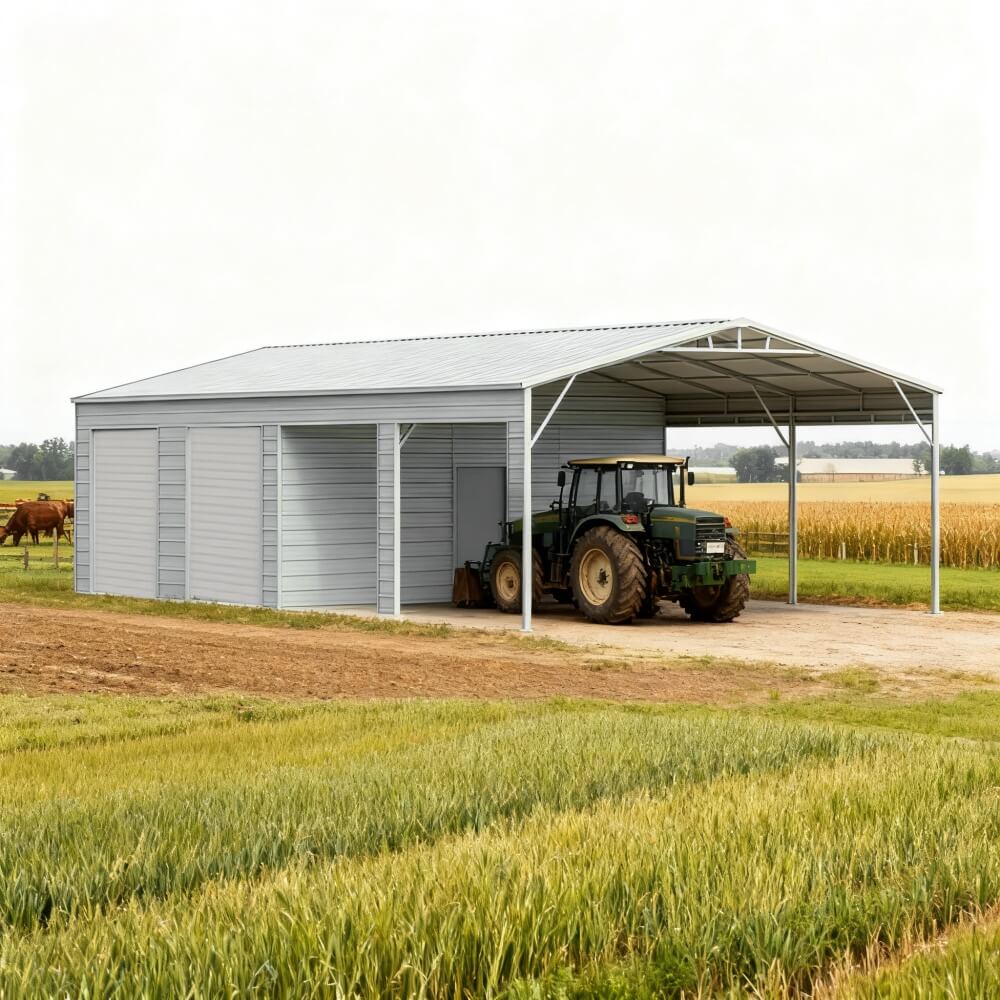

The Chery Industrial 23' x 46' Steel Garage Shed offers over 1,065 sq. ft. of durable, enclosed storage for vehicles, tools, and heavy equipment. Built with a reinforced 14-gauge 2.3" square-tube steel frame and galvanized cross braces, this structure delivers exceptional strength and long-term stability. The 10.5 ft wall height provides comfortable interior clearance, while two roller shutter doors and a side entry door ensure convenient daily access. Designed to withstand demanding weather conditions, this heavy-duty metal building is ideal for residential, agricultural, and commercial applications.

✔ Extra-Large 1,065 sq. ft. Storage Space
Spacious design accommodates multiple vehicles, trailers, or workshop equipment.

✔ Reinforced 14-Gauge Steel Frame

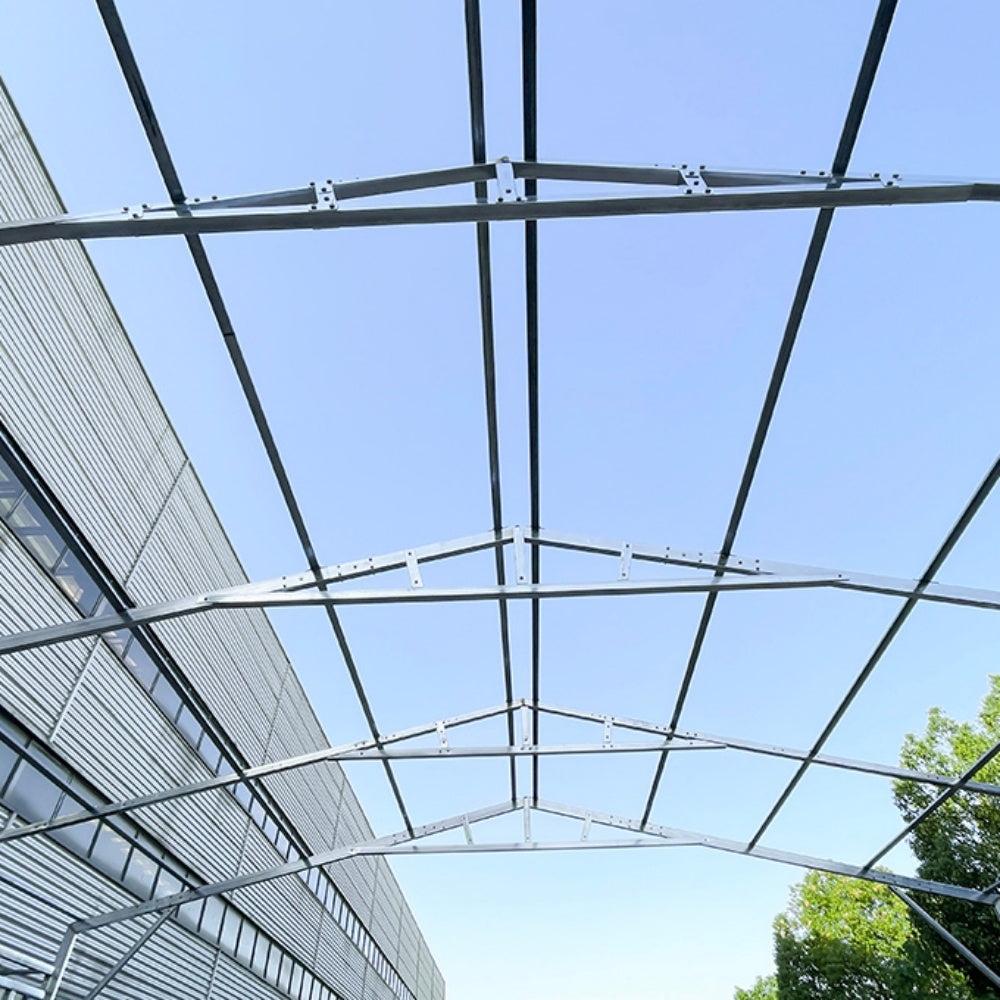

Heavy-duty square-tube structure with galvanized cross bracing for superior durability.

✔ Dual Roller Doors for Easy Access
Two 8.2' × 8.9' roller doors plus a side entrance for flexible workflow.

✔ Built for Demanding Conditions
High wall clearance and rea inforced roof system provide reliable long-term protection.

Specifications

Dimension
23.1' W × 46.1' D × 13.6' H
Storage Area
Approx. 1065 sq.ft.
Main frame
14-Gauge Galvanized Steel
Panel
26-Gauge Steel Sheet
Peak Height
13.6‘
Eave Height
10.5'
Two roller shutter doors
8.2' W x 8.9' H
Entrance Door
2.8' W x 6.7' H
Wind Load
110 miles/h
Snow Load
35 lbs/ft²
Concrete Anchor
6 in (L) × 1/2 in (Dia.)
Frame Lifespan
15+ years

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

Box 1:
• LxWxH (inch): 118x43x23
• Weight (lb): 2552
Box 2:
• LxWxH (inch): 118x43x20
• Weight (lb): 1760
• A forklift or equivalent is required for unloading. Liftgate delivery is NOT available for this item due to its size and weight.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Instruction

Installation Notes

  1. Teamwork: You need two or more people to work together to assemble and finish your building.
  2. Please check all parts one by one according to the Parts List and make sure no parts are missing.
  3. Make sure the colored panels are facing outwards, and all the holes match. The panels are textured. Please install the panels in the order specified in the instructions. All lines and holes should be matched to make the storage shed more stable.
  4. For waterproof purposes, pls make sure to use waterproof gasketsfor each screw. Waterproof tape must be applied when assembling the ridge.
  5. Please ensure that all screws are tightened to prevent theproduct from falling apart.

For regions with heavy snowfall, it is essential to clear snow from the roof promptly to prevent structural damage.
