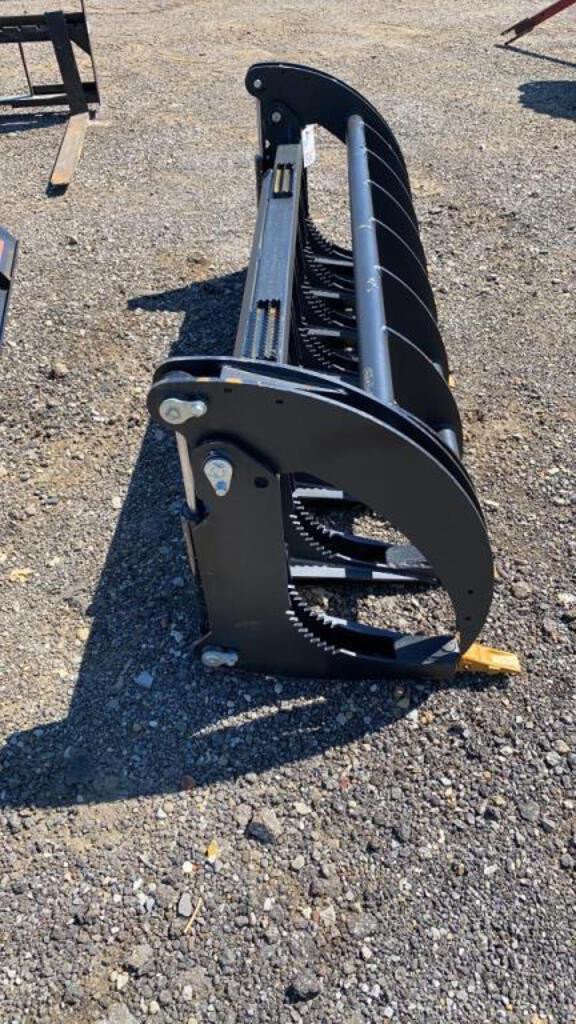

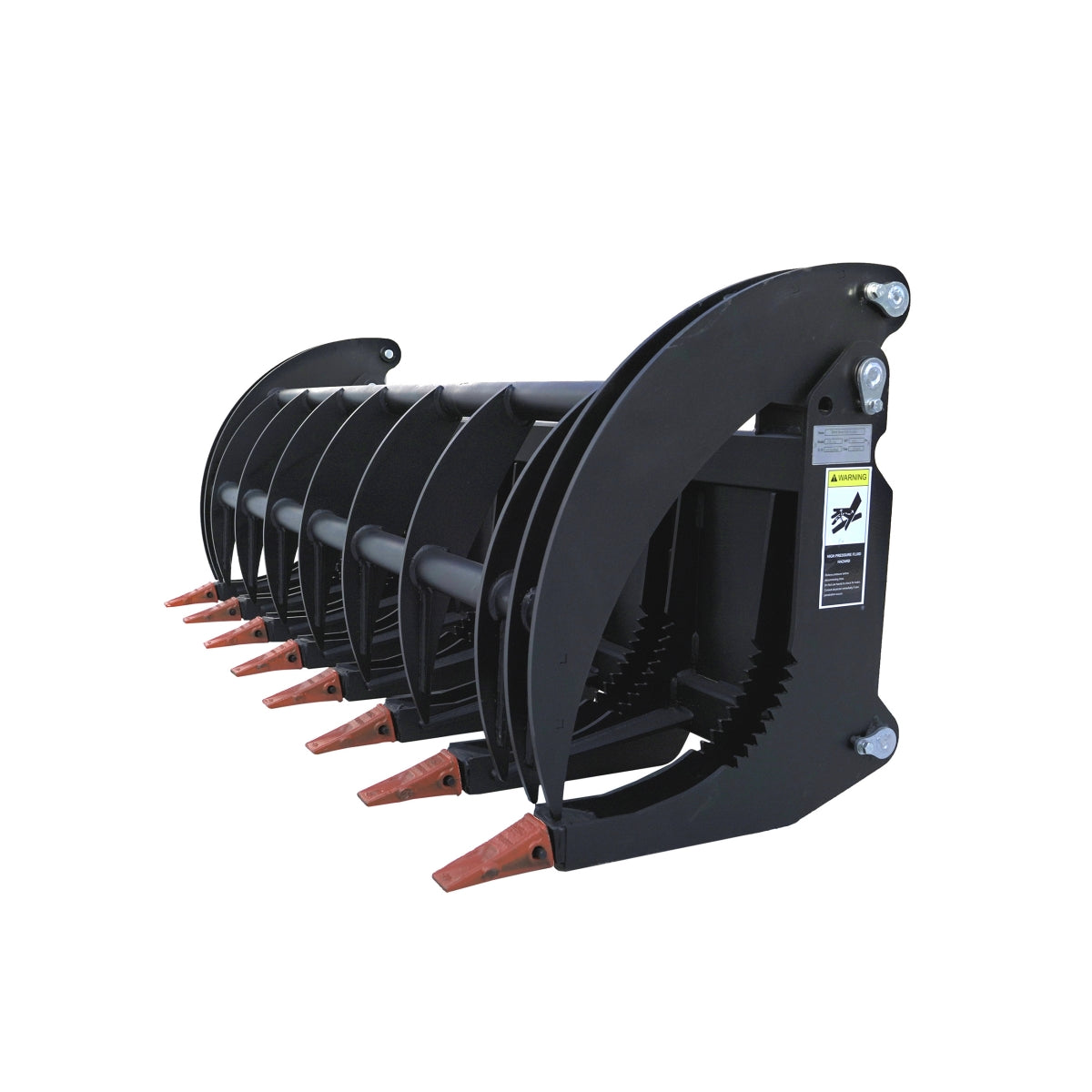

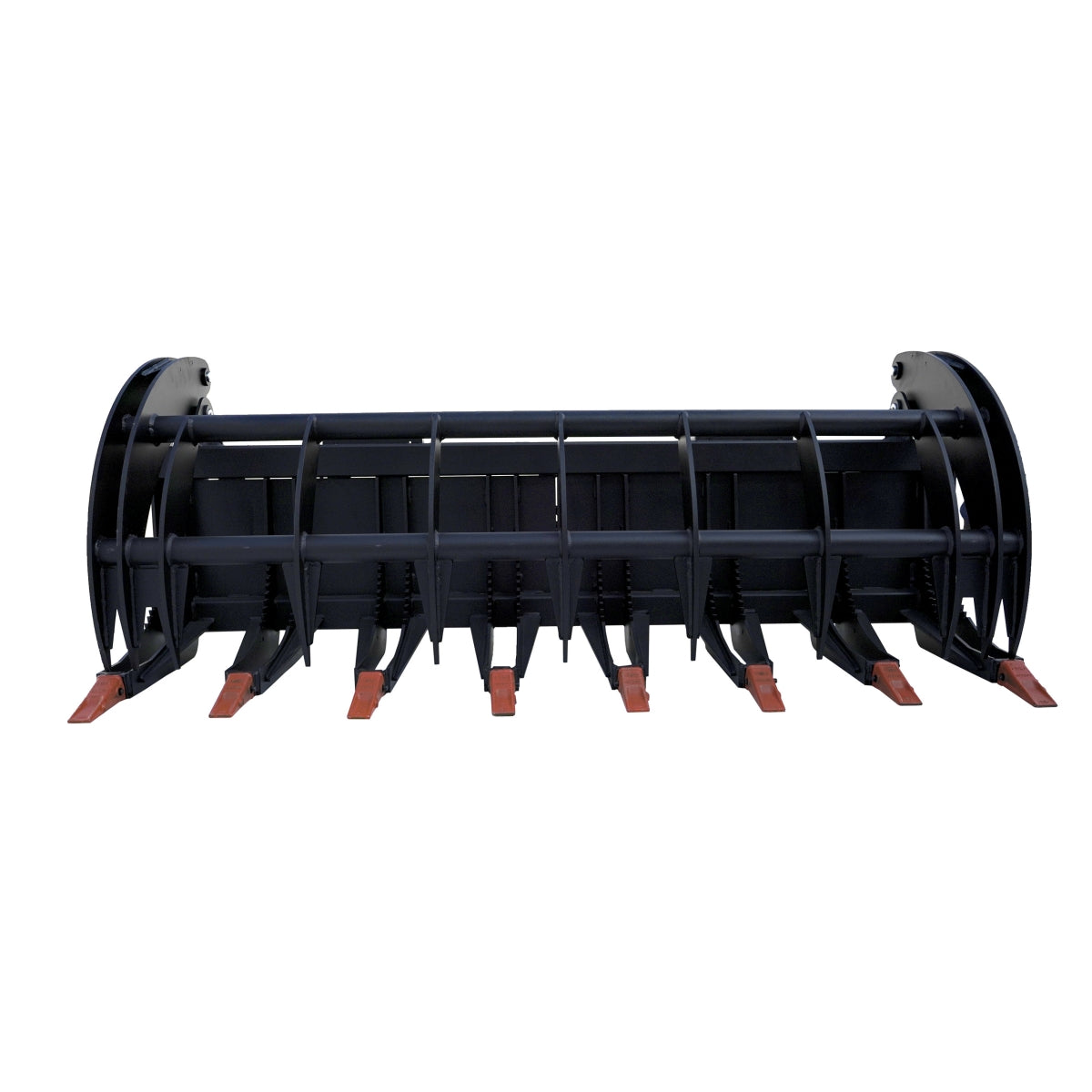

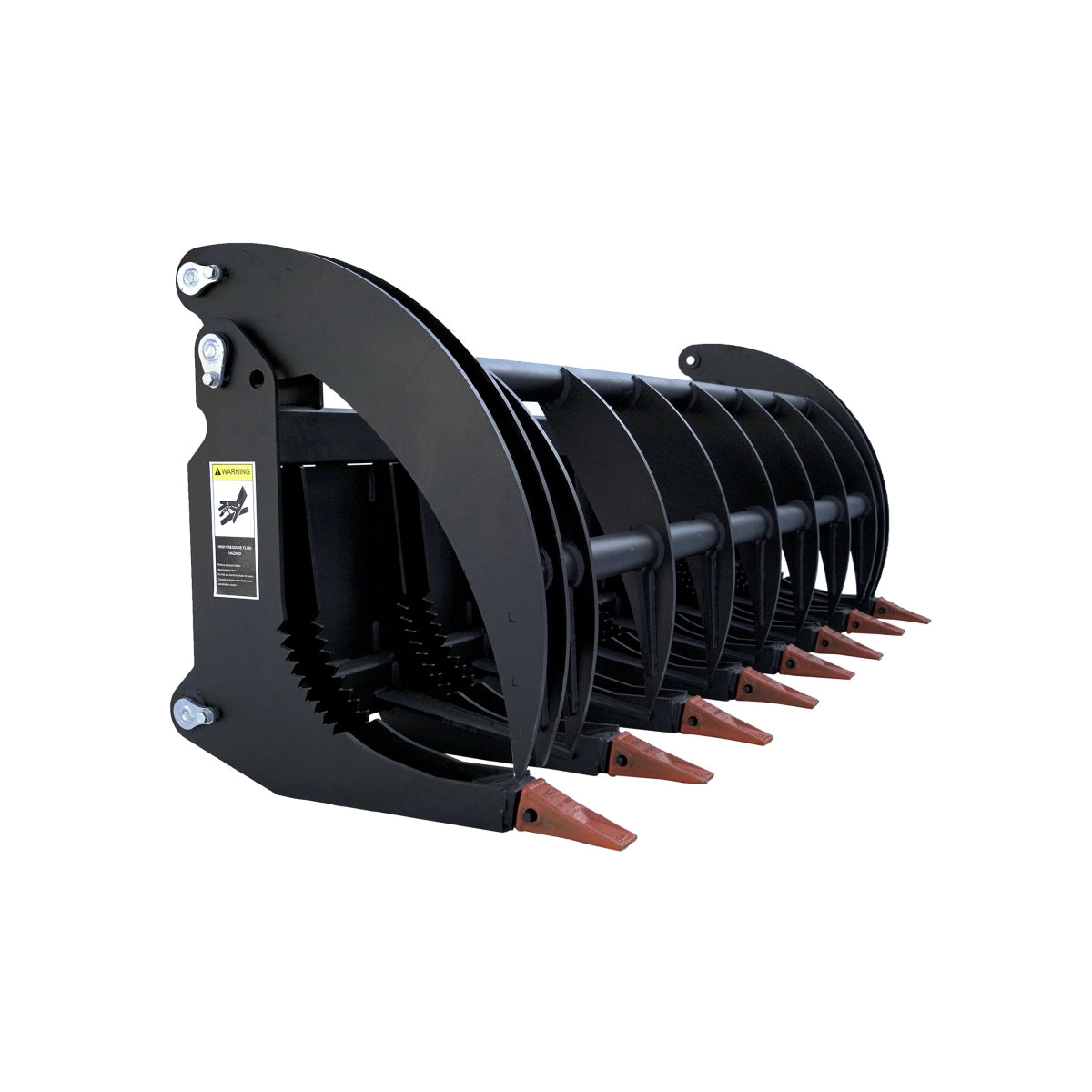

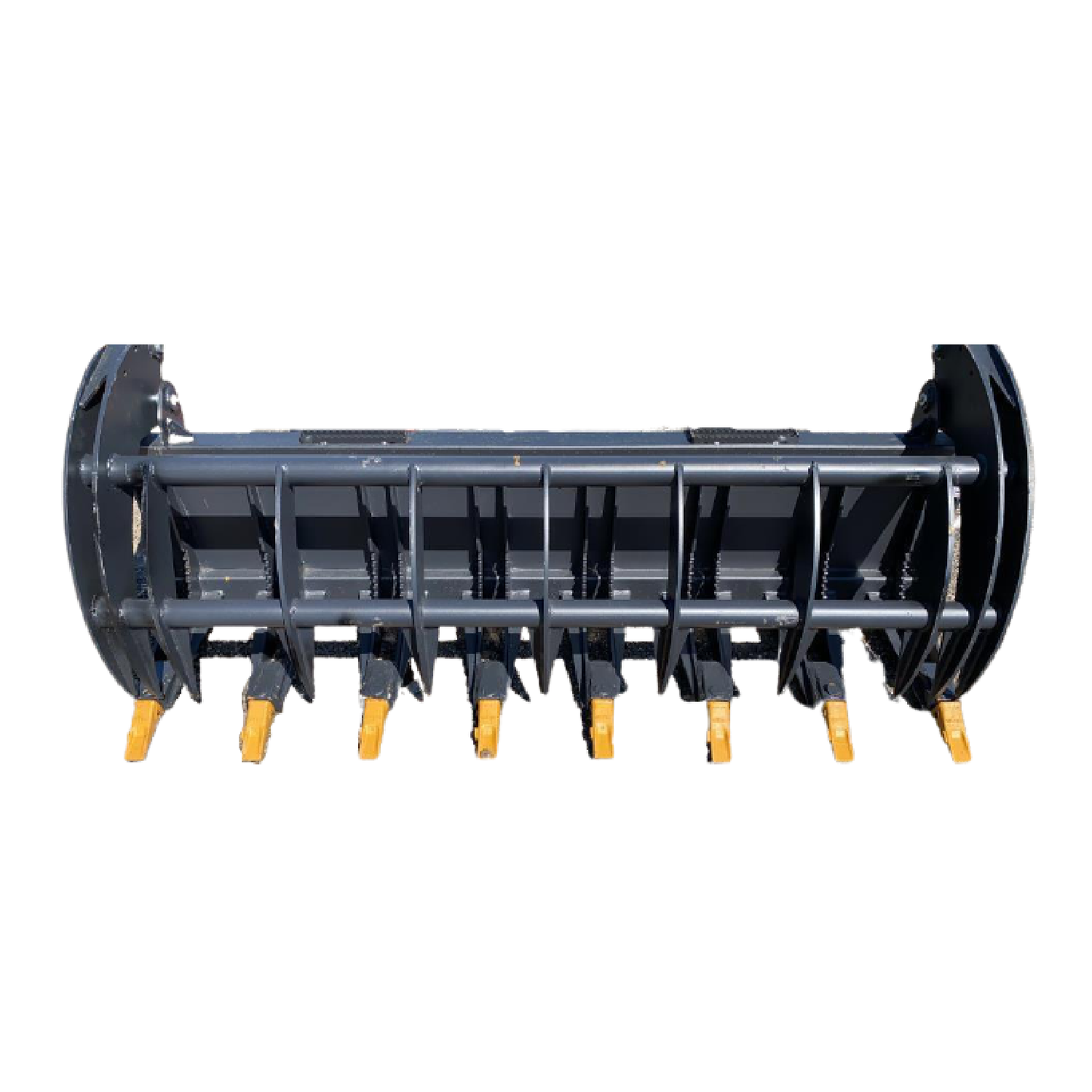

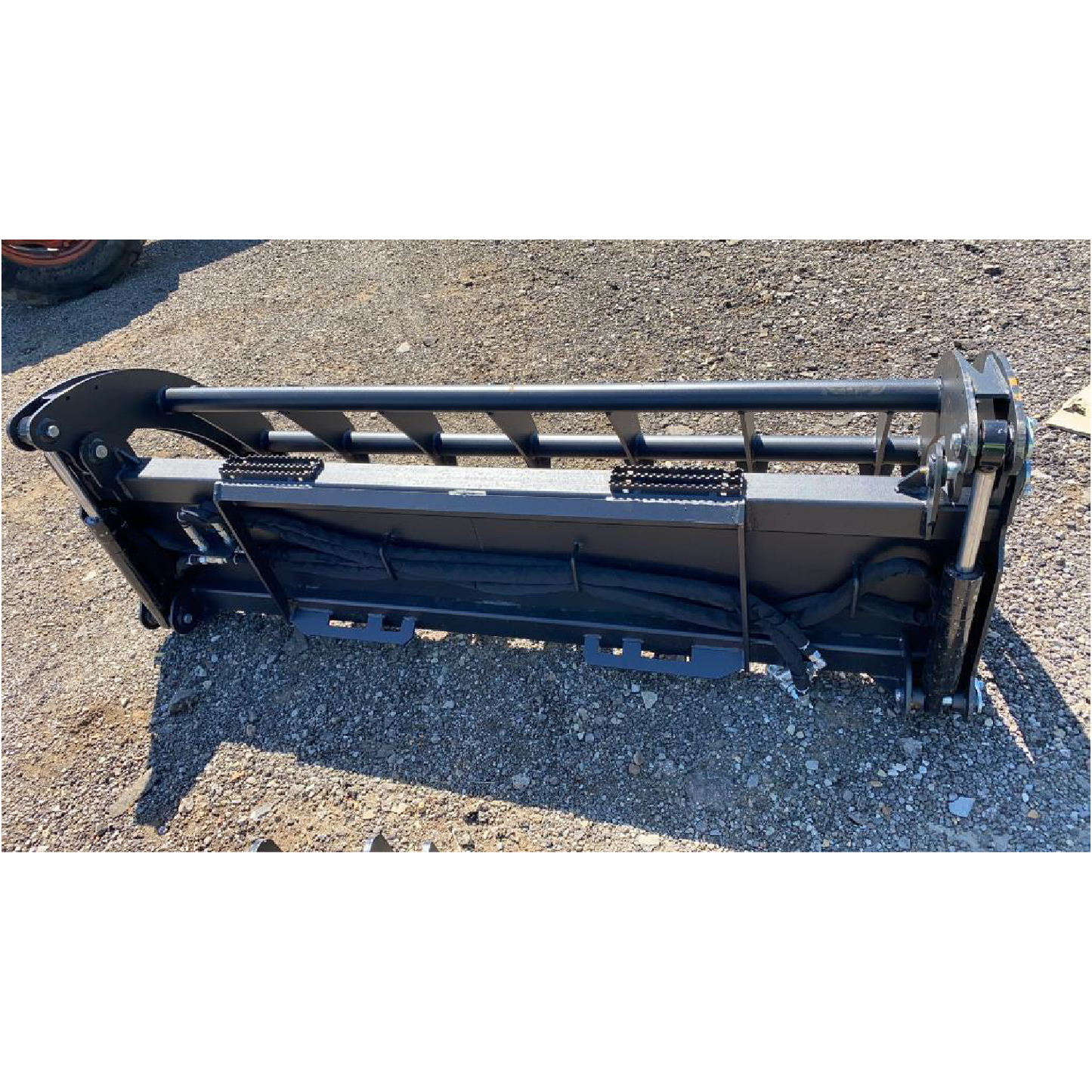

Greatbear 78" Heavy Root Grapple Rake

Greatbear 78" Heavy Root Grapple Rake

Greatbear SKU: AH000005
Width
78”
Capacity
2205 LBS
Jaw Opening
50"
Regular price $2,299.00
Regular price $3,790.00 Save $1,491.00
Sale price $2,299.00

Pre-Order

Pickup unavailable

Greatbear 78" Heavy Root Grapple Rake

  • IA

    Pickup available, usually ready in 24 hours

    108 5th Street
    Adair IA 50002
    United States

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States

Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

This Greatbear Heavy Root Grapple Rake is an attachment for skid steer for cleaning up brush, logs, and debris in your property and construction site. Forged from high-strength Q345B heavy-duty steel, it boasts exceptional durability and wear resistance, standing up to long-term heavy-duty operation without deformation. Equipped with a universal skid steer hookup, it ensures quick and seamless installation compatible with most skid steer models, maximizing work flexibility. Boasting superior clamping force, the rake firmly grips heavy, irregular and unwieldy loads, preventing slippage during transport and lifting. Its reinforced structure guarantees outstanding stability and structural integrity, enabling you to maneuver materials with effortless control and precise positioning. This reliable skid steer root grapple rake significantly boosts work efficiency, reduces manual labor, and effortlessly conquers diverse harsh working environments.
For soft materials only (hay, straw, forage, cotton). NOT for stones, roots, metal or concrete.No dragging, prying or side pulling. Tines must be loaded vertically only.Do not overload. Keep level and even to prevent bending.

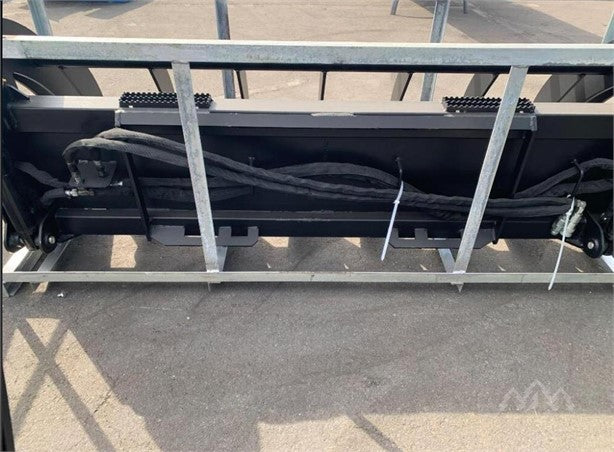

Universality

Universal skid steer hookup compatible with most skid steers.

Lasting Performance

Heavy-duty Q345B steel construction for lasting performance.

Rake Grapple

A rake-style grapple ideal for picking up debris for industial use.

Easy Maintenance

Grease nippples at all pivot points for smooth operation and durability.

Specifications

Overall dimension(LWH)
77¹⁵⁄₁₆"x27 ⁷⁄₁₆"x29 ⁵⁄₁₆"
Weight
721 LBS
Material
Q345B Steel

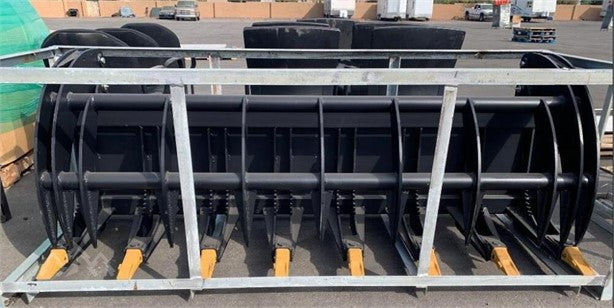

Tooth Count
8 × 1U3202 Replaceable Cast Teeth
Hydraulic Flow rate
16-20 GPM (60-80L/min)
Operating Pressure
2300 - 3000 PSI (16 - 21 MPa)
Jaw Opening
50"
Working Width
78"
Grapple Arm Thickness
3/8"
Tine Thickness
5/16"
Tine Spacing
10 ¹¹⁄₁₆"
Hydraulic fitting size
1/2 inch
Warranty Period
one year (normal wear and tear)
Load Capacity
1764 – 2205 LBS

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

 LxWxH (inch): 87x30x32
• Weight (lb): 721
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

Quick Installation & Safety

Clean Connections: Wipe dirt from hydraulic couplers before connecting to prevent system contamination and avoid voiding the warranty.

Verify Locking: Visually check that coupler lock pins are fully engaged through the attachment plate slots before operation.

Purge Air: On first use, cycle the grapple open and closed 3 times at low RPM to bleed air from the hydraulic lines.

Regular Greasing: Periodically apply #2 lithium grease to all pivot joint nozzles to ensure smooth operation.

Center Your Load: Always center the load on the attachment; if it feels unbalanced, reposition and retry to prevent tip-overs.
