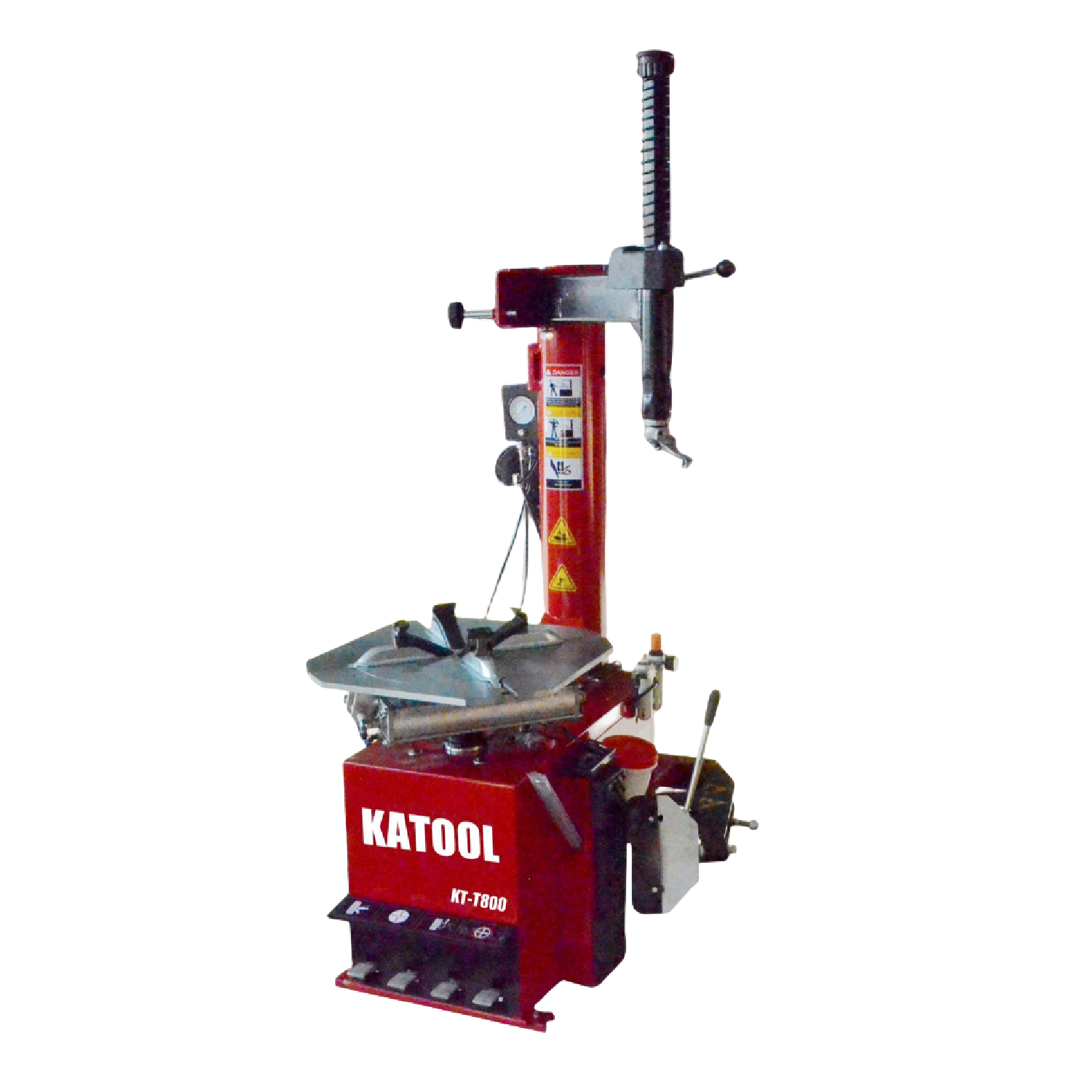

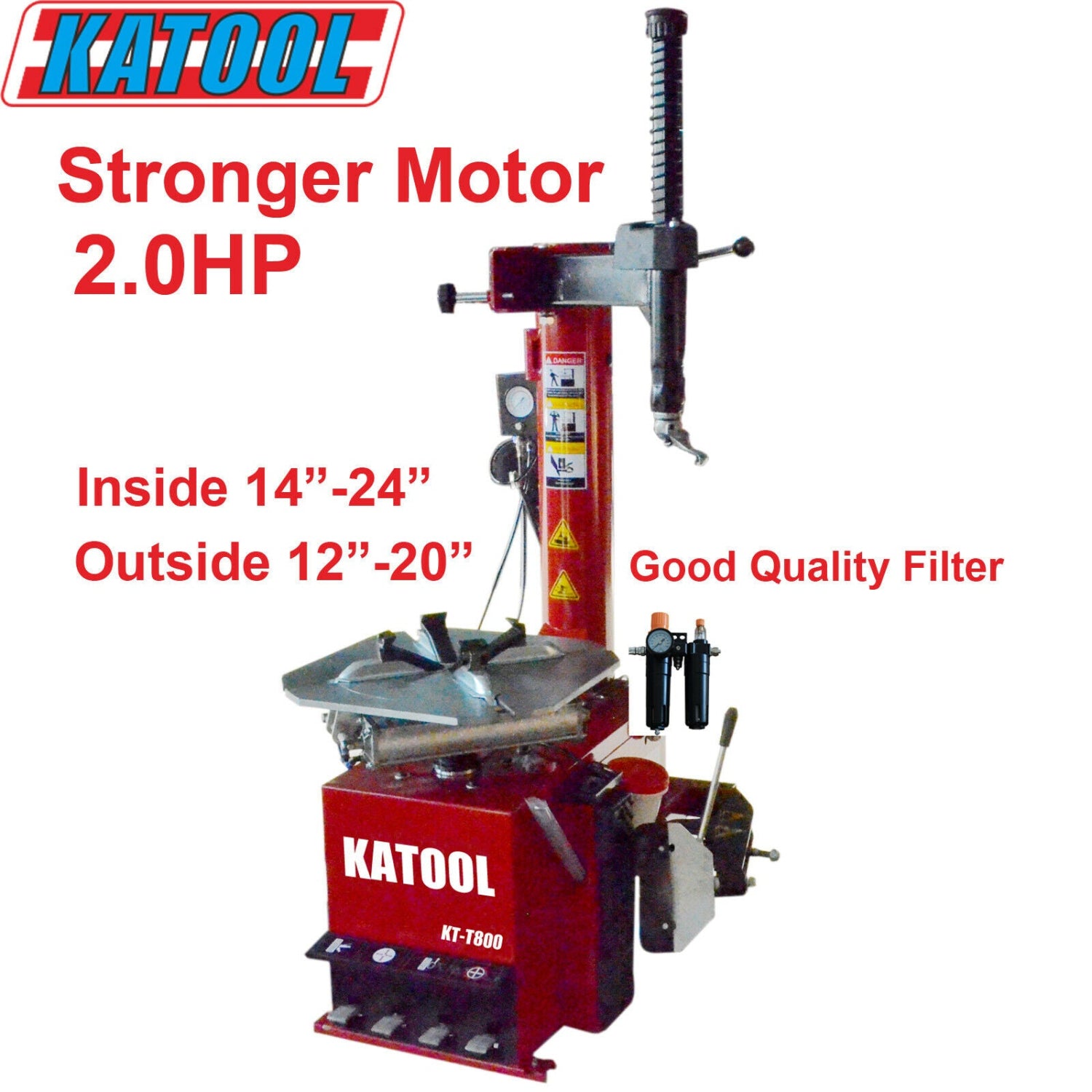

Katool KT-T800 Swing Arm Tire Changer, Max 24" Rim Clamping

Katool KT-T800 Swing Arm Tire Changer, Max 24" Rim Clamping

KATOOL SKU: KT-T800
Regular price $1,199.00
Sale price $1,199.00

In Stock

Pickup available
TX, CA - 777, MD, NC

Katool KT-T800 Swing Arm Tire Changer, Max 24" Rim Clamping

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • CA - 777

    Pickup available, usually ready in 24 hours

    3850 El Camino Real
    Atascadero CA 93422
    United States

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States

Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

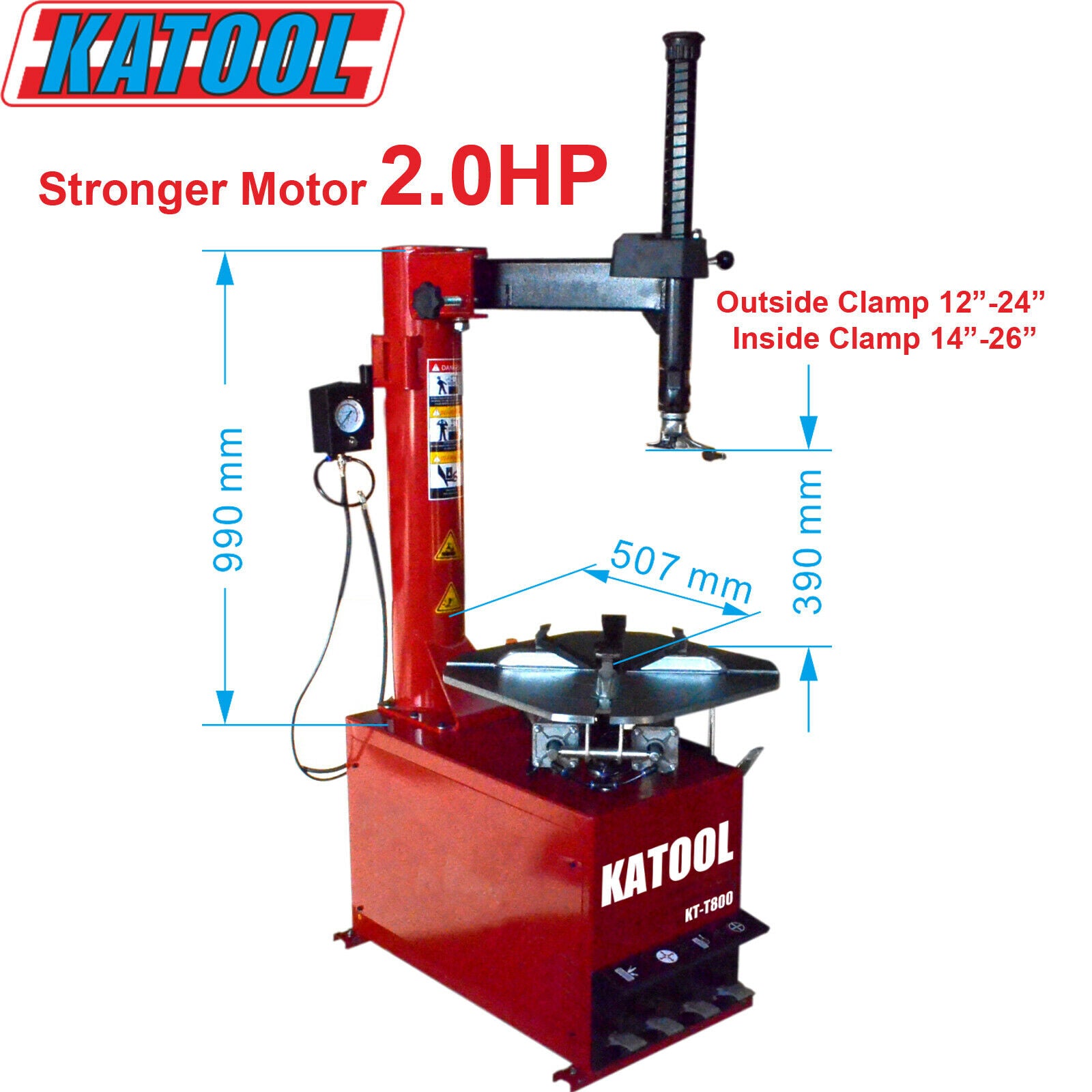

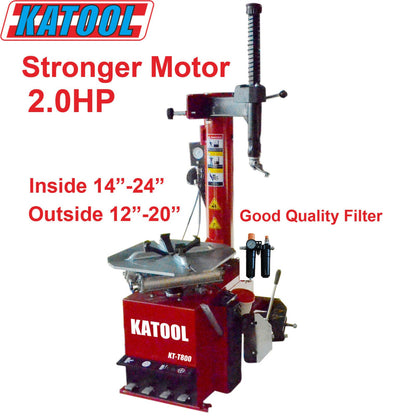

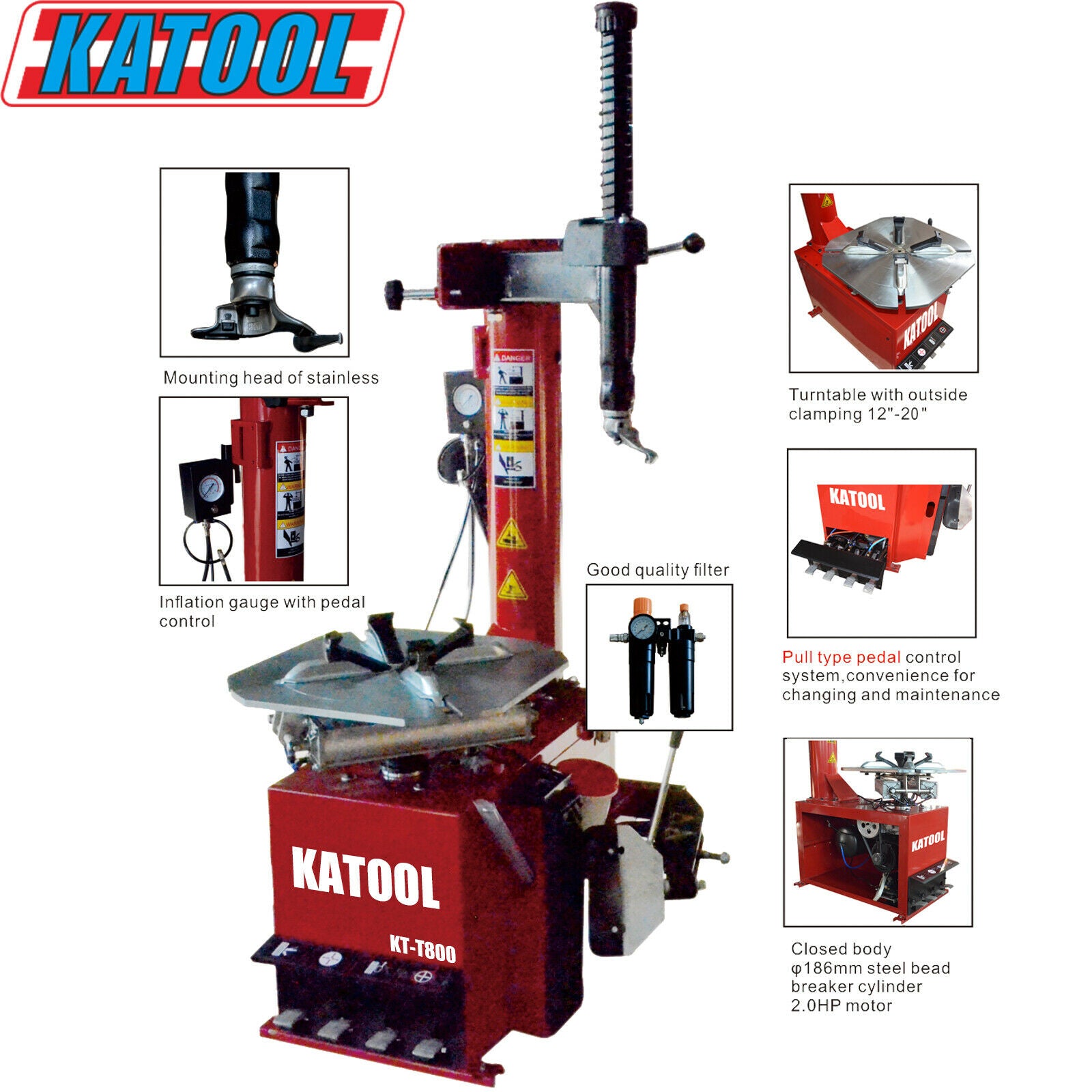

The Katool KT-T800 rim clamp tire changer is an ideal addition to both home garages and professional tire shops. Powered by a robust 2.0HP motor, it delivers reliable performance for efficient tire service. With a maximum 24" rim clamping capacity, it is well suited for cars, vans, and light trucks. The pneumatic bead breaker enables fast, effortless tire removal, significantly improving speed and productivity during tire changes. And the bead breaker shovel can protect the tire from damage during operation.

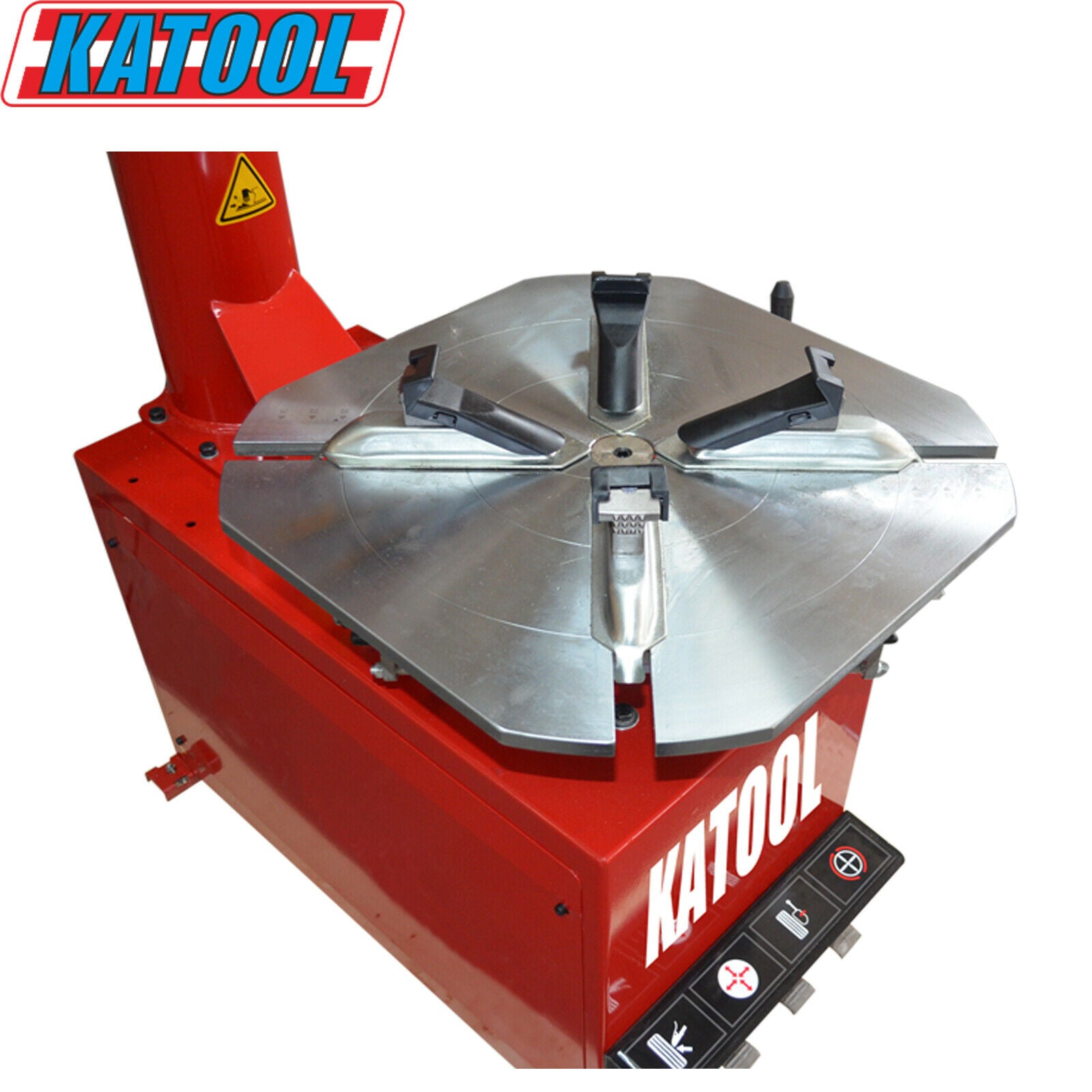

Sturdy alloy steel jaws come with protective covers to prevent rim damage during clamping.
Durable stainless steel mounting head can withstand heavy loads and repeated use.
The mounting head and bead blade shovel with a high-quality cover can protect the rim from scratches.

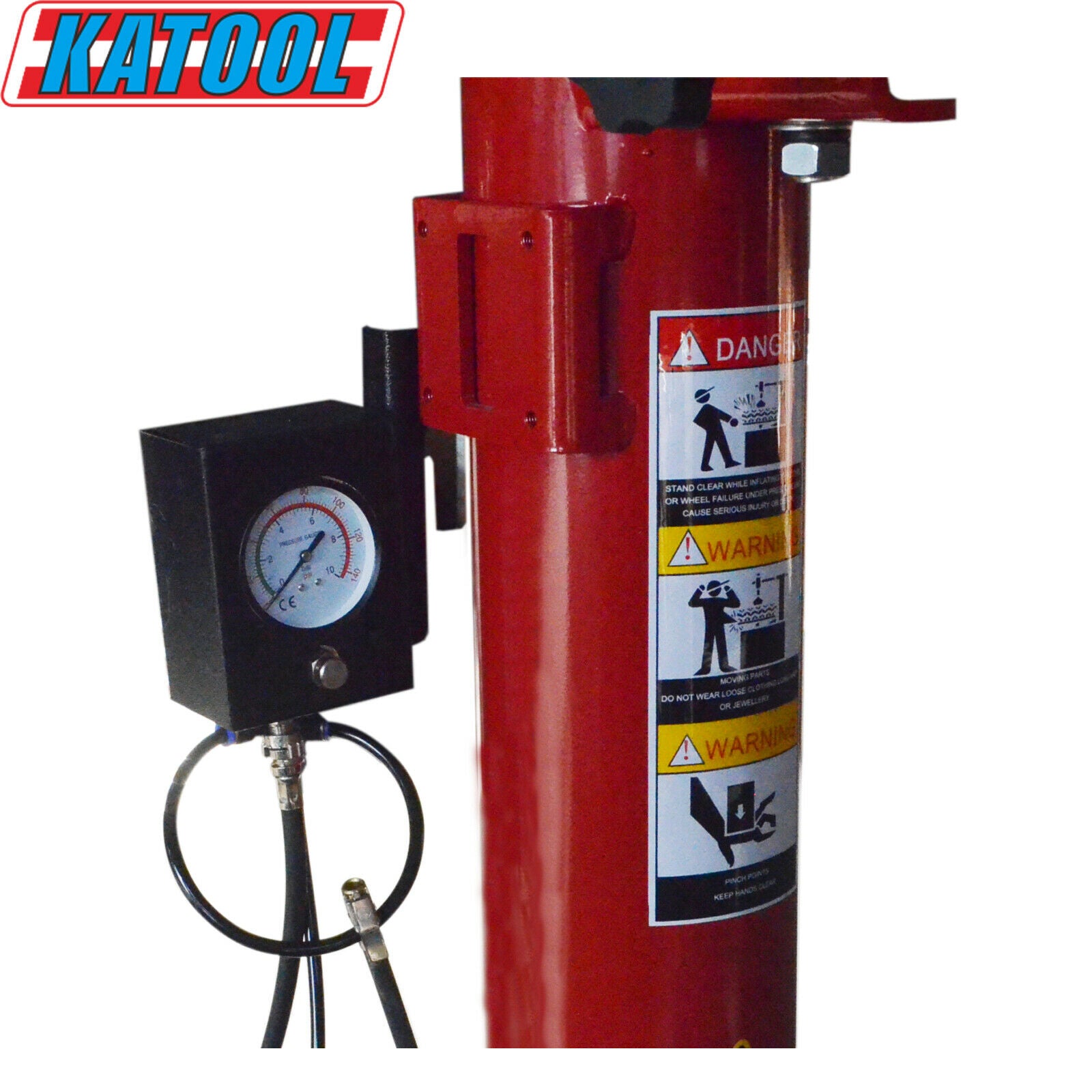

The pedal-controlled inflation gauge enables accurate and convenient tire inflation.

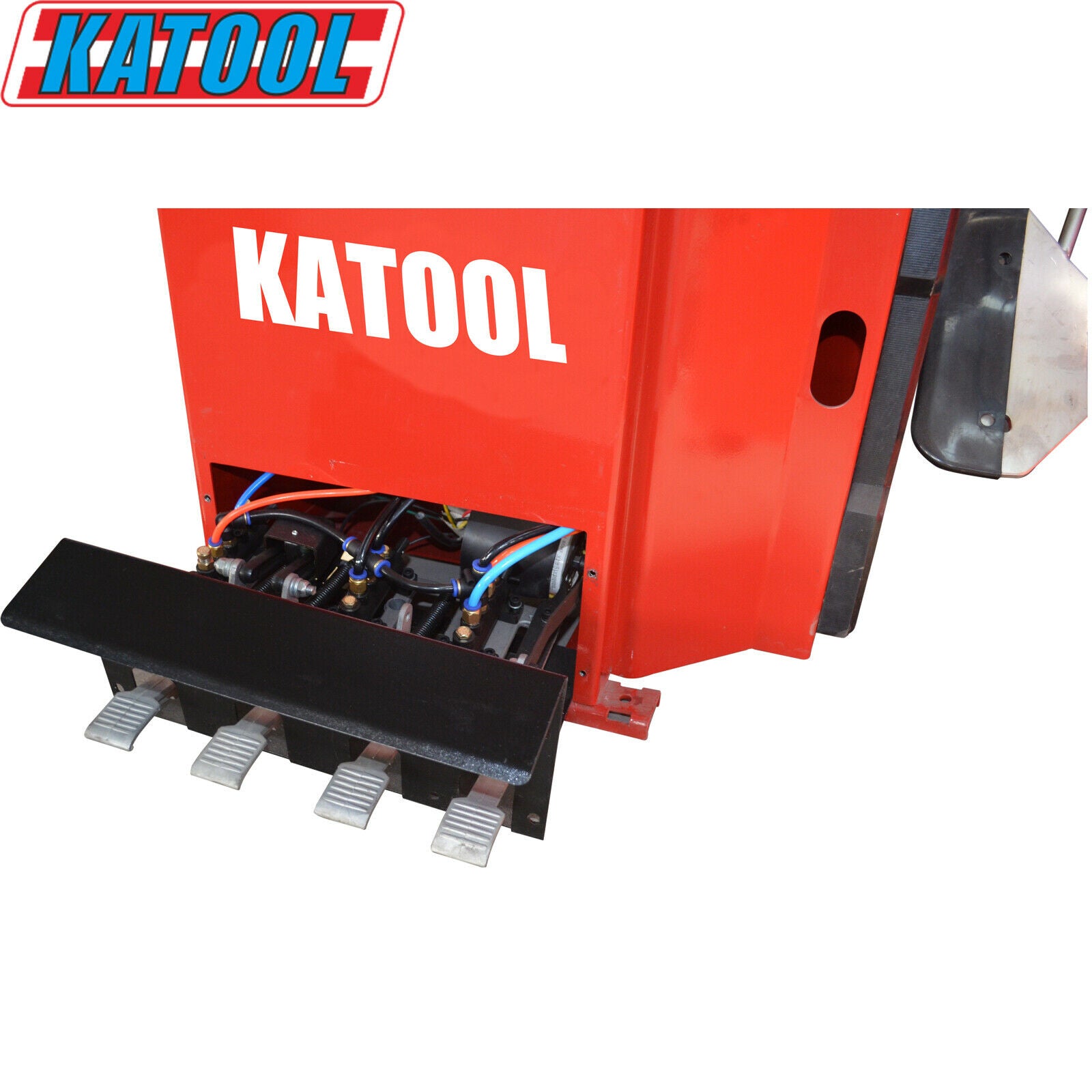

The foot-pedal control system offers intuitive operation, making tire changing and routine maintenance easier.
Powerful motor with pure copper windings provides strong power output and faster heat dissipation.
High-quality lubricator ensures consistent oil delivery and efficiently filters compressed air, extending the lifespan of the pneumatic system.

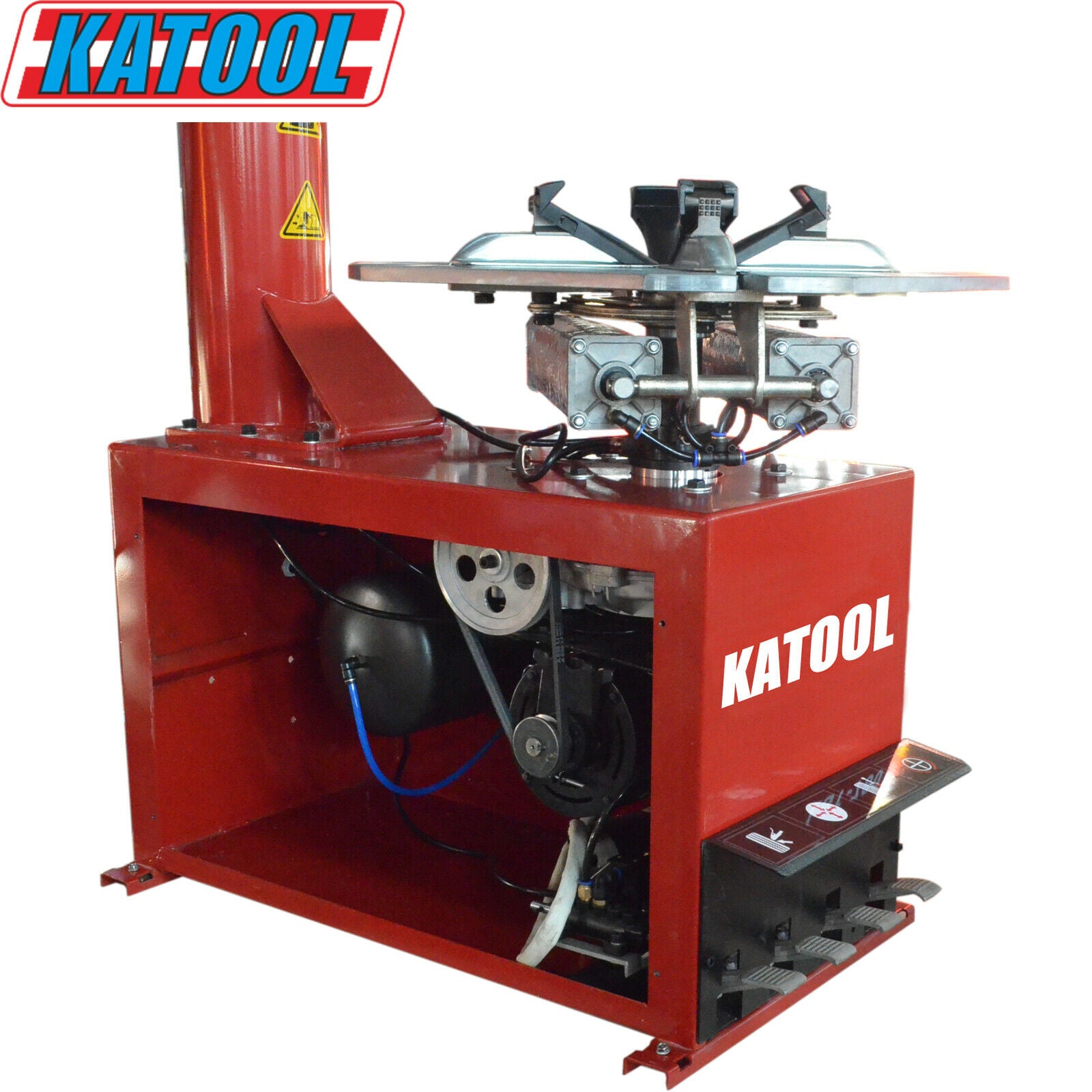

Fully enclosed body design protects internal components from damage.

Specifications

Model
KT-T800
Material
Q235 and Q245 steel
Net Weight
410 lbs
Max Wheel Diameter
41"
Max Wheel Width
15"
Outside Clamping Range
12"-20"
Inside Clamping Range
14"-24"
Clamping Type
Rim Clamp
Power Supply
120V 1PH
Hydraulic Motor Power
2.0HP/1.5KW
Rotation Speed
6.8r/min
Air Pressure
0.8-1.0Mpa(116-145psi)
Warranty
1 year

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

 Packge Size LxWxH (inch):
• Packge Weight (lb):
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.
