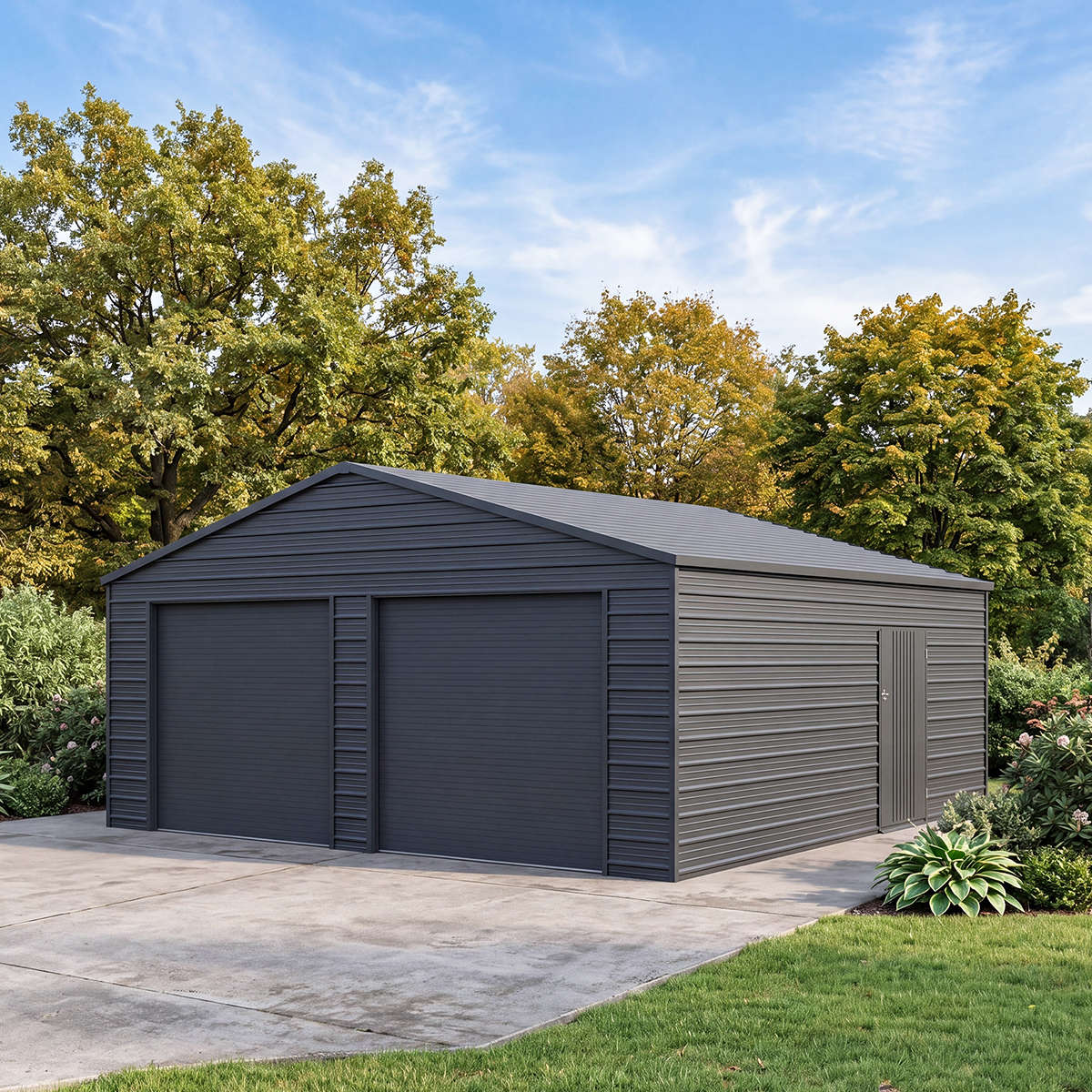

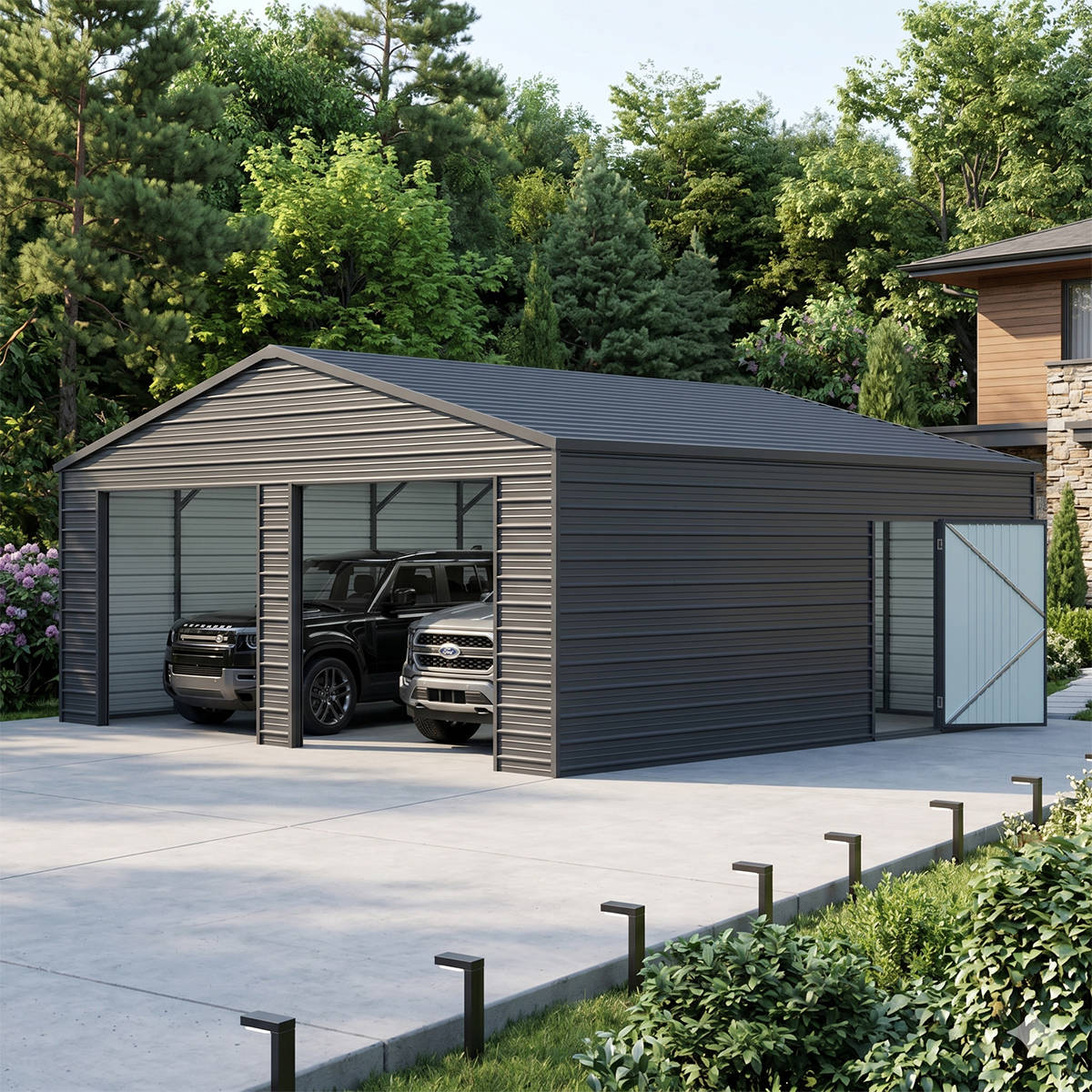

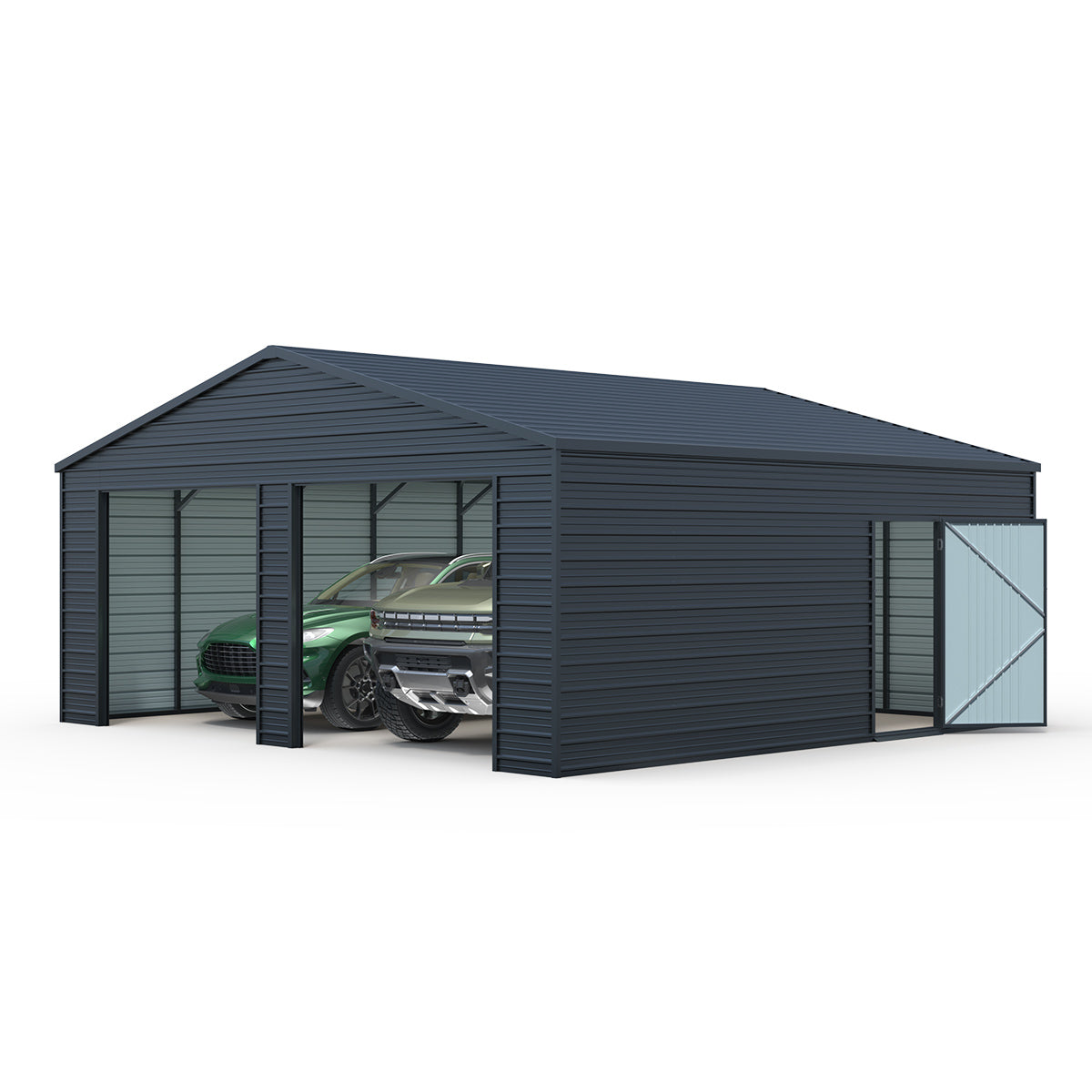

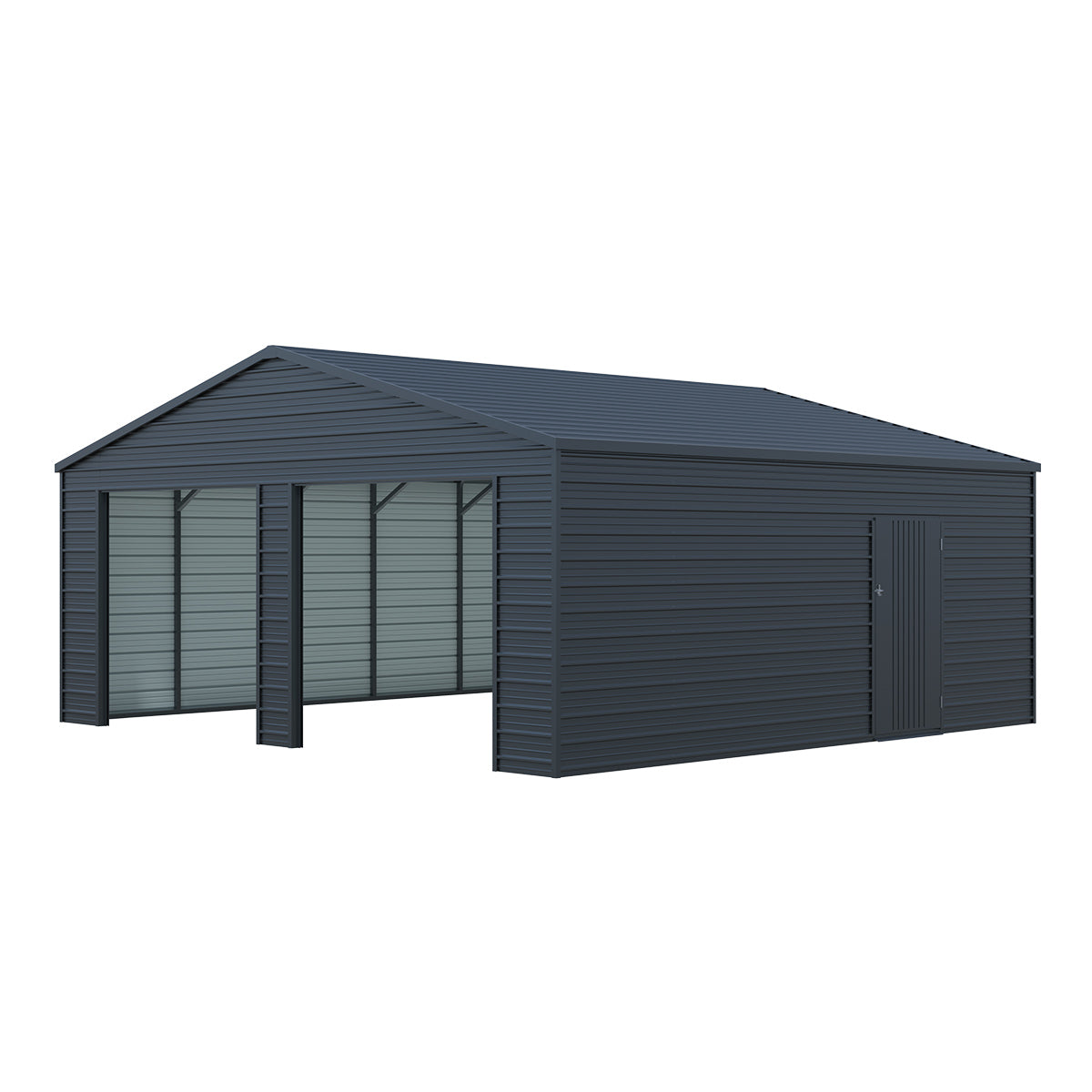

22’ x 23’ Metal Garage with Double Roll-Up Door & Side Door

22’ x 23’ Metal Garage with Double Roll-Up Door & Side Door

Chery Industrial SKU: LONMS2322A-RD
Dimension
23'x22'
Snow Load
20.5 psf
Wind Load
50 mph
Regular price $8,399.00
Sale price $8,399.00

Pre-Order

Pickup unavailable

22’ x 23’ Metal Garage with Double Roll-Up Door & Side Door

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States

Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

Our heavy-duty double-door metal garage provides a spacious, durable solution for vehicle storage, DIY projects, and multi-purpose use. Built with high-quality galvanized steel color-sheet panels and a robust Q235 steel frame, it offers excellent rust resistance, wind stability, and snow load capacity for long-lasting outdoor performance. The apex roof design with horizontally laid panels enhances structural strength, while optional roll-up doors add convenience. Easy to assemble with included hardware, it’s ideal for protecting your belongings in all weather conditions.

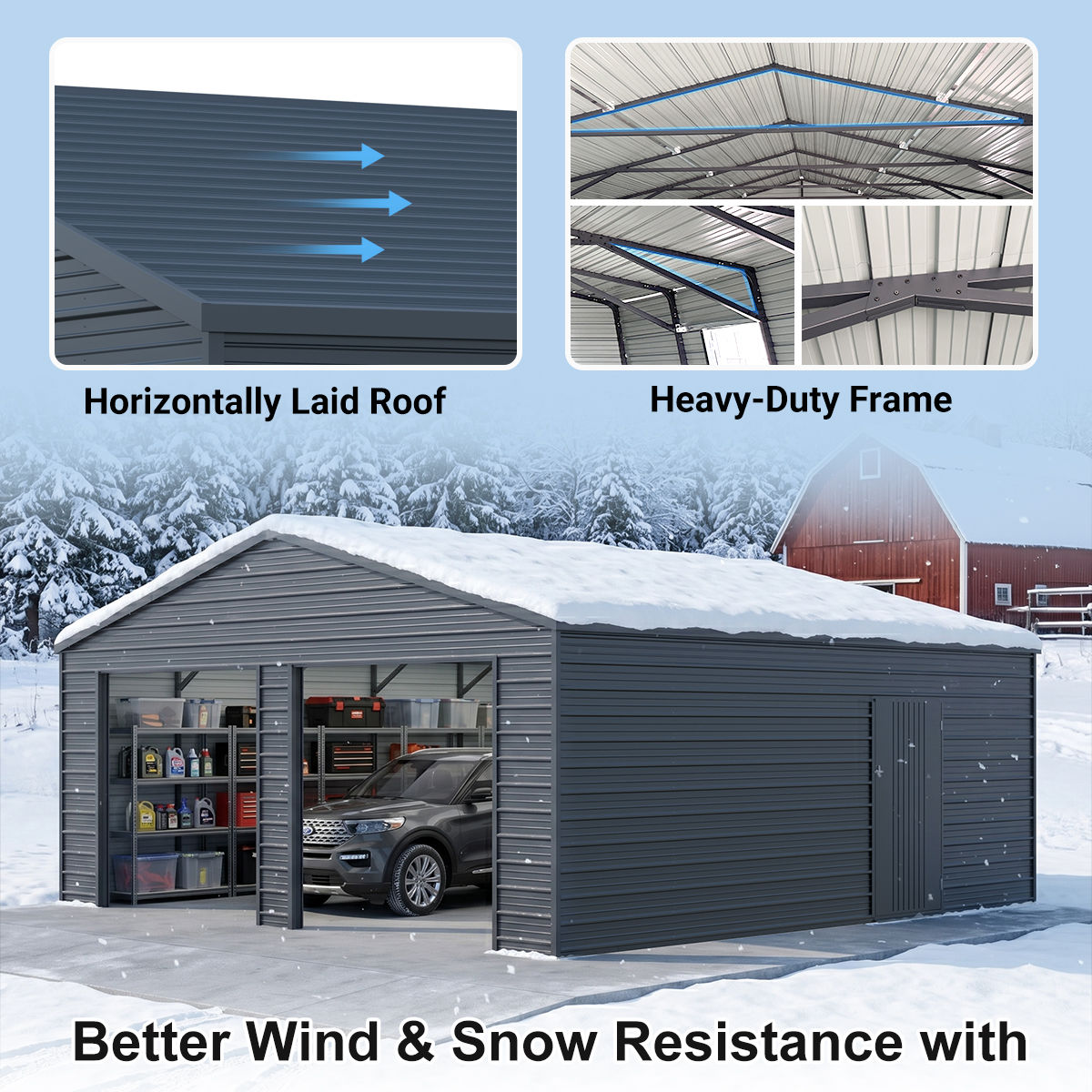

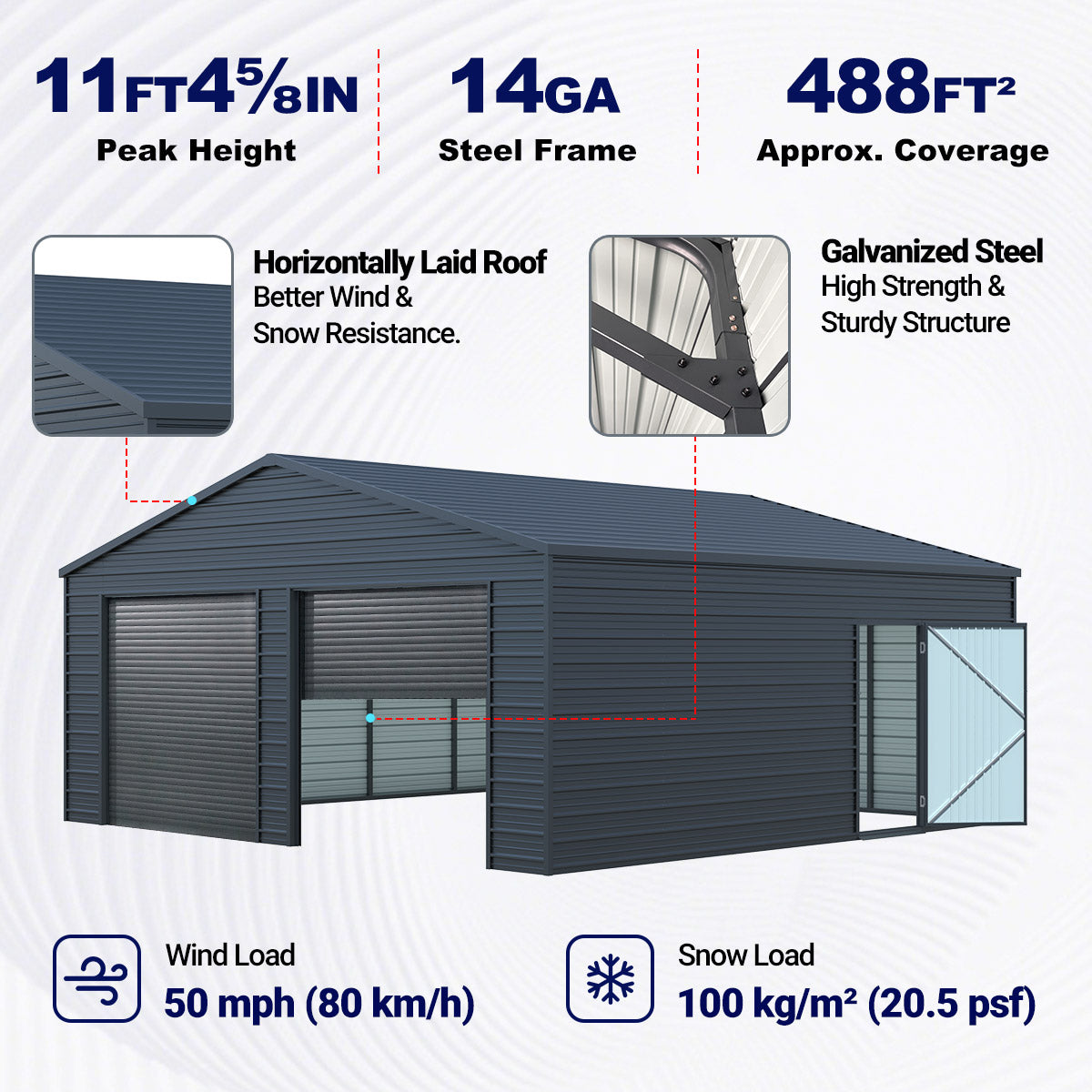

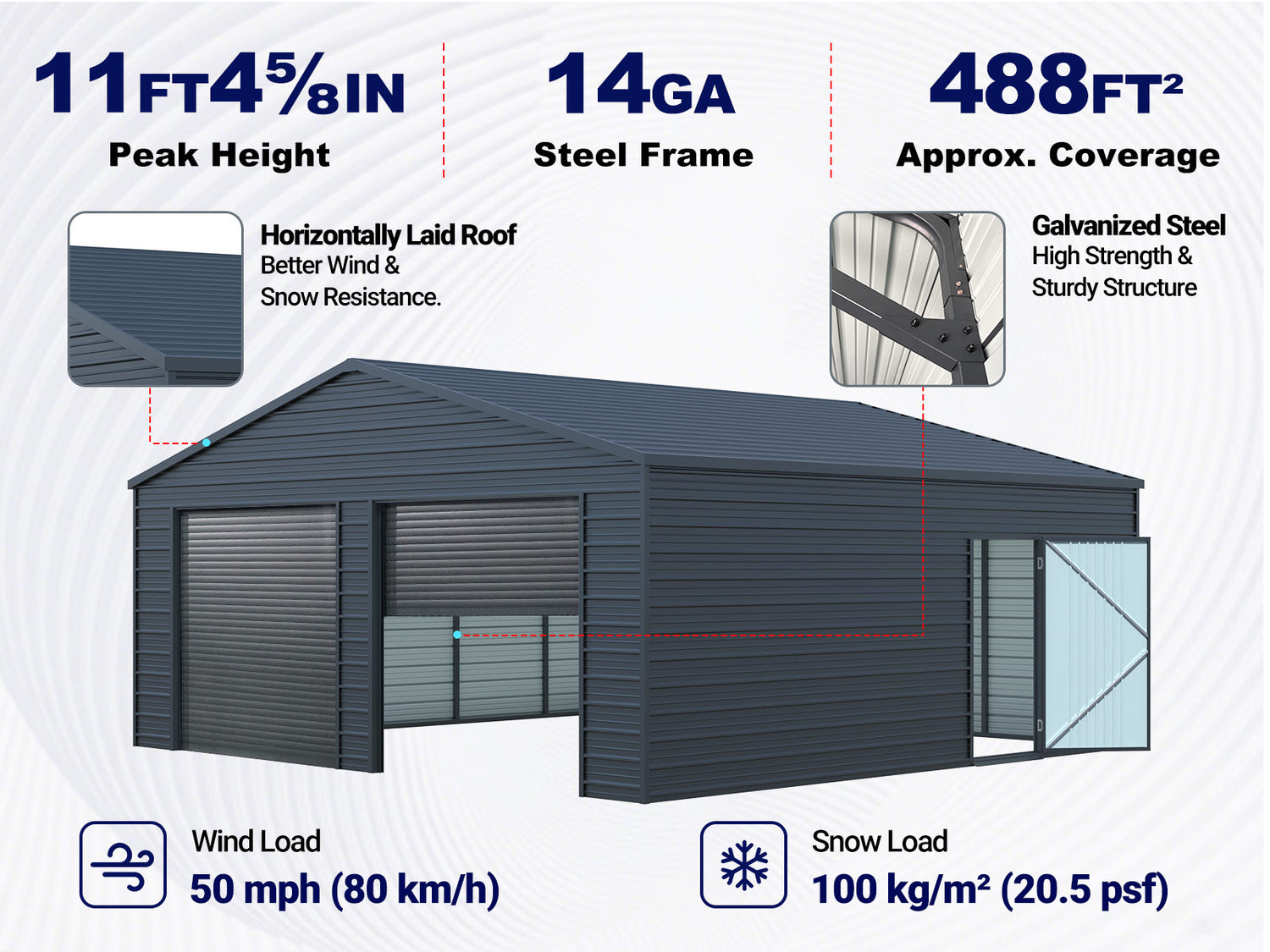

Enhanced Roof Structure

Roof panels are installed horizontally, creating a cross-bracing effect that boosts the roof’s overall rigidity, wind resistance and snow load performance. Waterproof sealant at all seams provides reliable leak protection.

Heavy-Duty Reinforced Structure

Premium galvanized steel panels feature great rust and corrosion resistance. The powder-coated steel frame is sturdy enough to withstand strong winds and heavy snow.

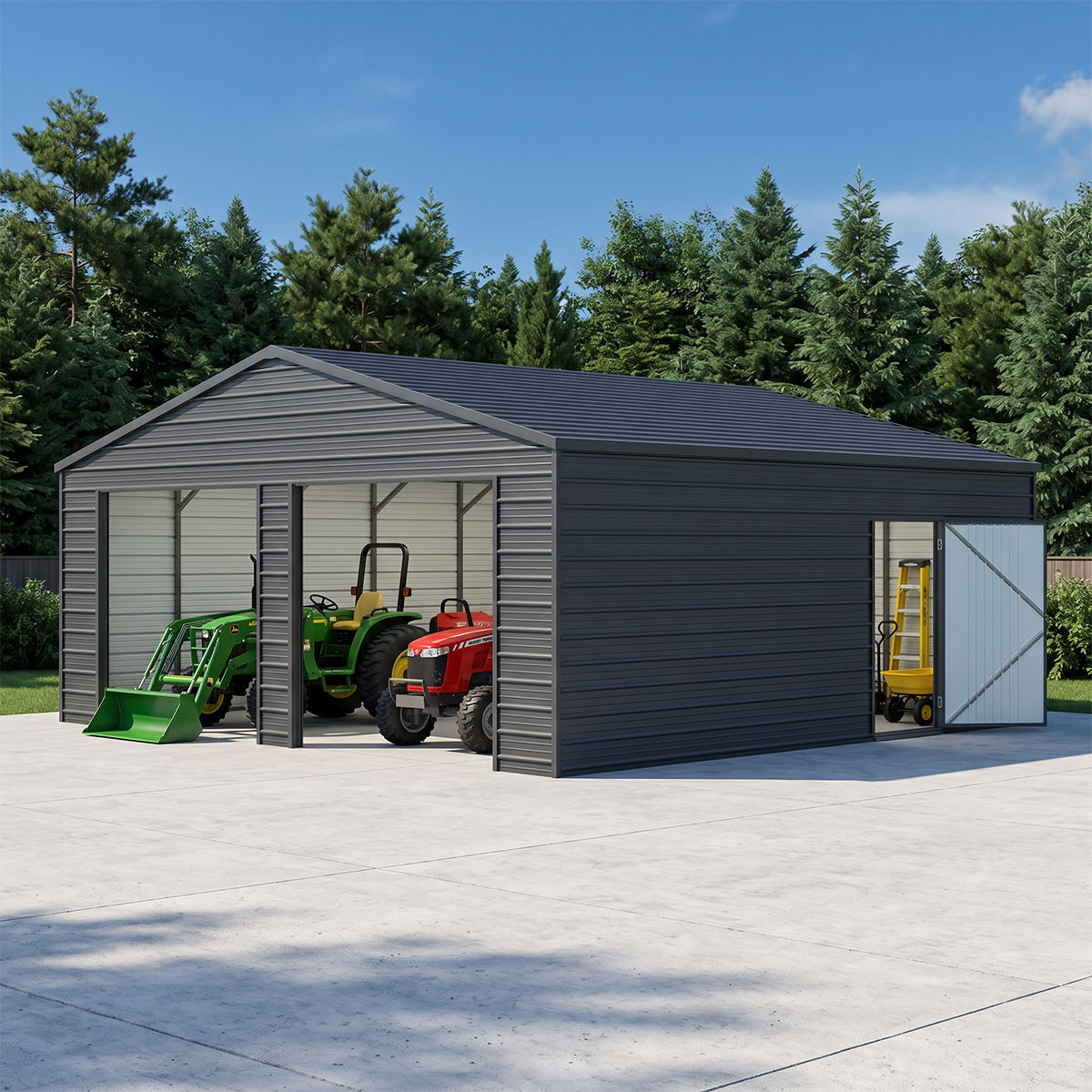

Flexible Usage Space

Suitable for parking vehicles, storing tools & outdoor goods, setting up a hobby workshop, farm storage or pet house.

Remote Control Operation

Handheld remotes for the electric roll-up door support long-distance control, bring great convenience for vehicle entry and exit.

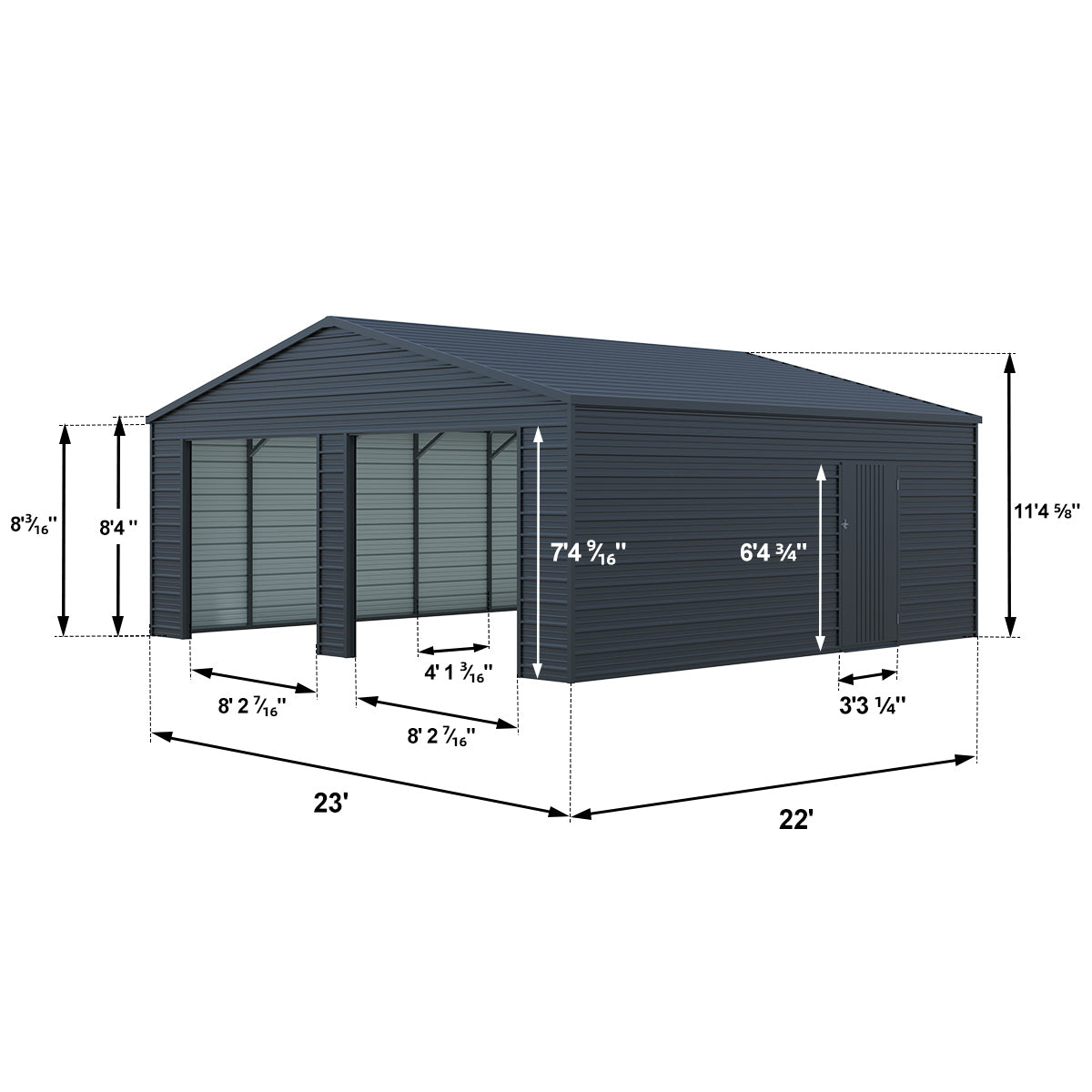

Specifications

Dimension
W22' x L23' x H11' 4 ⅝"
Weight
1742 LBS
Frame Material
Q235 Galvanized Steel with Powder-coating
Arch Spacing
4′ 1¹³⁄₁₆"
Peak Height
11′ 4⅝″
Eave Height
8′ 4″
Front Door Size
8' 2⅜" x 7′ 4⅝"

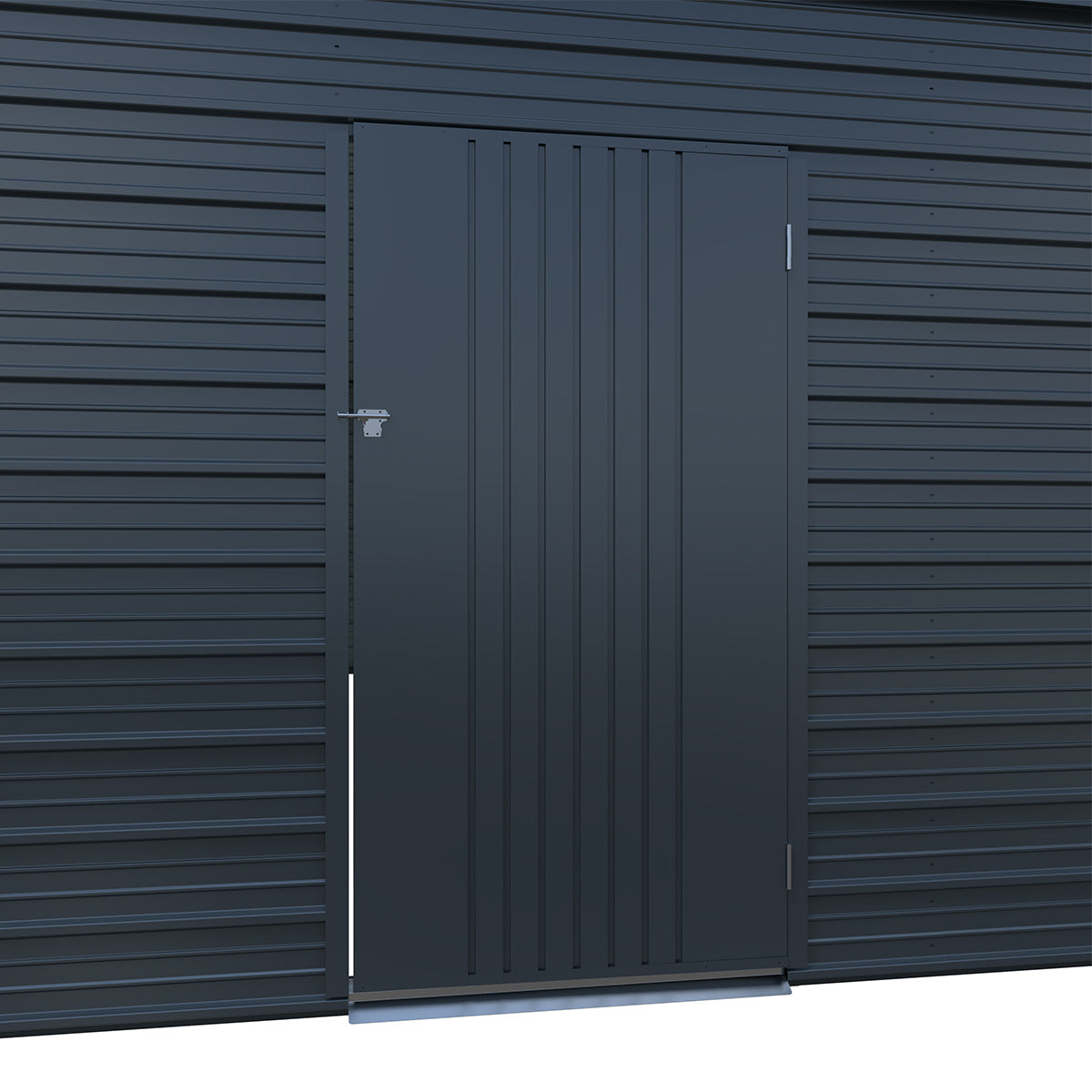

Side Door Size
3′ 3⅞" x 6′ 4⅞"
Front Door Type
Motorized Roll-Up Door for Option
Side Door Type
Opening
Snow Load
20.5 psf (100 kg/m²)
Wind Load
50 mph (80 km/h)
Main Material
Galvanized Steel Color-Sheet
Roof Panels Thickness
30 GA
Wall Panels Thickness
31 GA
Eave & Door Frame Thickness
24 GA
Frame Tube Wall Thickness
15 GA
Warranty
Metal Shed: 2 Years; Roll-up Door: 1 Year

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

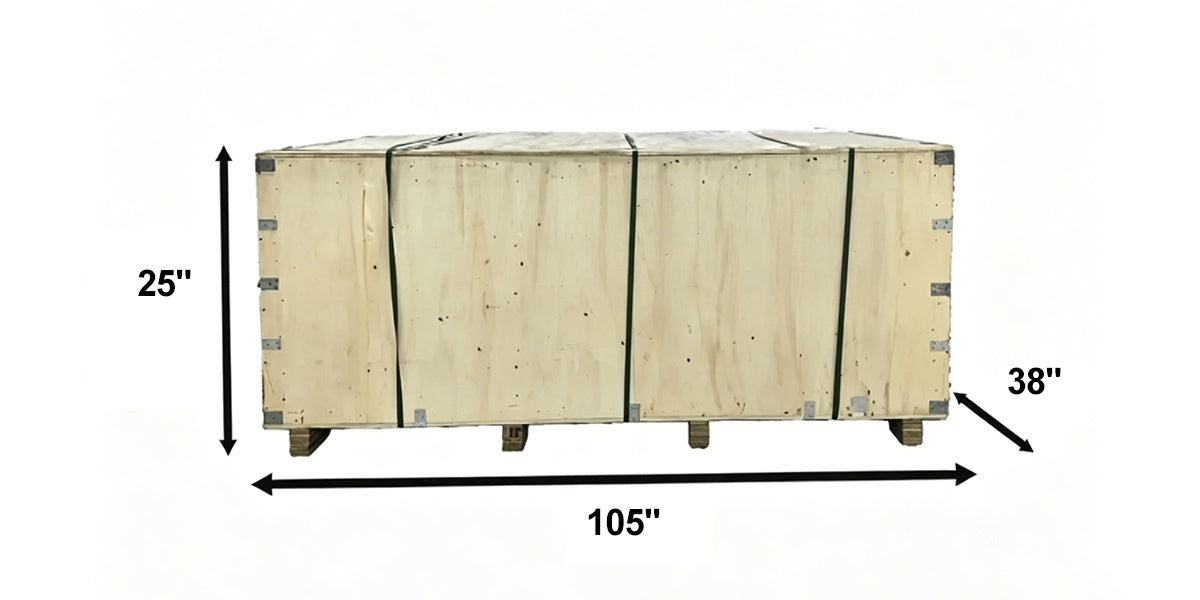

  • Metal Shed

LxWxH (inch): 105 x 38 x 25
Weight (lb): 1941

  • Roll-up Door

LxWxH (inch):110 x 14 x 17
Weight (lb): 187
• A forklift or equivalent is required for unloading. Liftgate delivery is NOT available for this item due to its size and weight.
