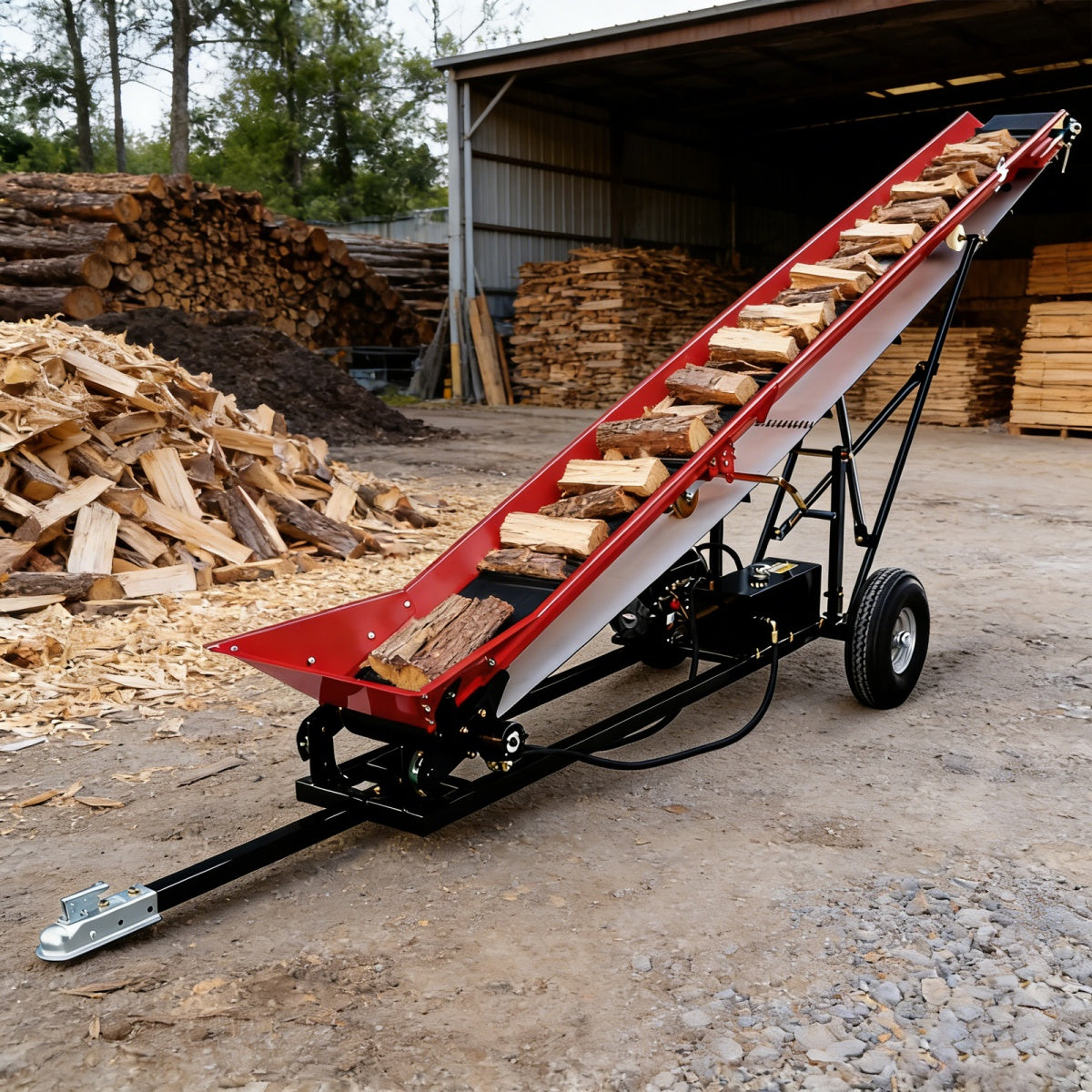

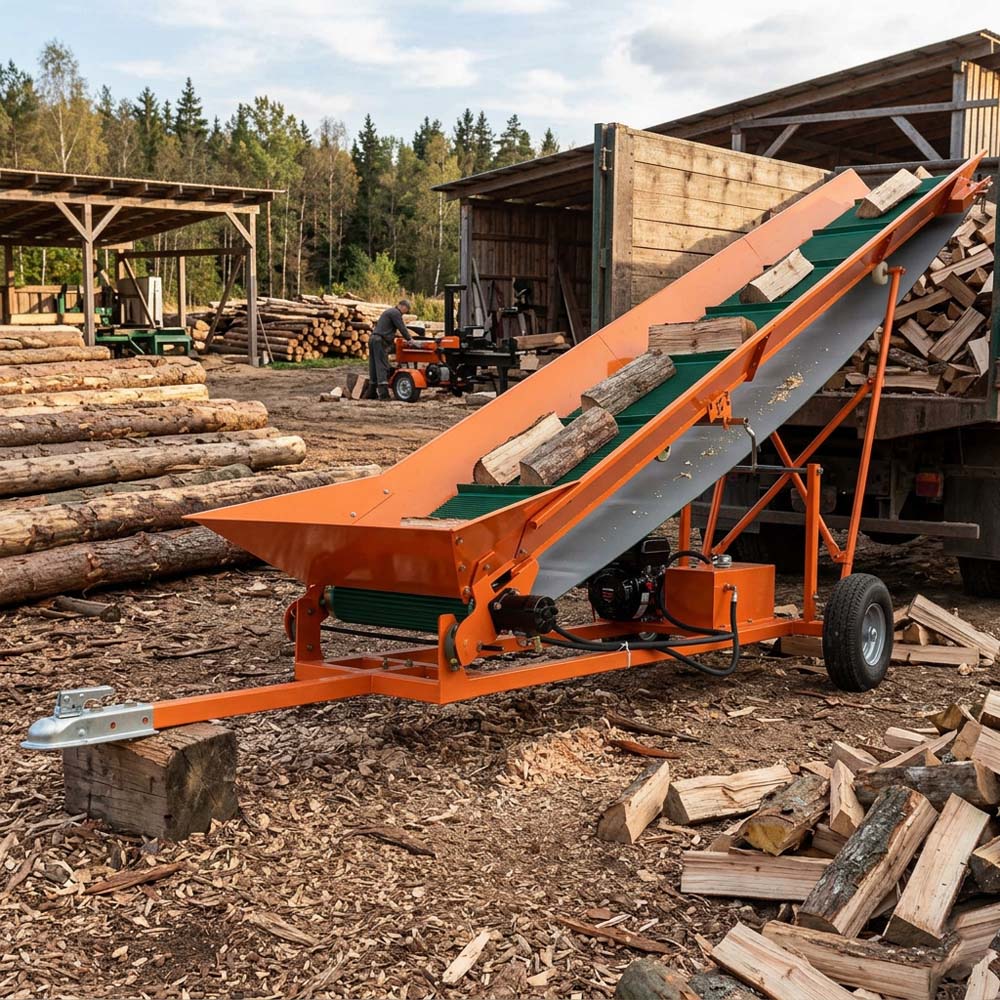

• Wood processing equipment in a logging yard with logs and stacks of wood around.

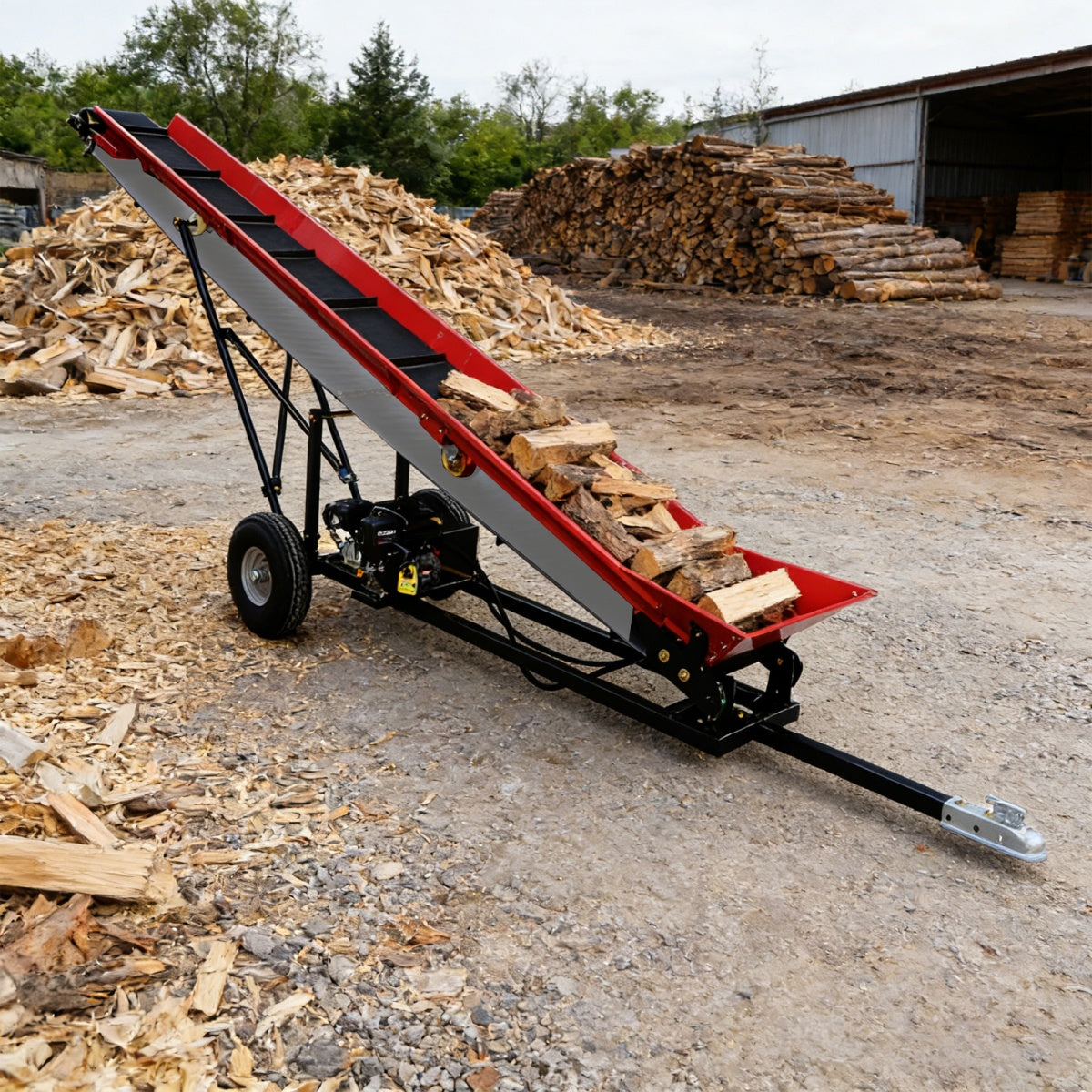

  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
  • 6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.7" PVC Belt
1 23

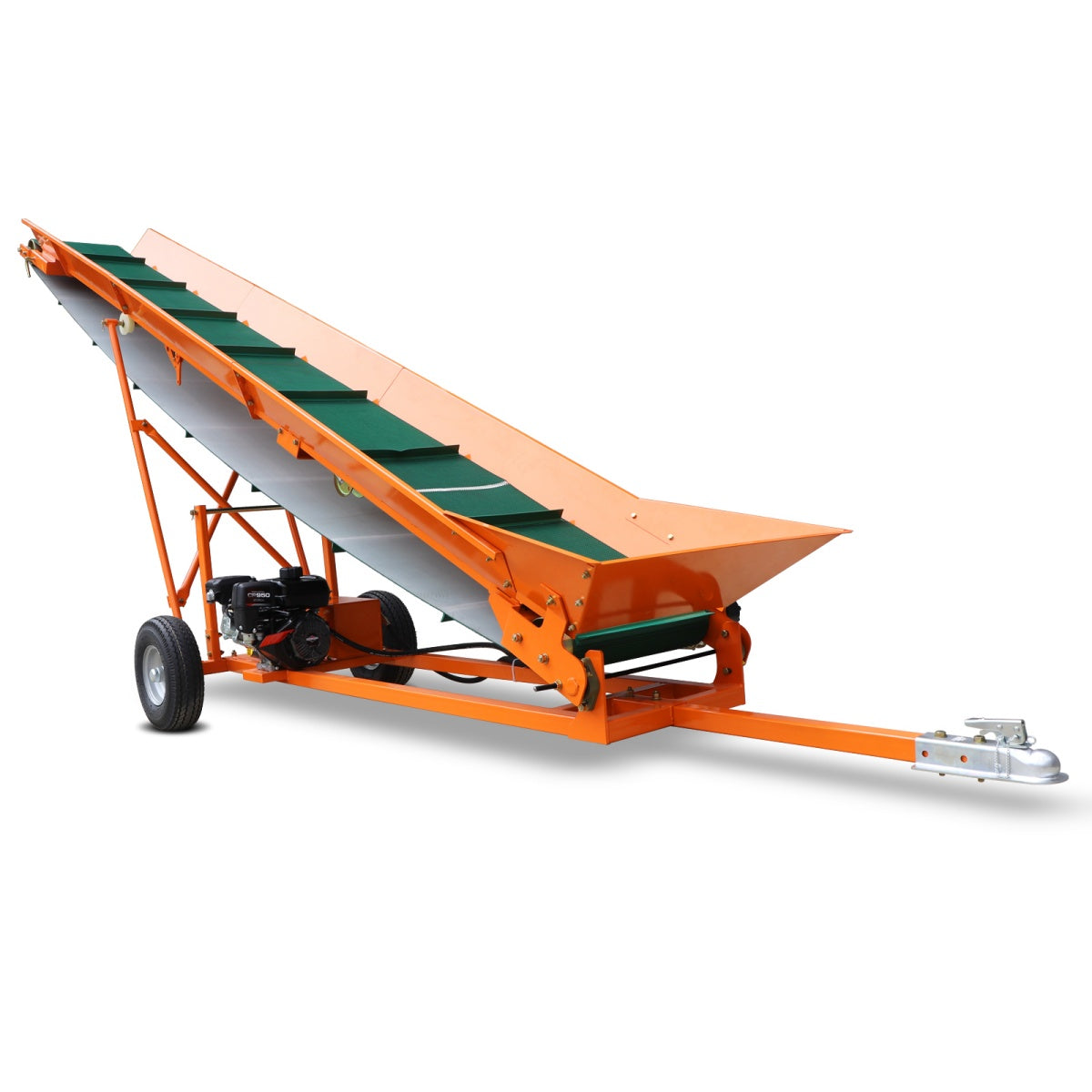

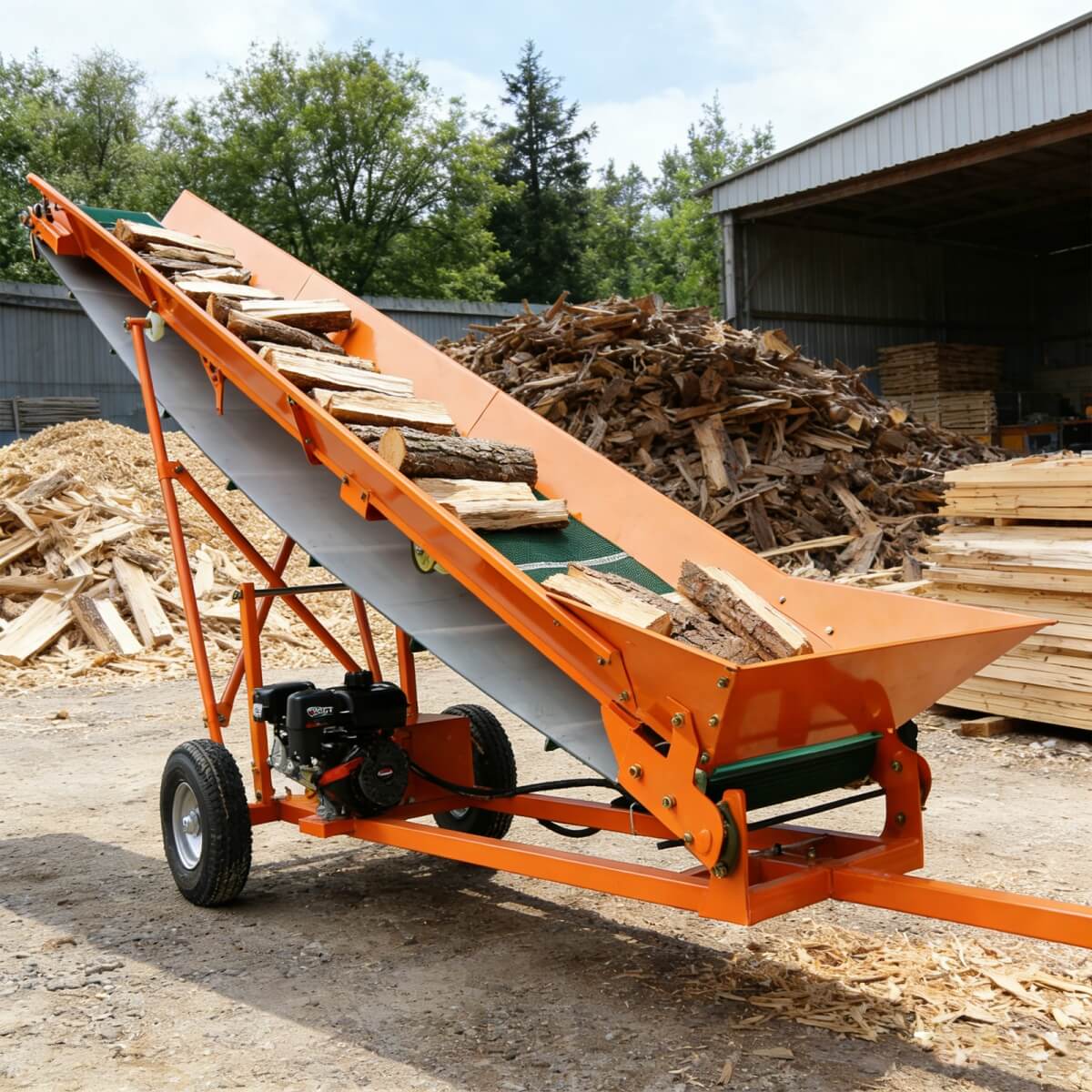

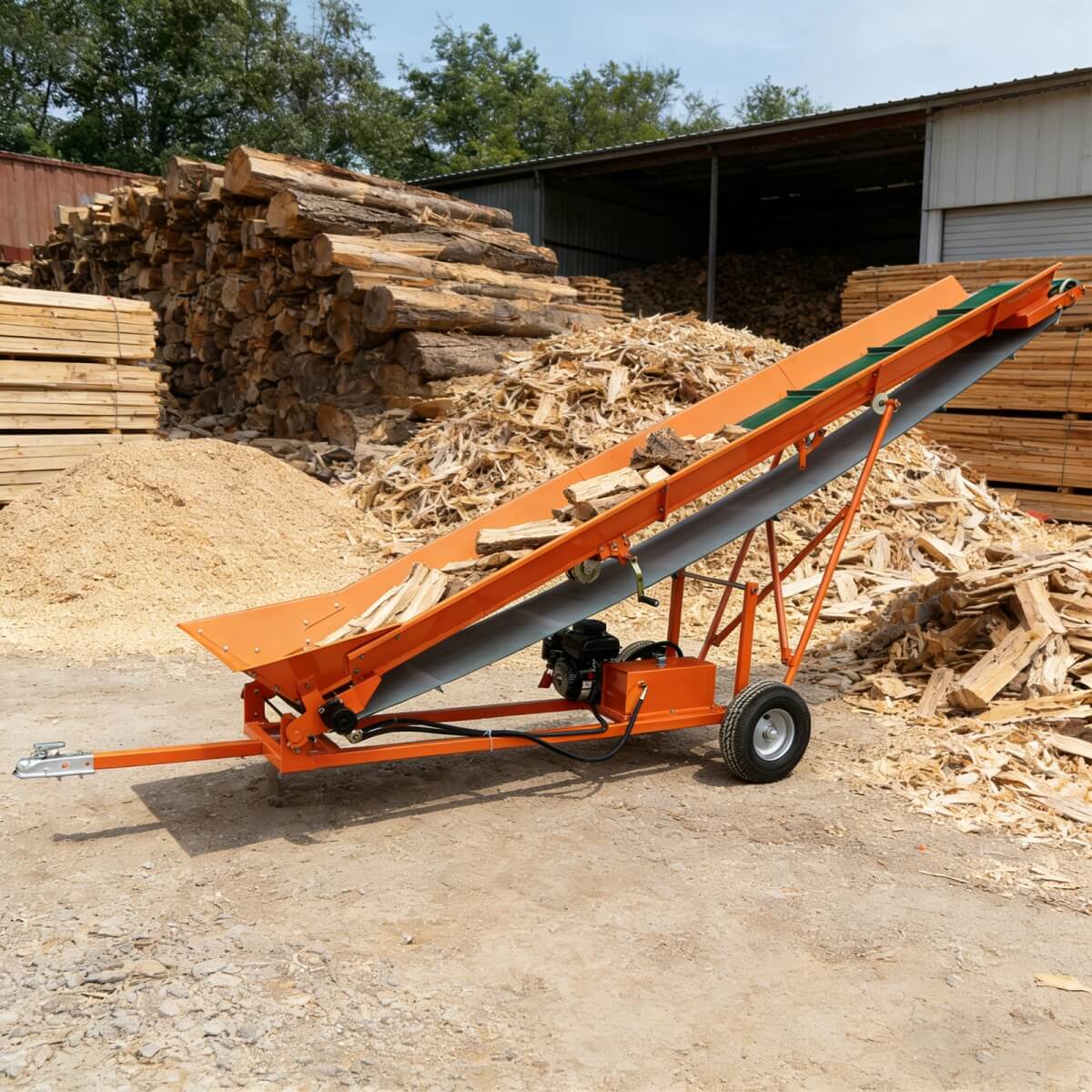

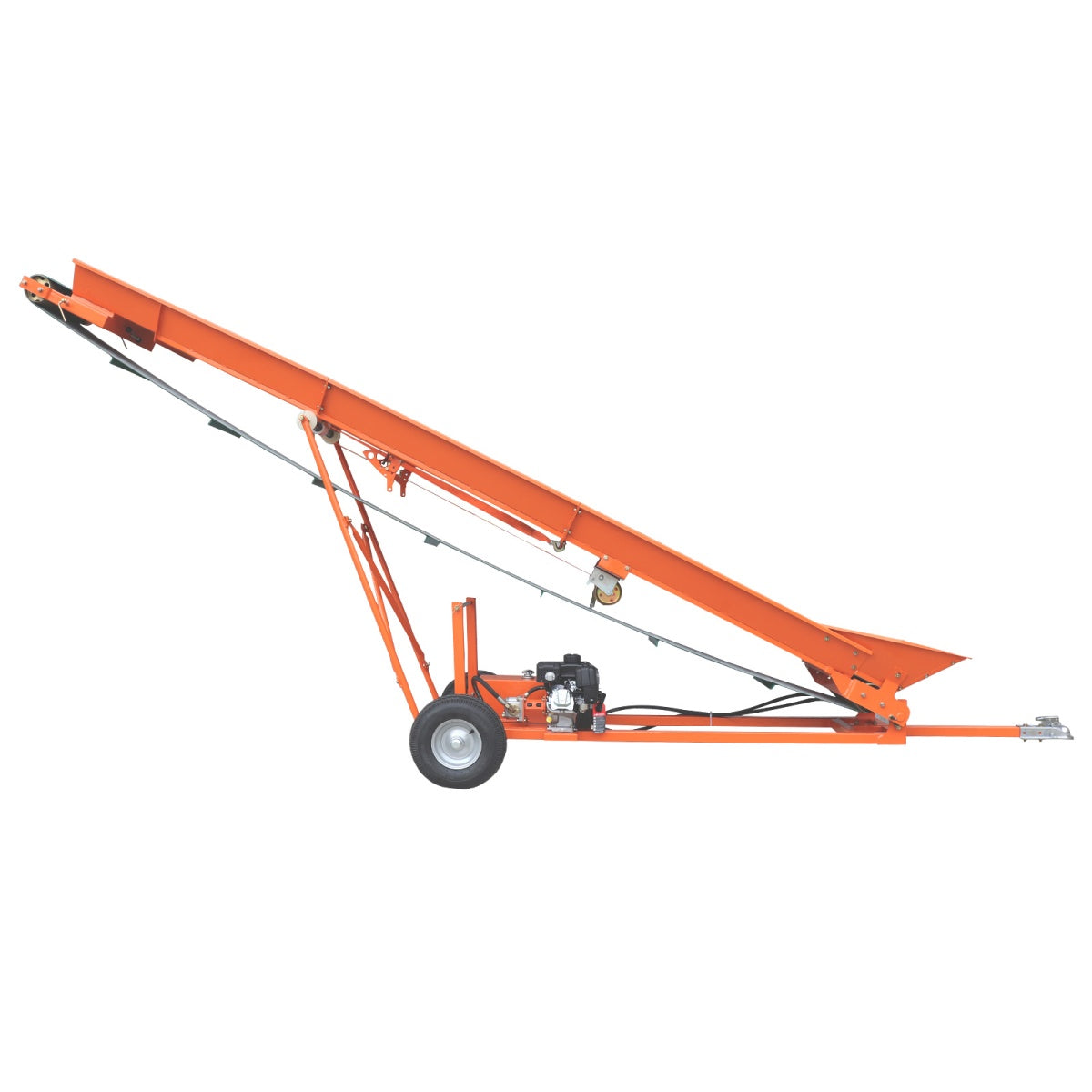

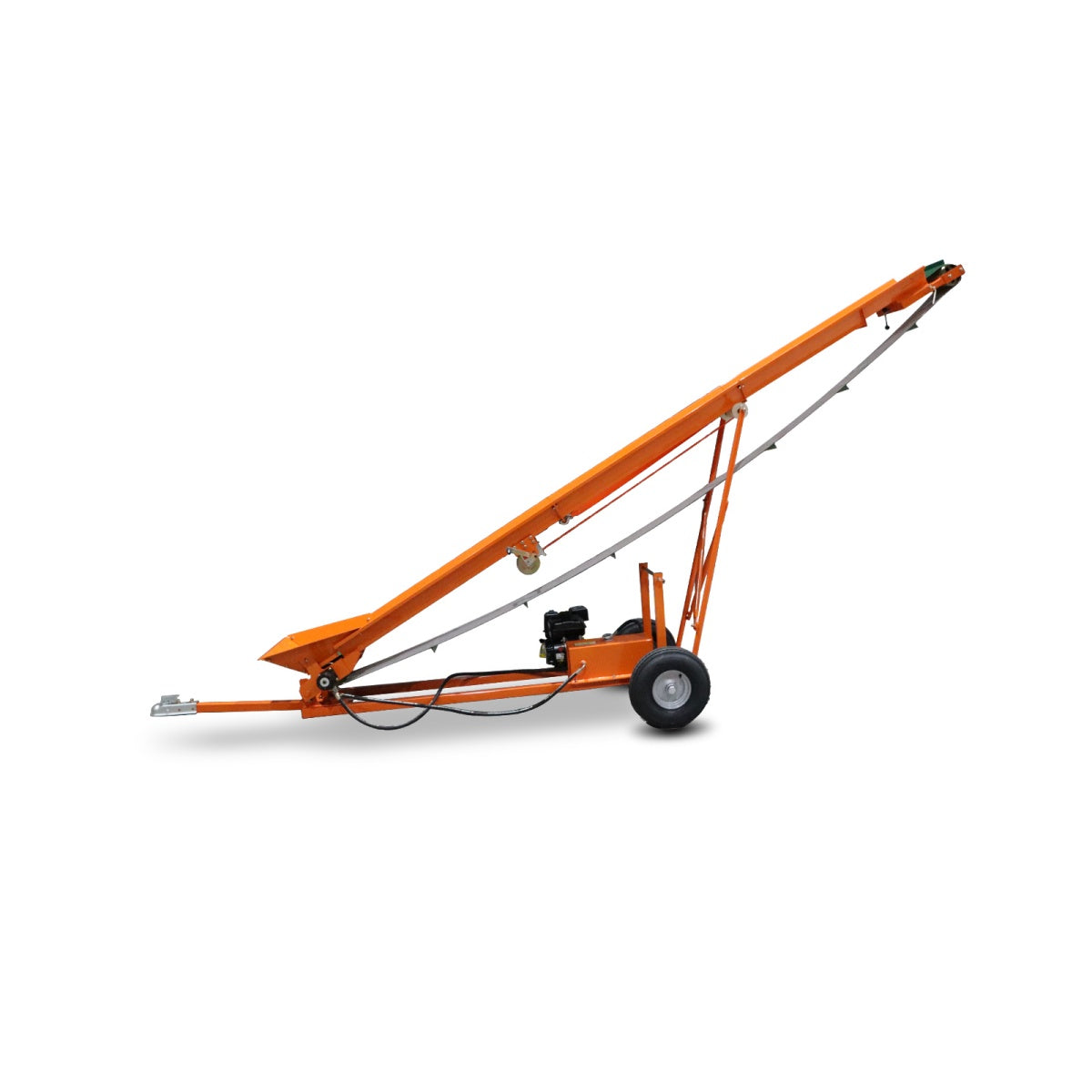

6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 12" PVC Belt

6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 12" PVC Belt

Chery Industrial SKU: N818P386641K
Max. Height
9.8ft
Engine
B&S
Belt Width
12"
$2,609.00
$2,609.00
Color: Orange

Pre-Order

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

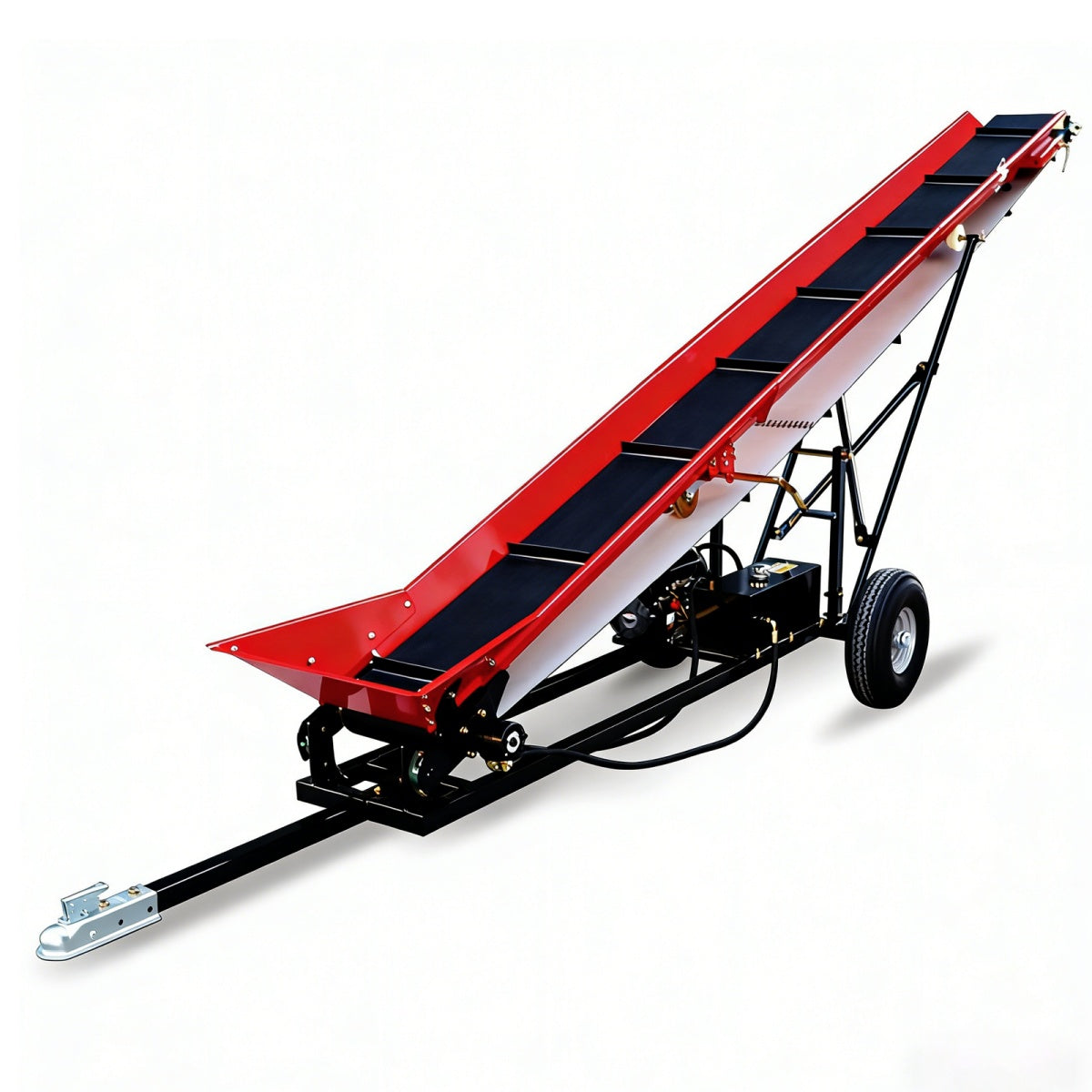

This 6.5HP Firewood Conveyor is built for efficient, safe, and powerful firewood handling. Powered by a reliable B&S gasoline engine with a hydraulic drive system, it delivers smooth, adjustable belt speed up to 0.7 m/s. The heavy-duty steel frame ensures long-term durability, while the 19.7" wide, 5 mm thick PVC belt provides stable material transport. With a manually adjustable lift height up to 9.8 ft and a 132 lb load capacity, it adapts easily to various firewood loading and stacking applications.

Powerful 6.5HP B&S Engine
EPA-certified, hydraulic-driven system for high efficiency.

Adjustable Lift Height
Manual winch control, max height 9.8 ft, lockable at any level.

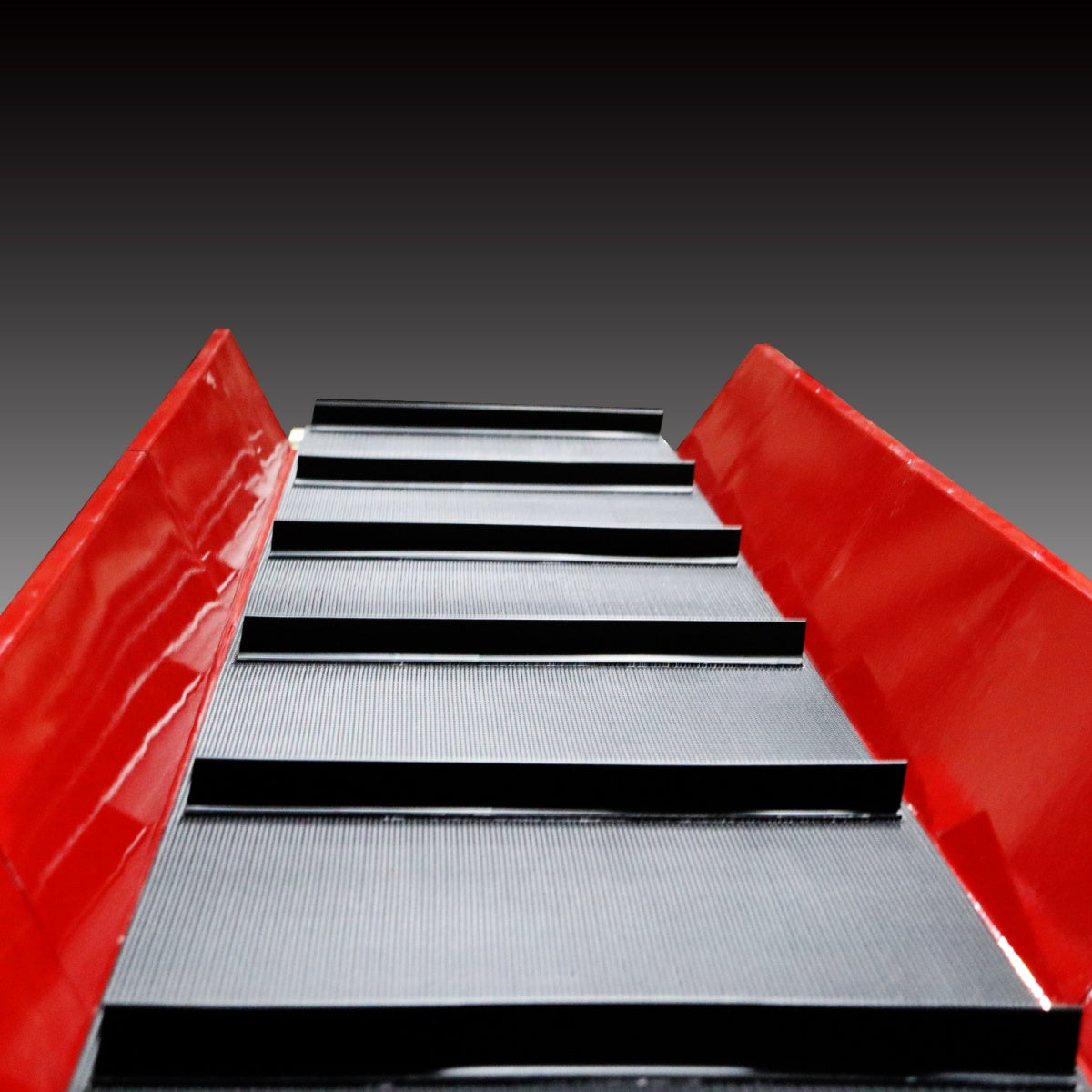

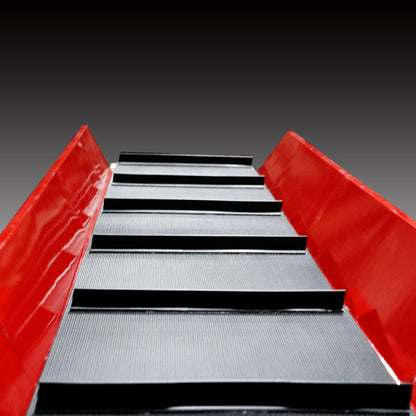

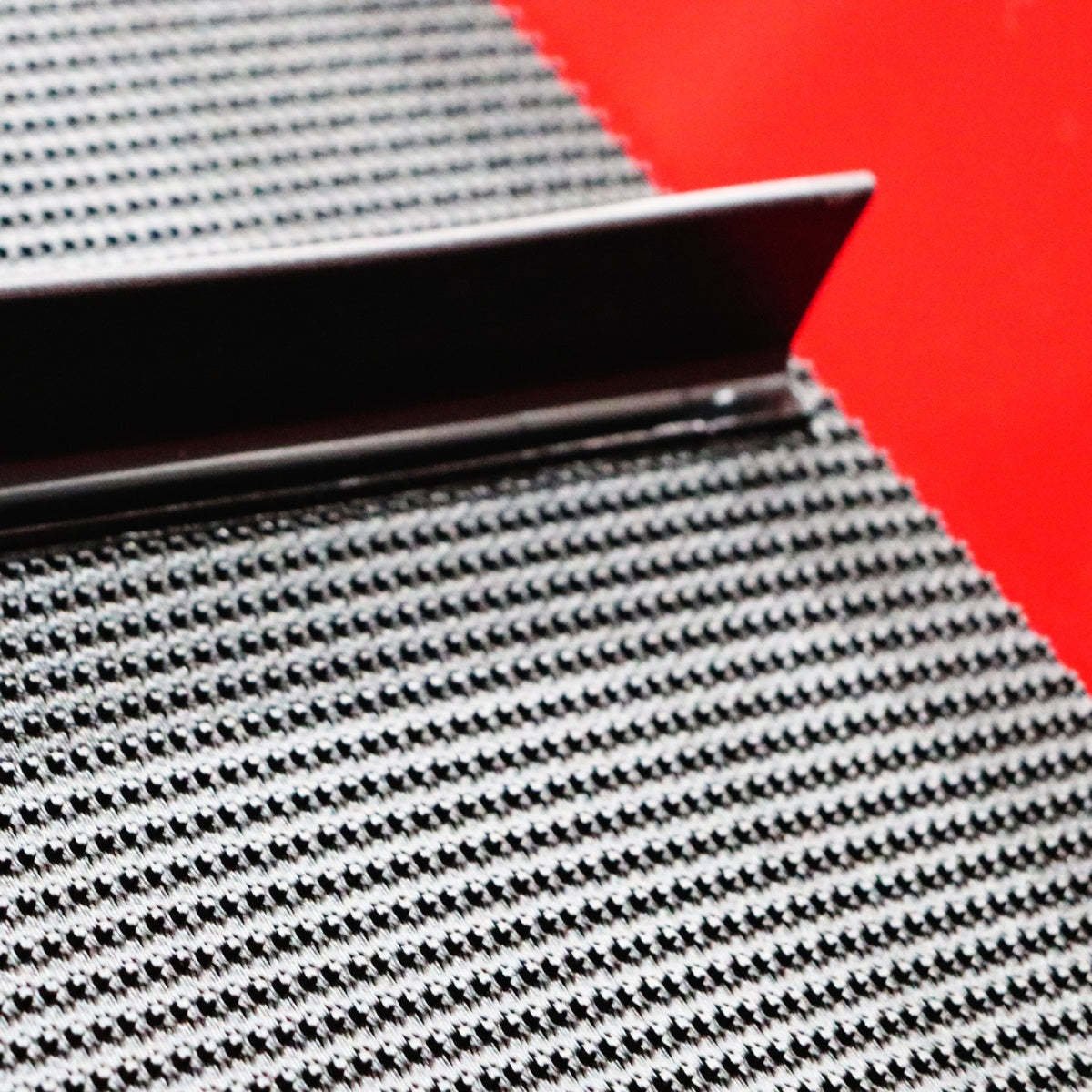

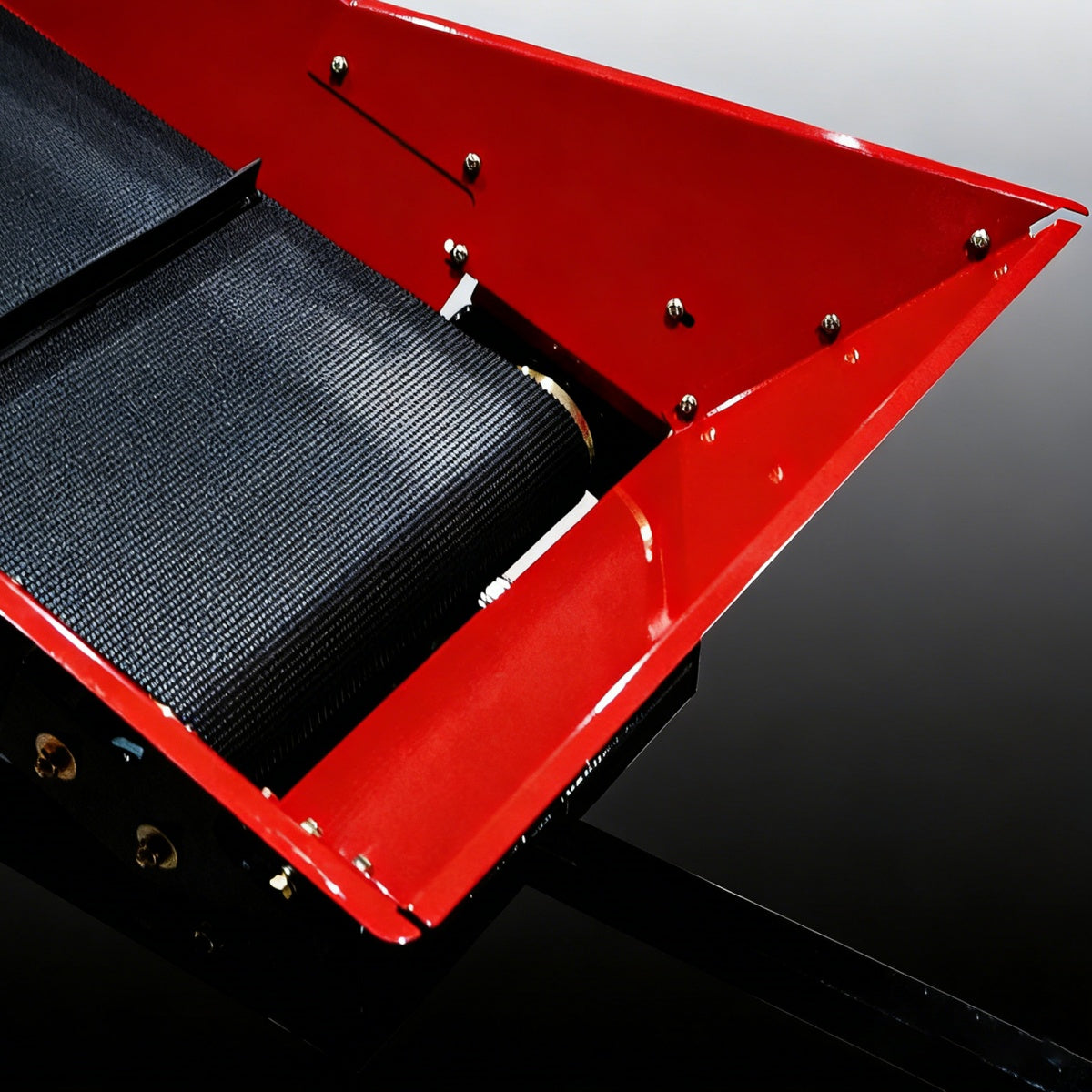

Wide PVC Conveyor Belt
19.7" width, 5 mm thick for smooth, stable firewood transfer.

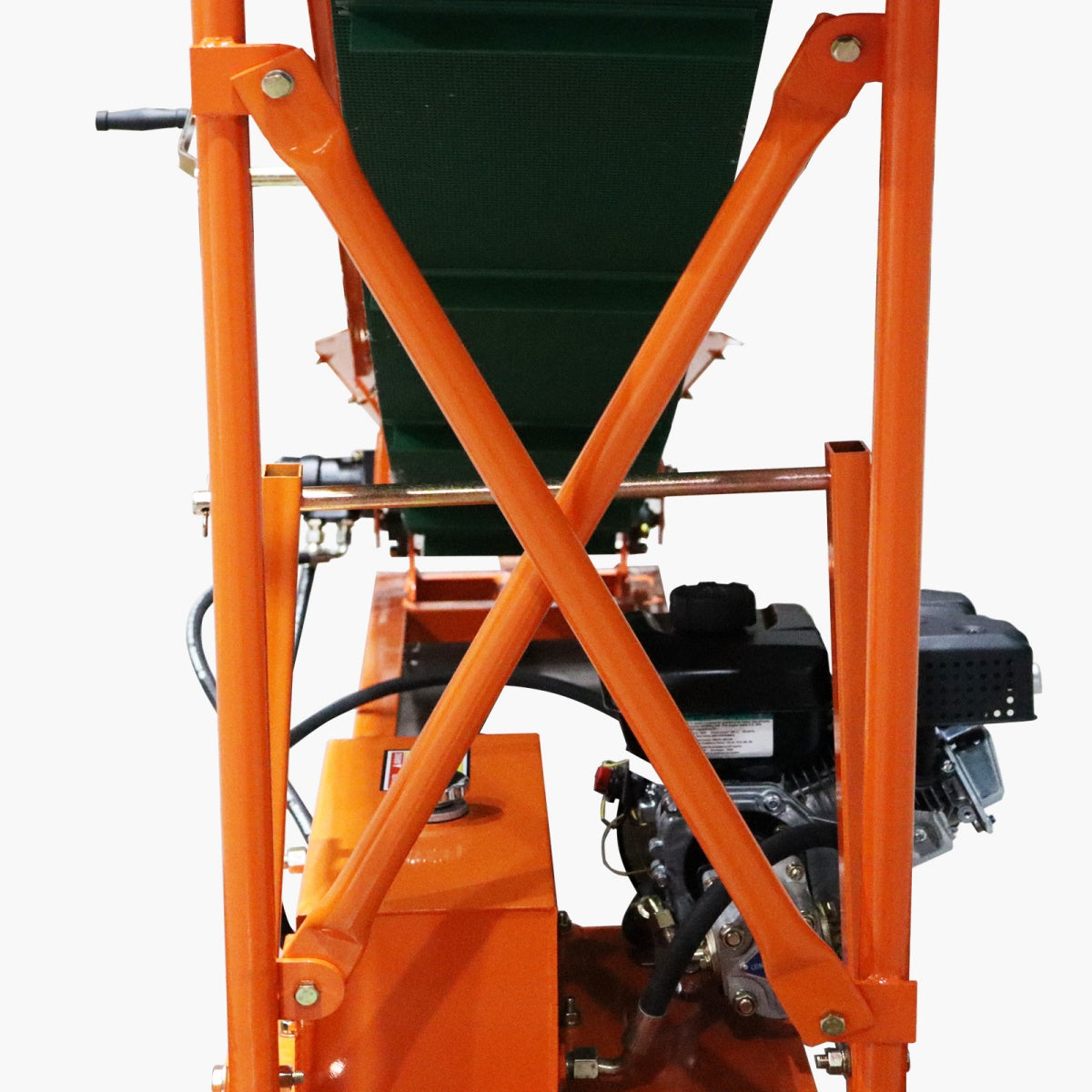

Heavy-Duty Steel Frame
Strong construction with up to 132 lb load capacity.

Video

Load video:
Firewood Conveyor Operating Instruction
Load video:
Firewood Conveyor Assembly Instruction

Specifications

Dimension(LxWxH)
216.54x42.83x76.77 inch
Main Material
Carbon Structural Steel
Certification(S)
EPA
Engine

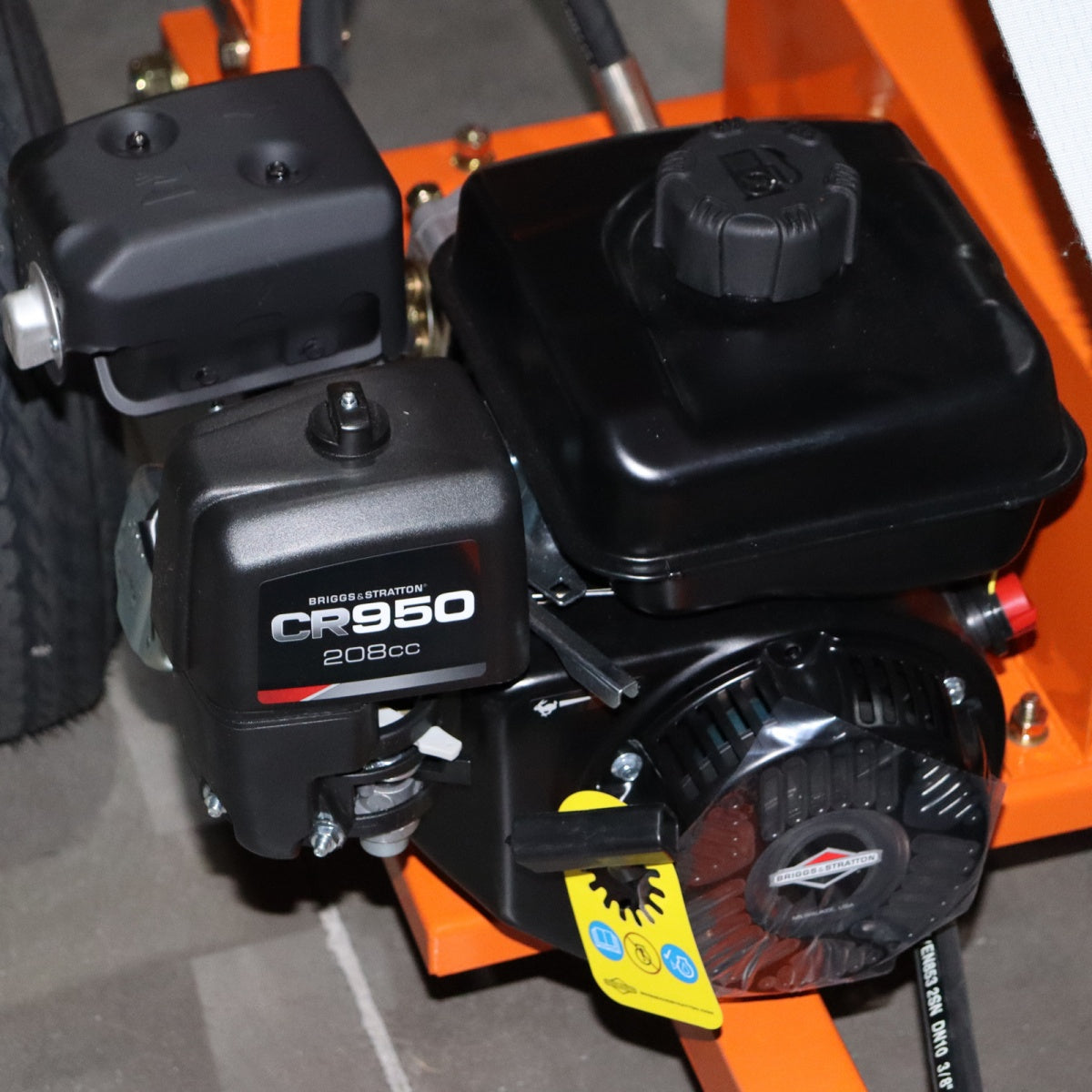

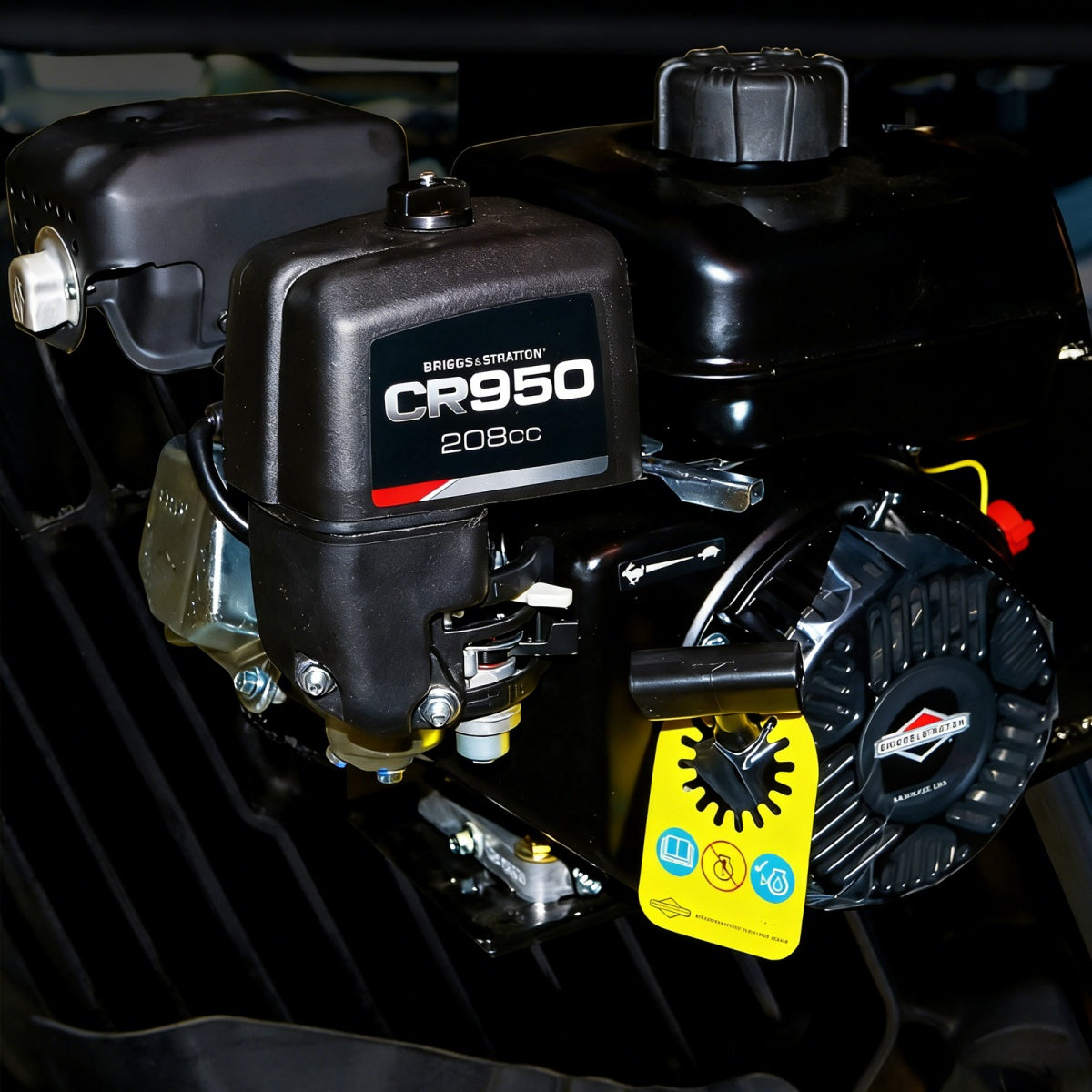

6.5 HP 208cc B&S CR950 Engine
Engine Type
Single Cylinder, 4-stroke, Air-Cooled, OHV
Power Type
Gasoline Powered
Start Type
Recoil Start
Gasoline
87+ Octane Required
Fuel Tank Capacity
2.64 Gallon
Max. Height
9.8 FT
Load Capacity
132 lbs
Height Adjusted Method
Manual winch
Winch Load Capacity
1500 lbs
Belt Speed
0.7 m/s
Belt Material
PVC
Belt Width
12 inch
Belt Thickness
0.20 inch
Tire
5.7-8 Tubeless Rubber Tire

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 89x29x24
• Weight (lb): 629
• A forklift or equivalent is required for unloading.
• Freight Liftgate delivery is available.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Usage Tips
Max total load:
19.7" belt conveyor: ≤ 132 lbs
12" belt conveyor: ≤ 110 lbs
Max single item weight: 66 lbs
Suitable materials: Solid, block-type items such as firewood, sandbags, and bricks; securely sealed bagged liquids

Not recommended: Loose grains, fine particles, unpackaged liquids, or small granular materials
These guidelines help ensure smooth conveying performance and safe operation.
