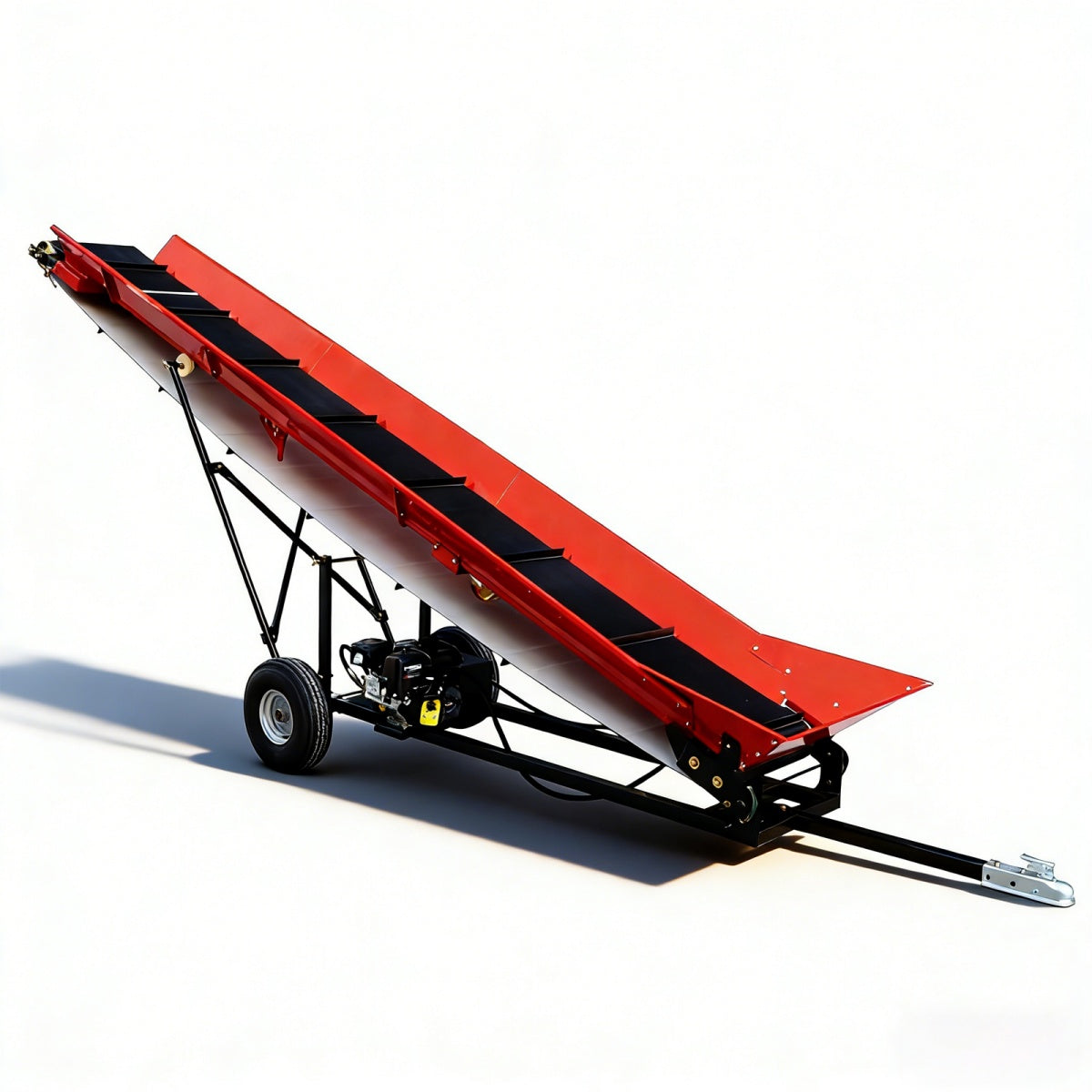

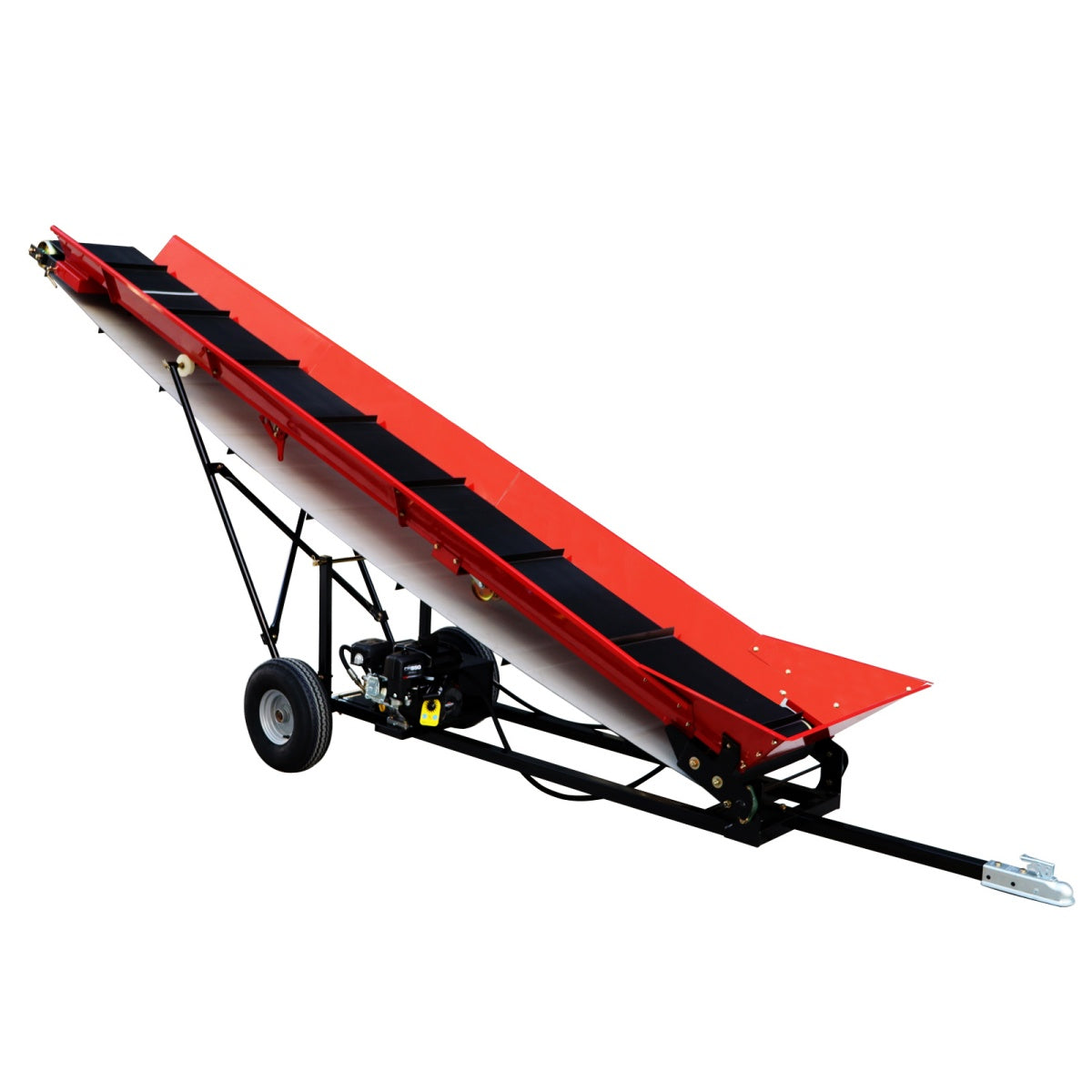

6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.5" PVC Belt

6.5HP Firewood Conveyor Max. 9.8ft Lift Height with B&S Engine and 19.5" PVC Belt

Chery Industrial SKU: N818P386645Z
Max. Height
9.8ft
Engine
B&S
Belt Width
19.5"
$2,799.00
$2,799.00

Pre-Order Please wait 3-4 months

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

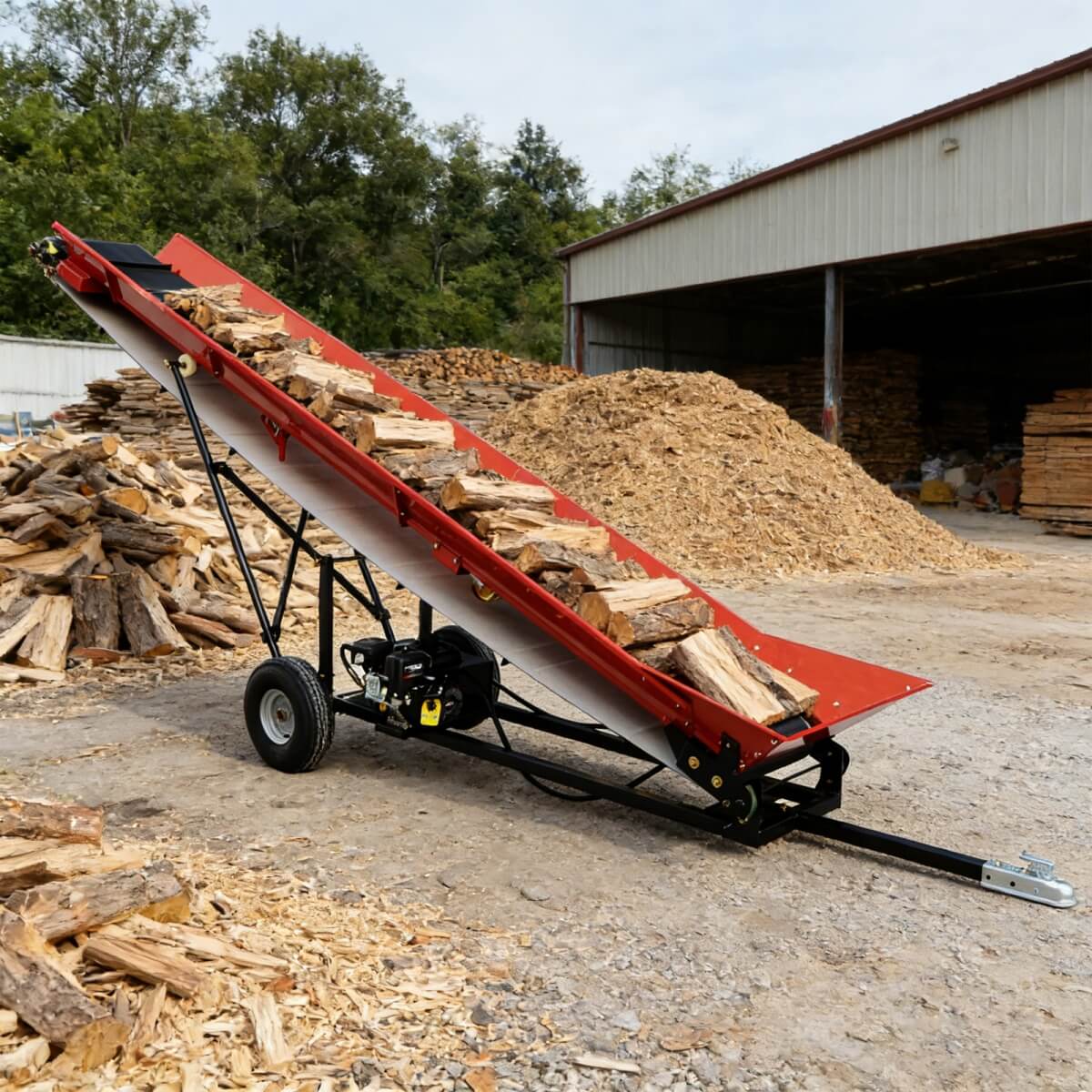

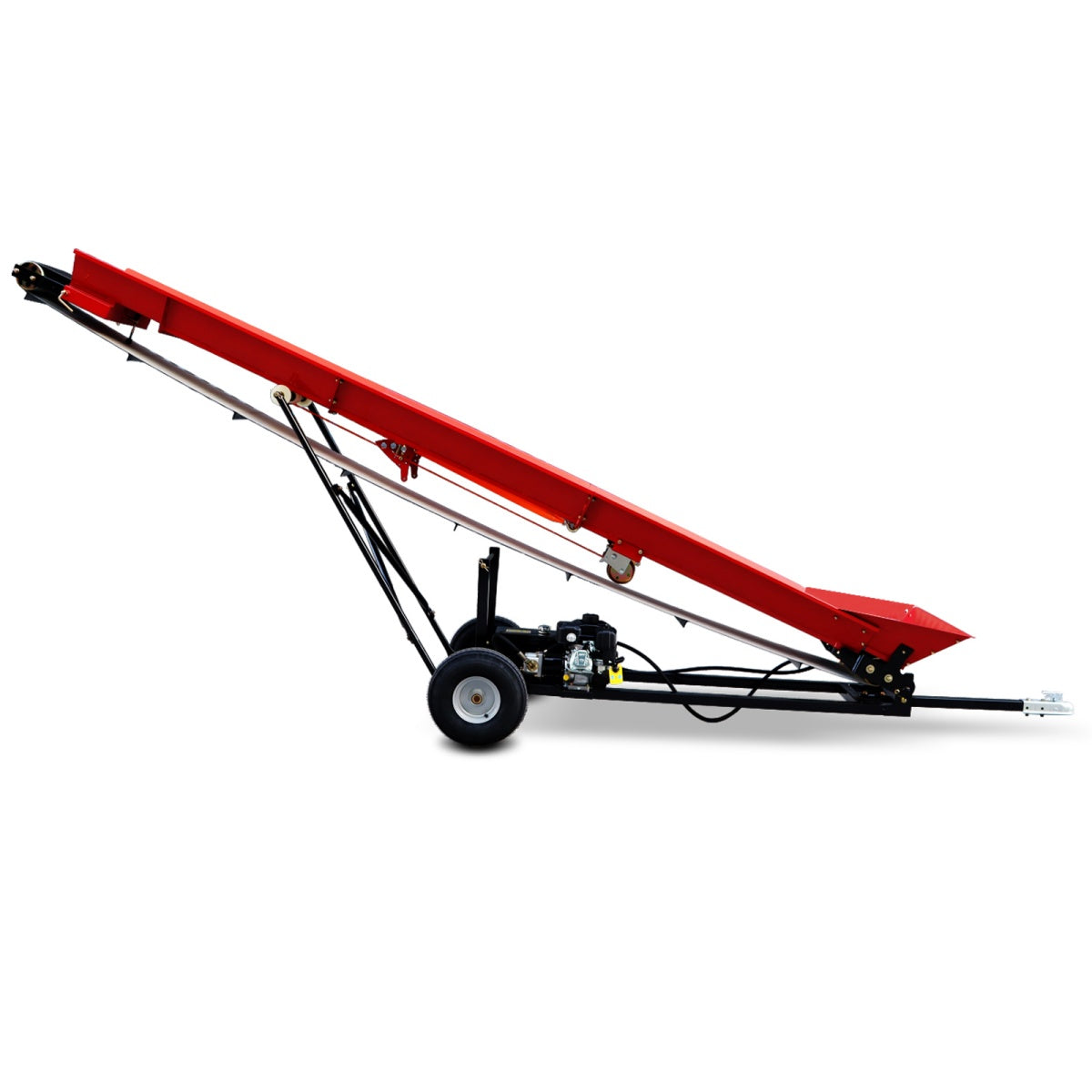

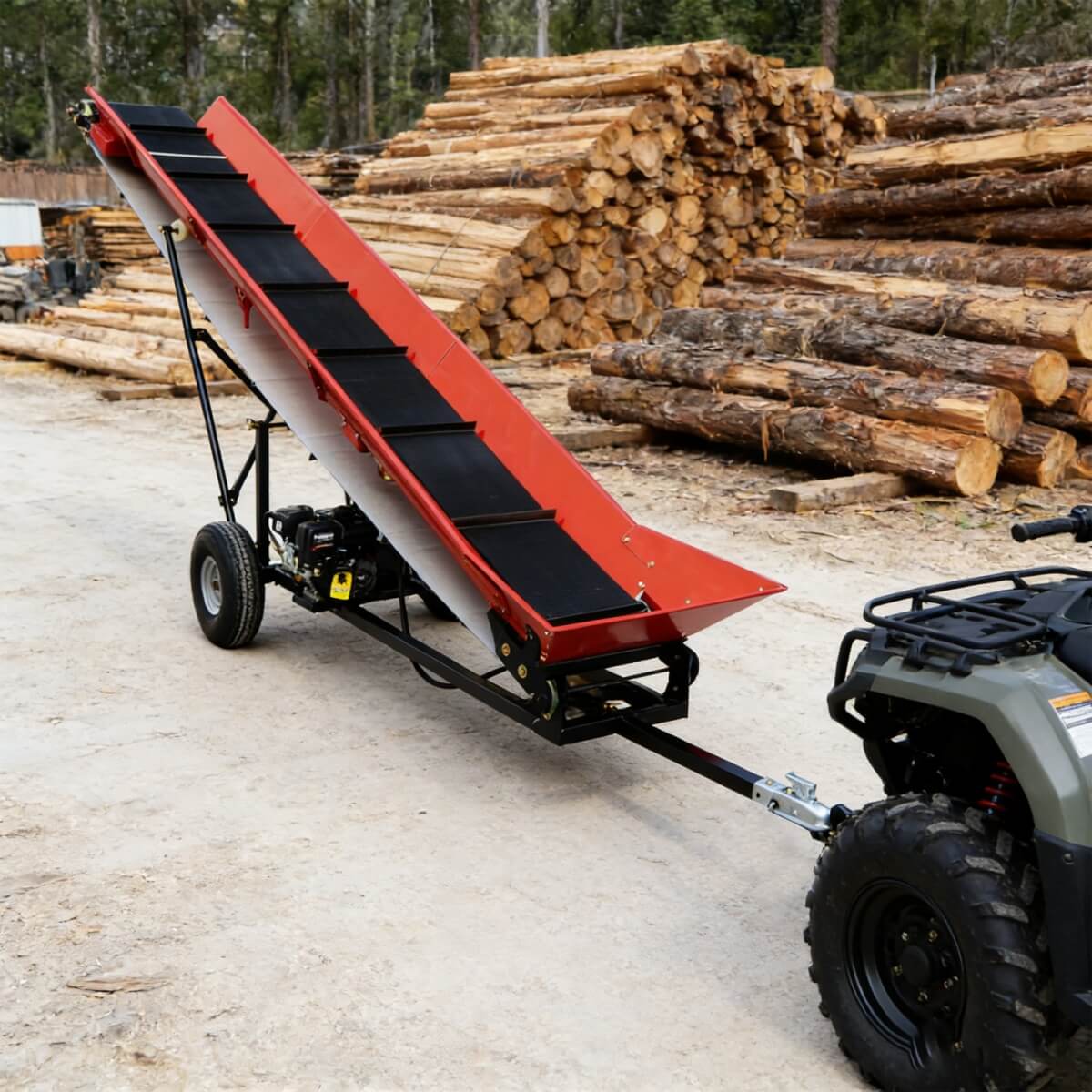

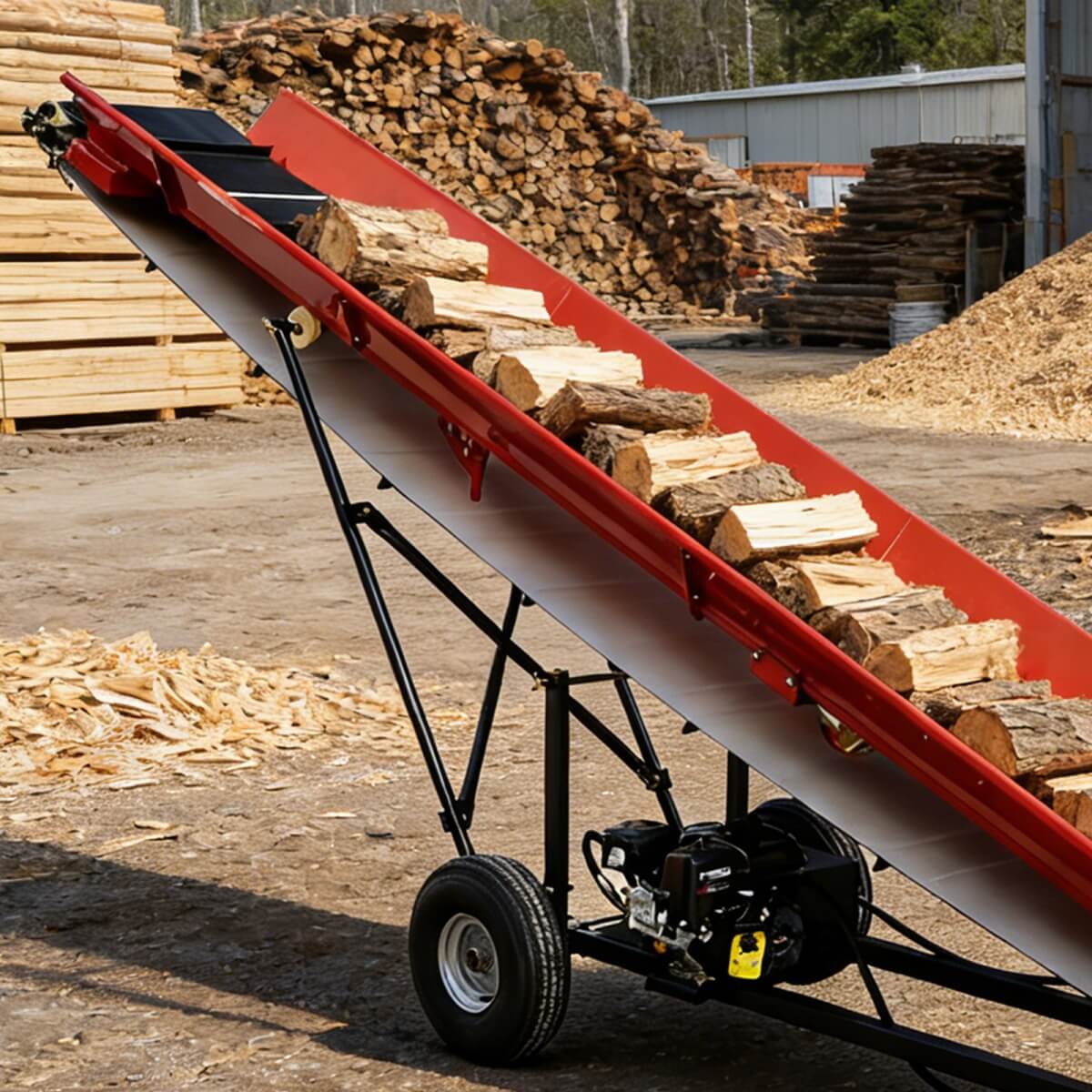

The 6.5HP Firewood Conveyor is designed for efficient, safe, and powerful firewood handling. Powered by an EPA-certified B&S gasoline engine with a hydraulic drive system, it delivers smooth, reliable performance with adjustable belt speeds up to 0.7 m/s. The heavy-duty steel frame ensures durability in demanding environments, while the wide PVC belt provides stable material flow. With a manually adjustable lift height up to 9.8 ft and a 132 lb load capacity, it easily adapts to various loading and stacking needs.

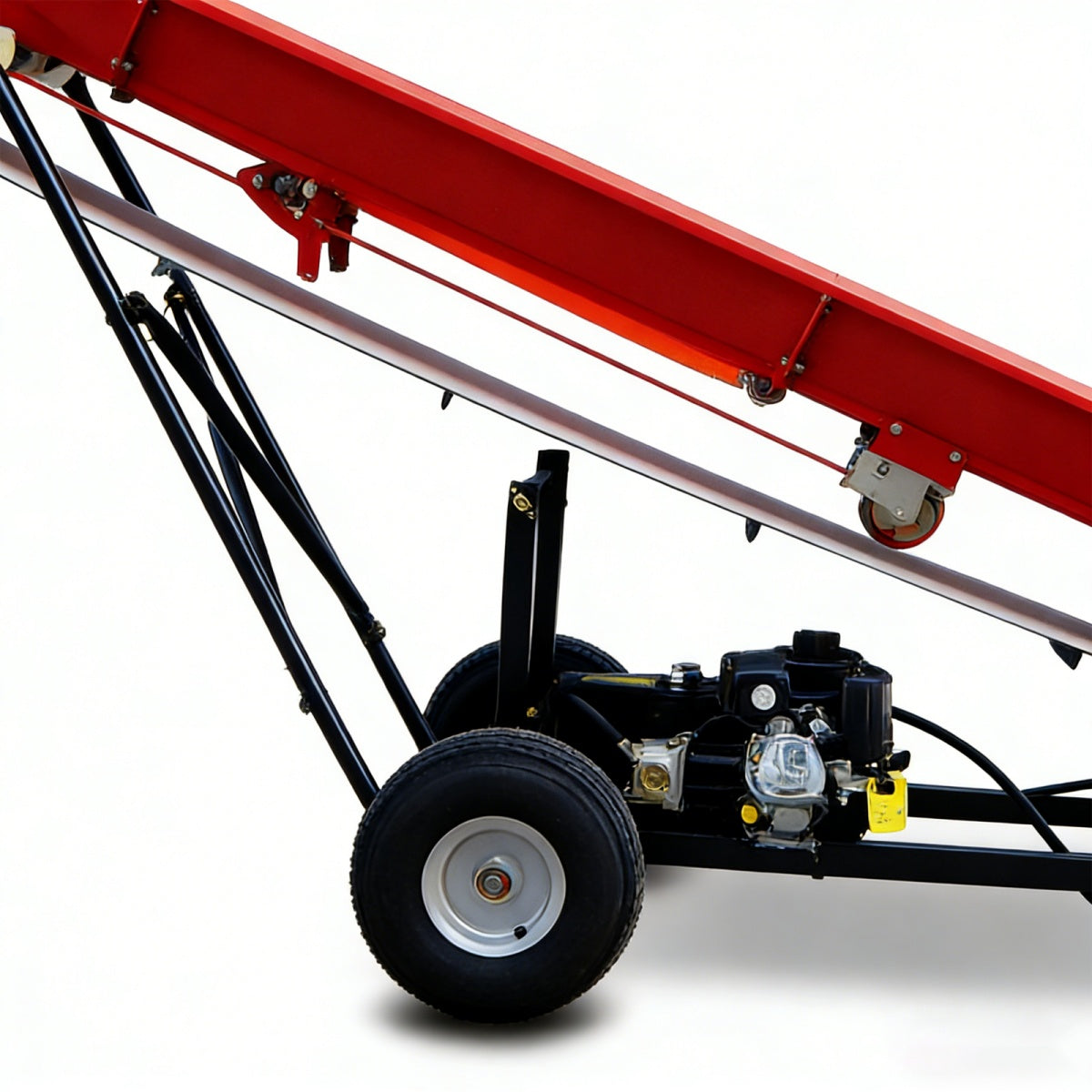

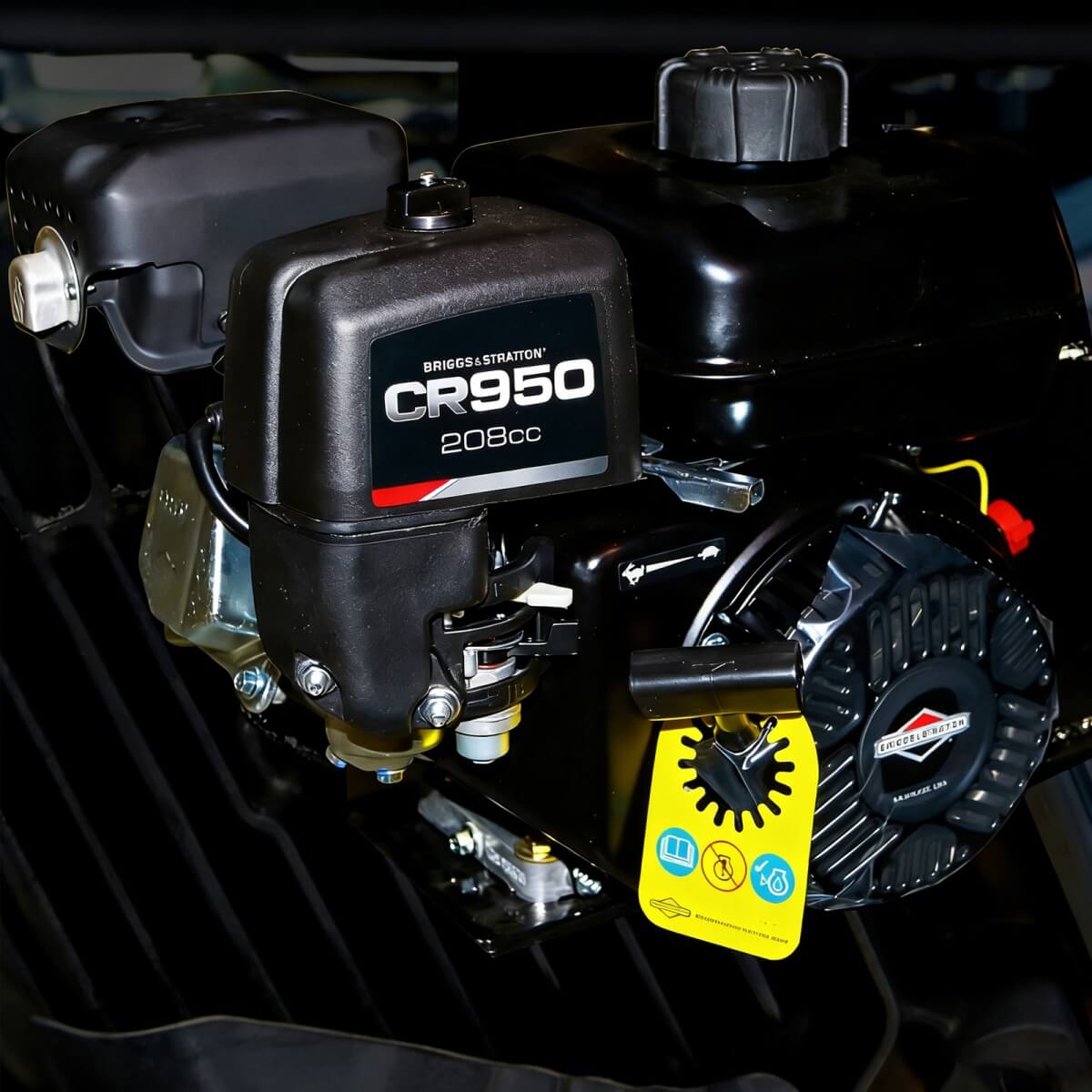

6.5HP B&S Gas Engine
EPA-certified, hydraulic drive for strong and efficient operation.

Adjustable Lift Height
Manual winch control, lockable up to 9.8 ft.

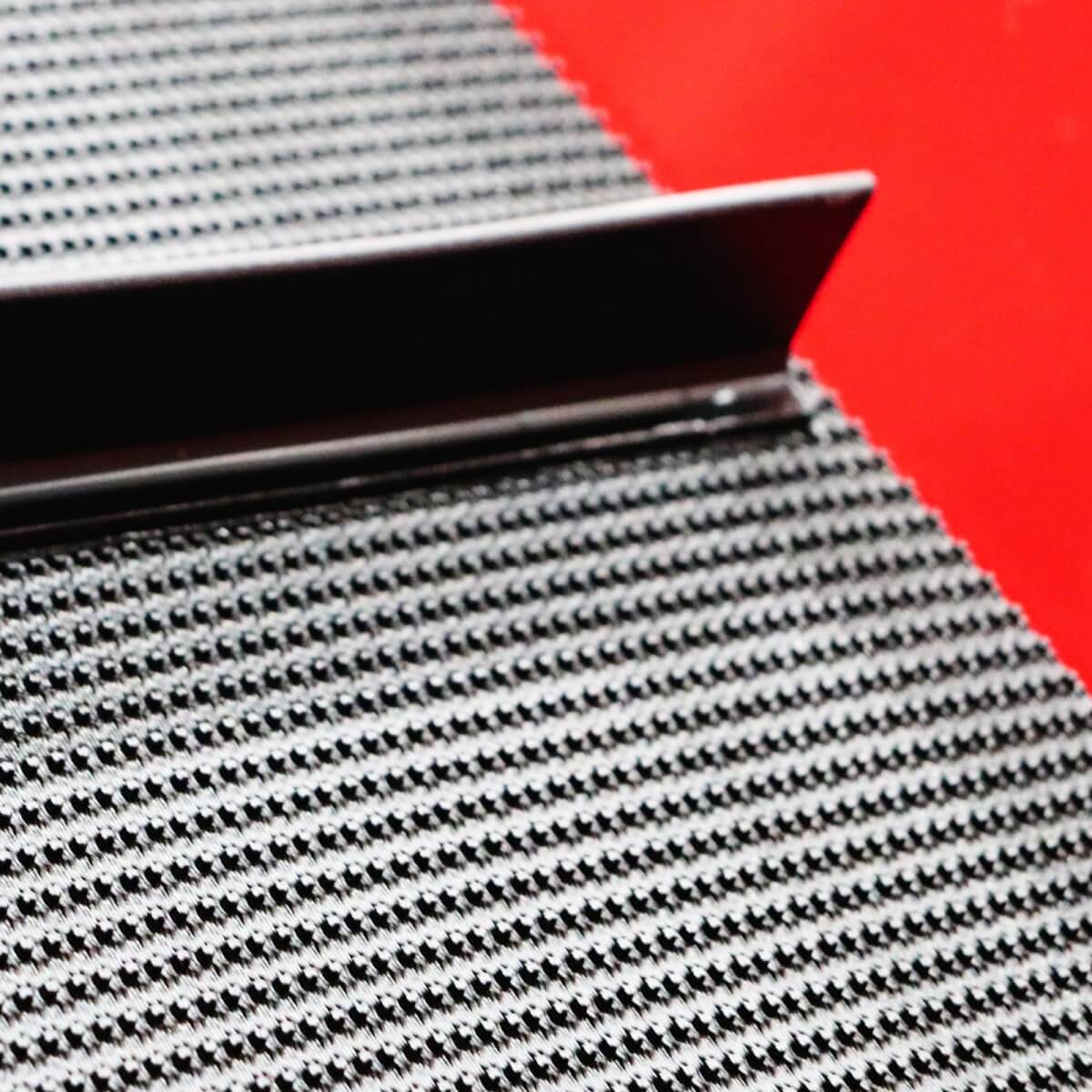

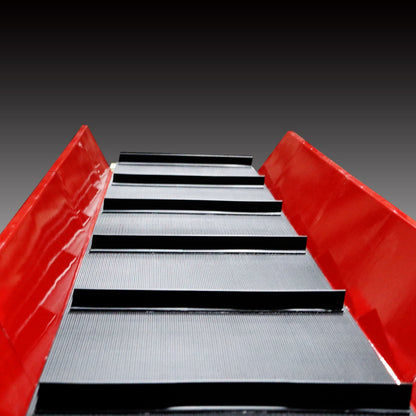

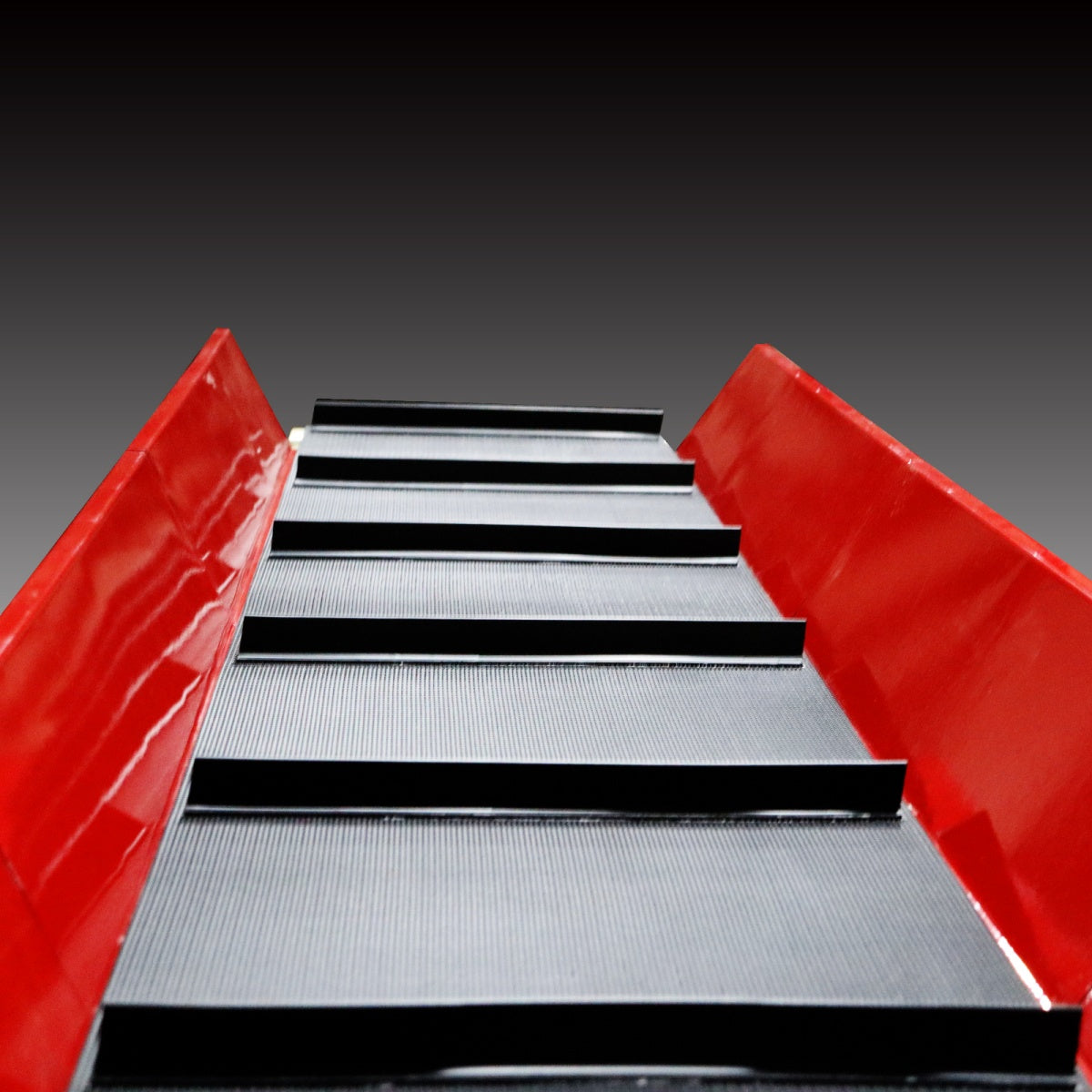

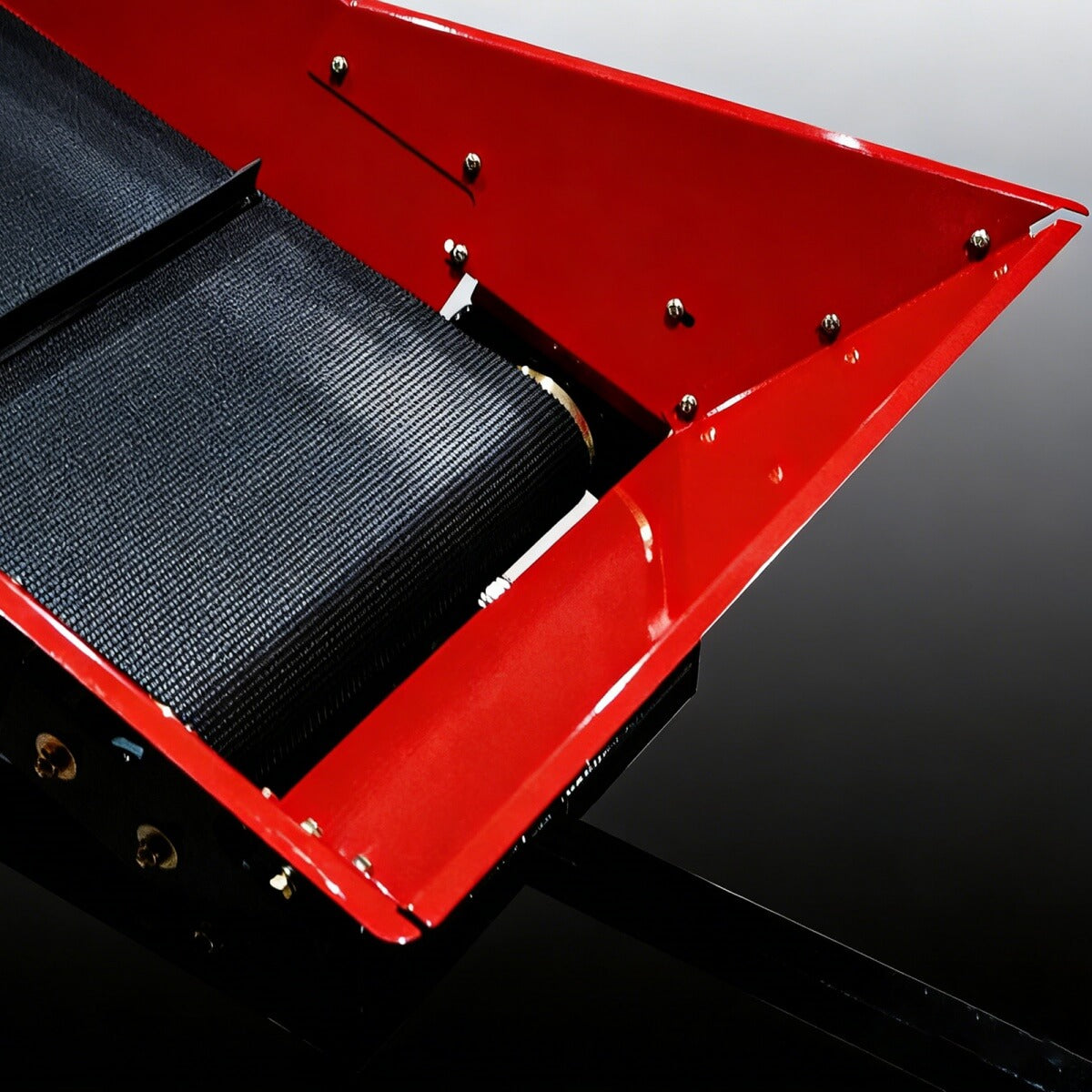

Wide PVC Belt
Approx. 19.5" width, 5 mm thick for smooth, stable conveying.

Heavy-Duty Steel Frame
Durable construction with up to 132 lb load capacity.

Video

Load video:
Firewood Conveyor Operating Instruction
Load video:
Firewood Conveyor Assembly Instruction

Specifications

Dimension(LxWxH)
216.54x42.83x76.77 inch
Main Material
Carbon Structural Steel
Certification(S)
EPA
Engine
6.5 HP 208cc B&S CR950 Engine
Engine Type
Single Cylinder, 4-stroke, Air-Cooled, OHV
Power Type
Gasoline Powered
Start Type
Recoil Start
Gasoline
87+ Octane Required
Fuel Tank Capacity
2.64 Gallon
Max. Height
9.8 FT
Load Capacity
132 lbs
Height Adjusted Method
Manual winch
Winch Load Capacity
1500 lbs
Belt Speed
0.7 m/s
Belt Material
PVC
Belt Width
19.5 inch
Belt Thickness
0.20 inch
Tire
5.7-8 Tubeless Rubber Tire

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 89x32x30
• Weight (lb): 789
• A forklift or equivalent is required for unloading.
• Freight Liftgate delivery is available.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Usage Tips
Max total load:
19.7" belt conveyor: ≤ 132 lbs
12" belt conveyor: ≤ 110 lbs
Max single item weight: 66 lbs
Suitable materials: Solid, block-type items such as firewood, sandbags, and bricks; securely sealed bagged liquids

Not recommended: Loose grains, fine particles, unpackaged liquids, or small granular materials
These guidelines help ensure smooth conveying performance and safe operation.
