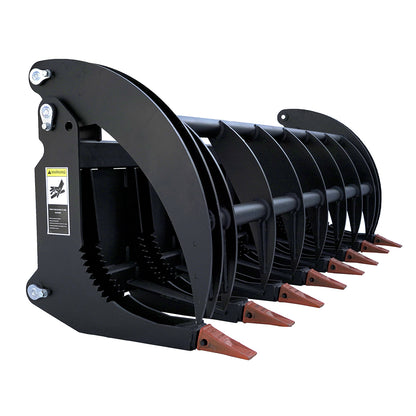

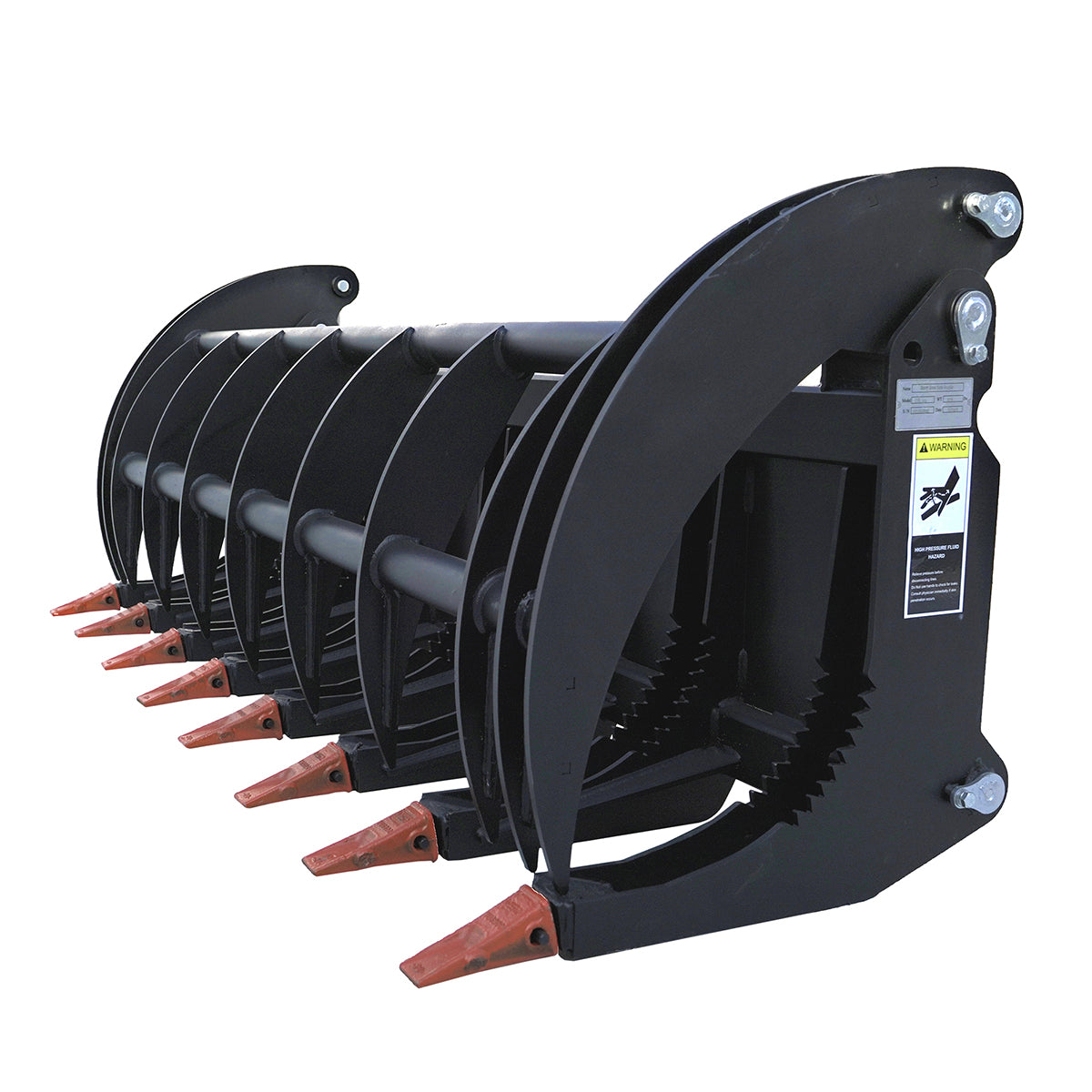

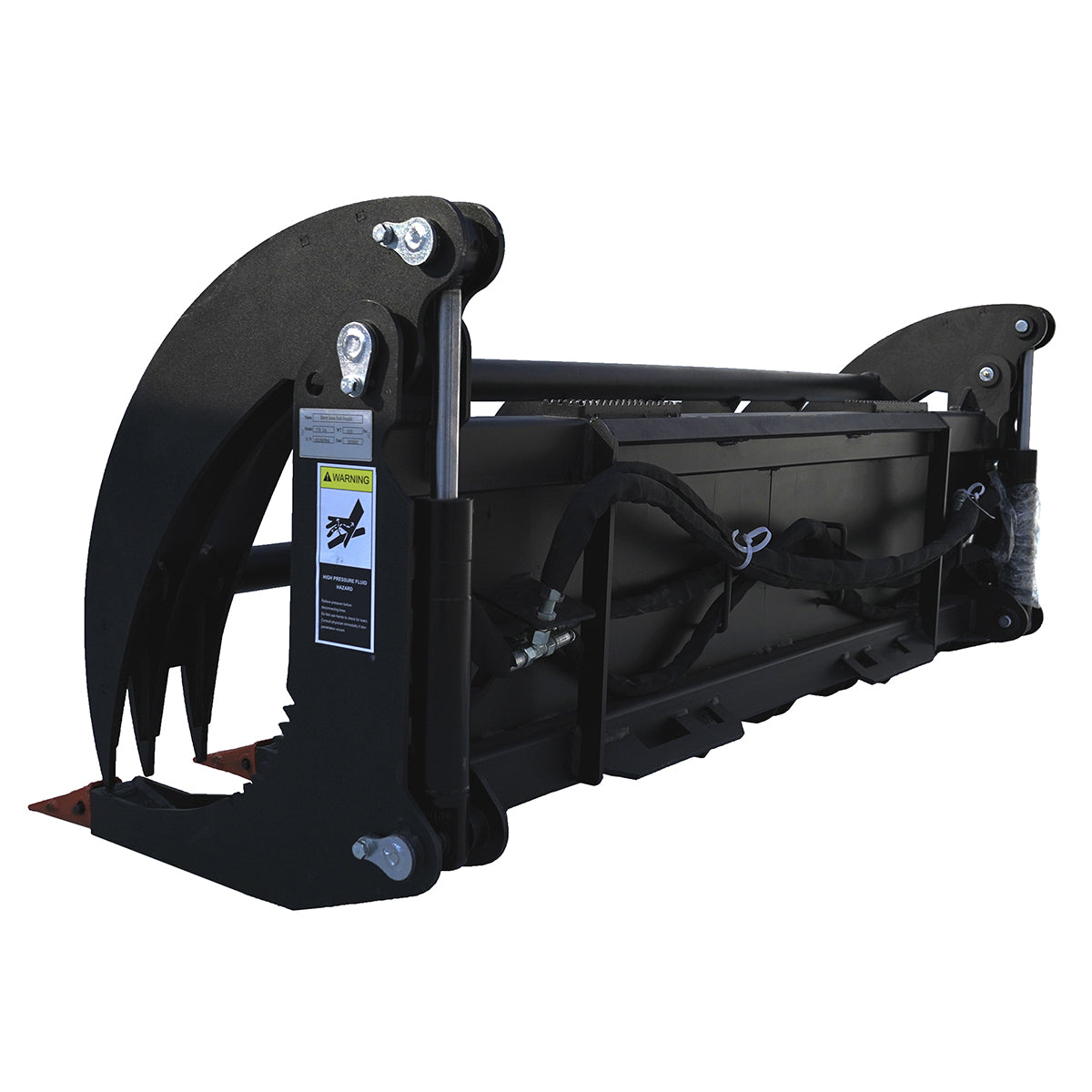

Greatbear 78" Heavy Root Grapple Rake

Greatbear 78" Heavy Root Grapple Rake

Greatbear SKU: AH000005

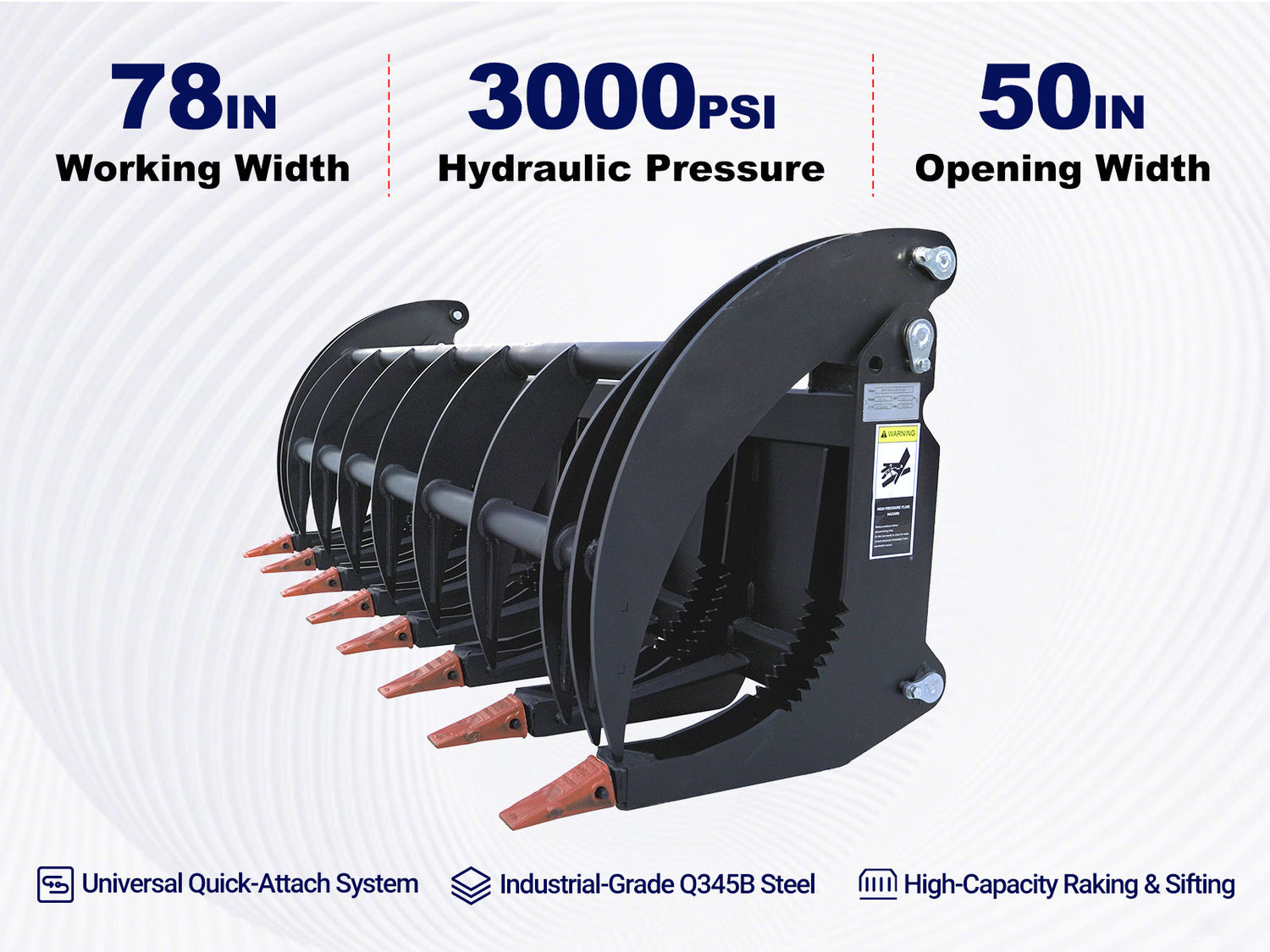

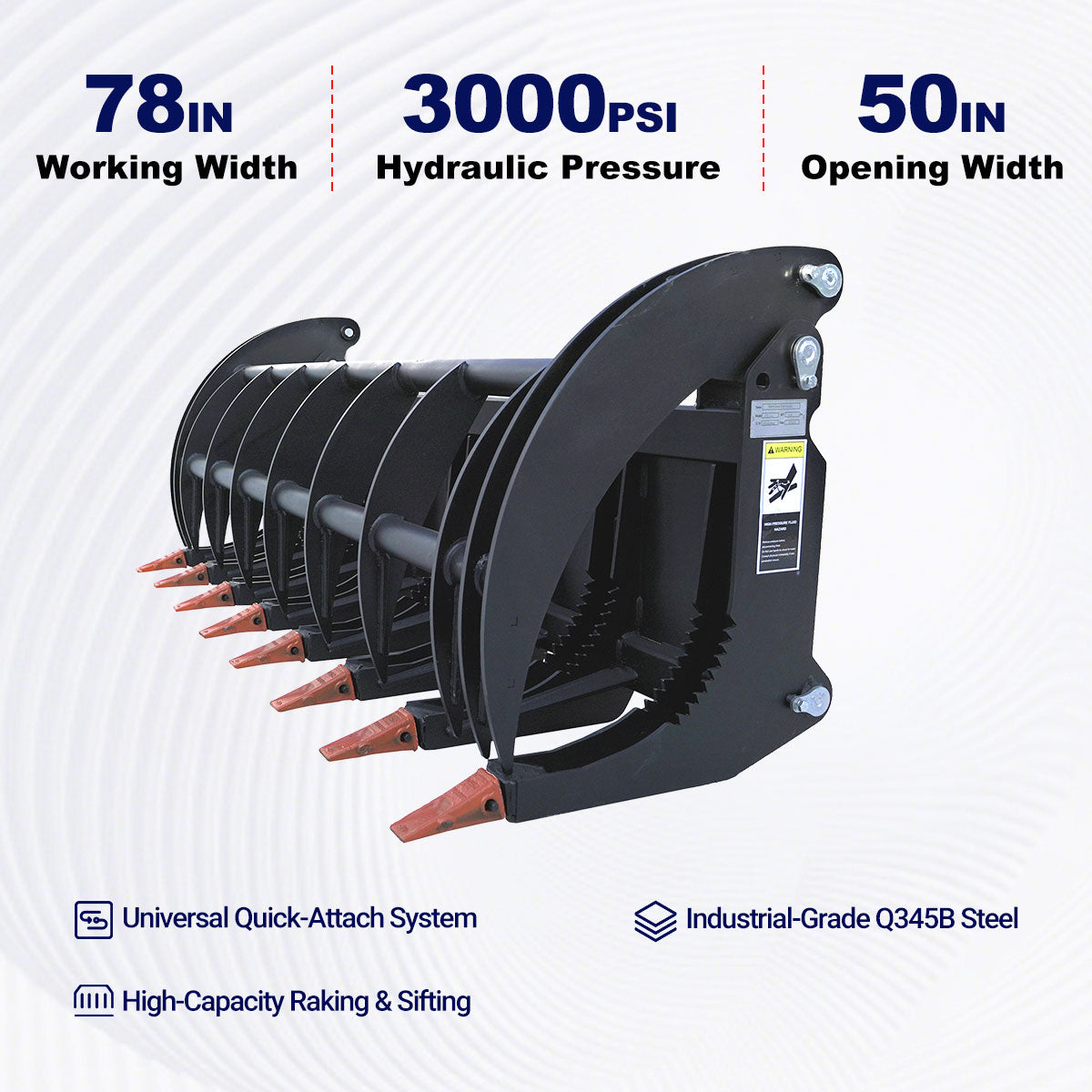

Working Width
78”
Hydraulic Pressure
3000 PSI
Opening width
50"
$2,790.00
$3,790.00 Save $1,000.00
$2,790.00

In Stock

Pickup available
MD, CA, NC

Greatbear 78" Heavy Root Grapple Rake

  • IA

    Pickup unavailable

    108 5th Street
    Adair IA 50002
    United States

  • TX

    Pickup unavailable

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

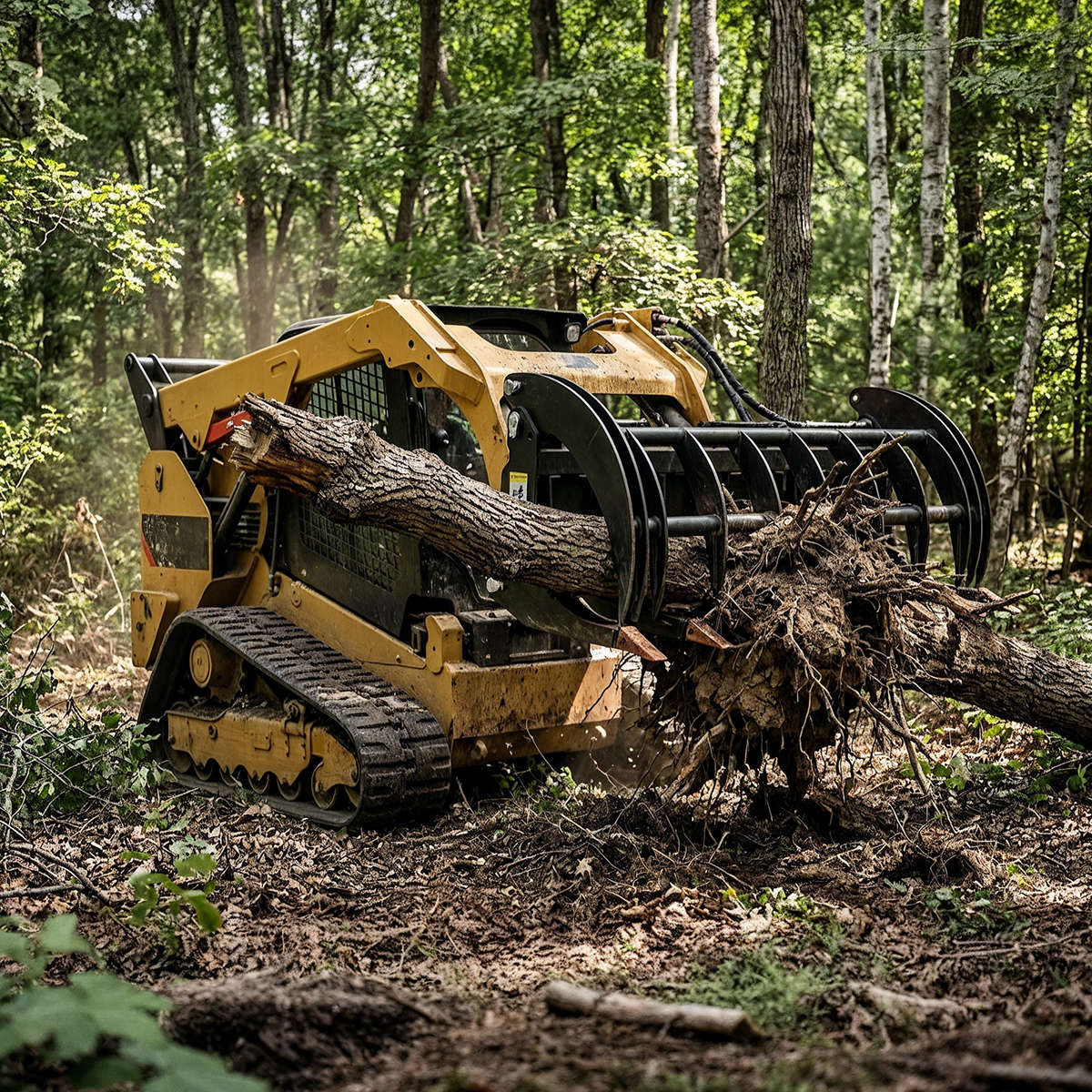

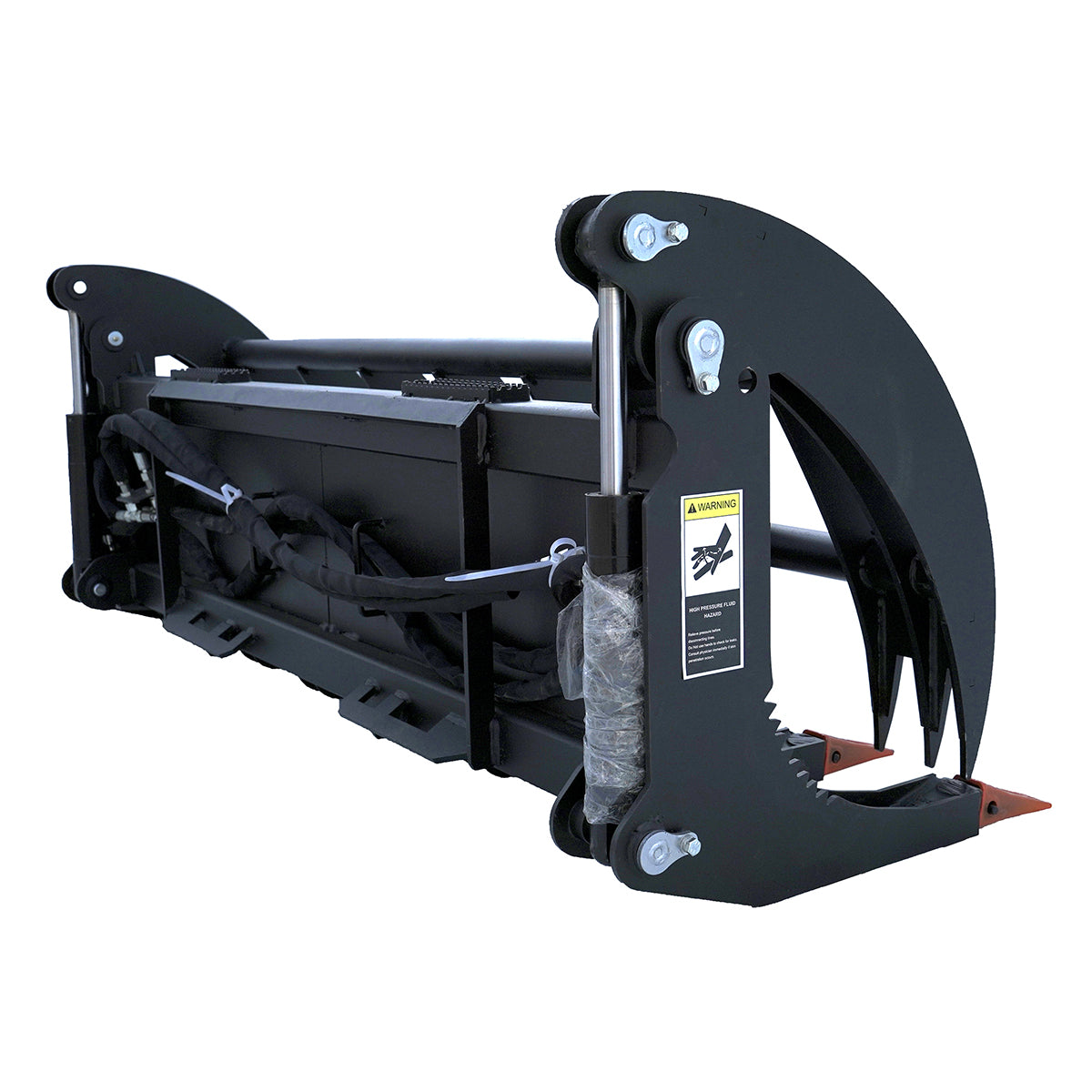

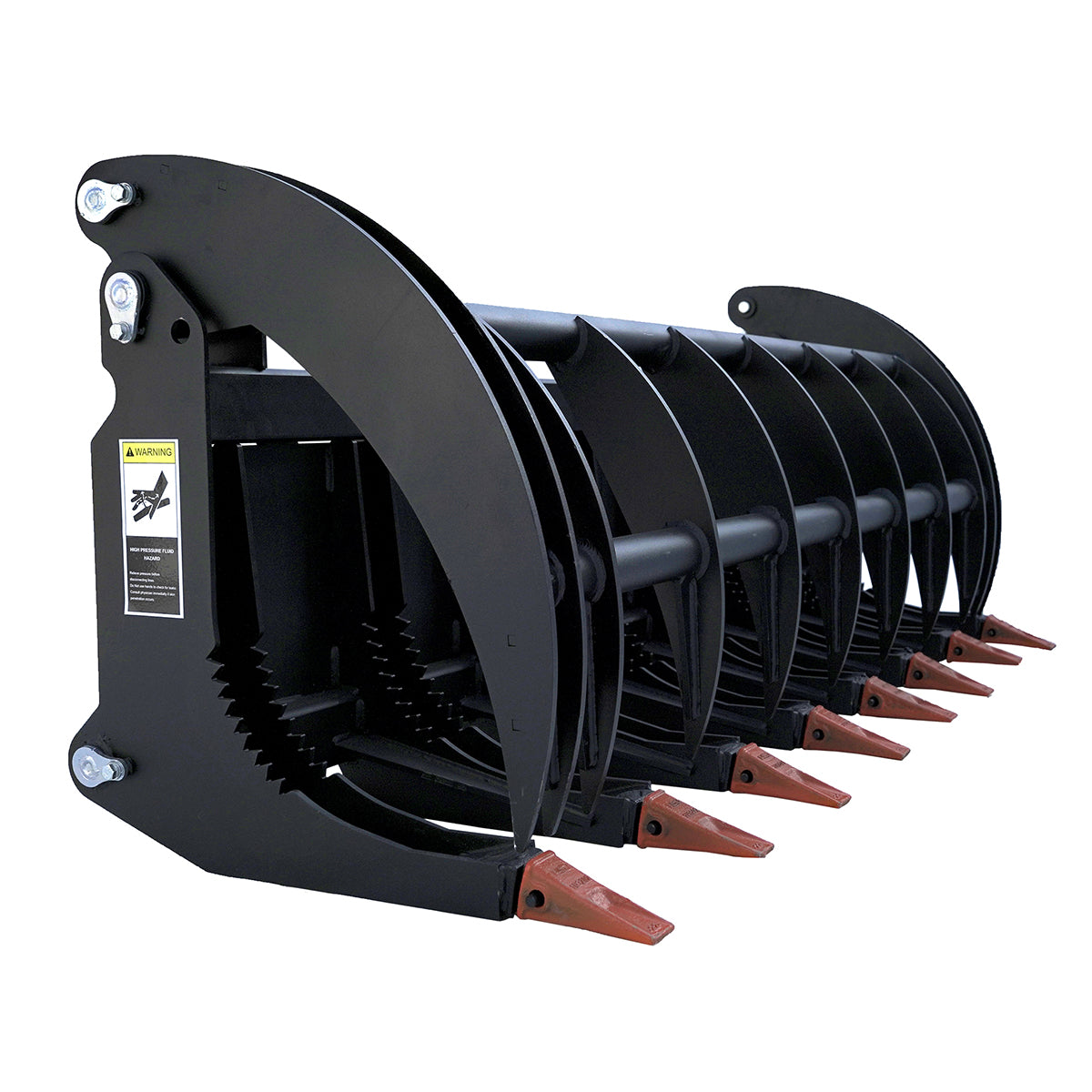

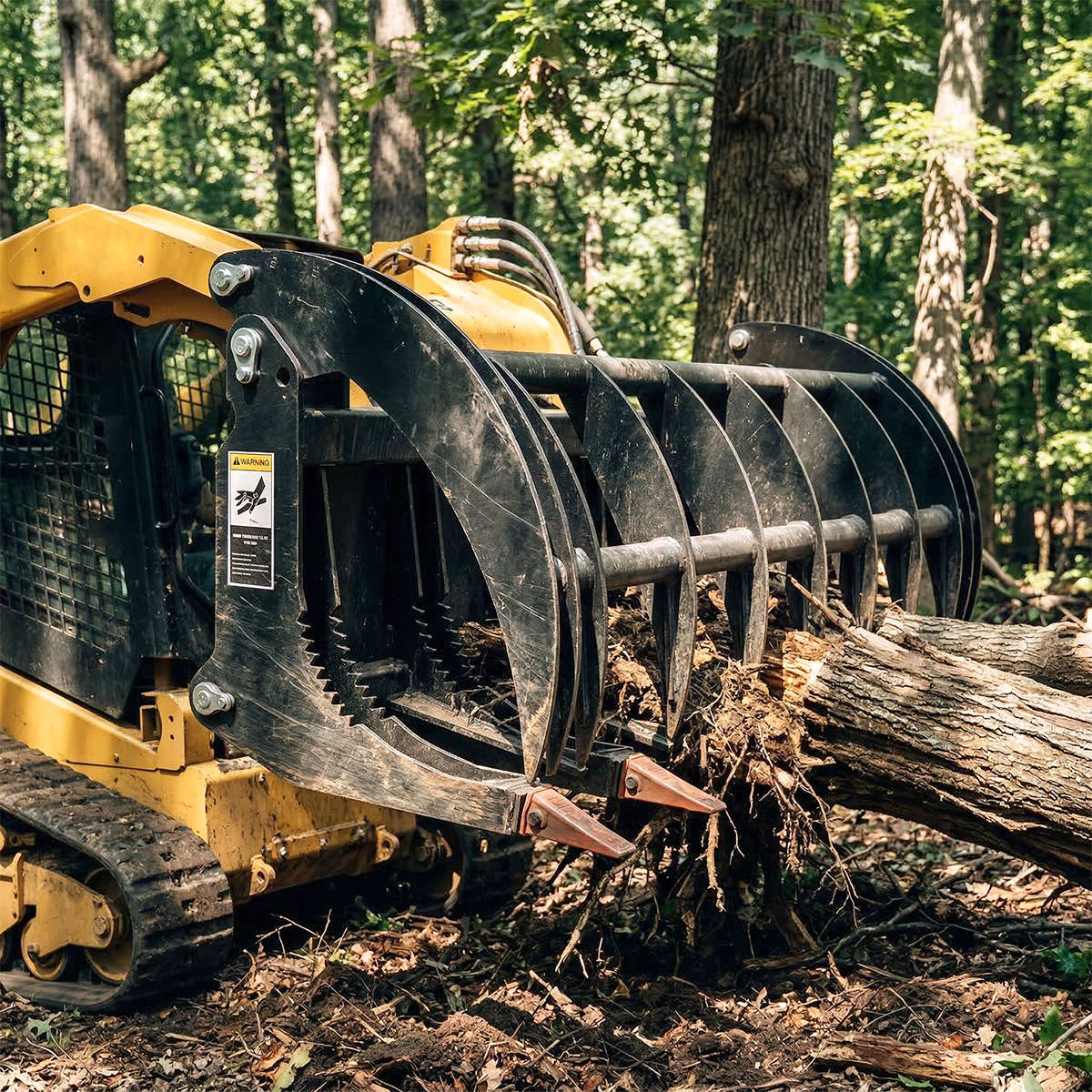

This Greatbear Heavy Root Grapple Rake is an attachment for skid steer for cleaning up brush, logs, and debris in your property and construction site. Engineered with heavy-duty Q345B steel and a universal skid steer hookup, this robust tool delivers superior clamping power and structural integrity, allowing you to handle heavy, irregularly shaped loads with ease and precision.

Universality

Universal skid steer hookup compatible with most skid steers.

Lasting Performance

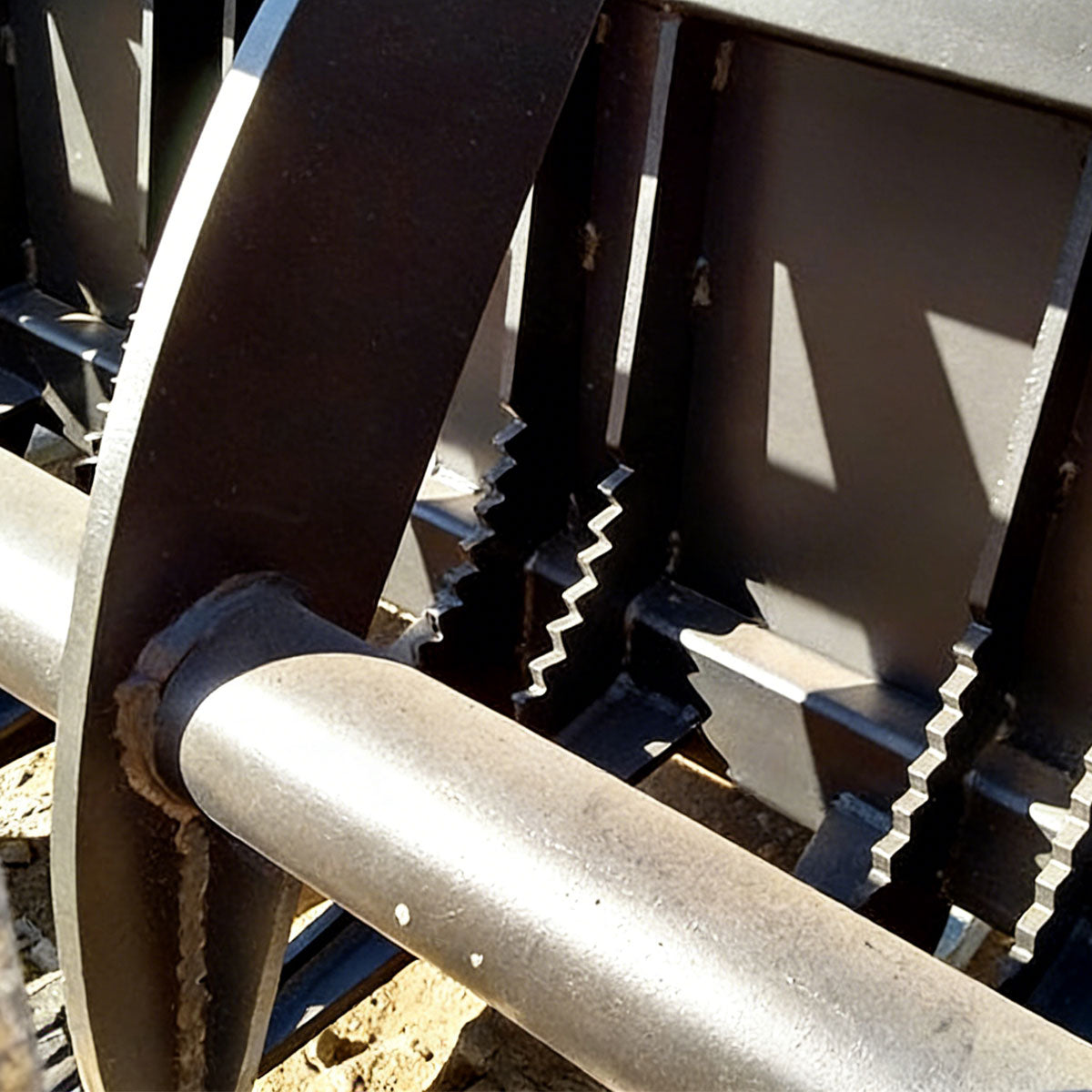

Heavy-duty Q345B steel construction for lasting performance.

Rake Grapple

A rake-style grapple ideal for picking up debris for industial use.

Easy Maintenance

Grease nippples at all pivot points for smooth operation and durability.

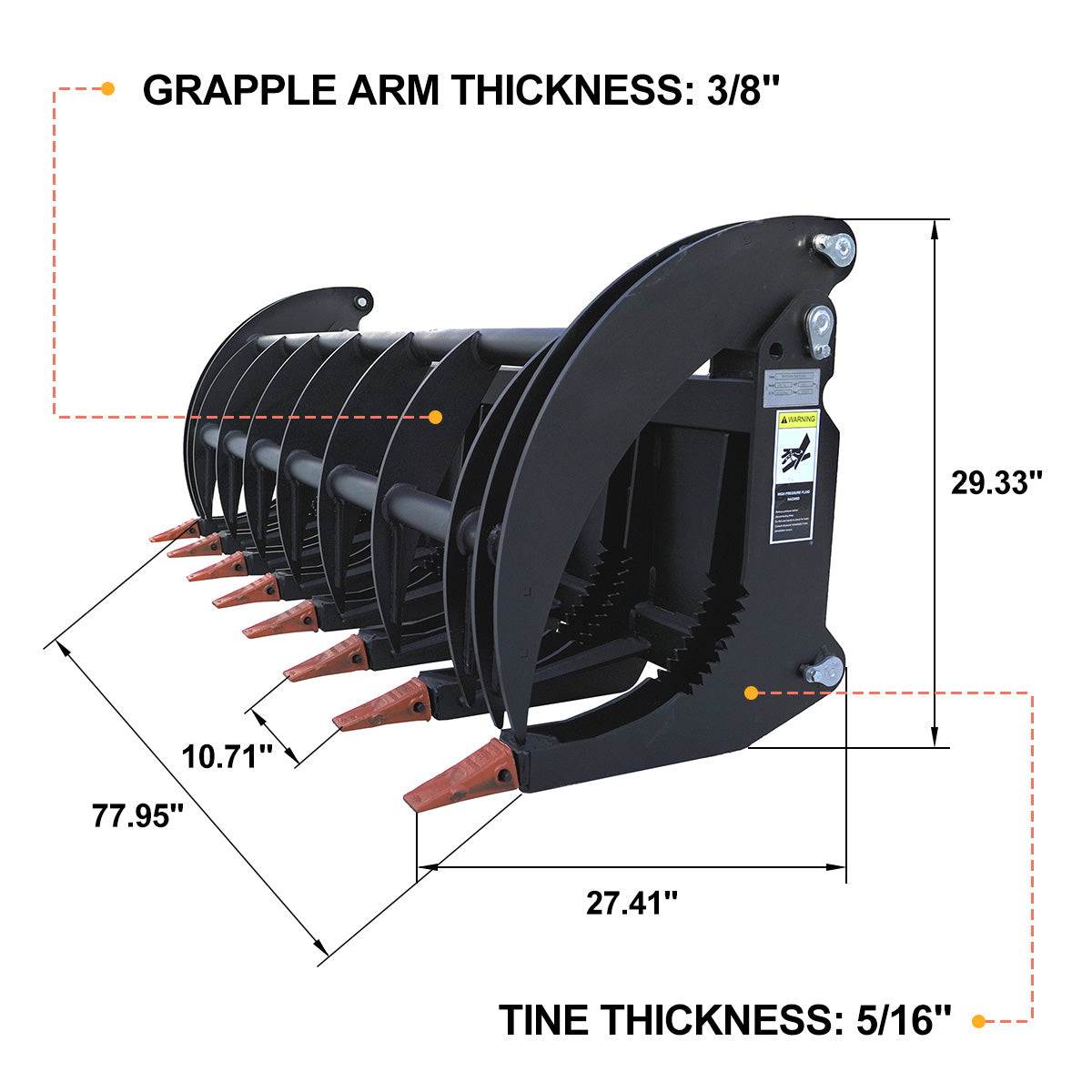

Specifications

Overall dimension
77.95"(L)x27.41"(W)x29.33"(H)
Item Weight
721 lbs
Material
Q345B Steel
Tooth Count
8 × 1U3202 Replaceable Cast Teeth
Hydraulic Flow rate
16-20 GPM (60-80L/min)
Operating Pressure
2300 - 3000 PSI (16 - 21 MPa)
Opening Width
50"
Working Width
78"
Grapple Arm Thickness
3/8"
Tine Thickness
5/16"
Tine Spacing
10.71"
Hydraulic fitting size
1/2 inch

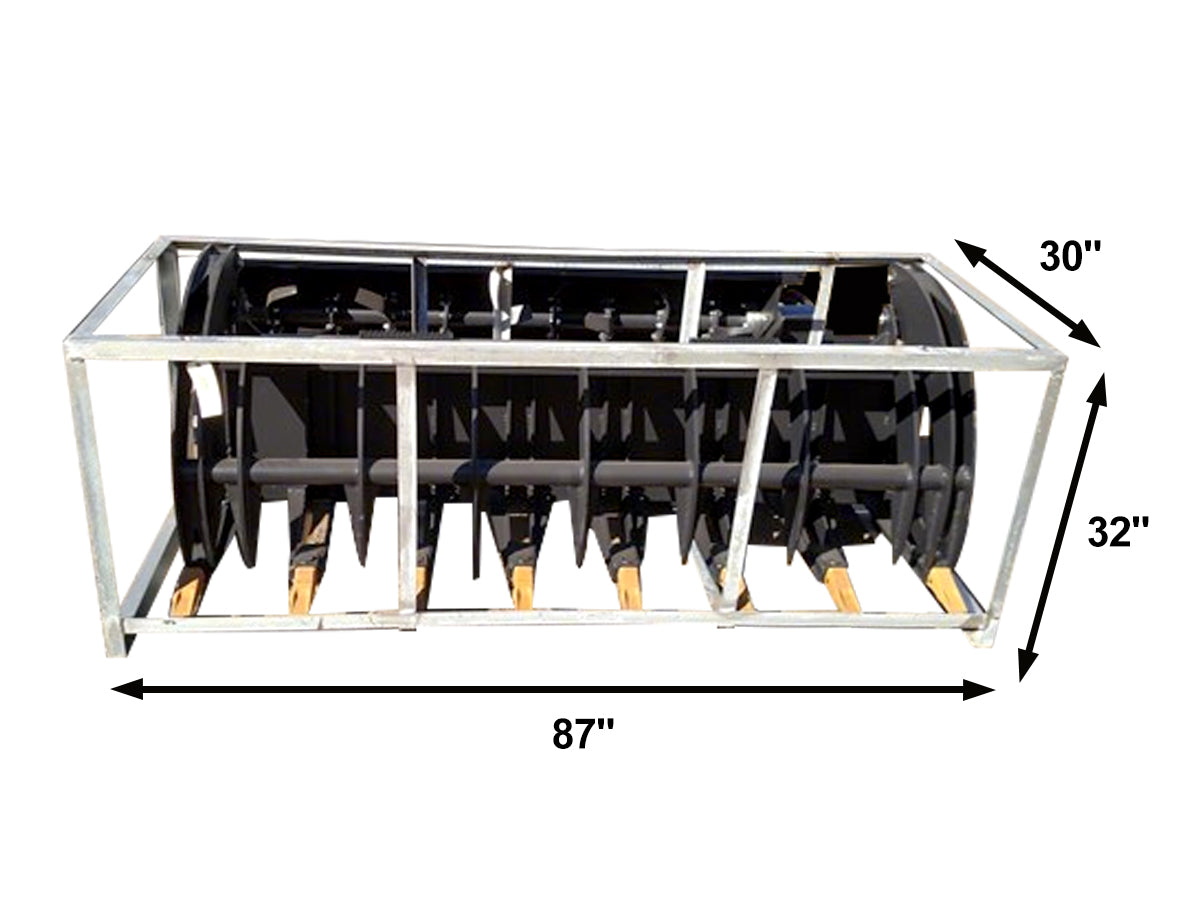

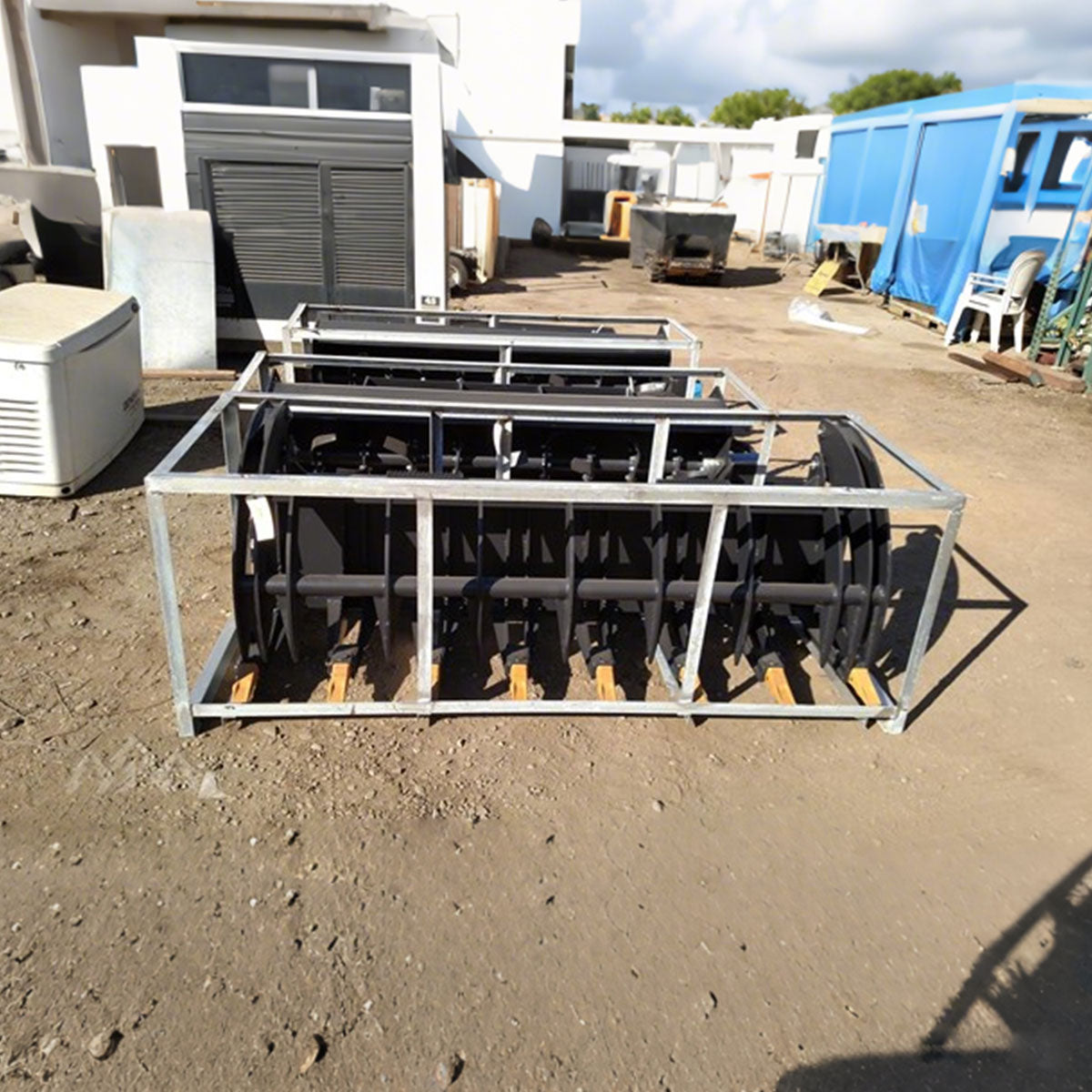

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 87x30x32
• Weight (lb): 721
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Quick Installation & Safety

Clean Connections: Wipe dirt from hydraulic couplers before connecting to prevent system contamination and avoid voiding the warranty.

Verify Locking: Visually check that coupler lock pins are fully engaged through the attachment plate slots before operation.

Purge Air: On first use, cycle the grapple open and closed 3 times at low RPM to bleed air from the hydraulic lines.

Regular Greasing: Periodically apply #2 lithium grease to all pivot joint nozzles to ensure smooth operation.

Center Your Load: Always center the load on the attachment; if it feels unbalanced, reposition and retry to prevent tip-overs.
