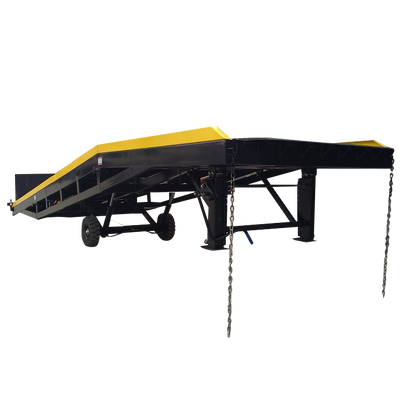

  • Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity-Feature

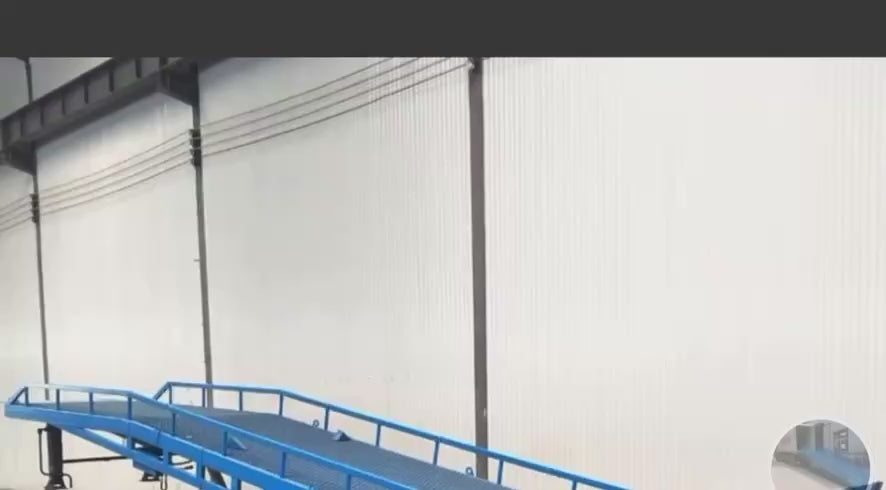

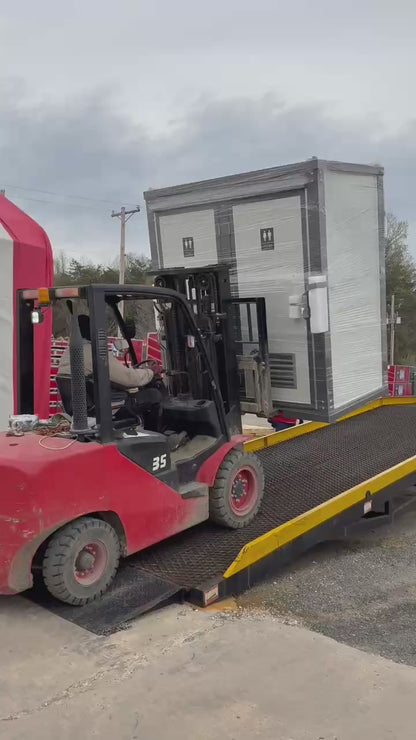

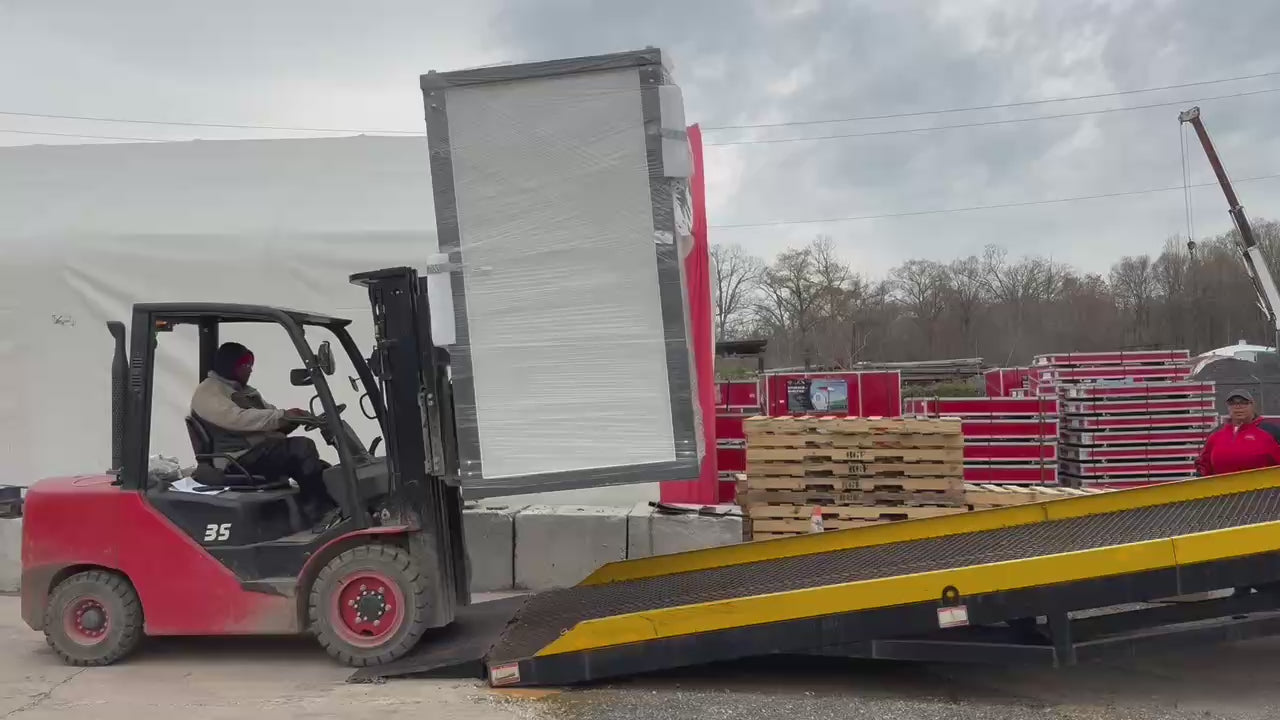

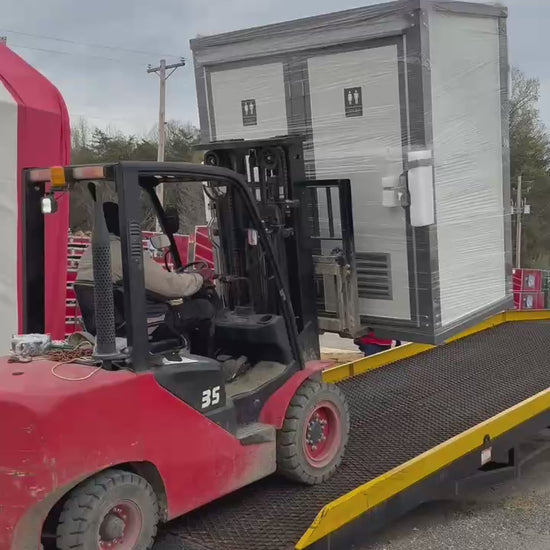

  • Portable Loading Dock Ramps Yard Ramp Forklift Display Video

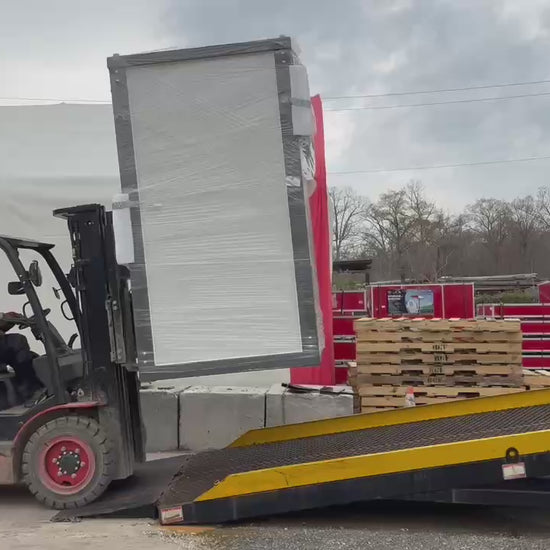

  • Portable Loading Dock Ramps Yard Ramp Forklift Display Video-Vertical screen

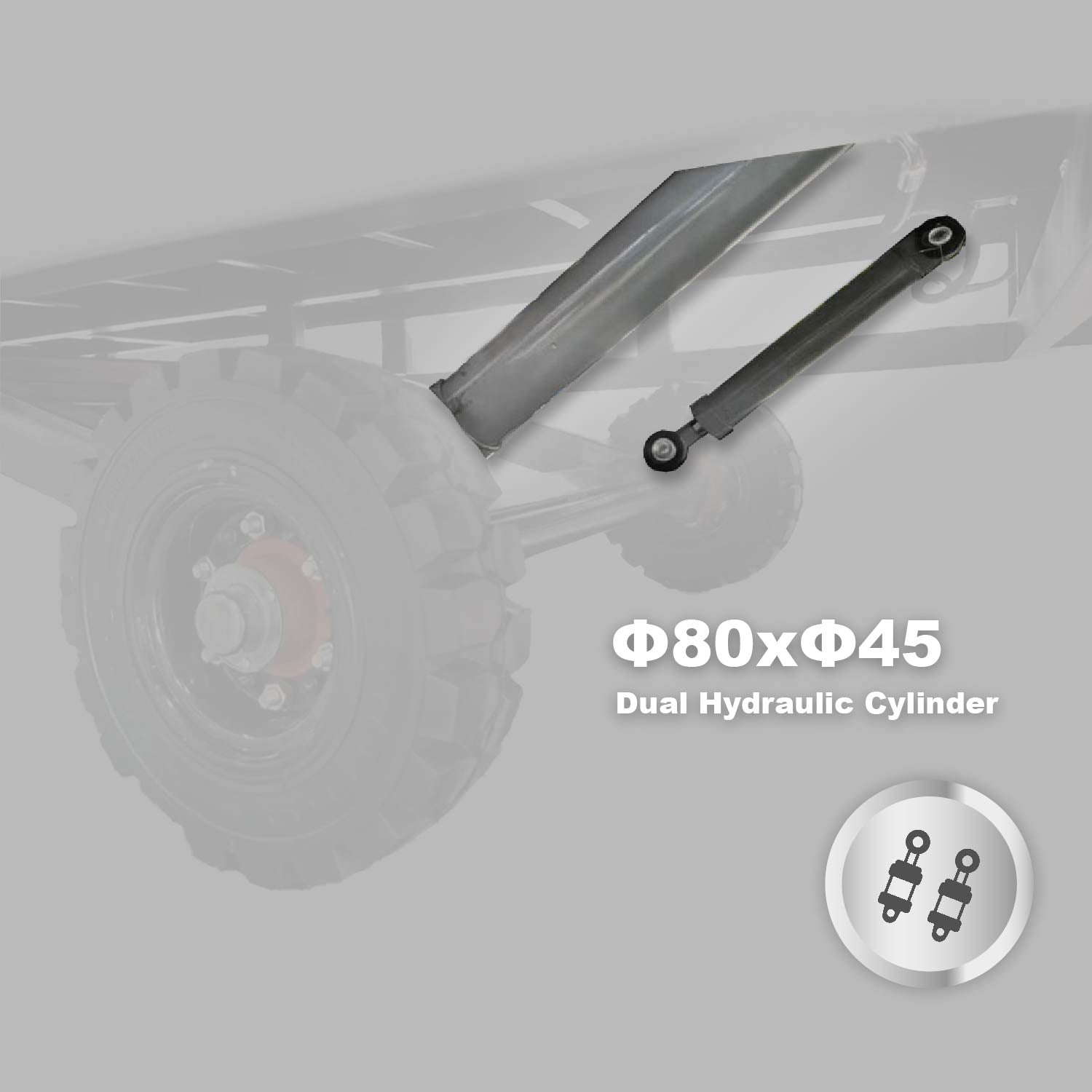

  • Portable Loading Dock Ramps Yard Ramp-Dual Cylinder Hydraulic: Φ80xΦ45

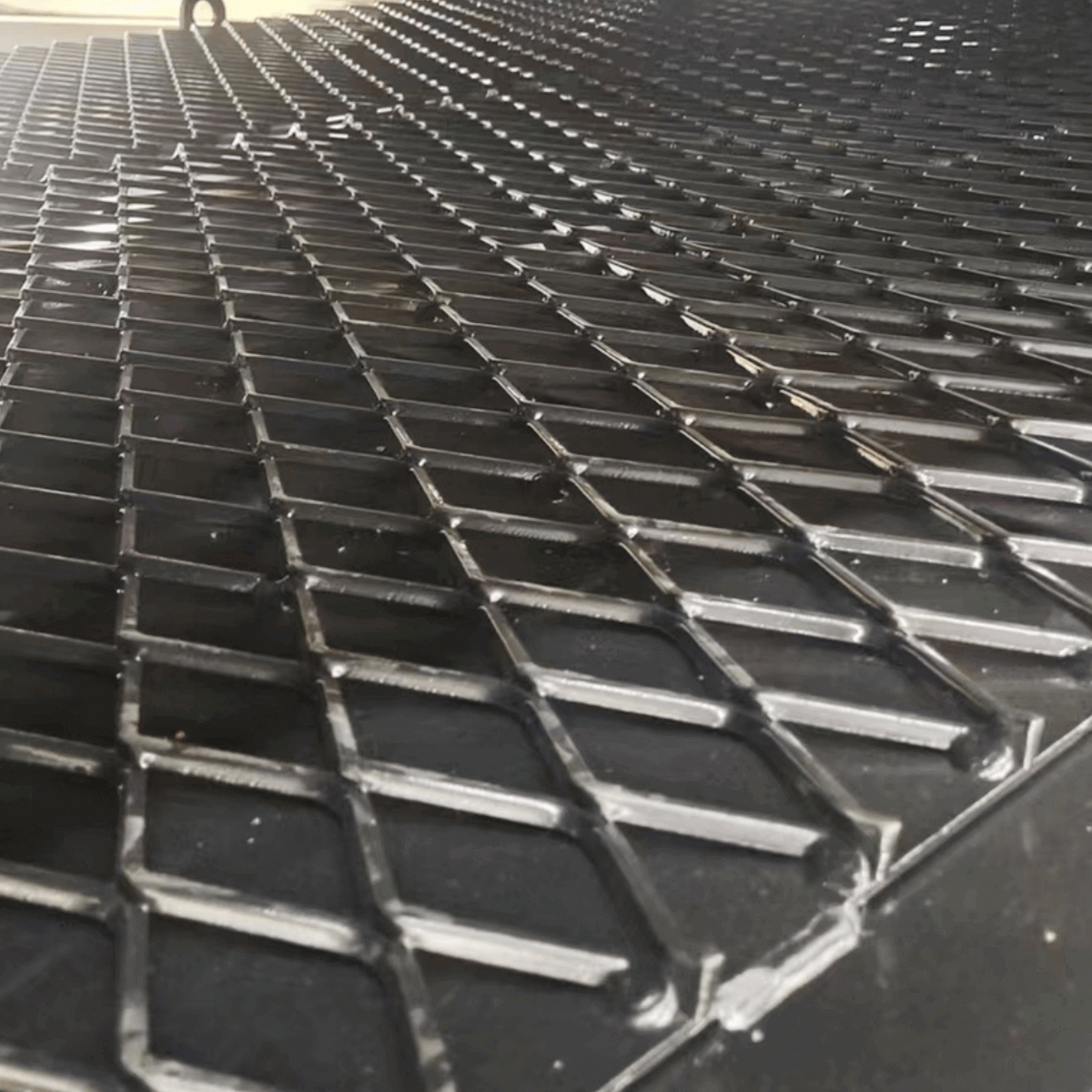

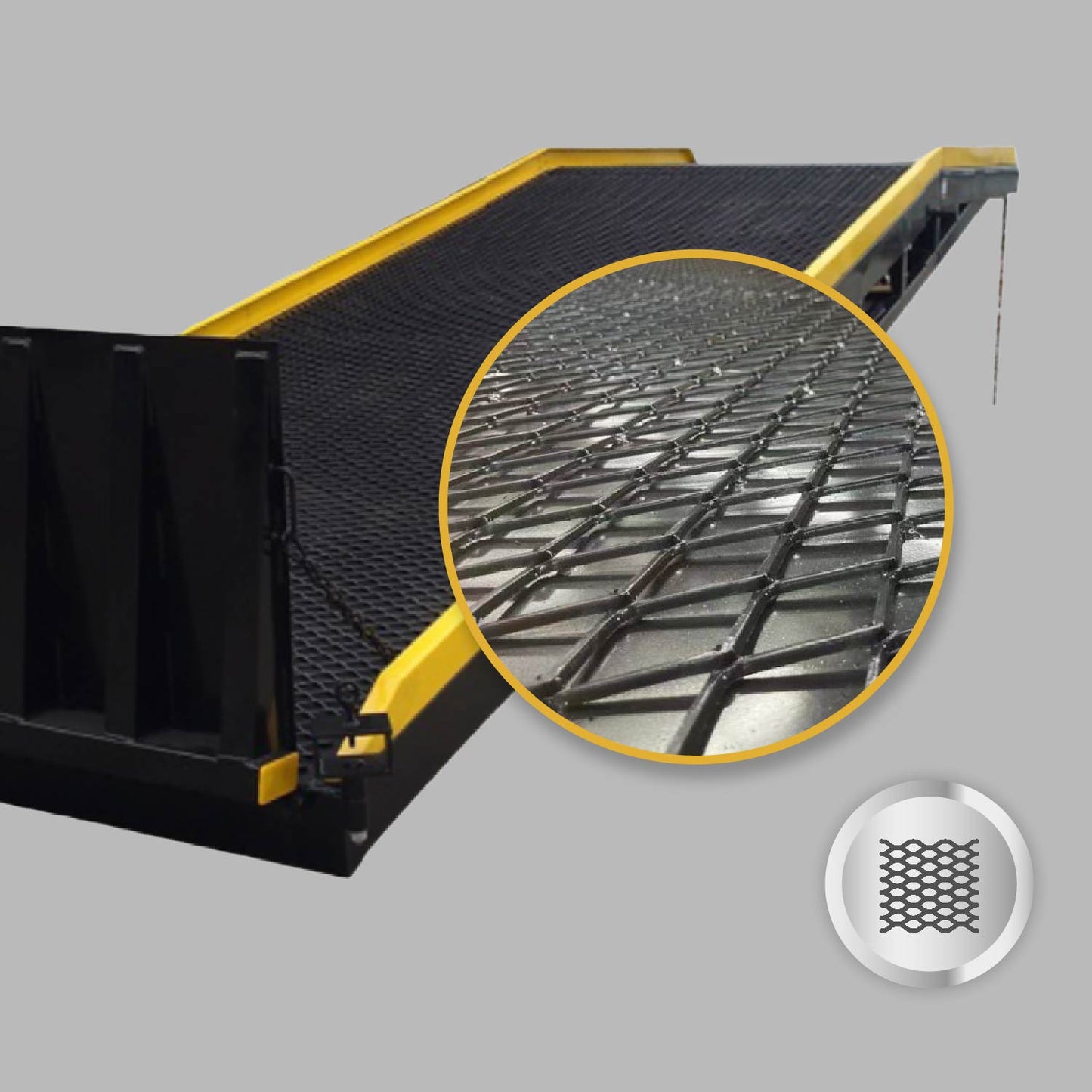

  • Portable Loading Dock Ramps Yard Ramp-Rhombus Anti-skid Mesh
  • Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity-Tire Size 600-9

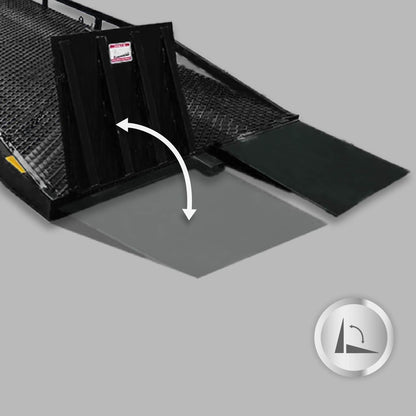

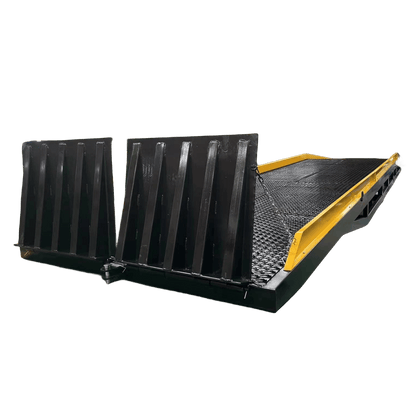

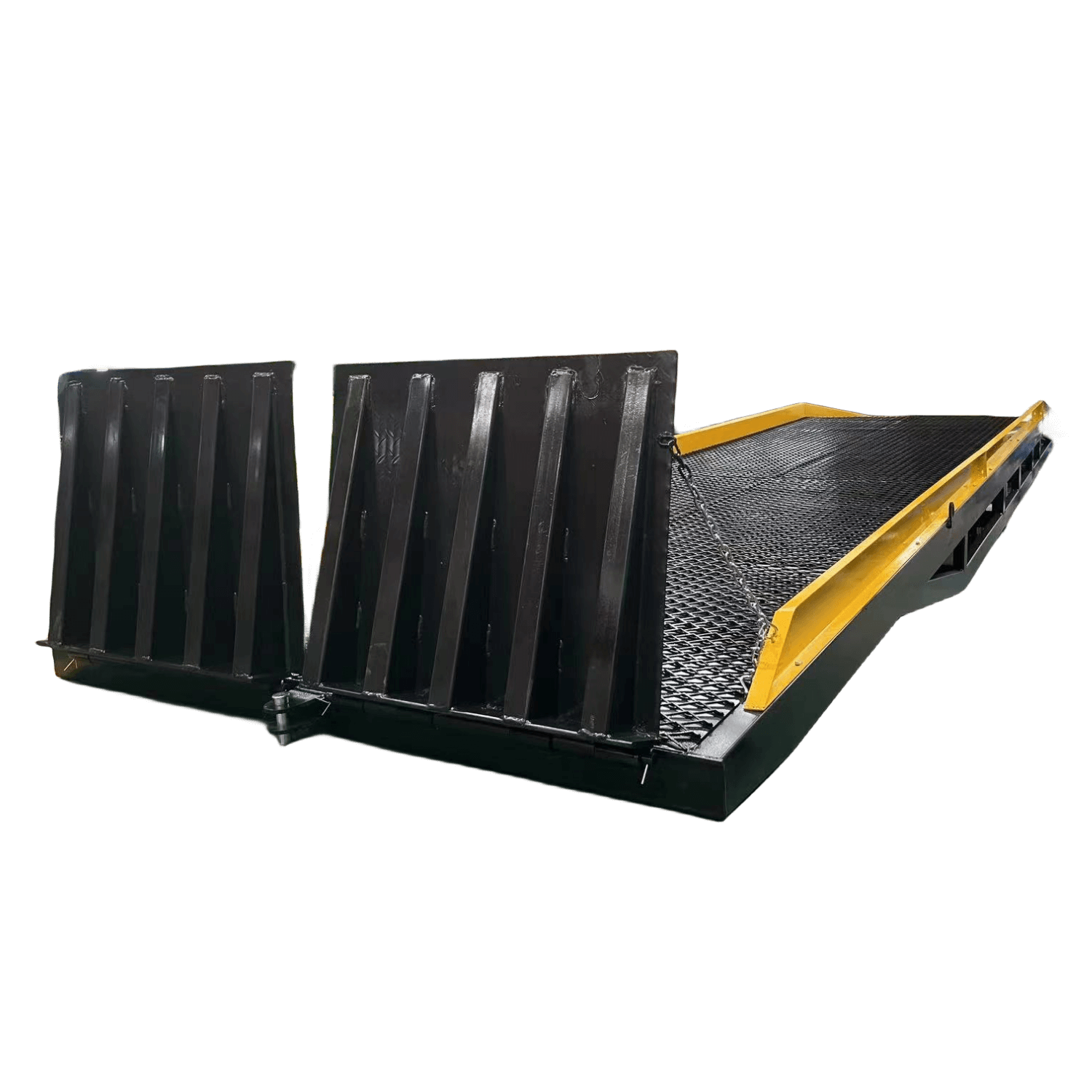

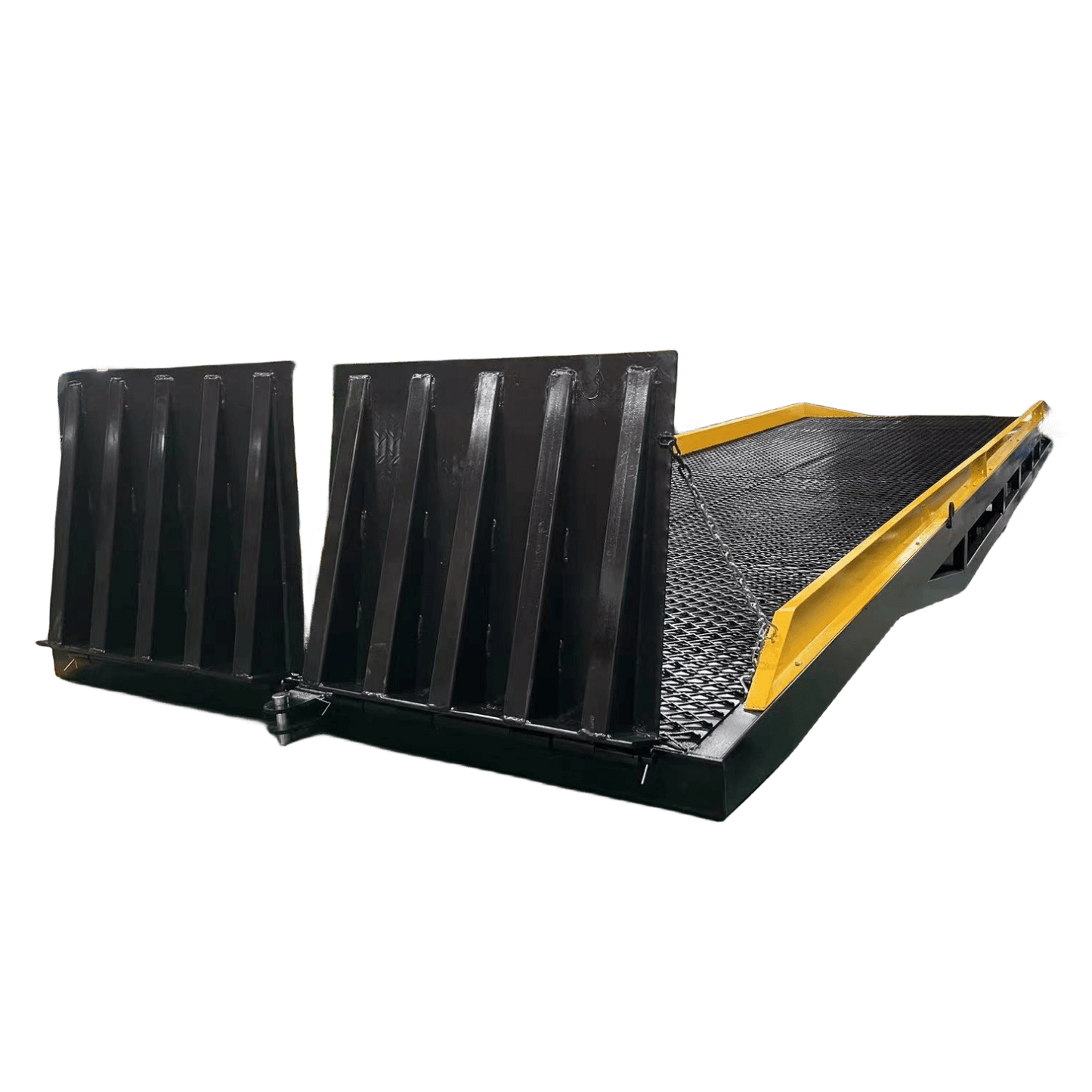

  • Portable Loading Dock Ramps Yard Ramp-Foldable Tailboard
  • Portable Loading Dock Ramps Yard Ramp-Guard Rail Height 5.5inch

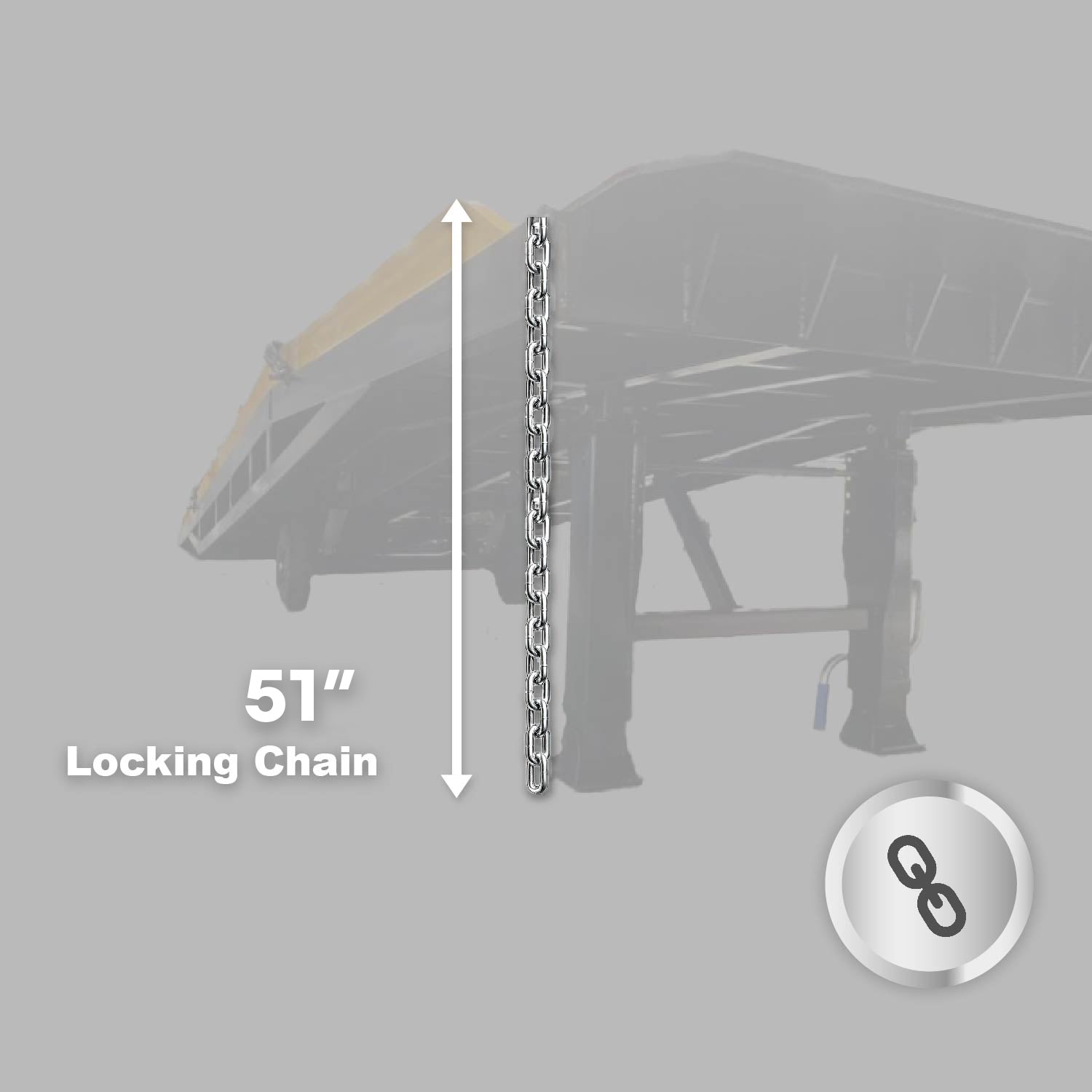

  • Portable Loading Dock Ramps Yard Ramp-Safety Locking Chain: 51"
  • Portable Loading Dock Ramps Yard Ramp - 20,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 20,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 18,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 20,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 20,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 20,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 20,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 20,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity
  • Portable Loading Dock Ramps Yard Ramp
  • Portable Loading Dock Ramps Yard Ramp
1 24

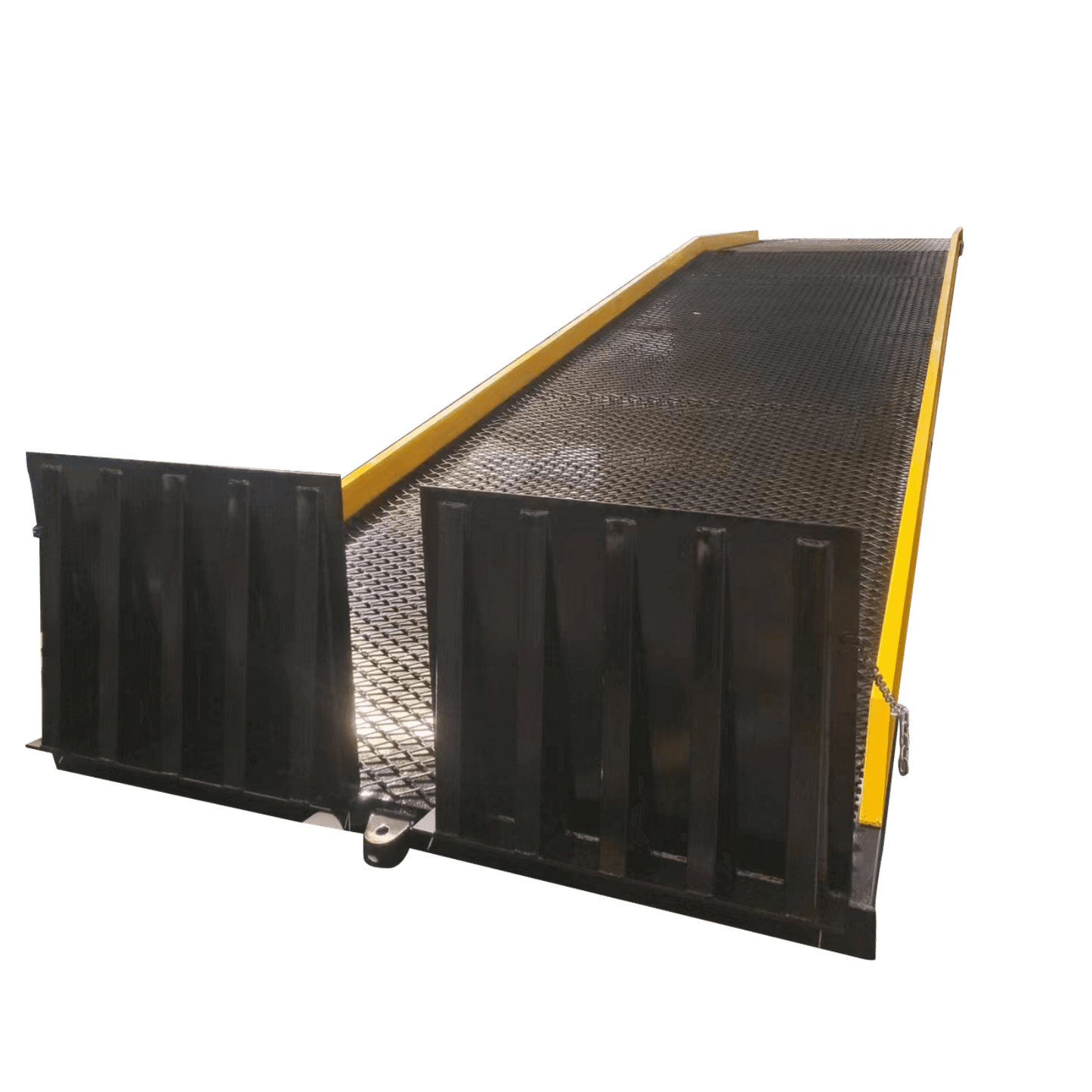

Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity

Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity

Chery Industrial SKU: SUILP10TM
Width
82.7"
Length
37.1'
Capacity
22,046 lbs
$14,299.00
$17,399.00 Save $3,100.00
$14,299.00
Style: Manual Pump

In Stock

Pickup available
TX, MD, CA, NC

Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity

Style: Manual Pump

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Product FAQ
Assembly

Features

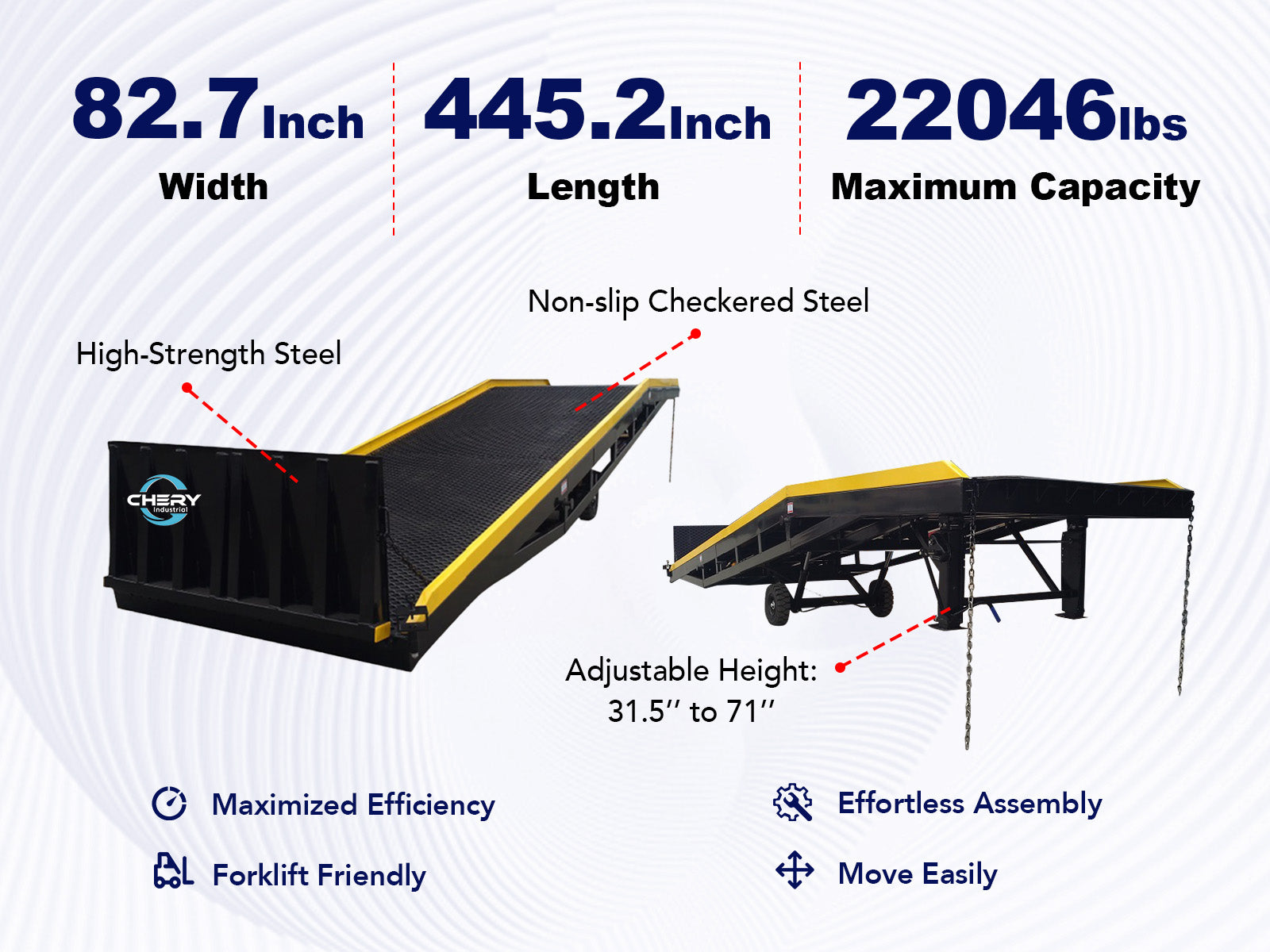

Portable Loading Dock Ramps Yard Ramp - 22,000 lb. Capacity-Feature

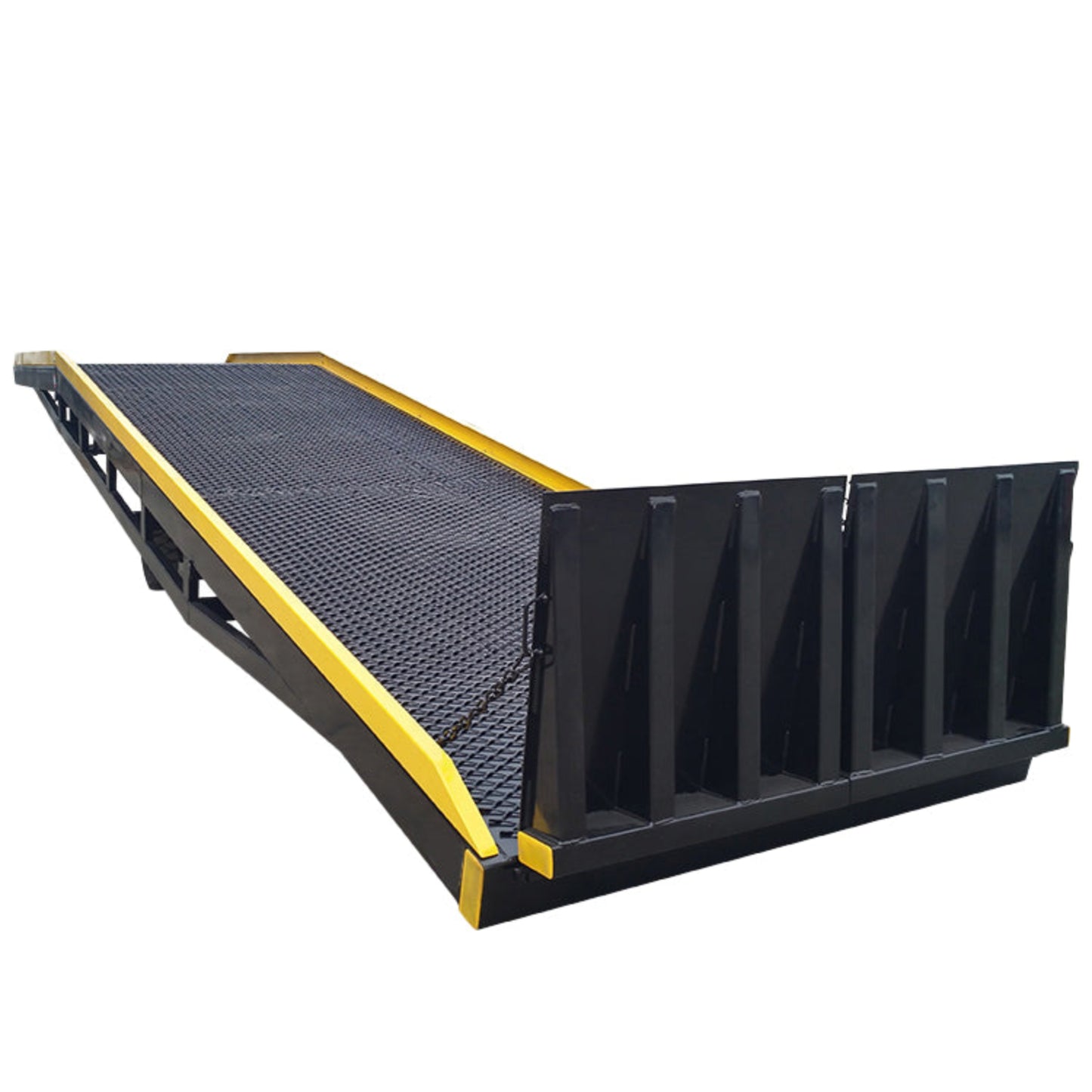

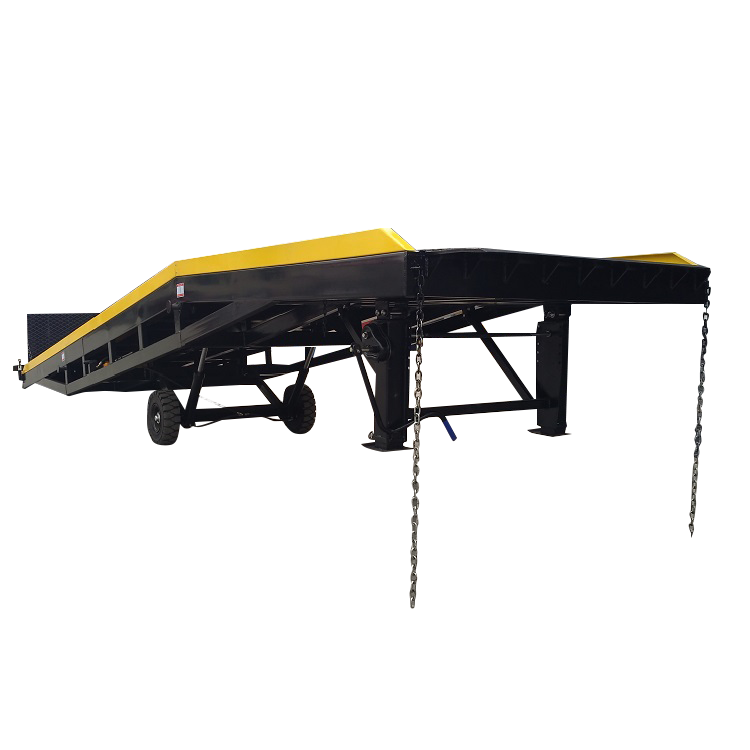

This steel yard ramp is designed for unloading trucks, trailers, or rail cars when dock space is not available. Made of durable steel, this patio ramp has a load capacity of 22,000 pounds and measures 37.1 feet long x 6.9 feet wide. Additional safety features include side rails on both sides to prevent the forklift from driving over the edge, and two safety chains to secure the ramp to the loading surface. These chains can be attached to the ICC bumper of your semi-truck trailer to prevent ramp kick-outs.

Height Adjustment
Enjoy seamless operation with height adjustability from 43.3" to 71" (110 cm - 180 cm), allowing this ramp to easily accommodate various truck and dock heights, maximizing efficiency.

Enhanced Mobility

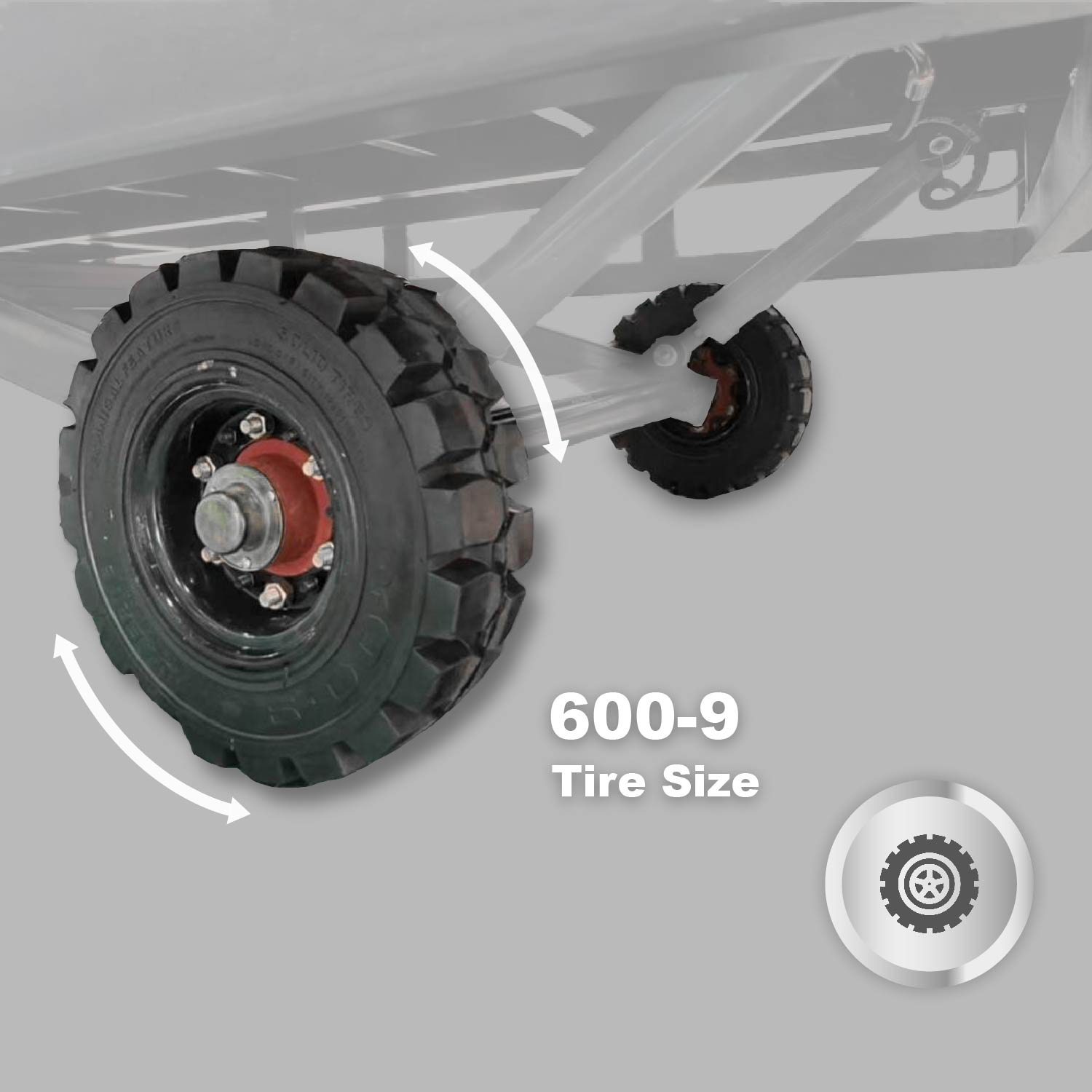

For easy positioning and maneuverability, the ramps are fitted with durable 600-9 solid tires. These tires are maintenance-free and provide stable support, allowing you to easily move the ramp wherever it’s needed within your facility.

Secure Grip
The non-slip checkered steel surface ensures confident operation by providing superior traction, significantly reducing the risk of accidents and enhancing safety during loading and unloading.

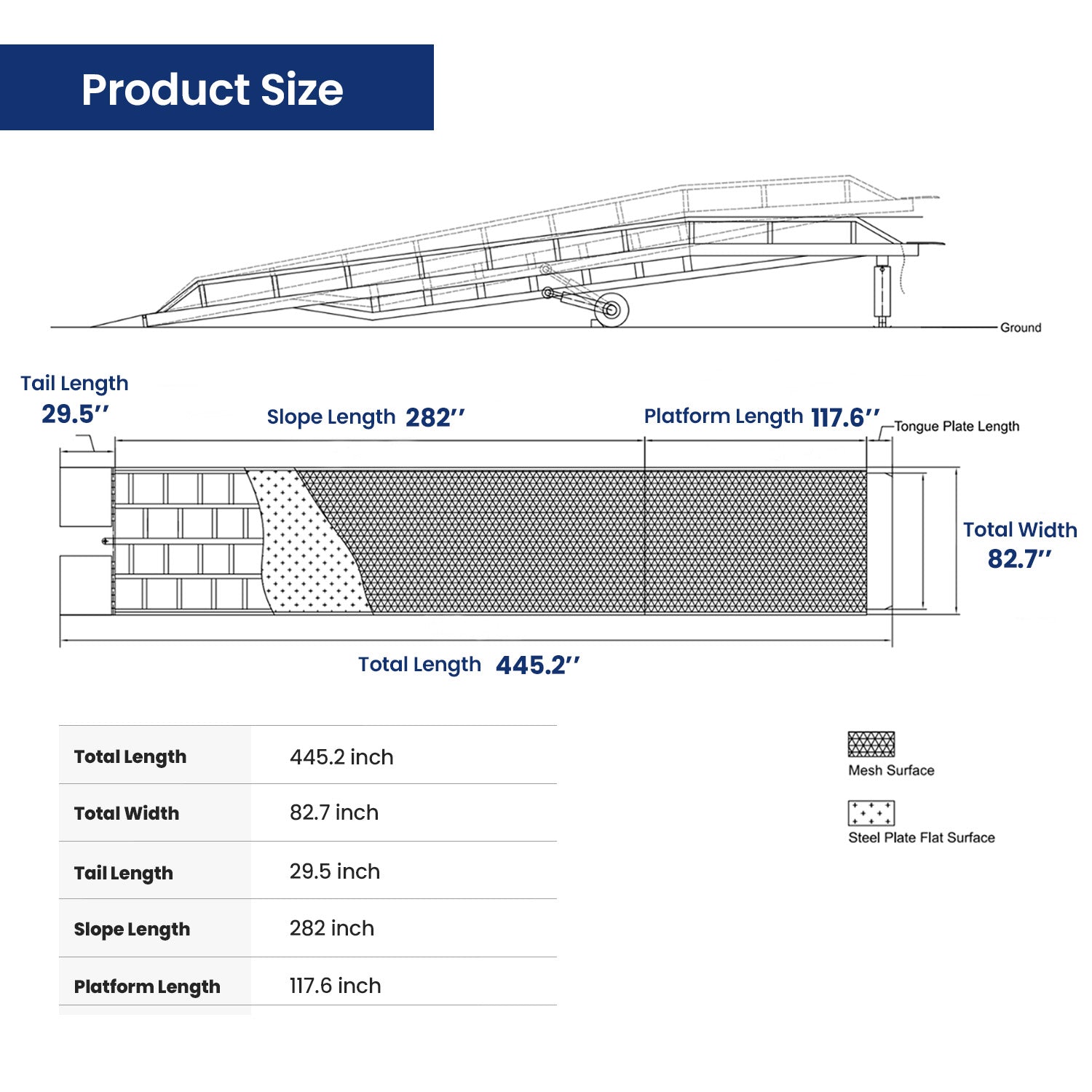

Specifications

Material
High-strength Steel
Length
37.1'
Width
82.7"
Adjustable Height
43.3" to 71"
Weight
5,732 lbs
Maximum Capacity
22,046 lbs
Slope Length
281.5"
Platform Length
118.1"
Tail Plate Length
29.5"
Tip Plate Length
15.7"
Steel Plate Thickness
4 mm
Steel Mesh Thickness
8 mm
Lip Thickness
16 mm
Power
AC(380V/220V/110V)
Main Beam
160x80x4mm rectangular pipe, 5 main beams.
Vice Beam
100x50x4mm

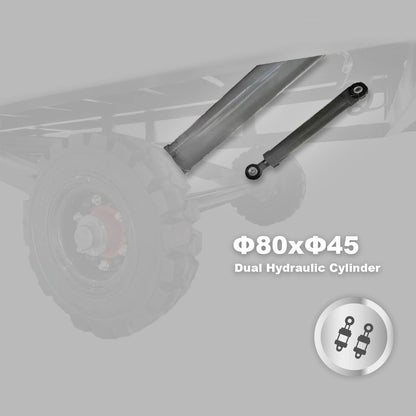

Lift Type
Dual Cylinder Hydraulic
Hydraulic Cylinder
Φ80xΦ45 (2 pcs)
Hydraulic Oil Pipe
32Pma
Solid Tire Size
600-9

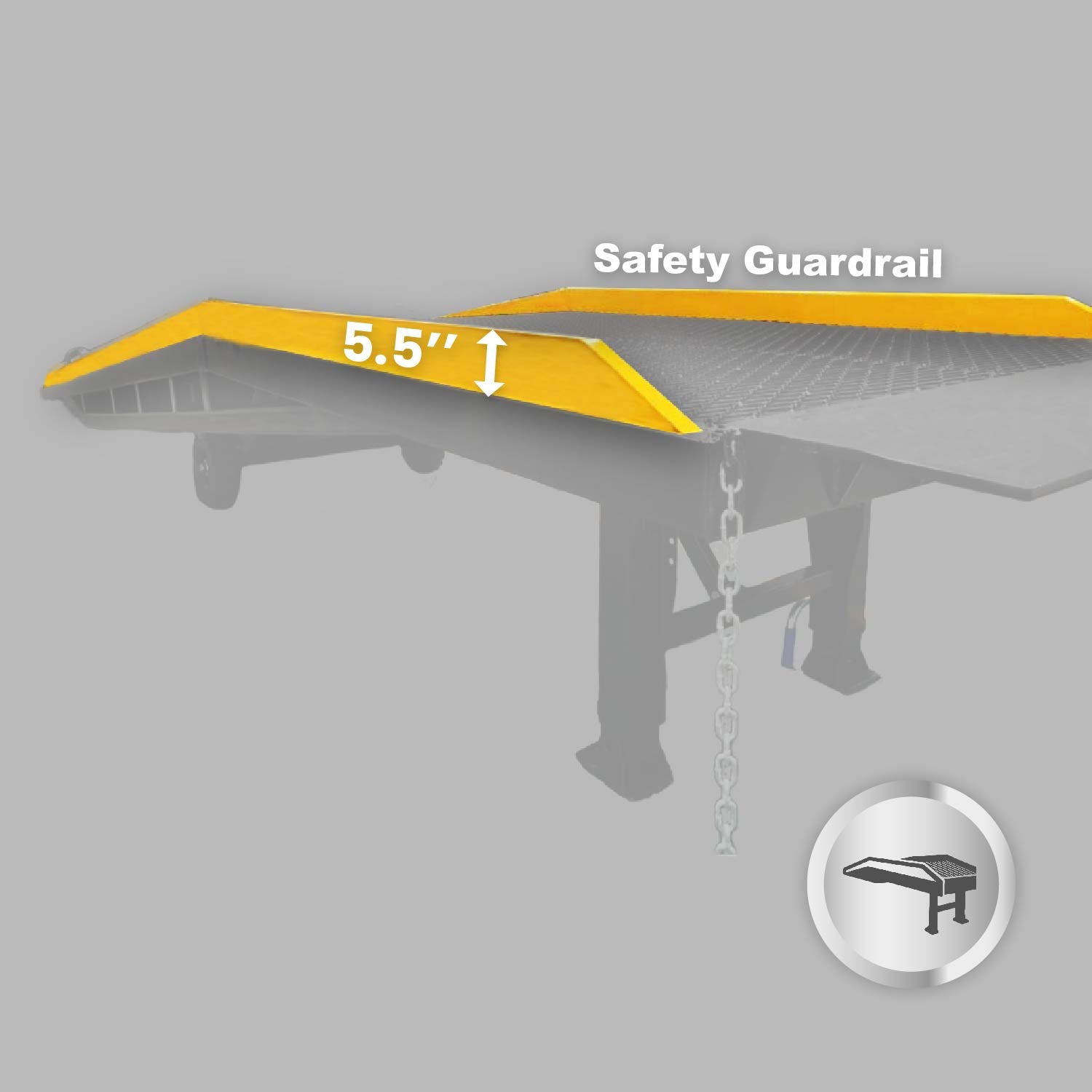

Guard Rail Height
5.5"
Safety Chains
51"

Shipping

US warehouse dispatch, 1-2 days processing, 10-15 days delivery.

• LxWxH (inch): 548x83x20
• Weight (lb): 5736(Manual Pump), 5957(Electric Pump)

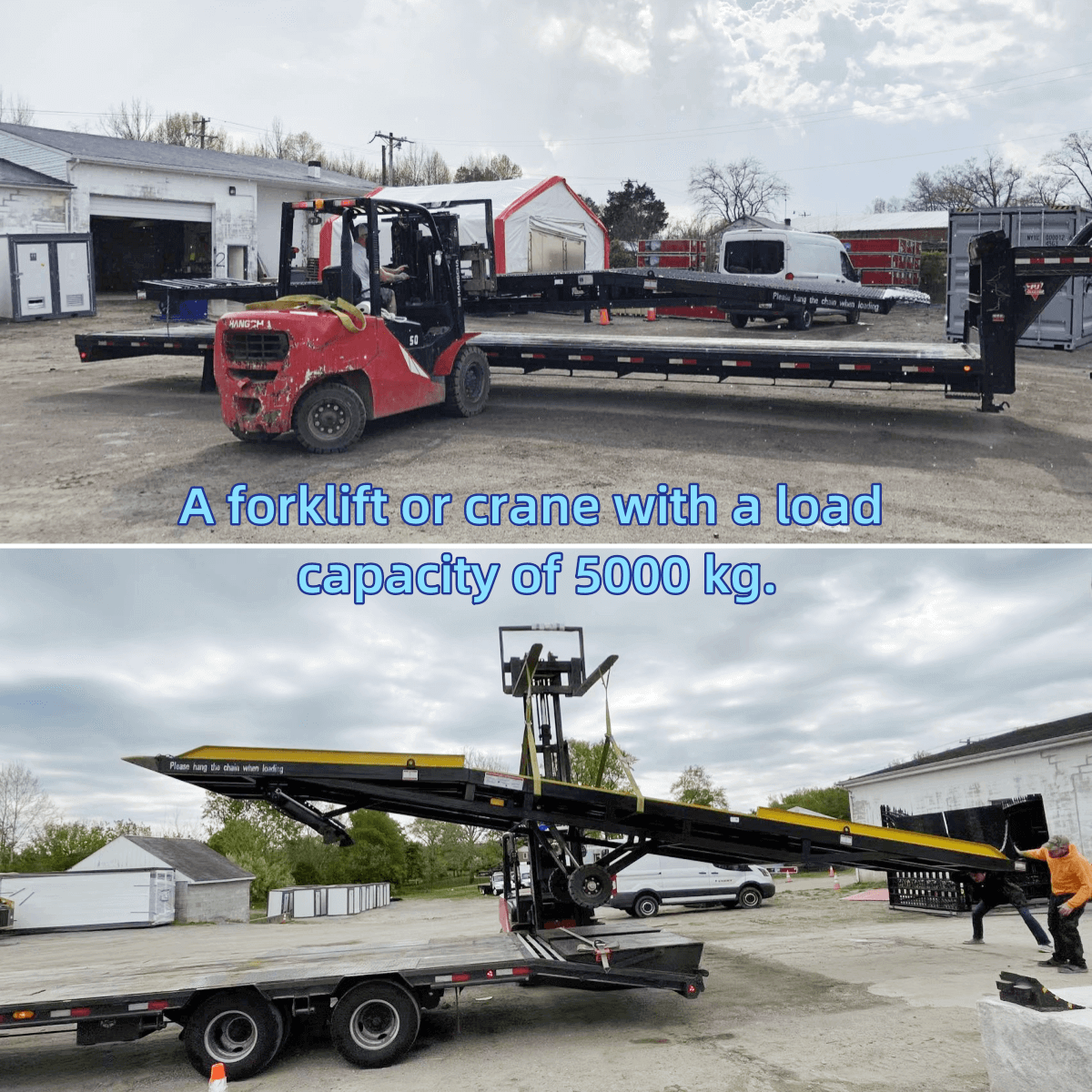

• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Installation and Usage Tips

  • ONLY trained personnel are to operate or service the ramp.
  • NEVER exceed 5 mph when driving on the ramp.
  • NEVER exceed the rated capacity of the ramp.
  • NEVER travel on the ramp unless the lip is securely on the dock or carrier floor and properly attached safety chains in accordance with this manual.
  • Visually check that the lip is supported and has a minimum of 4" of overlap onto the dock or carrier floor.
  • Please DO NOT use this unit to dock heights outside its intended working range.
