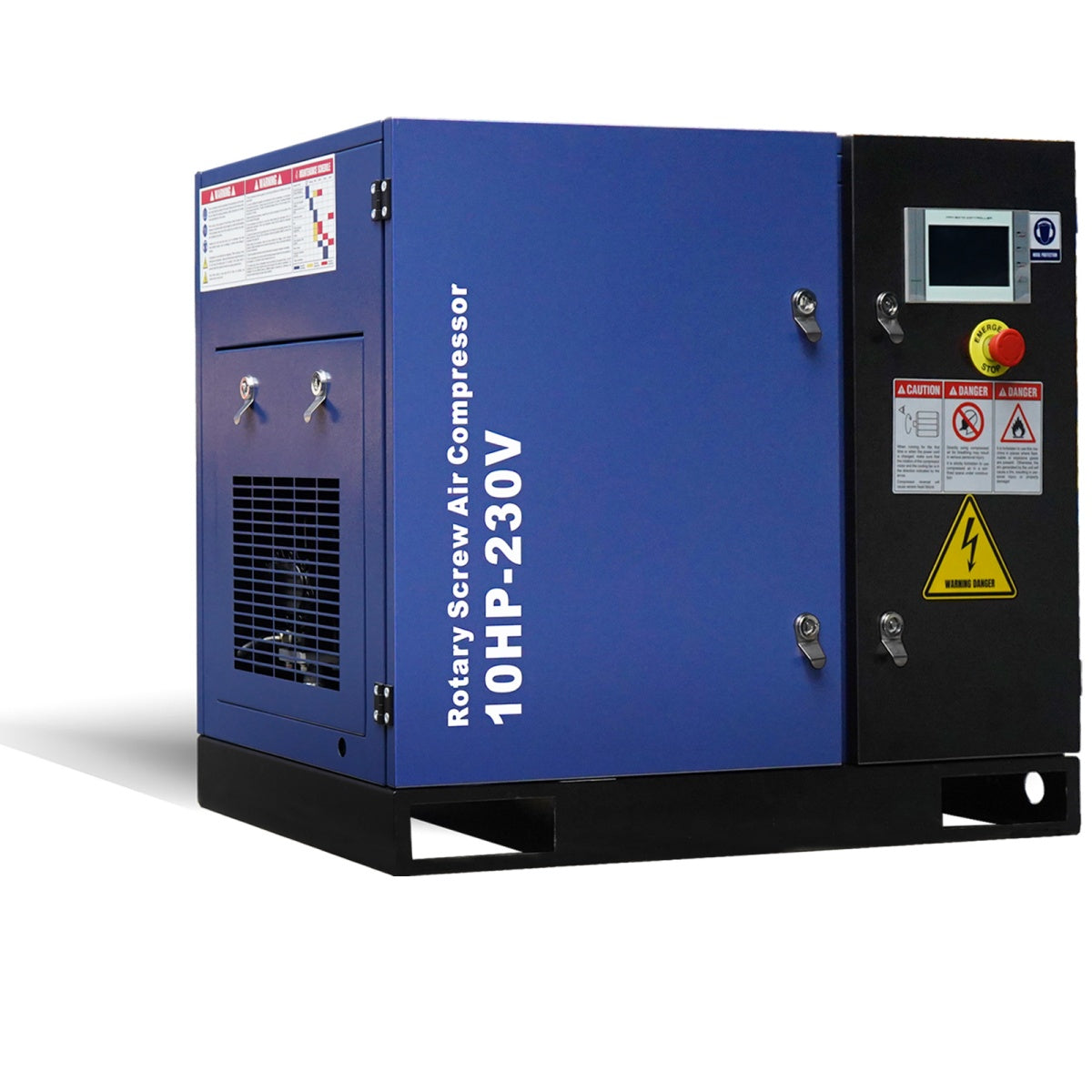

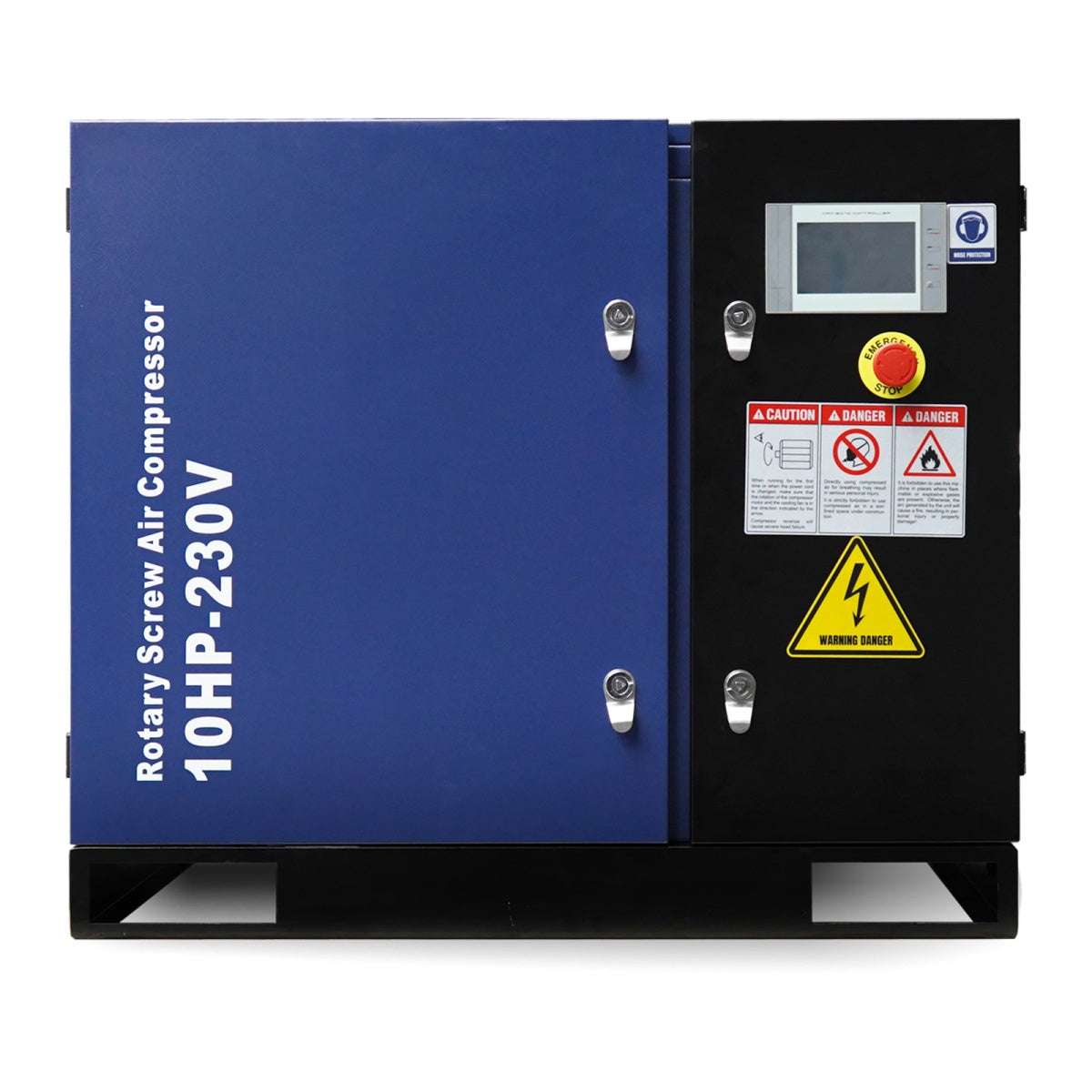

10HP Rotary Screw Air Compressor – 34 CFM, 125 PSI, 230V 3-Phase 60HZ

10HP Rotary Screw Air Compressor – 34 CFM, 125 PSI, 230V 3-Phase 60HZ

Chery Industrial SKU: N818P370080S
Air Flow Capacity
34CFM
Rated Pressure
125PSI
$2,499.00
$2,499.00

Pre-Order ETA in early Dec

Pickup unavailable

10HP Rotary Screw Air Compressor – 34 CFM, 125 PSI, 230V 3-Phase 60HZ

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

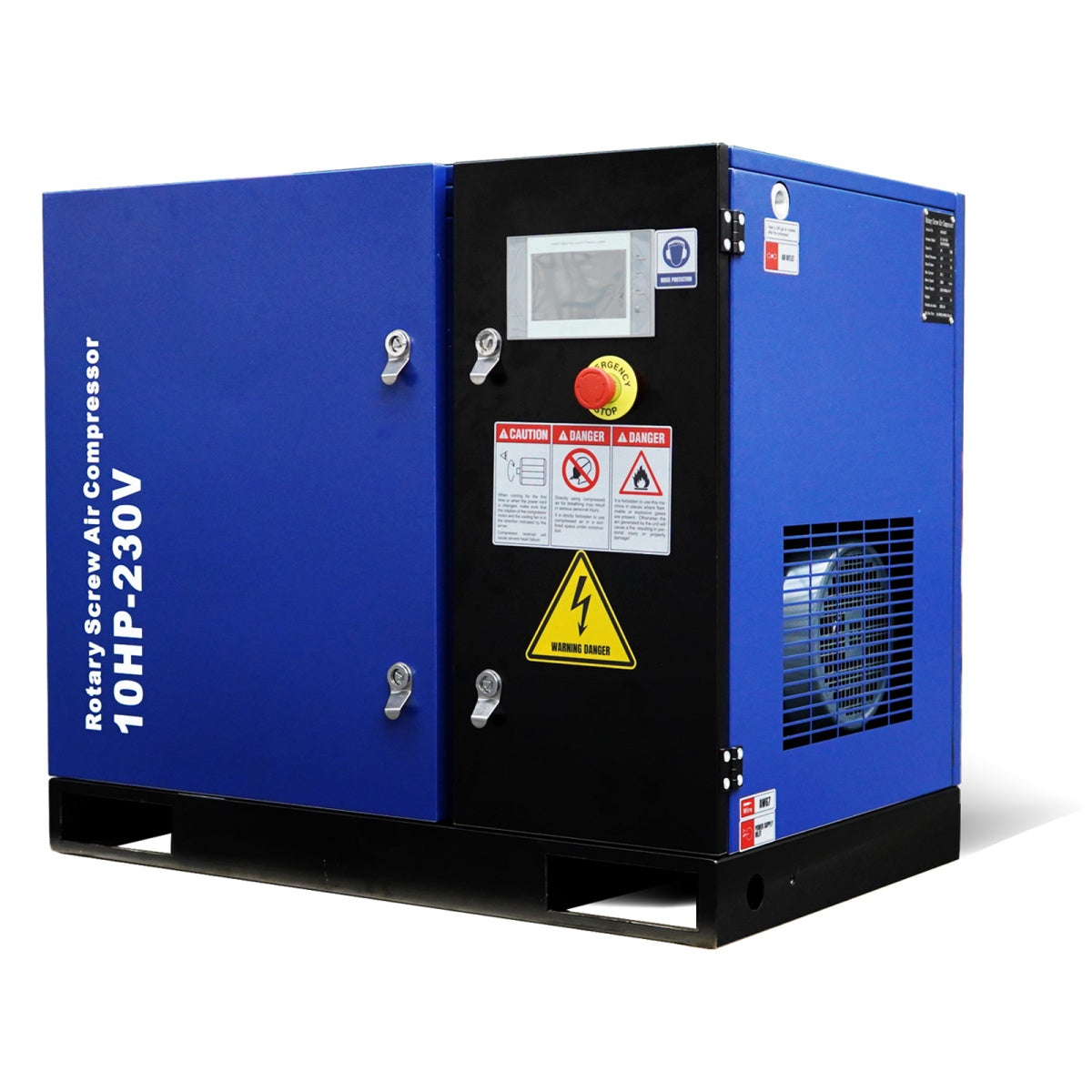

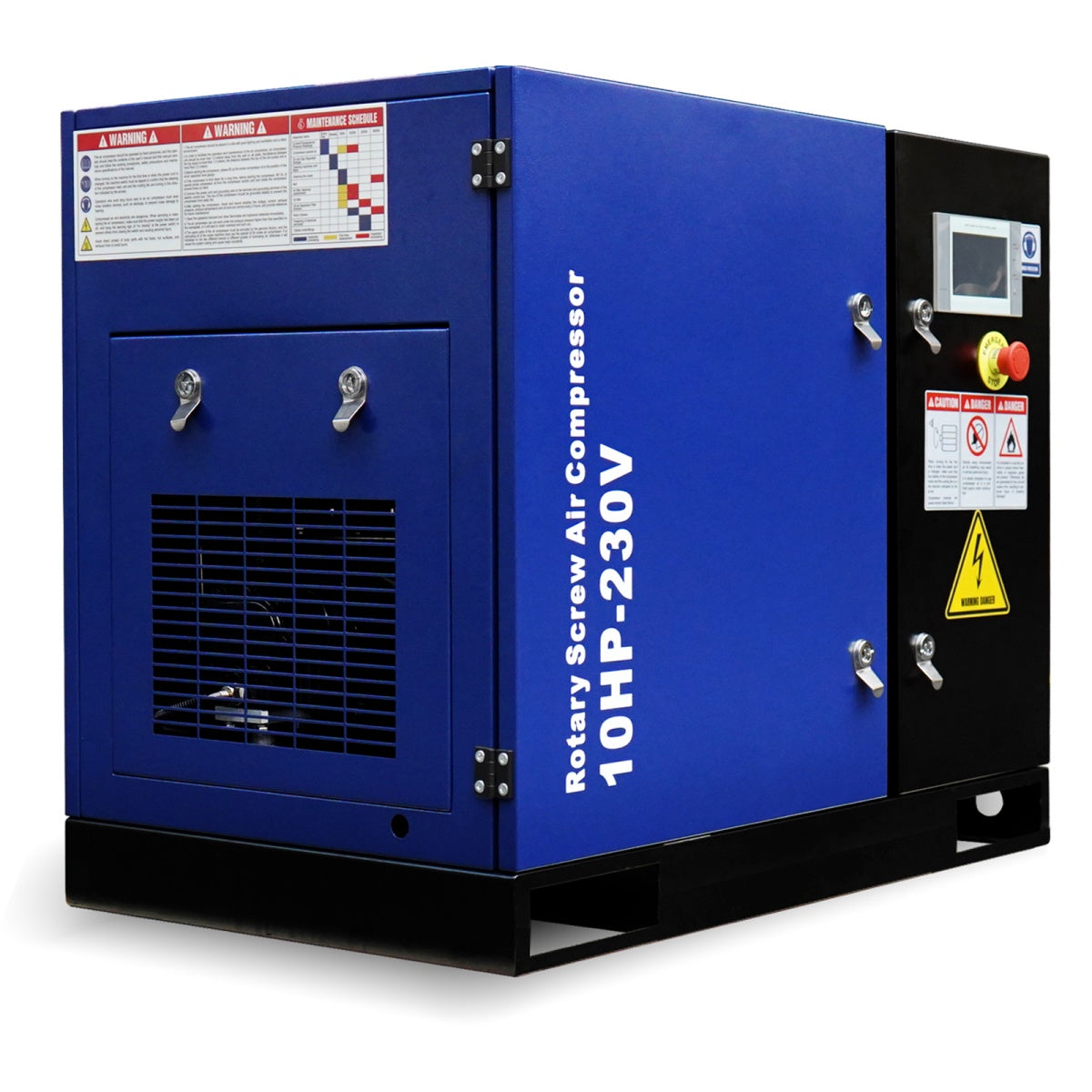

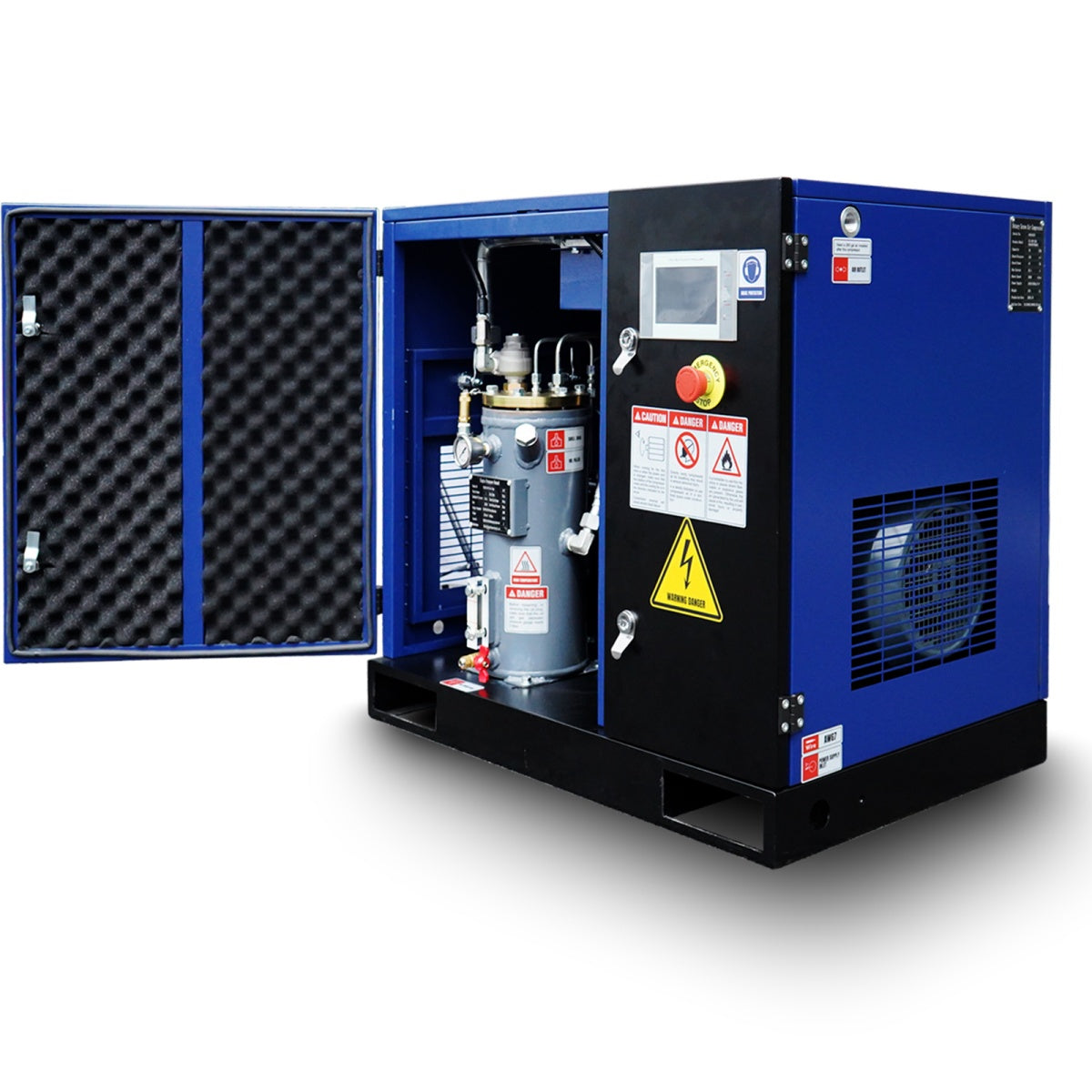

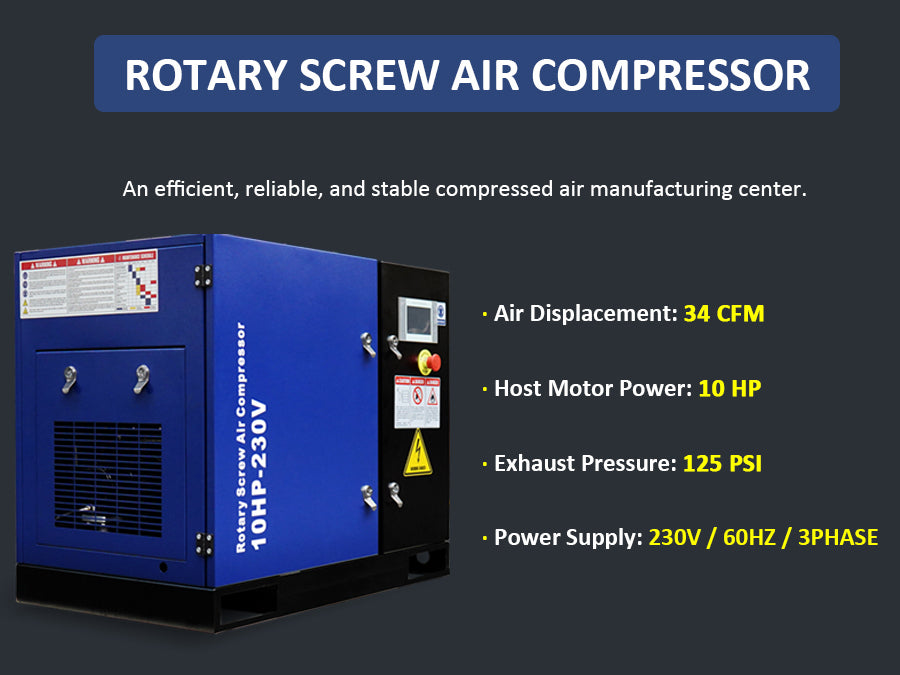

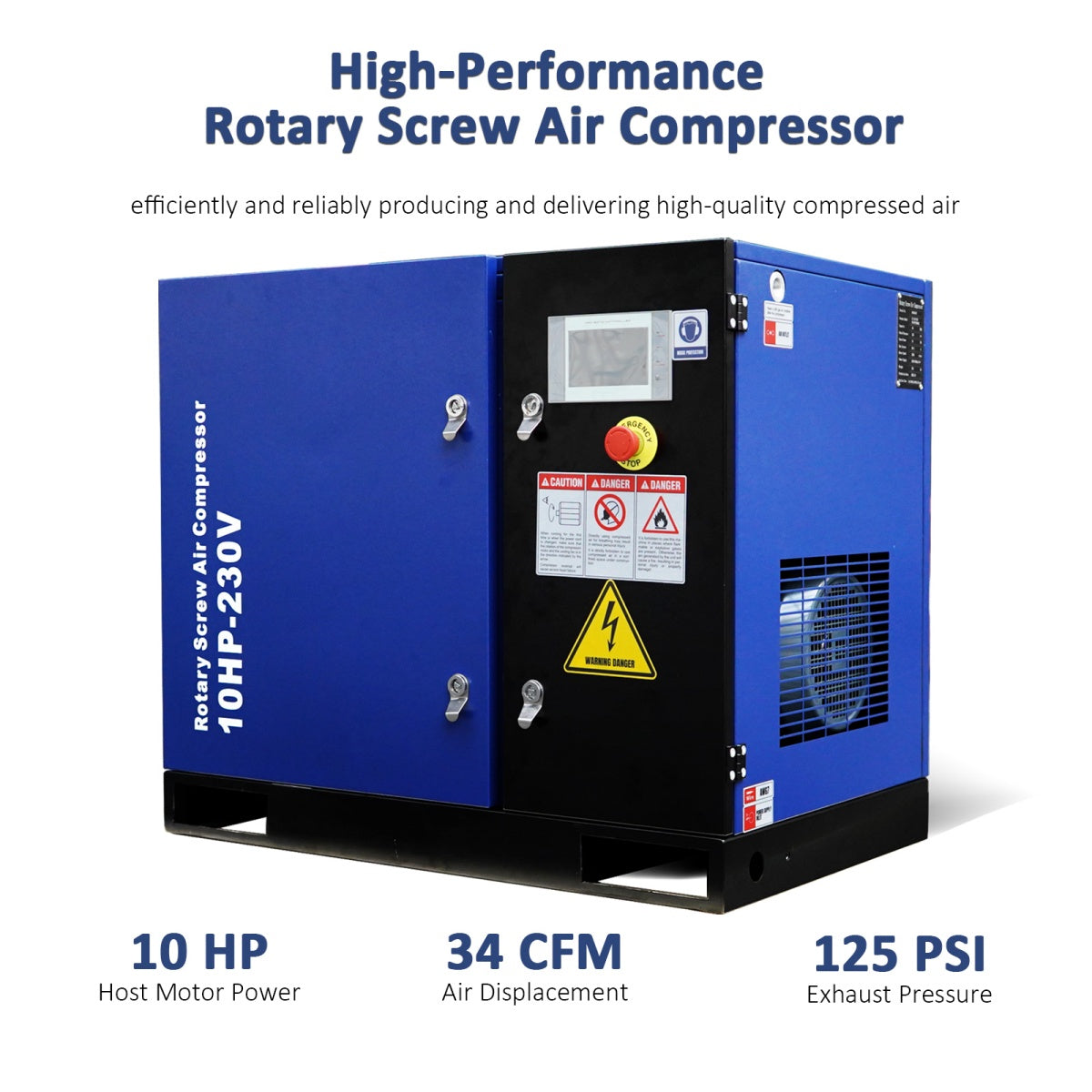

This 10HP rotary screw air compressor is a powerful core for industrial applications, delivering a stable output of 34 CFM at 125 PSI to meet demanding production needs. The 7.5KW motor features a star-delta start for smooth, reliable operation and a 230V 3-phase power supply for high efficiency. Engineered for performance and durability with excellent discharge temperature control, it is the pneumatic solution you can trust.

  • Powerful Performance: Air displacement of 34 CFM at 125 PSI.
  • Stable Drive: Host motor speed of 3500 r/min with star-delta start method.
  • Power Configuration: Motor power of 7.5KW / 10 HP, power supply of 230V / 60HZ / 3PHASE.
  • Connection Specs: Pipe diameter of NPT 3/4" with a maximum current of 28.1A.
  • Wide Adaptability: Aspiration temperature range of 0~104°F and discharge temperature ≤ Ambient Temp + 59°F.

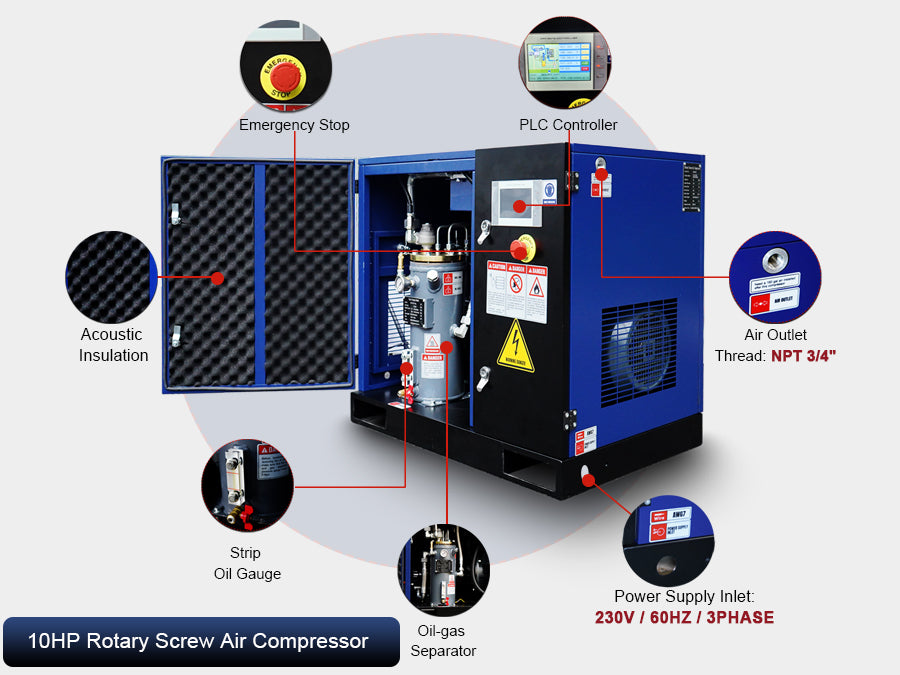

Features

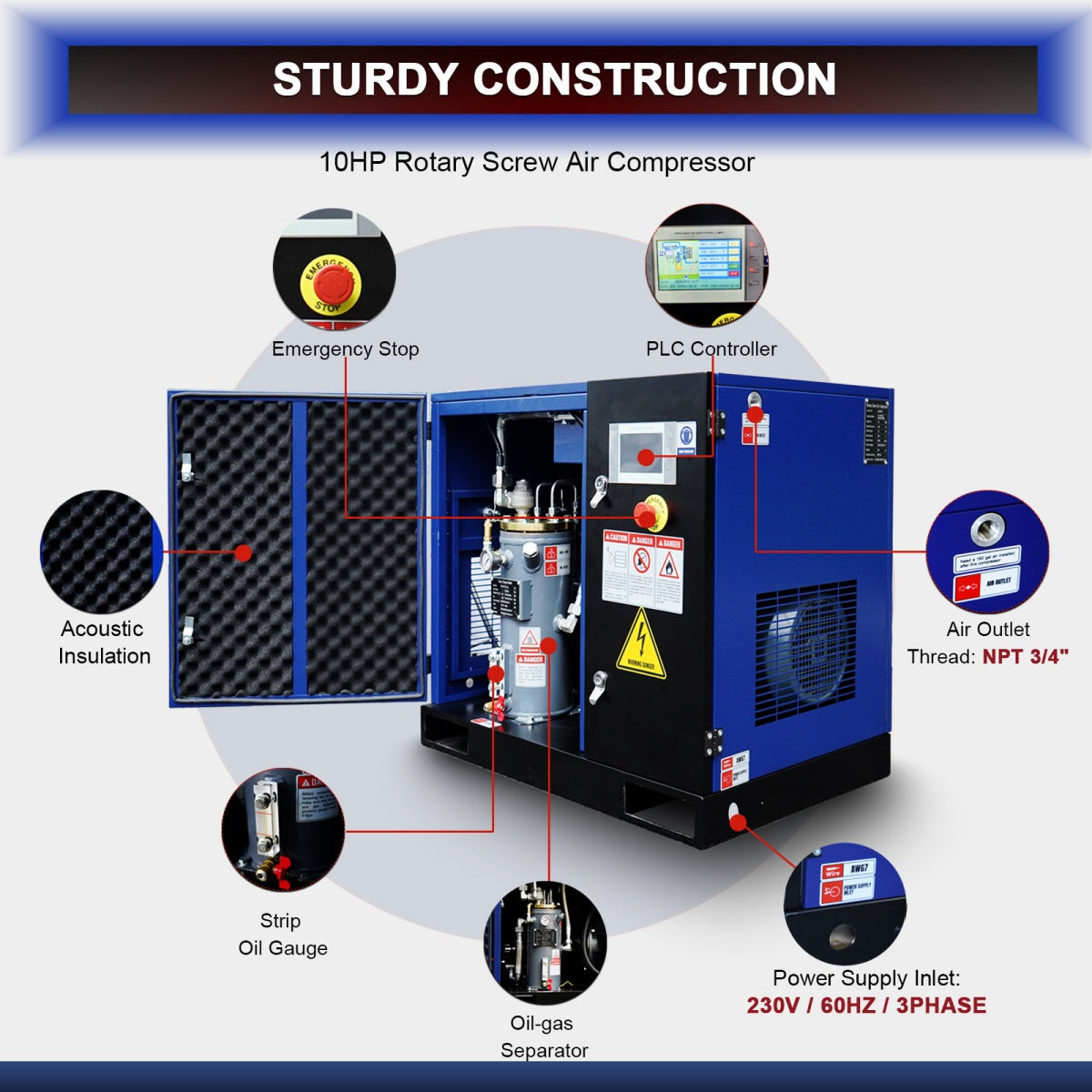

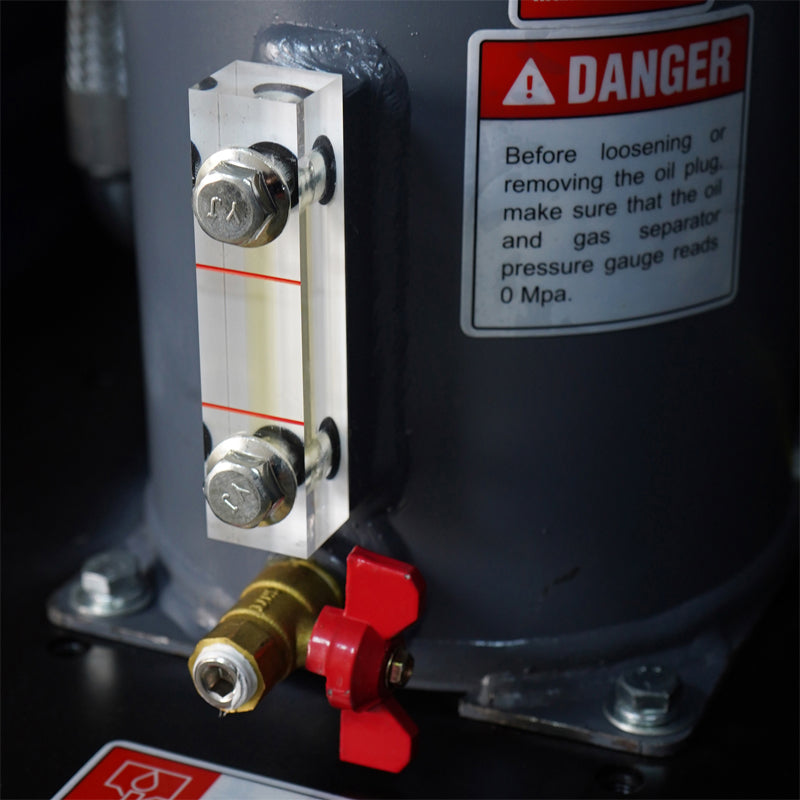

  • Strip Oil Gauge

    Clear indication of oil level.

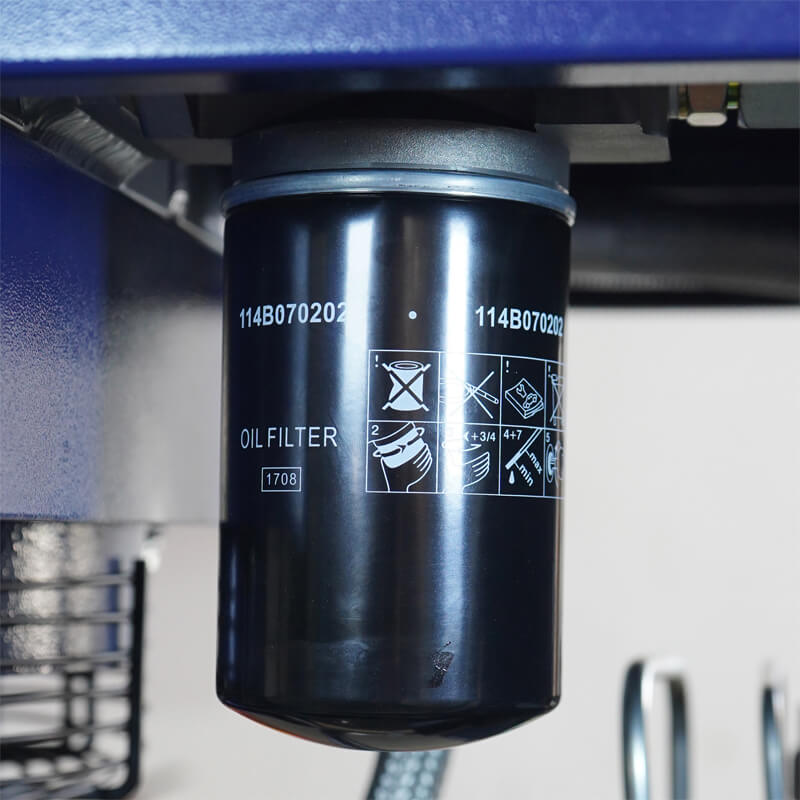

  • Easy Replacement High Precision Oil Filter

    Easy Replacement High Precision Oil Filter.

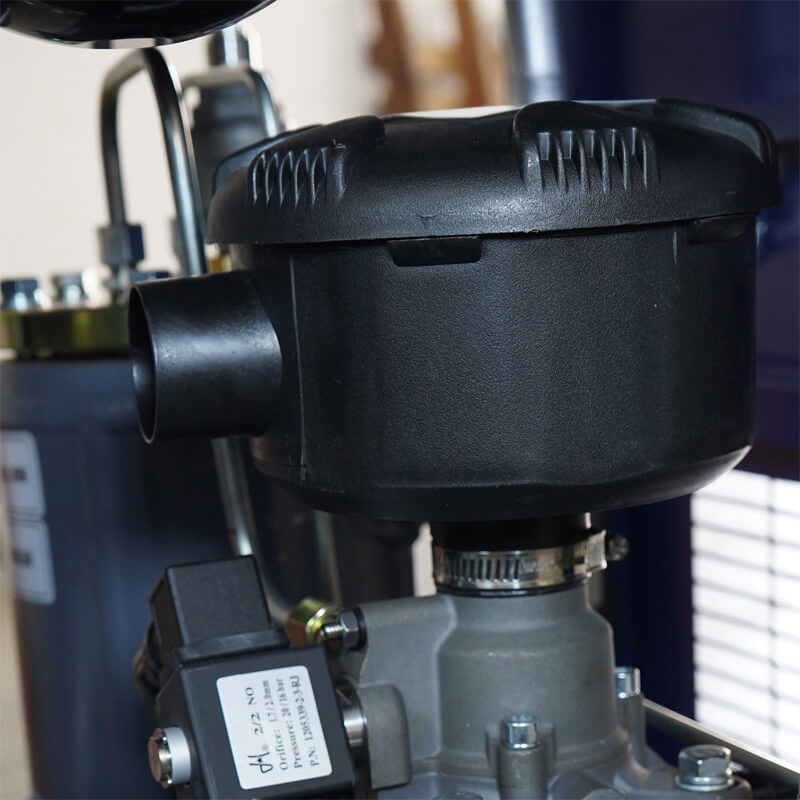

  • Easy Replacement Air Filter

    Large ash capacity, low initial pressure drop, reduced compressor energy consumption. It can remove particles over 3 microns and ensures stable operation even in harsh environments.

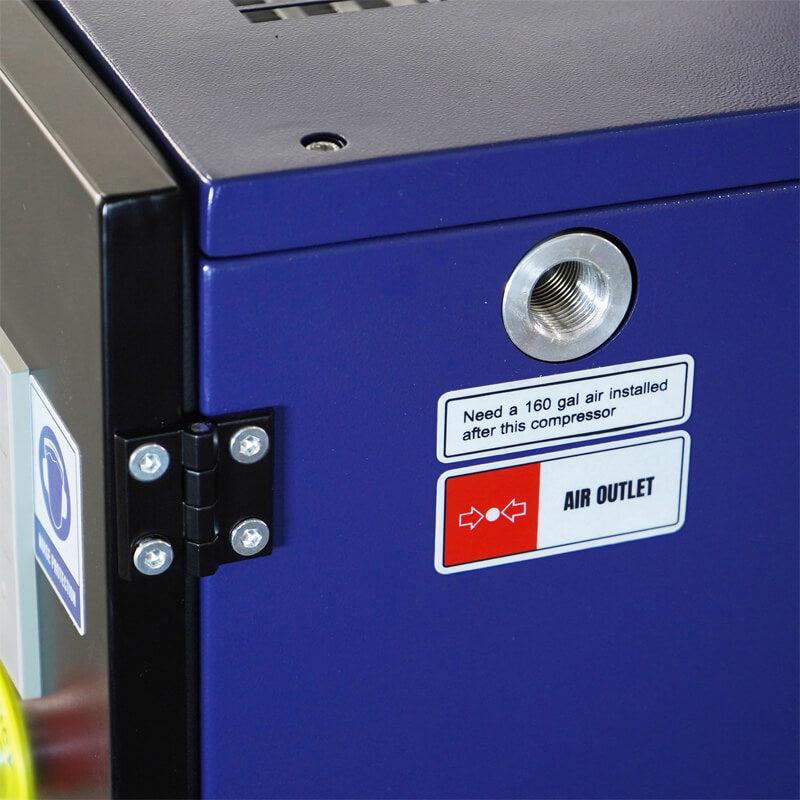

  • Air Outlet

    Air Outlet thread: 3/4" NPT

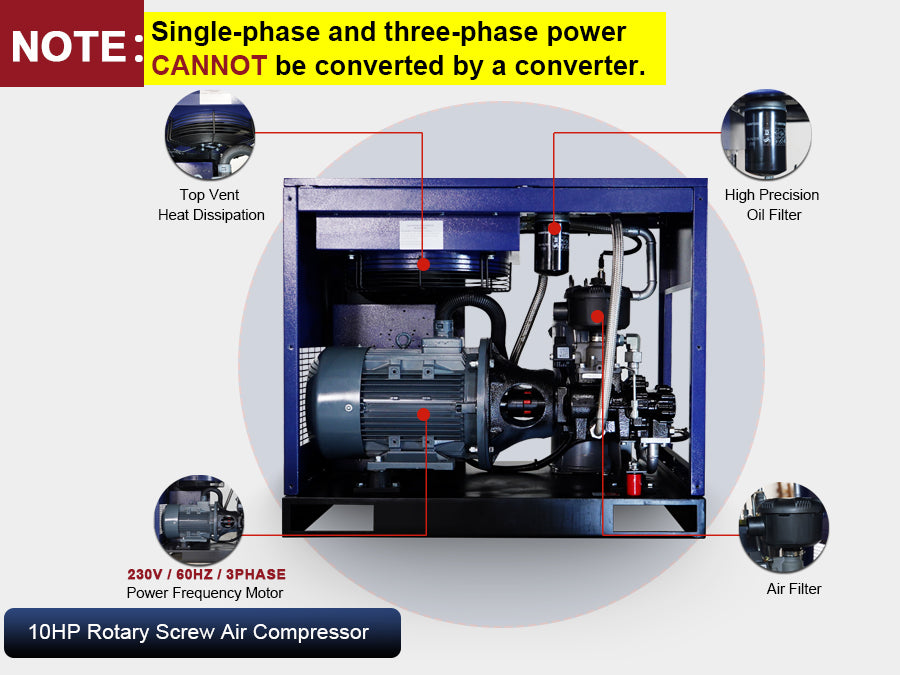

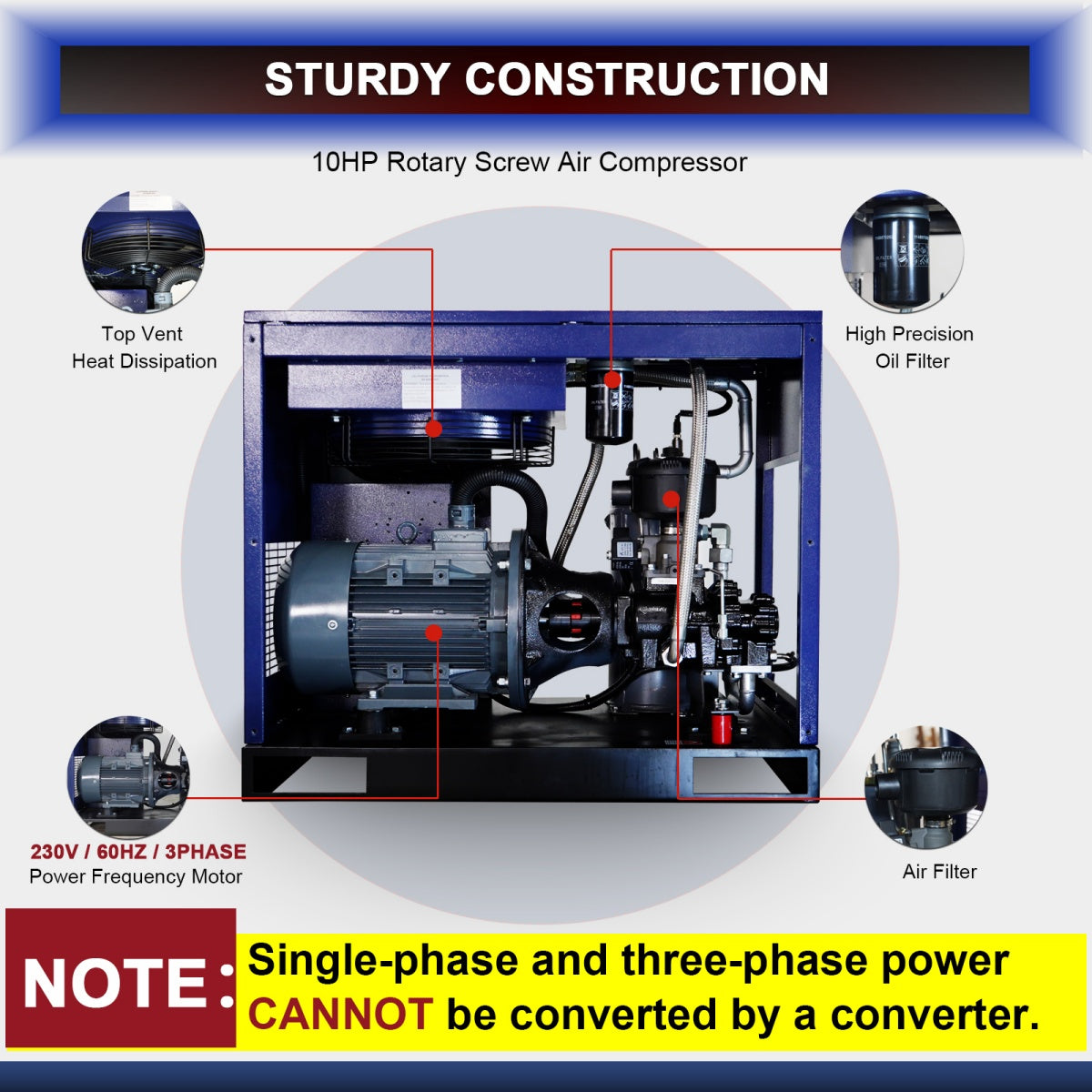

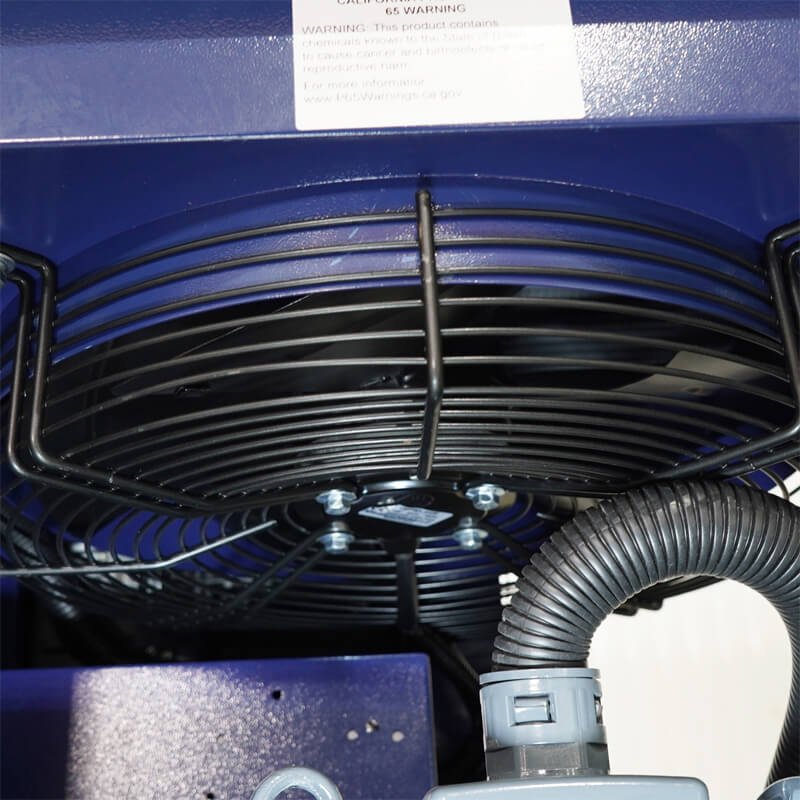

  • Top Vent Heat Dissipation

    The equipment can fit in small spaces against a wall or corner.

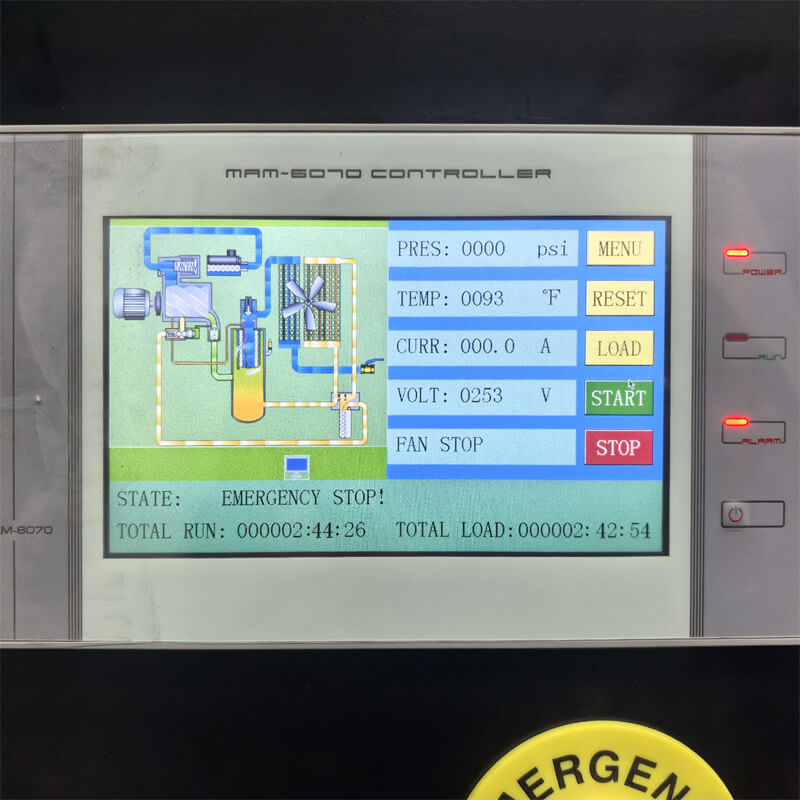

  • PLC Controller With Touch Screen

    Monitors maintenance, temperature readings, pressure settings, oil level, filtration & hours, also monitors remote start/stop. A mechanical switch is also provided.

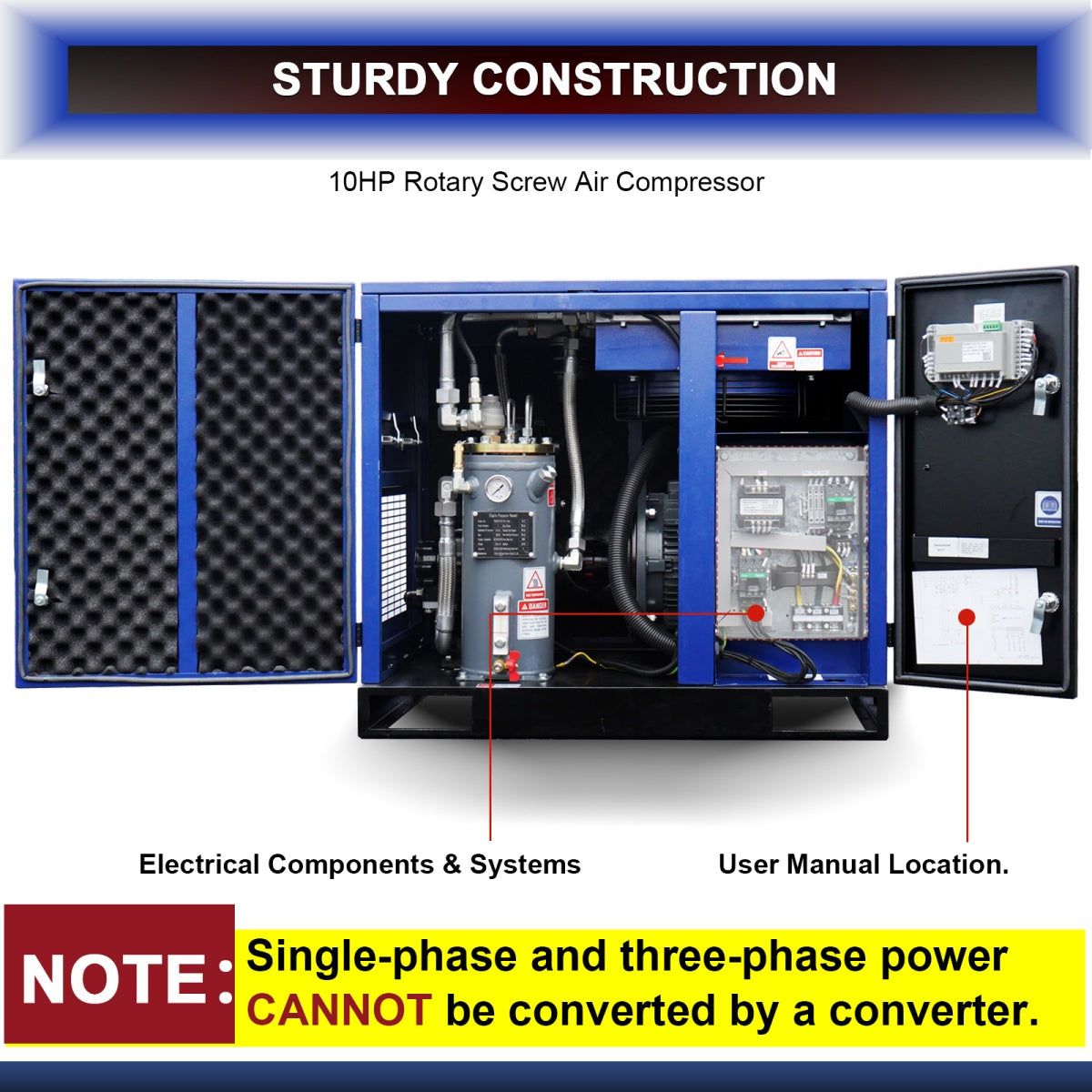

  • Electrical Components & Systems

    Adoption of Schneider brand electrical components.

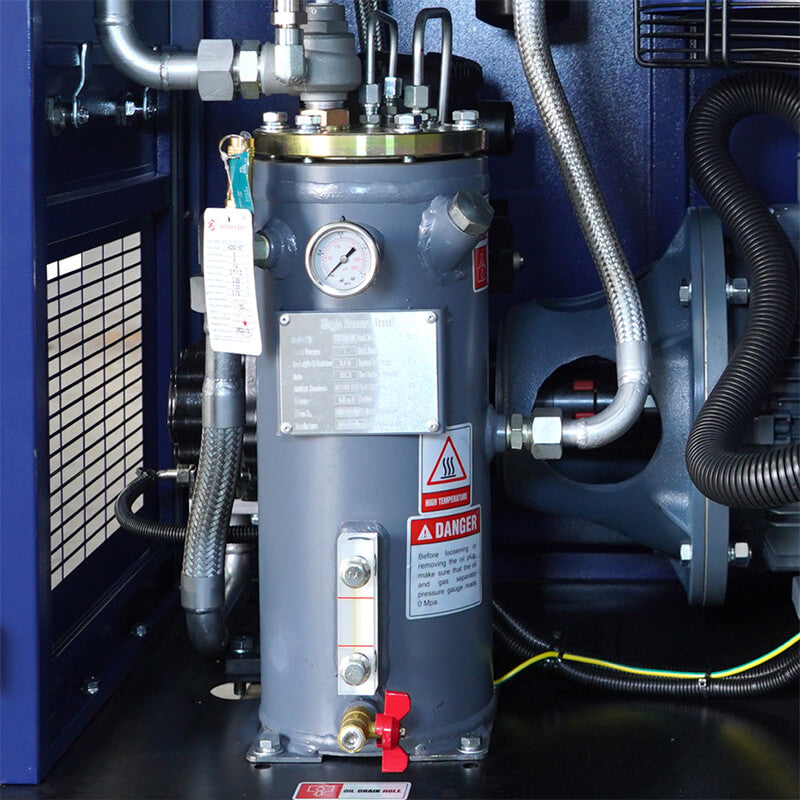

  • Highly Efficient Oil - Air Separator Filter

    Highly efficient coalescing separation technology significantly reduces oil consumption.

  • Wide Application

    Manufacturing (Core Application Field), Energy & Chemical Industries, Engineering & Infrastructure, and Other Important Fields.

Specifications

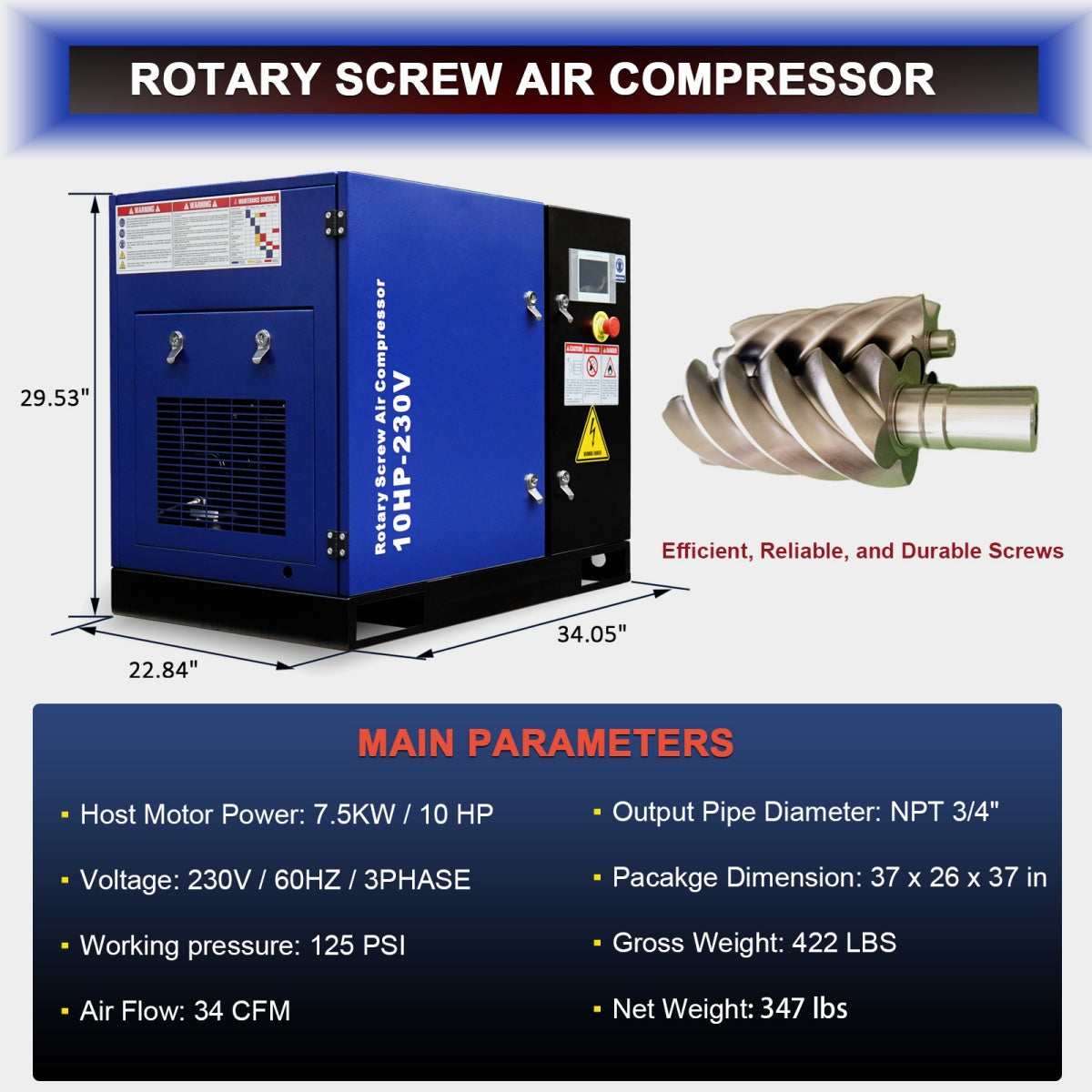

Dimension
34.05x22.84x29.53 inch
Voltage
230V 3Phase 60HZ
Air Flow Capacity
34CFM
Rated Pressure
125PSI
Maximum Pressure
130.5PSI
Air Outlet Thread
3/4" NPT
Maximum Current
28.1A
Rated Power
10HP
Motor Speed
3500RPM
Noise Level
63±2dB(A)

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

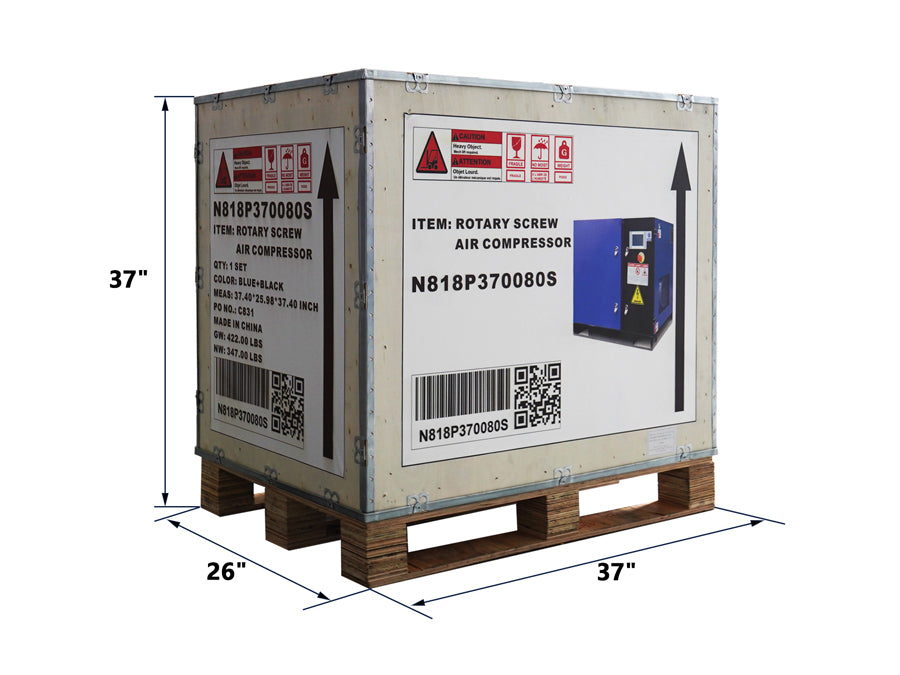

• LxWxH (inch): 37x26x37
• Weight (lb): 422
• A forklift or equivalent is required for unloading.
