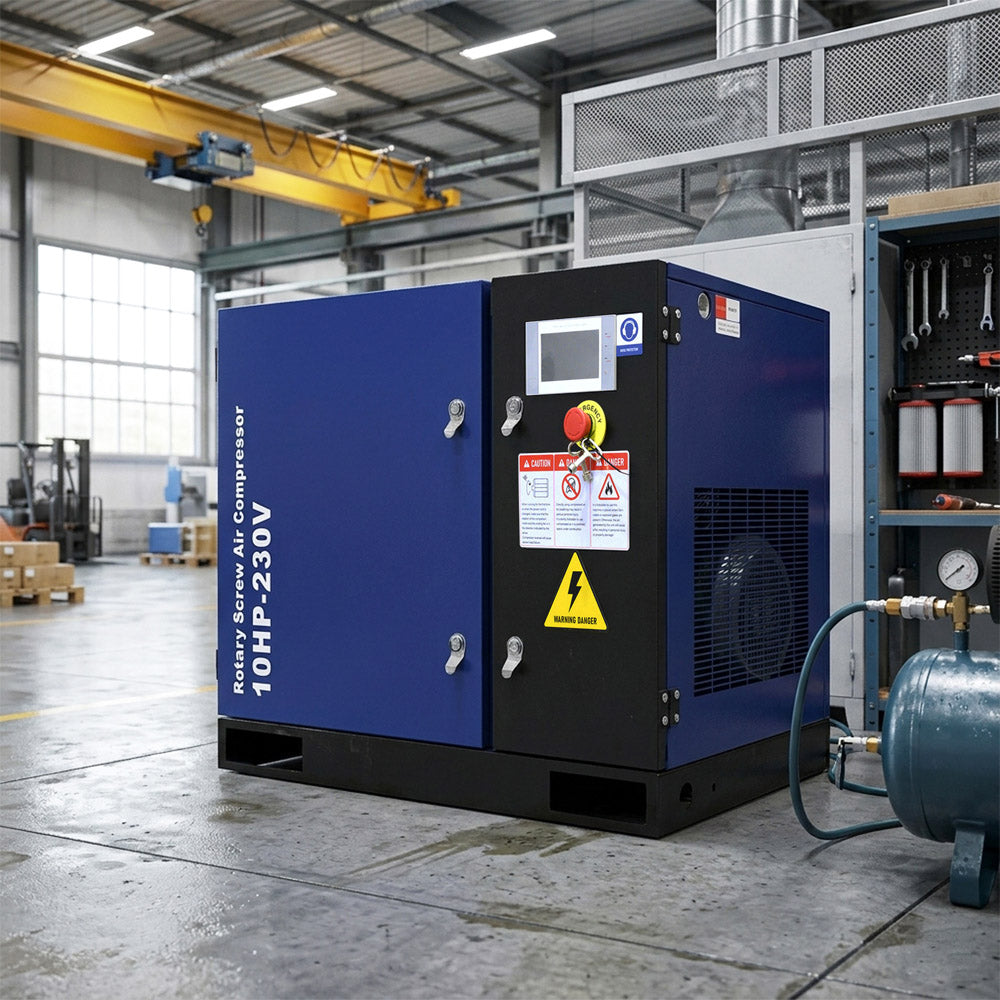

  • Large blue and black air compressor in a warehouse setting
  • Blue and black industrial generator on a white background
  • 34CFM Rotary Screw Air Compressor – 10HP, 125 PSI, 230V 3-Phase 60HZ

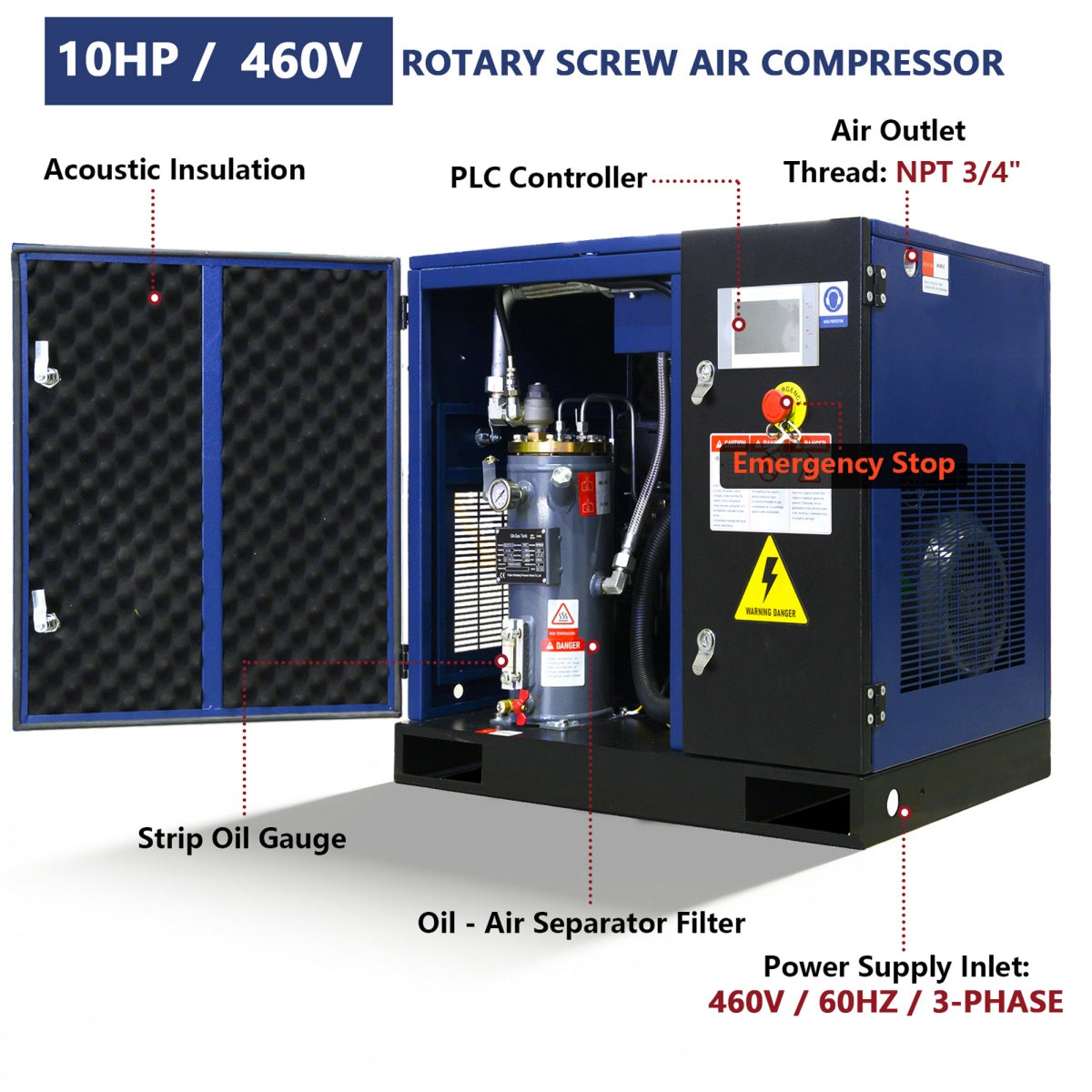

  • 10HP Rotary Screw Air Compressor with labeled parts and power conversion note.
  • 10HP Rotary Screw Air Compressor with open doors showing electrical components and user manual location, on a white background.
  • Blue rotary screw air compressor with technical specifications on a white background
  • 10HP Rotary Screw Air Compressor with labeled features on a white background
  • Diagram of an air system with labeled components and application fields.

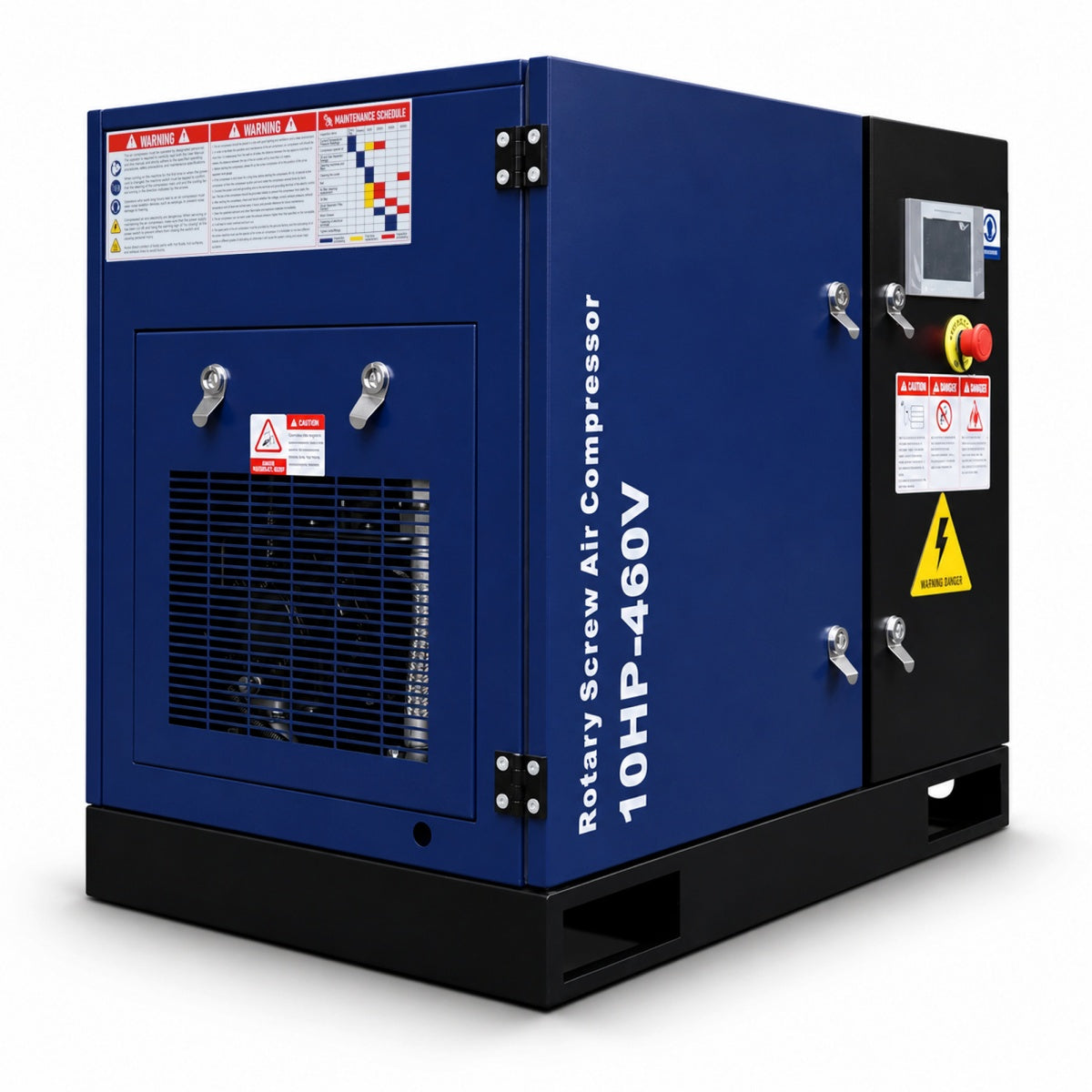

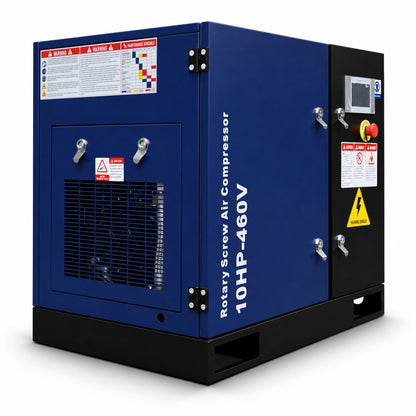

  • Blue rotary screw air compressor with visible branding and specifications on a white background
  • Blue industrial air compressor with applications in various industries on a gray background
  • Blue rotary screw air compressor with visible branding and specifications on a white background

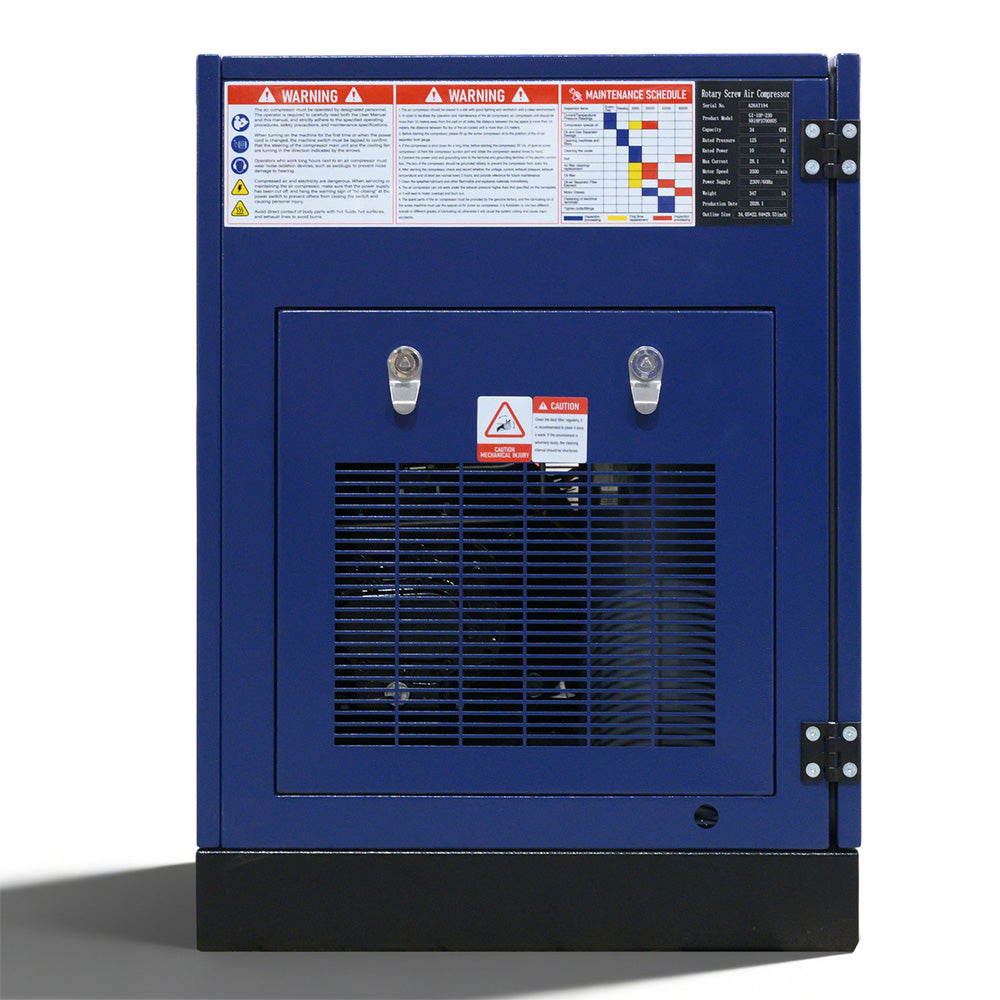

  • Blue industrial machine with warning labels on a white background
  • Blue industrial machine with a fan on a white background
  • Blue and black rotary screw air compressor with warning labels on a white background
1 26

34CFM Rotary Screw Air Compressor – 10HP, 125 PSI, 230V/460V 3-Phase 60HZ

34CFM Rotary Screw Air Compressor – 10HP, 125 PSI, 230V/460V 3-Phase 60HZ

Chery Industrial SKU: N818P370080S
Air Flow Capacity
34CFM
Rated Pressure
125PSI
$2,789.00
$2,789.00
Voltage: 230V 3Ph 60Hz

Pre-Order Estimated Restock Time August

Pickup unavailable

34CFM Rotary Screw Air Compressor – 10HP, 125 PSI, 230V/460V 3-Phase 60HZ

Voltage: 230V 3Ph 60Hz

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

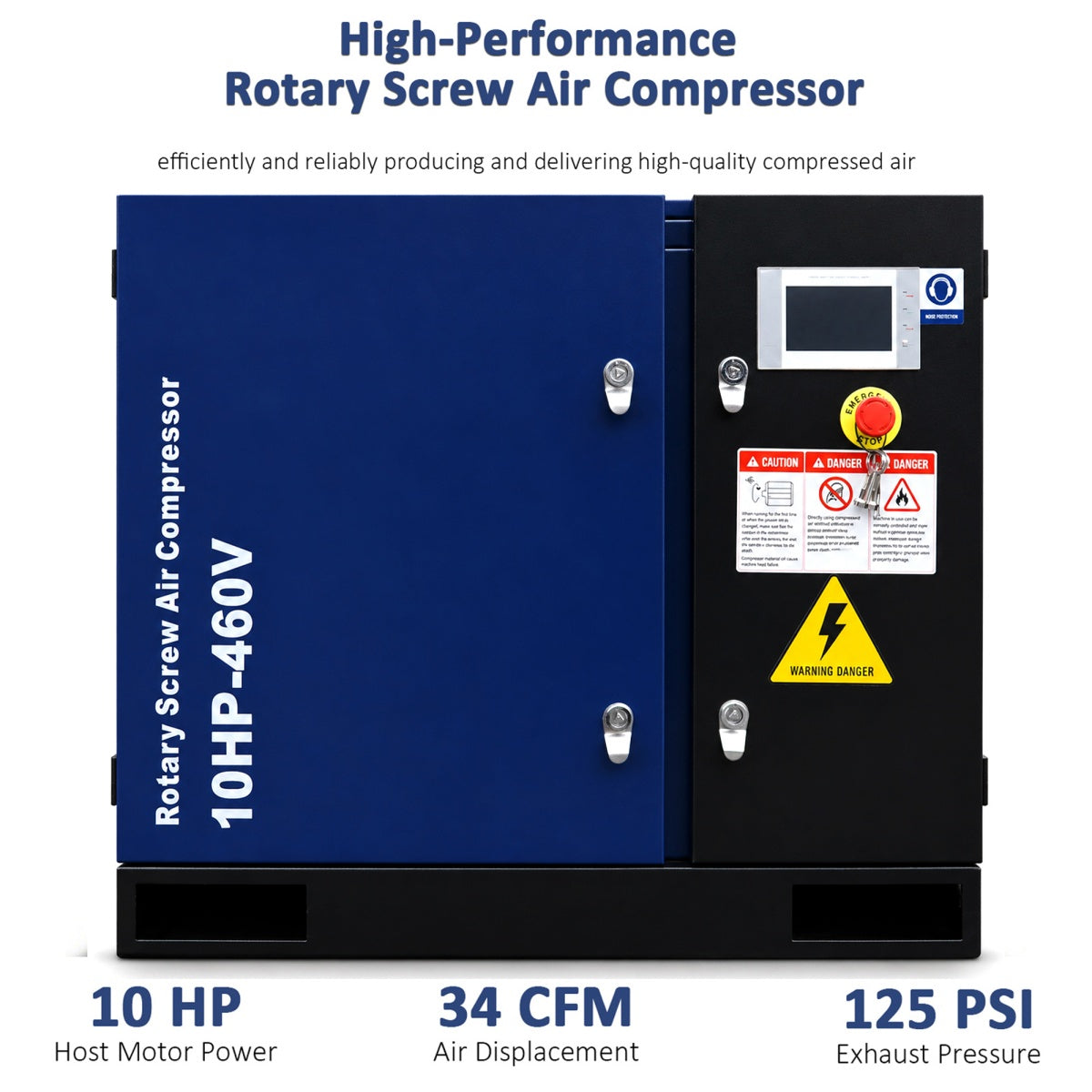

This 10HP rotary screw air compressor is a powerful core for industrial applications, delivering a stable output of 34 CFM at 125 PSI to meet demanding production needs. The 7.5KW motor features a star-delta start for smooth, reliable operation and a 230V 3-phase power supply for high efficiency. Engineered for performance and durability with excellent discharge temperature control, it is the pneumatic solution you can trust.

  • Powerful Performance: Air displacement of 34 CFM at 125 PSI.
  • Stable Drive: Host motor speed of 3500 r/min with star-delta start method.
  • Power Configuration: Motor power of 7.5KW / 10 HP, power supply of 230V / 60HZ / 3PHASE or 460V / 60HZ / 3PHASE.
  • Connection Specs: Pipe diameter of NPT 3/4" with a maximum current of 28.1A(230V / 60HZ / 3PHASE) or 14.1A(460V / 60HZ / 3PHASE).
  • Wide Adaptability: Aspiration temperature range of 0~104°F and discharge temperature ≤ Ambient Temp + 59°F.

Features

  • Advanced LCD Controller

    Real-time display with easy setup. Built-in overload & temperature protection plus maintenance alerts help prevent downtime and extend compressor life.

  • Air Outlet Thread

    Air Outlet Thread: 3/4" NPT.

  • Direct Drive Efficiency

    100% power transmission with no belt loss. Maintenance-free design improves reliability and reduces downtime.

  • Clean Air, Lower Energy Use

    Efficient separation ensures dry air output, reduced pressure loss, and consistent system stability.

  • Strip Oil Gauge

    Clear indication of oil level.

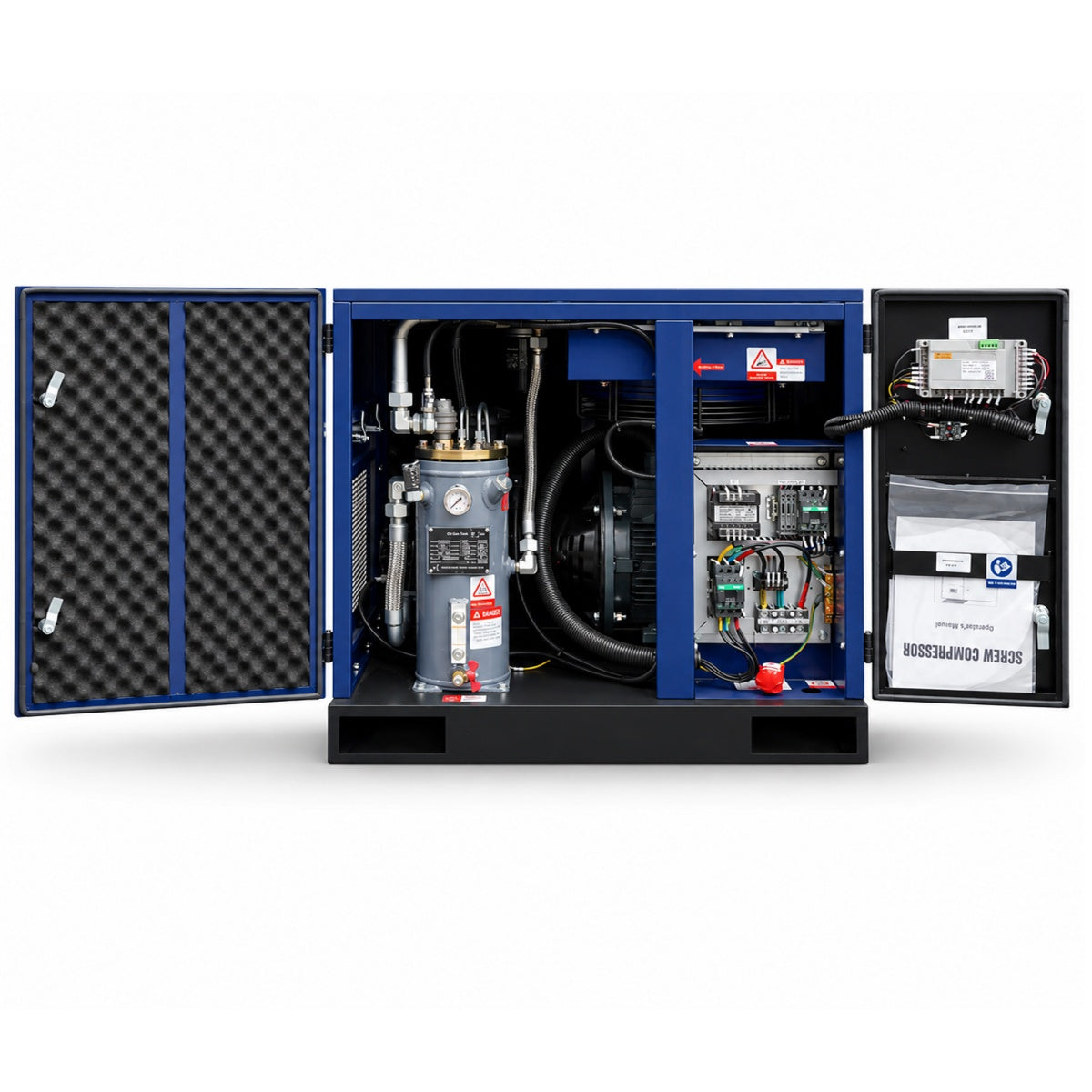

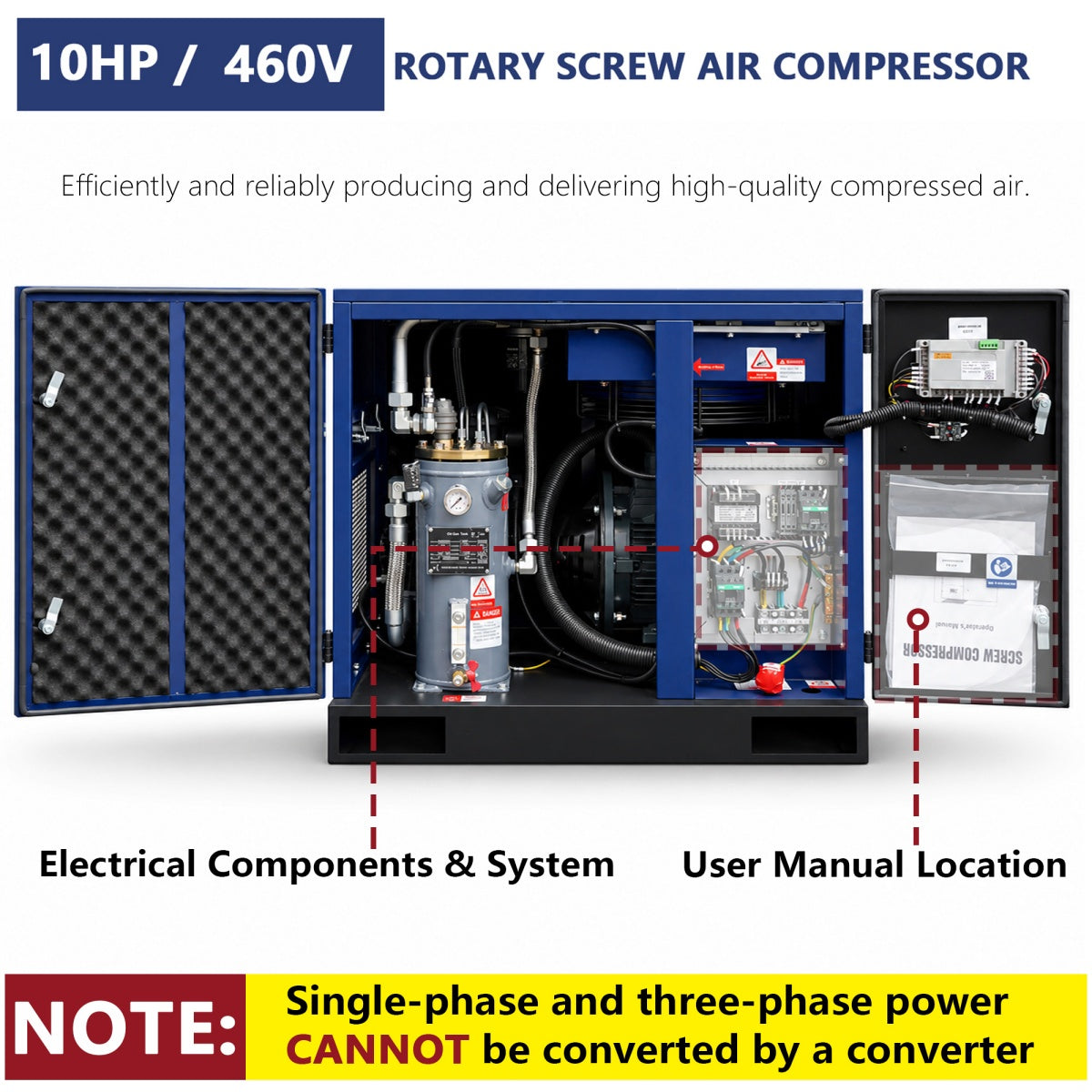

  • Electrical Components & Systems

    Adoption of Schneider brand electrical components.

  • Efficient & Durable Air Filter

    Large dust capacity with low resistance—delivers cleaner air, better efficiency, and reliable operation in tough environments.

  • Cleaner Air, Lower Maintenance

    Precision filtration protects your compressor while reducing service time and operating costs.

  • Acoustic Insulation

    High-performance acoustic insulation significantly reduces compressor noise levels.

Specifications

Dimension
34.05x22.84x29.53 inch
Voltage
230V 3Phase 60HZ / 460V 3Phase 60HZ
Air Flow Capacity
34CFM
Rated Pressure
125PSI
Maximum Pressure
130.5PSI
Air Outlet Thread
3/4" NPT
Maximum Current
28.1A(230V); 14.1A(460V)
Rated Power
10HP
Motor Speed
3500RPM(230V); 3495RPM(460V)
Noise Level
62±2dB(A)
Warranty
1-Year Warranty | Parts covered, consumables extra

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

230V 3Ph 60Hz

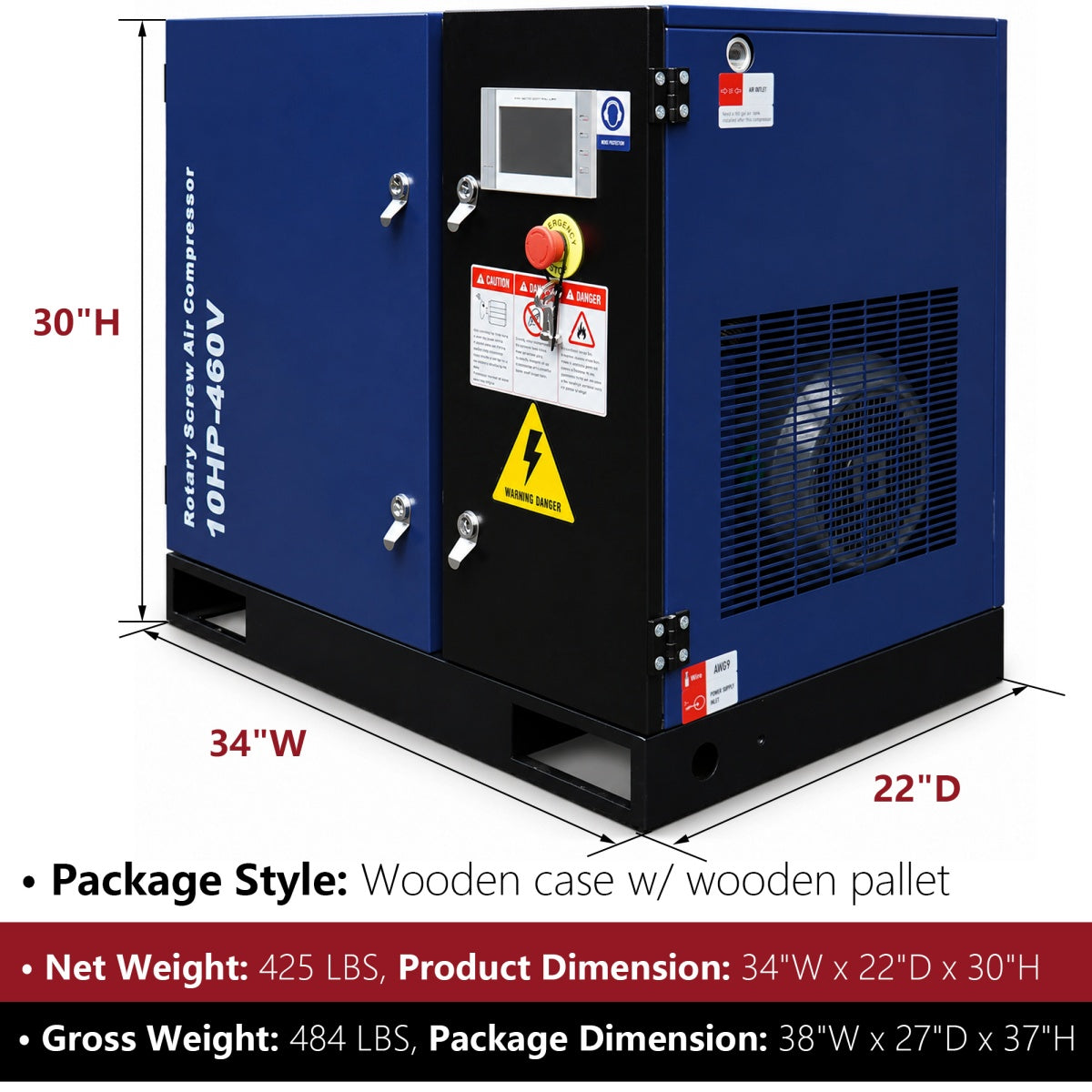

• LxWxH (inch): 37x26x37
• Weight (lb): 422

460V 3Ph 60Hz
• LxWxH (inch): 38x27x37
• Weight (lb): 484

• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.
