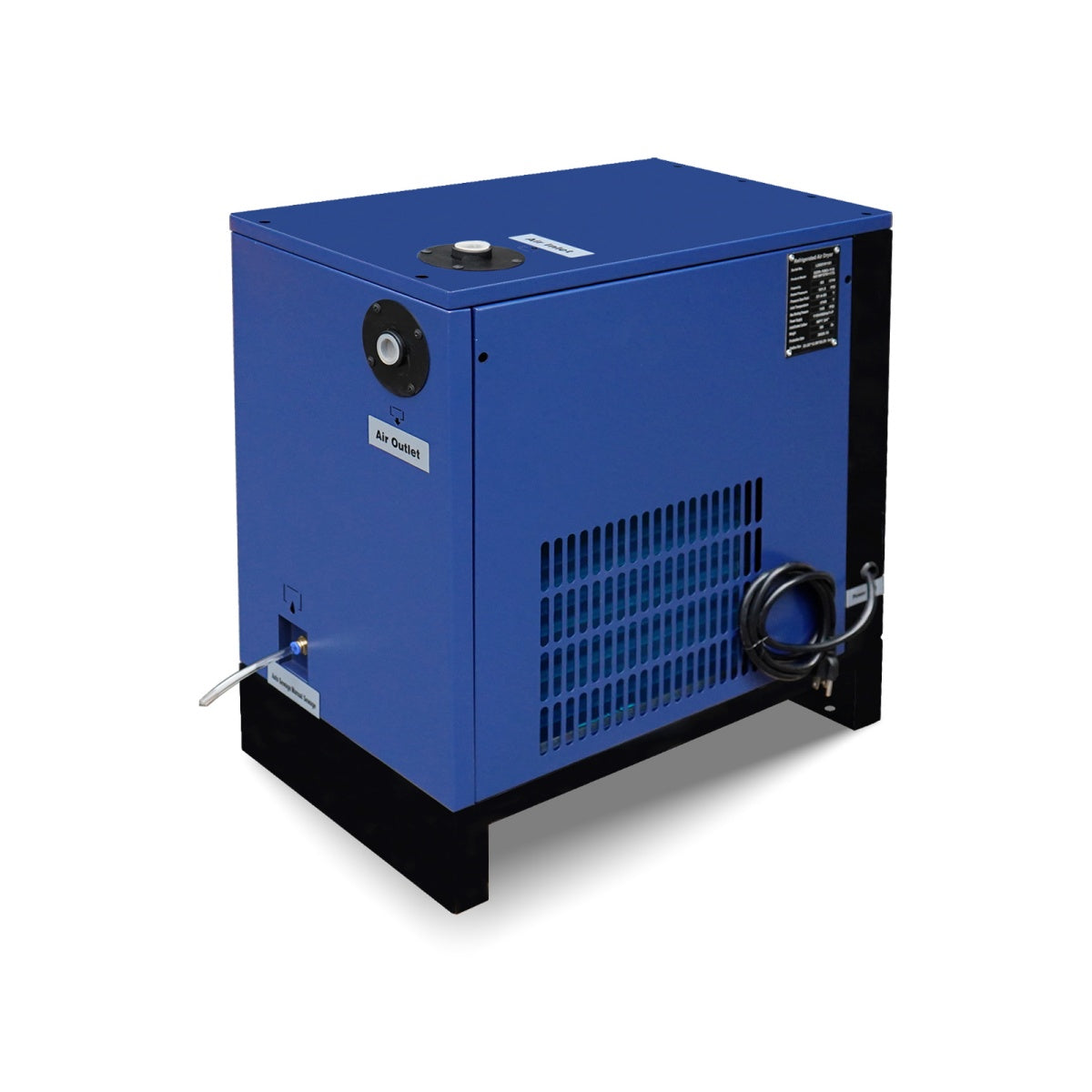

63CFM Refrigerated Air Dryer for 10HP & 15HP Compressors

63CFM Refrigerated Air Dryer for 10HP & 15HP Compressors

Chery Industrial SKU: N818P370117S
Max Flow
63CFM
Rated Pressure
101.5PSI
$1,049.00
$1,049.00

In Stock

Pickup available
TX, MD, CA, NC

63CFM Refrigerated Air Dryer for 10HP & 15HP Compressors

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

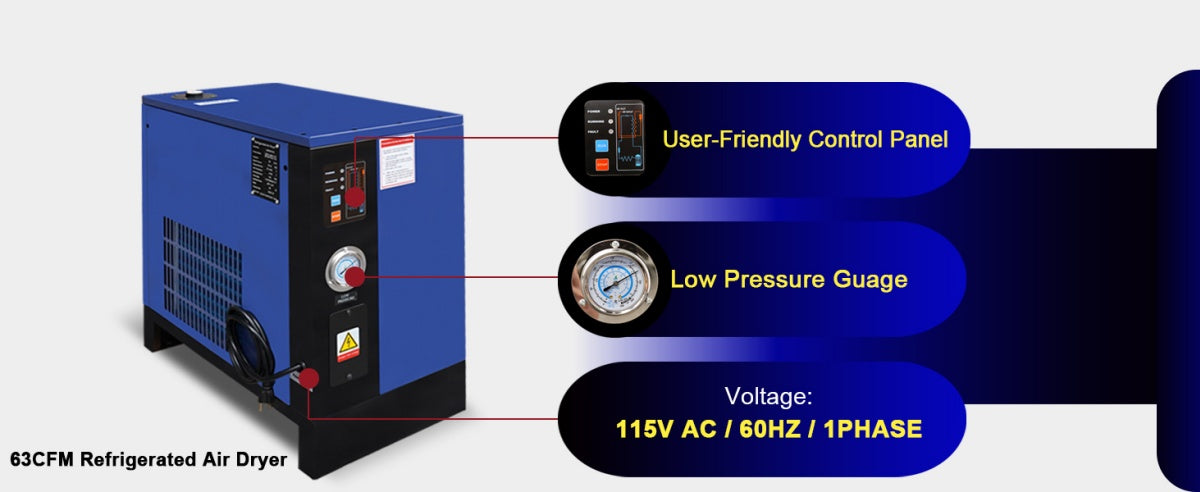

Protect your equipment with our 63 CFM refrigerated air dryer, perfectly matched for 10HP & 15HP compressors. This 1-phase 115V unit efficiently removes moisture to prevent corrosion and ensure optimal air quality. A reliable, industrial-grade solution for protecting your compressed air systems and pneumatic tools.

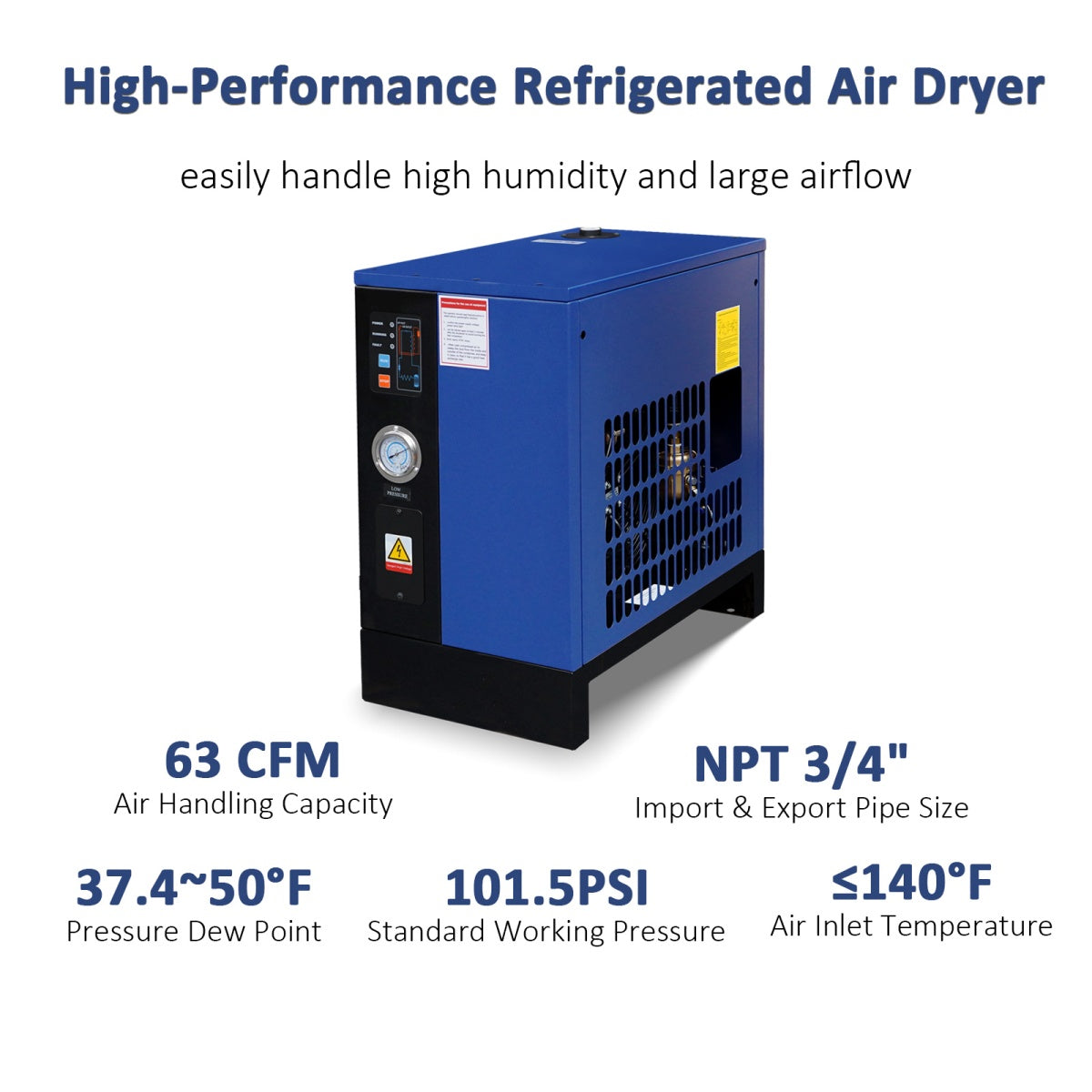

  • Air handling capacity: 63 CFM, pressure dew point: 37.4-50°F.
  • Standard working pressure: 101.5 PSI, maximum working pressure: 145 PSI.
  • Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F.

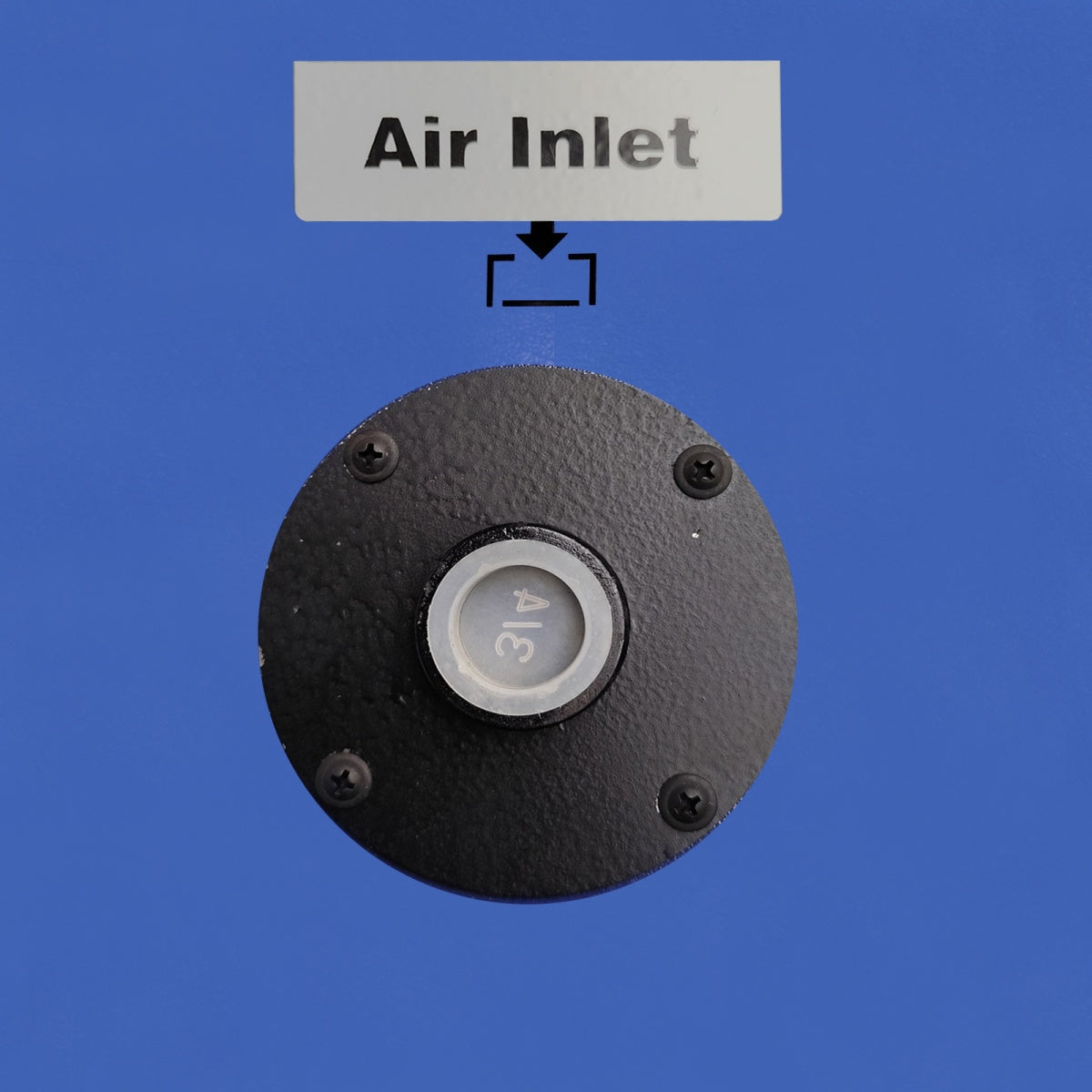

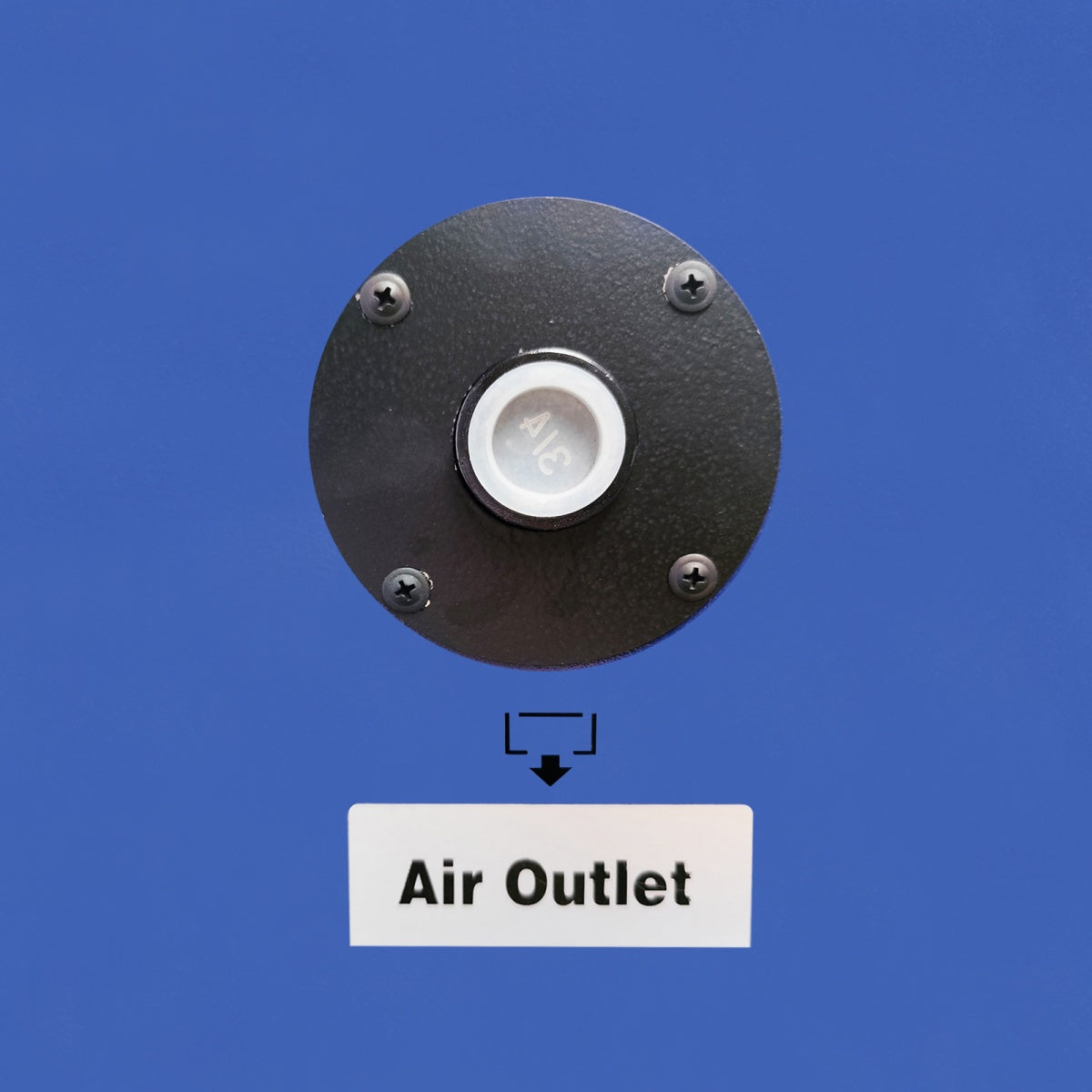

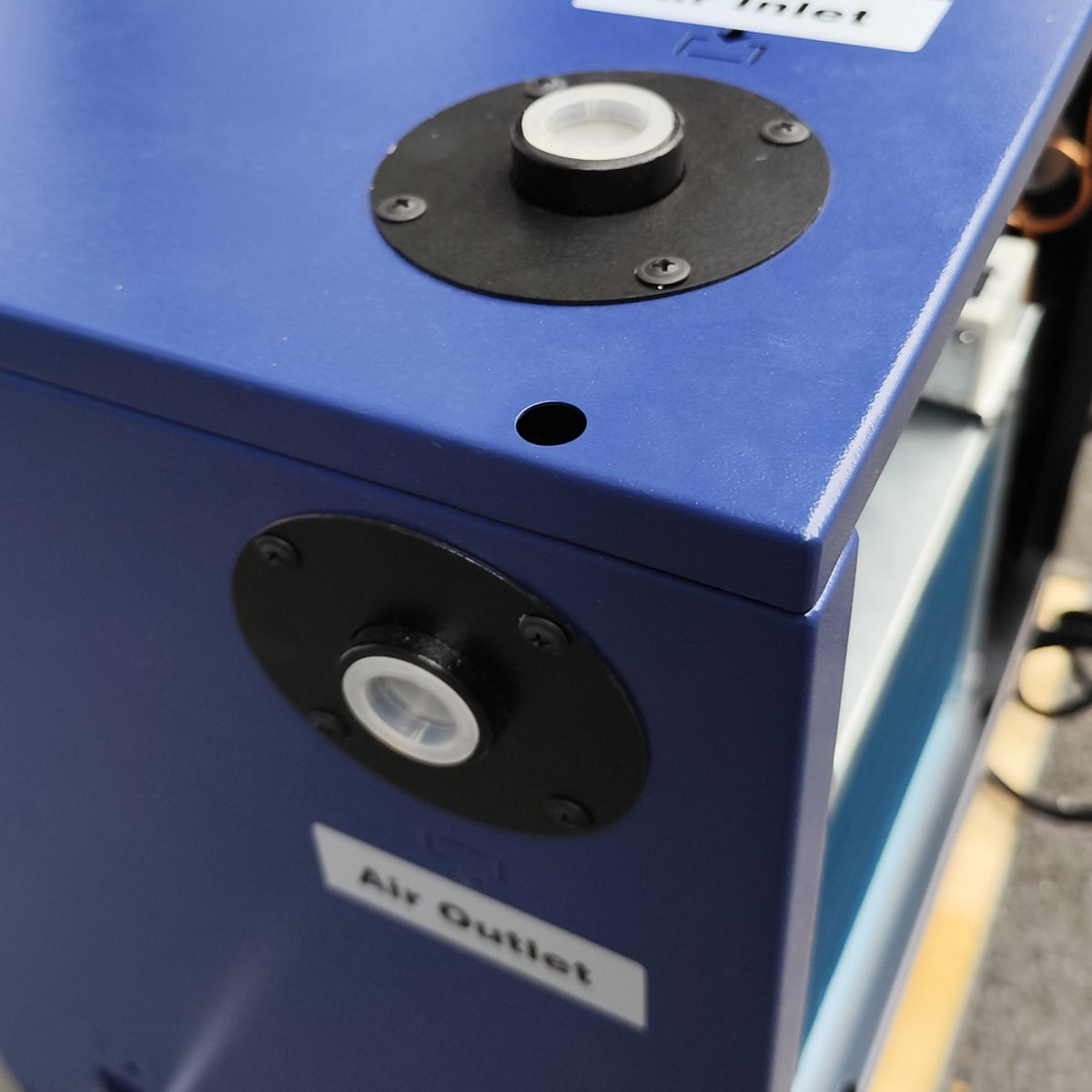

  • Adaptation to the work system: continuous work, import and export pipe size: NPT 3/4".

Specifications

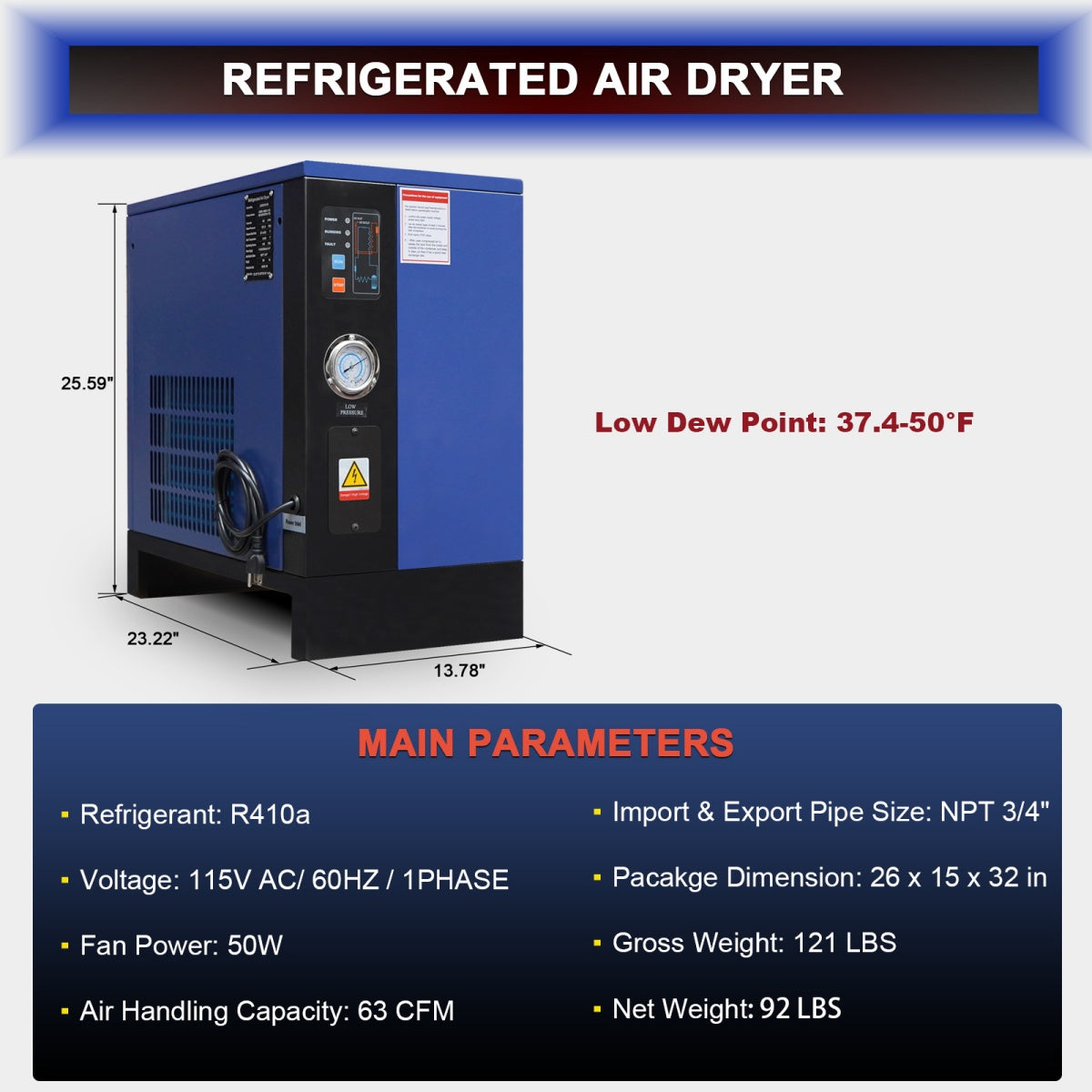

Dimension
23.22x13.78x25.59 inch

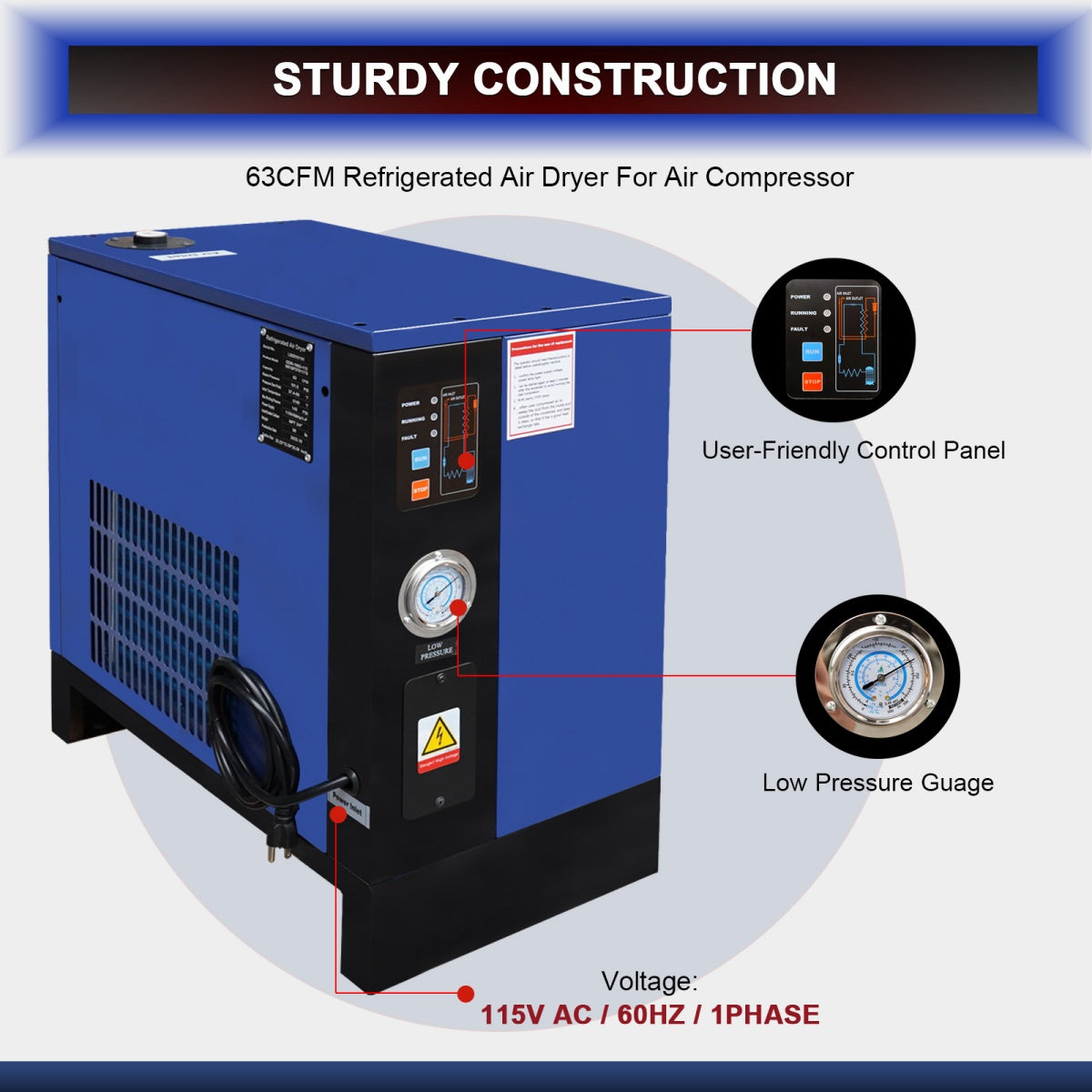

Voltage
115V 1Phase 60HZ
Max Flow
63CFM
Rated Pressure
101.5PSI
Maximum Pressure
145PSI

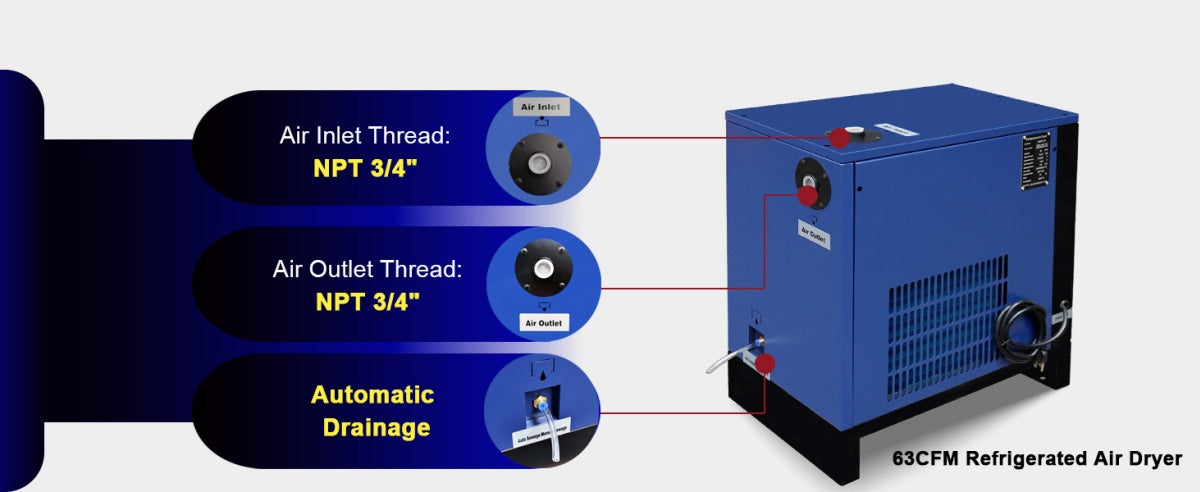

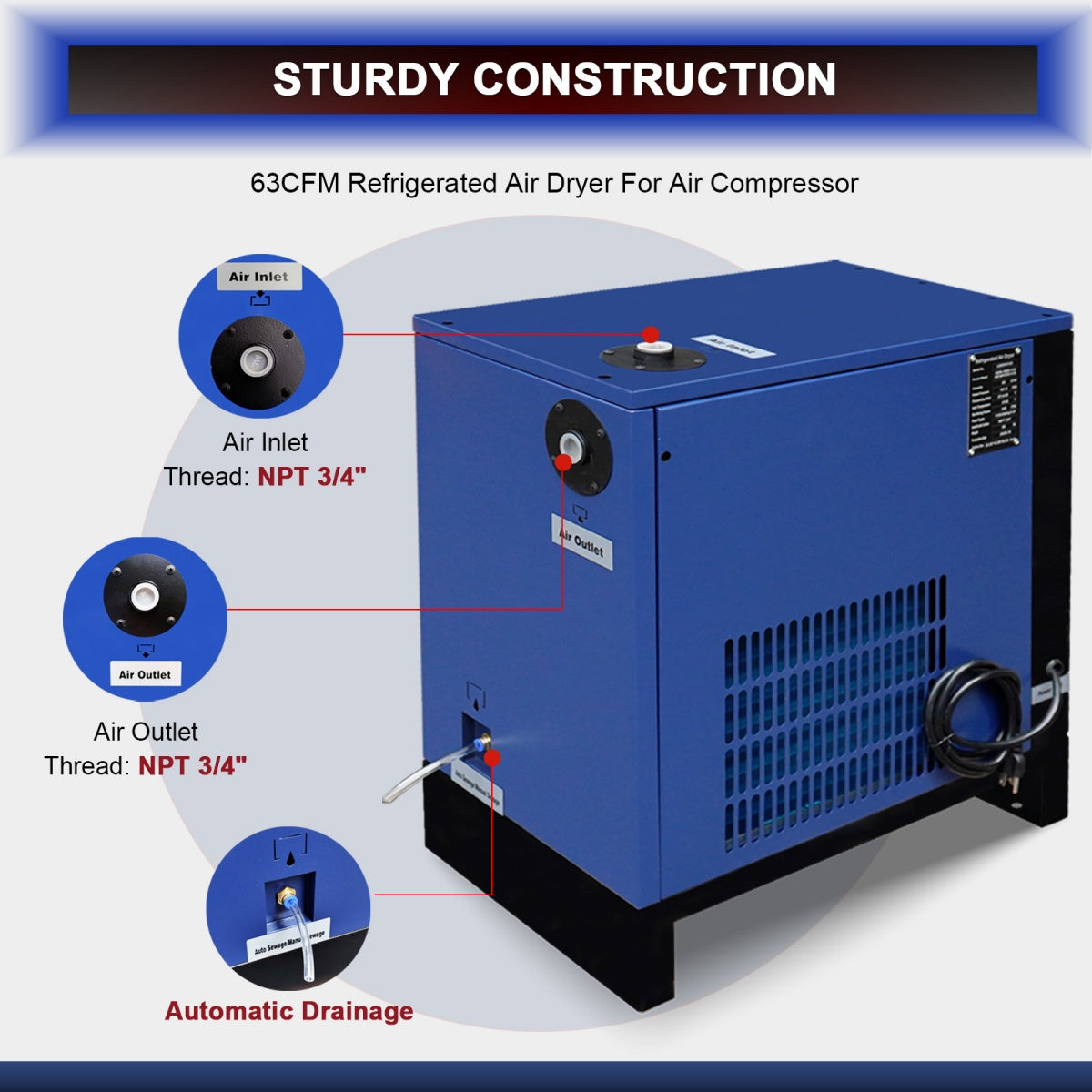

Air Inlet Thread
3/4" NPT
Air Outlet Thread
3/4" NPT
Pressure Dew Point
37.4-50°F
Air Inlet Temperature
≤140°F
Ambient Temperature
≤100.4°F
Refrigerant
R410a
Fan Power
50W
Cooling Power
0.5HP

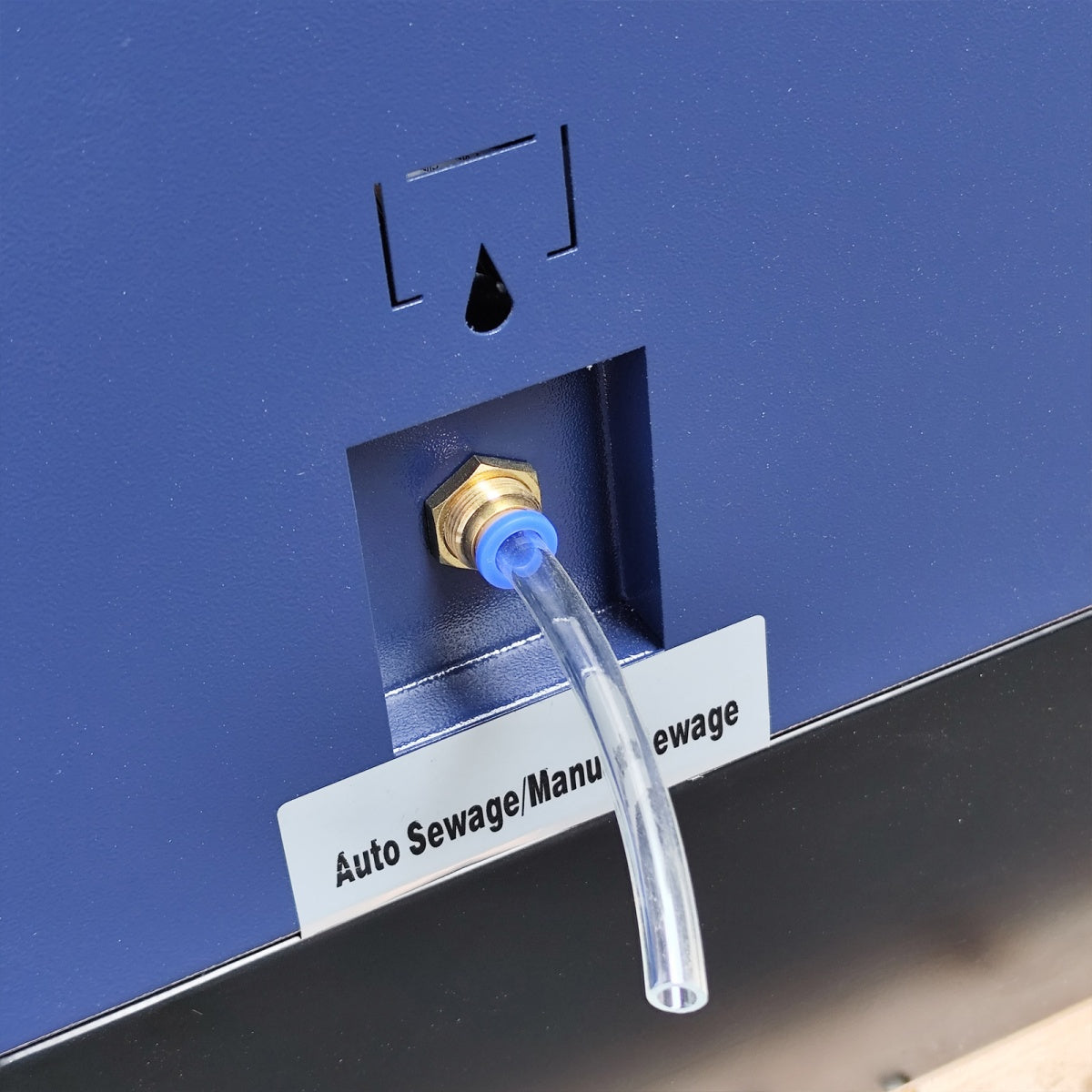

Blowdown Valve
Electronic blowdown valve

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 26x16x32
• Weight (lb): 121
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.
