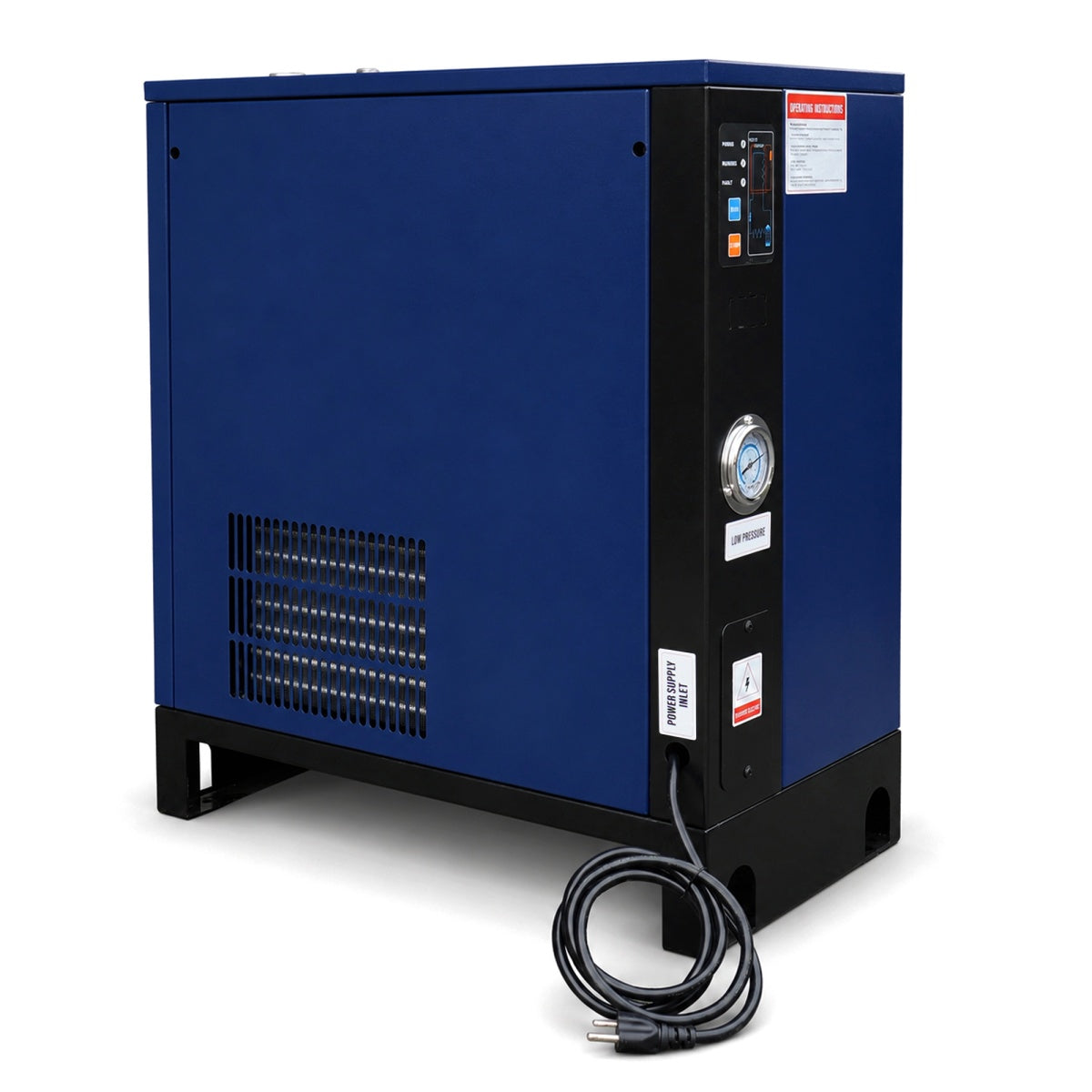

63CFM Refrigerated Air Dryer for 10HP & 15HP Compressors

63CFM Refrigerated Air Dryer for 10HP & 15HP Compressors

Chery Industrial SKU: N818P370117S
Max Flow
63CFM
PSI
101.5
Voltage
115V
$1,499.00
$1,499.00

In Stock

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

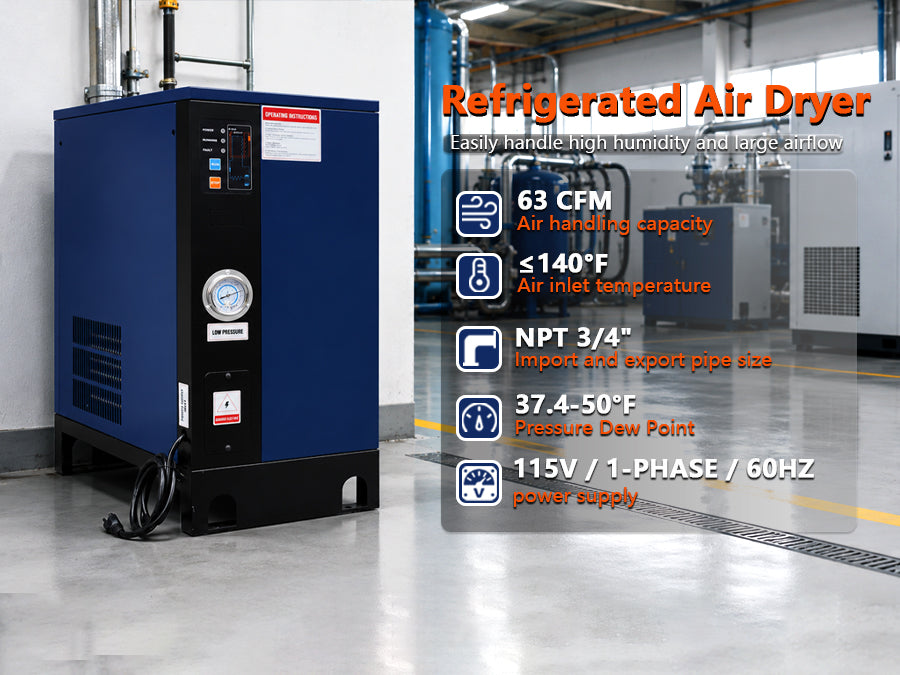

Protect your equipment with our 63 CFM refrigerated air dryer, perfectly matched for 10HP & 15HP compressors. This 1-phase 115V unit efficiently removes moisture to prevent corrosion and ensure optimal air quality. A reliable, industrial-grade solution for protecting your compressed air systems and pneumatic tools.

  • Air handling capacity: 63 CFM, pressure dew point: 37.4-50°F.
  • Standard working pressure: 101.5 PSI, maximum working pressure: 145 PSI.
  • Air inlet temperature: ≤140°F, ambient temperature: ≤100.4°F.
  • Adaptation to the work system: continuous work, import and export pipe size: NPT 3/4".

Specifications

Dimension
23.23x13.78x29.33 inch
Voltage
115V 1Phase 60HZ
Max Flow
63CFM
Rated Pressure
101.5PSI
Maximum Pressure
145PSI
Air Inlet Thread
3/4" NPT
Air Outlet Thread
3/4" NPT
Pressure Dew Point
37.4-50°F
Air Inlet Temperature
≤140°F
Ambient Temperature
≤100.4°F
Refrigerant
R410a
Fan Power
50W
Cooling Power
0.5HP
Blowdown Valve
Electronic blowdown valve

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 36x27x17
• Weight (lb): 133
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.
