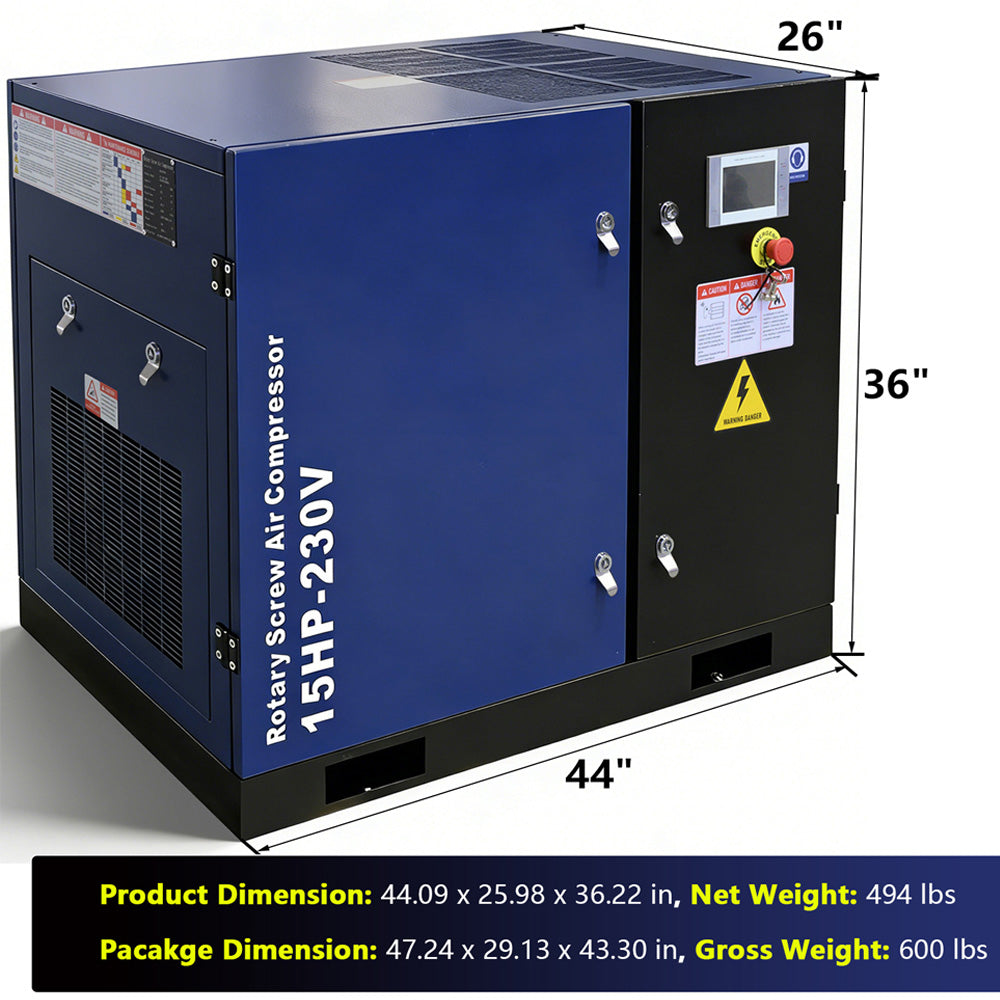

  • Blue rotary screw air compressor with dimensions and specifications on a white background
  • 15HP/11KW rotary screw air compressor with labeled components on a white background
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • 56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ
  • Blue industrial compressor with open side panel on a white background
  • Blue and black rotary screw air compressor on a white background

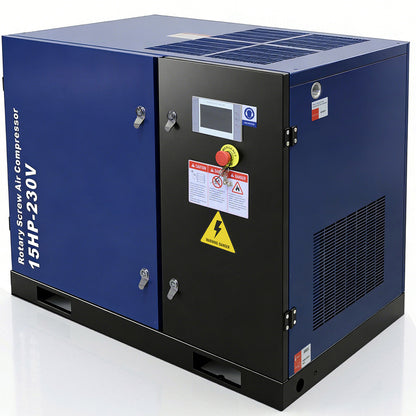

  • Blue rotary screw air compressor with visible branding and specifications on a white background

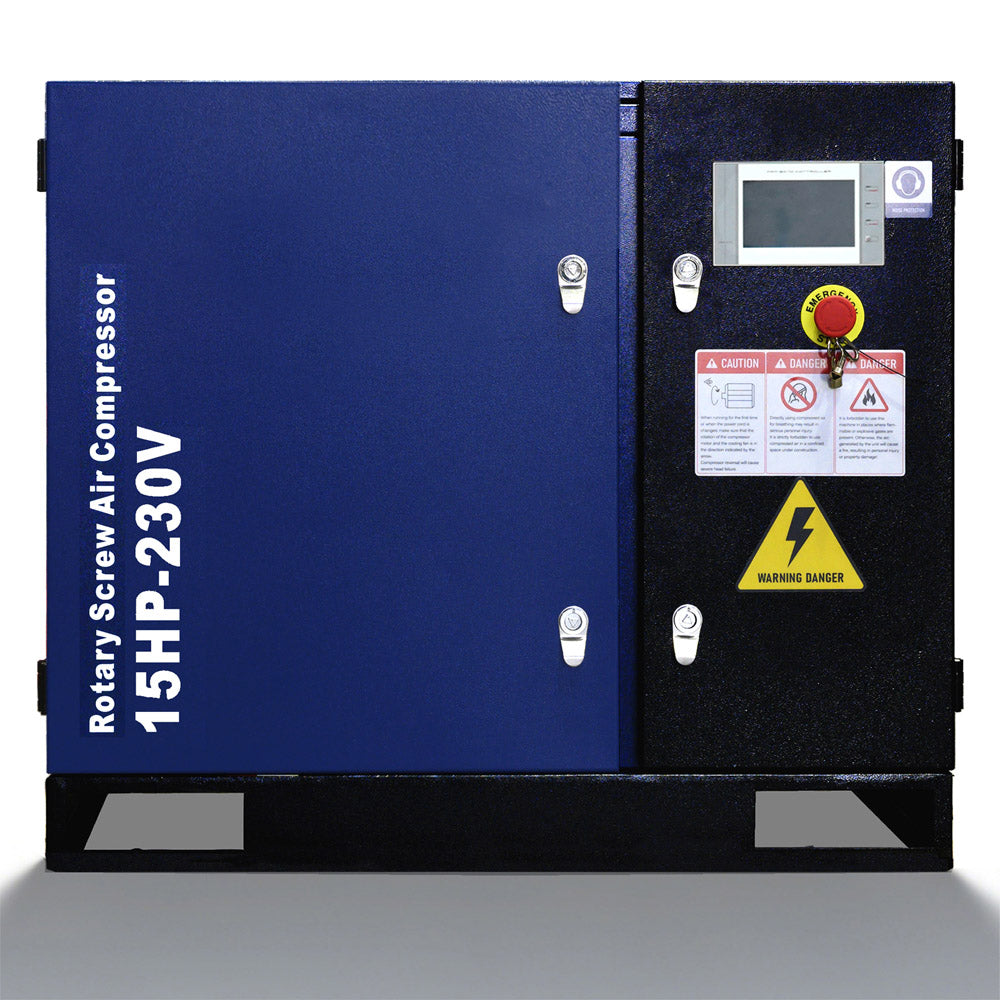

  • Blue rotary screw air compressor with warning labels on a white background
  • Blue rotary screw air compressor with text on a white background
1 20

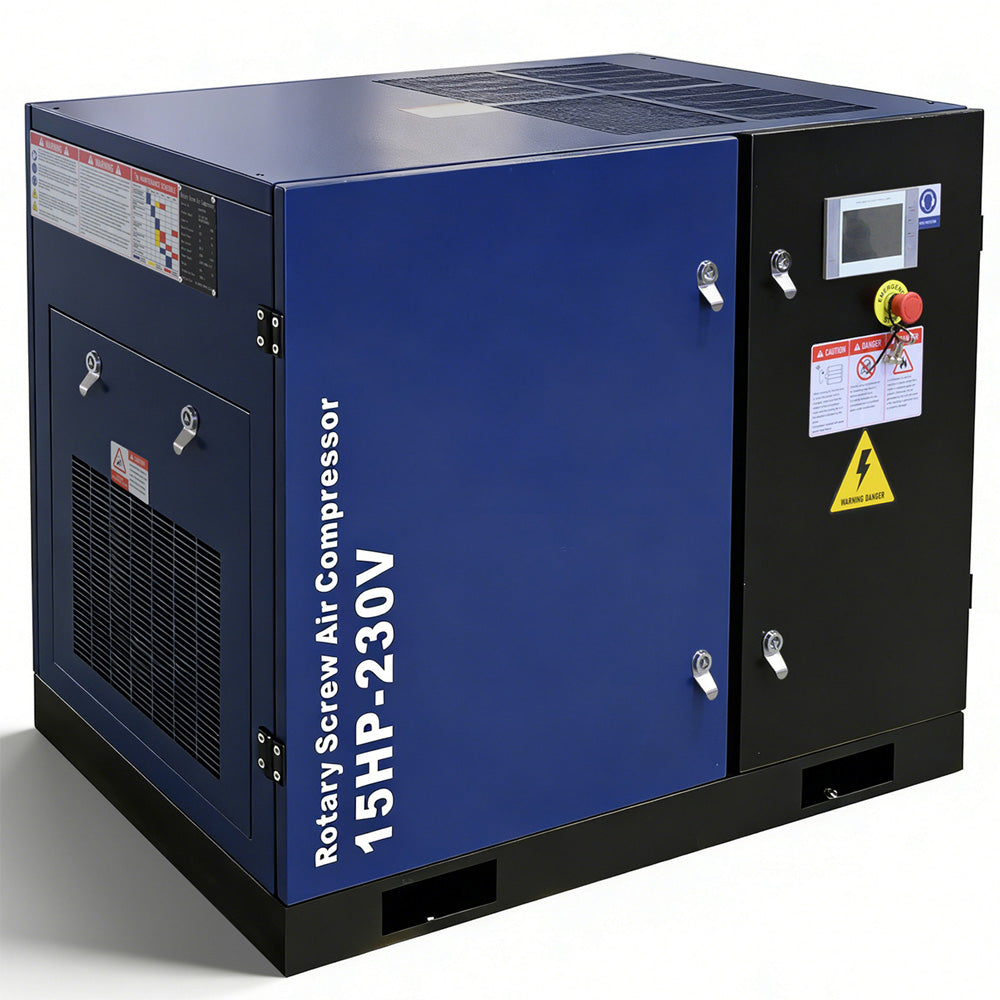

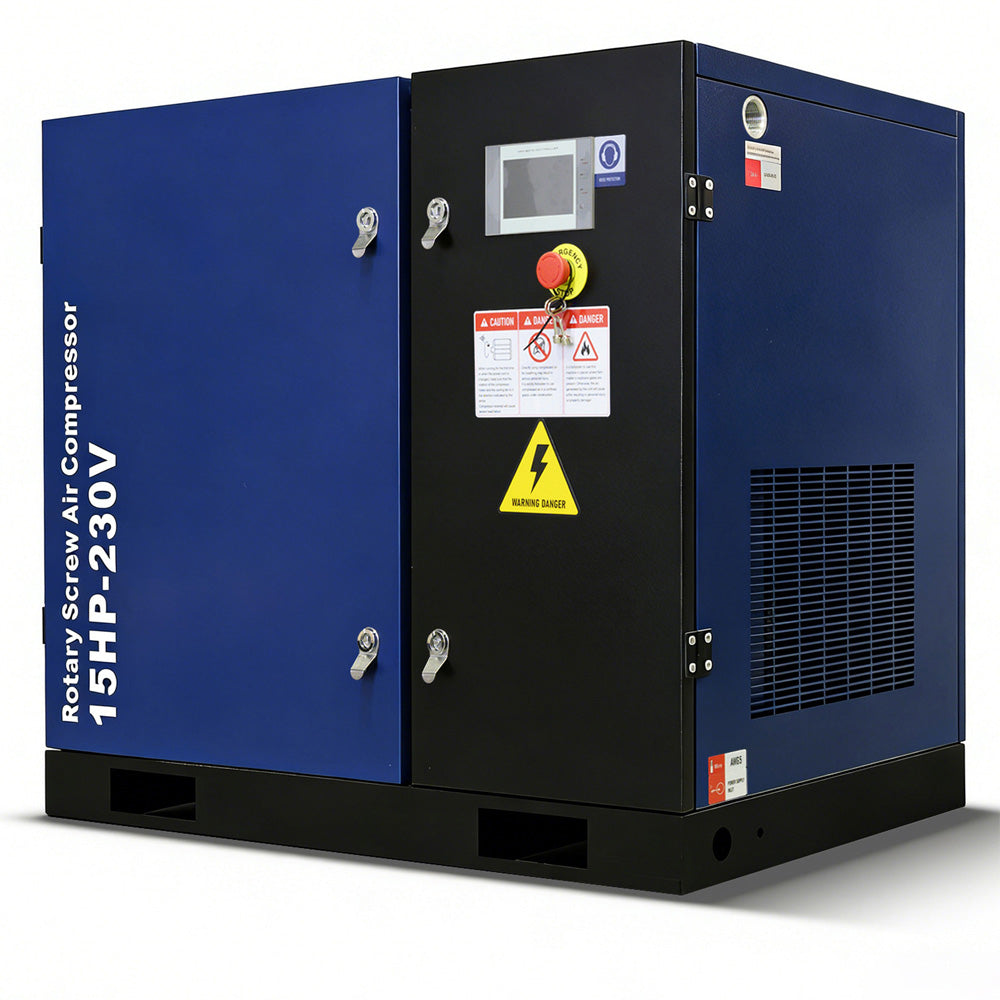

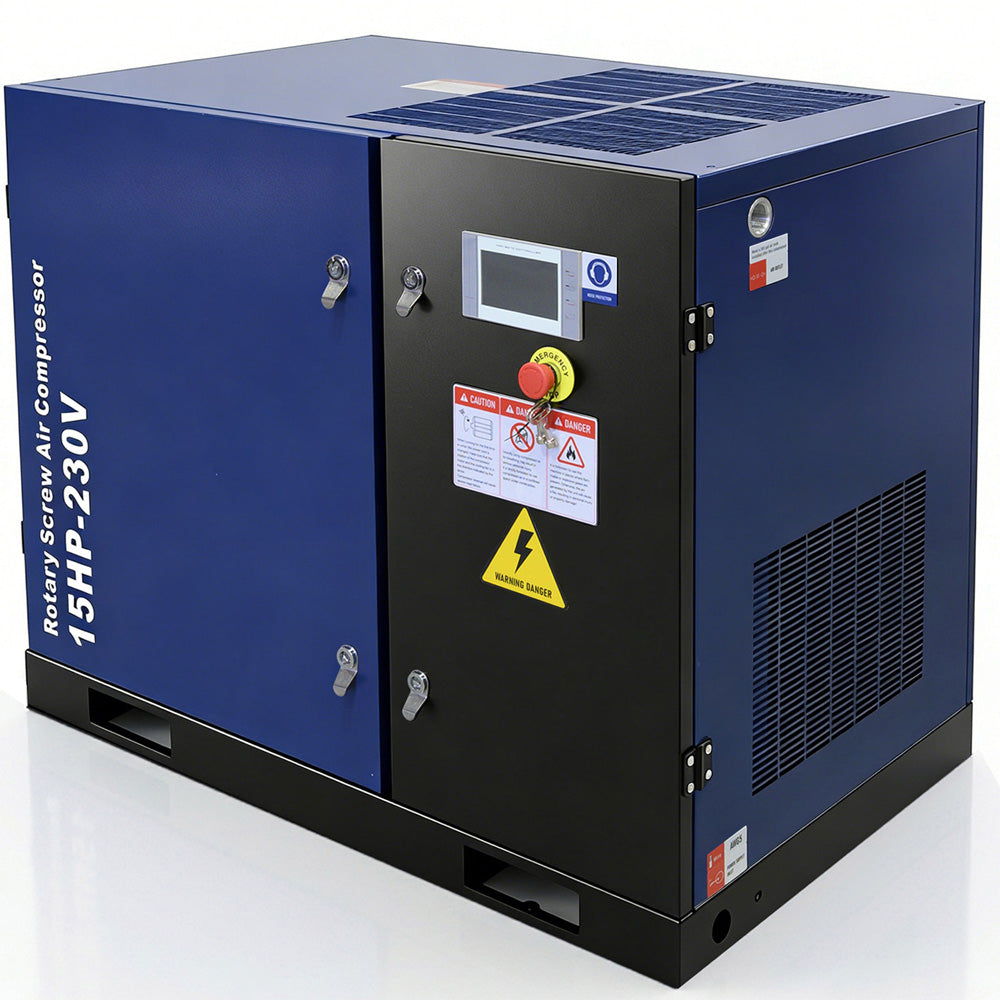

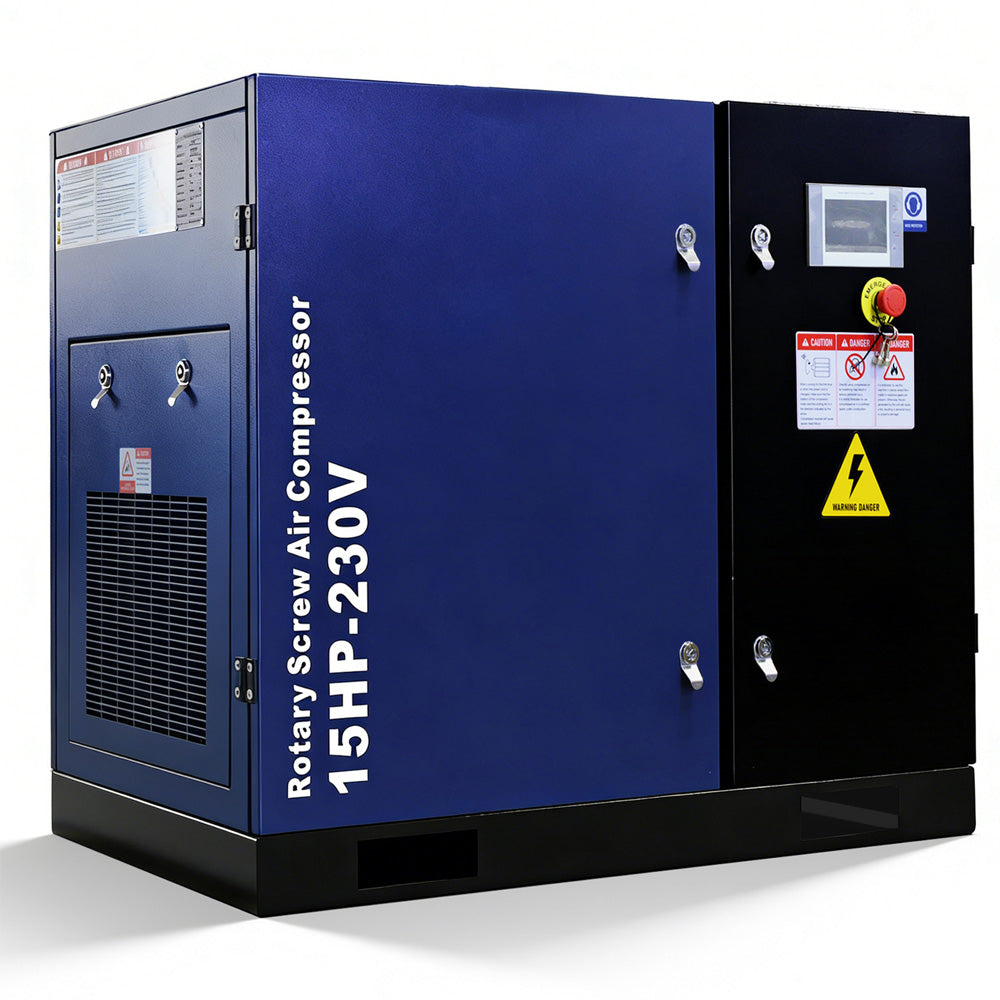

56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ

56CFM Rotary Screw Air Compressor, 15HP, 125PSI, 230V 3PHASE 60HZ

Chery Industrial SKU: N818P370085S
Air Flow Capacity
56CFM
PSI
125
Voltage
230V
$3,999.00
$3,999.00

In Stock

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

Power your operations with our industrial-grade 15HP rotary screw air compressor. Delivering a reliable 56 CFM at 125 PSI, this heavy-duty, fixed-speed system is built for continuous performance. Ideal for demanding workshops and factories. Requires 230V 3-phase 60Hz power for maximum efficiency.

The recommended air tank size is 265 gallons to achieve the best performance from the air compressor, while the minimum tank size is 69.81 gallons.

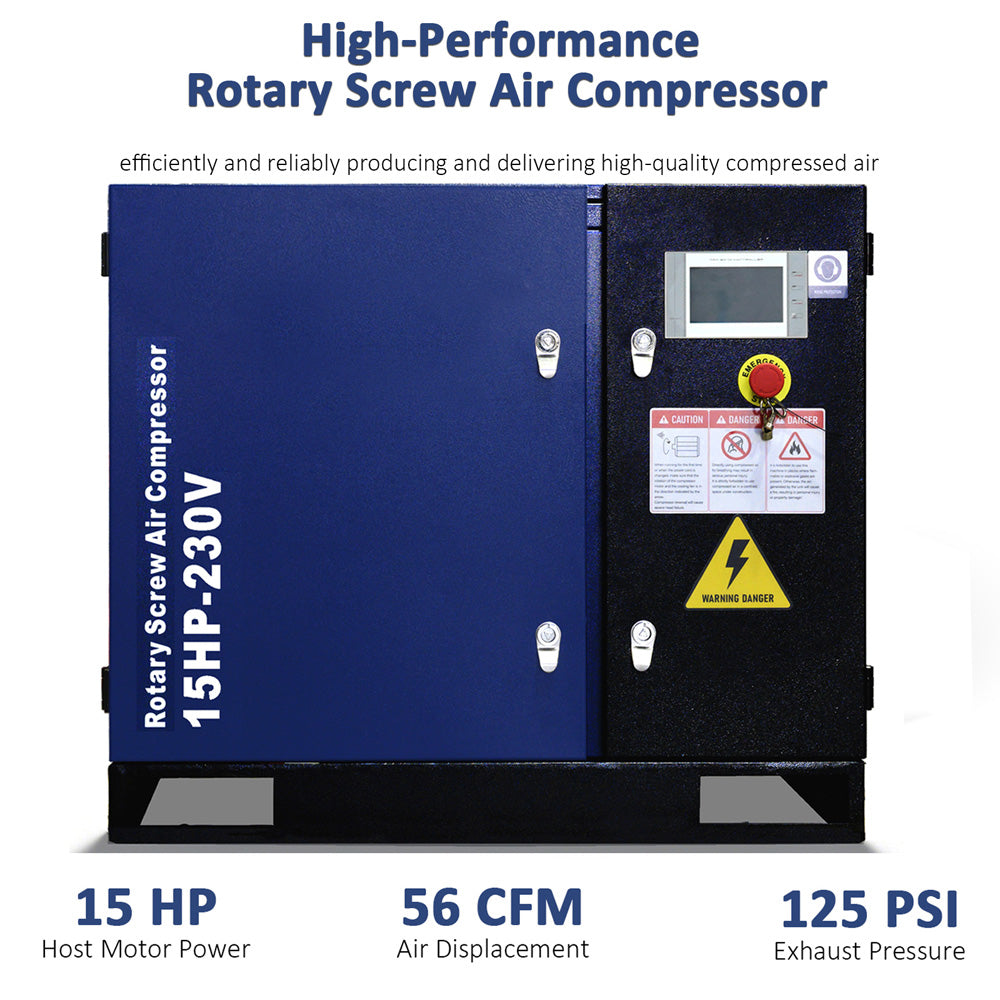

  • Air displacement: 56 CFM, exhaust pressure: 125 PSI.
  • Host motor speed: 3500 r/min, start method: star-triangle start.
  • Host motor power: 11 KW / 15 HP, power supply: 230V / 60Hz / 3-phase.
  • Pipe diameter: NPT 1", max current: 40.9 A, aspiration state temperature: 0～104°F
  • Discharge temperature: ≤A-temperature+59°F.

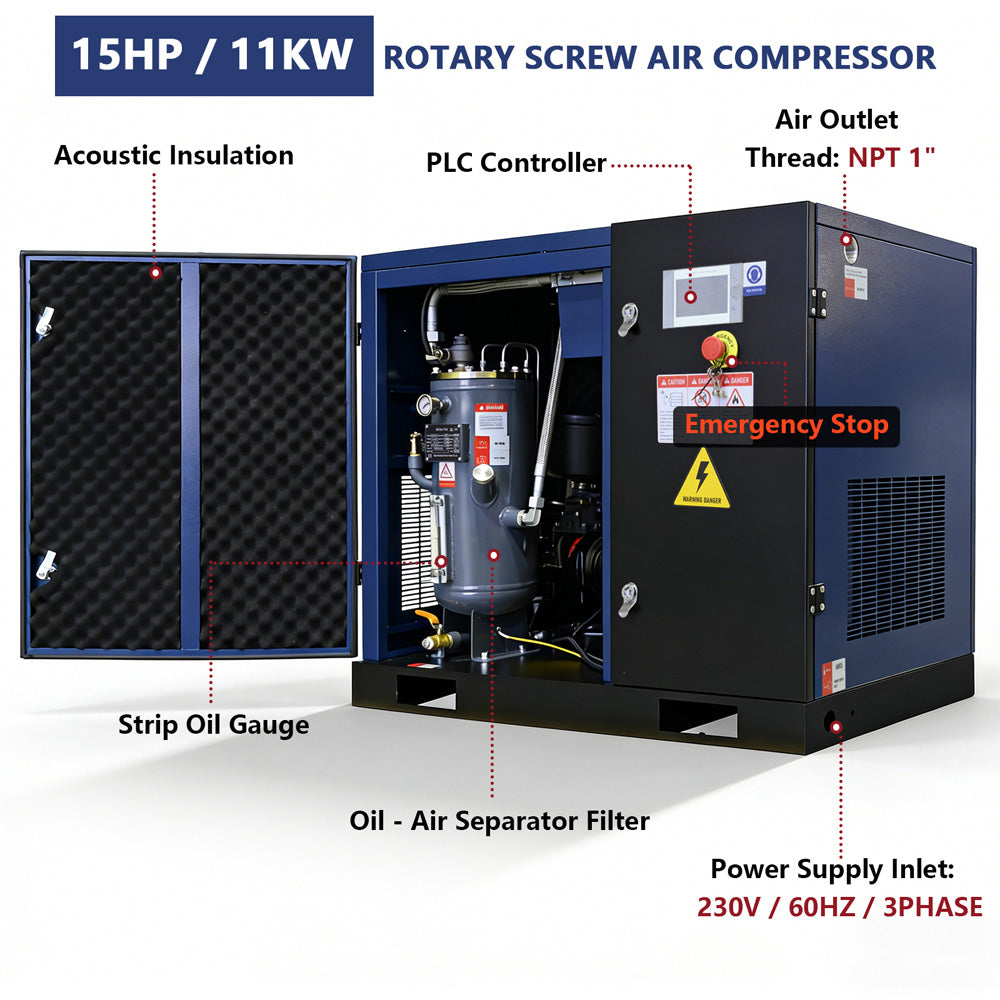

Features

  • Advanced LCD Controller

    Real-time display with easy setup. Built-in overload & temperature protection plus maintenance alerts help prevent downtime and extend compressor life.

  • Air Outlet Thread

    Air Outlet Thread: 1" NPT.

  • Direct Drive Efficiency

    100% power transmission with no belt loss. Maintenance-free design ensures higher reliability and less downtime.

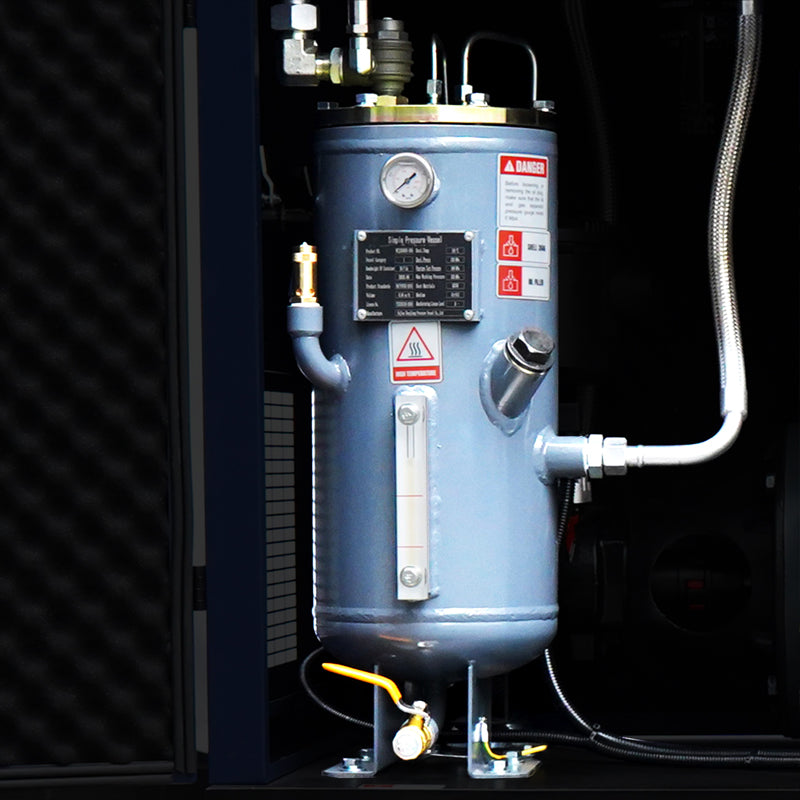

  • Efficient Oil-Air Separation

    Delivers cleaner, drier air with minimal pressure drop—reducing energy use and ensuring stable system pressure.

  • Strip Oil Gauge

    Clear indication of oil level.

  • Electrical Components & Systems

    Adoption of Schneider brand electrical components.

  • Clean Air, Stable Performance

    High-capacity filtration with low resistance—delivers better efficiency and reliable operation in harsh conditions.

  • High-Precision Oil Filter

    Delivers cleaner air and protects the compressor. Easy replacement reduces maintenance time and overall cost.

  • Acoustic Insulation

    High-performance acoustic insulation significantly reduces compressor noise levels.

Specifications

Dimension
44.09x25.98x36.22 inch
Voltage
230V 3Phase 60HZ
Air Flow Capacity
56CFM
Rated Pressure
125PSI
Maximum Pressure
130.5PSI
Air Outlet Thread
1" NPT
Maximum Current
40.9A
Rated Power
15HP
Motor Speed
3500RPM
Noise Level
62±2dB(A)
Warranty
1-Year Warranty | Parts covered, consumables extra

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 48x30x44
• Weight (lb): 600
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.
