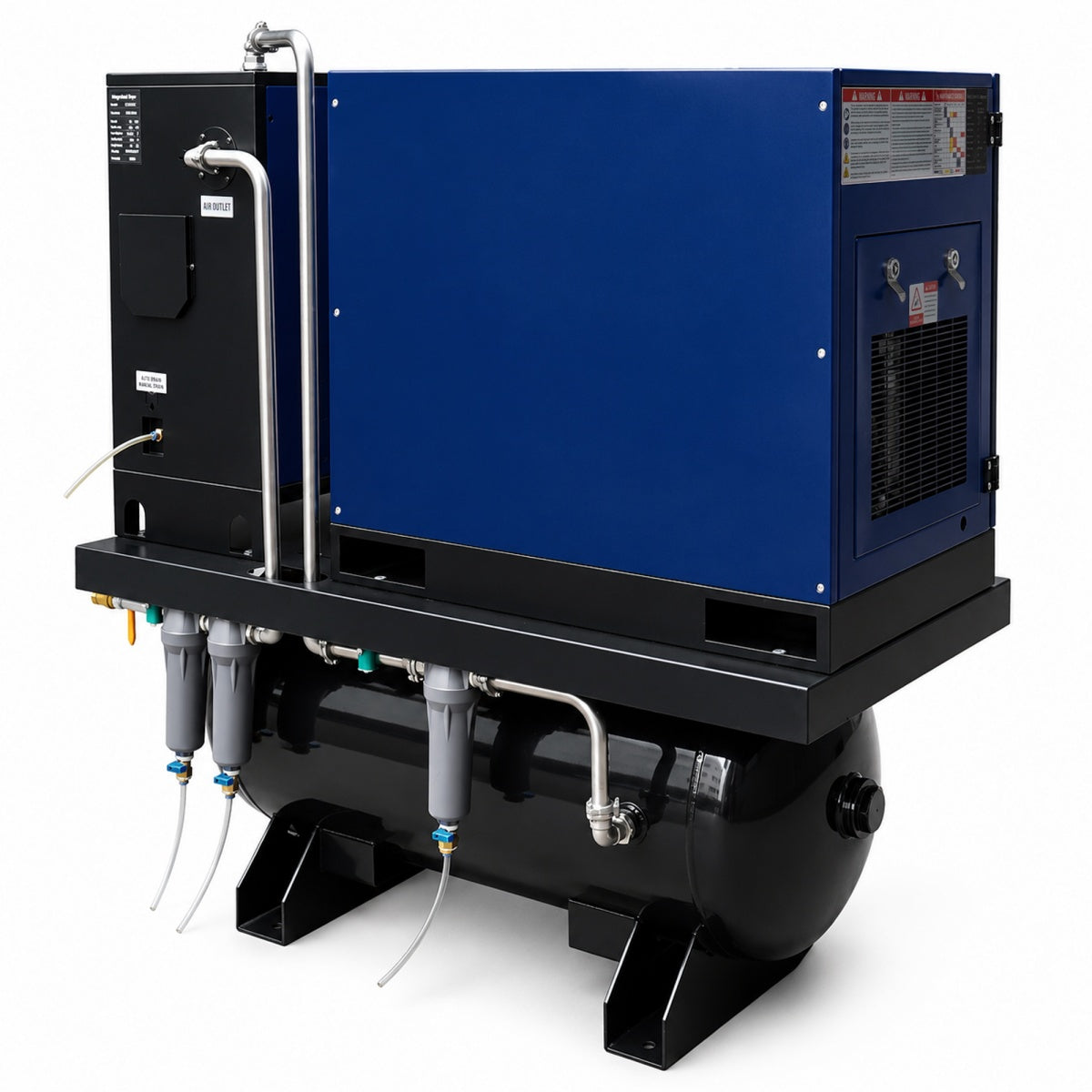

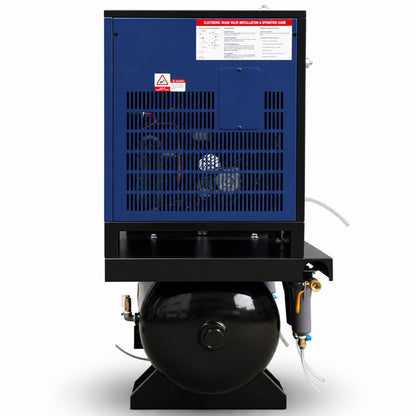

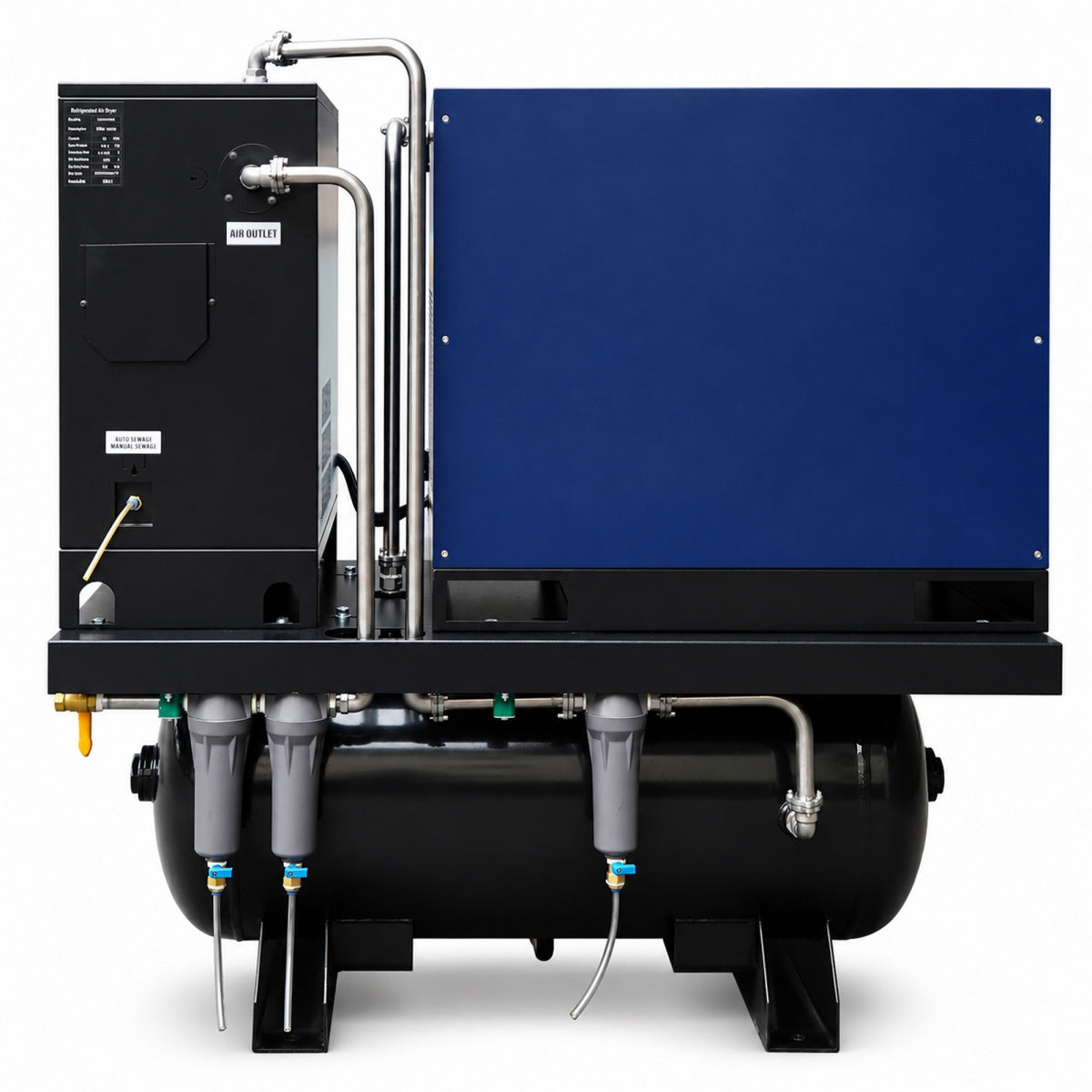

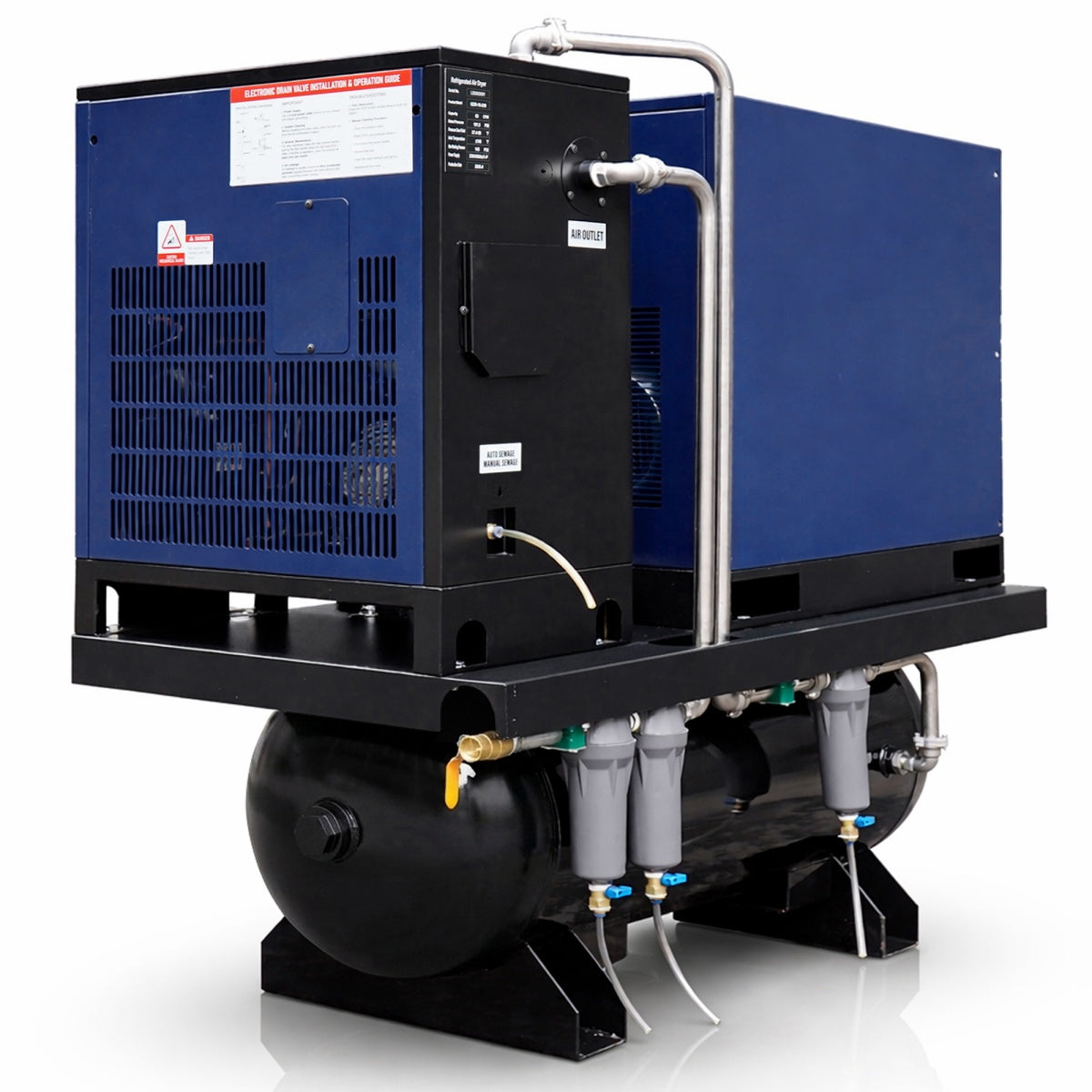

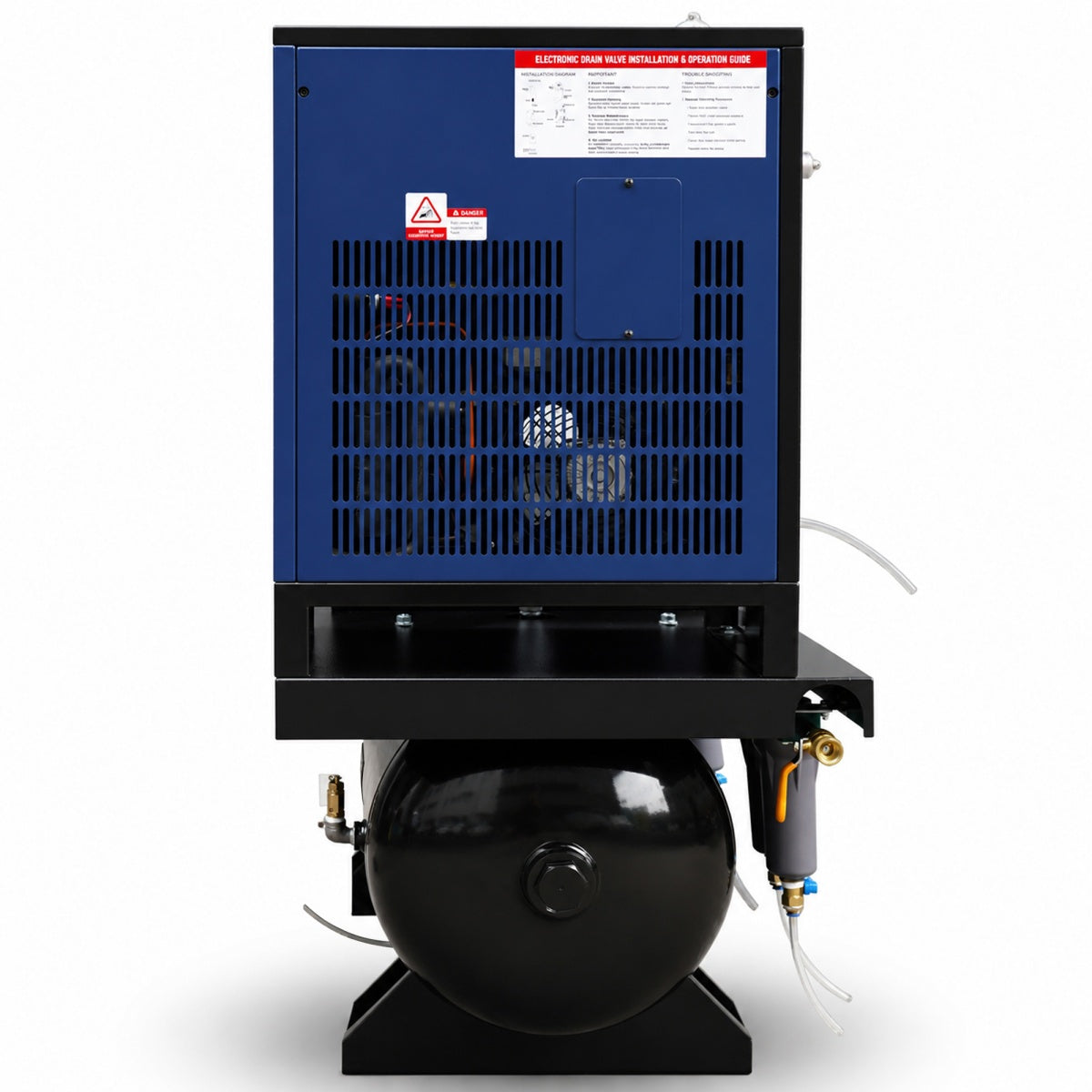

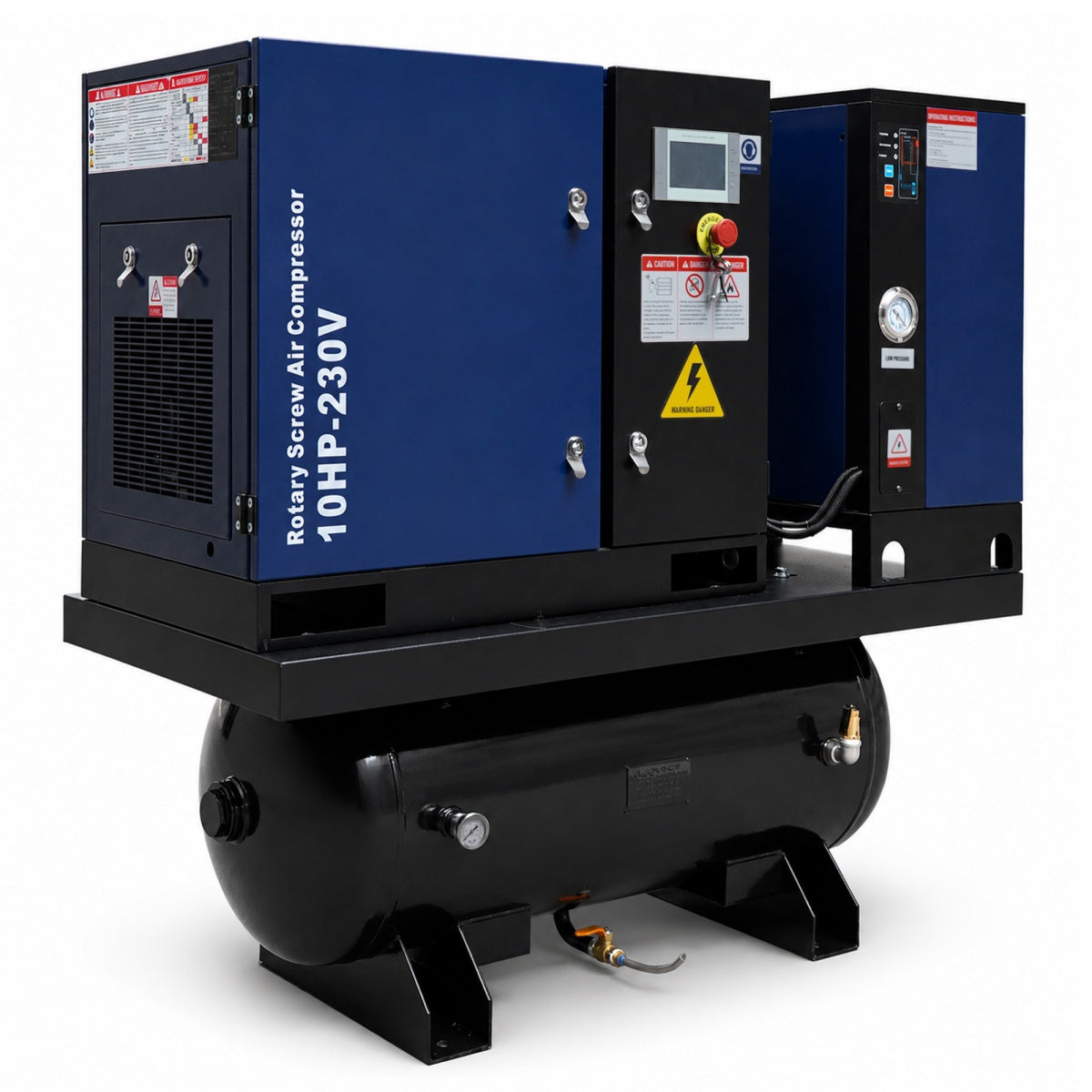

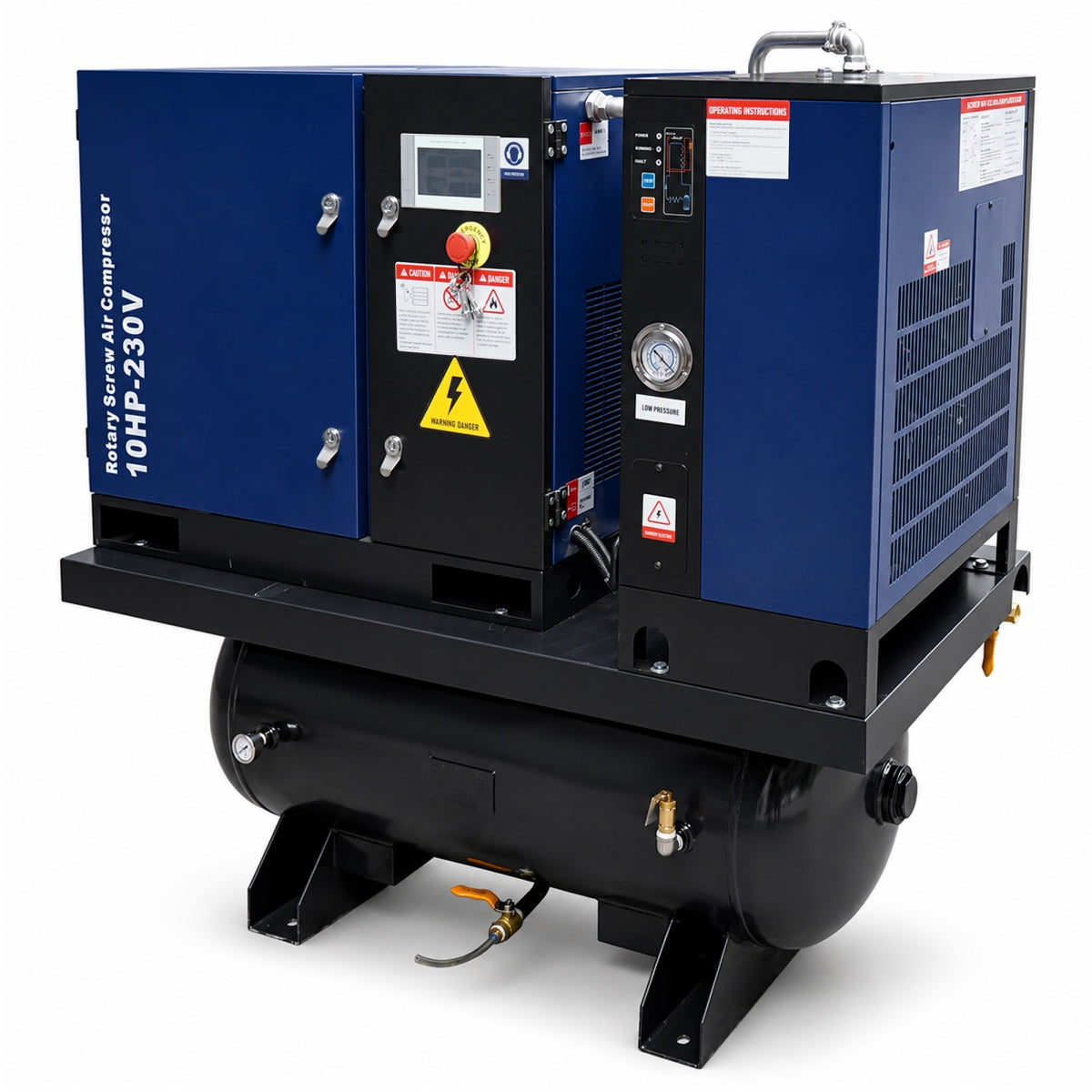

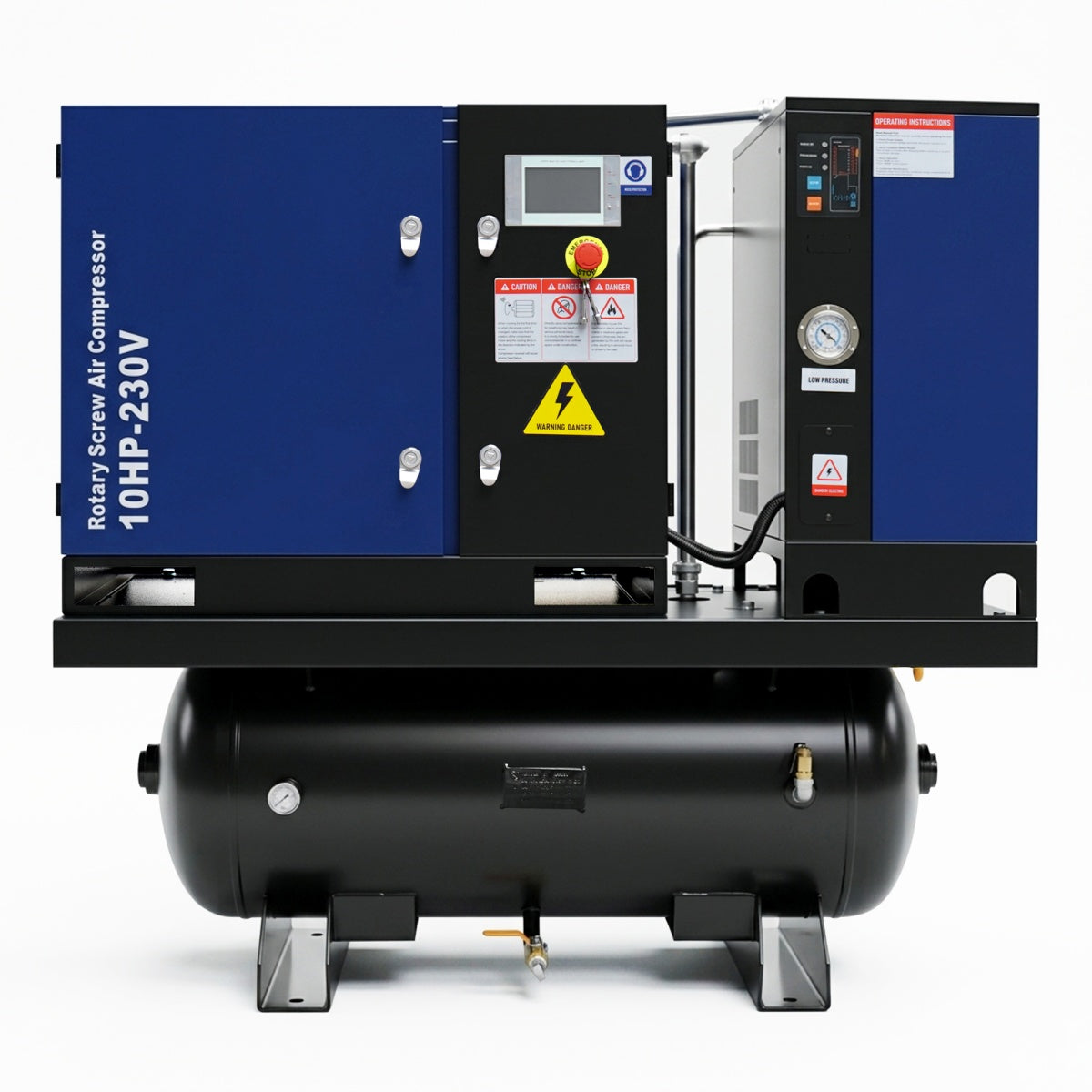

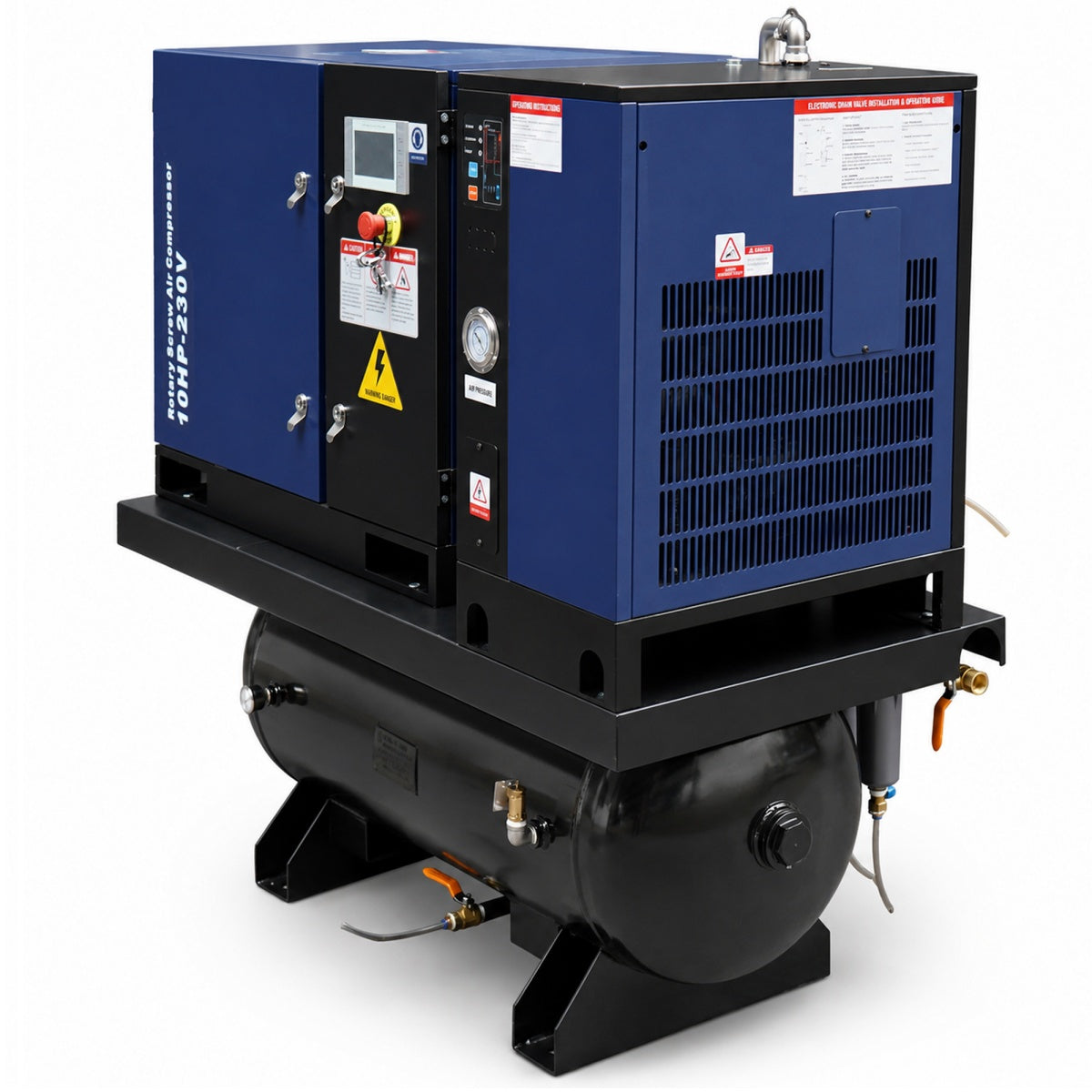

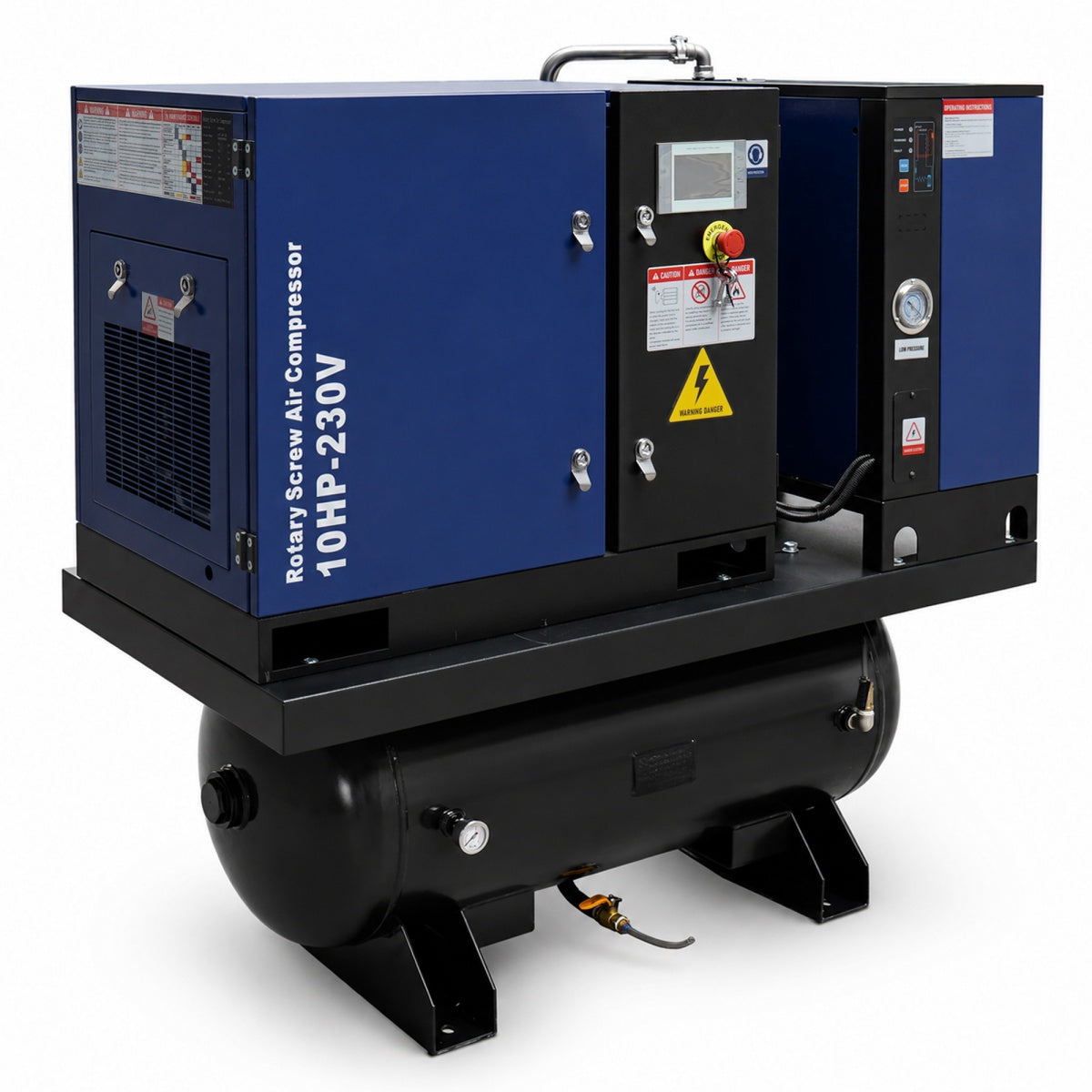

34CFM 10HP Rotary Screw Air Compressor with Air Dryer & ASME Tank | 125 PSI 230V 3-Phase

34CFM 10HP Rotary Screw Air Compressor with Air Dryer & ASME Tank | 125 PSI 230V 3-Phase

Chery Industrial SKU: N818P493964S
Rated Power
10HP
PSI
125
Air Tank
39.6 Gal
Regular price $6,599.00
Sale price $6,599.00

Pre-Order

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

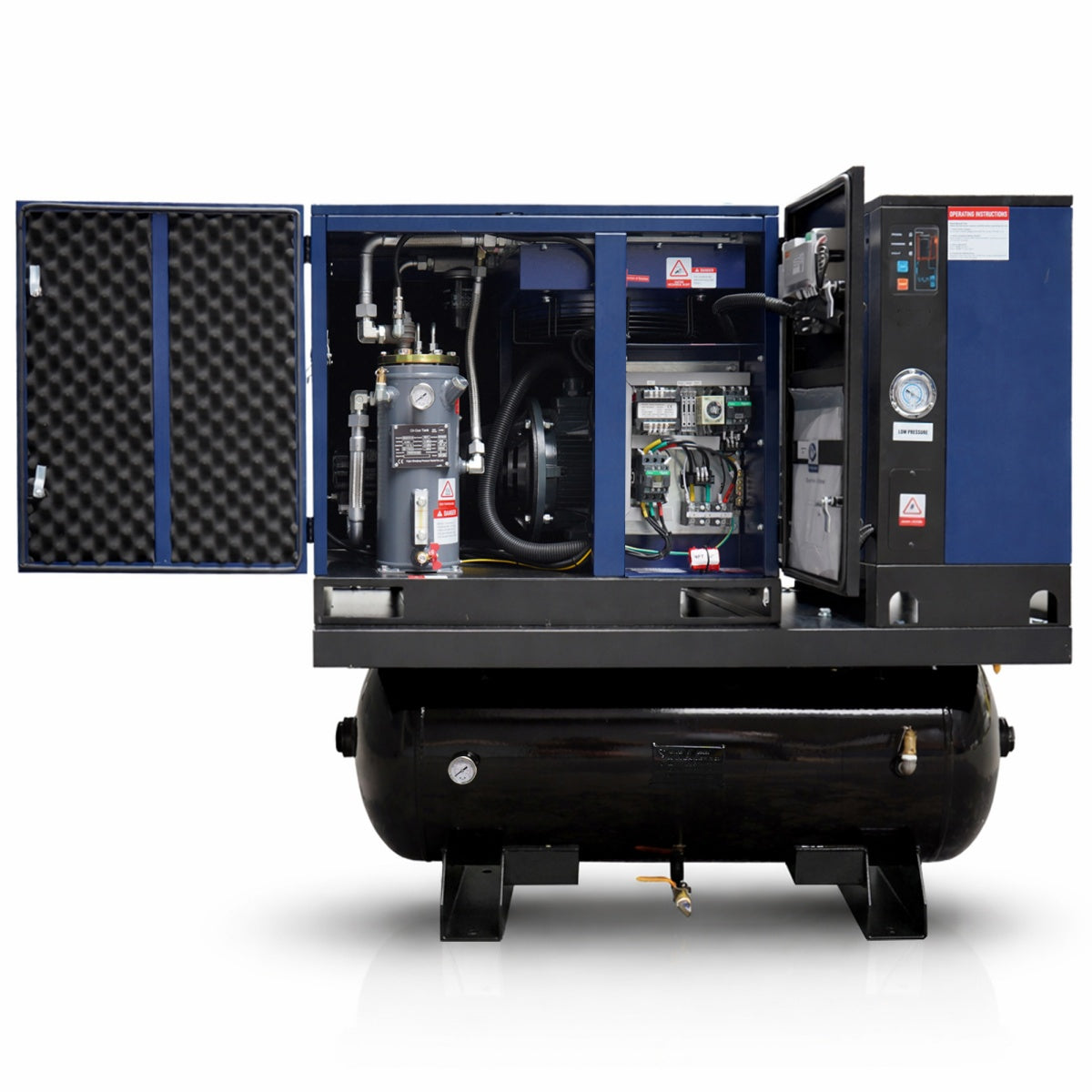

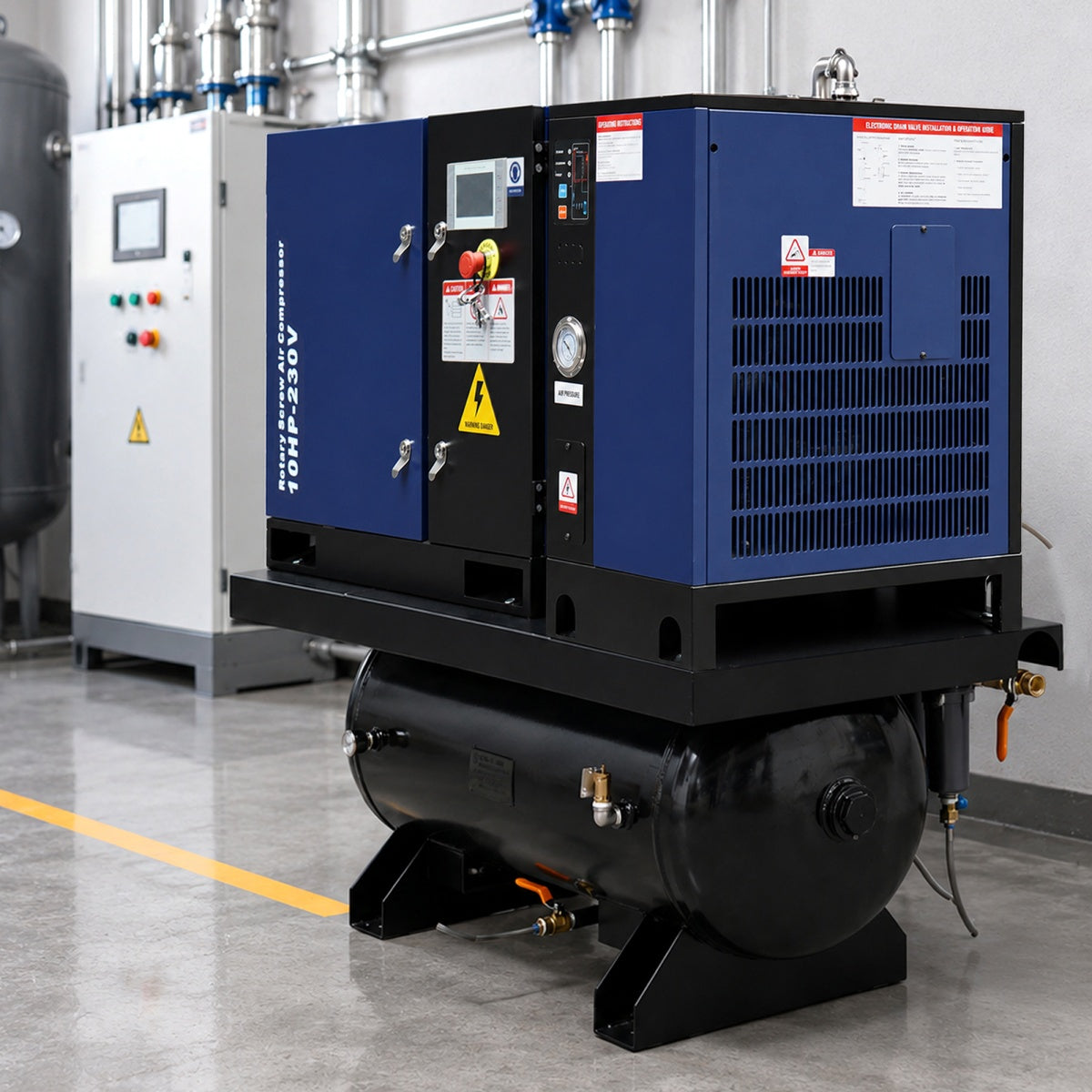

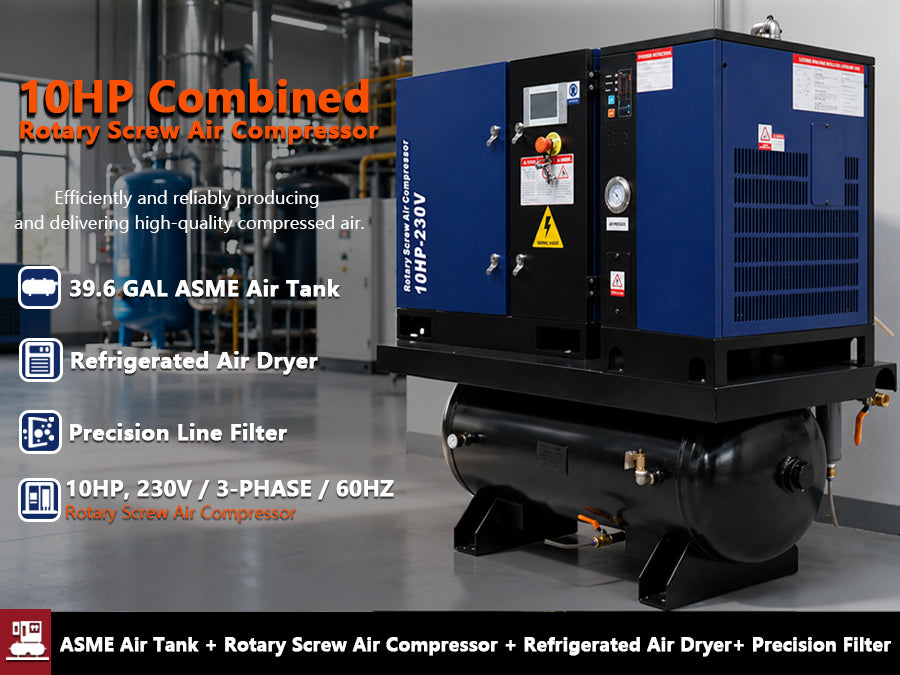

The Chery Industrial 10HP Rotary Screw Air Compressor combines an air compressor, refrigerated dryer, ASME-certified air tank, and filtration system into one compact 4-in-1 unit. Delivering up to 34 CFM at 125 PSI, it provides a continuous supply of clean, dry compressed air for manufacturing, CNC machining, automotive shops, and industrial production. Powered by a reliable 230V 3-phase motor, this integrated system reduces installation space, lowers maintenance costs, and improves overall operating efficiency.

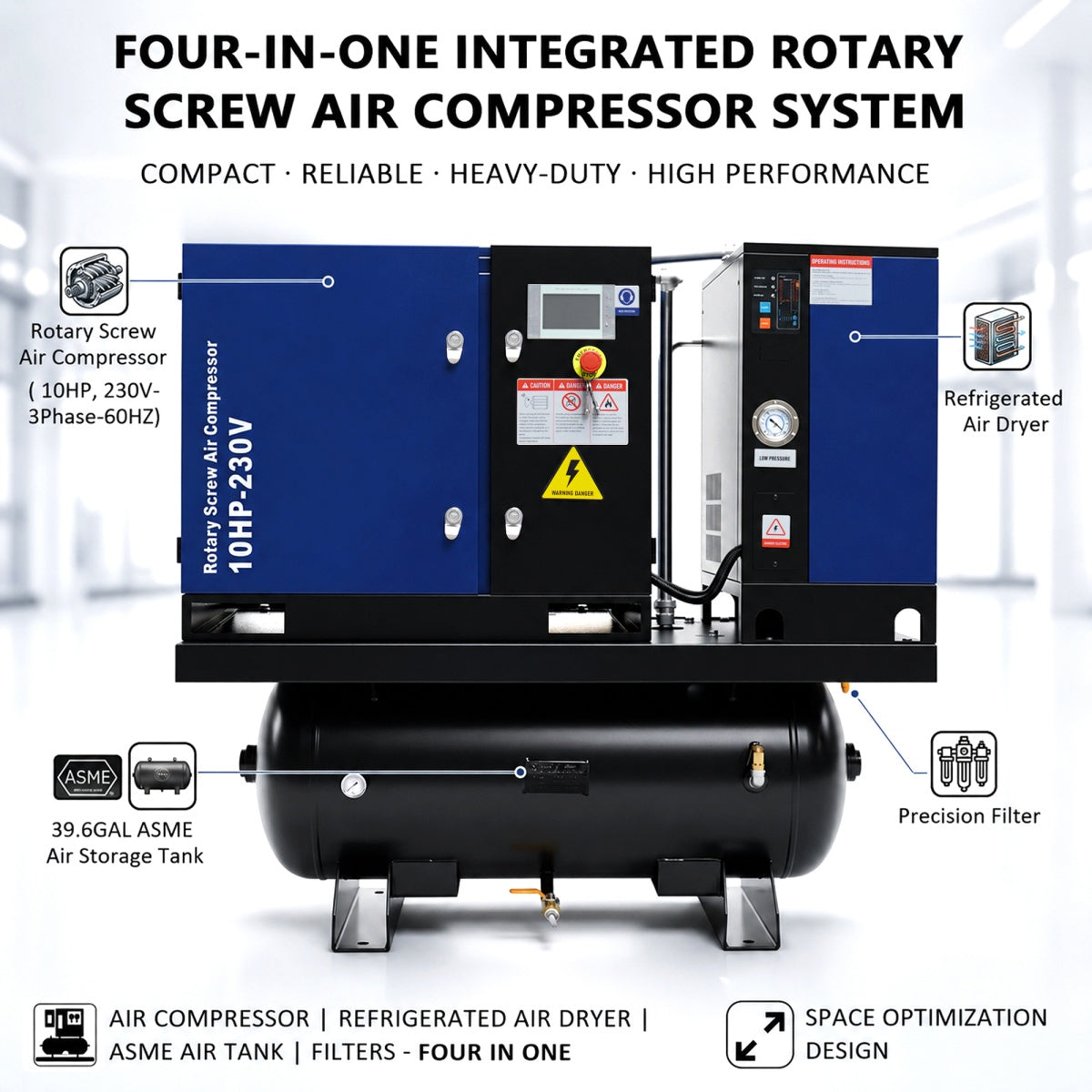

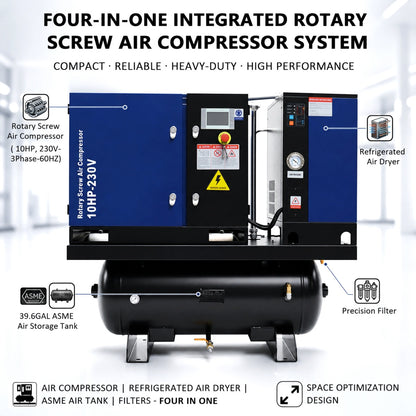

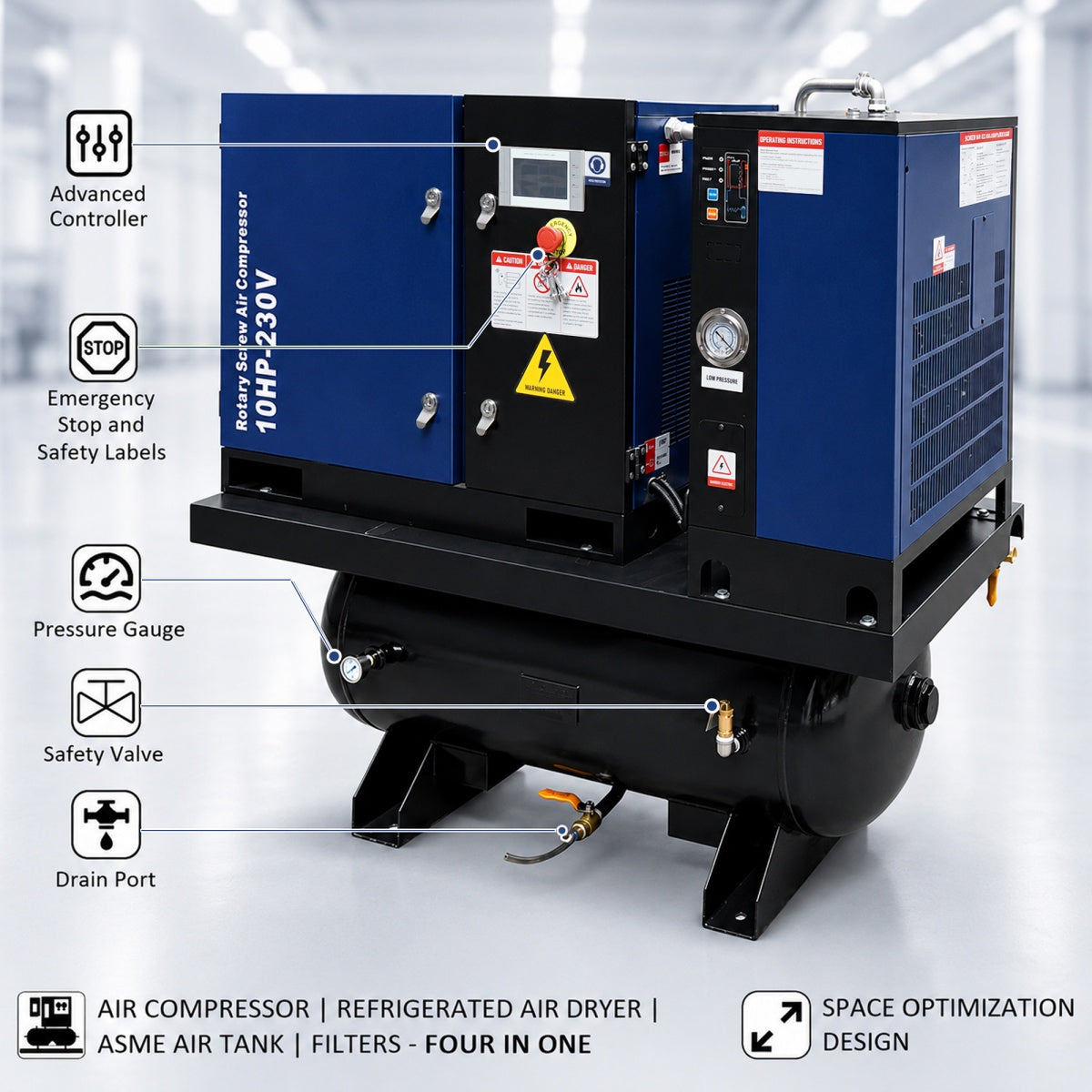

✔ Complete 4-in-1 Air System

Integrated rotary screw compressor, refrigerated air dryer, ASME air tank, and filtration system simplify installation and save valuable floor space.

✔ 34 CFM Continuous Air Delivery

Produces up to 34 CFM at 125 PSI, providing stable airflow for demanding industrial equipment and pneumatic tools.

✔ Clean & Dry Compressed Air

Built-in refrigerated dryer maintains a 37.4°F–50°F pressure dew point, helping protect air tools, machinery, and production equipment.

✔ Industrial-Grade Reliability

Powered by a heavy-duty 10HP, 230V three-phase motor with continuous-duty operation for manufacturing, automotive, and workshop environments.

Specifications

System Configuration
4-in-1 Integrated Air System

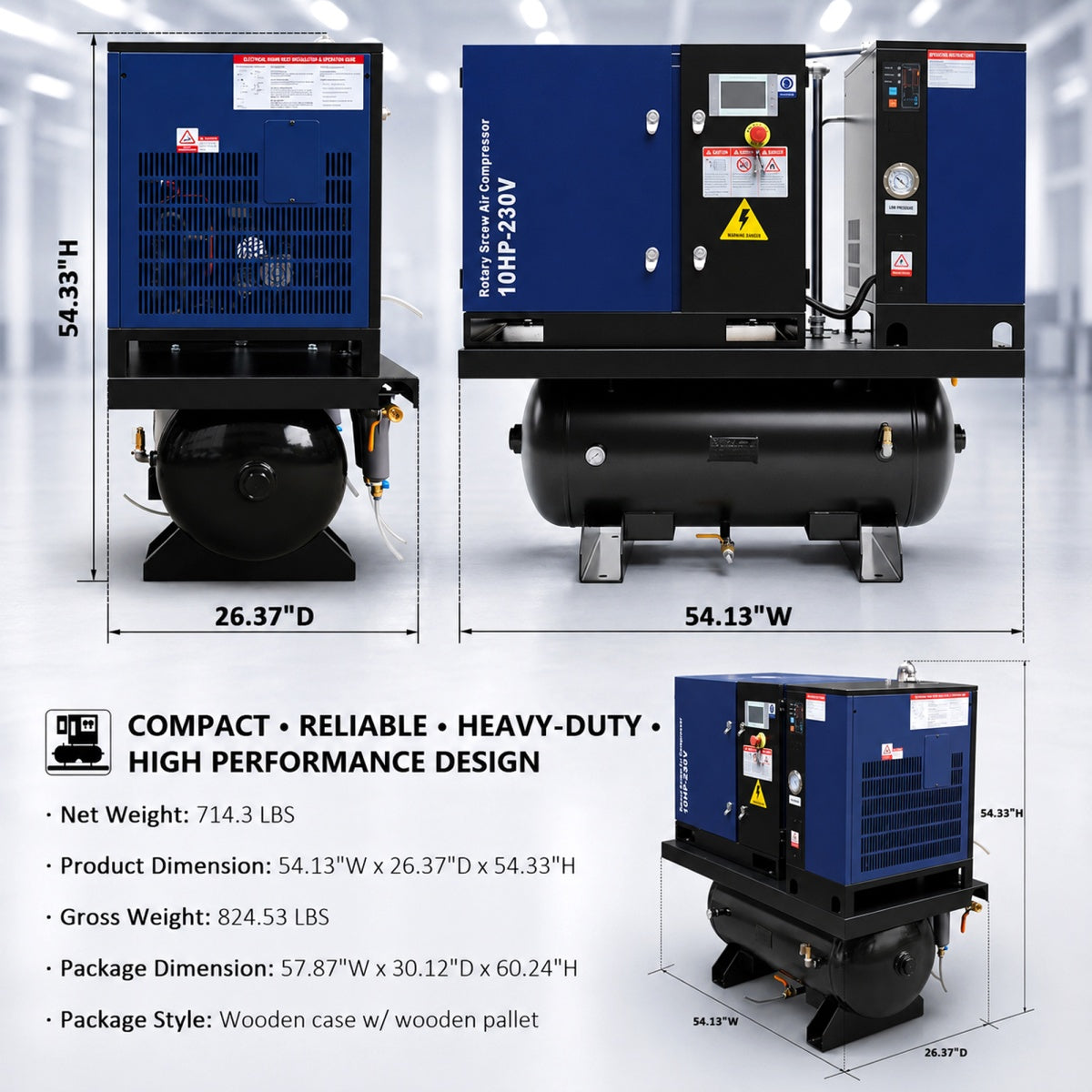

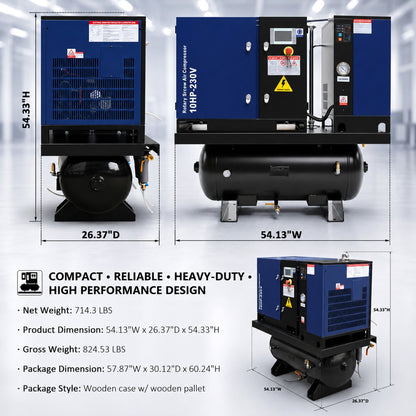

Dimension
54.13x26.37x54.33 inch
Air Compressor
10HP Air Compressor
Voltage
230V 3Phase 60HZ
Rated Power
10HP
Air Flow Capacity
34CFM
Rated Pressure
125PSI
Maximum Current
28.5 A
Motor Speed
3495RPM

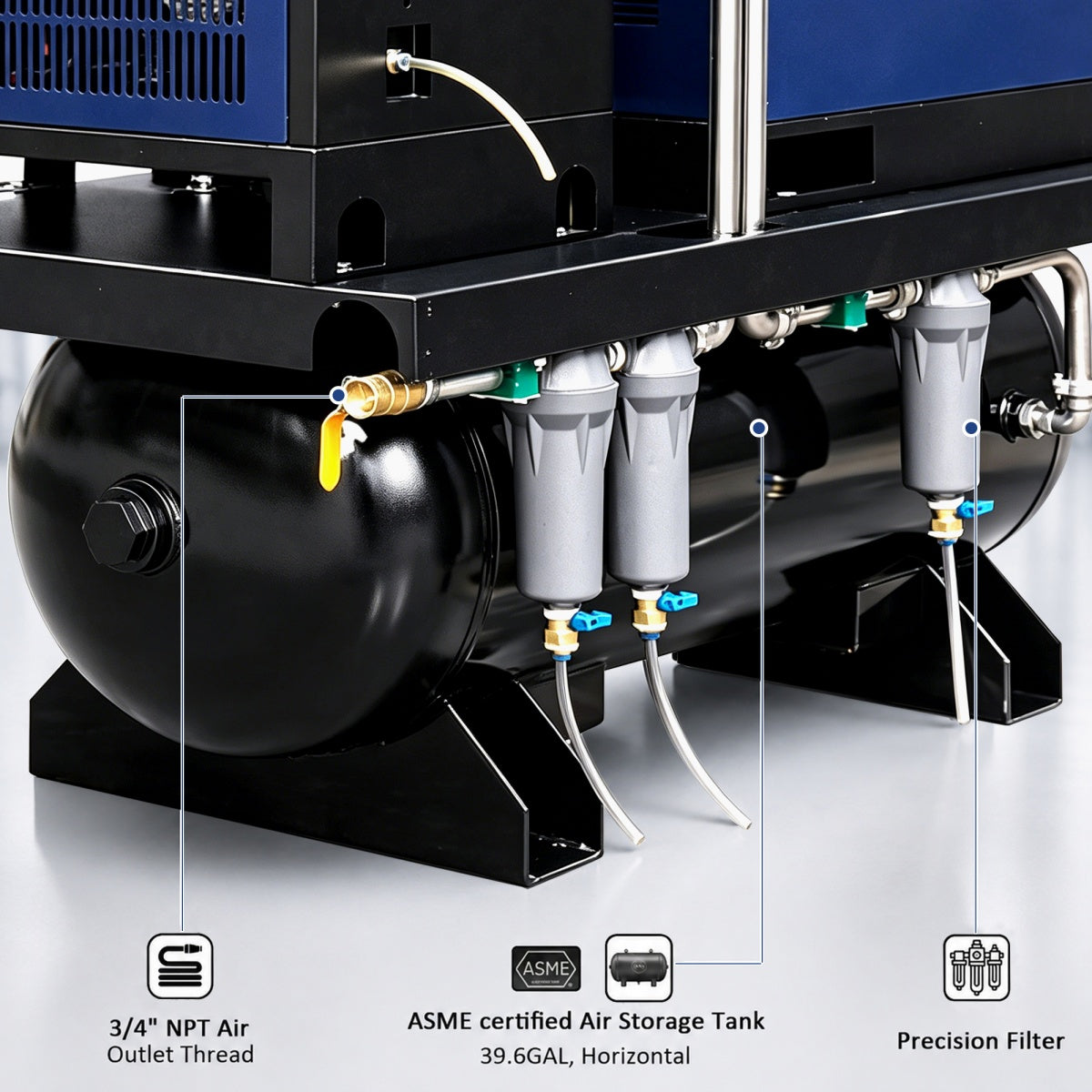

Air Outlet Thread
3/4" NPT
Air Dryer
63CFM Air Dryer
Voltage
230V 1Phase 60HZ
Rated Pressure
101.5PSI
Maximum Pressure
145PSI
Pressure Dew Point
37.4-50°F
Air Inlet Temperature
≤140°F
Air Tank Capacity
39.6 Gallons (150 L)
Tank Certification
ASME Certified

Shipping

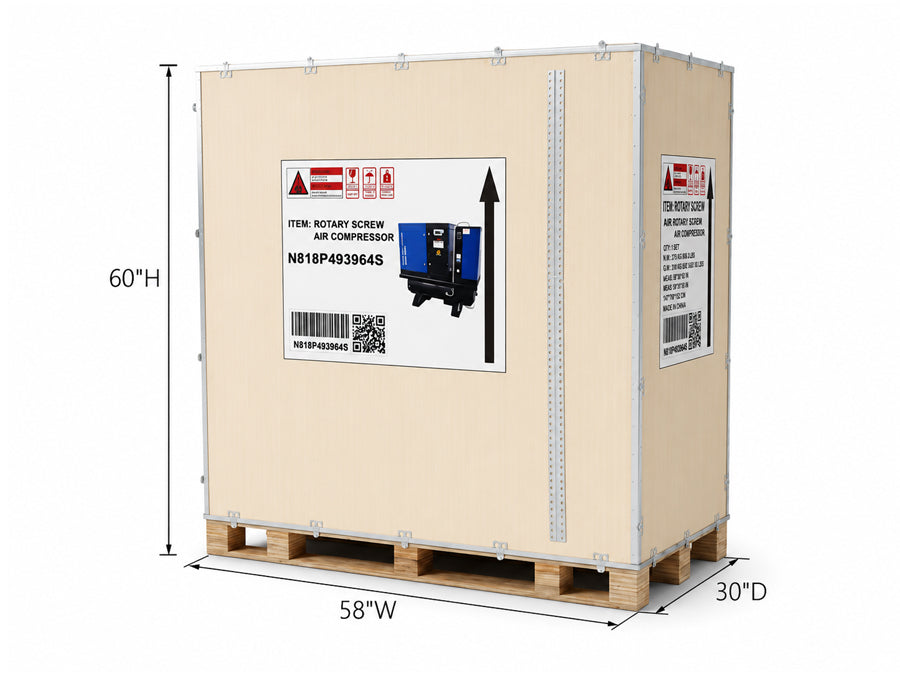

Large cardboard box on a wooden pallet with dimensions labeled, featuring a generator image and text.

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 58x30x60
• Weight (lb): 825
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation & Operation Precautions

Maintenance Guide

1. Set up the compressor in a clean, ventilated space with ample room for maintenance.
2. Mount the unit on a flat, firm base to cut vibration and prolong its lifespan.
3. Check pipes, gauges and electrical parts for loose or damaged joints; tighten fittings and open the discharge valve.
4. Remove all transport support brackets before the first run; otherwise, severe machine damage will occur.
