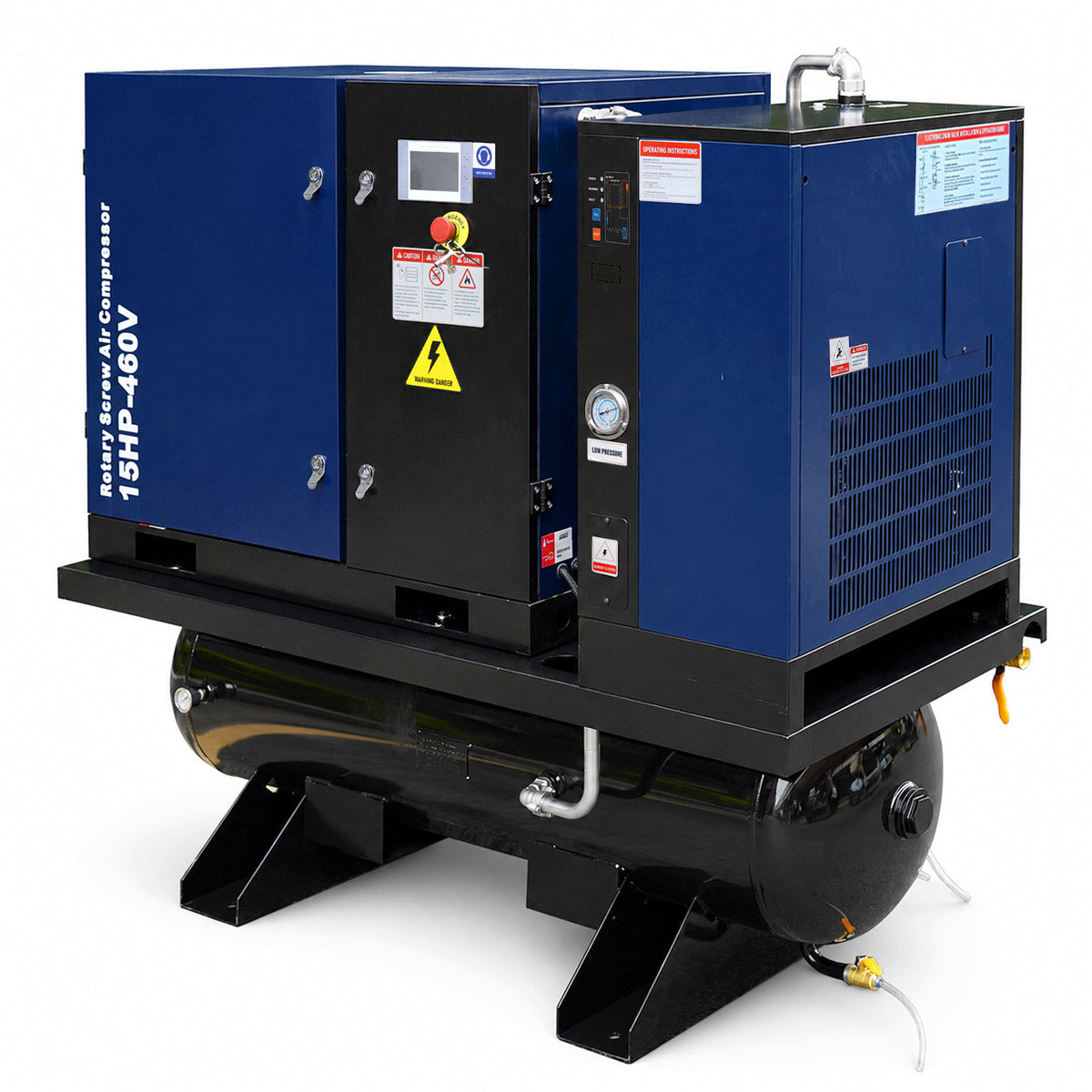

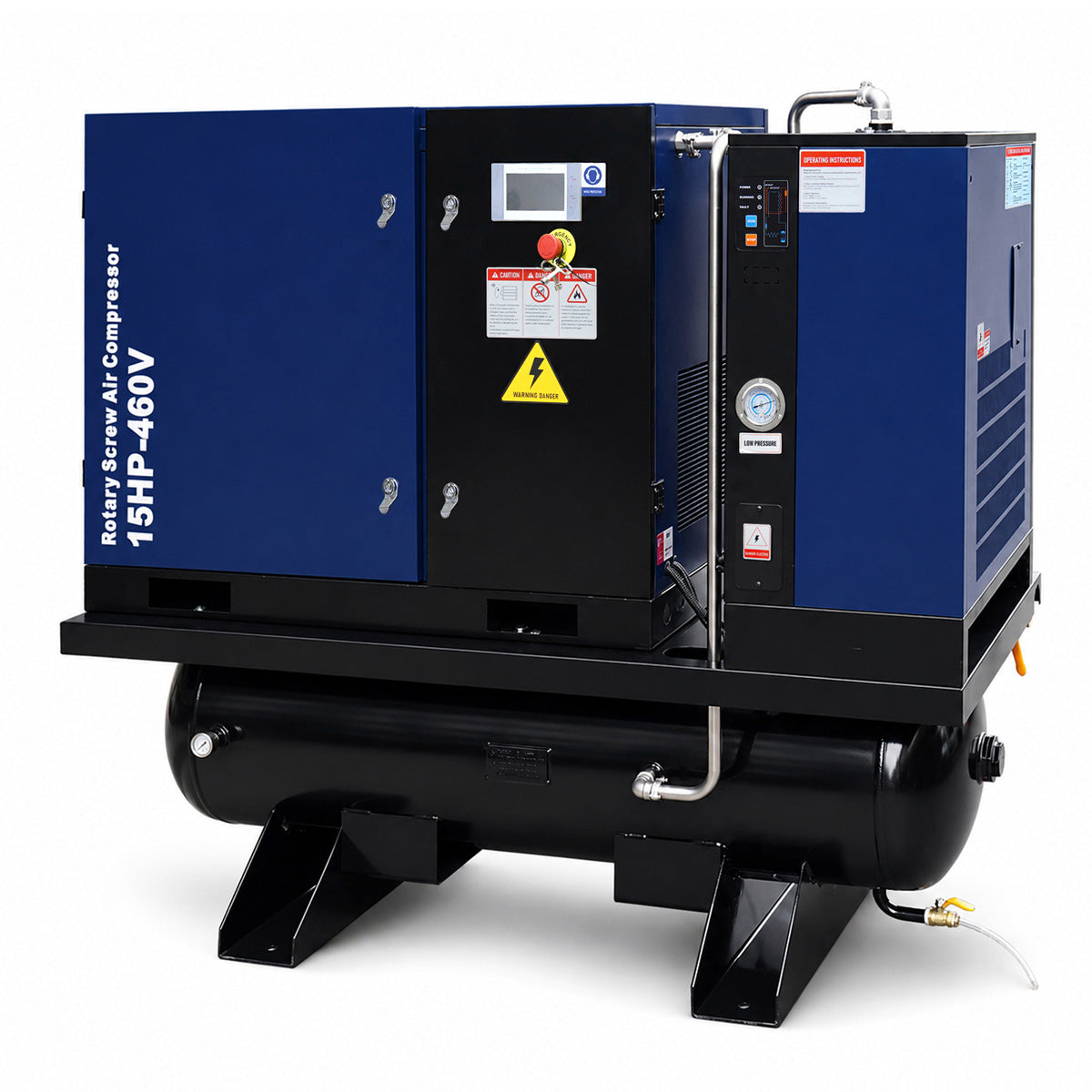

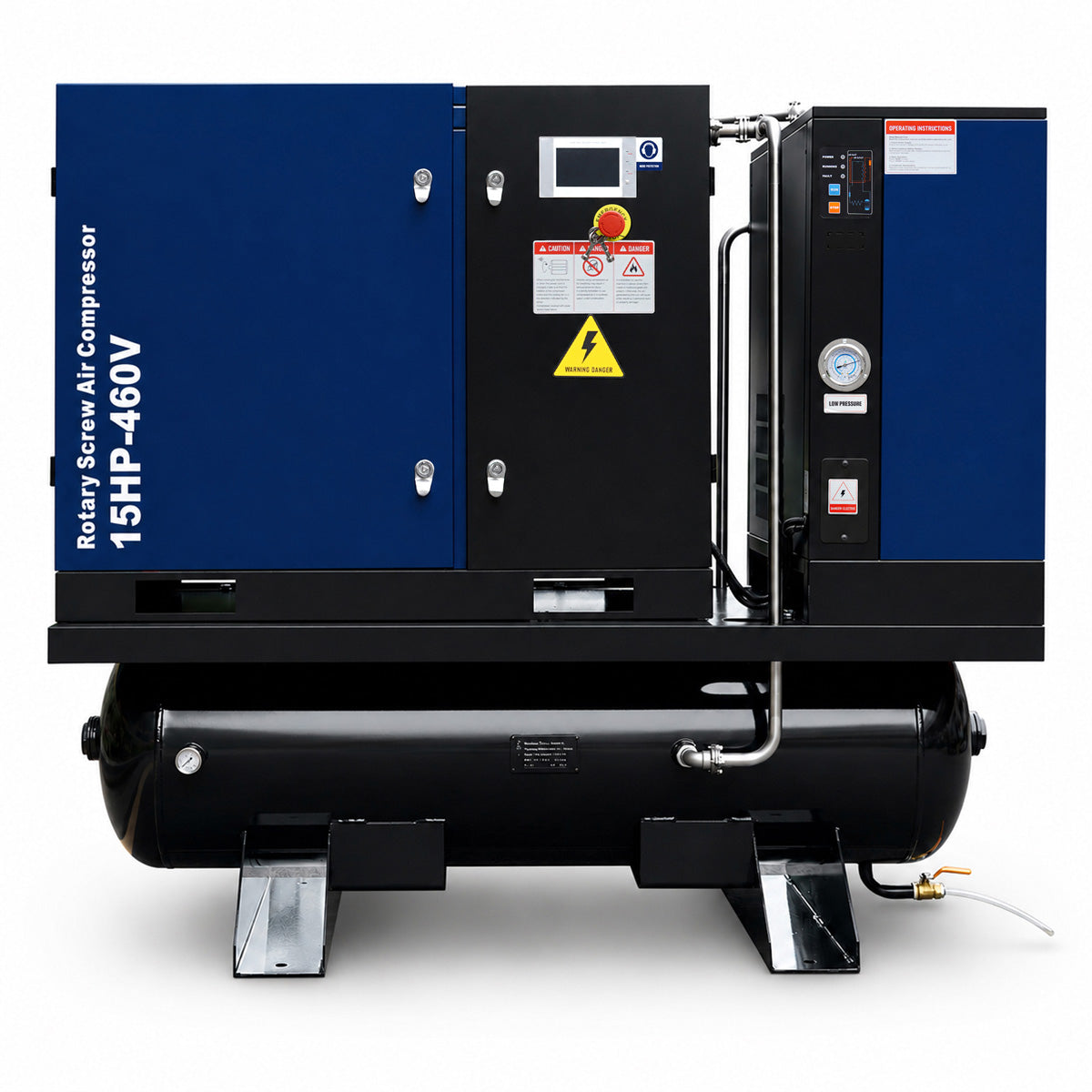

56 CFM 15HP Rotary Screw Air Compressor with Dryer & 68.7-Gal ASME Tank | 125PSI, 460V 3PHASE 60HZ

56 CFM 15HP Rotary Screw Air Compressor with Dryer & 68.7-Gal ASME Tank | 125PSI, 460V 3PHASE 60HZ

Chery Industrial SKU: N818P519236S
Rated Power
15HP
PSI
125
Air Tank
68.7Gal
$7,799.00
$7,799.00

In Stock

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

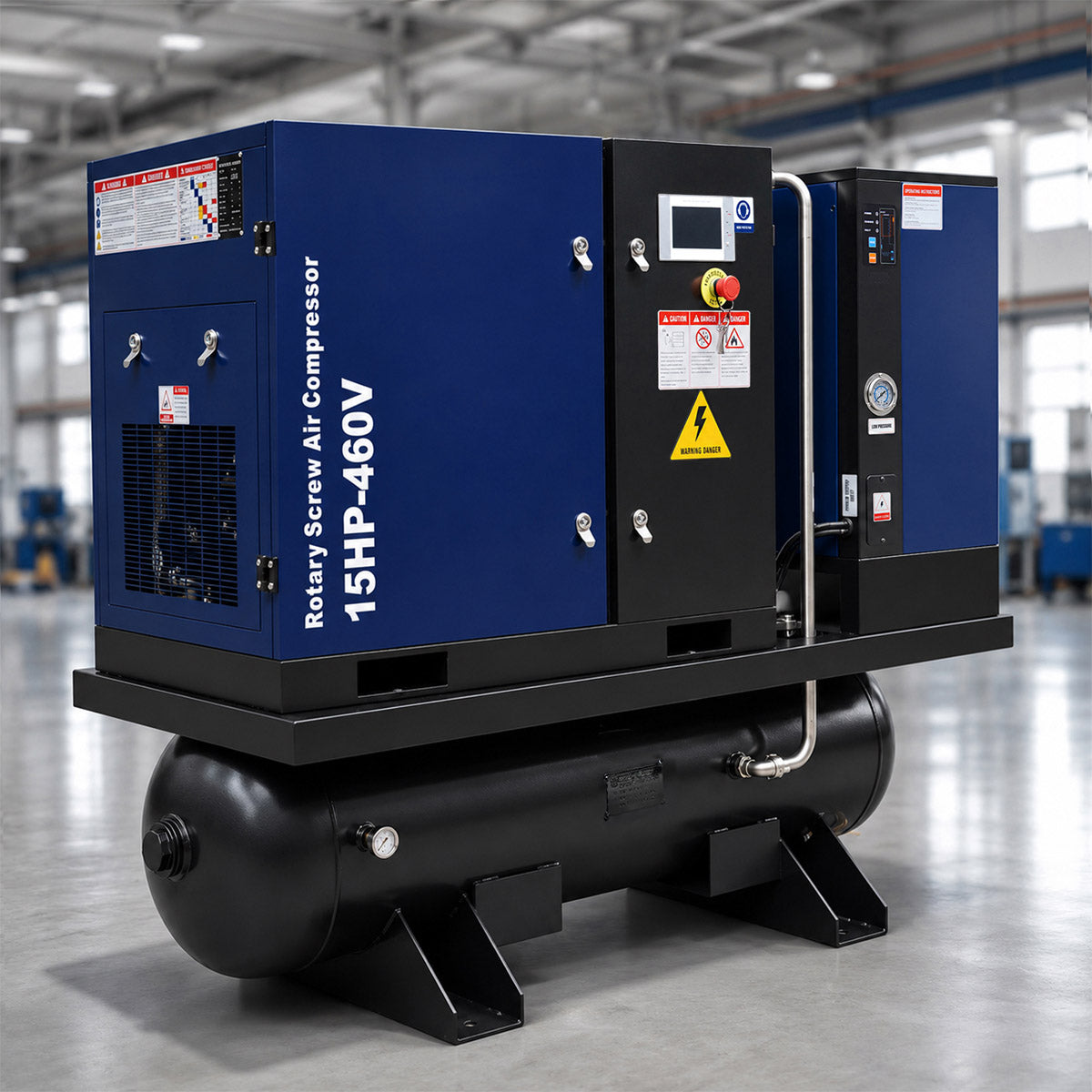

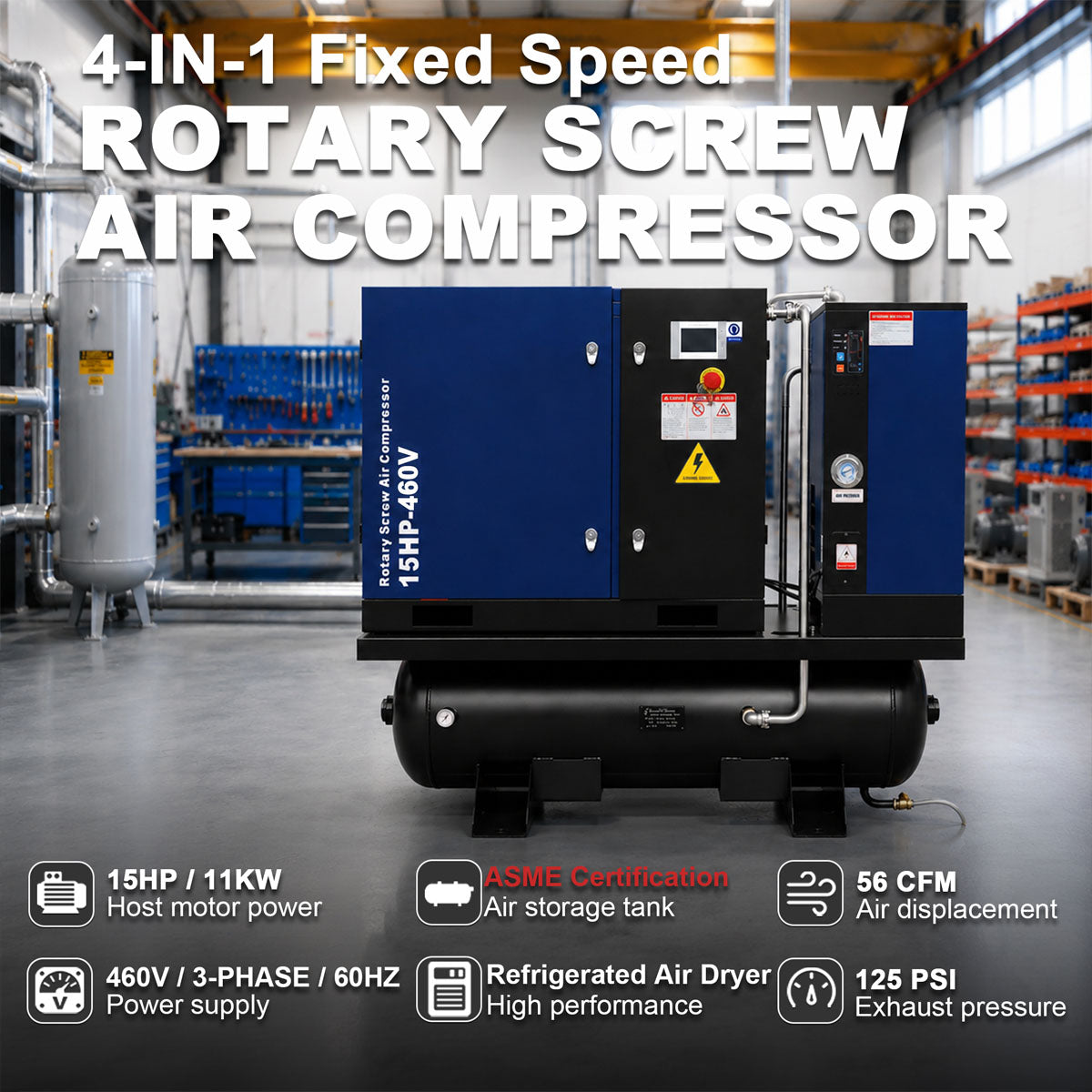

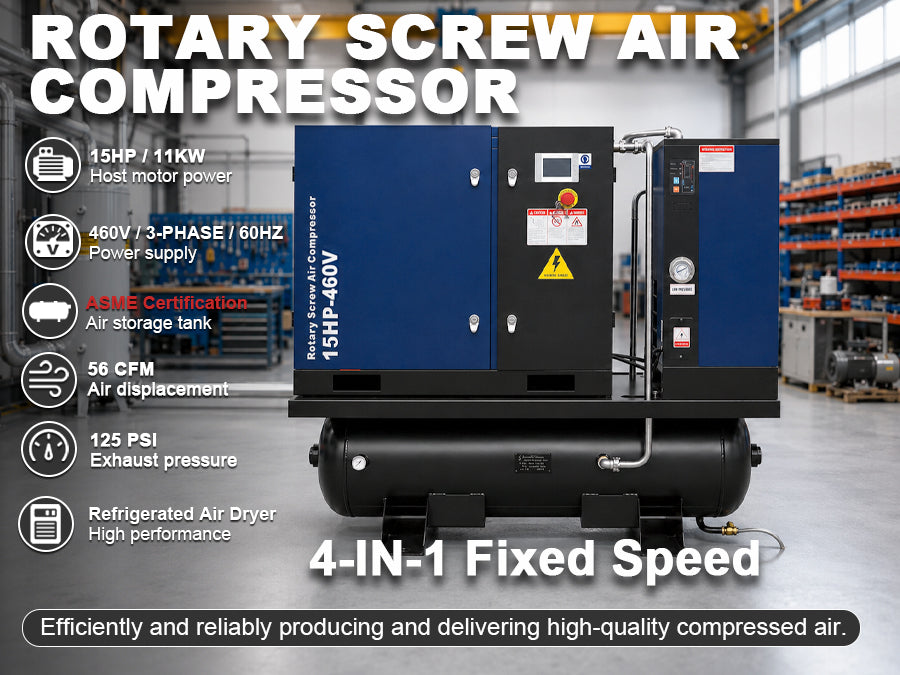

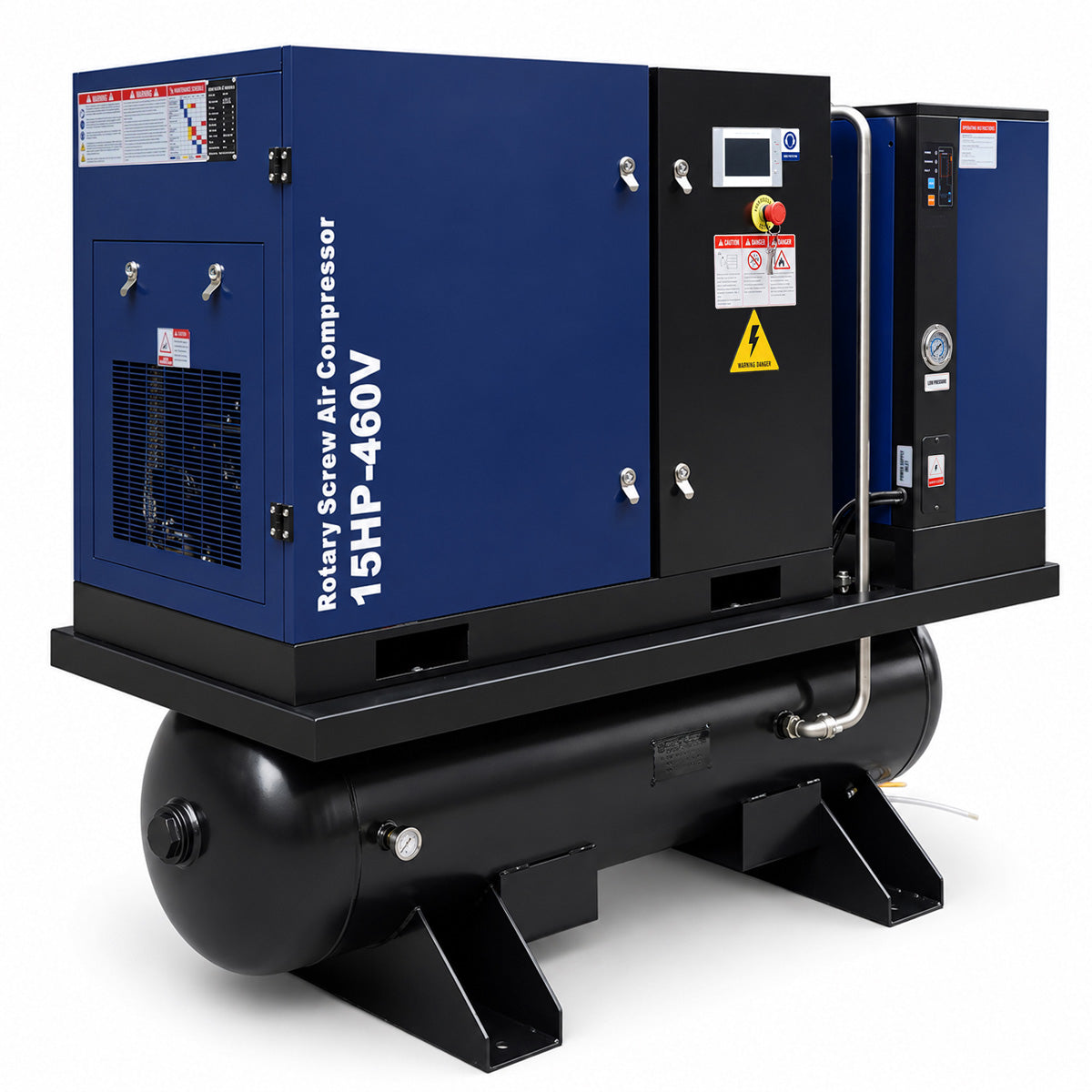

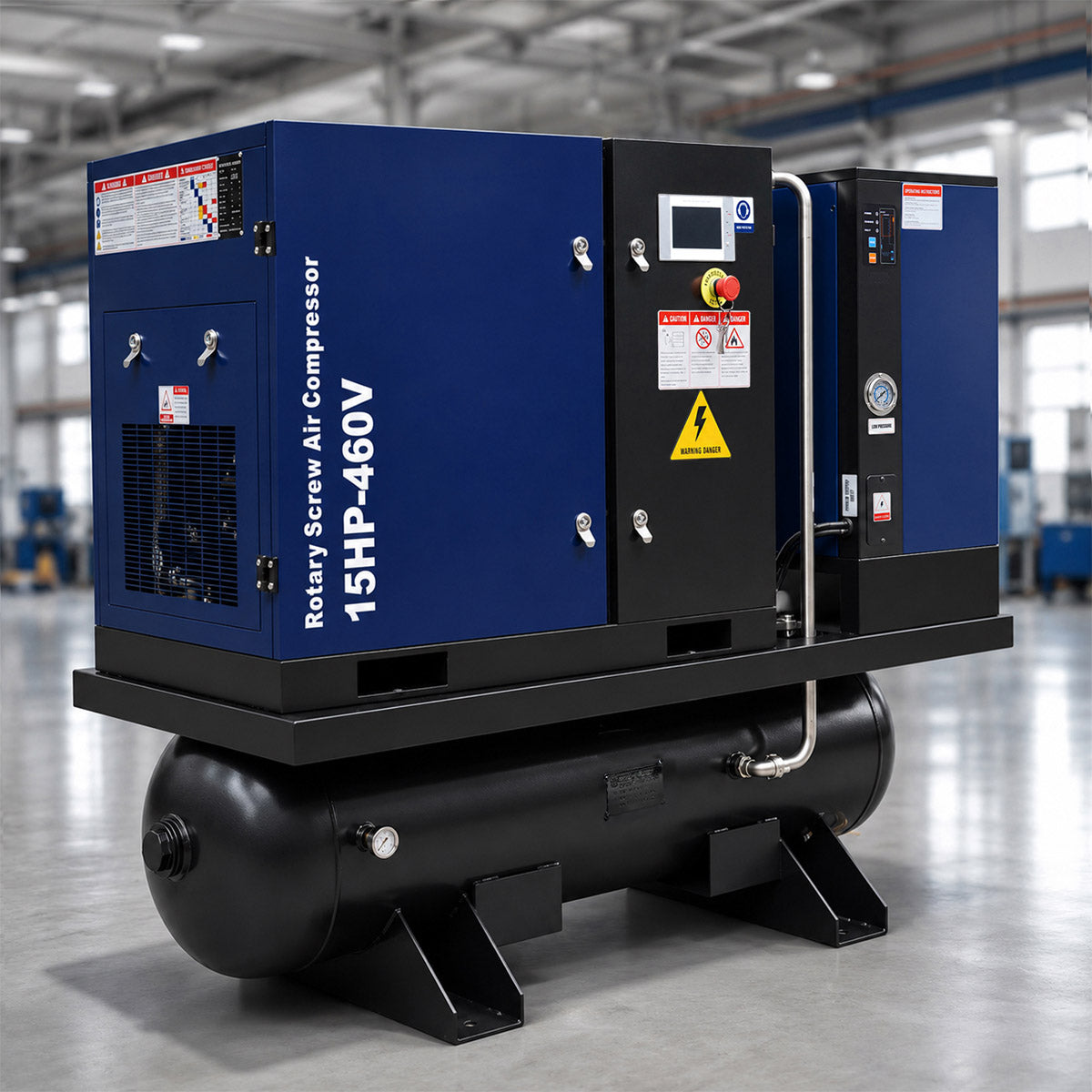

The Chery Industrial 15HP Rotary Screw Air Compressor combines an air compressor, refrigerated dryer, ASME-certified air tank, and filtration system into one compact 4-in-1 unit. Delivering up to 56 CFM at 125 PSI, it provides a continuous supply of clean, dry compressed air for manufacturing, CNC machining, automotive shops, and industrial production. Powered by a reliable 460V 3-phase motor, this integrated system reduces installation space, lowers maintenance costs, and improves overall operating efficiency.

High‑Performance Compression Output
Capacity: 56 CFM. Rated Pressure: 125 PSI. Rated Power: 11 KW / 15 HP. Max Current: 20.5 A.

Reliable Mechanical Specifications
Screw air compressor outlet pipe size: 1" NPT. Motor speed: 3515 r/min. Noise: 62±2dB(A). Fixed speed.

ASME‑Certified Air Receiver Tank
Air TanK Volume: 68.7GAL / 260L. ASME Certification Air Tank. Oil Content of Discharged Air: ≤3Pmm. Start Method: Star Triangle Start.

Robust Drive & Cooling System
Cooling Method: forced air cooling. Discharge Temperature: ≤A-temperature+59°F. Transmission Mode: Coupling direct connection.

Features

  • Advanced LCD Controller

    Real-time display with easy setup. Built-in overload & temperature protection plus maintenance alerts help prevent downtime and extend compressor life.

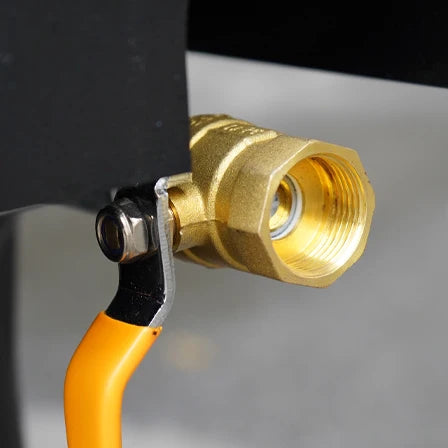

  • Air Outlet Thread

    Air Outlet Thread: 1" NPT.

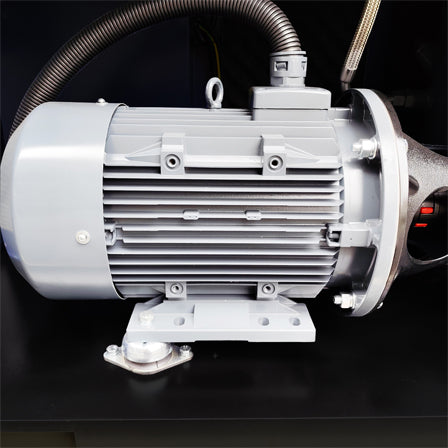

  • Direct Coupling for Maximum Efficiency

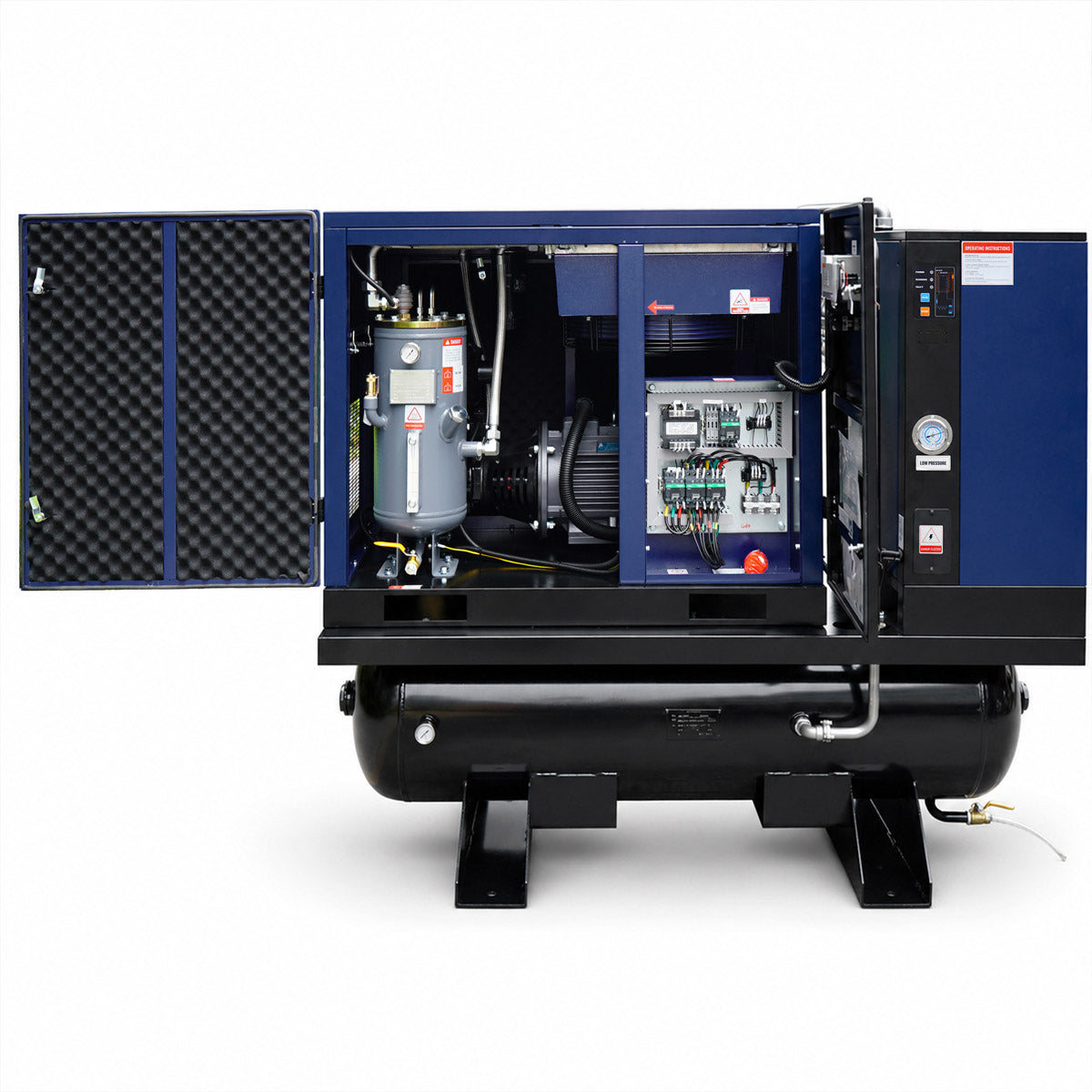

    The motor and airend are directly connected via a coupling, ensuring 100% power transmission with no energy loss from belt slippage. This robust design eliminates the need for routine belt maintenance and provides exceptional reliability.

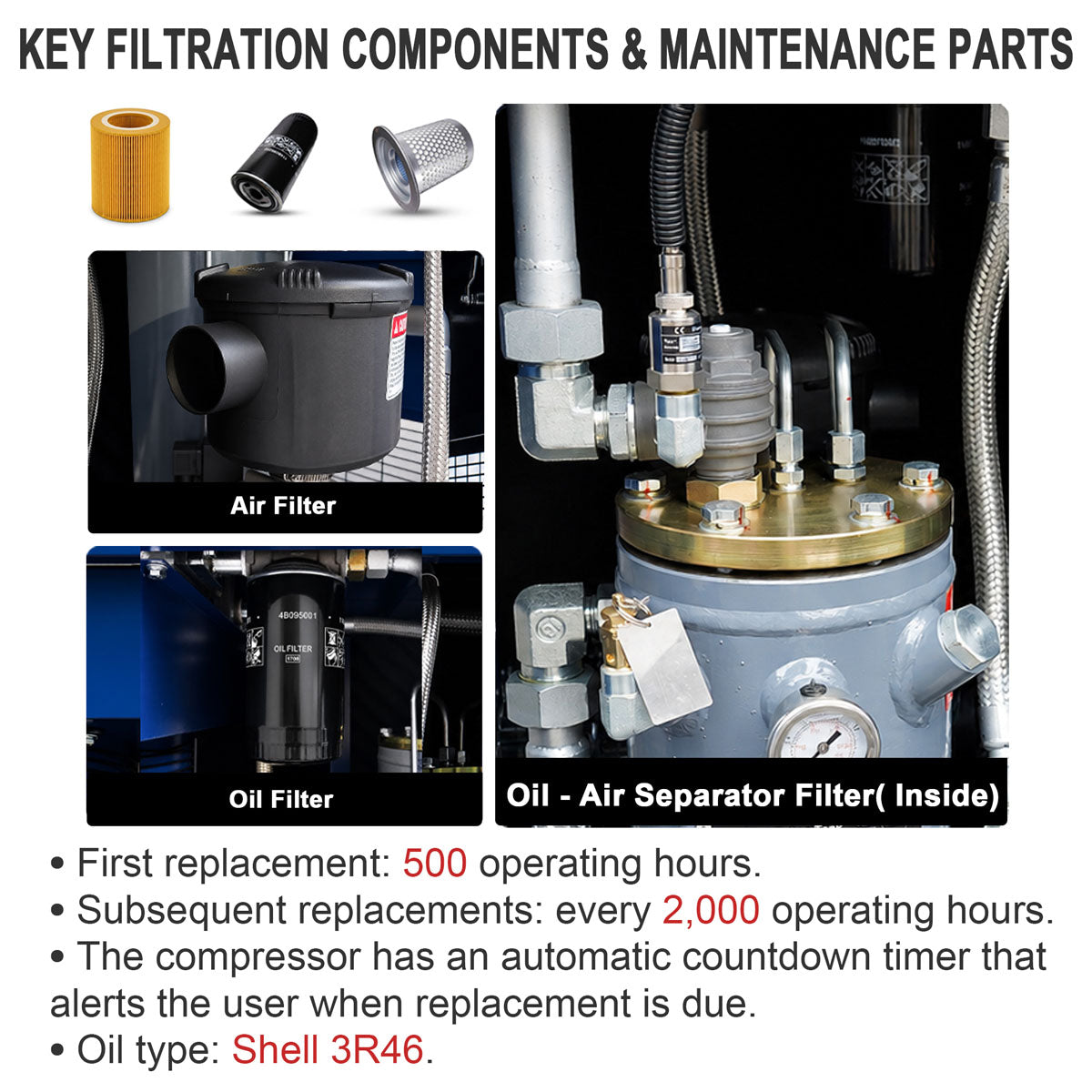

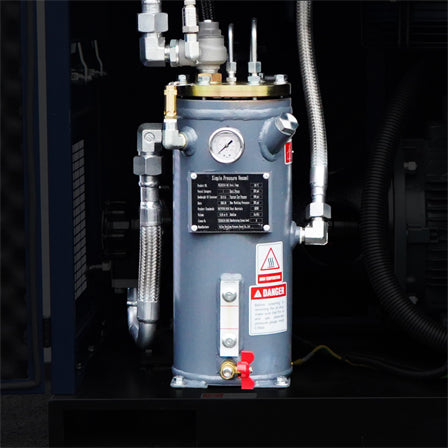

  • Oil - Air Separator Filter

    Oil type: Shell 3R46. The oil receiver tank ensures highly efficient oil-air separation and delivers cleaner, drier compressed air. Its robust construction guarantees minimal pressure drop, contributing directly to reduced energy consumption and stable system pressure.

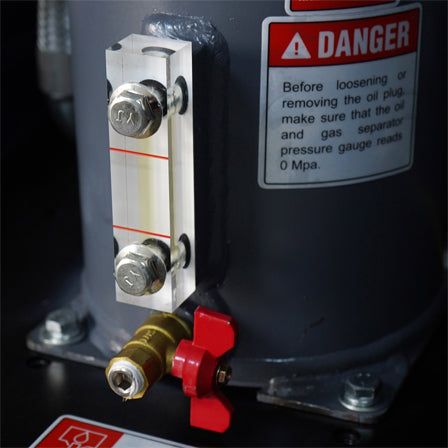

  • Strip Oil Gauge

    Clear indication of oil level.

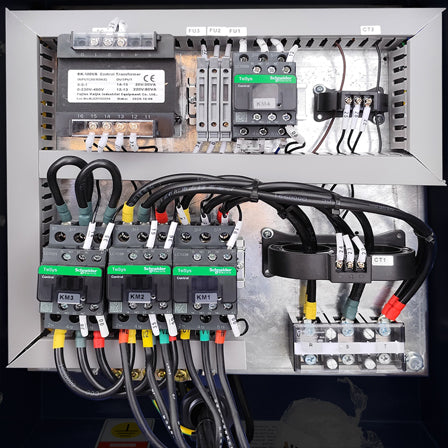

  • Electrical Components & Systems

    Adoption of Schneider brand electrical components

  • Air Filter

    This easy-to-replace air filter features a large dust-holding capacity and low initial pressure drop, enhancing energy efficiency. It effectively removes particles larger than 3 microns and ensures stable performance even in harsh operating conditions.

  • High-Precision Oil Filter

    Delivers cleaner air and protects the compressor. Easy replacement reduces maintenance time and overall cost.

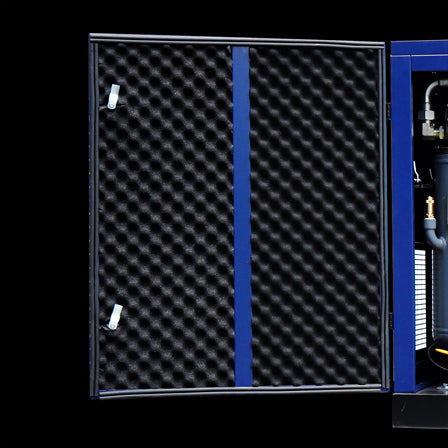

  • Acoustic Insulation

    High-performance acoustic insulation significantly reduces compressor noise levels.

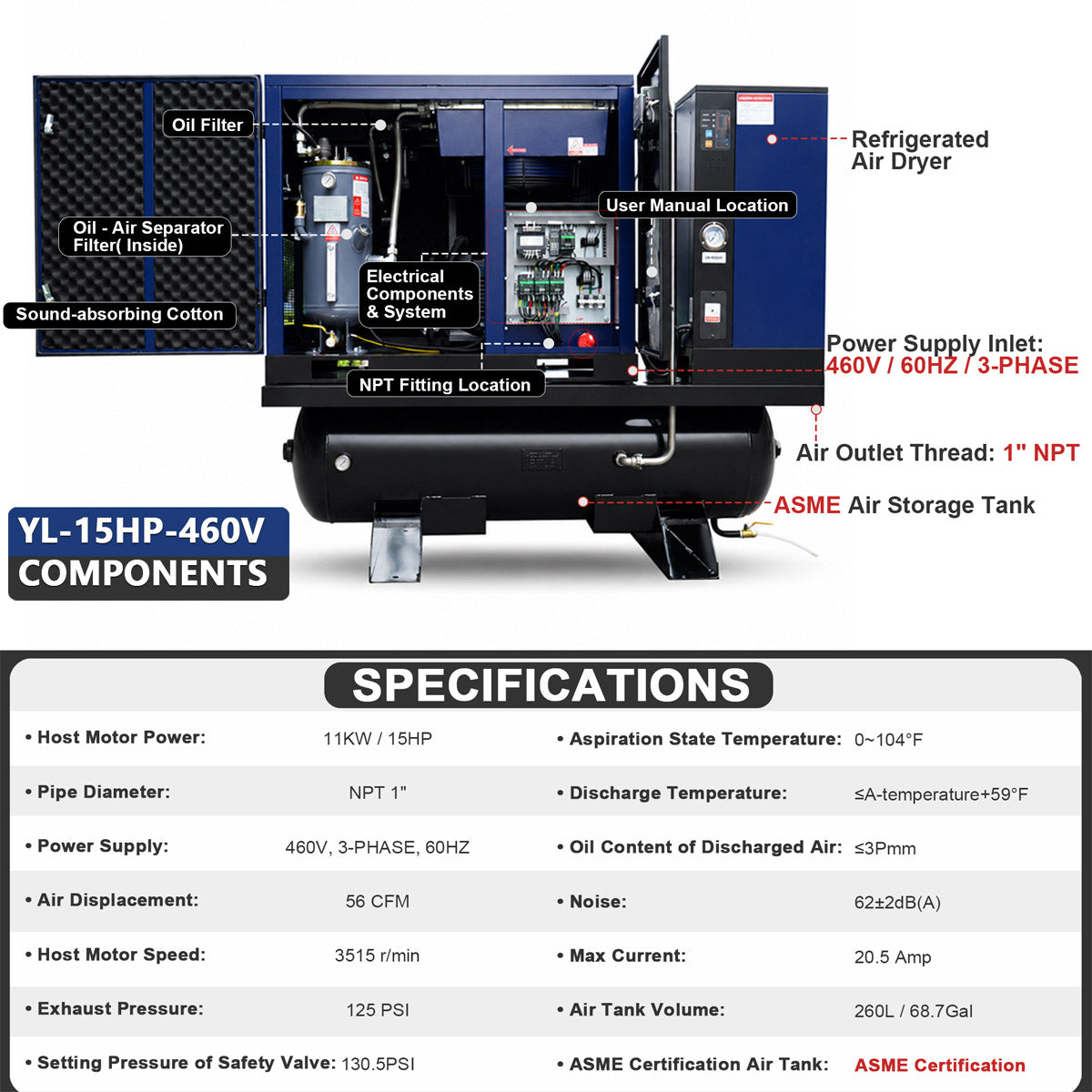

Specifications

System Configuration
4-in-1 Integrated Air System

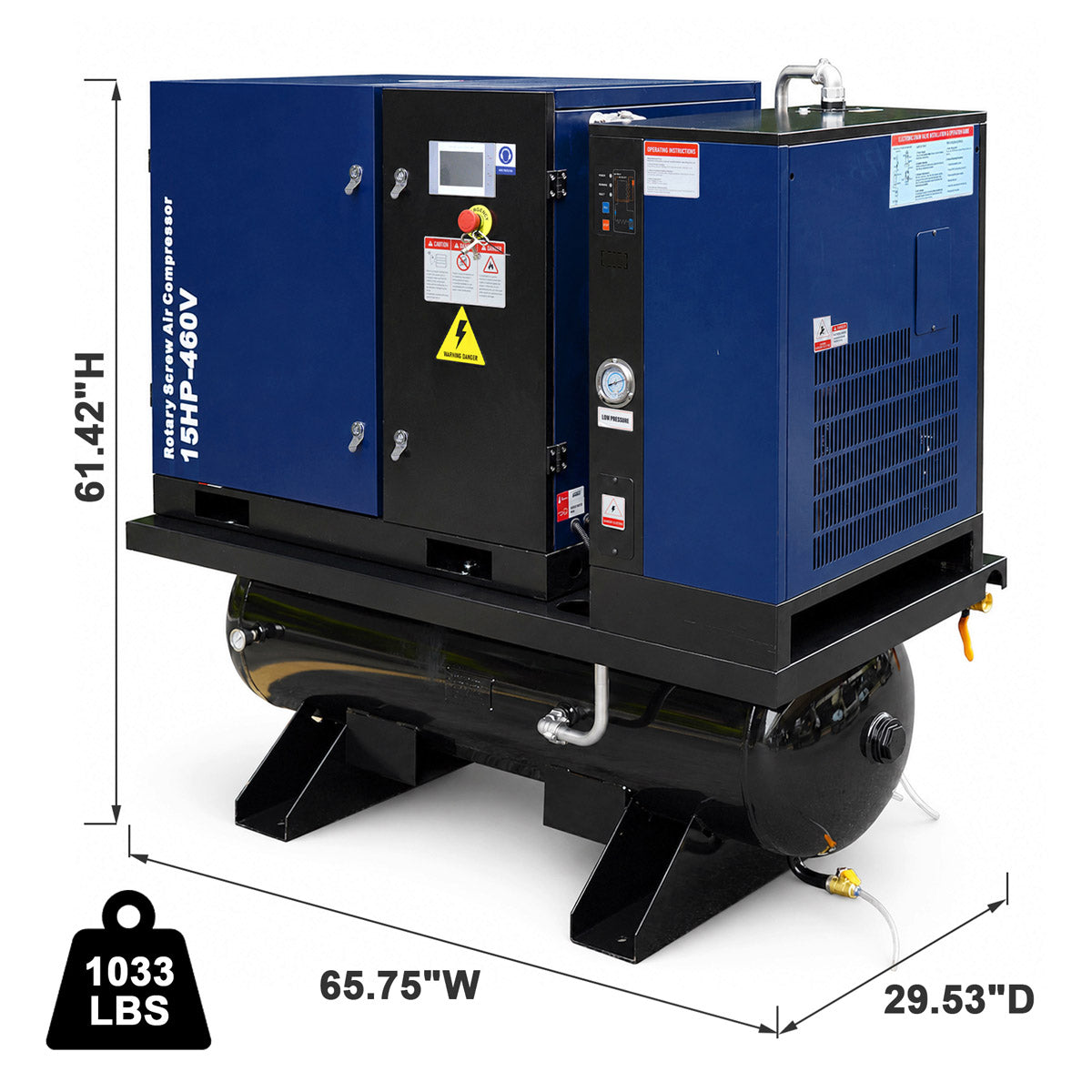

Dimension
65.75 x29.53x61.42inch
Rated Power
15HP
Voltage
460V 3Phase 60HZ
Air Flow Capacity
56CFM
Rated Pressure
125PSI
Max Current
20.5A
Motor Speed
3515RPM
Outlet Pipe Size
1" NPT
Air Tank Volume
260L / 68.7Gal
Tank Certification
ASME Certified
Setting Pressure of Safety Valve
130.5PSI
Discharge Temperature
≤A-temperature+59°F
Noise Level
62±2dB(A)
Air Volume Adjustment Method
Upload and Uninstall
Transmission Mode
Coupling Direct Connection

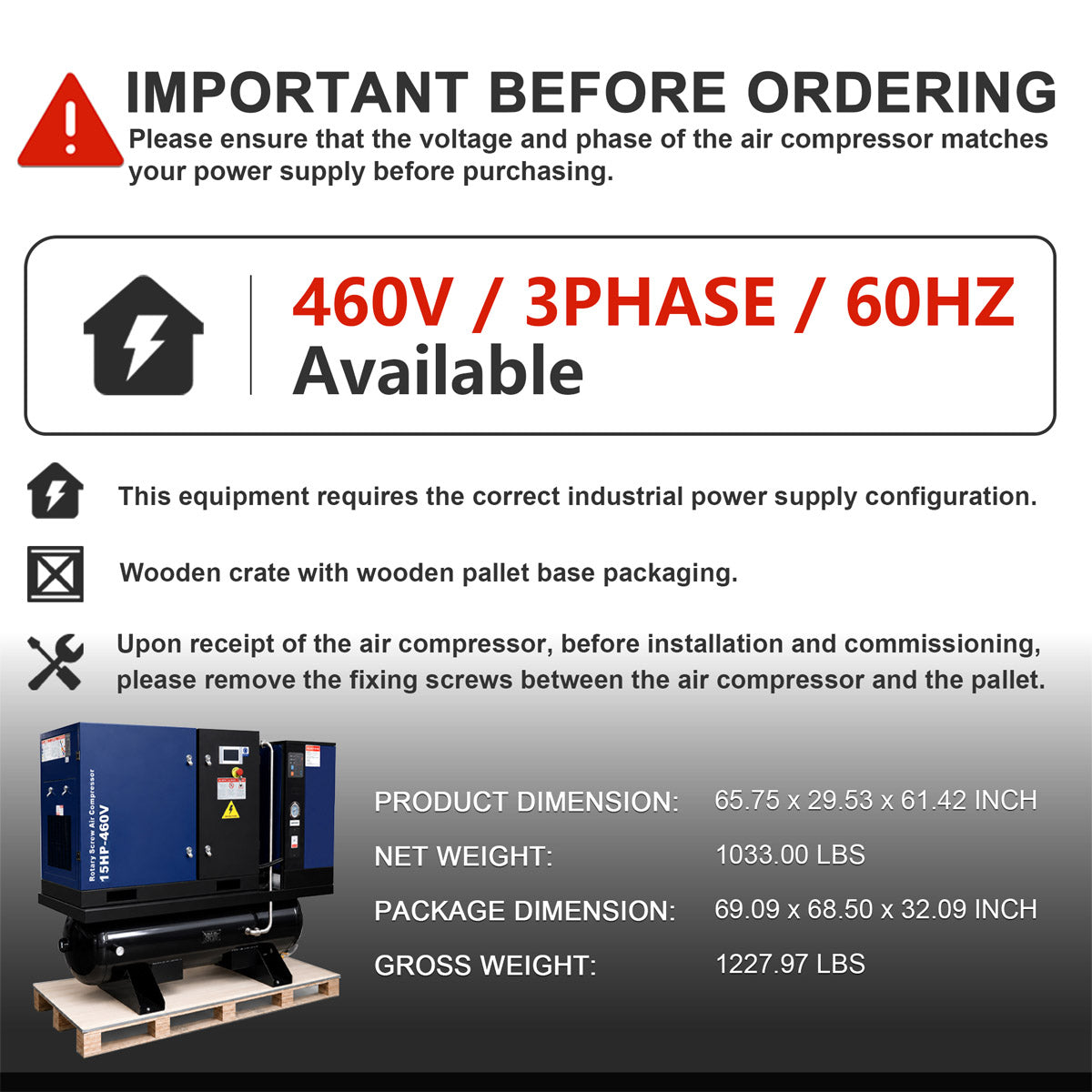

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

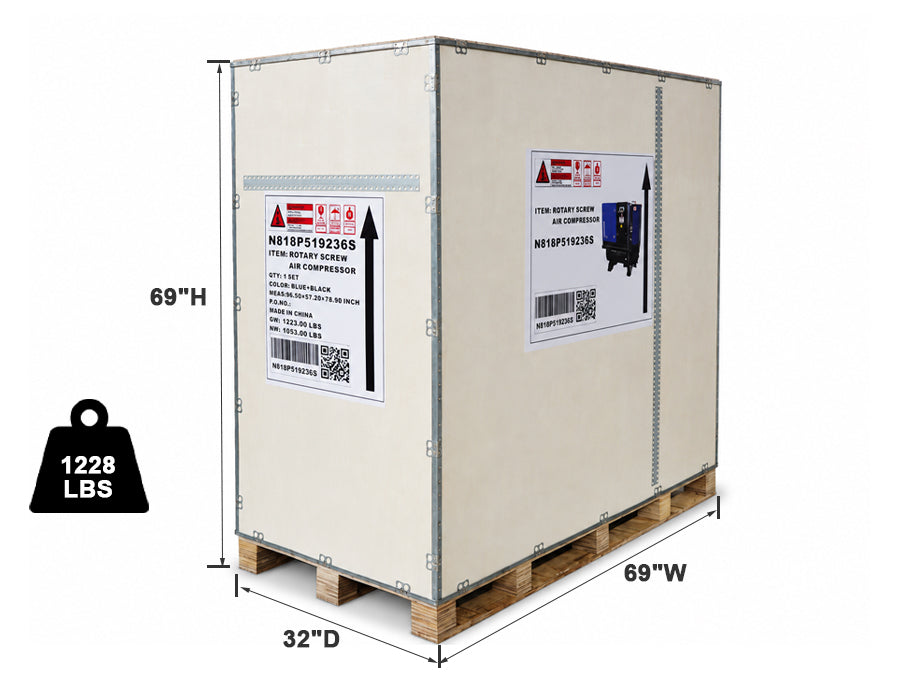

• LxWxH (inch): 32x69x69
• Weight (lb): 1228
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

User Manual

Installation & Operation Precautions

Maintenance Guide

1. Set up the compressor in a clean, ventilated space with ample room for maintenance.
2. Mount the unit on a flat, firm base to cut vibration and prolong its lifespan.
3. Check pipes, gauges and electrical parts for loose or damaged joints; tighten fittings and open the discharge valve.
4. Remove all transport support brackets before the first run; otherwise, severe machine damage will occur.
