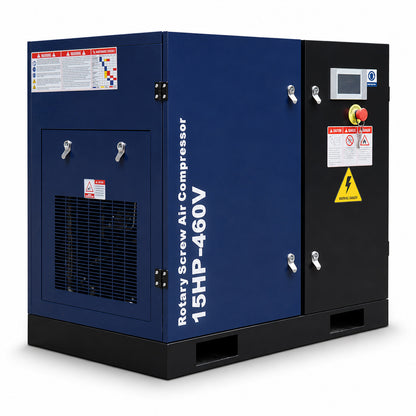

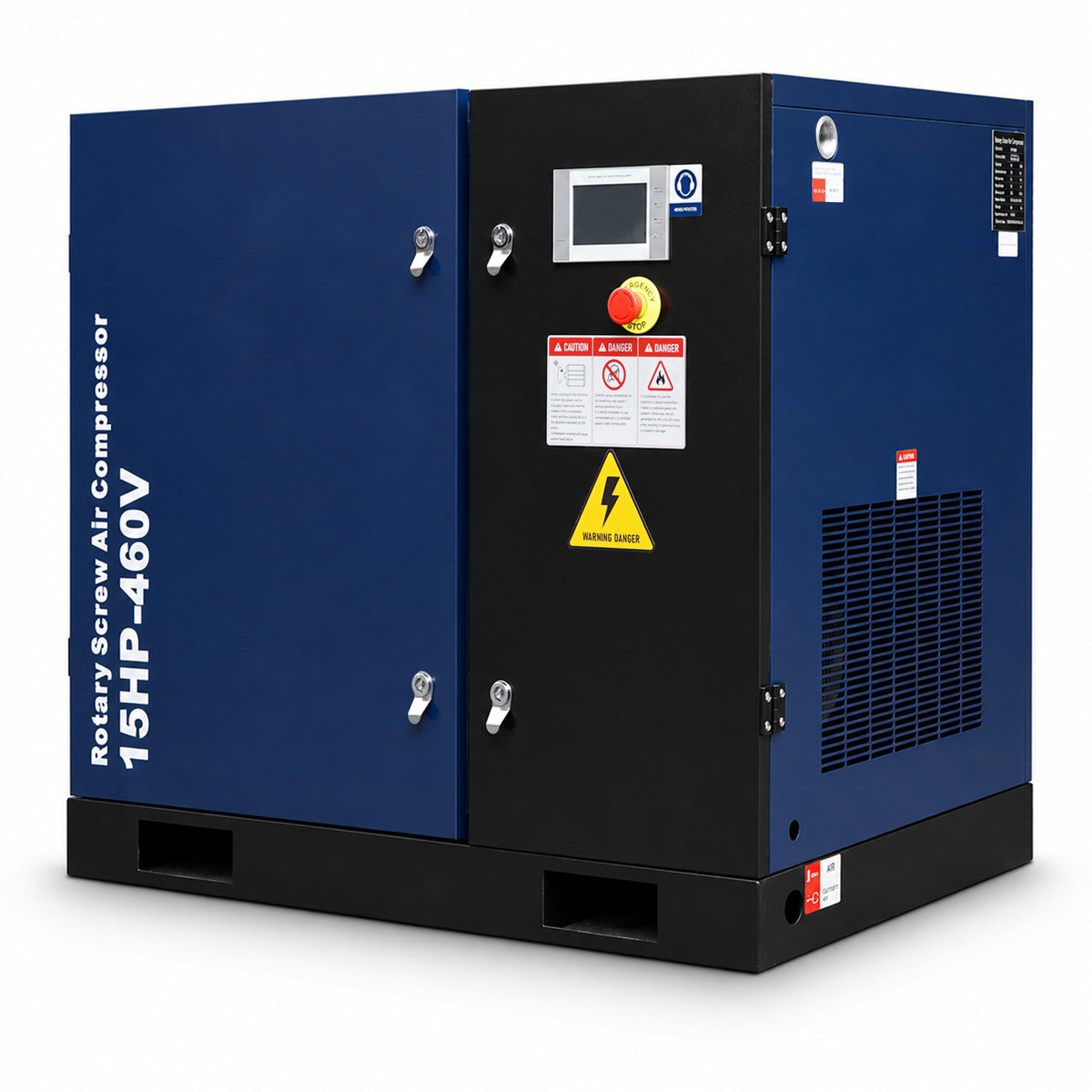

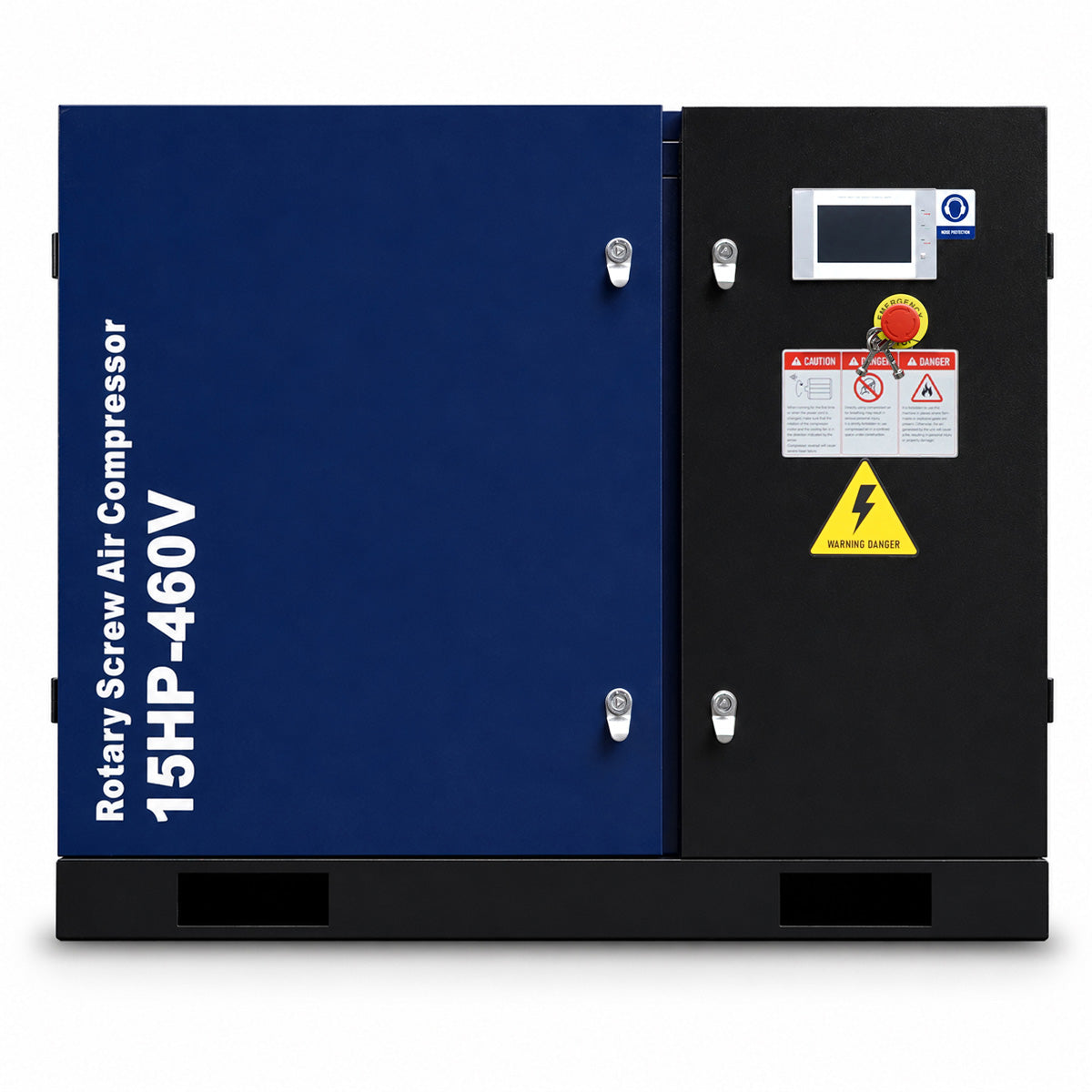

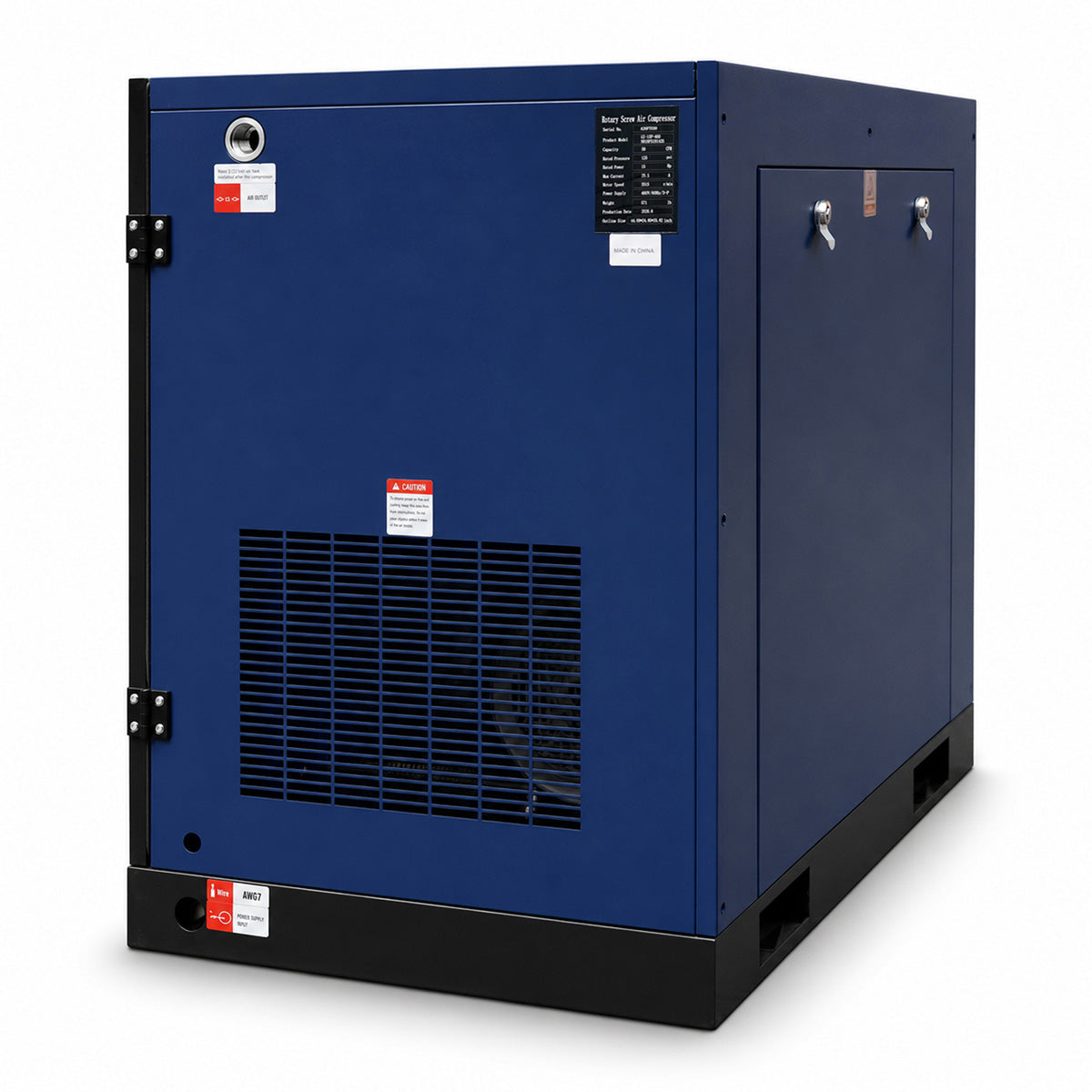

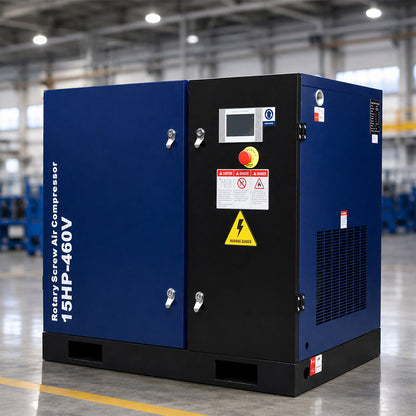

56 CFM Rotary Screw Air Compressor - 15HP, 125PSI, 460V 3PHASE 60HZ

56 CFM Rotary Screw Air Compressor - 15HP, 125PSI, 460V 3PHASE 60HZ

Chery Industrial SKU: N818P519143S
Air Flow Capacity
56CFM
Rated Pressure
125PSI
Voltage
460V
$3,899.00
$3,899.00

In Stock

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

This 15HP rotary screw air compressor is a powerful core for industrial applications, delivering a stable output of 56 CFM at 125 PSI to meet demanding production needs. The 11 KW motor features a star-delta start for smooth, reliable operation and a 460V 3-phase power supply for high efficiency. Engineered for performance and durability with excellent discharge temperature control, it is the pneumatic solution you can trust.

  • Air displacement: 56 CFM, exhaust pressure: 125 PSI.
  • Fixed Speed Compressor, Industrial-Grade, Heavy Duty Air Compressed System
  • 15HP Rotary Screw Air Compressor, 56 CFM, 125PSI, 460V 3PHASE 60HZ
  • This rotary screw air compressor is configured with a 15HP motor and operates at a rated exhaust pressure of 125 PSI.

Features

  • Advanced LCD Controller

    Real-time display with easy setup. Built-in overload & temperature protection plus maintenance alerts help prevent downtime and extend compressor life.

  • Air Outlet Thread

    Air Outlet Thread: 1" NPT.

  • Direct Drive Efficiency

    100% power transmission with no belt loss. Maintenance-free design improves reliability and reduces downtime.

  • Clean Air, Lower Energy Use

    Efficient separation ensures dry air output, reduced pressure loss, and consistent system stability.

  • Strip Oil Gauge

    Clear indication of oil level.

  • Electrical Components & Systems

    Adoption of Schneider brand electrical components.

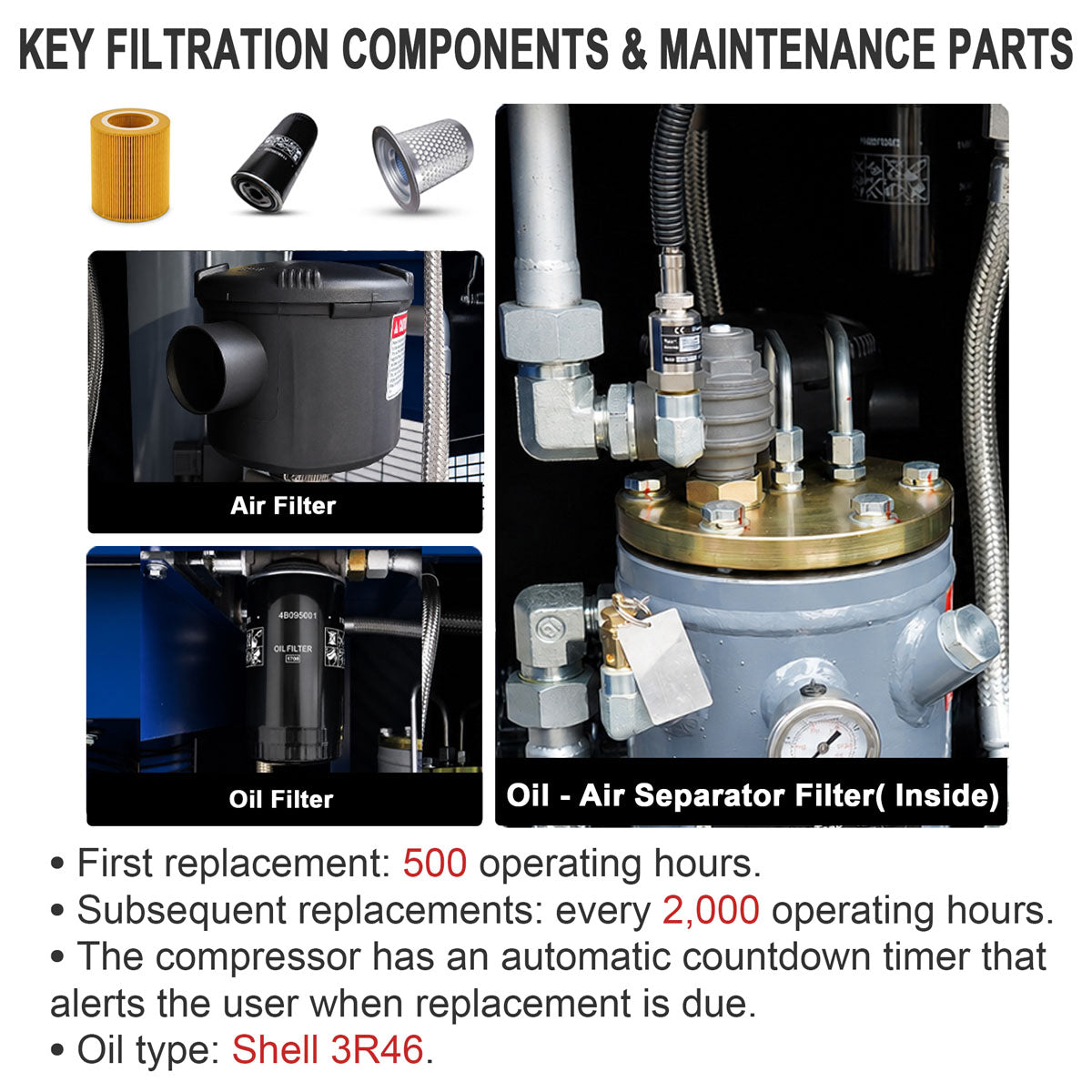

  • Air Filter

    This easy-to-replace air filter features a large dust-holding capacity and low initial pressure drop, enhancing energy efficiency. It effectively removes particles larger than 3 microns and ensures stable performance even in harsh operating conditions.

  • High-Precision Oil Filter

    Delivers cleaner air and protects the compressor. Easy replacement reduces maintenance time and overall cost.

  • Acoustic Insulation

    High-performance acoustic insulation significantly reduces compressor noise levels.

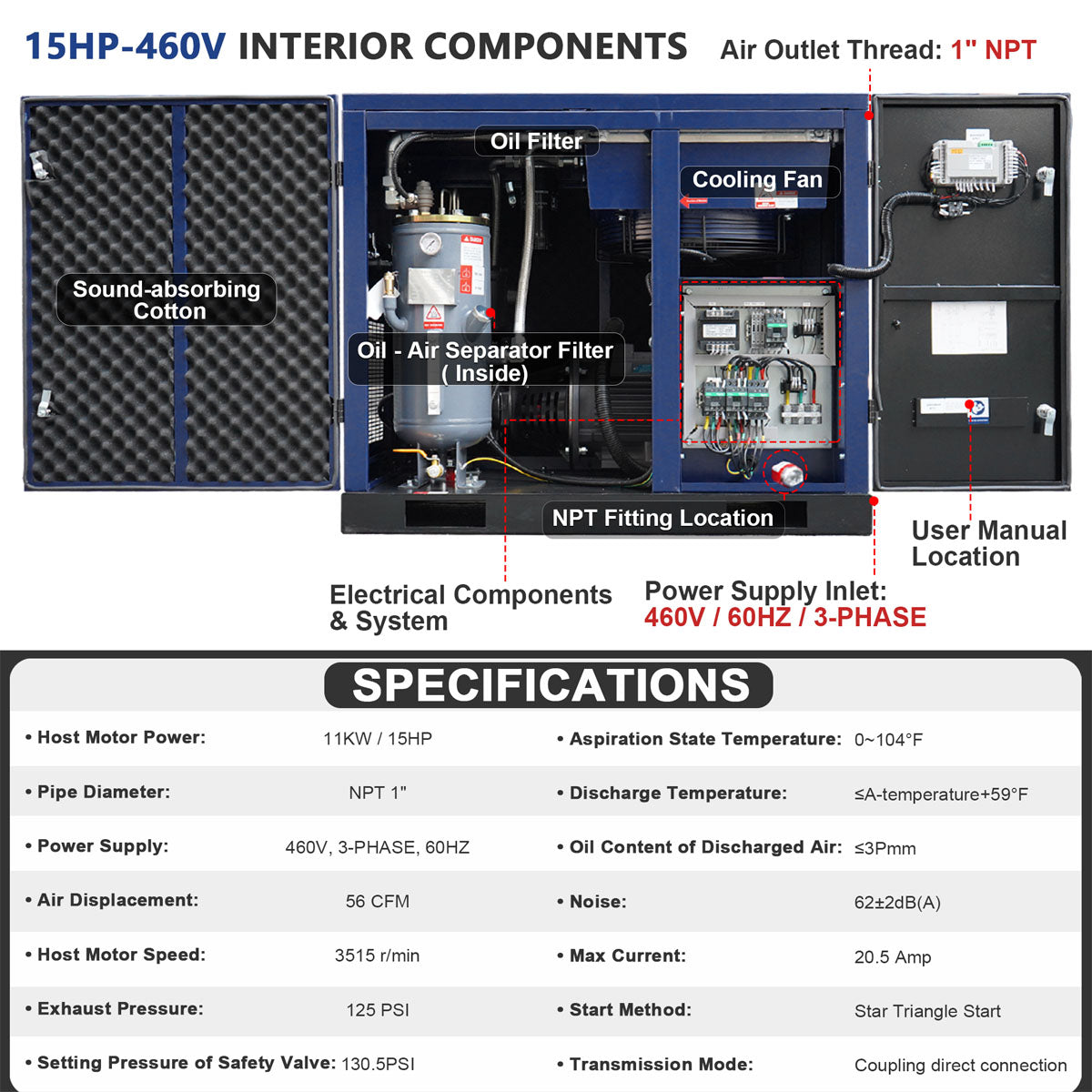

Specifications

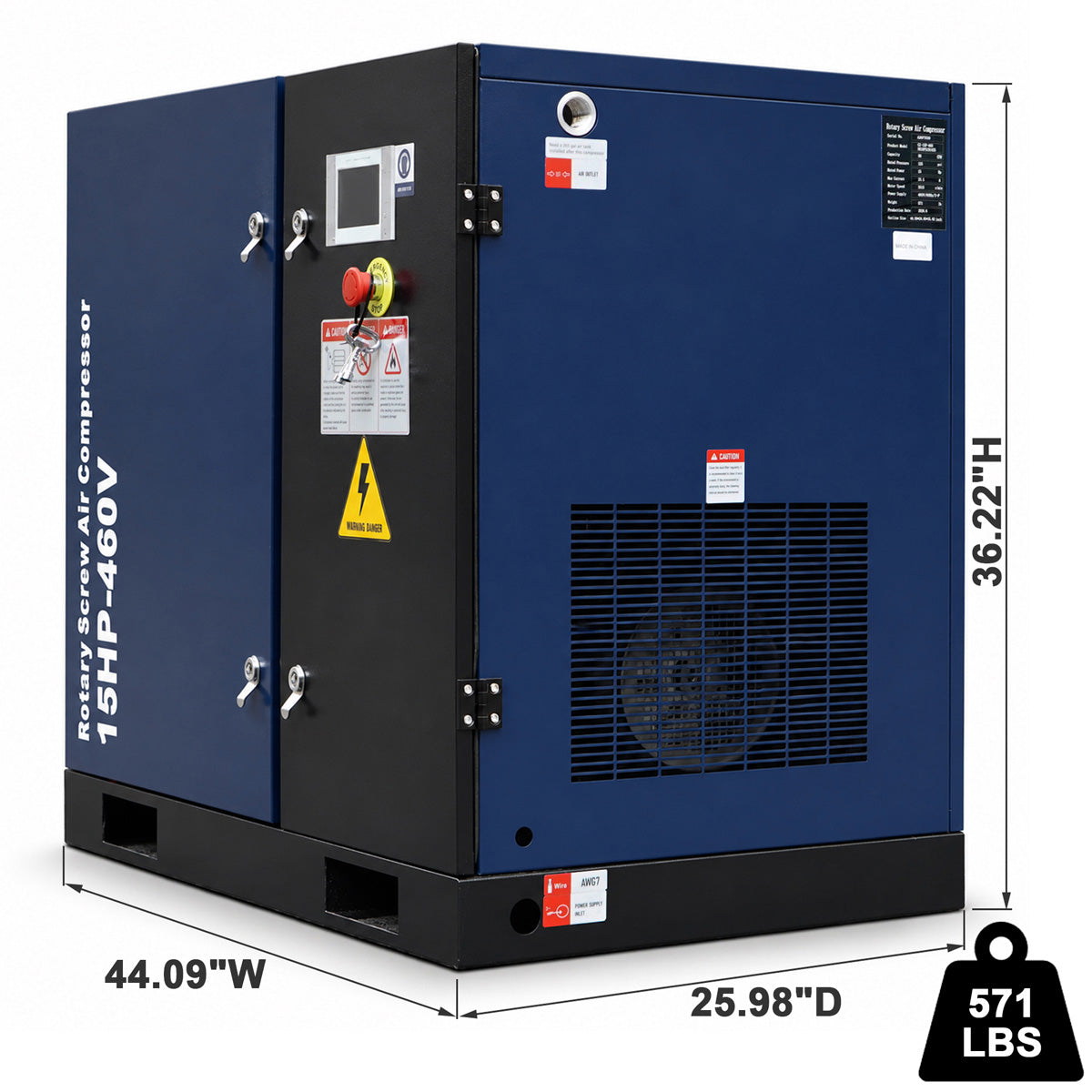

Dimension
44.09 x 25.98 x 36.22 inch
Voltage
460V 3Phase 60HZ
Air Flow Capacity
56CFM
Rated Pressure
125PSI
Maximum Pressure
130.5PSI
Air Outlet Thread
1" NPT
Max Current
20.5A
Rated Power
15HP
Motor Speed
3515RPM
Noise Level
62±2dB(A)
Warranty
1-Year Warranty | Parts covered, consumables extra

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

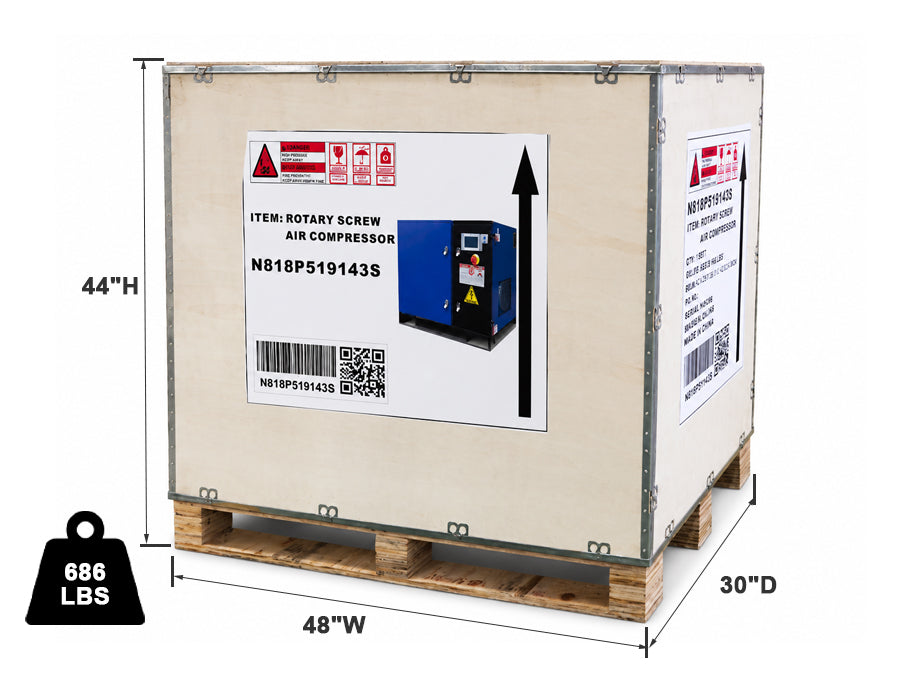

• LxWxH (inch): 48x30x44
• Weight (lb): 686
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.
