74CFM 20HP Rotary Screw Air Compressor with Air Dryer & ASME Tank | 125 PSI 230V 3-Phase

74CFM 20HP Rotary Screw Air Compressor with Air Dryer & ASME Tank | 125 PSI 230V 3-Phase

Chery Industrial SKU: N818P494013S
Rated Power
20HP
PSI
125
Air Tank
68.7 Gal
$8,199.00
$8,199.00

In Stock

Pickup unavailable
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

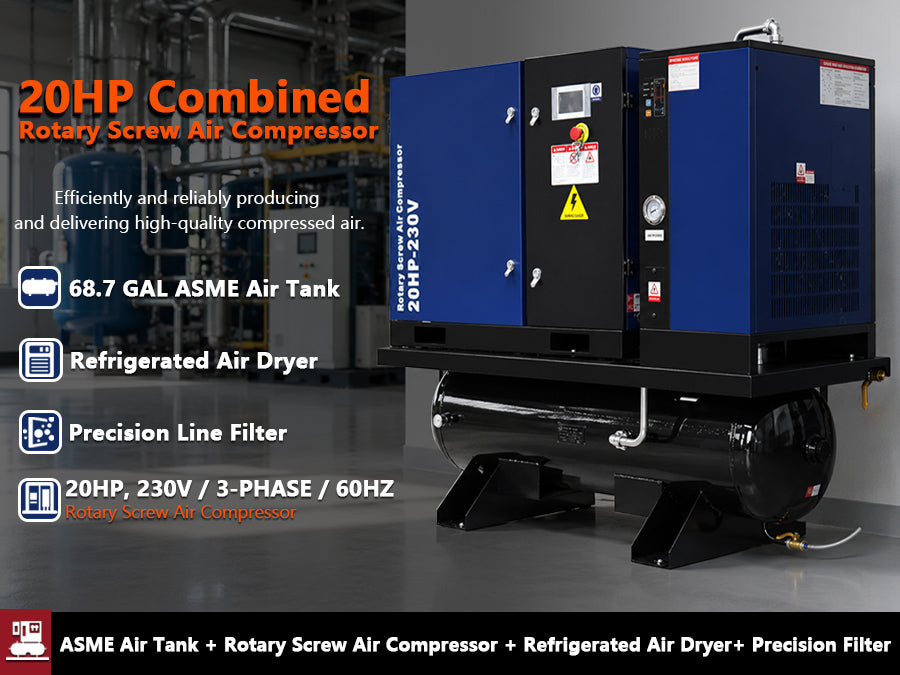

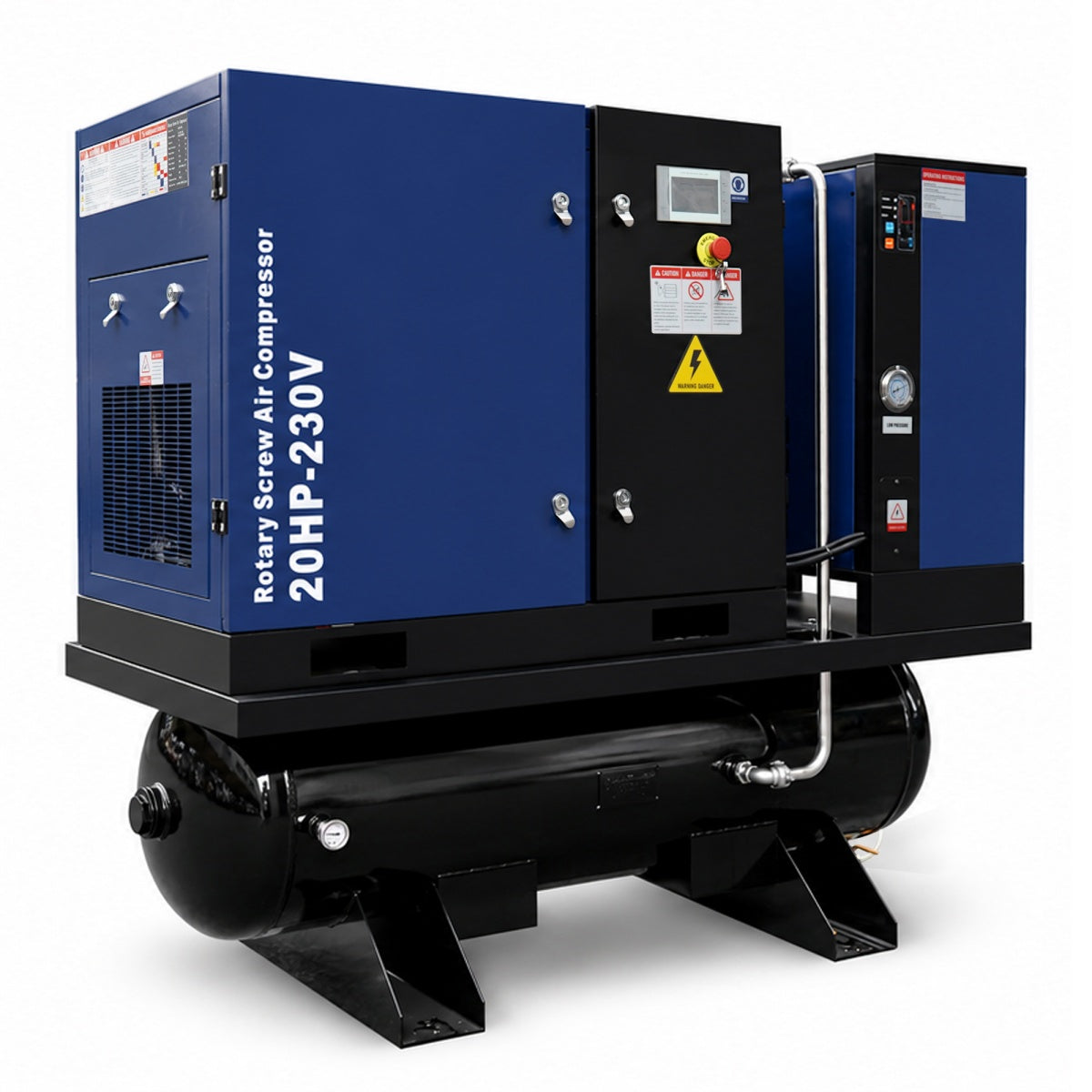

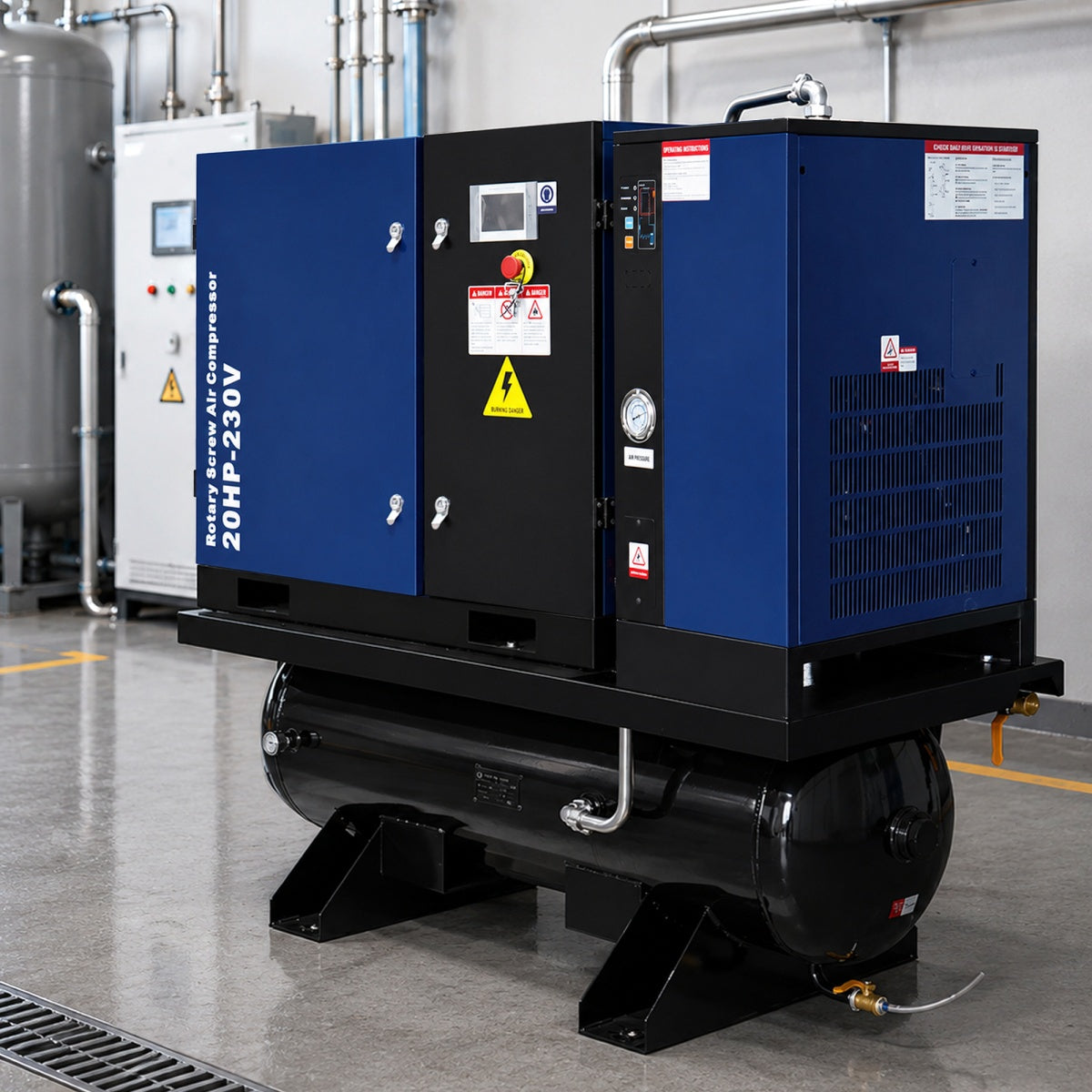

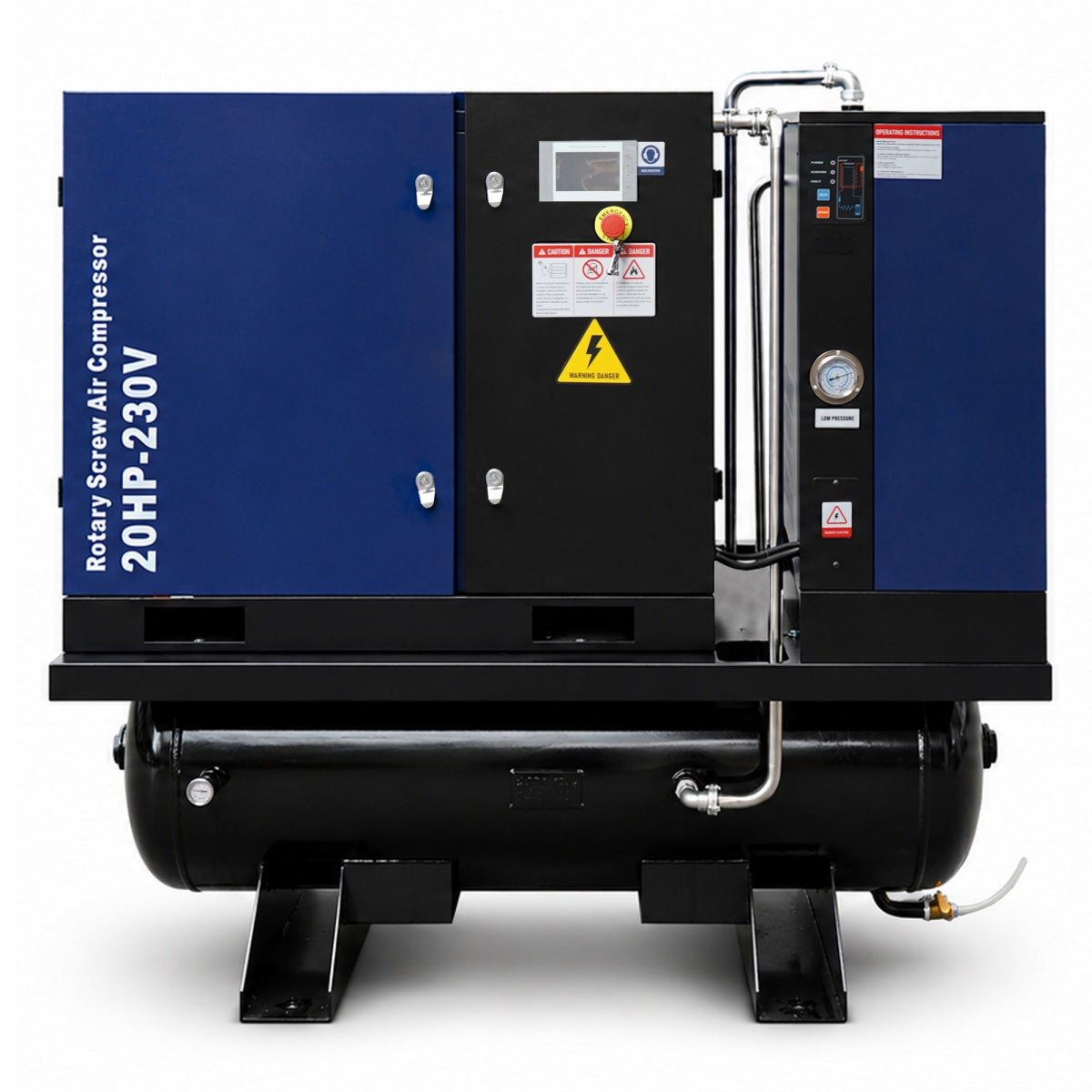

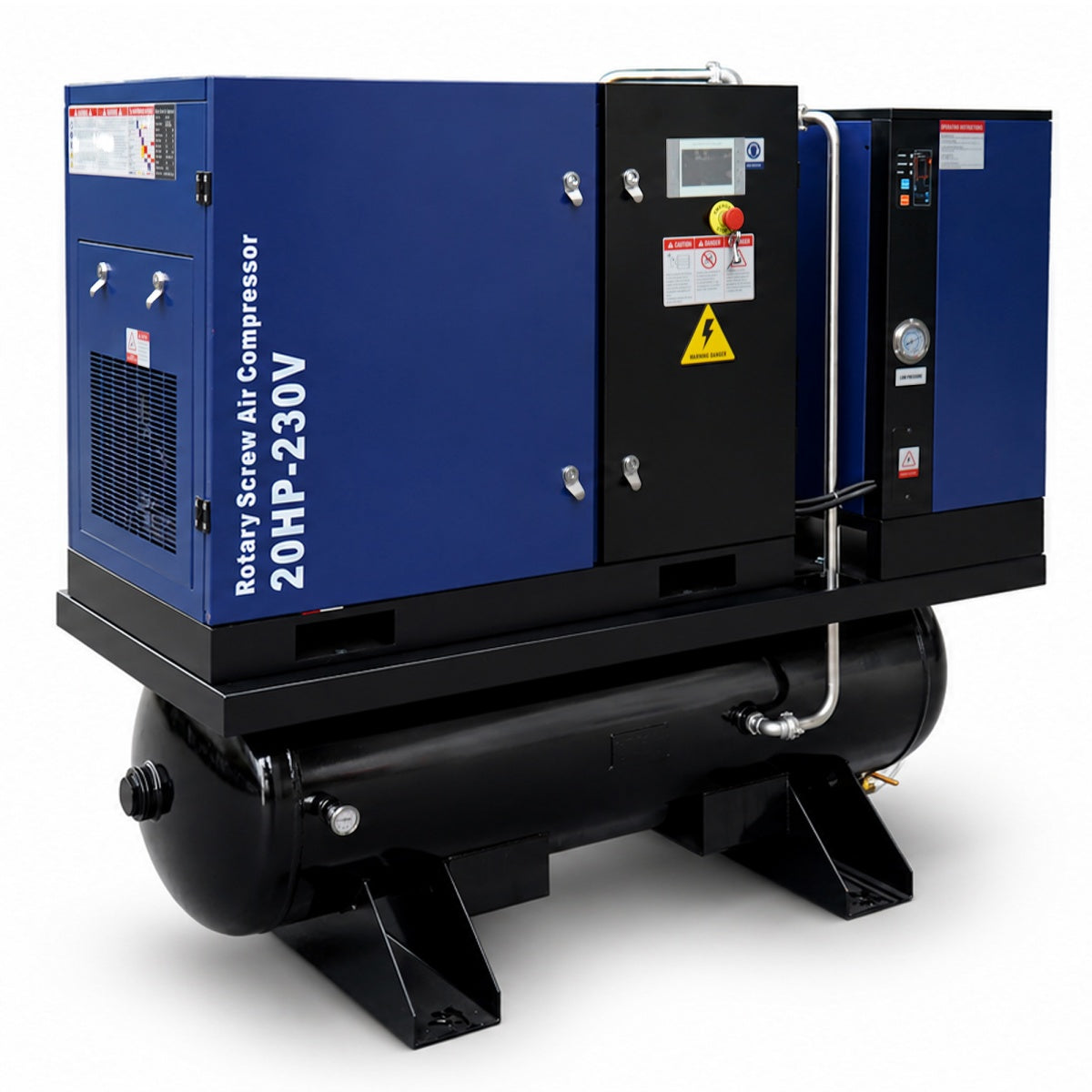

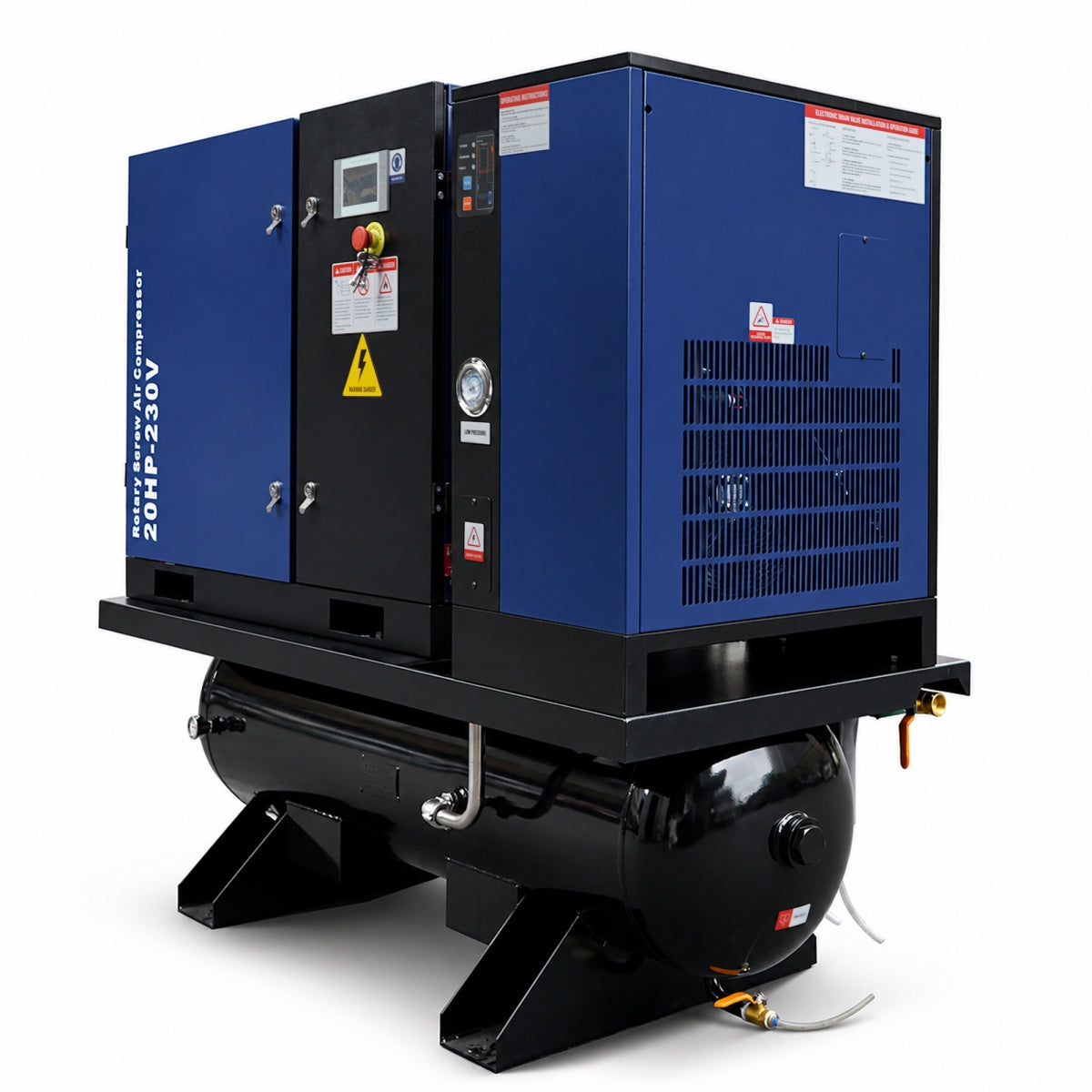

The Chery Industrial 20HP Rotary Screw Air Compressor delivers a complete 4-in-1 compressed air solution by combining a rotary screw compressor, refrigerated air dryer, ASME-certified air tank, and filtration system into one compact package. Producing 74 CFM at 125 PSI, it supplies clean, dry compressed air for CNC machining, automotive service, manufacturing, laser cutting, and industrial production. Powered by a dependable 230V three-phase motor, this integrated system maximizes efficiency, minimizes installation space, and ensures reliable continuous-duty performance.

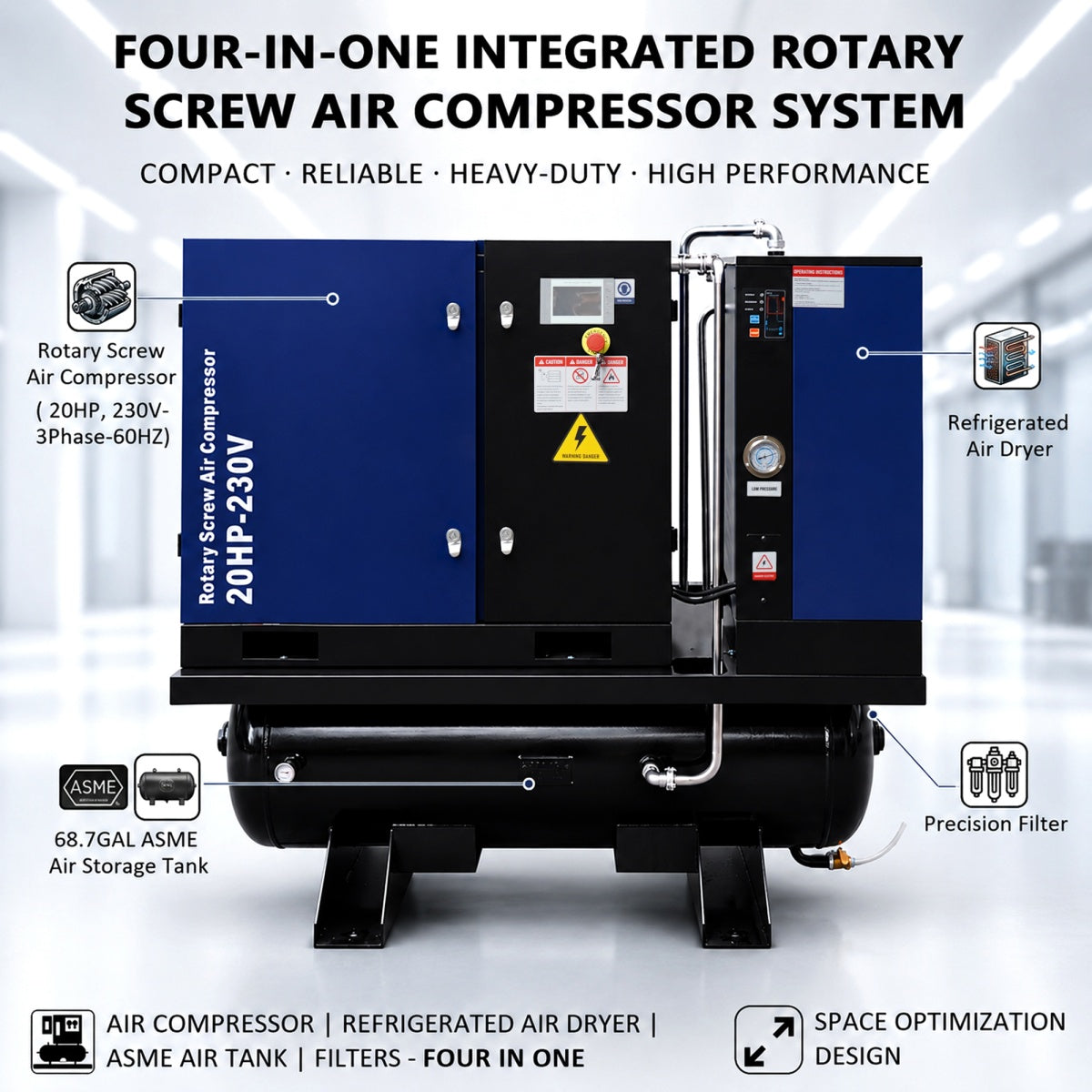

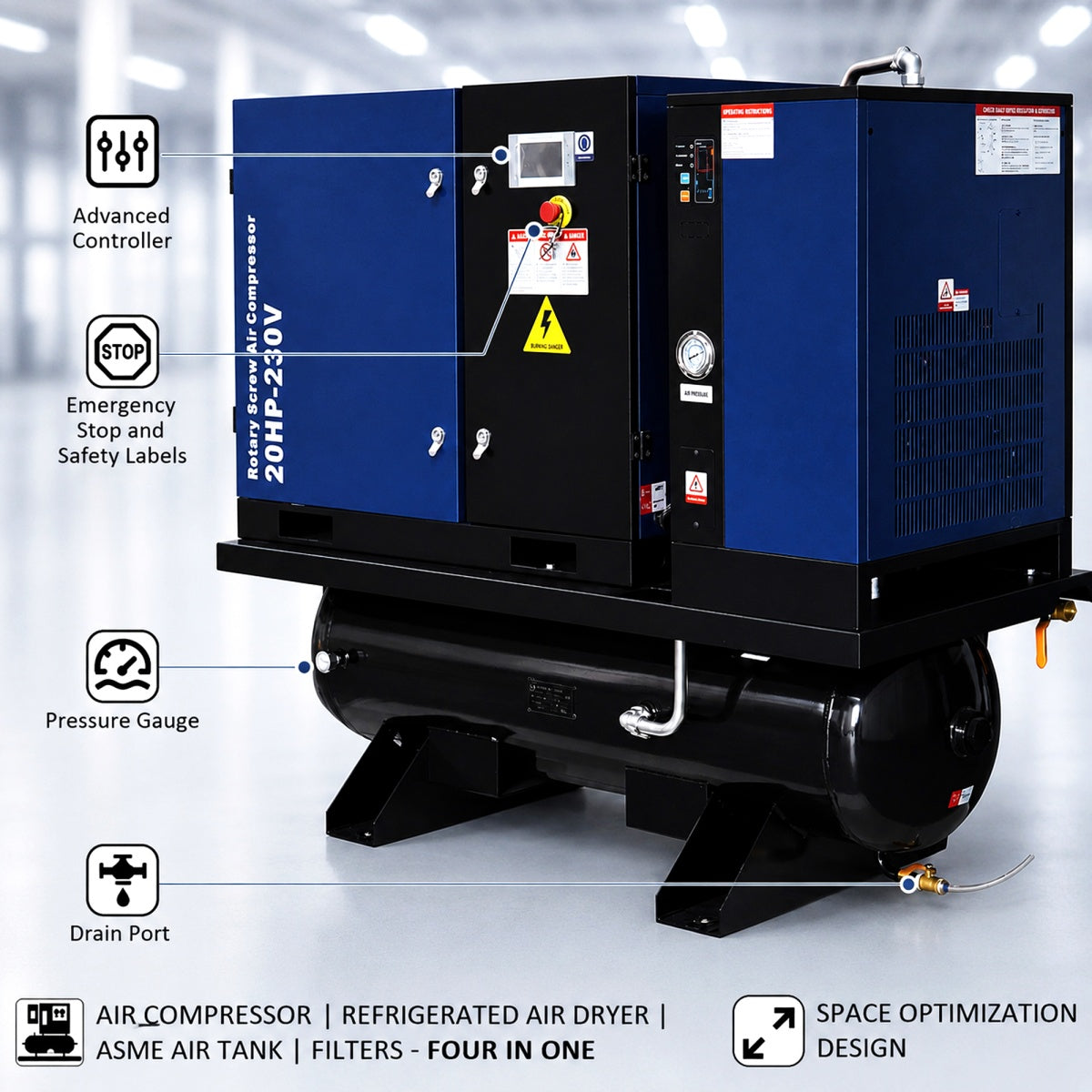

✔ Complete 4-in-1 Air Solution

Integrated rotary screw compressor, refrigerated dryer, ASME-certified air tank, and filtration system simplify installation and reduce floor space.

✔ High 74 CFM Output

Delivers up to 74 CFM at 125 PSI, providing continuous airflow for demanding industrial equipment and multiple pneumatic tools.

✔ Dry, Clean Compressed Air

Built-in refrigerated dryer maintains a 37.4°F–50°F pressure dew point, reducing moisture to help protect machinery and improve air quality.

✔ Heavy-Duty Industrial Performance

Powered by a 20HP 230V three-phase motor with continuous-duty operation for factories, fabrication shops, automotive facilities, and production lines.

Specifications

System Configuration
4-in-1 Integrated Air System

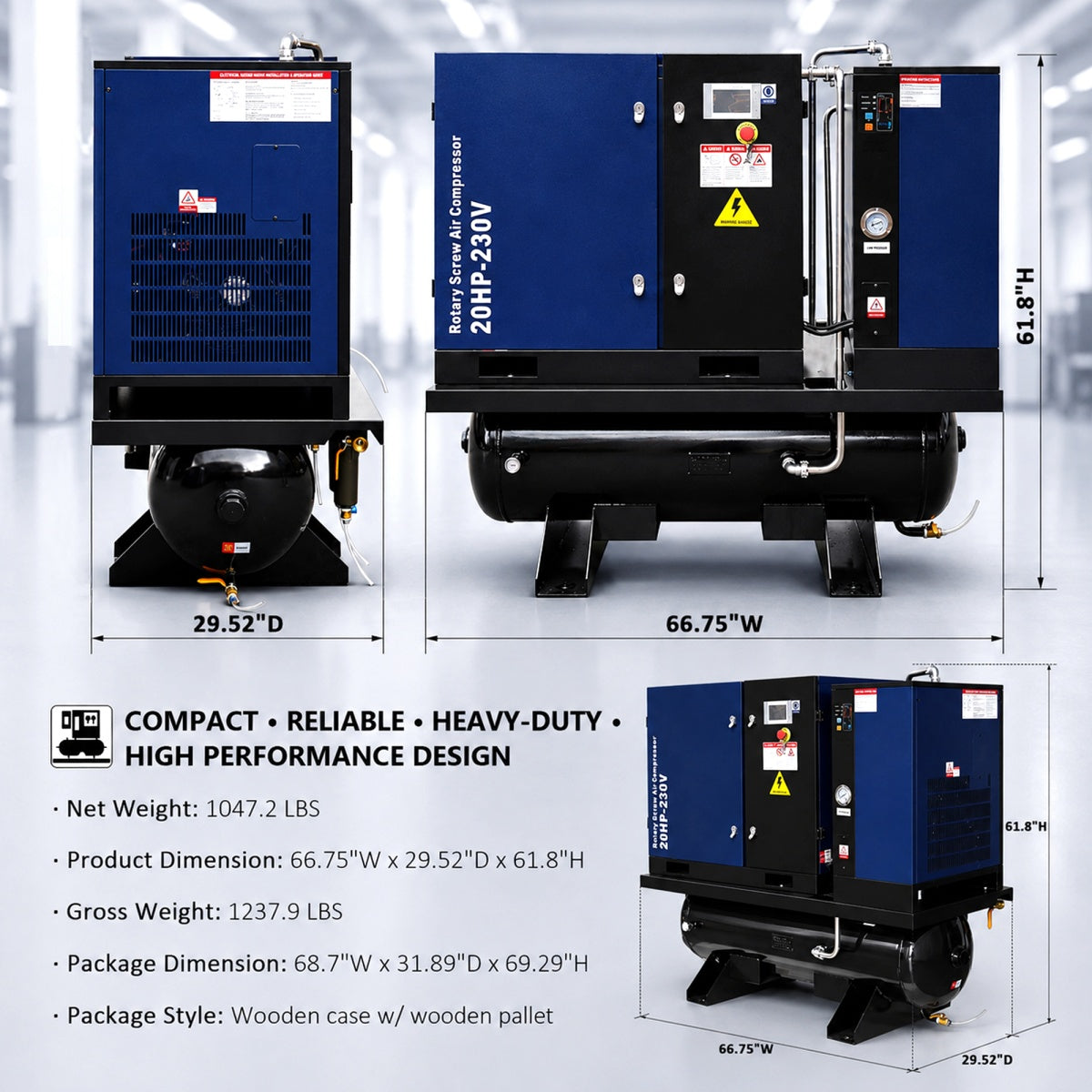

Dimension
66.75x29.52x61.81 inch
Air Compressor
20HP Air Compressor
Voltage
230V 3Phase 60HZ
Rated Power
20HP
Air Flow Capacity
74CFM
Rated Pressure
125PSI
Maximum Current
55.2 A
Motor Speed
3515RPM

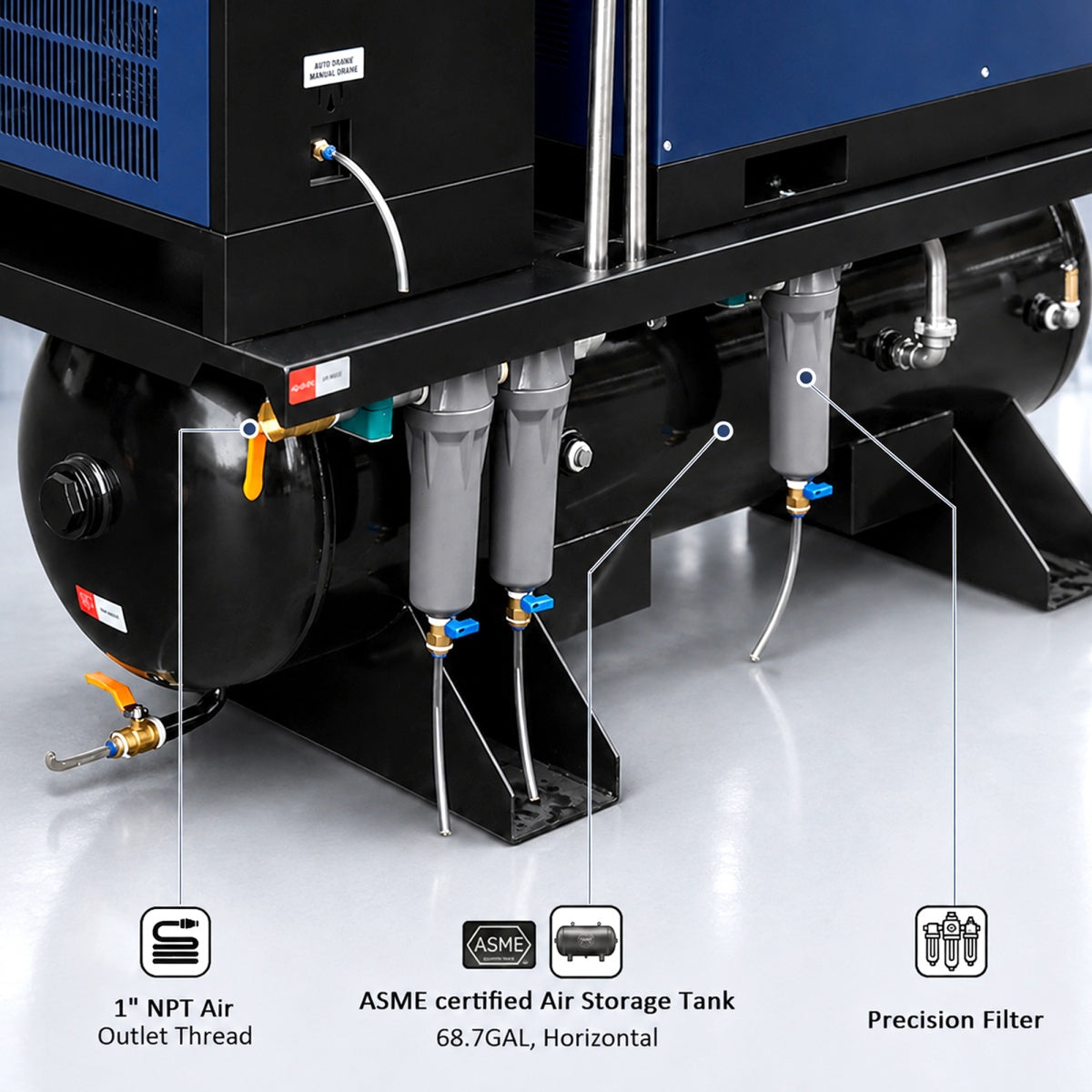

Air Outlet Thread
1" NPT
Air Dryer
88CFM Air Dryer
Voltage
230V 1Phase 60HZ
Rated Pressure
101.5PSI
Maximum Pressure
145PSI
Pressure Dew Point
37.4-50°F
Air Inlet Temperature
≤140°F
Air Tank Capacity
68.7 Gallons (260 L)
Tank Certification
ASME Certified

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

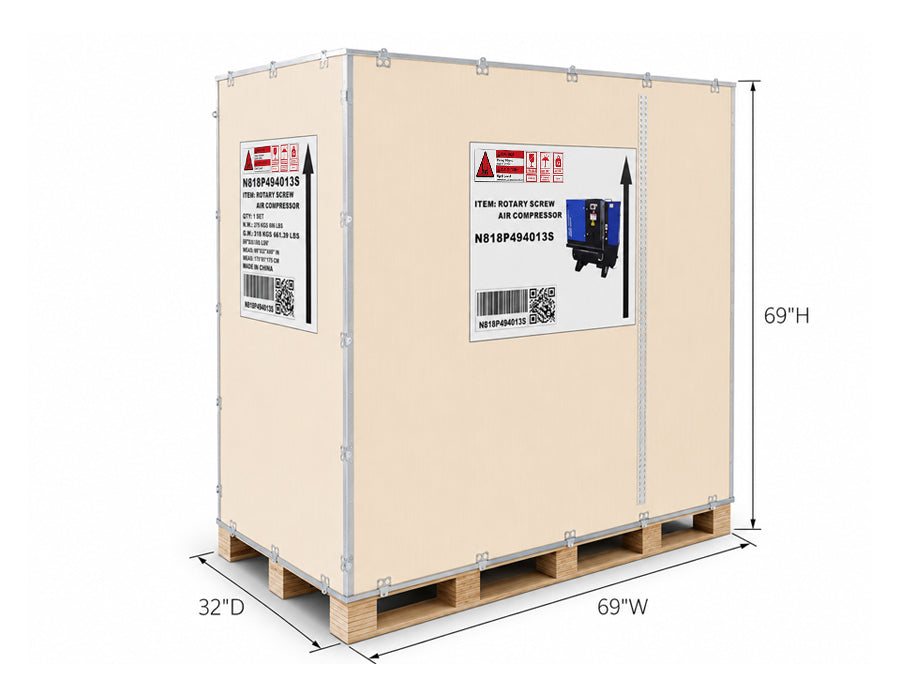

• LxWxH (inch): 69x32x70
• Weight (lb): 1238
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

User Manual

Installation & Operation Precautions

Maintenance Guide

1. Set up the compressor in a clean, ventilated space with ample room for maintenance.
2. Mount the unit on a flat, firm base to cut vibration and prolong its lifespan.
3. Check pipes, gauges and electrical parts for loose or damaged joints; tighten fittings and open the discharge valve.
4. Remove all transport support brackets before the first run; otherwise, severe machine damage will occur.
