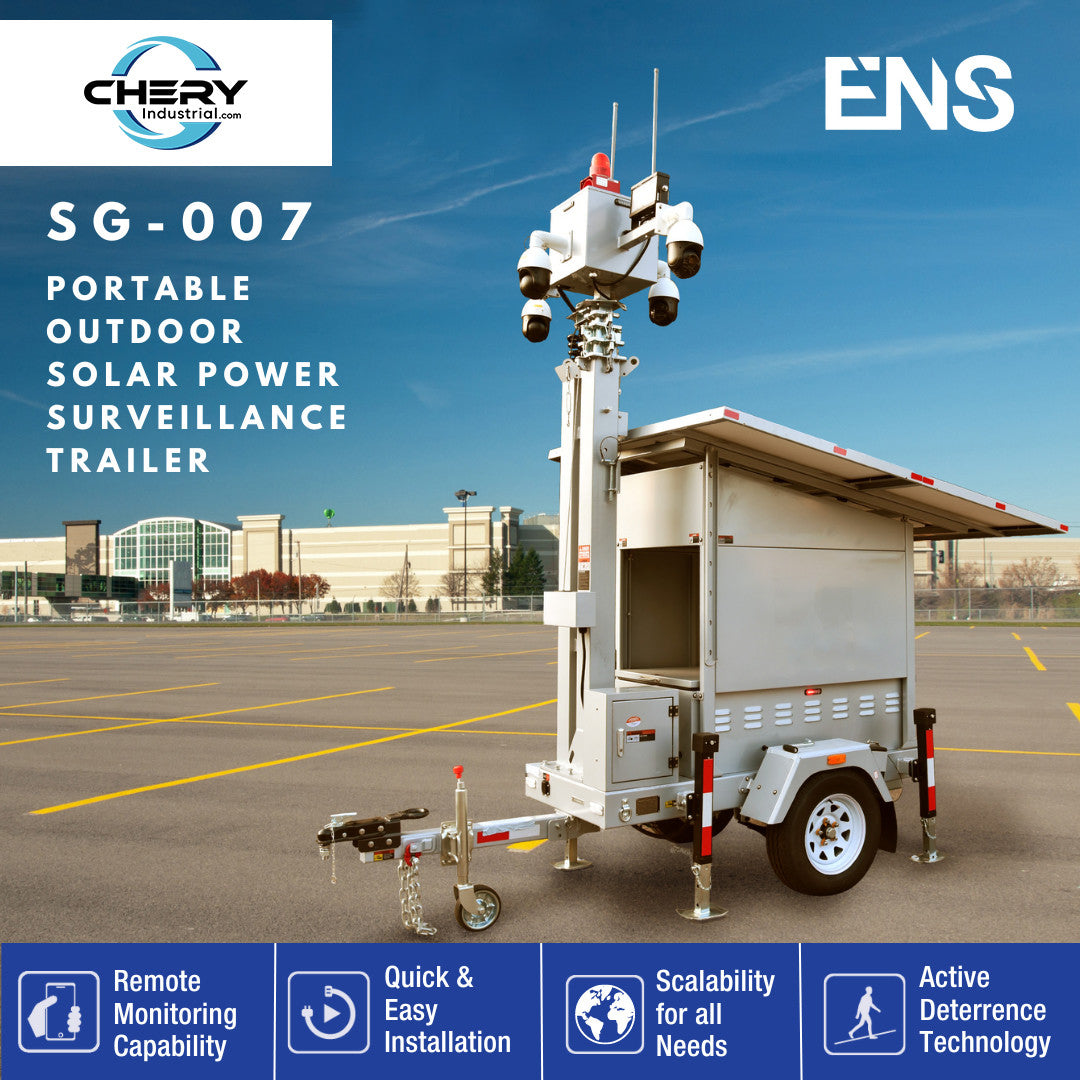

870W Solar Surveillance Trailer

870W Solar Surveillance Trailer

Chery Industrial SKU: SG-007
$29,999.00
$29,999.00

In Stock

Pickup available
TX, MD, CA, NC

870W Solar Surveillance Trailer

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Features

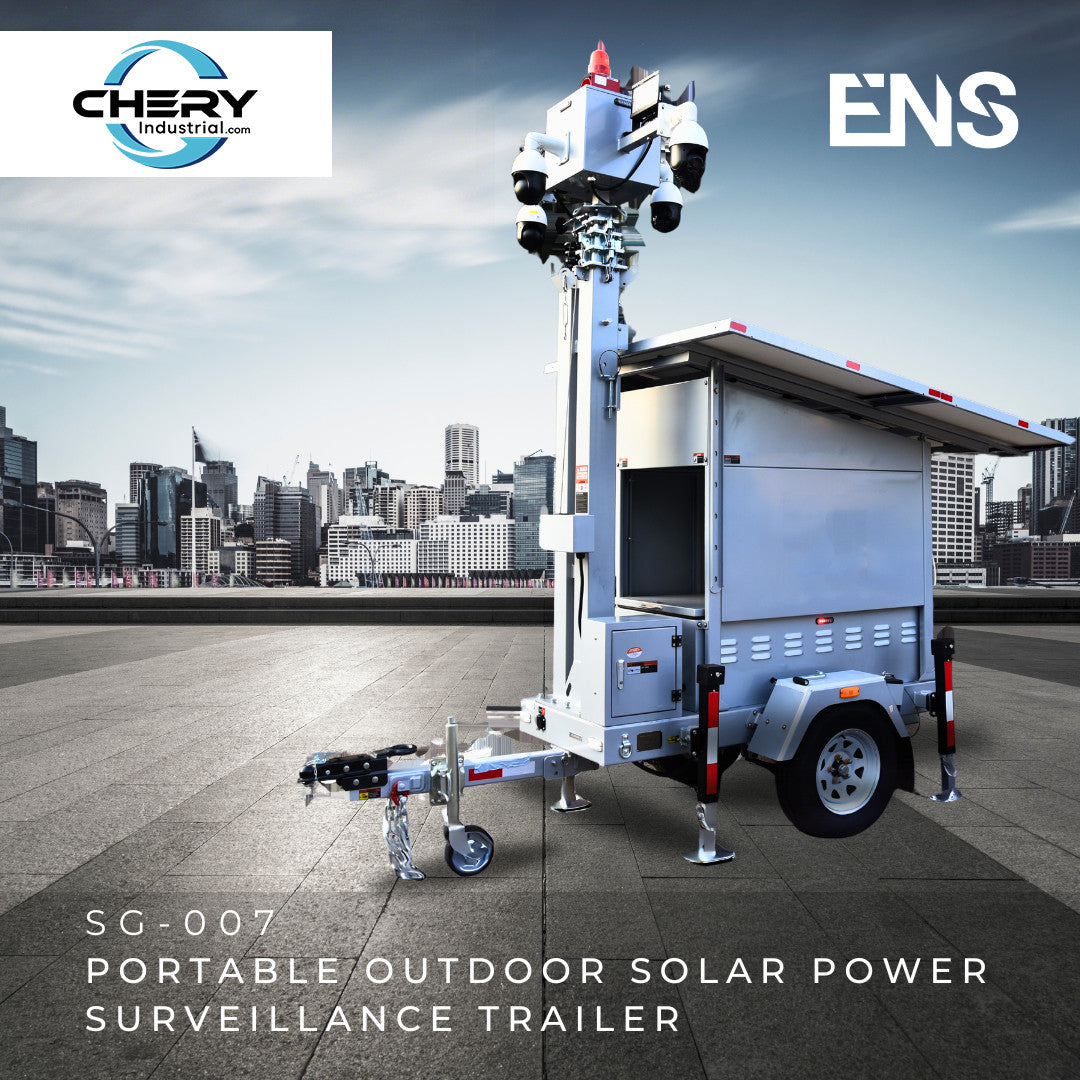

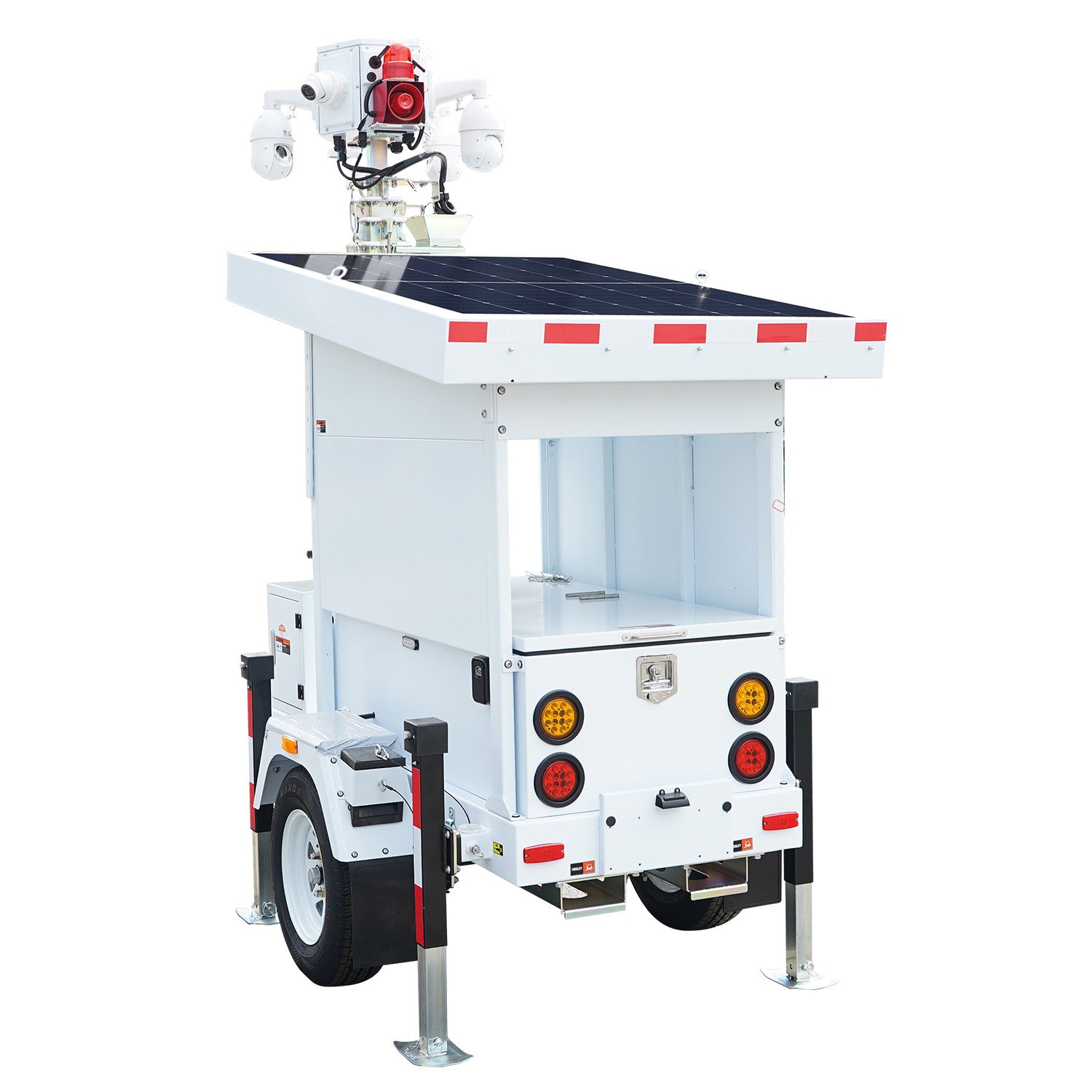

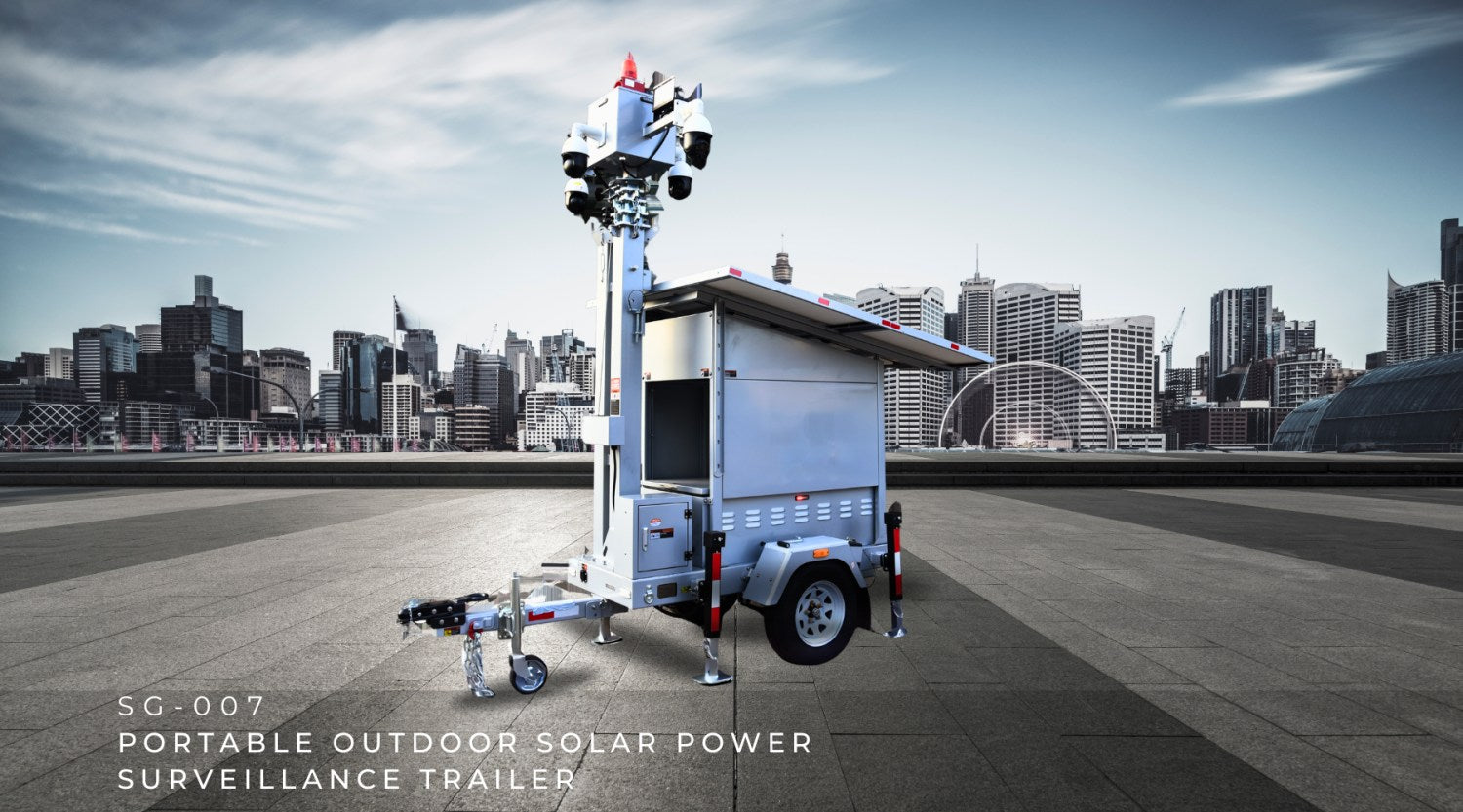

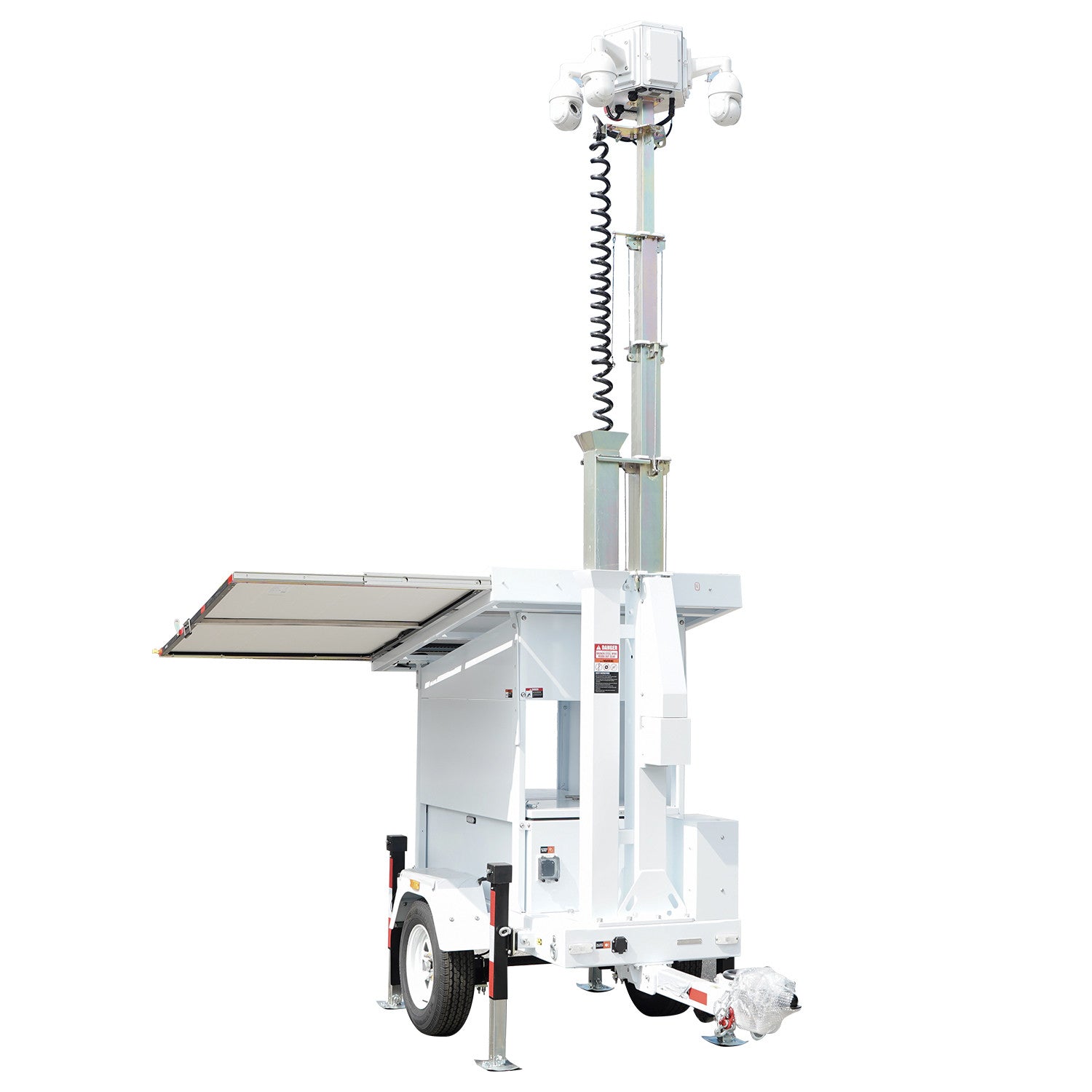

This 870W Solar Surveillance Trailer is a self-powered mobile surveillance trailer featuring dual 435W mono-crystalline solar panels (99.5% MPPT efficiency) and 800Ah gel batteries for 24/7 operation. Equipped with a 24ft manual telescopic mast supporting PTZ/360° cameras, a 4G router, and a loudspeaker, it operates in -35°C to 60°C. Rapid-deployable via truck/crane with single-axle trailer and 185R14C tires.

Dual 435W Mono-crystalline Panels: High-efficiency solar power (20.30%) for 24/7 operation.
800Ah Gel Battery Bank: Deep-cycle batteries ensure reliable backup in extreme temperatures (-35°C to 60°C).

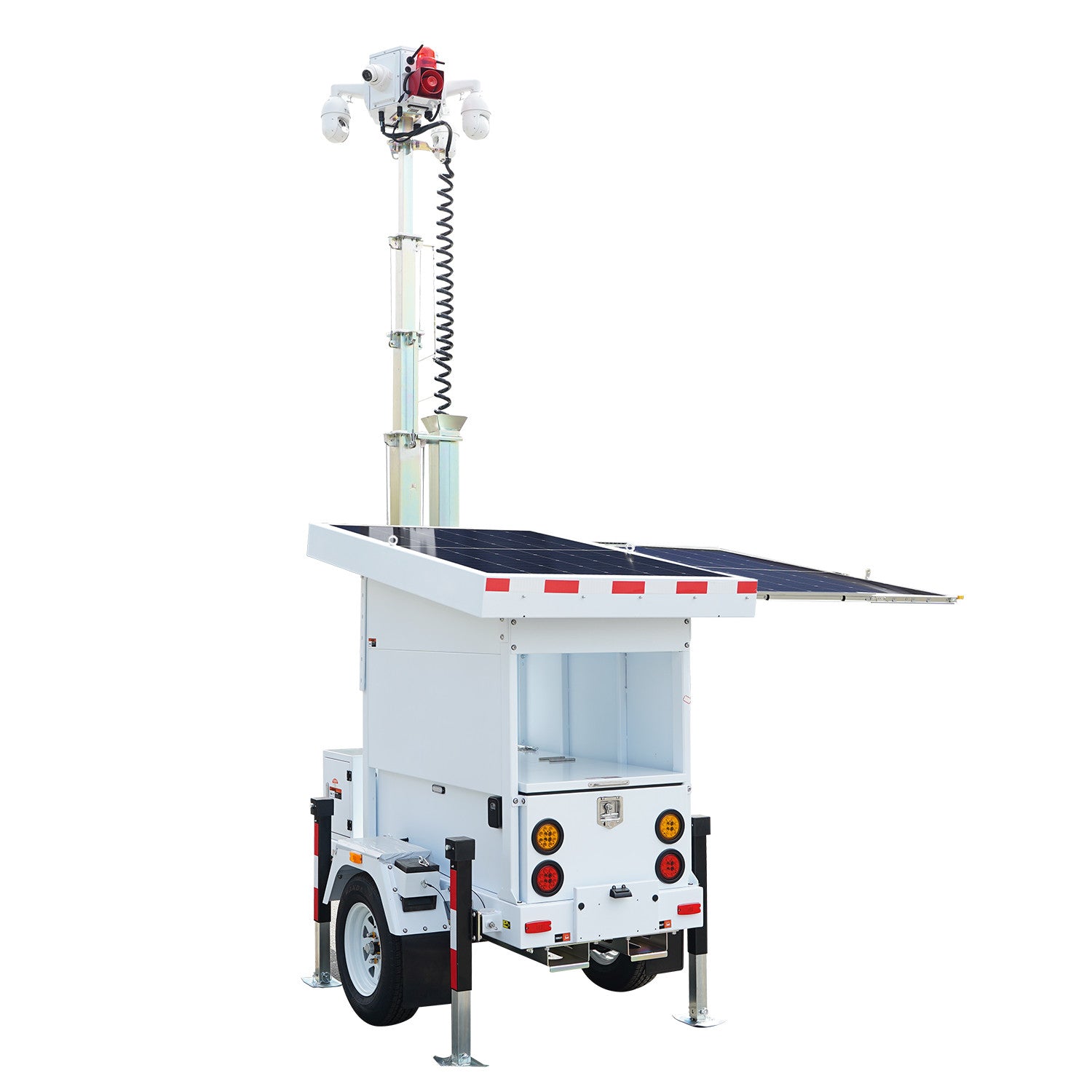

24ft Telescopic Mast: Manual steel mast (Q235) supports cameras/sensors with 62 mph wind resistance.
99.5% MPPT Charging: Ultra-efficient 40A charge controller maximizes solar energy harvest.
Rapid Deployment Design: Single-axle trailer (185R14C tires) with multi-output DC power (12V/24V/48V).

Specifications

Solar Panel
Mono-crystalline silicon
Rate Power
435Wx2
Solar Panel Efficiency
20.3%
Battery Type
Gel-battery
Battery Capacity
12V 200AH x 4pcs
Battery Ambient Temperature
-35-60 °C
Lifting System Type
Telescopic Mast
Lifting System Material
Mast Steel Q235
Max Height
24 ft
Lifting System
Manual
Wind Rating Speed
62 m/h
Camera System Type
PTZ Camera/Bullet Camera/360°View Camera
NVR
40A
4G Router
99.5%
Loudspeaker
8.8H
System Voltage
24V DC
Trailer Type
Mobile Single Axle Trailer
Trailer Standard
America
Tow Hitch
50mm Ball 4400lbs
Stabilization Leg
4pcs Manual
Suspension System
Spring Type
Transportation
Truck, Crane, Forklift
Tire & Rim
185R14C
Charge Type
MPPT
Rated Charge Current
40A
Charge Efficiency
99.5%
Charging Time
8.8 H
Charge System Voltage
24V DC
DC Output
DC 12V 240W/ DC24V 240W/DC48V 480W
Battery Charger
Use AC power charge battery 1.5KW

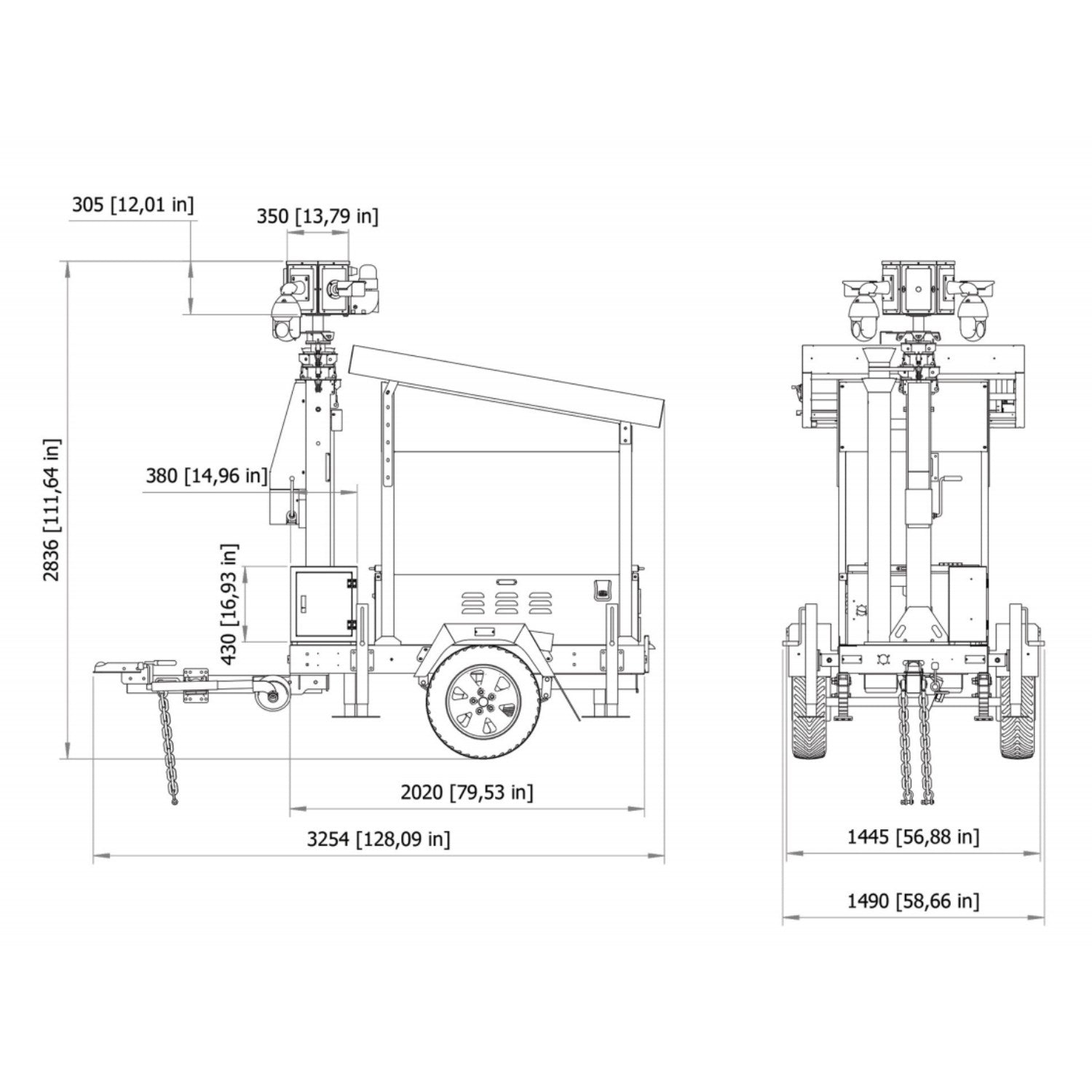

Operating Dimension
9.5x8x24 ft
Transporting Dimension
9.5x5x8 ft
Network Cable
CAT6 x 2
Power Cable
2 x AWG16+2 x AWG13 / 1 x AC Charging Cable (L=2M)

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 75x60x42
• Weight (lb):
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.
