[BARGAIN] Greatbear 78" Heavy Root Grapple Rake

[BARGAIN] Greatbear 78" Heavy Root Grapple Rake

Greatbear SKU: A_AH000005
Width
78”
Capacity
2205 LBS
Jaw Opening
50"
$1,499.00
$3,790.00 Save $2,291.00
$1,499.00

Out of Stock

Pickup unavailable

[BARGAIN] Greatbear 78" Heavy Root Grapple Rake

  • TX

    Pickup unavailable

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup unavailable

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup unavailable

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup unavailable

    711 Gaither Road
    Statesville NC 28625
    United States
Returns
Learn more
All sales are final. Refunds, exchanges, or replacements will not be provided.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

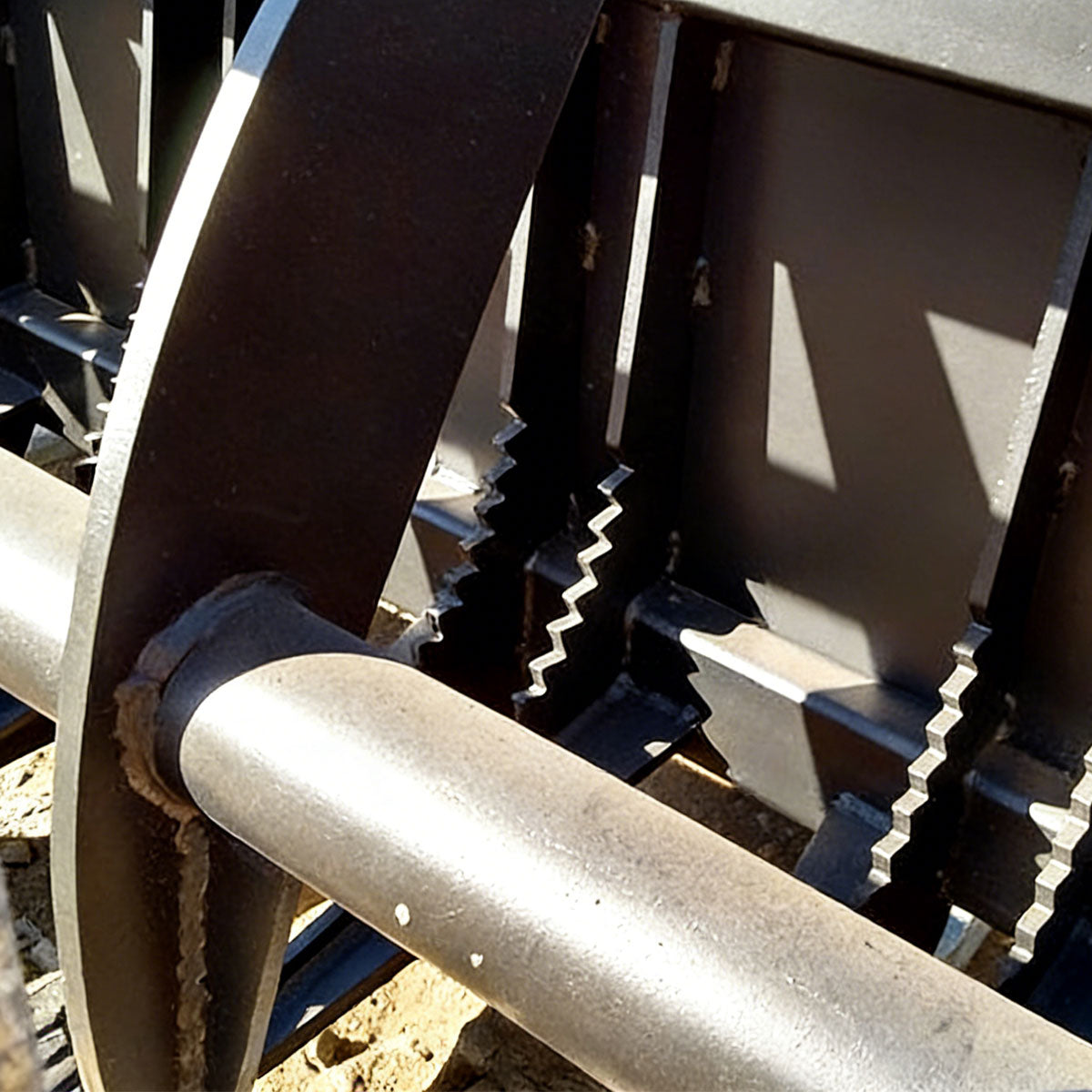

This Greatbear Heavy Root Grapple Rake is an attachment for skid steer for cleaning up brush, logs, and debris in your property and construction site. Engineered with heavy-duty Q345B steel and a universal skid steer hookup, this robust tool delivers superior clamping power and structural integrity, allowing you to handle heavy, irregularly shaped loads with ease and precision.

Universality

Universal skid steer hookup compatible with most skid steers.

Lasting Performance

Heavy-duty Q345B steel construction for lasting performance.

Rake Grapple

A rake-style grapple ideal for picking up debris for industial use.

Easy Maintenance

Grease nippples at all pivot points for smooth operation and durability.

Specifications

Overall dimension（LWH）
77¹⁵⁄₁₆"x27 ⁷⁄₁₆"x29 ⁵⁄₁₆"
Weight
721 LBS
Material
Q345B Steel
Tooth Count
8 × 1U3202 Replaceable Cast Teeth
Hydraulic Flow rate
16-20 GPM (60-80L/min)
Operating Pressure
2300 - 3000 PSI (16 - 21 MPa)
Jaw Opening
50"
Working Width
78"
Grapple Arm Thickness
3/8"
Tine Thickness
5/16"
Tine Spacing
10 ¹¹⁄₁₆"
Hydraulic fitting size
1/2 inch

Shipping

Please note, all [BARGAIN] items do not have free shipping!

US warehouse dispatch, Fulfillment time: 6-10 business days

• LxWxH (inch): 87x30x32
• Weight (lb): 721
• A forklift or equivalent is required for unloading.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Quick Installation & Safety

Clean Connections: Wipe dirt from hydraulic couplers before connecting to prevent system contamination and avoid voiding the warranty.

Verify Locking: Visually check that coupler lock pins are fully engaged through the attachment plate slots before operation.

Purge Air: On first use, cycle the grapple open and closed 3 times at low RPM to bleed air from the hydraulic lines.

Regular Greasing: Periodically apply #2 lithium grease to all pivot joint nozzles to ensure smooth operation.

Center Your Load: Always center the load on the attachment; if it feels unbalanced, reposition and retry to prevent tip-overs.
