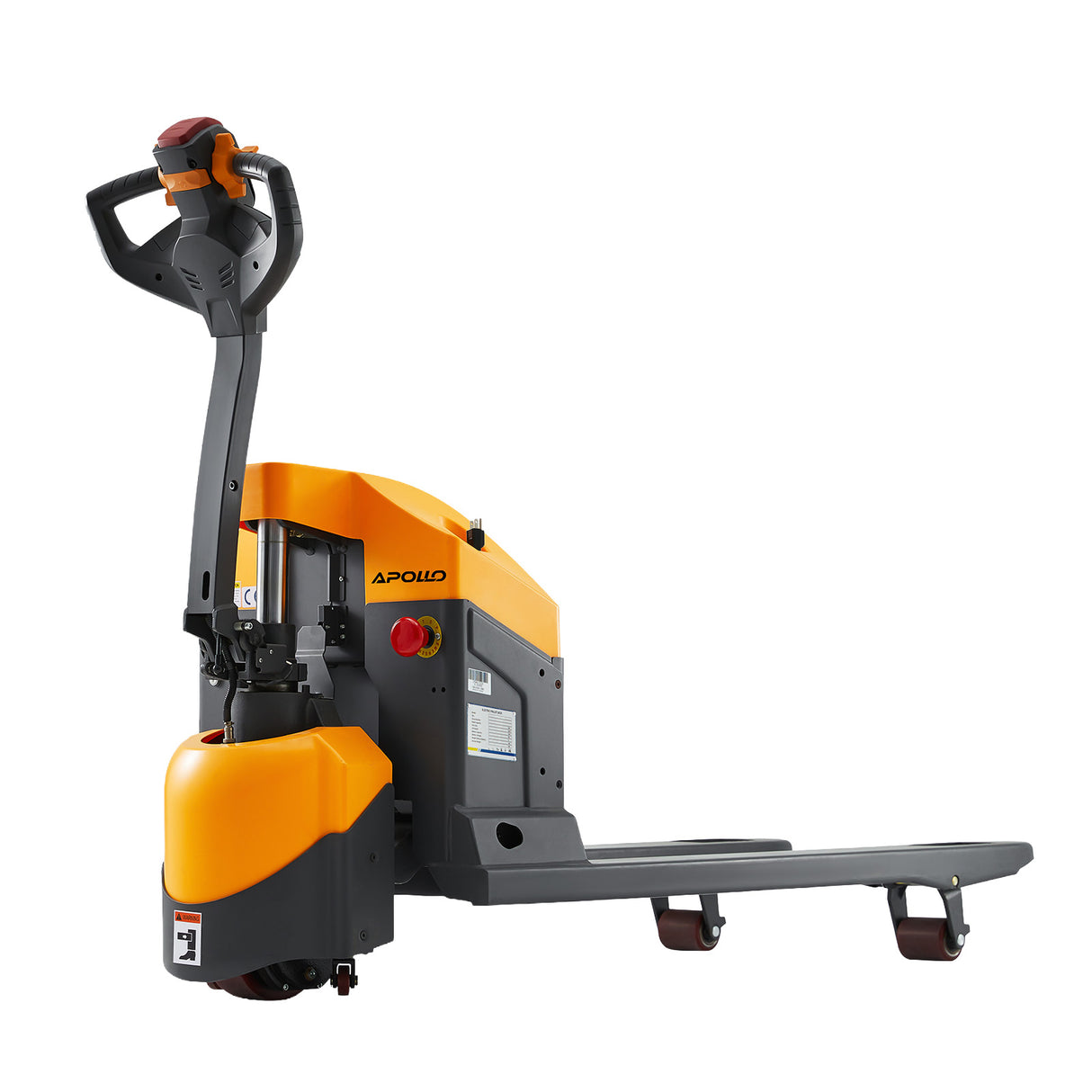

Electric Walkie Pallet Truck | 48" x 27" Forks | 4400 lbs. Capacity | TX Self-Pickup

Electric Walkie Pallet Truck | 48" x 27" Forks | 4400 lbs. Capacity | TX Self-Pickup

Apollo SKU: CBD20WE-19BC
$2,300.00
$2,300.00
Color: Yellow
Pickup available
TX

Electric Walkie Pallet Truck | 48" x 27" Forks | 4400 lbs. Capacity | TX Self-Pickup

Color: Yellow

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

  • Compact Maneuverability: Small turning radius combined with a turtle-mode upright movement ensures flexible operation in confined spaces, improving efficiency and safety.
  • Comprehensive Safety Features: Integrated protections such as lifting overload protection, emergency power-off, emergency reverse via the belly switch, and height limits work together to ensure operator safety.

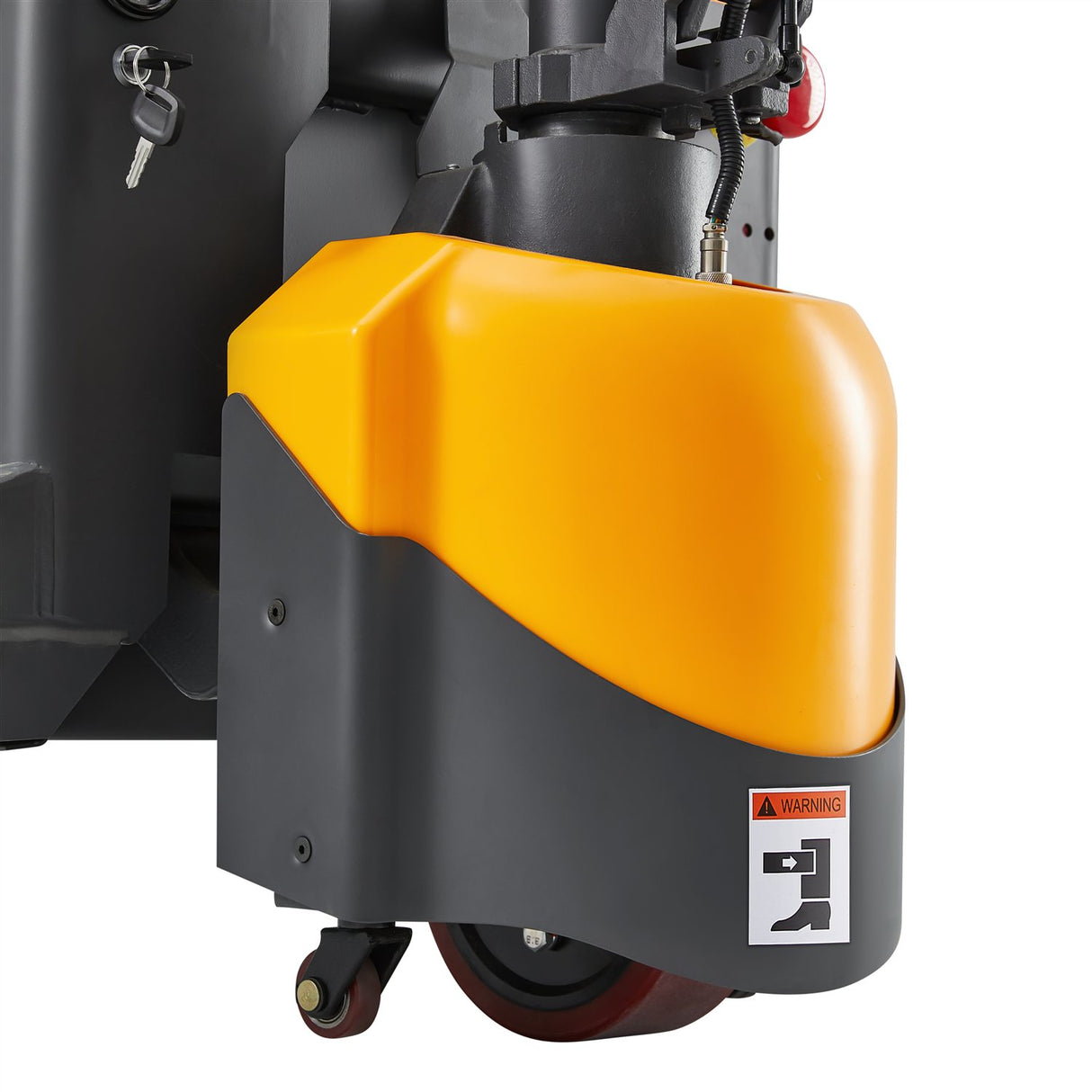

  • High-Mounted Drive Wheels: The elevated position of the drive wheels keeps the motor away from ground contaminants like water, dust, and oil, thereby extending its service life.
  • Enhanced Stability: A floating balance wheel minimizes lateral sway during operation, ensuring smooth and stable movement.
  • Durable Hydraulic System: A large-diameter plunger cylinder operates at low pressure, resulting in reduced failure rates and a longer lifespan for the system.
  • To prolong battery life and ensure proper function, charge once a month when not in use.
  • The kind of truck is applicable for goods transportation on hard and flat floor.

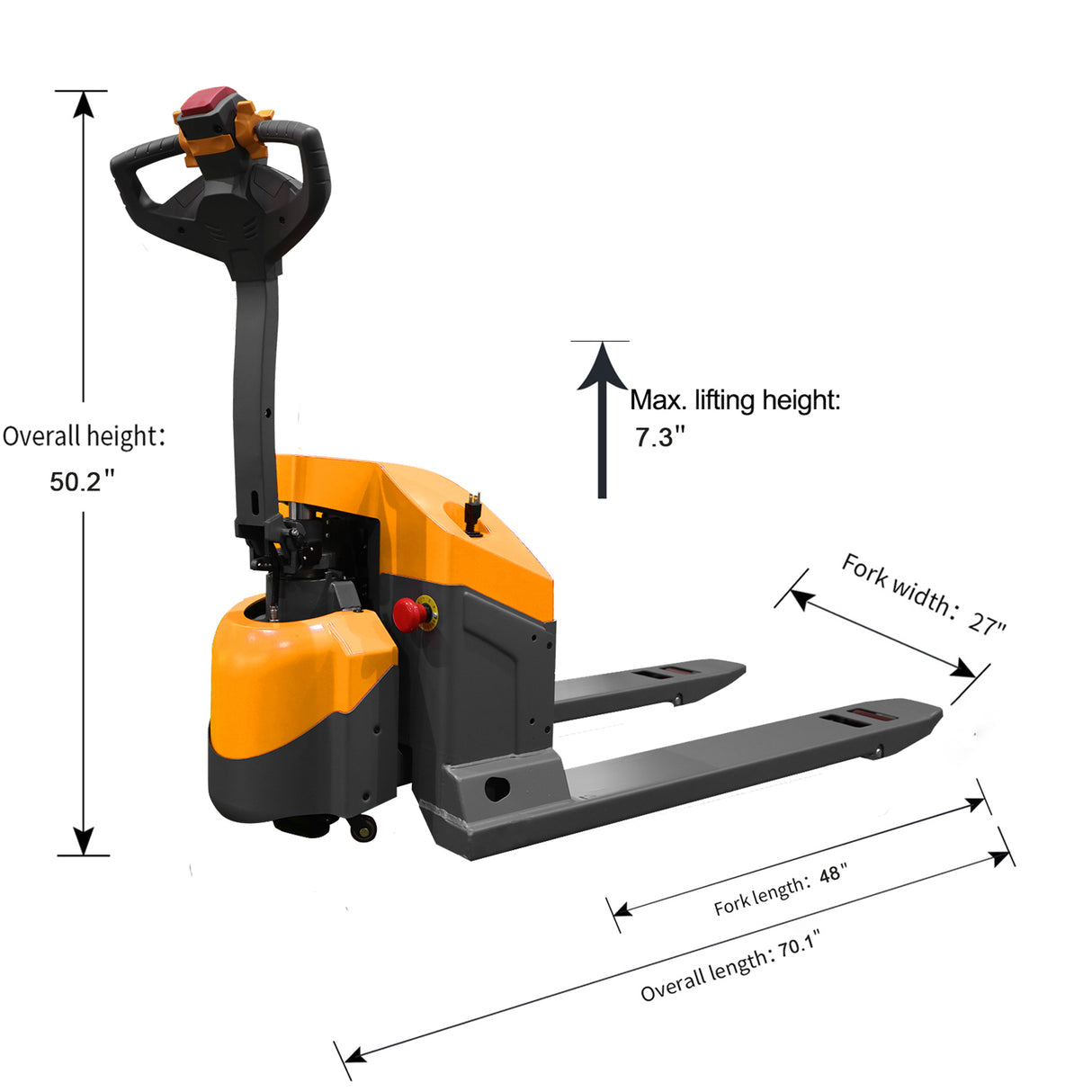

Specifications

Capacity
4400 lbs.
Aisle Width
90.9"
Max.Lifting Height
7.3"

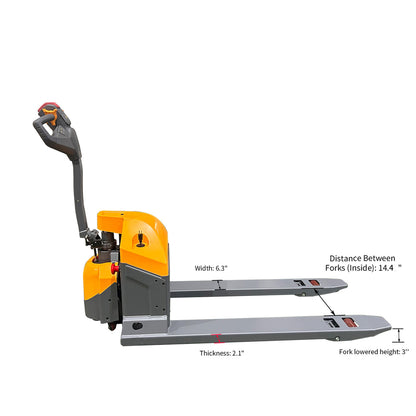

Inside Distance Between Forks
14.4"
Fork Length
48"
Fork Overall Width
27"
Single Fork Width
6.3"
Overall Height
50.2"
Overall Length
70.1"
Overall Width
27"
Driving Speed-Unladen
3.0 mph
Driving Speed-Laden
2.7 mph
Lifting Speed/Empty
1.2 inch/s
Lifting Speed/Loaded
1 inch/s
Gradeability/Empty
20%
Gradeability/Loaded
5%
Total Wheel Count
5
Turning Radius
59.5"
Lifting Distance
4.3"
Battery Capacity
105AH
Battery Spec
24V/105AH
Battery Voltage
24V
Battery Type
GEL Battery
Fork Thickness
2.1"
Stabilizer Wheel
Yes
Fork Lowered Height
3"
Lowering Speed/Empty
1 inch/s
Lowering Speed/Loaded
1.4 inch/s
Service Weight
530 lbs.
Gross Weight
540 lbs.
Brake Type
Electric brake
Charger

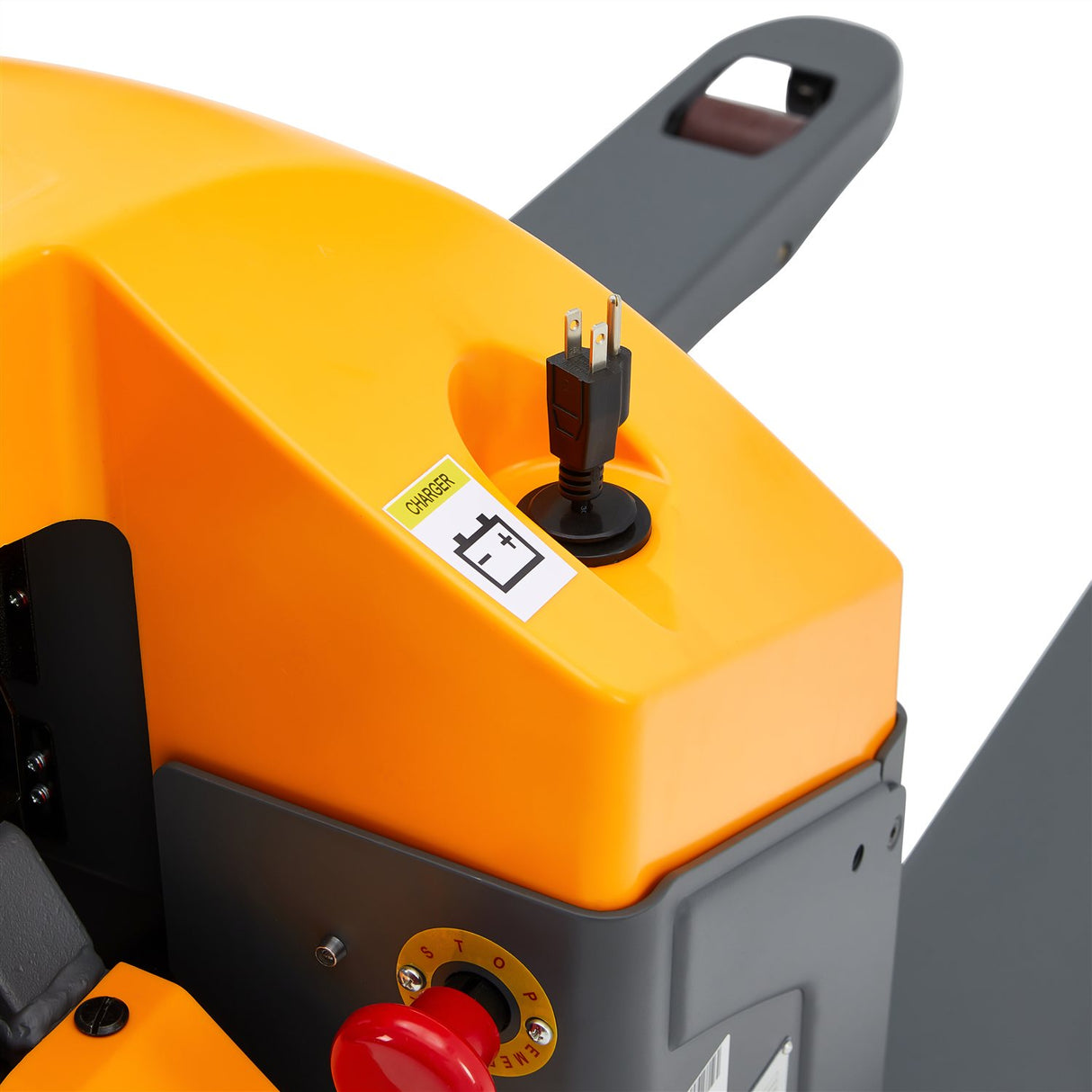

24V/10A built-in
Package Size
68"x27"x32"
With Lcd Panel
No

Self-Pickup

  • Self-Pickup at:

3452 S Burleson Blvd, Alvarado, TX 76009

  • Open Hours:

Monday to Friday from 8am to 5pm CST, excluding holidays.

Assembly

Assembly Instruction
  • Inspection & Maintenance


Conducting a thorough inspection of the product can help prevent malfunctions and ensure it achieves its expected service life.

Maintenance hours are based on 8 hours of operation per day, 200 hours per month.

For safe operation, the product should be inspected and maintained according to the maintenance schedule.

⚠️ Notice:

  • Handle Self-Installation Required, including for Self Pickup Orders
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).
