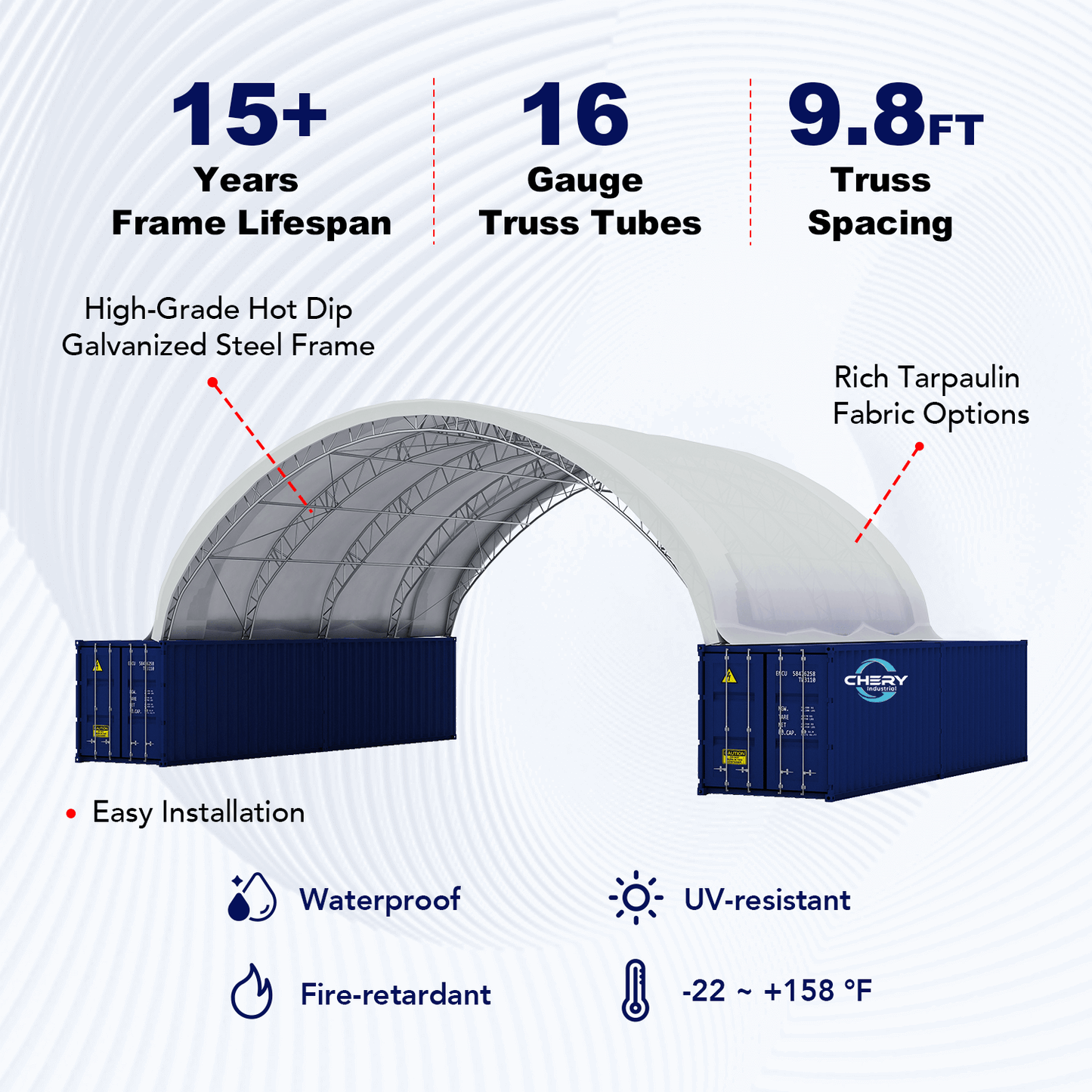

• A white, arched container shelter with a double truss frame, designed to be placed over shipping containers.
  • Reinforced 50'x40'x17' Double Truss Container Shelter
  • Reinforced 50'x40'x17' Double Truss Container Shelter
  • Reinforced 50'x40'x17' Double Truss Container Shelter
1 4

Reinforced 50'x40'x17' Double Truss Container Shelter

Reinforced 50'x40'x17' Double Truss Container Shelter

Gold Mountain SKU: SUICS504017OZ22
Height
17 ft
Truss Tube
16 GA
Frame
Double Truss
$9,190.00
$9,190.00
Material Weight: 22oz PVC

Pre-Order

Pickup unavailable

Reinforced 50'x40'x17' Double Truss Container Shelter

Material Weight: 22oz PVC

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

The Fortified 50'x40'x17' Double Truss Container Shelter is designed to withstand harsh conditions and heavy usage. Its advanced frame features an arch with a shrink head and jacket for added strength, while the arch is supported by diagonal steel pipes on both sides, enhancing overall stability. With a robust construction of Arch Ø60x1.5 and Purlin Ø48x1.5, this shelter ensures maximum structural integrity and resilience against wind, snow, and other environmental stressors.

Double Truss
Thanks to careful hot-dip galvanization, the frame is optimally protected against corrosion and rust. Double trusses also run throughout the whole interior of the structure, which reinforces its exceptional durability and stability.

Frame Connectors
Robust connecting elements ensure high overall stability. The careful bolting of the elements and self-locking nuts reduce maintenance.

Ratchet Tensioners
Additional tensioning straps ensure optimum tautness.

Specifications

Dimension (ft)
W50xL40xH17
Frame
Double Truss Galvanized Tube
Steel Structure
High-Grade Hot Dip Galvanized Steel
Truss Spacing
9.8 ft
Arch Ø (mm)
Ø60x1.5
Purlin Ø (mm)
Ø48x1.5
Snow Load
25 lbs/ft²
Wind Load
49.4 miles/h
Temperature Resistance
-22 - +158 °F
Tension System
Pipe and Ratchet Tie-Down System
Easy Installation
Twist lock and clamp installation
Tarp Lifespan
7-10 years*
Frame Lifespan
15+ years
Warranty
PE: 2 Years Warranty; PVC: 8 Years Warranty

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days
Package size:

  • LxWxH (inch): 124x43x64(22oz)
  • Weight (lb): 3197(18oz)/3450(22oz)

A forklift or equivalent is required for unloading. For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Manual

Installation preparation
Assembly with 5 people.

Tools: Measuring tape, String for alignment, Step ladder, Welder, Sledgehammer, Wrench, Scissors...

Notice
The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
