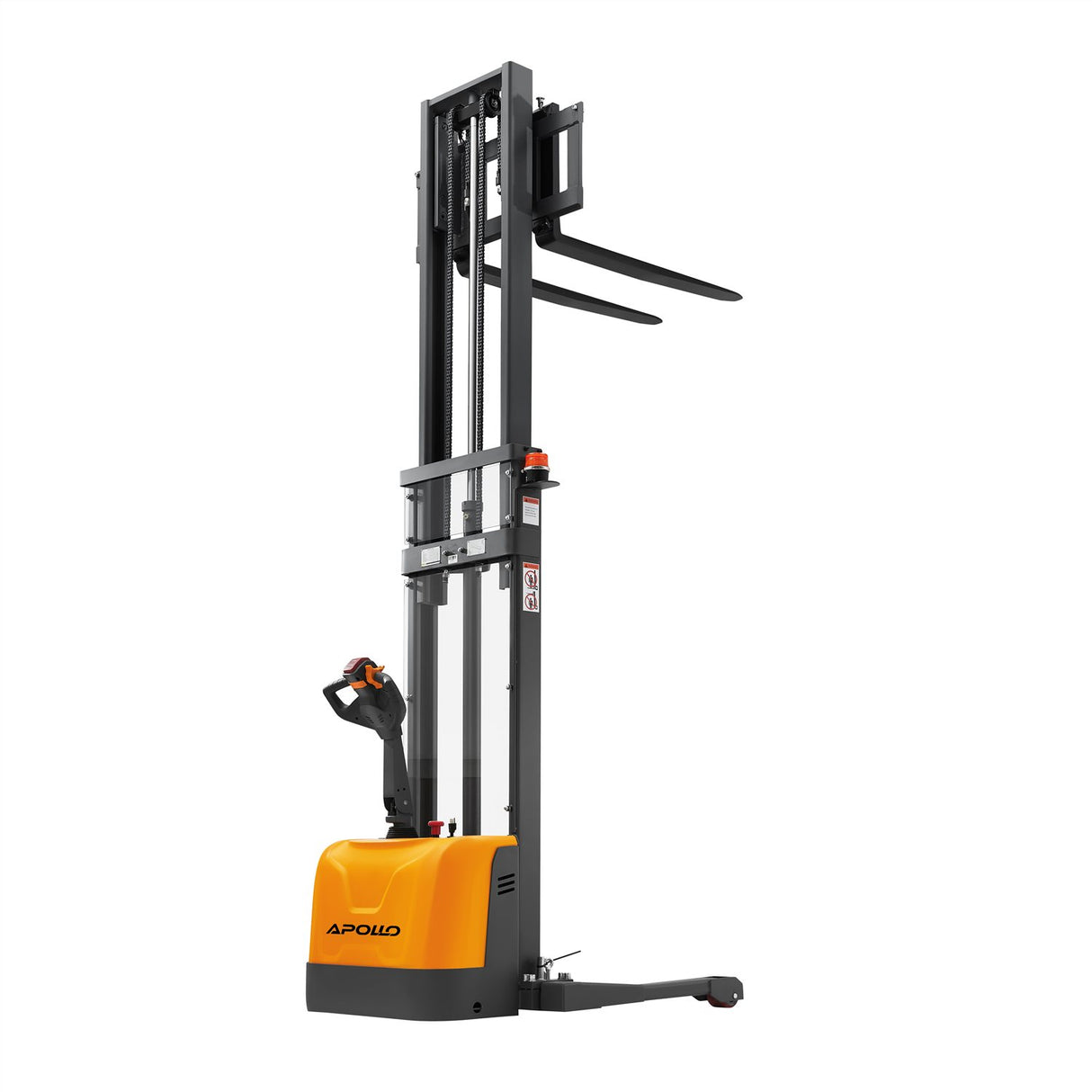

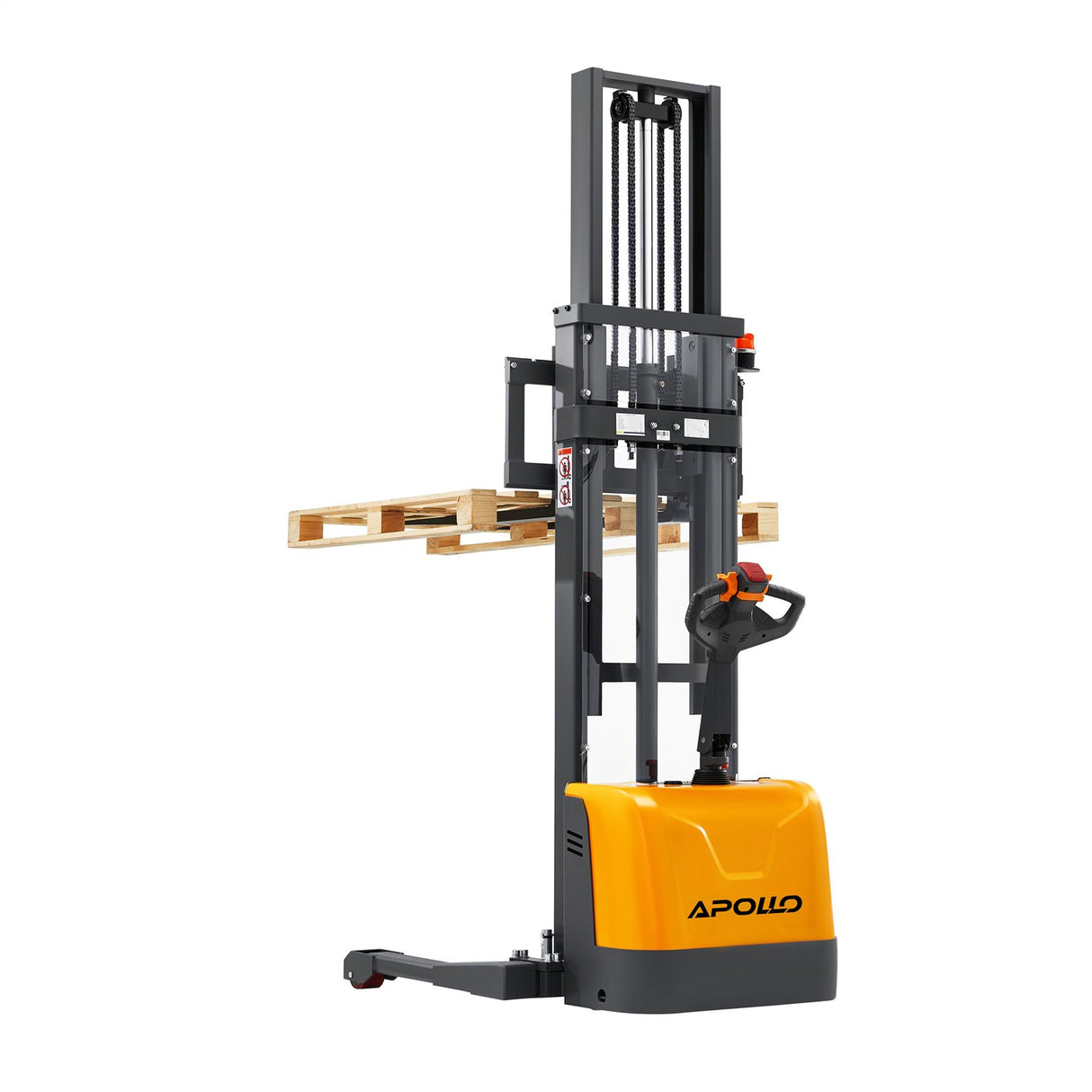

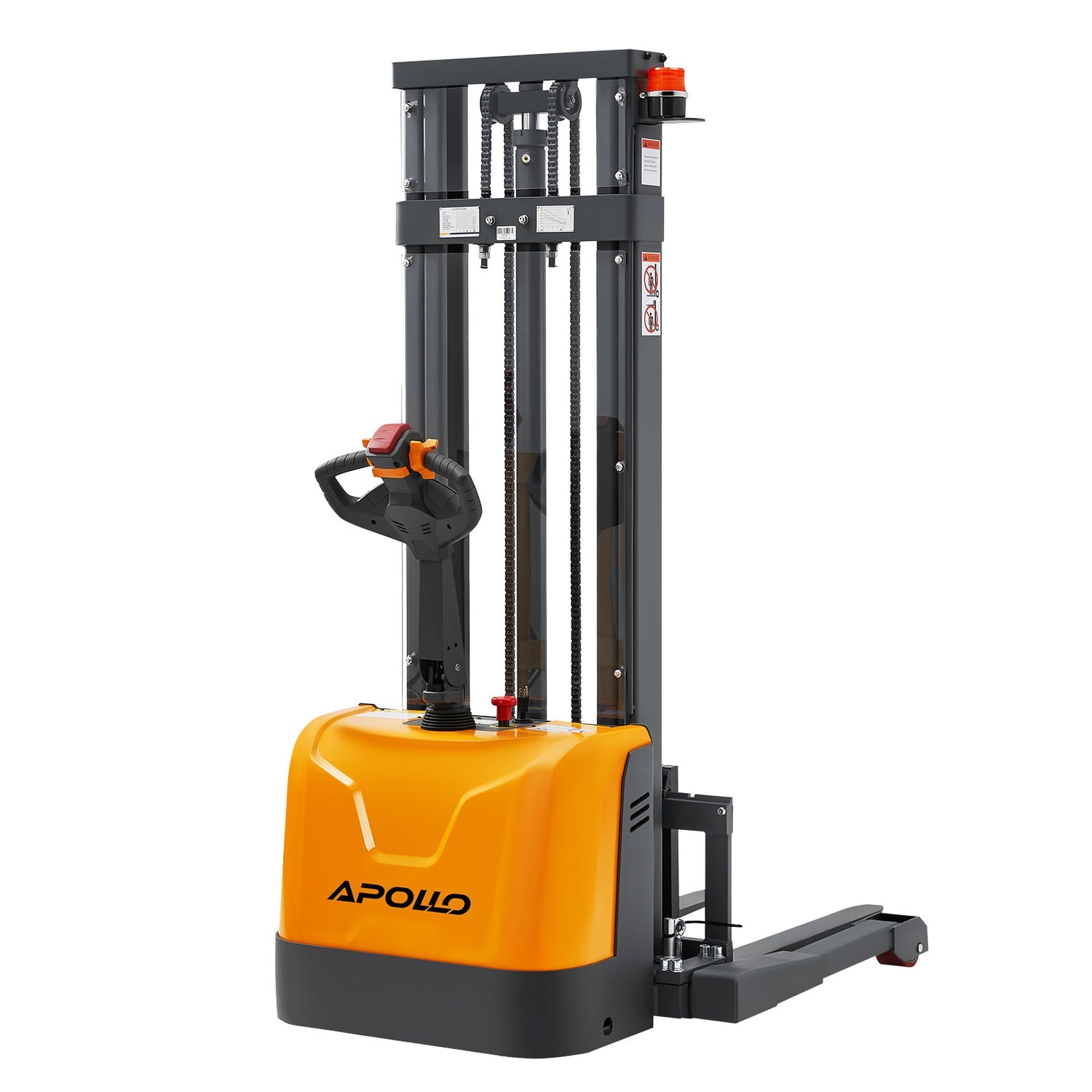

Full Electric Straddle Stacker | 3300 lbs. Capacity | 118" Lift Height | TX Self-Pickup

Full Electric Straddle Stacker | 3300 lbs. Capacity | 118" Lift Height | TX Self-Pickup

Apollo SKU: CTD15R-EN-118
$4,100.00
$4,100.00
Color: Yellow
Pickup available
TX

Full Electric Straddle Stacker | 3300 lbs. Capacity | 118" Lift Height | TX Self-Pickup

Color: Yellow

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

  • GEL battery option at the standard lift height: A practical daily-choice combo for many warehouses (battery type Gel, max lift height 118").
  • Heavy capacity for demanding loads: Built for serious pallet work (capacity 3300 lbs).
  • Standard height that fits most racks: Great all-around reach (mast lowered height 84.4").
  • Straddle design for pallet uncertainty: Safe default when pallet type varies (support leg type Straddle).
  • Battery preference made easy: Great when you want GEL—or when you’re unsure and want a more operator-friendly direction (battery spec 24V/100Ah).
  • Aisle-friendly footprint: Works in typical warehouse lanes (aisle width 87.8").

Specifications

Capacity
3300 lbs.
Aisle Width
87.8"
Max.Lifting Height
118"

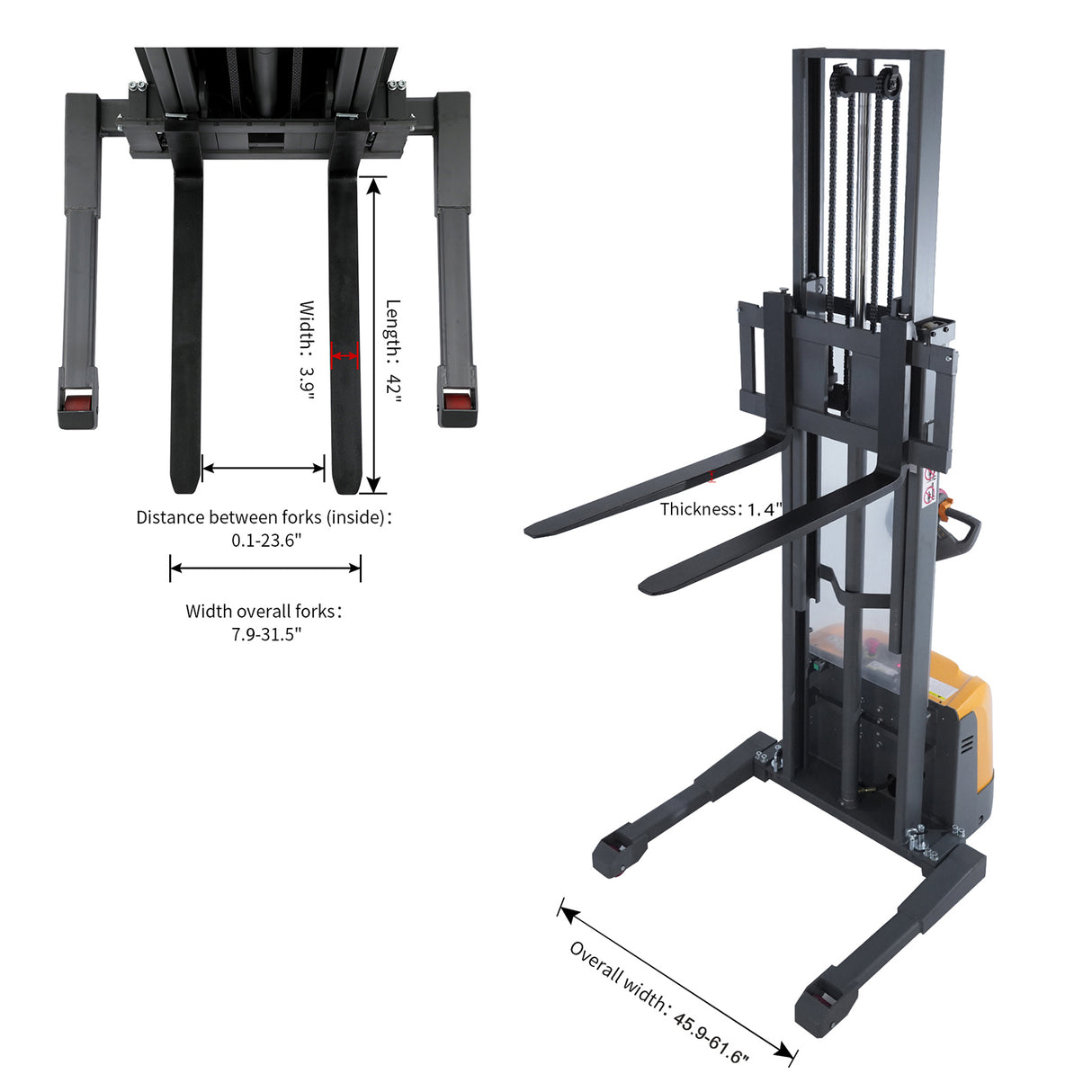

Inside Distance Between Forks
0.1-23.6"
Fork Length
42"
Fork Overall Width
7.9-31.5"
Single Fork Width
3.9"
Compatible Pallet Types
All
Overall Height
84.4-143.5"
Overall Length
68.9"
Overall Width
45.9-61.6"
Driving Speed-Unladen
3.1 mph
Driving Speed-Laden
2.8 mph
Lifting Speed/Empty
5.9 inch/s
Lifting Speed/Loaded
3.5 inch/s
Gradeability/Empty
15%
Gradeability/Loaded
6%
Support Leg Type
Straddle
Total Wheel Count
3
Turning Radius
53"
Mast Lowered Height
84.4"
Mast Extended Height
143.5"
Load Centre Distance
23.6"
Battery Capacity
105AH
Battery Spec
24V/105AH
Battery Voltage
24V
Battery Type
GEL battery
Fork Thickness
1.4"
Fork Lowered Height
2.8"
Lowering Speed/Empty
4.3 inch/s
Lowering Speed/Loaded
5.9 inch/s
Service Weight
1408 lbs.
Gross Weight
1458 lbs.
Charger
24V/10A built-in
Continuous Working Time
8-10 Hours
Package Size
44"x34"x88"

Self-Pickup

  • Self-Pickup at:

3452 S Burleson Blvd, Alvarado, TX 76009

  • Open Hours:

Monday to Friday from 8am to 5pm CST, excluding holidays.

Assembly

Assembly Instruction

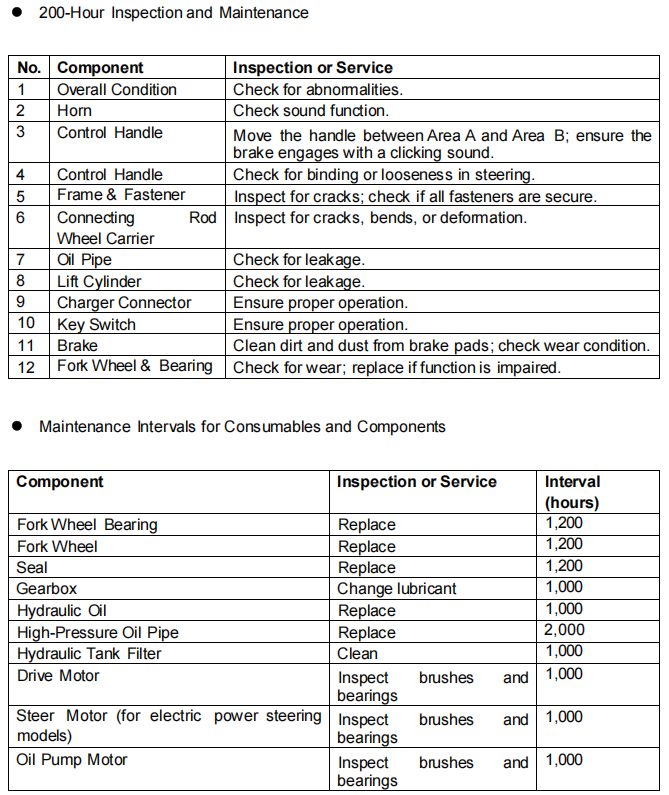

  • Inspection & Maintenance


Conducting a thorough inspection of the product can help prevent malfunctions and ensure it achieves its expected service life.

Maintenance hours are based on 8 hours of operation per day, 200 hours per month.

For safe operation, the product should be inspected and maintained according to the maintenance schedule.

⚠️ Notice:

  • Handle Self-Installation Required, including for Self Pickup Orders
  • Support legs require installation before use. Installation Video: https://www.youtube.com/watch?v=-qGQwzVQdYAWI
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).
