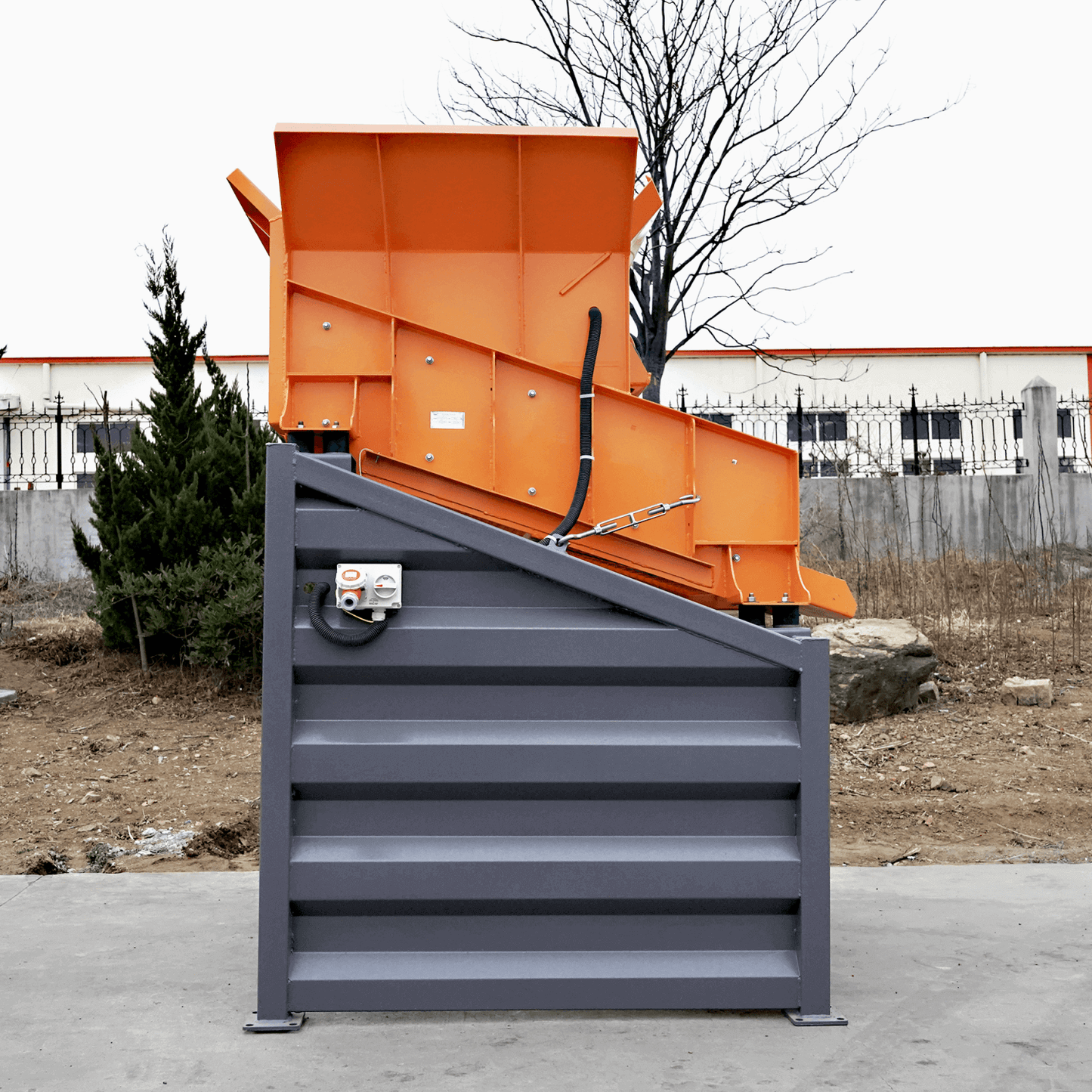

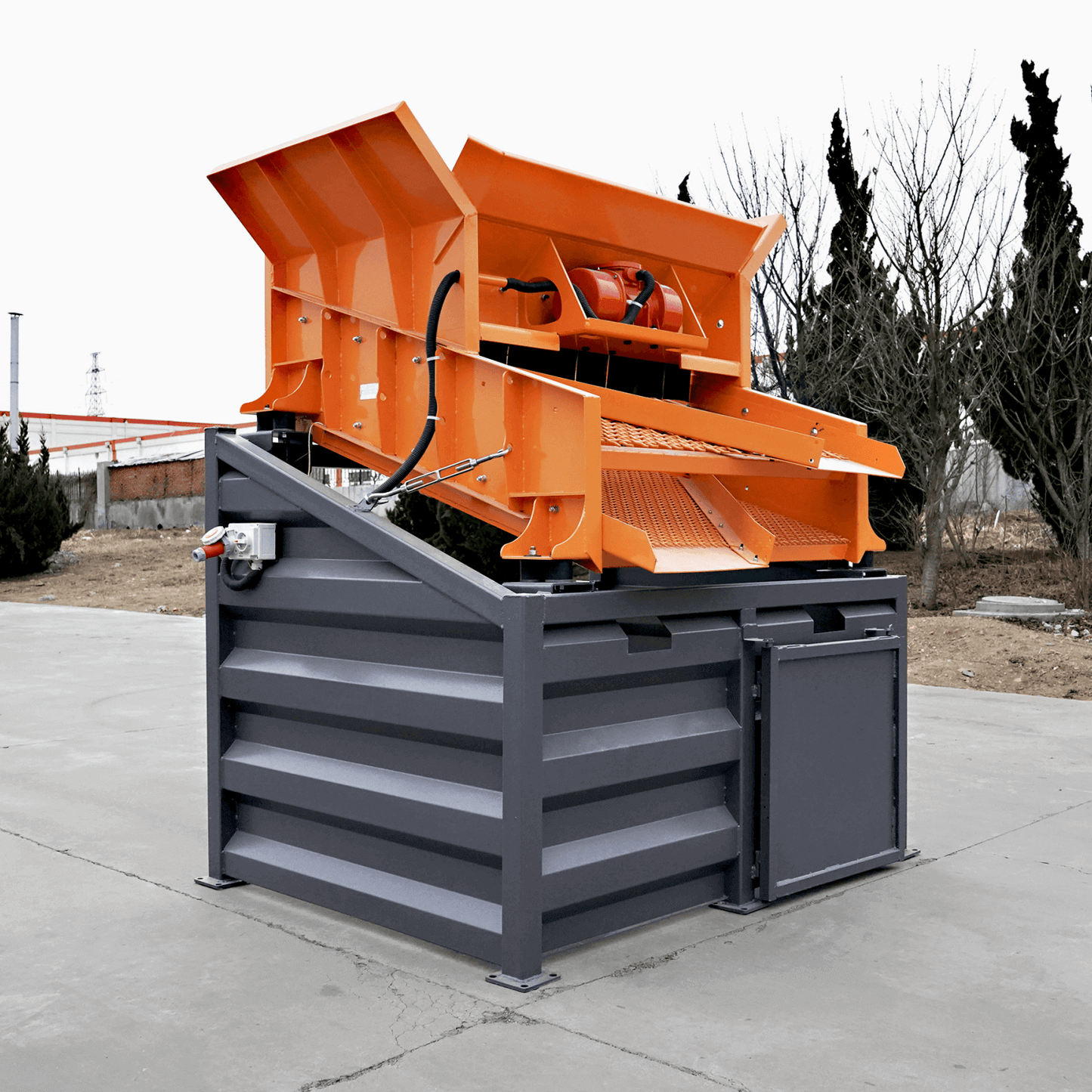

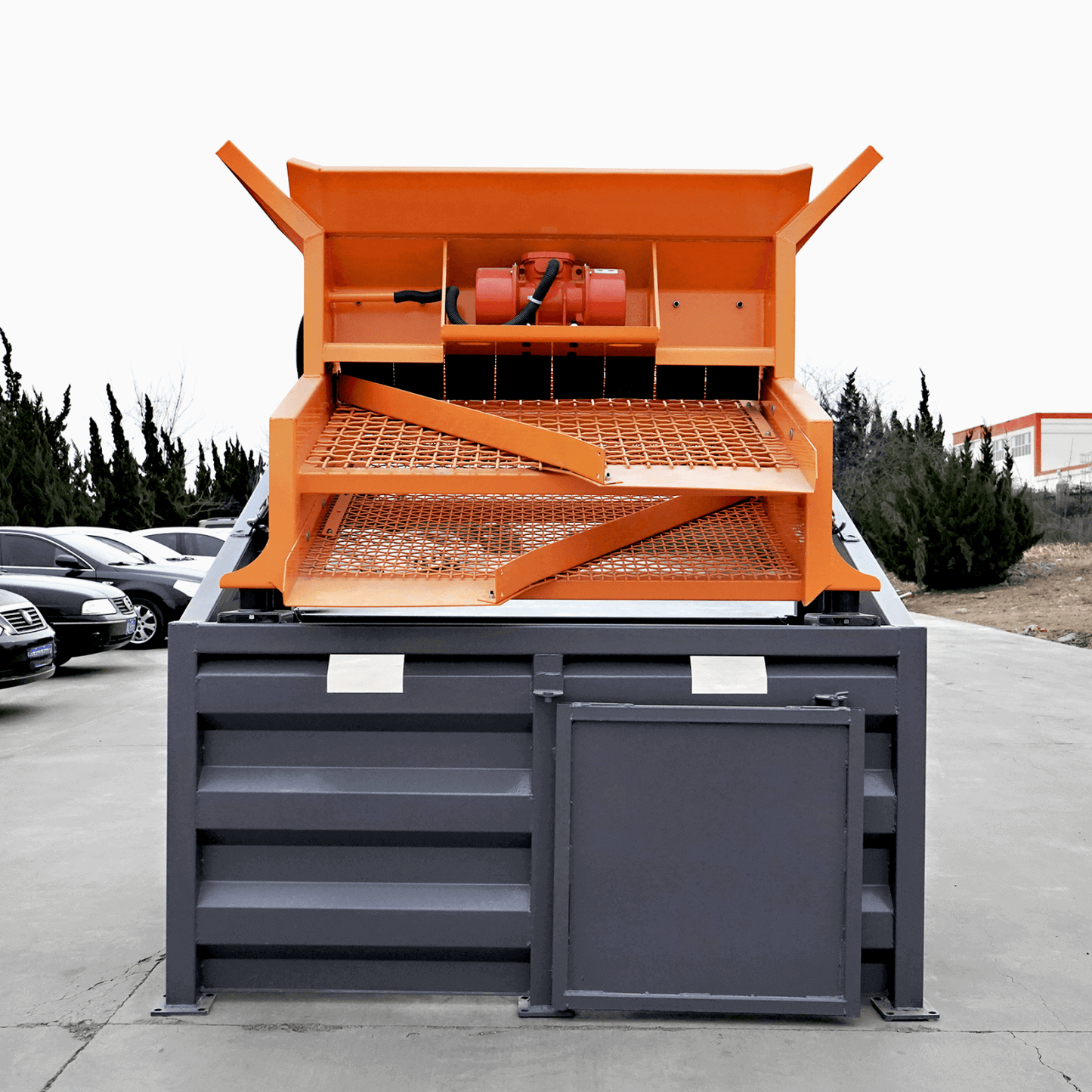

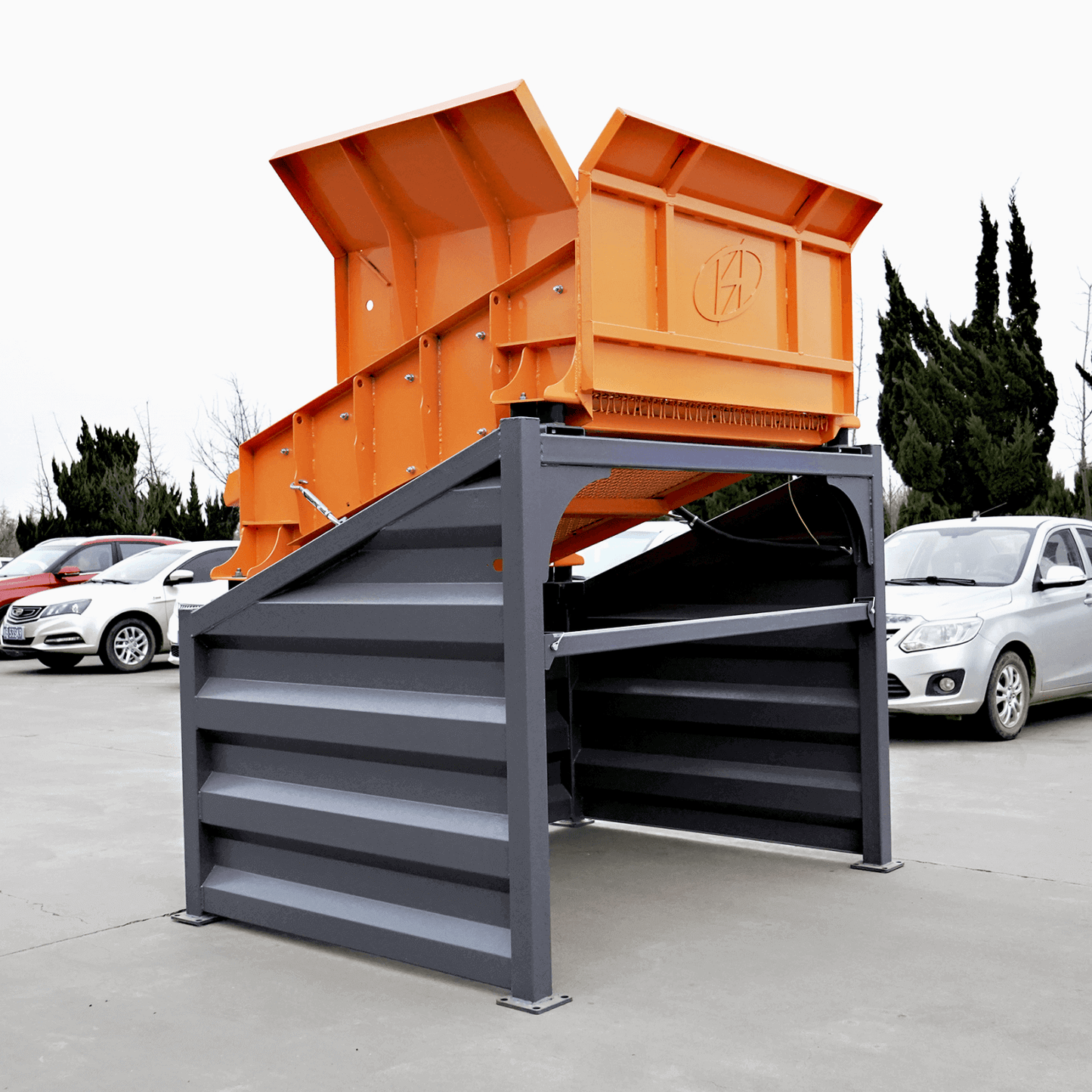

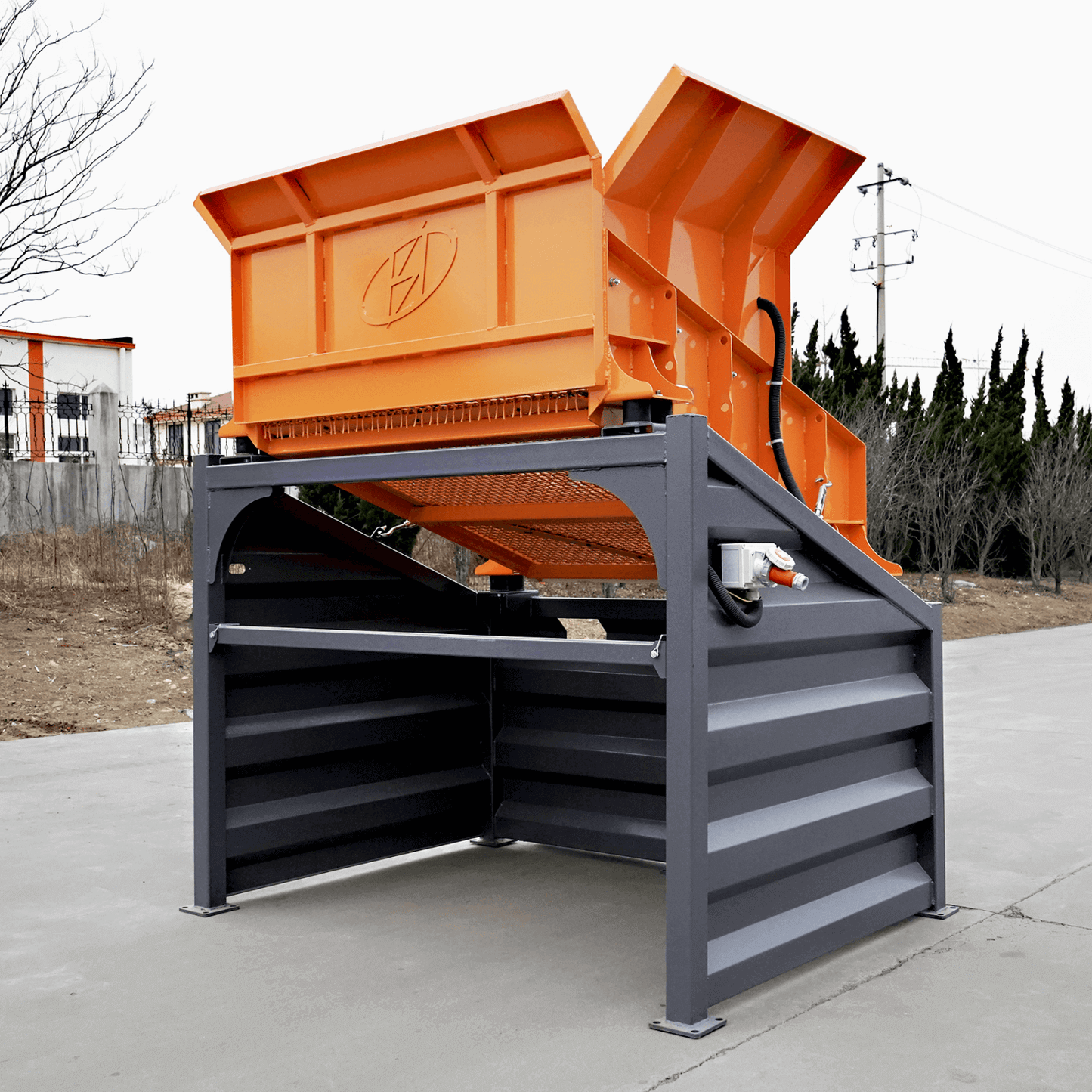

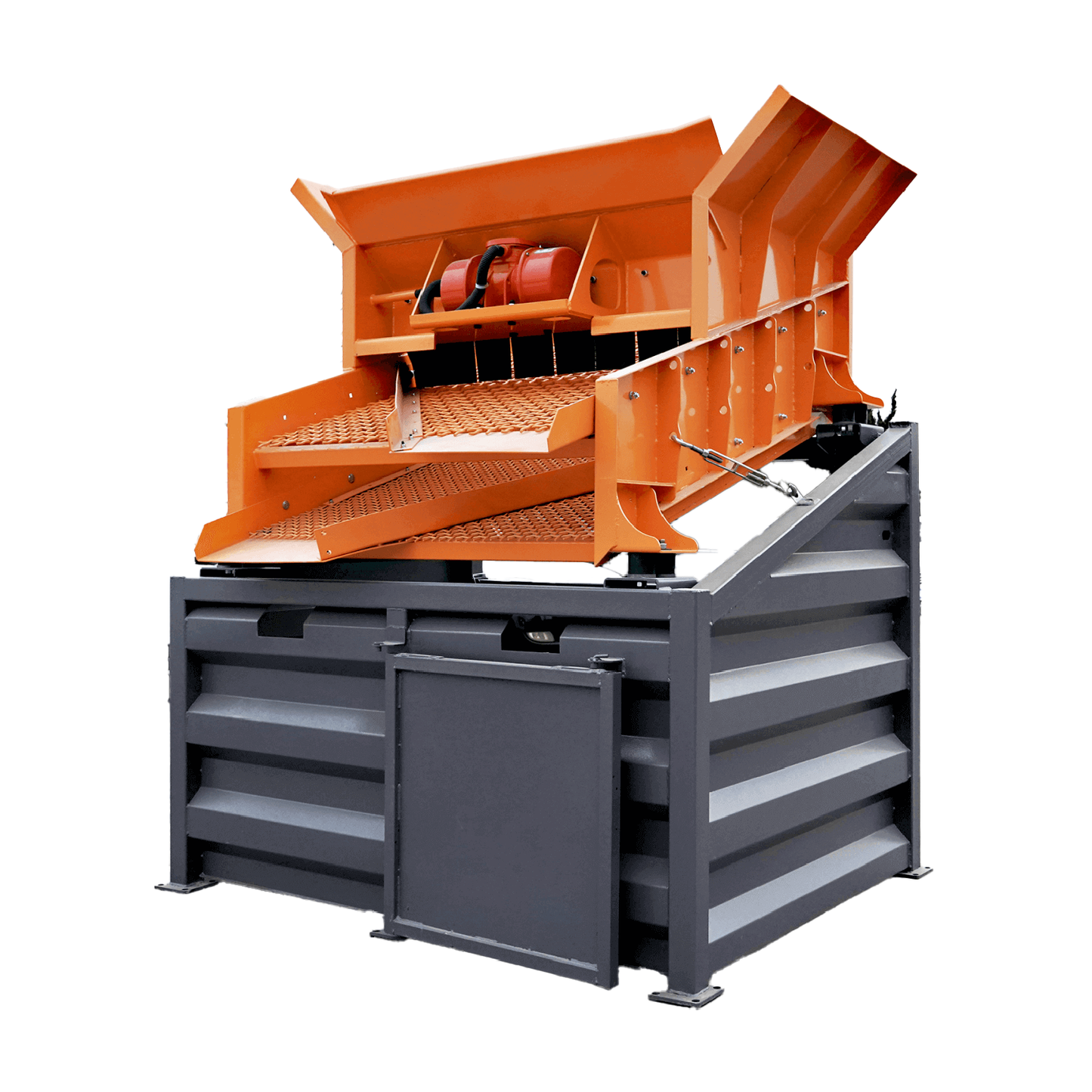

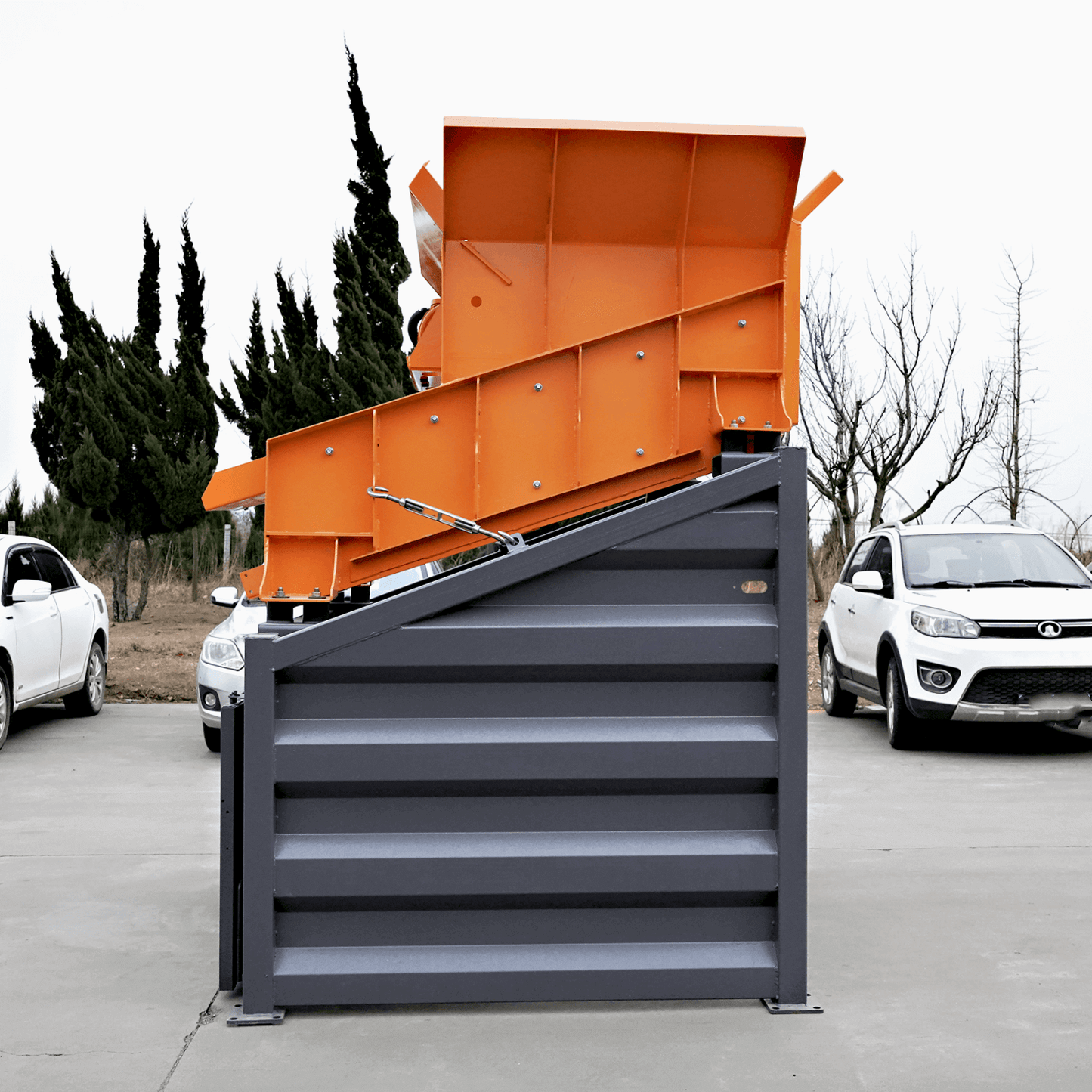

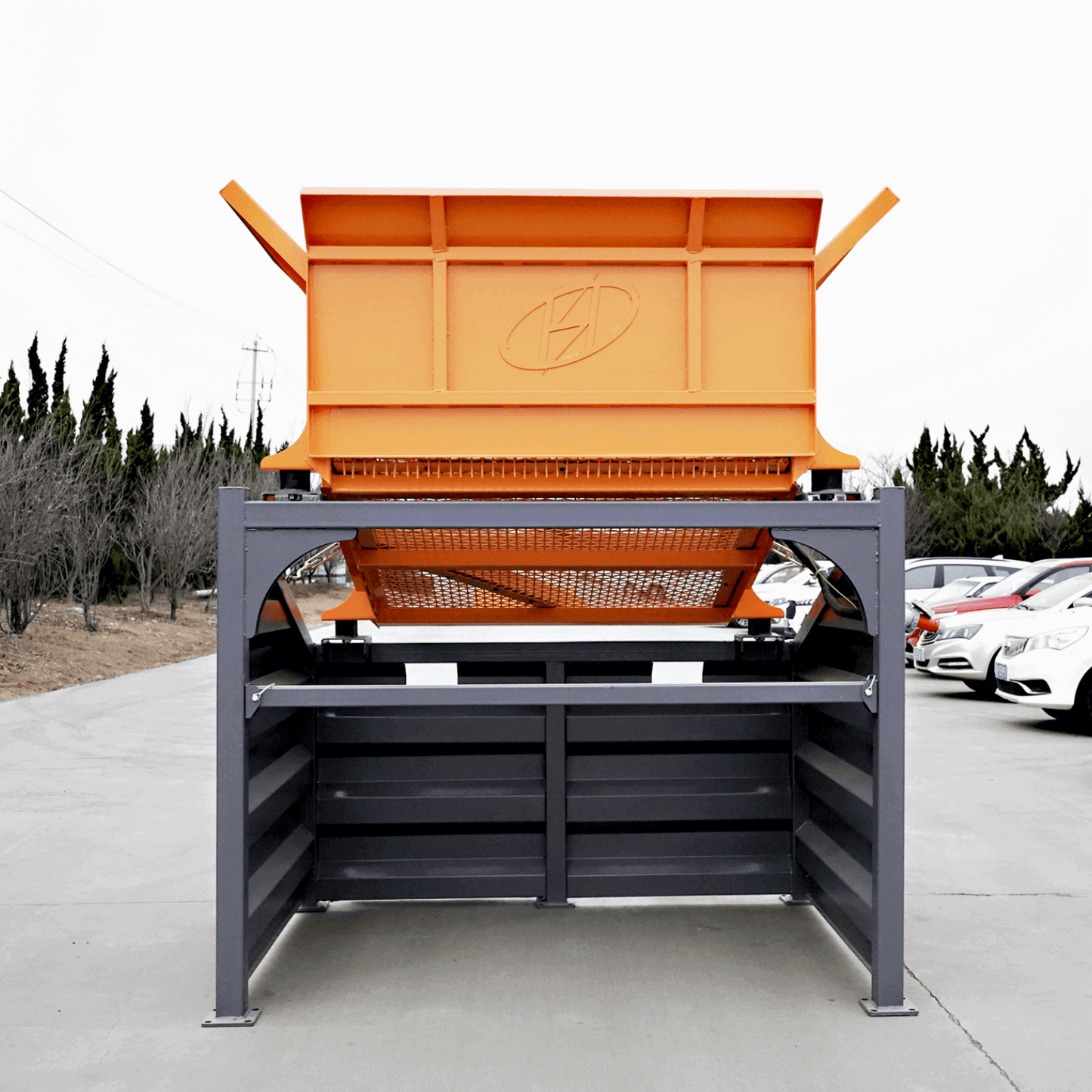

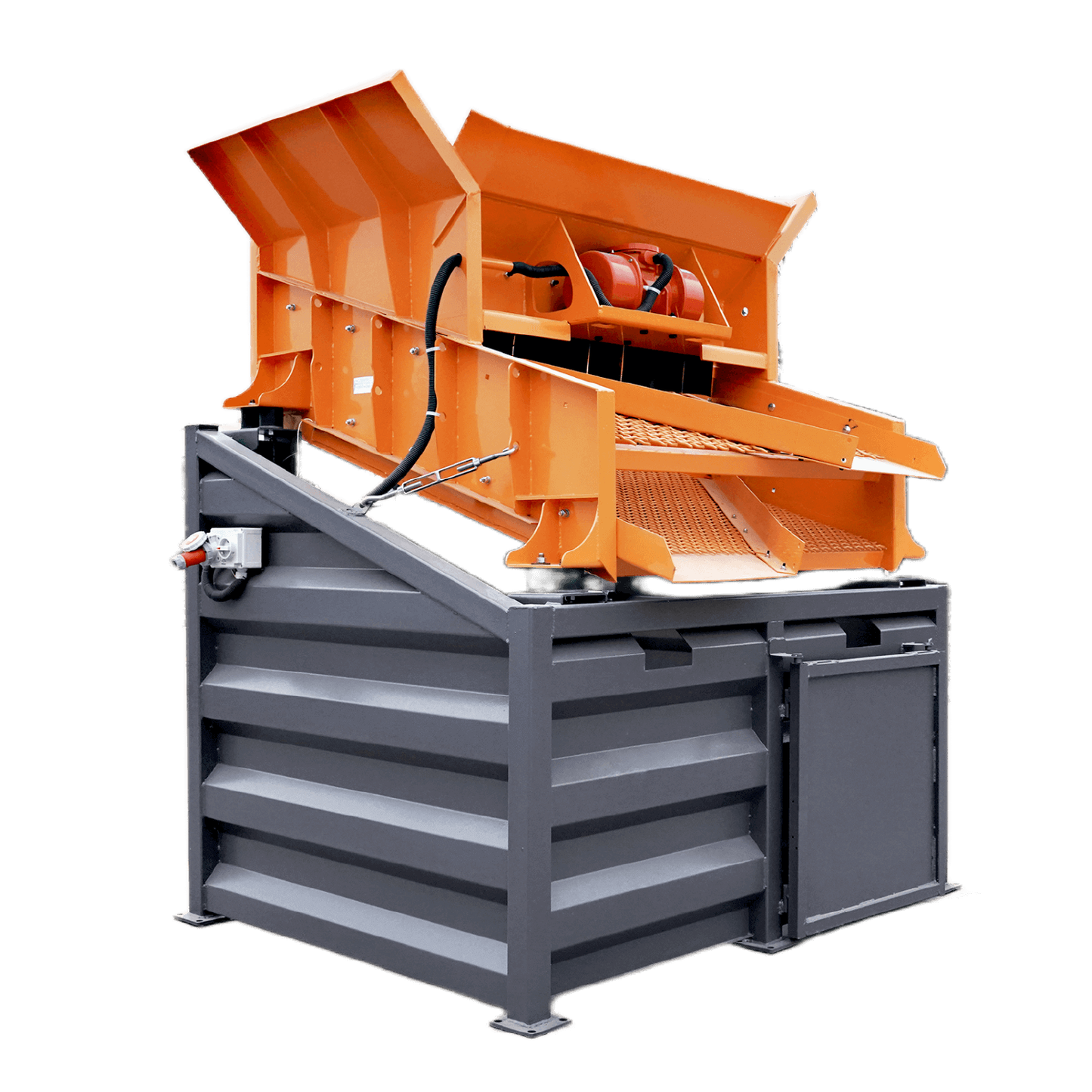

Greatbear Skid Steer Vibratory Screen
Greatbear Vibratory Screening is widely used in the construction and mineral processing industries. With this vibratory screening, you can easily split a feed of particulate materials like rocks or metal ore in several sizes into different grades of coarse and fine materials. Greatbear vibratory screening contains a 53” x 36” hopper, which is able to carry a high load of input.
Our Vibratory Screening equipment excels at sifting through materials of various sizes, separating particles with precision. From sorting aggregates to classifying minerals, it's a vital tool for optimizing your operations.
Specifications
| Model |
MV1700/15
|
| Dimension(LxWxH) |
84.65"x74.01"x96.46" |
| Weight(lb) |
1,362.5 |
| Input Hopper |
53"x36" |
| Voltage |
460v |
| Current |
2.09A |
| Vibration Force |
1700 N |
| Processing Power |
3 T/h |
| Exciting Force |
KN17 |
| Excitation Power |
0.75 kW |
| Speed |
1800 rpm, 60Hz |
| Insulation Class |
F |
| Protection Class |
IP65 |
Features
- Bright orange color, metal material for industrial usage.
- Easily split materials.
- High load input capacity.

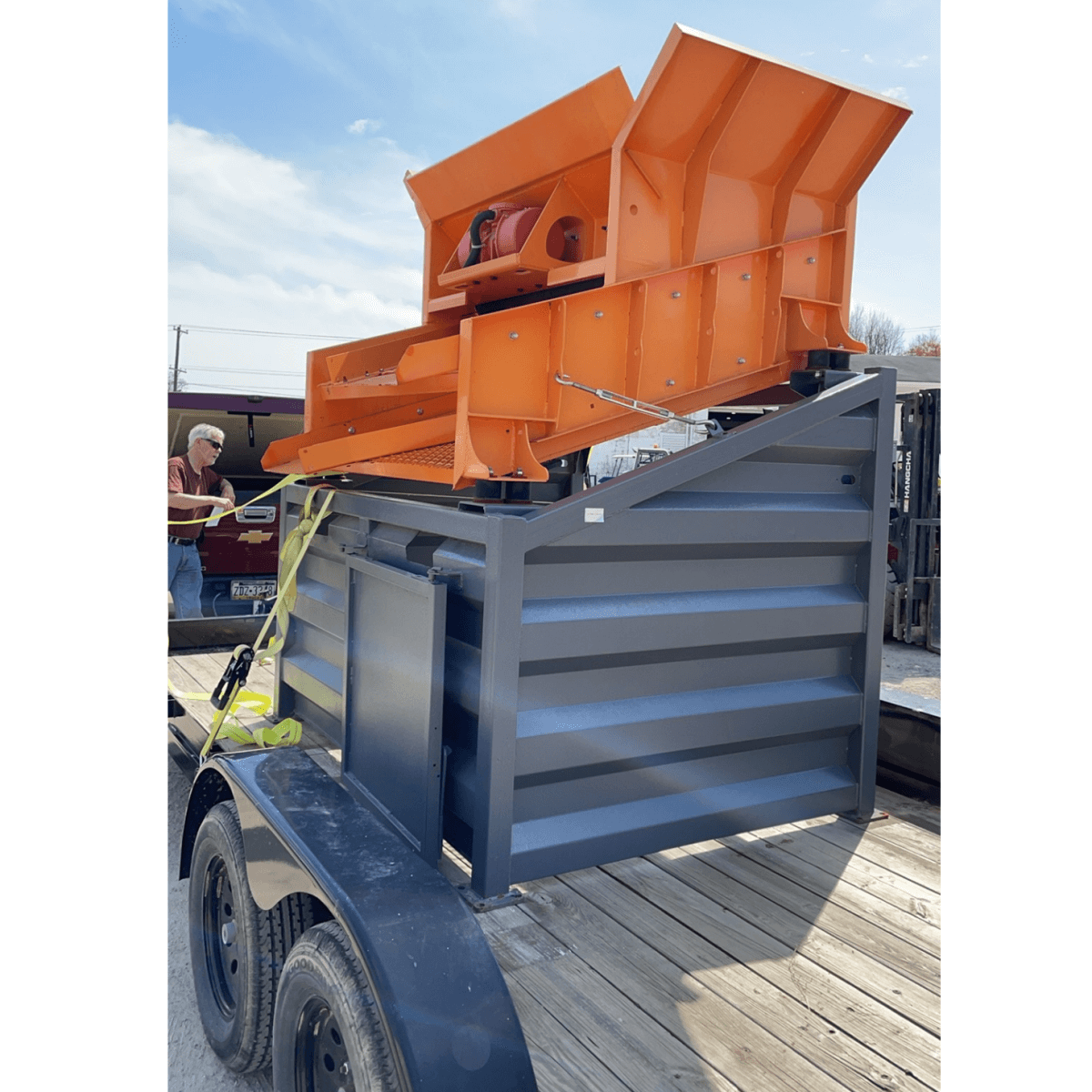

Package Size
- LxWxH (inch): 89.37x78.74x96.46
- Weight (lb): 1525.6
- A forklift or equivalent is required for unloading.
Parts Service
Switch Box for Vibratory Screening
