Hydraulic Pallet Jack | 48" x 21" Forks | PU Wheels | 5500 lbs. Capacity | TX Self-Pickup

Hydraulic Pallet Jack | 48" x 21" Forks | PU Wheels | 5500 lbs. Capacity | TX Self-Pickup

Apollo SKU: BF-III-1
$280.00
$280.00
Fork Size: 48" x 21"
Pickup unavailable

Hydraulic Pallet Jack | 48" x 21" Forks | PU Wheels | 5500 lbs. Capacity | TX Self-Pickup

Fork Size: 48" x 21"

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

  • Integrated Pump System: One-piece hydraulic pump design with no welded joints — reducing leak risk and extending service life.

  • Reinforced Steel Frame: Strengthened chassis structure delivers higher load capacity and long-term operational stability.

  • Quick Chain Installation: Pre-drilled handle base allows fast, safe attachment of the control chain for quicker assembly.

  • Controlled Fork: Hand-operated lowering lever with built-in overload valve ensures smooth, stable descent and protects the hydraulic system.

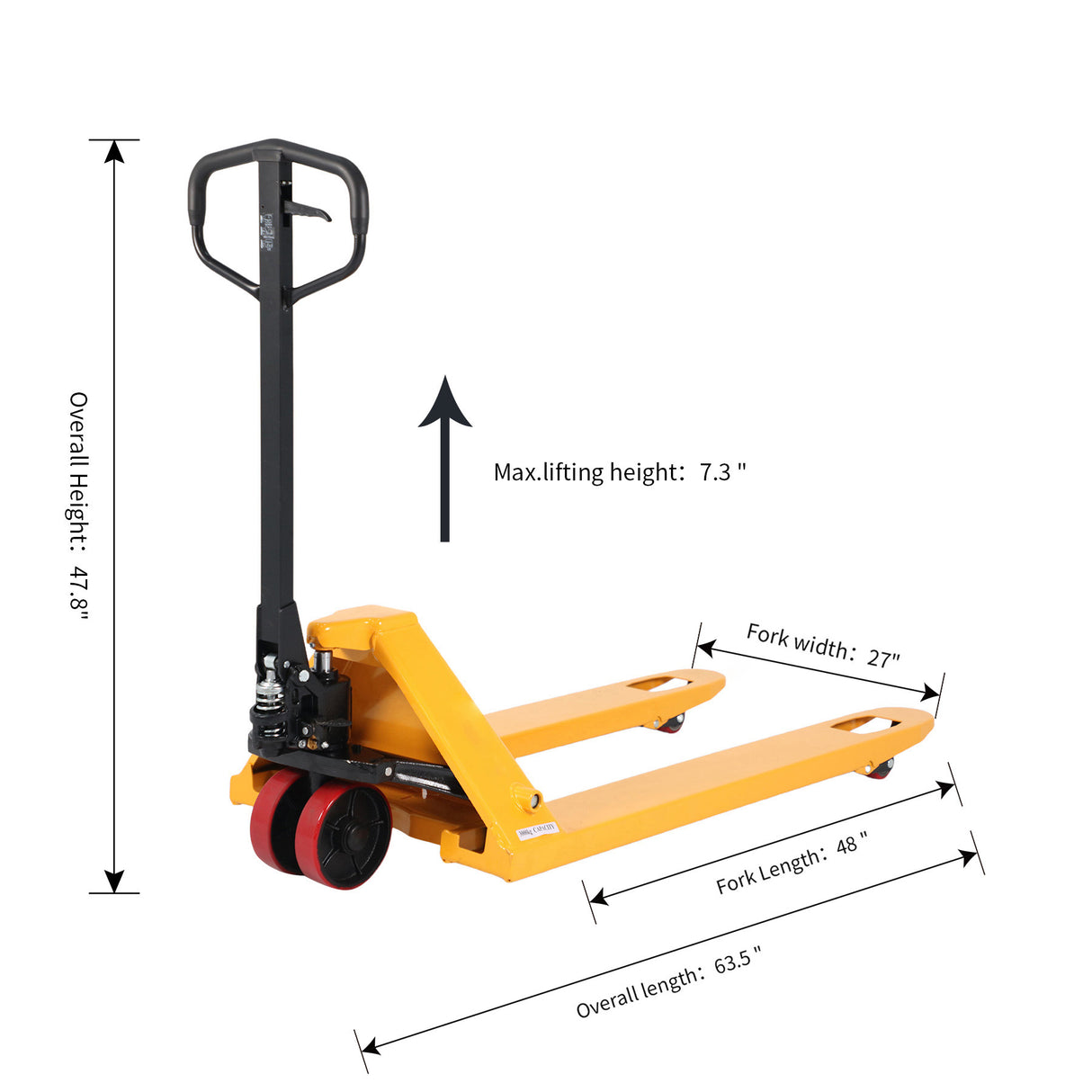

Specifications

Capacity
5500 lbs.
Aisle Width
71.4"
Max.Lifting Height
7.3"
Inside Distance Between Forks
7.9"
Fork Length
48"
Fork Overall Width
21"
Single Fork Width
6.3"
Compatible Pallet Types
All
Overall Height
47.8"
Overall Length
63.5"
Overall Width
21"
Total Wheel Count
4
Turning Radius
53"
Lifting Distance
4.3"
Fork Thickness
2.1"
Control Handle Foldability
NO
Fork Lowered Height
3"
Service Weight
129 lbs.
Gross Weight
130 lbs.
Package Size
63"x21"x21"

Self-Pickup

  • Self-Pickup at:

3452 S Burleson Blvd, Alvarado, TX 76009

  • Open Hours:

Monday to Friday from 8am to 5pm CST, excluding holidays.

Assembly

Assembly Instruction
  • Inspection & Maintenance


Conducting a thorough inspection of the product can help prevent malfunctions and ensure it achieves its expected service life.

Maintenance hours are based on 8 hours of operation per day, 200 hours per month.

For safe operation, the product should be inspected and maintained according to the maintenance schedule.

⚠️ Notice:

  • Handle Self-Installation Required, including for Self Pickup Orders
