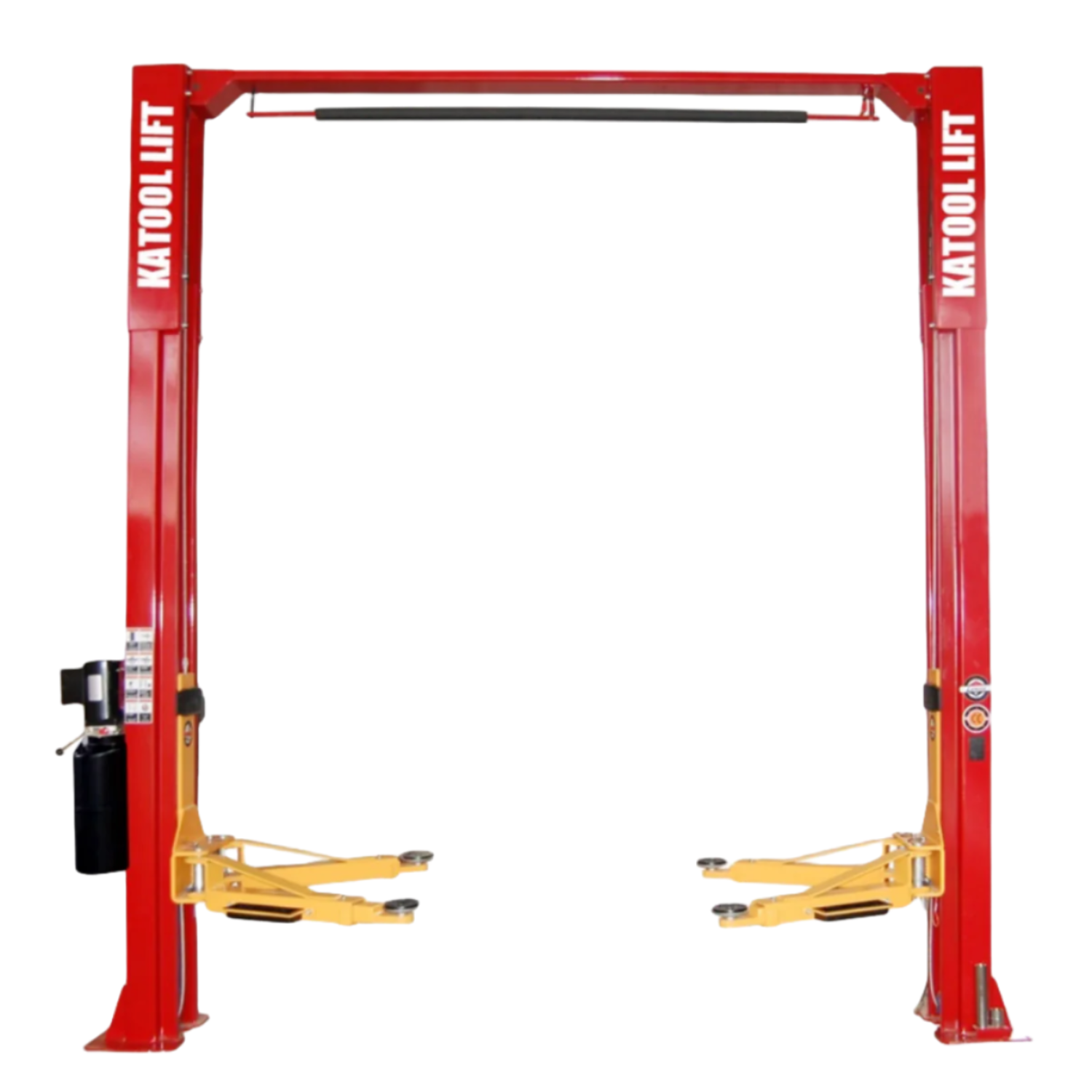

KT-M110 Two Post Clear-floor Vehicle Lift 11,000lbs

KATOOLSKU: KT-M110

Price:
Sale price$2,999

Stock:
In stock

Description

Introducing the KT-M110 Two Post Clear-floor Vehicle Lift, a pinnacle of automotive lifting technology. With symmetrical lifting arms and a robust 11,000lbs capacity, it ensures a secure and balanced lift for a diverse range of vehicles. The bilateral unlocking mechanism guarantees synchronized control, prioritizing safety during operation. Ideal for professional garages and serious DIY enthusiasts, the KT-M110 excels in scenarios like routine maintenance, repairs, and inspections. Its clear-floor design provides unobstructed access underneath the vehicle, making it a versatile solution for a myriad of automotive tasks. Elevate your workspace and efficiency with the precision and power of the KT-M110 Two Post Clear-floor Vehicle Lift.
User Manual

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

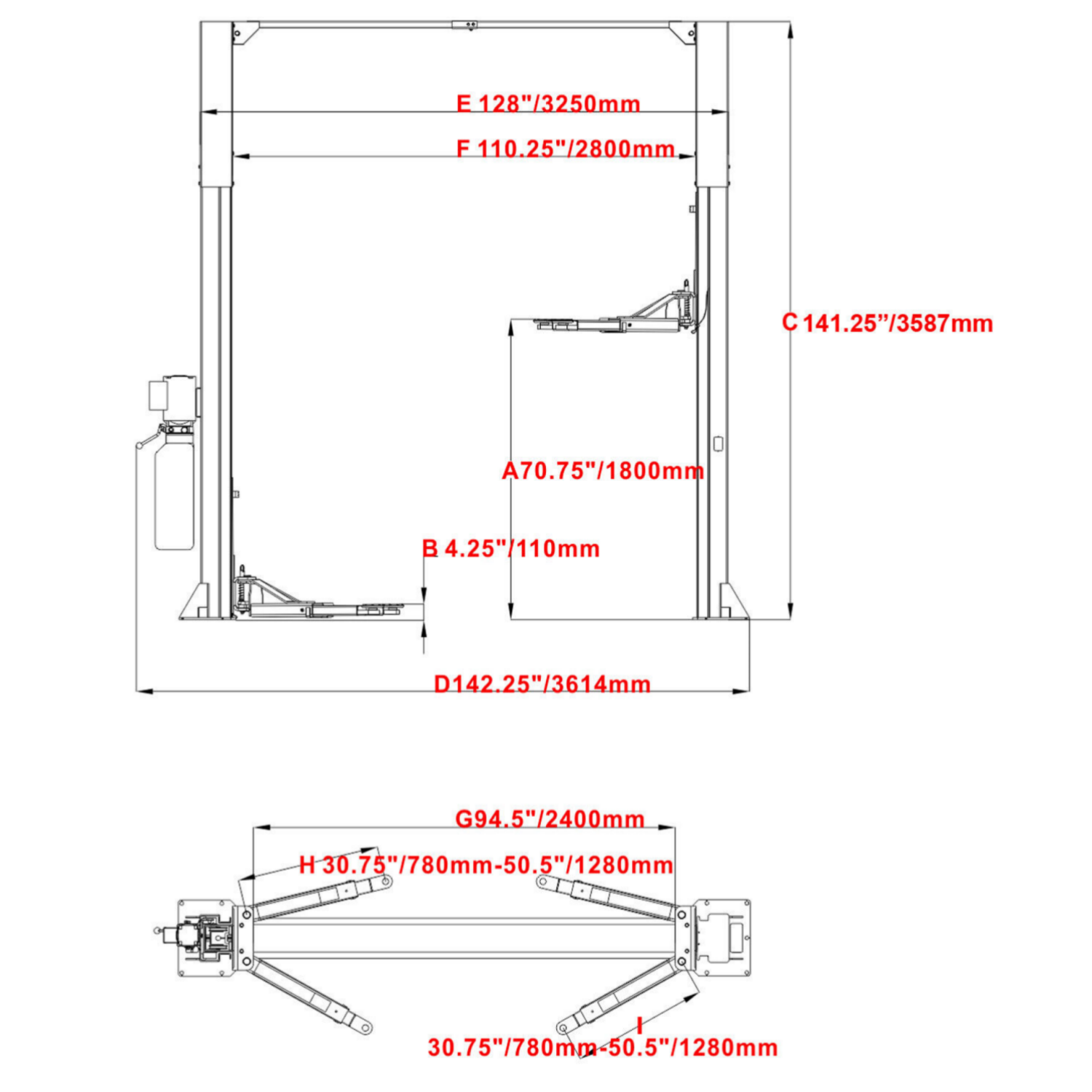

Specifications

Dimension(LxWxH)
Net weight 1367 lbs
Lifting Capacity 11000lbs/5000KG
Max. Lifting Height 70.75"/1800mm
Min. Height 4.25"/110mm
Height Overall 141.25"/3587mm
Width Overall 142.25"/3614mm
Outside Column 128"/3250mm
Inside Column 110.25"/2800mm
Drive-Thru Clearance 94.5"/2400mm
Front Arm Reach (Min) 30.75"/780mm (2 stages)
Front Arm Reach (Max) 50.5"/1280mm (2 stages)
Rear Arm Reach (Min) 30.75"/780mm (2 stages)
Rear Arm Reach (Max) 50.5"/1280mm (2 stages)
Motor 220VAC/60HZ/1PH/2.2KW

Feature

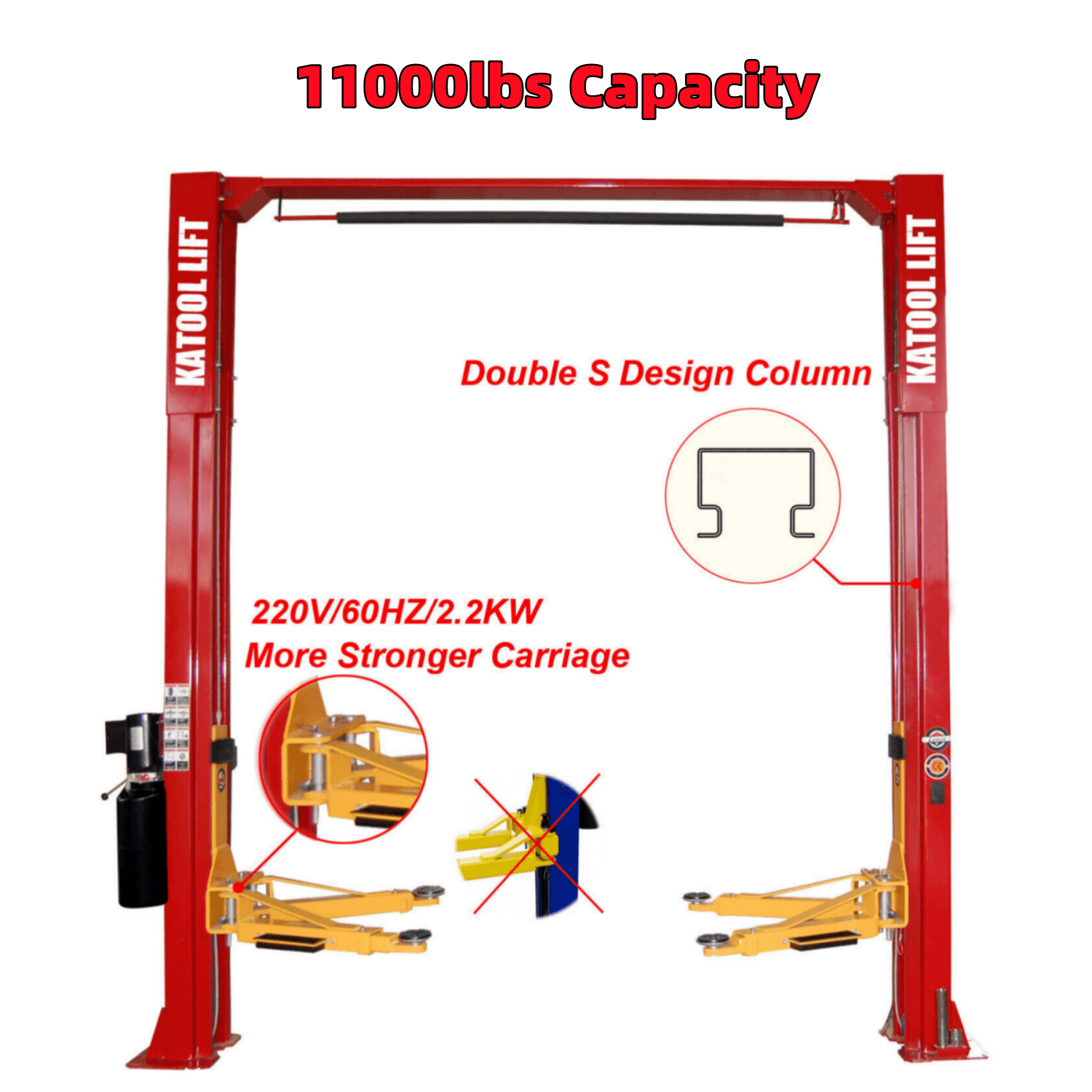

  • 11000lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Symmetric clear-floor design.
  • Manual safety release from two sides.

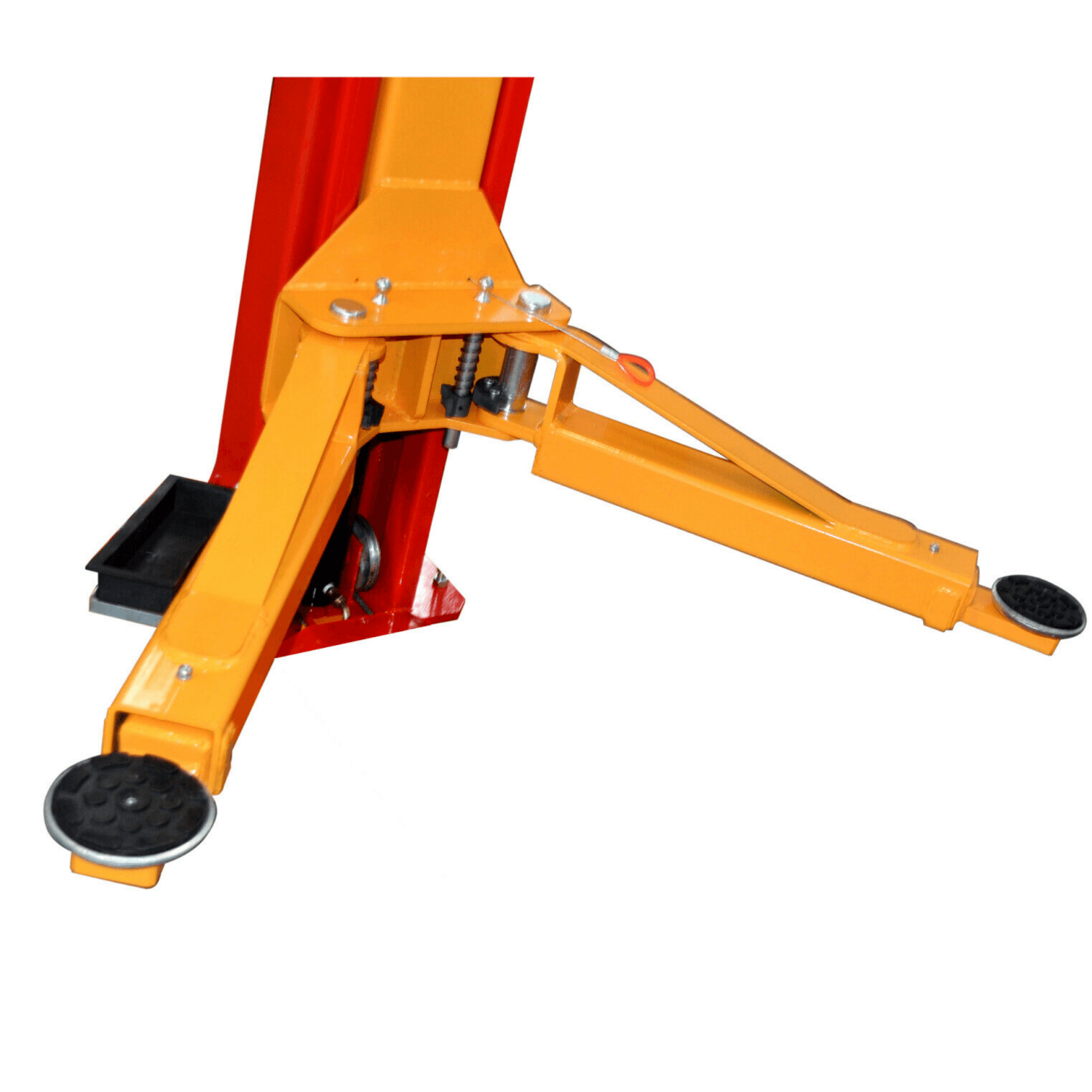

  • Symmetric arm.
  • Dual Hydraulic Chain-Drive Cylinders.
  • Rubber pad door opening protection.

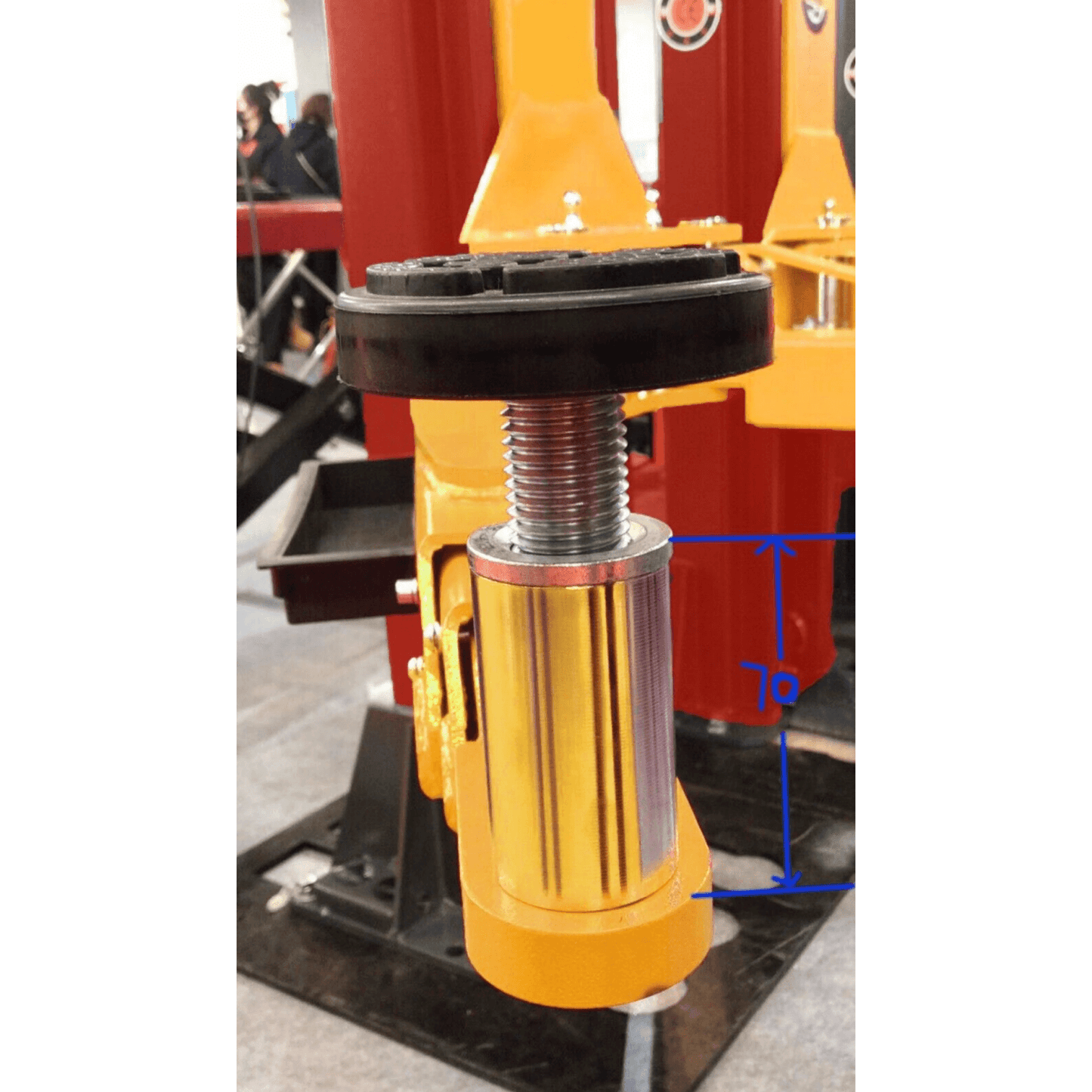

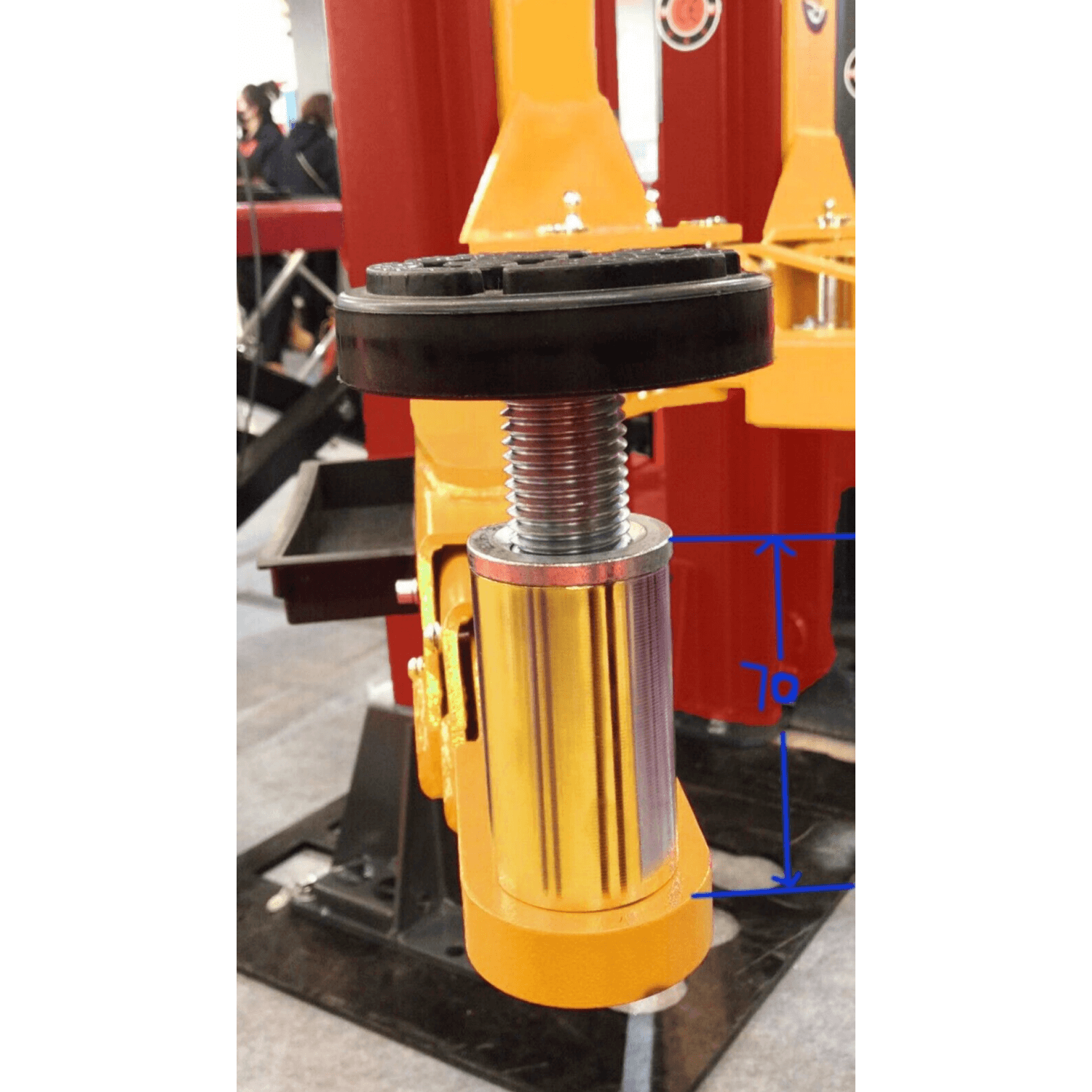

  • Comes with extension support adaptor sets of +30mm and +120mm.
  • Added overhead safety shutoff bar.
  • Feet-protection safety guardrails with tools box.
  • Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional).

                  Package Size

                  • LxWxH (inch): 112"x18"x35.4"
                  • Weight (lb): 1367
                  • A forklift or equivalent is required for unloading
