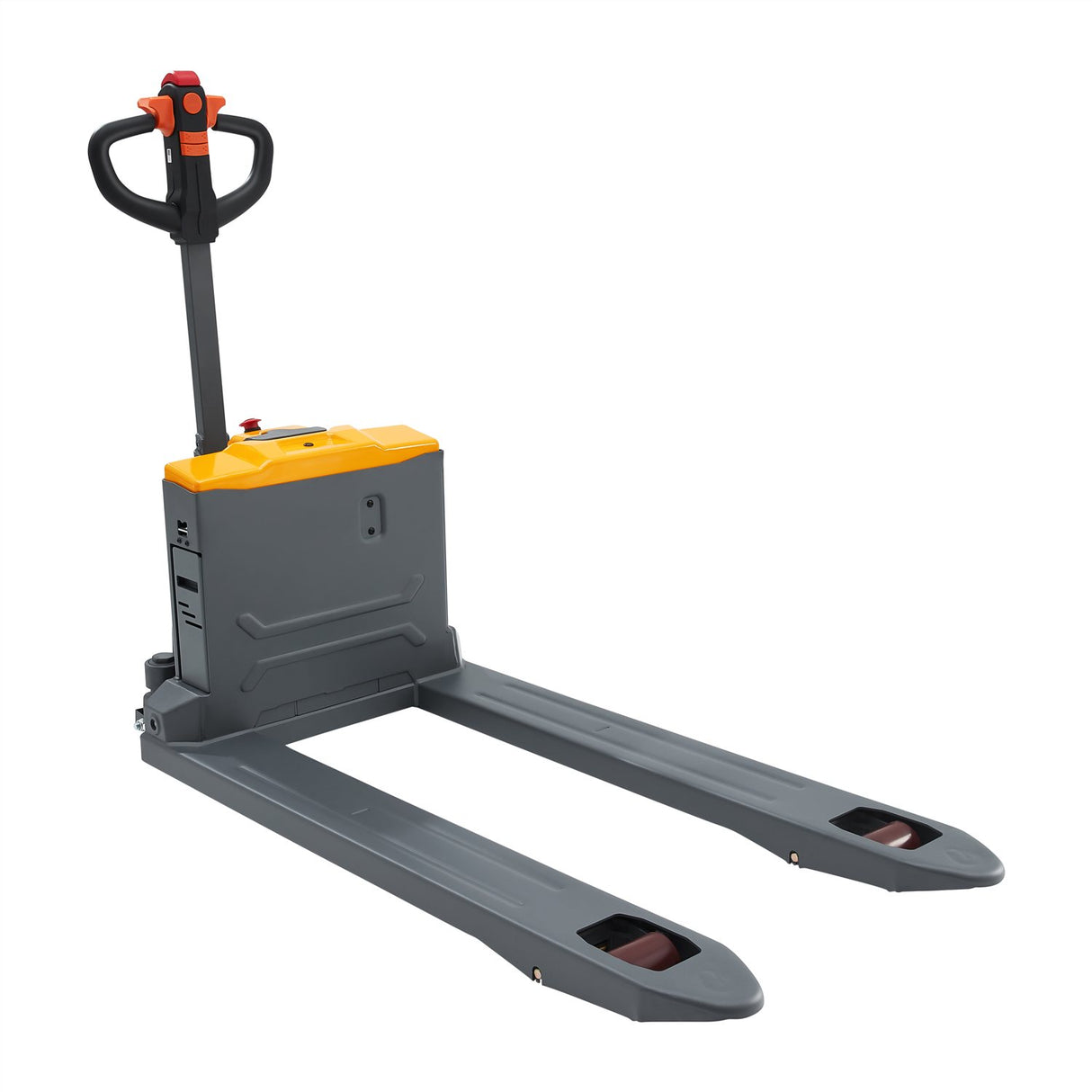

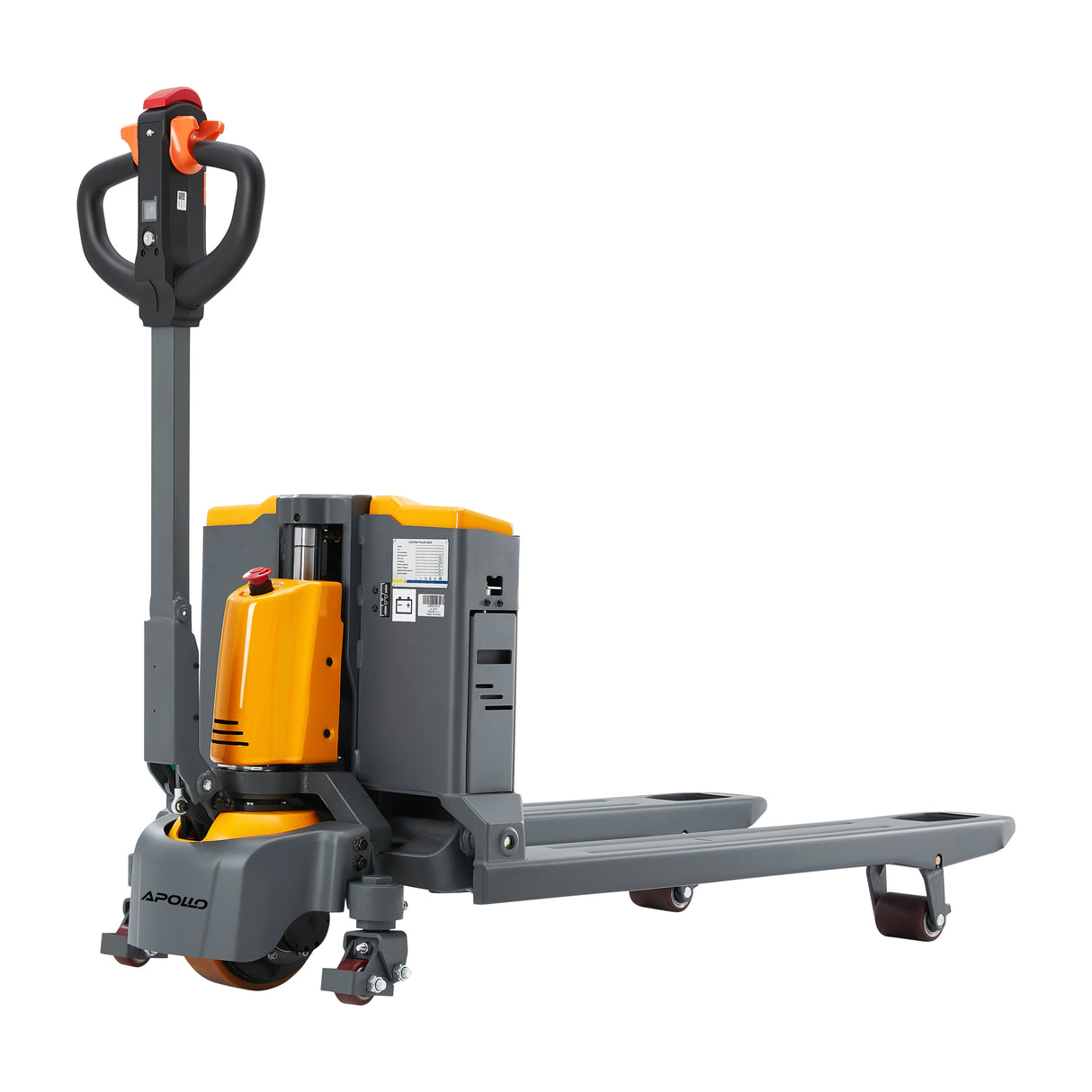

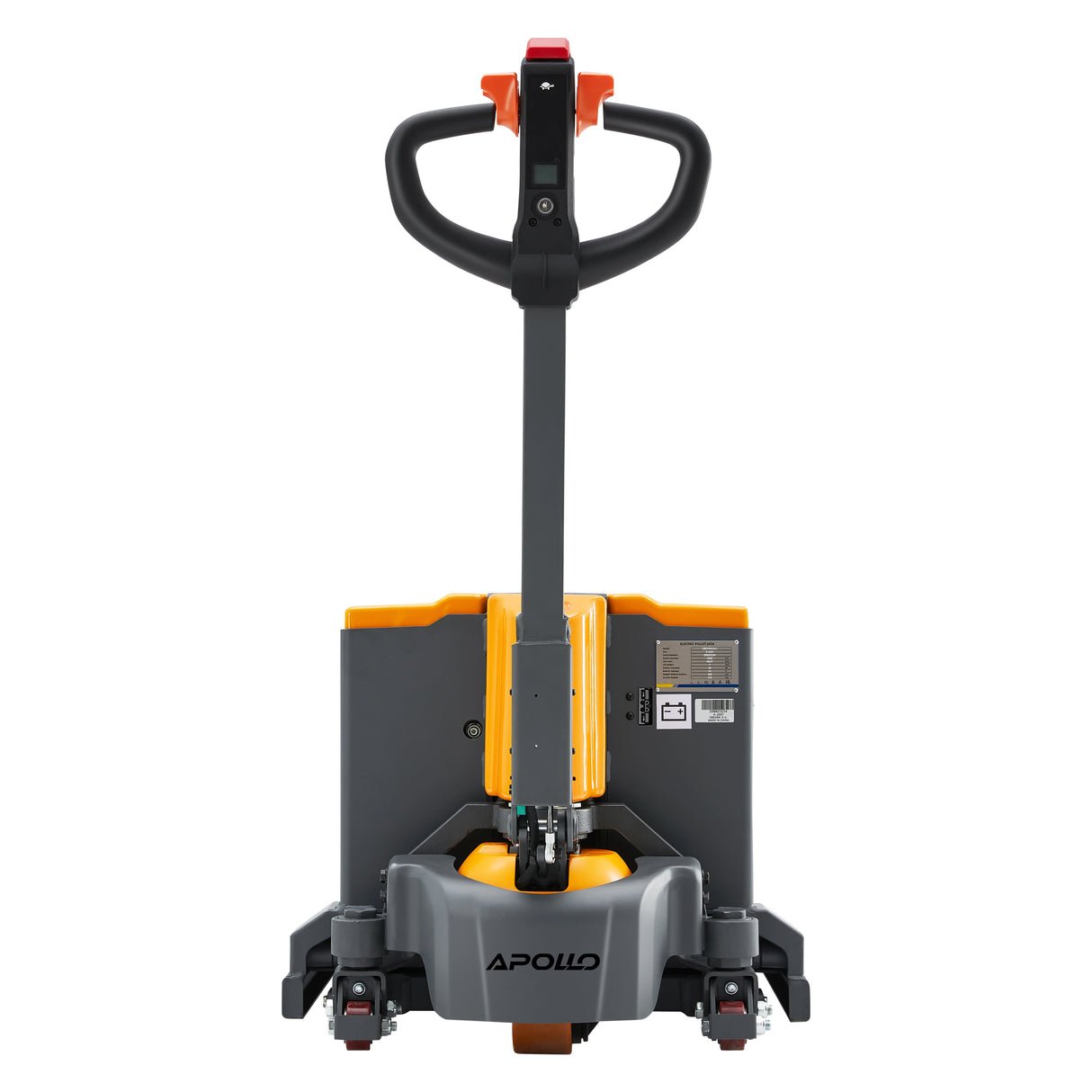

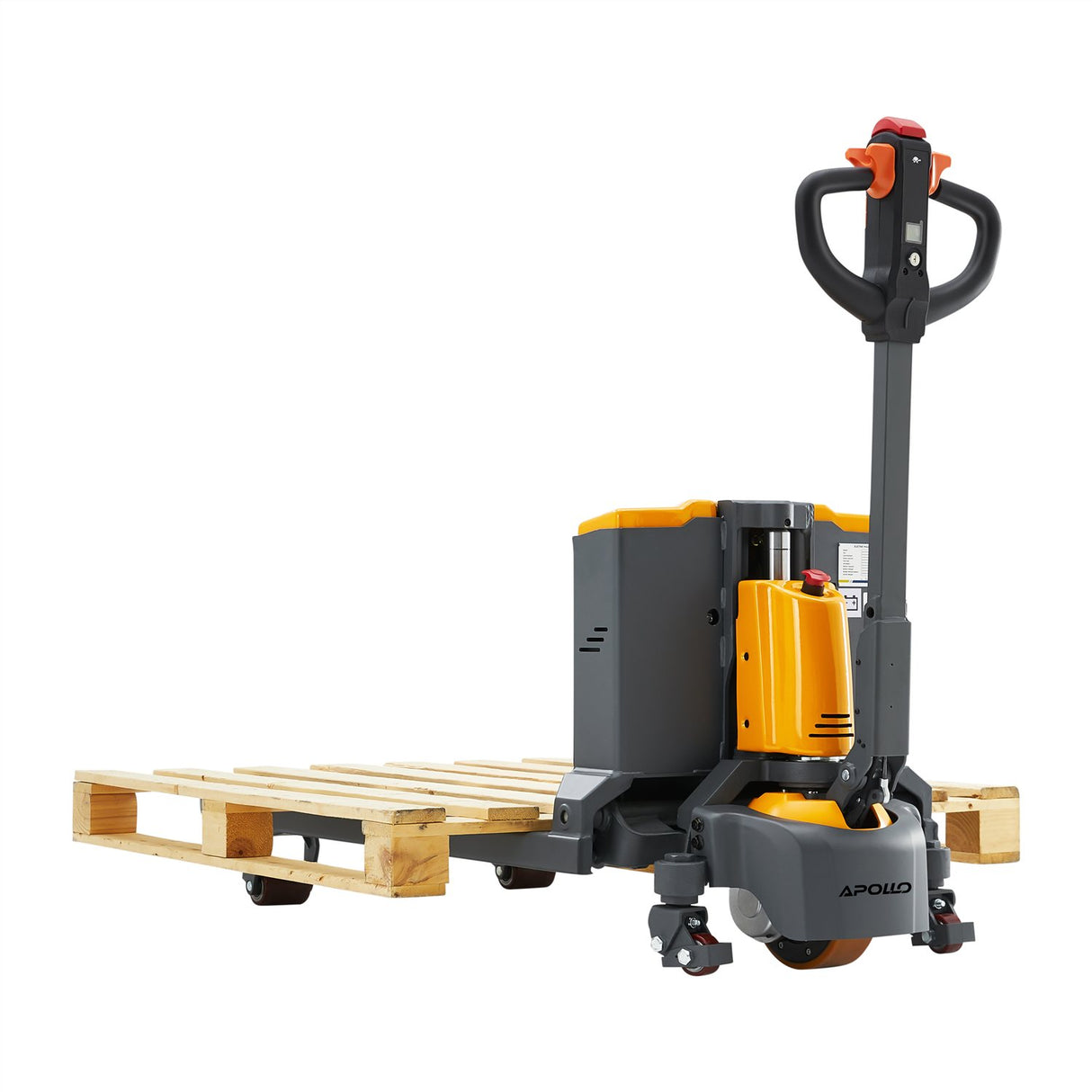

Li-ion Powered Pallet Truck | 48" x 27" Forks | 4400 lbs. Capacity | TX Self-Pickup

Li-ion Powered Pallet Truck | 48" x 27" Forks | 4400 lbs. Capacity | TX Self-Pickup

Apollo SKU: CBD20W-II-LI-II
$1,850.00
$1,850.00
Color: Yellow
Pickup available
TX

Li-ion Powered Pallet Truck | 48" x 27" Forks | 4400 lbs. Capacity | TX Self-Pickup

Color: Yellow

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

  • Small 55.7" turning radius with turtle mode for safe and precise operation in narrow spaces such as truck compartments and containers
  • Multiple safety features including armored drive wheel covers to prevent foot injury, lift overload protection, lift height electrical limit, emergency power-off, and belly switch for emergency reverse
  • Powerful 0.75kW motor enables climbing slopes up to 6% at full load without rollback

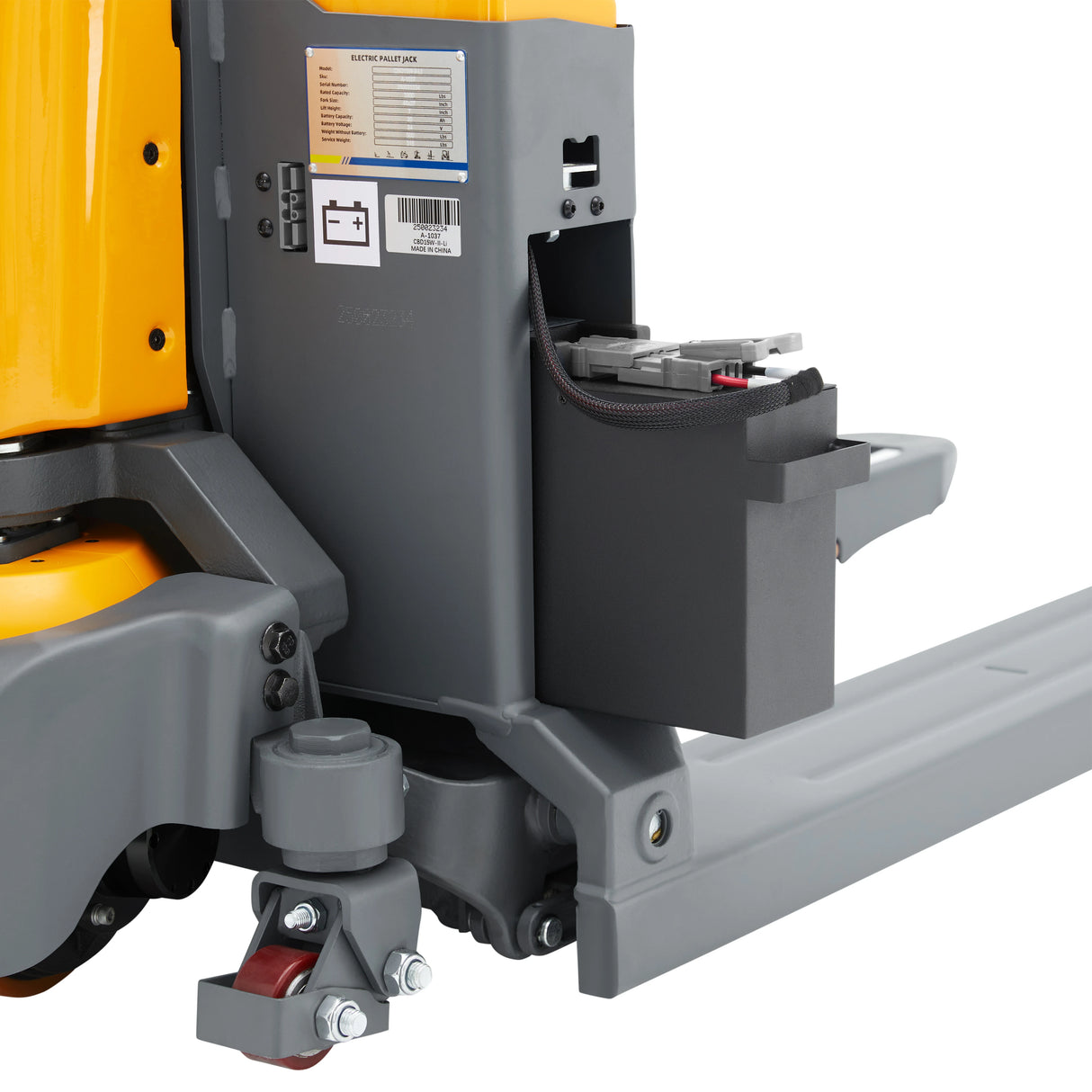

  • Efficient power system with 48V/20AH lithium battery and 10-second quick battery replacement
  • Continuous operation supported by spare battery and external charging port for convenient charging
  • To prolong battery life and ensure proper function, charge once a month when not in use.
  • The kind of truck is applicable for goods transportation on hard and flat floor.

Specifications

Capacity
4400 lbs.
Aisle Width
87.0"
Max.Lifting Height
7.3"

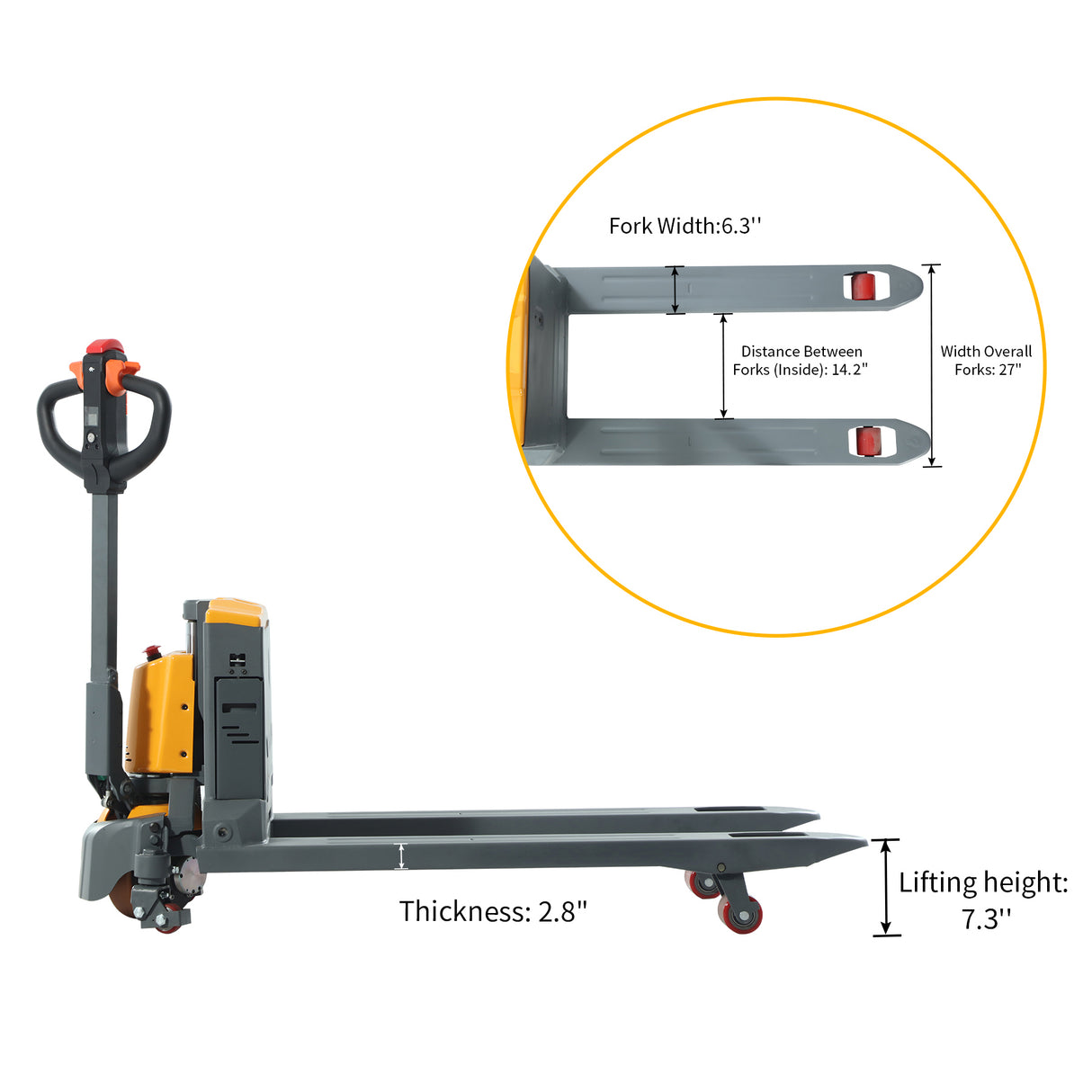

Inside Distance Between Forks
14.4"
Fork Length
48"
Fork Overall Width
27"
Single Fork Width
6.3"

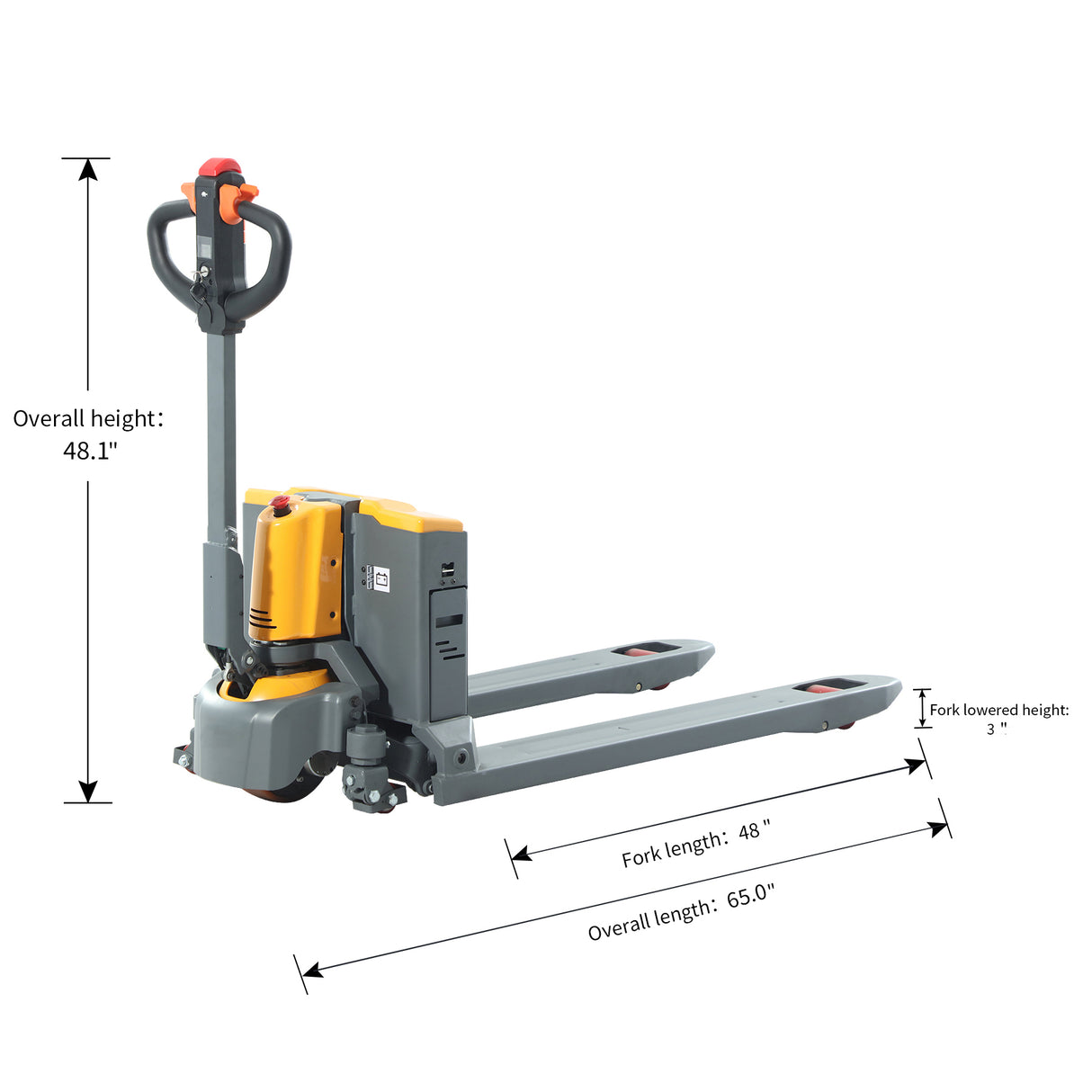

Overall Height
48.1"
Overall Length
65.0"
Overall Width
27"
Driving Speed-Unladen
3.0 mph
Driving Speed-Laden
2.9 mph
Lifting Speed/Empty
1 inch/s
Lifting Speed/Loaded
0.8 inch/s
Gradeability/Empty
20%
Gradeability/Loaded
6%
Turning Radius
55.7"
Lifting Distance
4.3"
Battery Capacity
20AH
Battery Spec
48V/20AH
Battery Voltage
48V
Battery Type
Lithium Battery
Fork Thickness
2.8"
Stabilizer Wheel
Yes
Fork Lowered Height
3"
Lowering Speed/Empty
1.2 inch/s
Lowering Speed/Loaded
1.8 inch/s
Service Weight
310 lbs.
Gross Weight
330 lbs.
Brake Type
Electric brake
Charger
48V/10A built-out
Package Size
64"x28"x29"
With Lcd Panel
Yes

Self-Pickup

  • Self-Pickup at:

3452 S Burleson Blvd, Alvarado, TX 76009

  • Open Hours:

Monday to Friday from 8am to 5pm CST, excluding holidays.

Assembly

Assembly Instruction

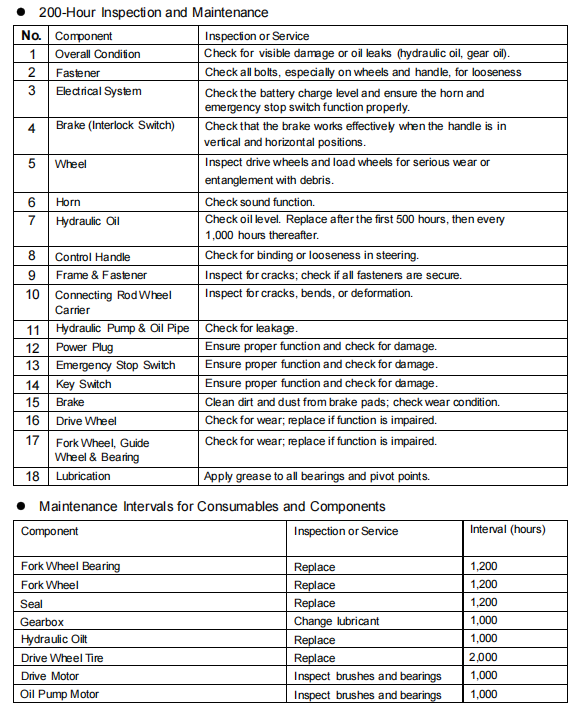

  • Inspection & Maintenance


Conducting a thorough inspection of the product can help prevent malfunctions and ensure it achieves its expected service life.

Maintenance hours are based on 8 hours of operation per day, 200 hours per month.

For safe operation, the product should be inspected and maintained according to the maintenance schedule.

⚠️ Notice:

  • Handle Self-Installation Required, including for Self Pickup Orders
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).
