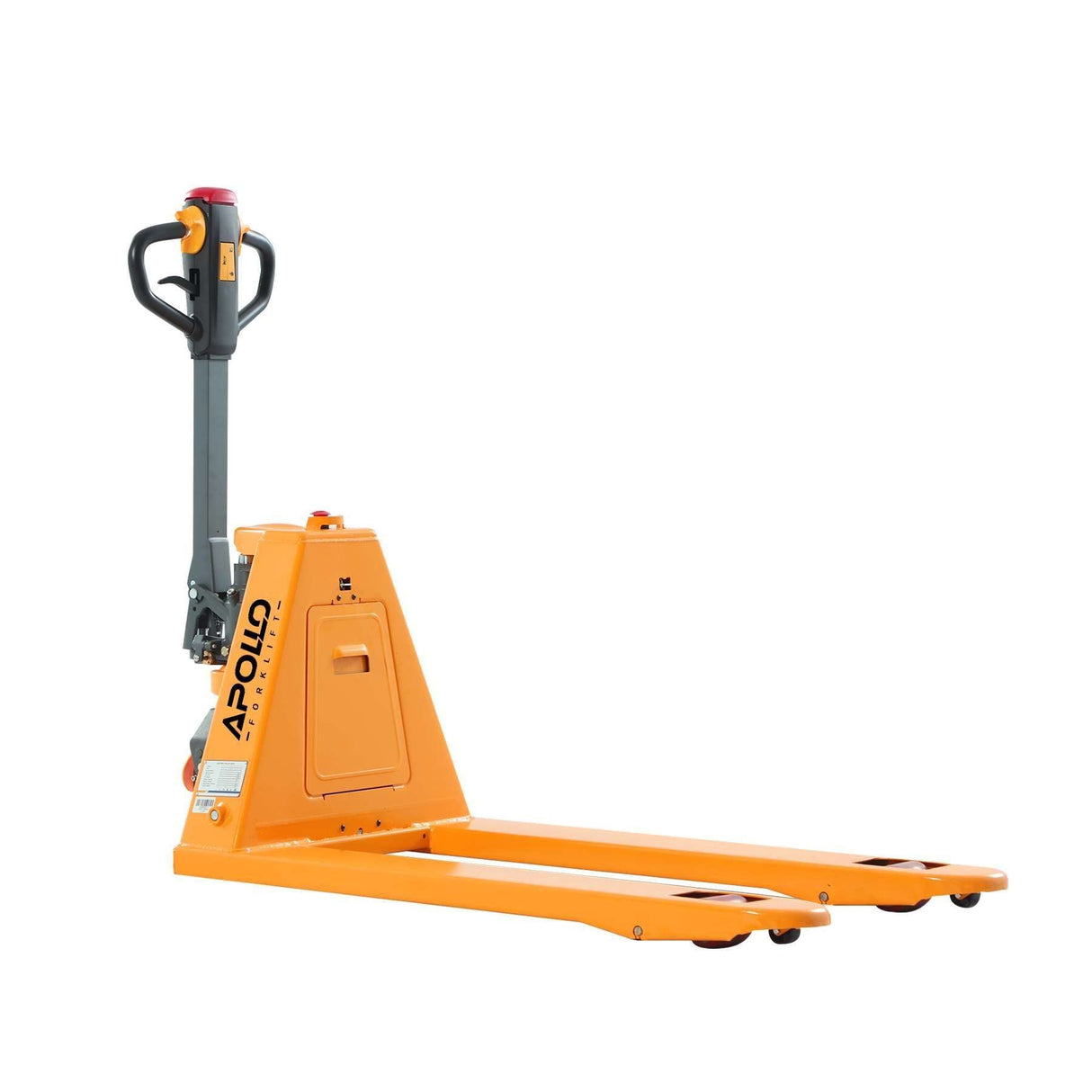

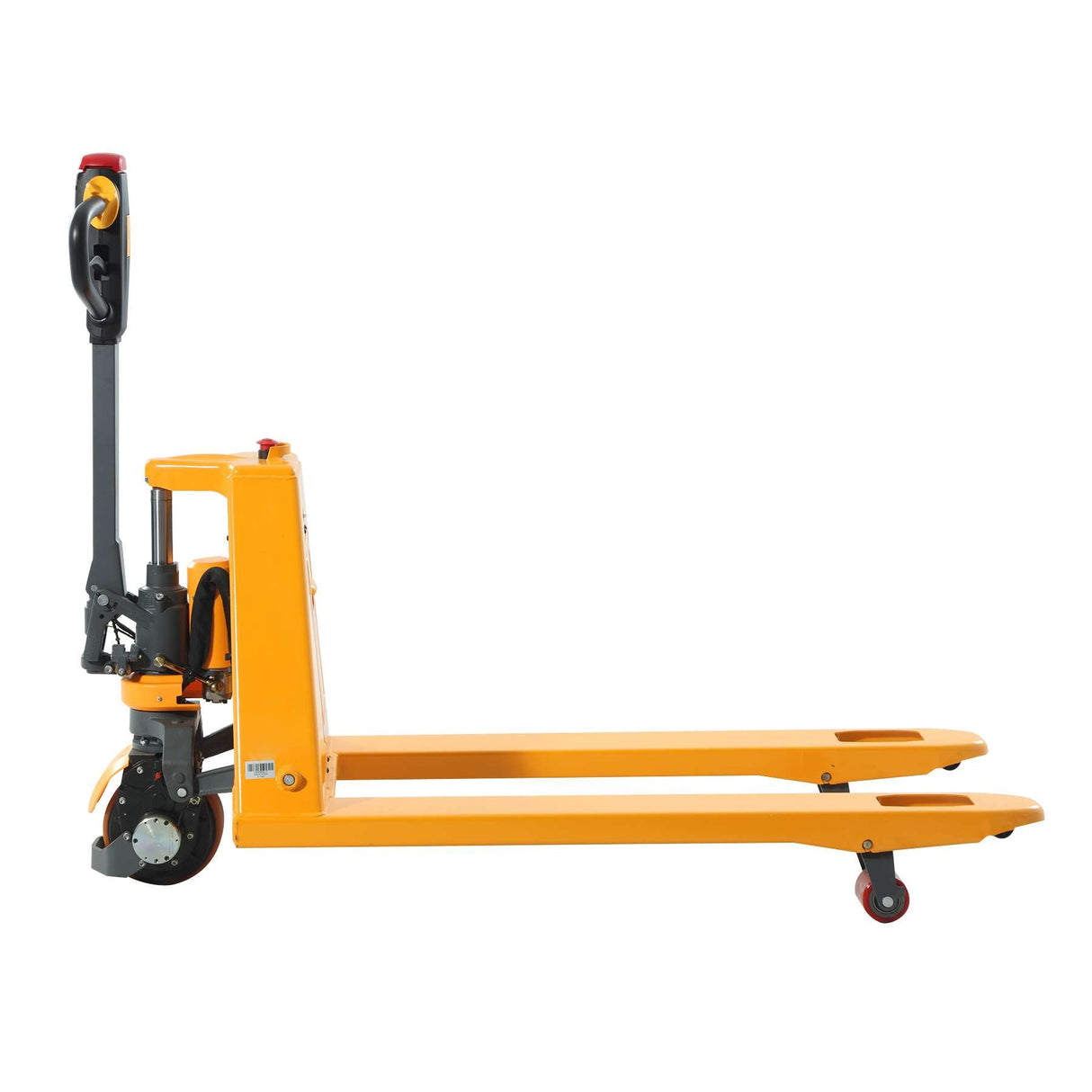

Li-ion Powered Pallet Truck | 48" x 27" Forks | PU Wheels | 3300 lbs. Capacity | TX Self-Pickup

Li-ion Powered Pallet Truck | 48" x 27" Forks | PU Wheels | 3300 lbs. Capacity | TX Self-Pickup

Apollo SKU: CBD15-NEW
$1,249.00
$1,249.00
Color: Yellow
Pickup unavailable

Li-ion Powered Pallet Truck | 48" x 27" Forks | PU Wheels | 3300 lbs. Capacity | TX Self-Pickup

Color: Yellow

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

  • For tight spaces: Small turning radius of 57.1 in for maneuvering in tight spaces such as truck cabins and containers
  • 24V 20Ah lithium battery: 3-hour charging time, 3-hour operating time

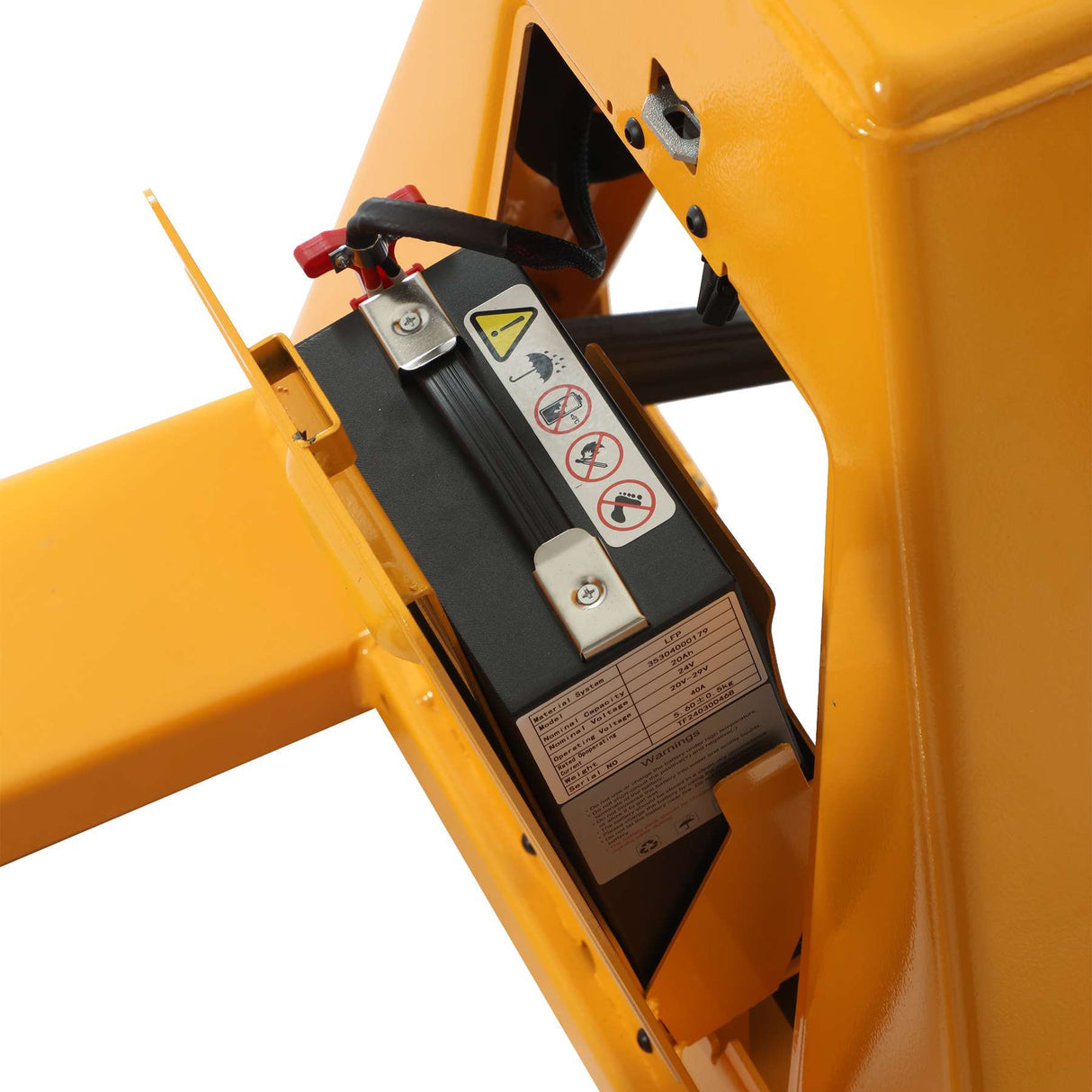

  • 10S Quick battery replacement within 10 seconds and convenient side charging interface for independent battery charging
  • Turtle mode for slow and controlled upright movement in confined areas

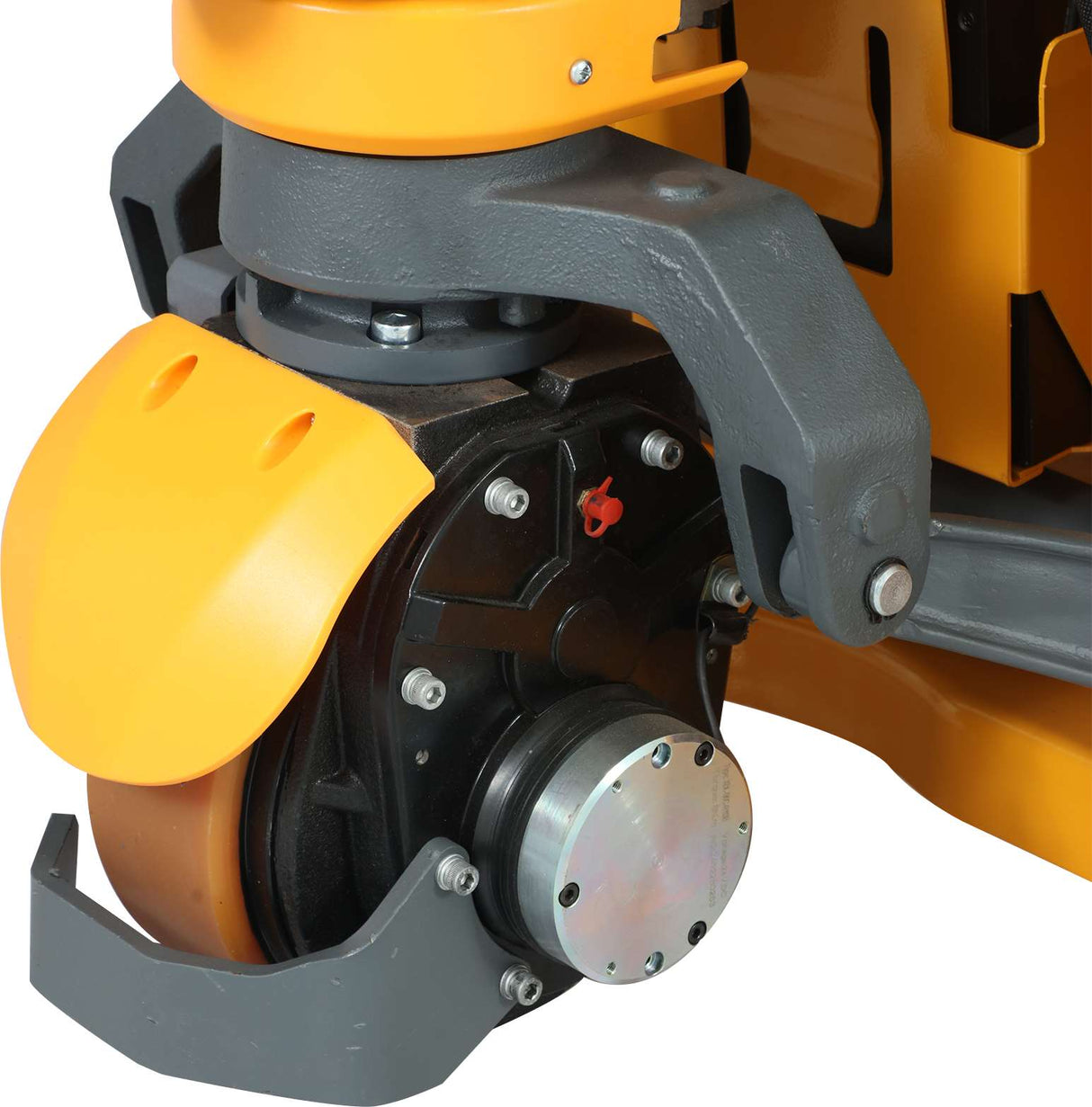

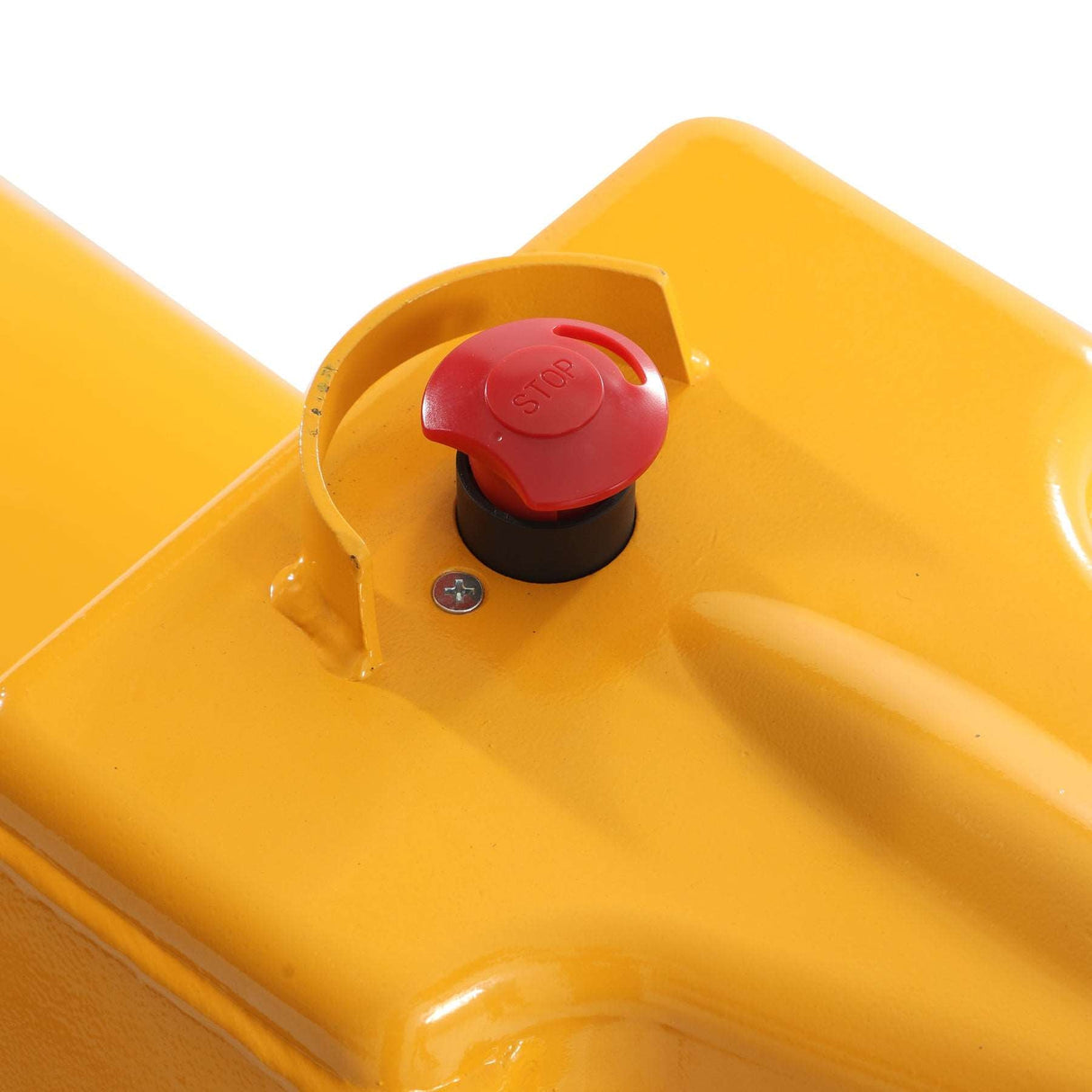

  • Multiple safety features including drive wheel protection, overload lifting protection, emergency power cut-off, and belly switch emergency reverse for operator safety
  • Ensures continuous operation with minimal downtime
  • To prolong battery life and ensure proper function, charge once a month when not in use.The kind of truck is applicable for goods transportation on hard and flat floor.

Specifications

Capacity
3300 lbs.
Aisle Width
88.6"
Max.Lifting Height
7.3"

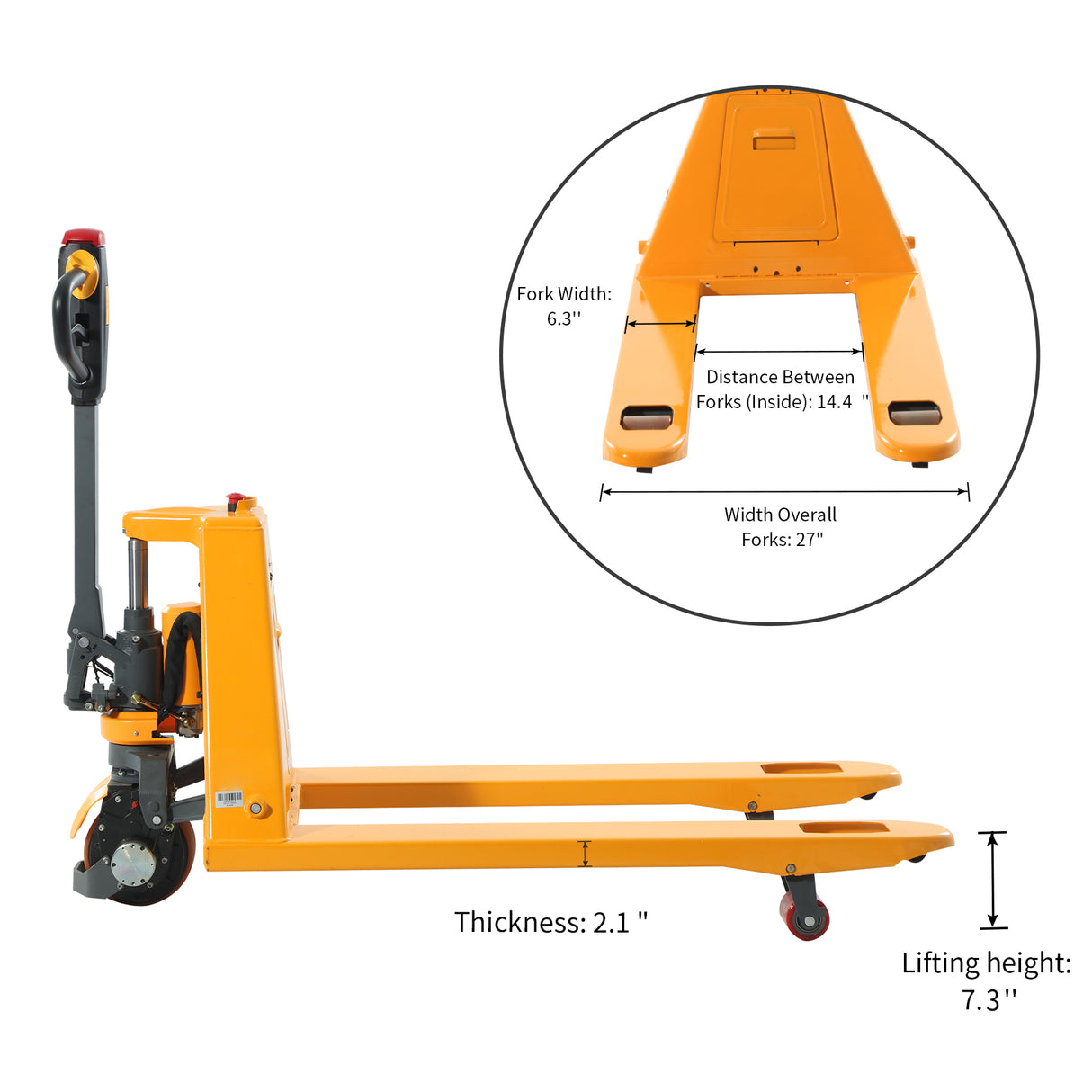

Inside Distance Between Forks
14.4"
Fork Length
48"
Fork Overall Width
27"
Single Fork Width
6.3"

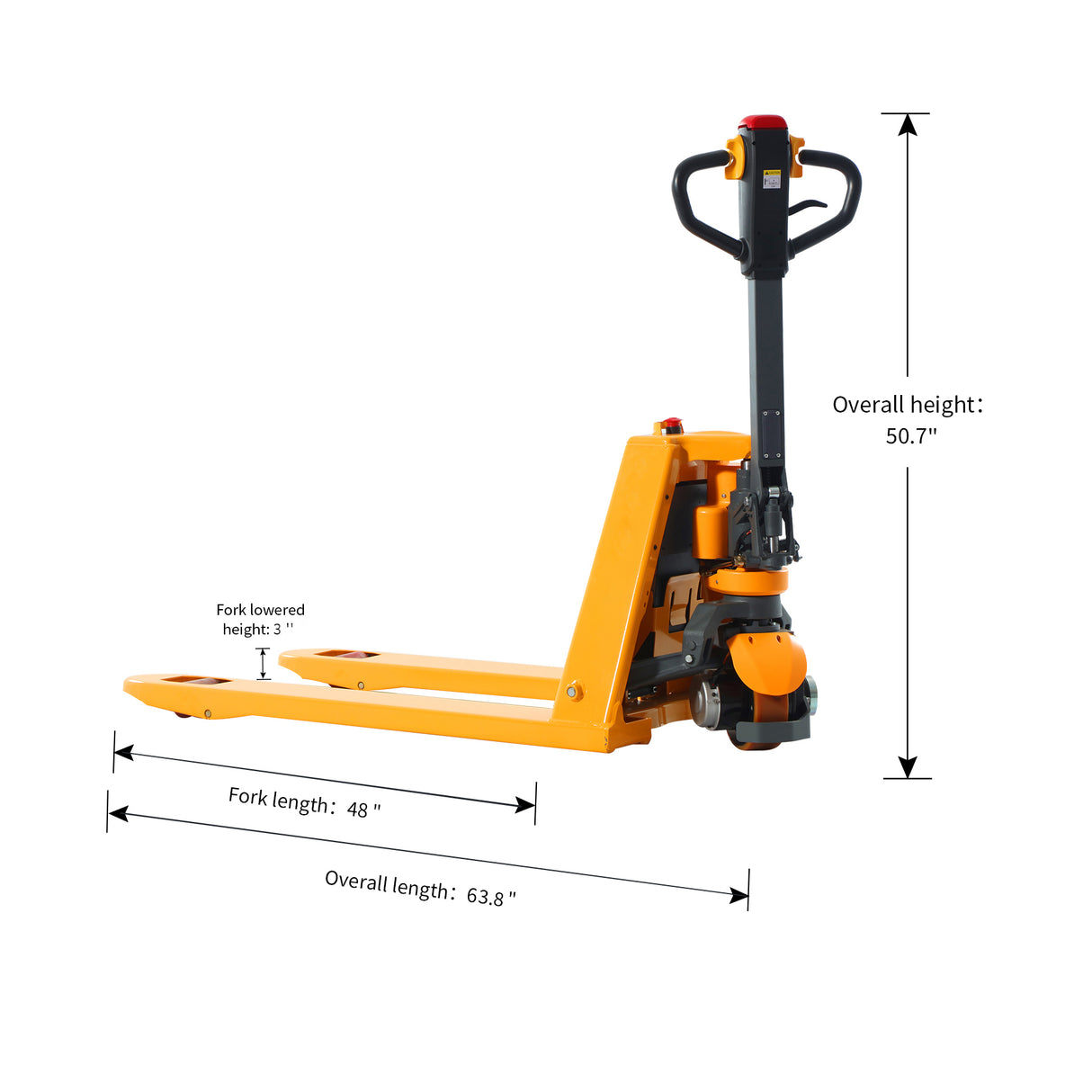

Overall Height
50.7"
Overall Length
63.8"
Overall Width
27"
Driving Speed-Unladen
2.8 mph
Driving Speed-Laden
2.7 mph
Lifting Speed/Empty
0.8 inch/s
Lifting Speed/Loaded
0.6 inch/s
Gradeability/Empty
20%
Gradeability/Loaded
5%
Total Wheel Count
3
Turning Radius
57.1"
Lifting Distance
4.3"
Battery Capacity
20AH
Battery Spec
24V/20AH
Battery Voltage
24V
Battery Type
Lithium Battery
Fork Thickness
2.1"
Stabilizer Wheel
No
Fork Lowered Height
3"
Service Weight
270 lbs.
Gross Weight
285 lbs.
Brake Type
Electric brake
Charger
24/6A built-out
Charging Time
3 Hours
Continuous Working Time
3 Hours
Package Size
67"x27"x30"
With Lcd Panel
No

Self-Pickup

  • Self-Pickup at:

3452 S Burleson Blvd, Alvarado, TX 76009

  • Open Hours:

Monday to Friday from 8am to 5pm CST, excluding holidays.

Assembly

Assembly Instruction
  • Inspection & Maintenance


Conducting a thorough inspection of the product can help prevent malfunctions and ensure it achieves its expected service life.

Maintenance hours are based on 8 hours of operation per day, 200 hours per month.

For safe operation, the product should be inspected and maintained according to the maintenance schedule.

⚠️ Notice:

  • Handle Self-Installation Required, including for Self Pickup Orders
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).
