Semi-Electric Straddle Stacker | 3300 lbs. Capacity | 118" Lift Height | TX Self-Pickup

Semi-Electric Straddle Stacker | 3300 lbs. Capacity | 118" Lift Height | TX Self-Pickup

Apollo SKU: CTD15BE-118
$2,300.00
$2,300.00
Color: Yellow
Pickup available
TX

Semi-Electric Straddle Stacker | 3300 lbs. Capacity | 118" Lift Height | TX Self-Pickup

Color: Yellow

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

  • Heavy-capacity, standard-height workhorse: The “main unit” choice for warehouses that handle heavier pallets daily. capacity 3300 lbs, max lift height 118", mast lowered height 84.6"
  • Closed-deck safe default for real-world pallet variety: Straddle design reduces the chance of buying the wrong leg style. support leg type Straddle, compatible pallet types All
  • Lead-acid battery for familiar ownership: Fits common charging routines and is easy for most teams to manage. battery type Lead-acid Battery, battery spec 12V/105Ah
  • Better for frequent, heavier stacking cycles: A strong choice when this machine will run every day. capacity 3300 lbs
  • Comfortable fit for standard warehouse lanes: Designed to work in common aisle widths without needing oversized space. aisle width 90.1"

Specifications

Capacity
3300 lbs.
Aisle Width
90.1"

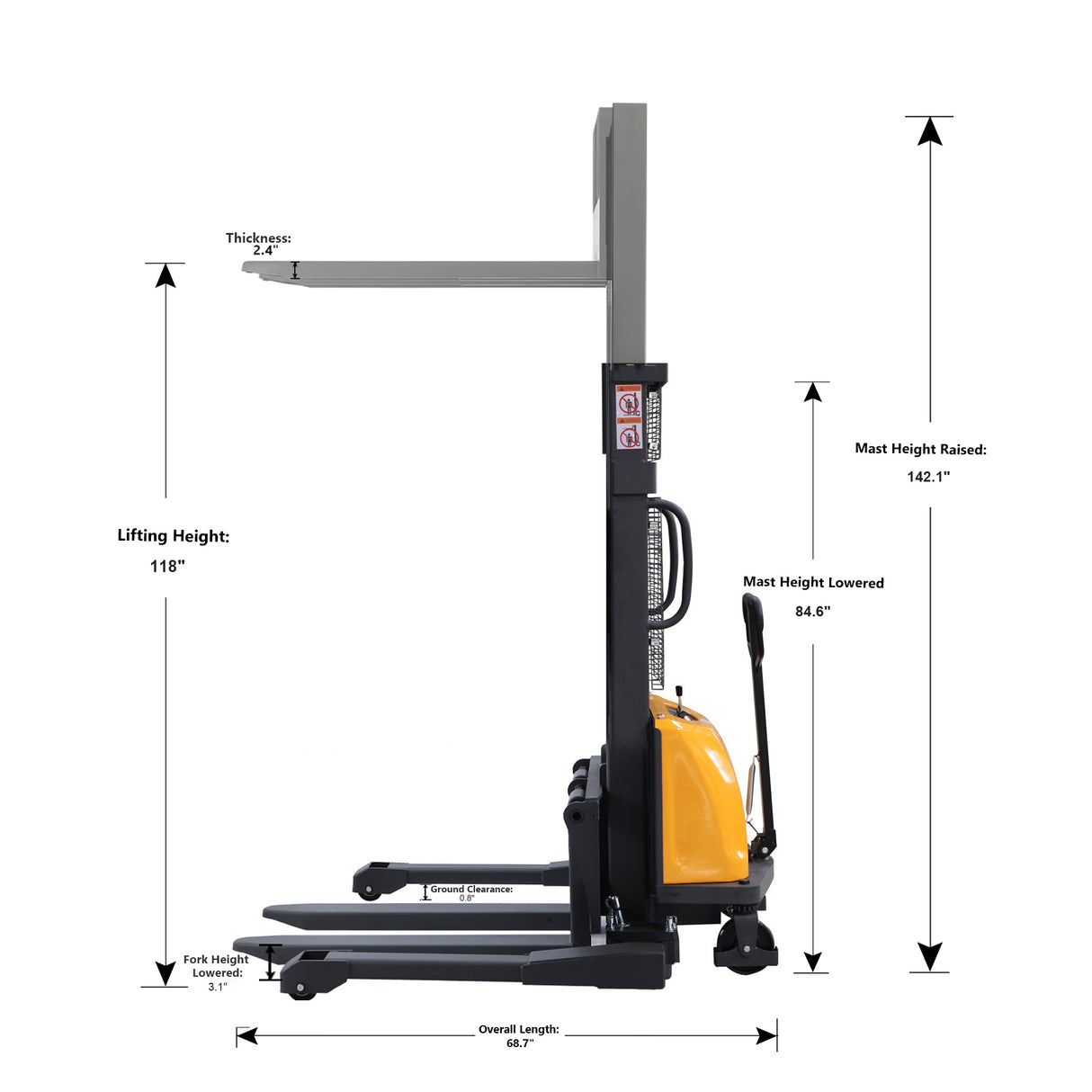

Max.Lifting Height
118"
Inside Distance Between Forks
0.4-25.4"

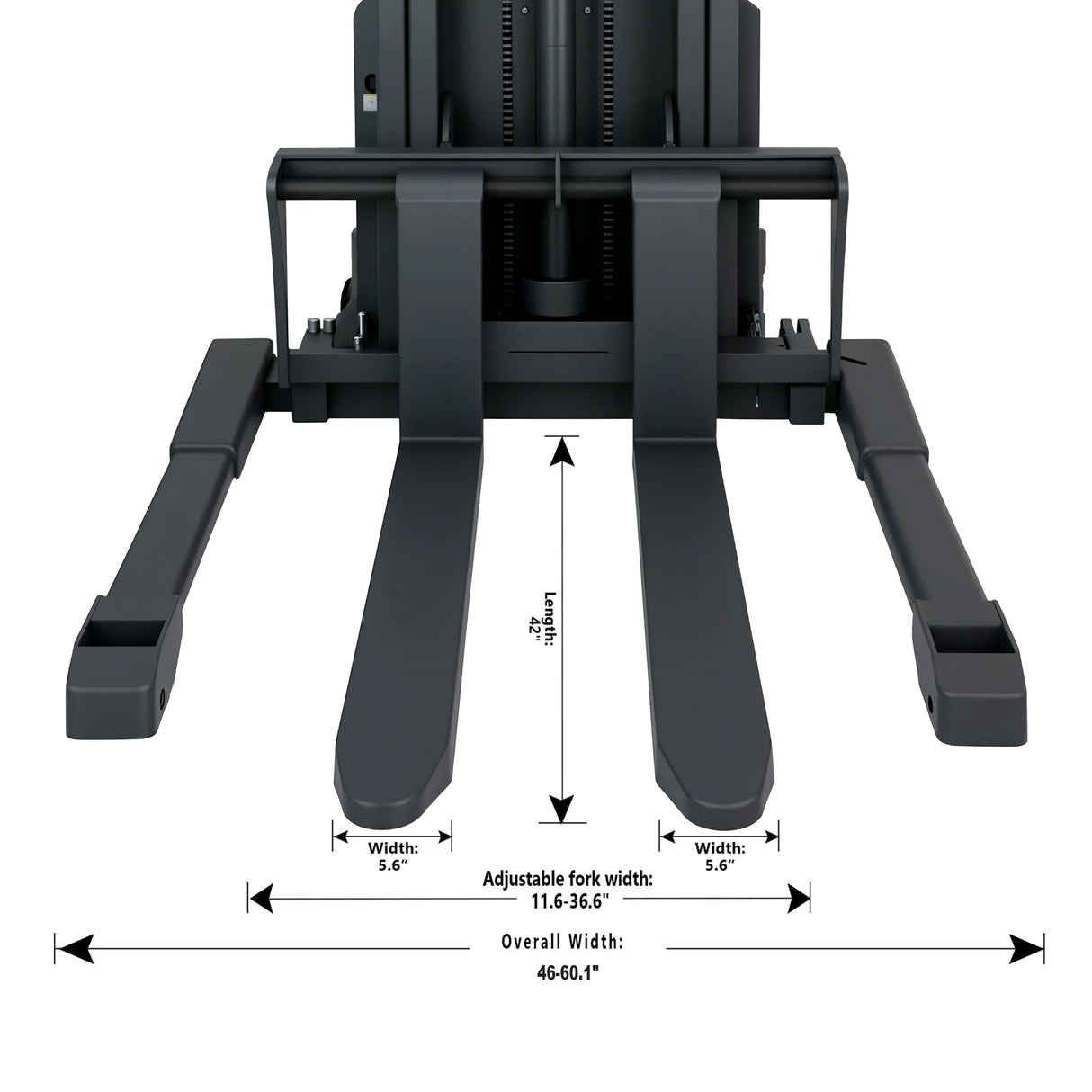

Fork Length
42"
Fork Overall Width
11.6-36.6"
Single Fork Width
5.6"
Compatible Pallet Types
All
Overall Height
84.6-142.1"
Overall Length
68.7"
Overall Width
46.0-60.1"
Lifting Speed/Empty
3.1 inch/s
Lifting Speed/Loaded
2 inch/s
Support Leg Type
Straddle
Total Wheel Count
4
Turning Radius
56.1"
Mast Lowered Height
84.6"
Mast Extended Height
142.1"
Load Centre Distance
19.7"
Battery Capacity
105AH
Battery Spec
12V/105AH
Battery Voltage
12V
Battery Type
GEL battery
Fork Thickness
2.4"
Fork Lowered Height
3.1"
Lowering Speed/Empty
3.5 inch/s
Lowering Speed/Loaded
3.9 inch/s
Service Weight
1172 lbs.
Gross Weight
1190 lbs.
Charger
12V/12A built-in
Charging Time
8-10 Hours
Continuous Working Time
8-10 Hours
Package Size
47"x34"x90"

Self-Pickup

  • Self-Pickup at:

3452 S Burleson Blvd, Alvarado, TX 76009

  • Open Hours:

Monday to Friday from 8am to 5pm CST, excluding holidays.

Assembly

Assembly Instruction

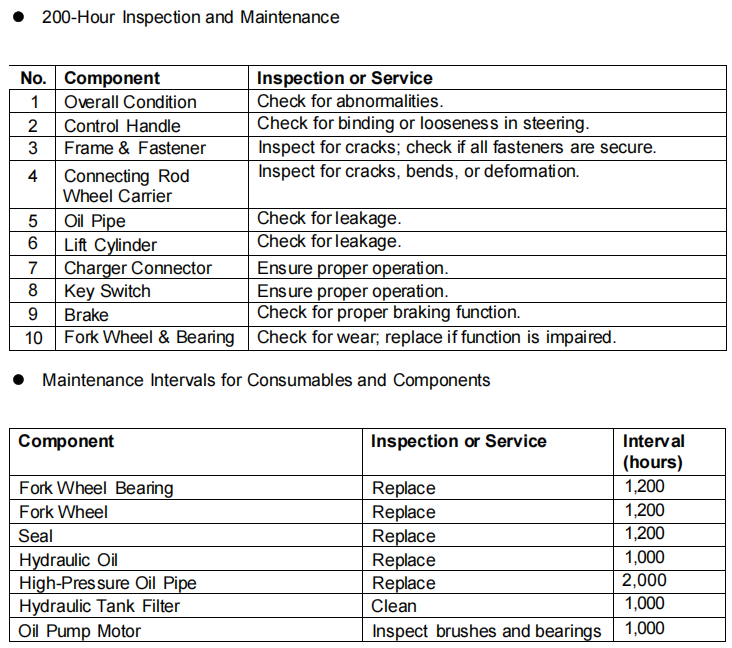

  • Inspection & Maintenance


Conducting a thorough inspection of the product can help prevent malfunctions and ensure it achieves its expected service life.

Maintenance hours are based on 8 hours of operation per day, 200 hours per month.

For safe operation, the product should be inspected and maintained according to the maintenance schedule.

⚠️ Notice:

  • Handle Self-Installation Required, including for Self Pickup Orders
  • Support legs require installation before use. Installation Video: https://youtu.be/KGJedUKFqWI
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).
