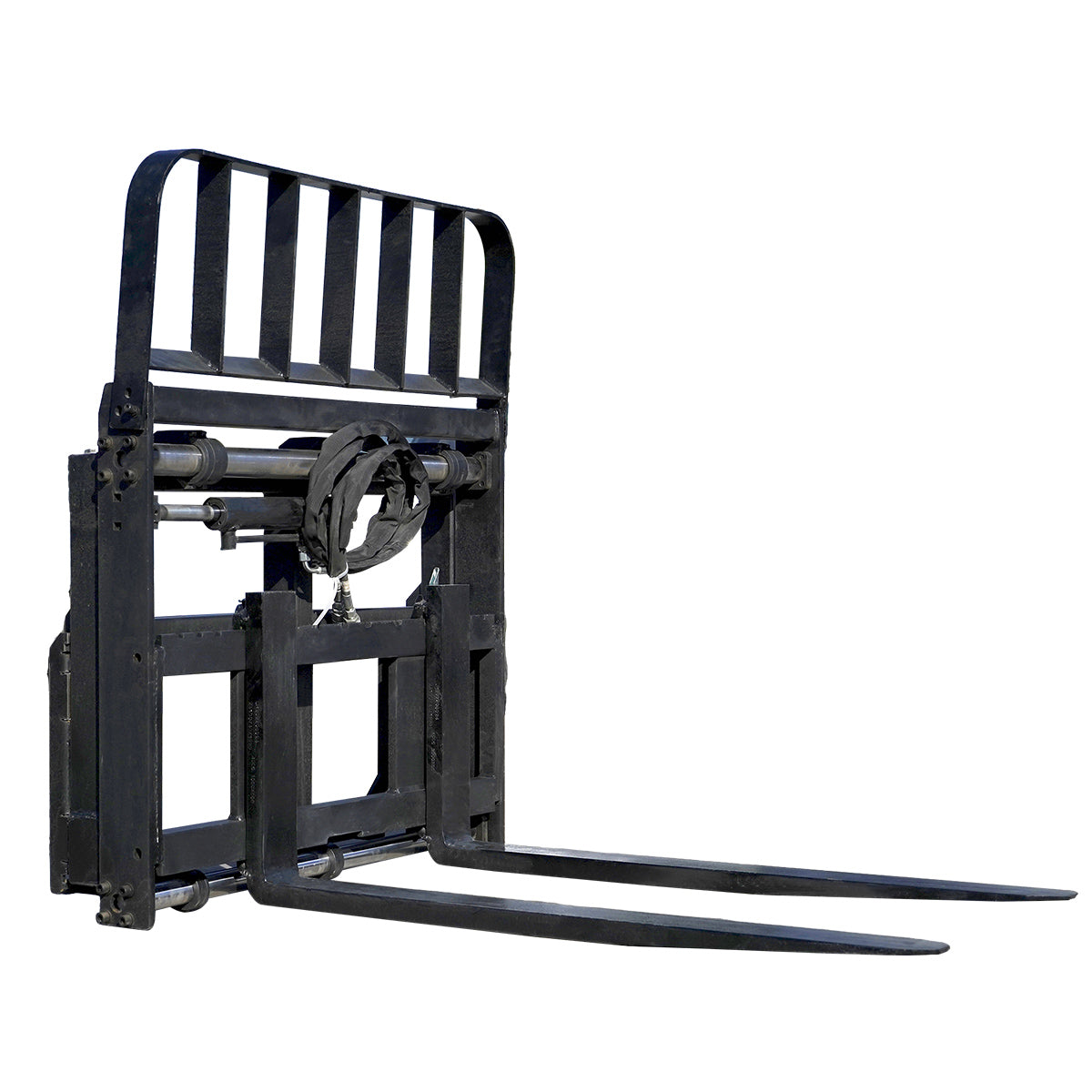

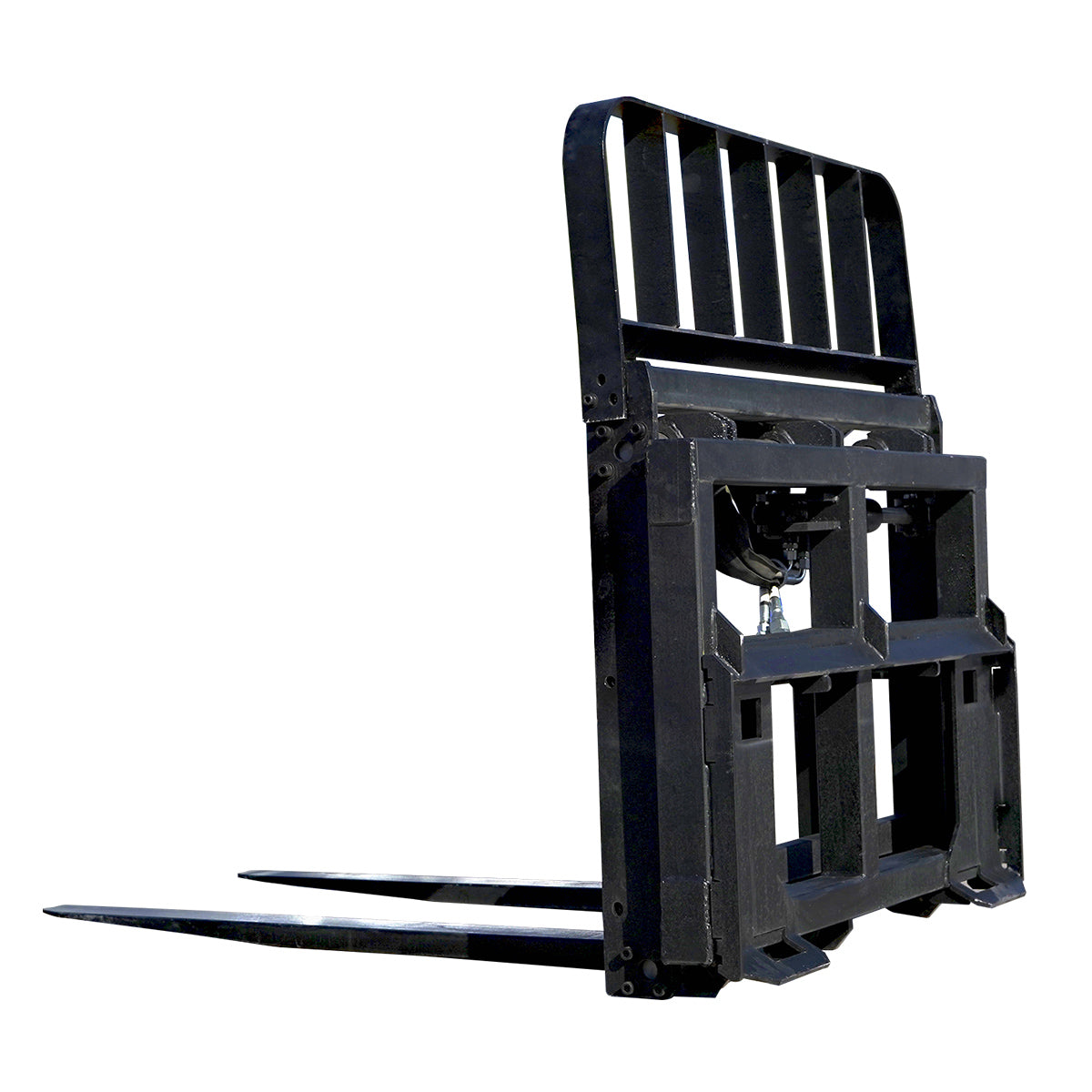

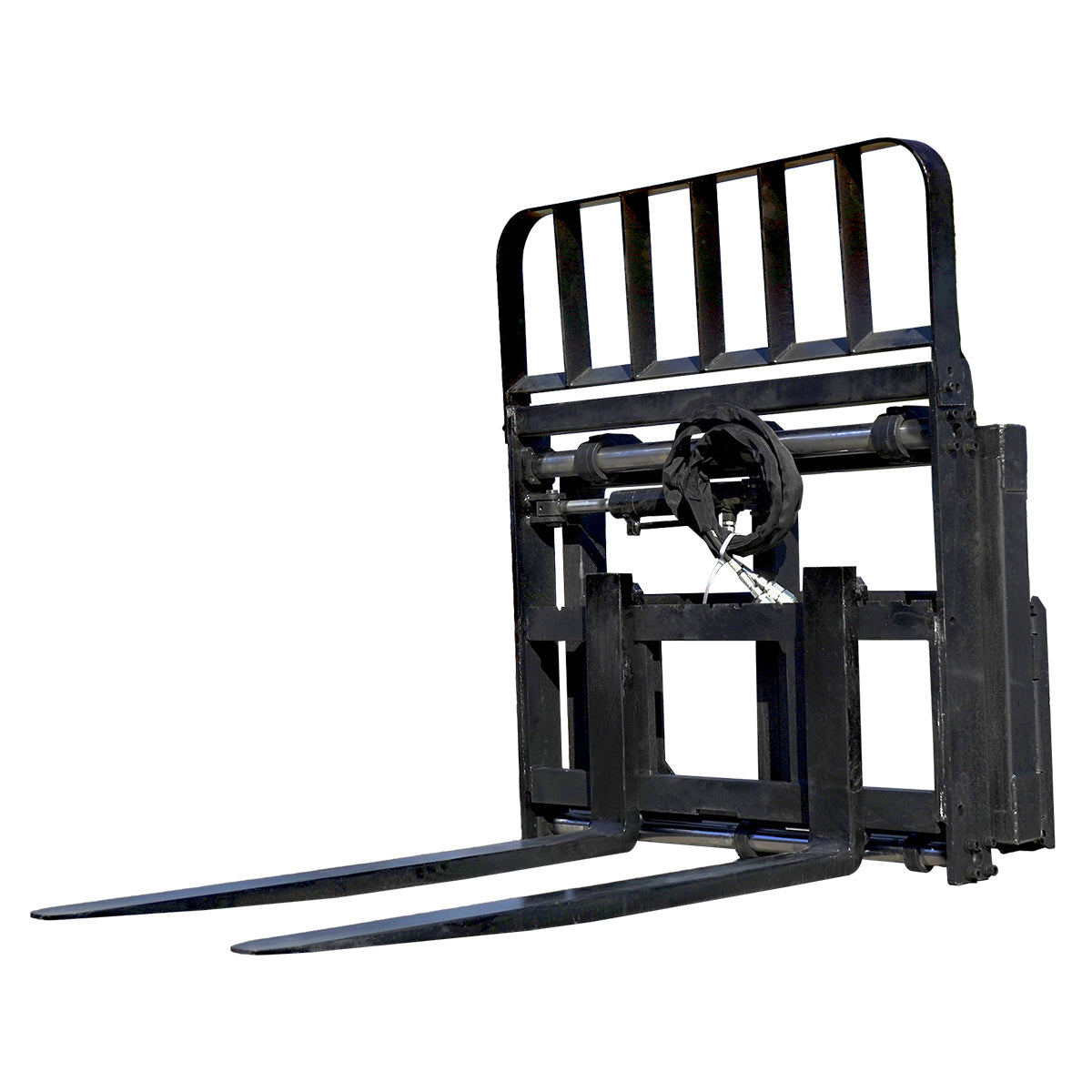

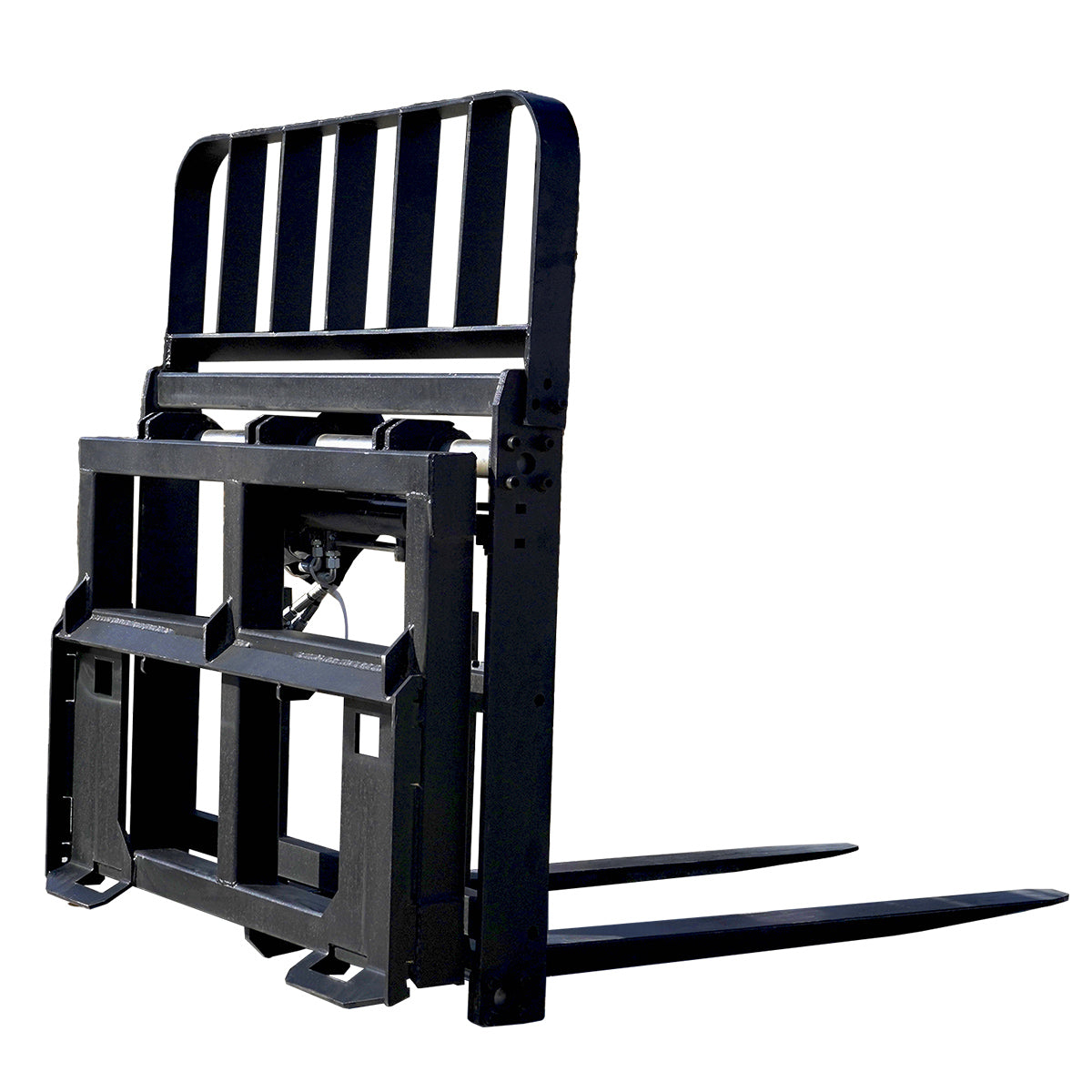

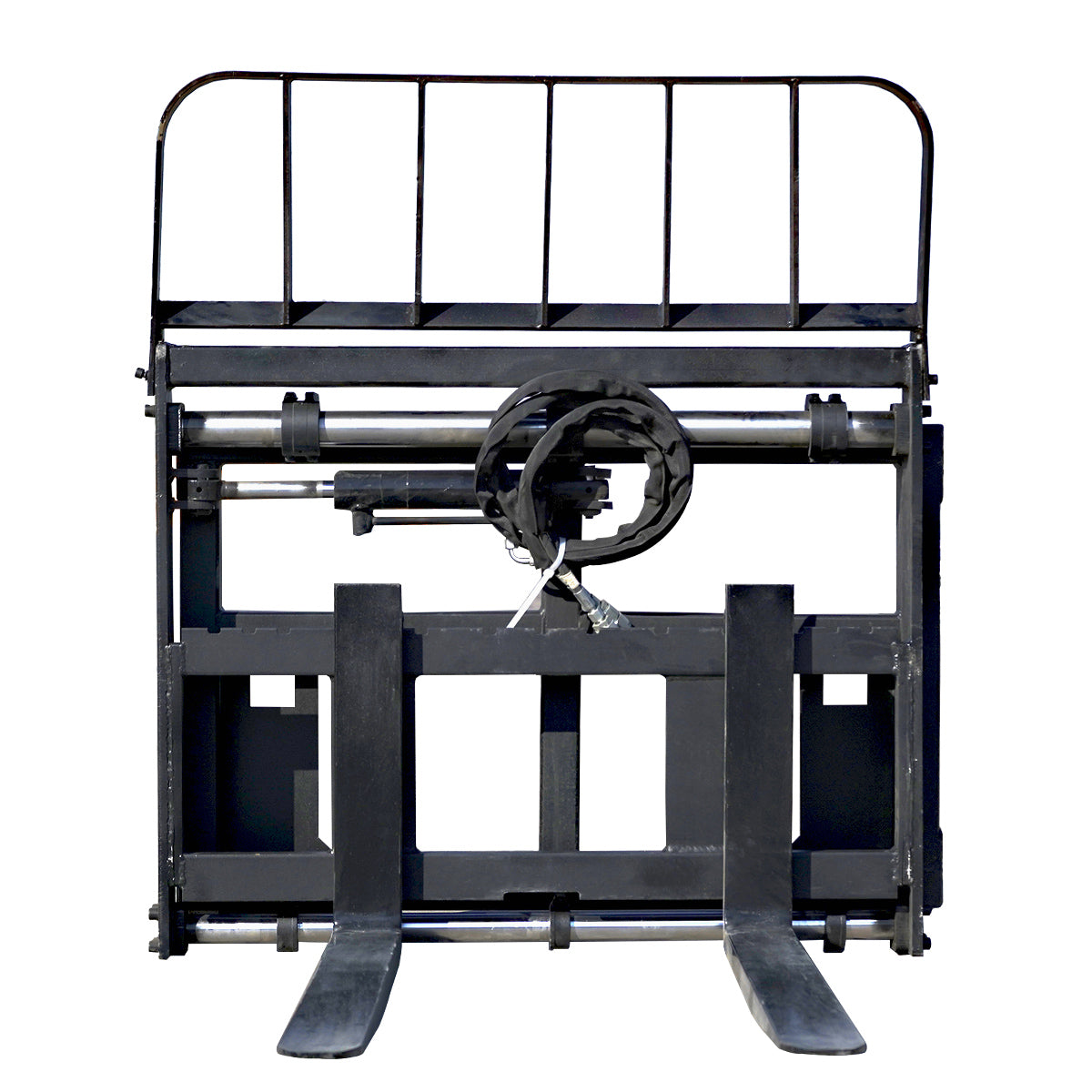

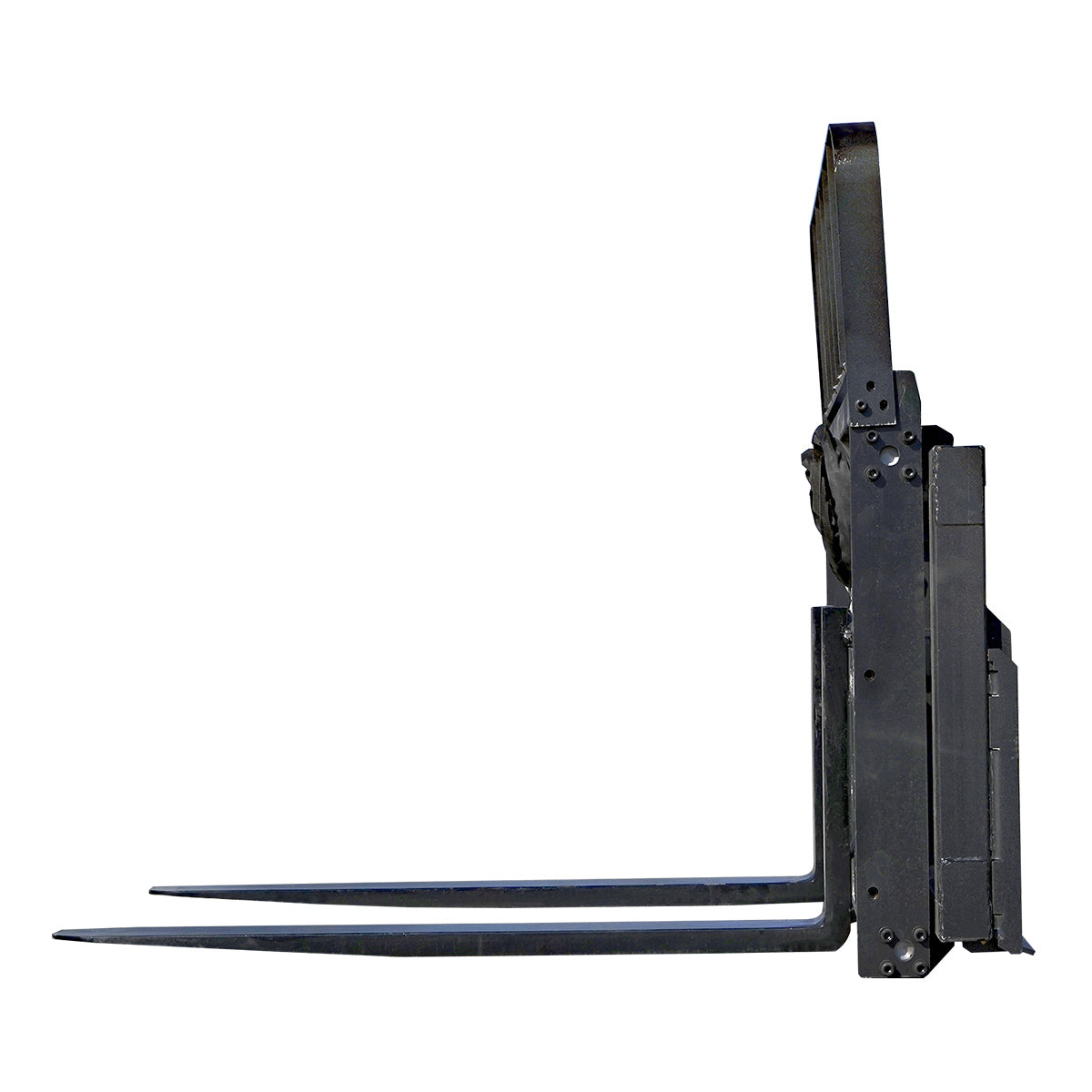

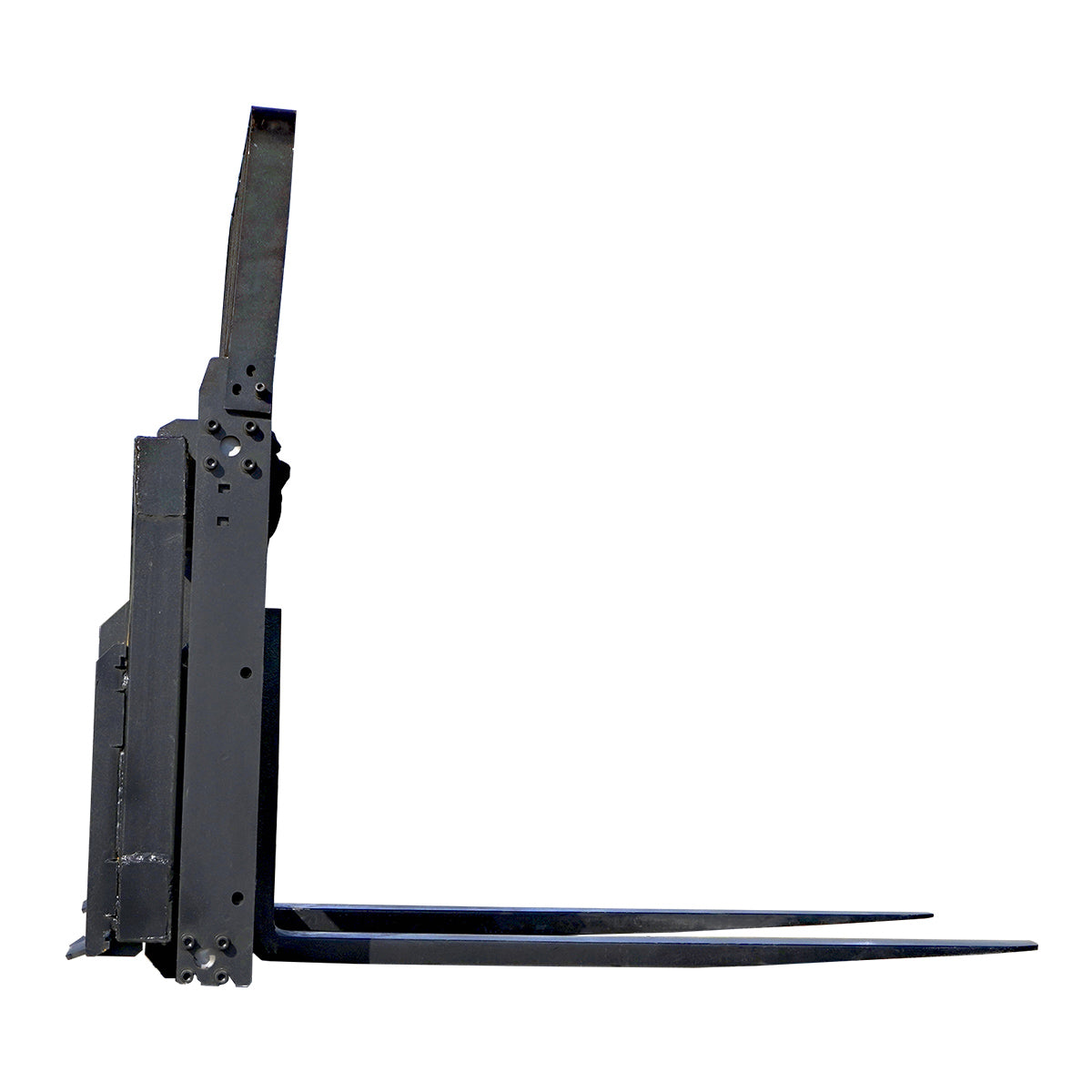

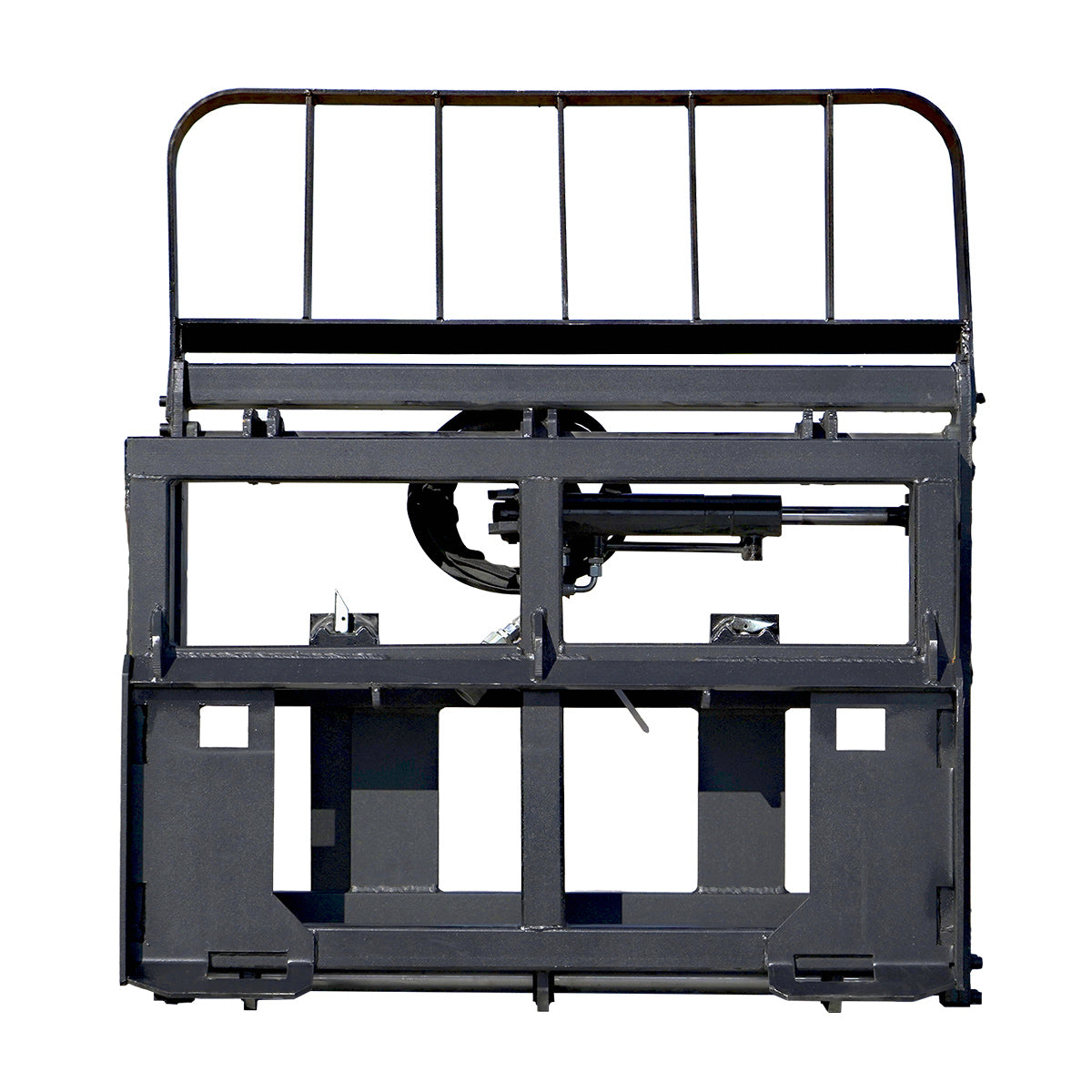

Skid Steer Side Shift Pallet Fork

Skid Steer Side Shift Pallet Fork

Greatbear SKU: AS000035
Capacity
3307 lbs
Shift Travel
4⁵⁄₁₆"
Cylinder Stroke
8¹¹⁄₁₆"
Regular price $4,199.00
Sale price $4,199.00

Pre-Order

Pickup unavailable

Skid Steer Side Shift Pallet Fork

  • TX

    Pickup available, usually ready in 24 hours

    3452 South Burleson Boulevard
    Alvarado TX 76009
    United States

    +16823509488

  • MD

    Pickup available, usually ready in 24 hours

    413 West Pulaski Highway
    Elkton MD 21921
    United States

  • CA

    Pickup available, usually ready in 24 hours

    6911 32nd St
    North Highlands CA 95660
    United States

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States

Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

This side‑shift fork is a high‑efficiency skid‑steer attachment built for pallet handling, loading and unloading tasks. Thanks to the integrated hydraulic side‑shift system, operators can move the fork carriage horizontally without moving the host machine. It brings huge convenience when working inside containers, truck beds and narrow job‑site areas. Reinforced welded steel frame and durable slide rails deliver reliable performance under heavy‑duty working conditions. Standard quick‑attach mounting fits most skid steer loaders. Note: auxiliary hydraulic output is required to activate the side‑shift function. Ideal for warehouses, yards, freight terminals and construction‑site material handling.

Hydraulic Side‑Shift Function
Hydraulically shift the entire fork carriage left and right without repositioning your skid‑steer. Great for truck‑loading, container unloading and tight‑space pallet alignment

Heavy‑Duty Quick‑Attach Design
Reinforced sliding rails and robust hydraulic cylinders for heavy‑load service. Standard skid‑steer quick‑attach interface; requires auxiliary hydraulic circuit for side‑shift operation

Higher Working Efficiency
Eliminates repeated machine re‑positioning. Finish pallet alignment in seconds, cuts loading & unloading cycle time for logistics‑heavy jobs.

Specifications

Dimension
56" x 48⁹/₁₆" x 44⁵/₁₆"
Side‑shift Travel Left / Right
4⁵⁄₁₆"
Cylinder Stroke
8¹¹⁄₁₆"
Cylinder
1¹⁵⁄₁₆"bore; 1¹⁄₈"rod
Weight
727.5 lbs
Capacity
3307 lbs
Material
Q355B
Steel Thickness
10mm
Tine Space
48⁹/₁₆"

Shipping

US warehouse dispatch, Fulfillment time: 6-10 business days

  • LxWxH (inch): 57x49x45
  • Weight (lb): 847
  • A forklift or equivalent is required for unloading.
