Description

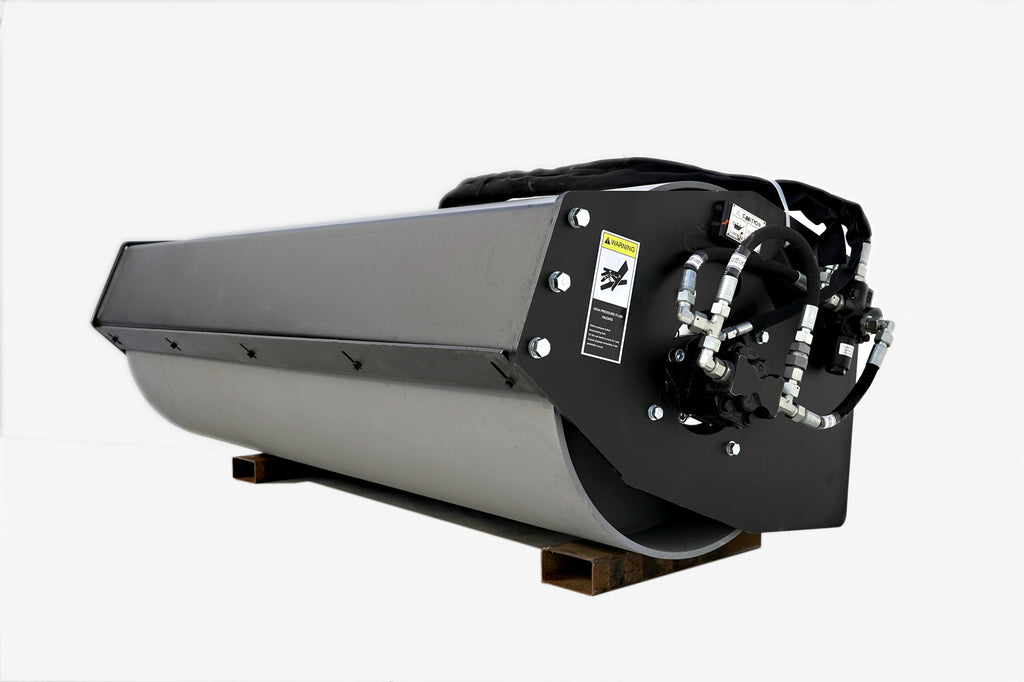

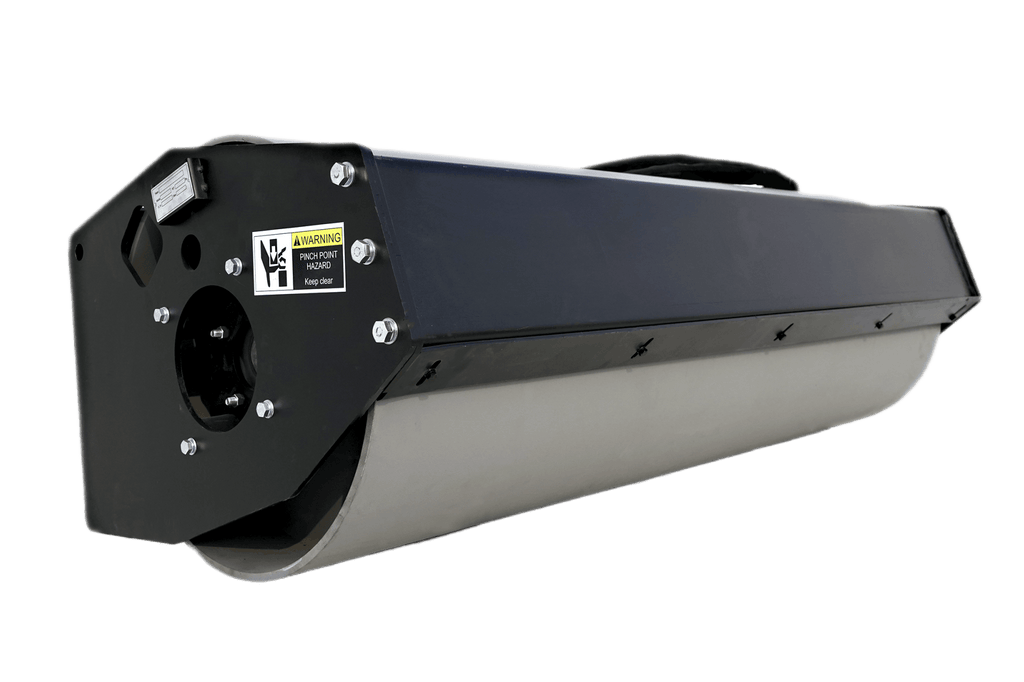

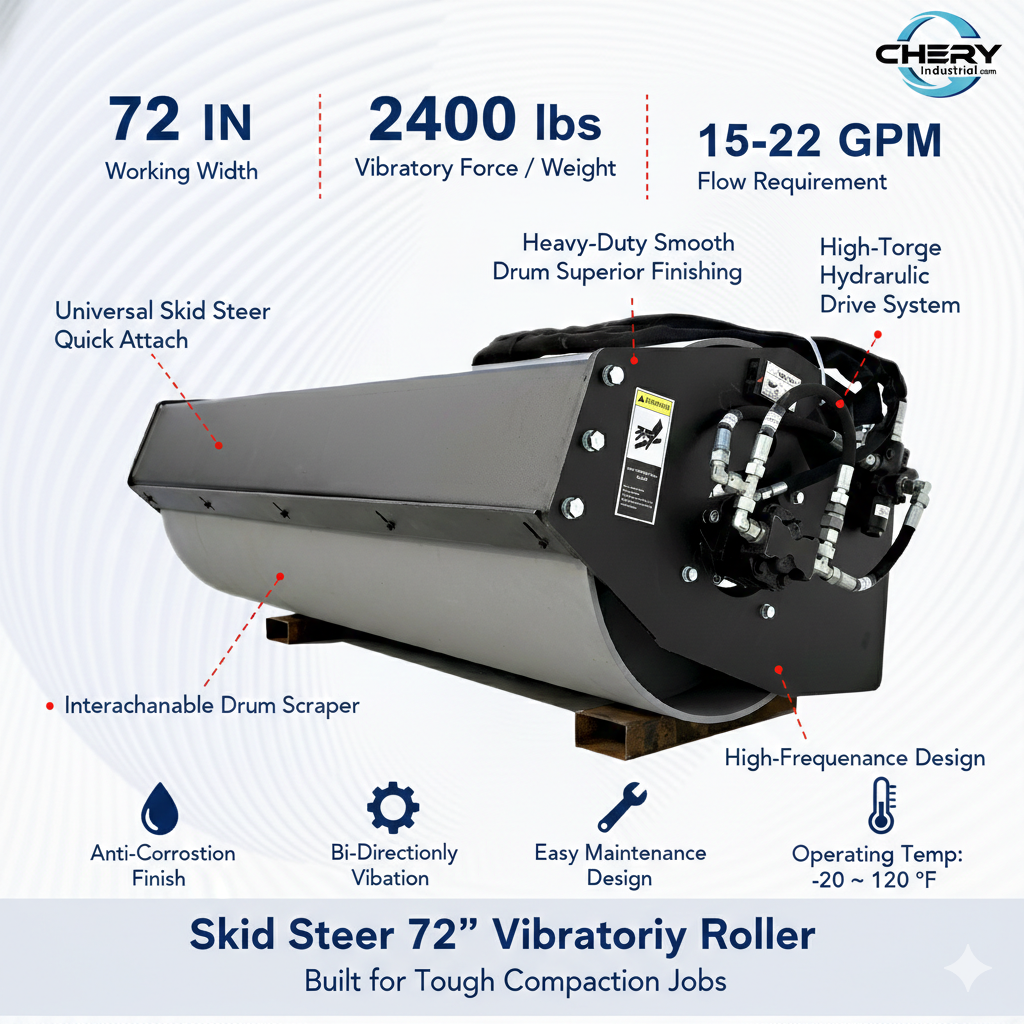

This Greatbear Skid Steer Vibratory Roller is designed to attach to skid steer to compact concrete, soil, gravel, or asphalt in the roads or foundations of landscaping, roadways, walkways, golf courses, and parking lots. This part sometimes is called roller-compactor, or road roller. This vibratory roller is taking advantage of its own heavyweight skid steer plus the attachment to compress the surface.
This product is oil lubrication, it needs to check the oil level. Through circular oil leveler to check the oil quantity (two oil levelers on the same level and perpendicular to the horizontal plane, oil should be at 70% of the oil leveler), If the oil quantity is not enough, fill through oil filler, not higher than oil leveler.
Specification
| Unit | 66'' | 72'' | |
| Drum Width | inch | 66 |
72 |
| Drum Diameter | inch |
24 |
24 |
| Vibration Force | lb |
7804 |
8554 |
| Vibration Frequency | Vpm | 2600 | 2600 |
| Weight | lb |
1764 |
1984 |
| Length | inch |
73 |
79 |
| Width | inch |
35 |
35 |
| Height | inch |
24 |
24 |
| Host Supply Flow | GPM | 14 | 14 |
| Color Code | RAL9005（Matte, sand texture） |
- Connector specification: LSQ-FF-04 G1/2
Package Size (72’’ Greatbear Skid Steer Vibratory Roller)
- L*W*H(inch): 87*41*30
- Weight(lb): 1760
- A forklift or equivalent is required for unloading
