Upgraded 23' x 22' Double Garage Metal Shed with Side Entry Door

Upgraded 23' x 22' Double Garage Metal Shed with Side Entry Door

Chery Industrial SKU: GSH02019
$4,590.00
$5,600.00 Save $1,010.00
$4,590.00
Version: Upgraded

In Stock

Pickup available
NC

Upgraded 23' x 22' Double Garage Metal Shed with Side Entry Door

Version: Upgraded

  • NC

    Pickup available, usually ready in 24 hours

    711 Gaither Road
    Statesville NC 28625
    United States
Shipping
Learn more
Enjoy free shipping on your purchase!
Returns
Learn more
30-Day Return Guarantee.

Questions before buying?

View full details
Features
Specifications
Reviews
Comparison
Parts
Product FAQ
Assembly

Description

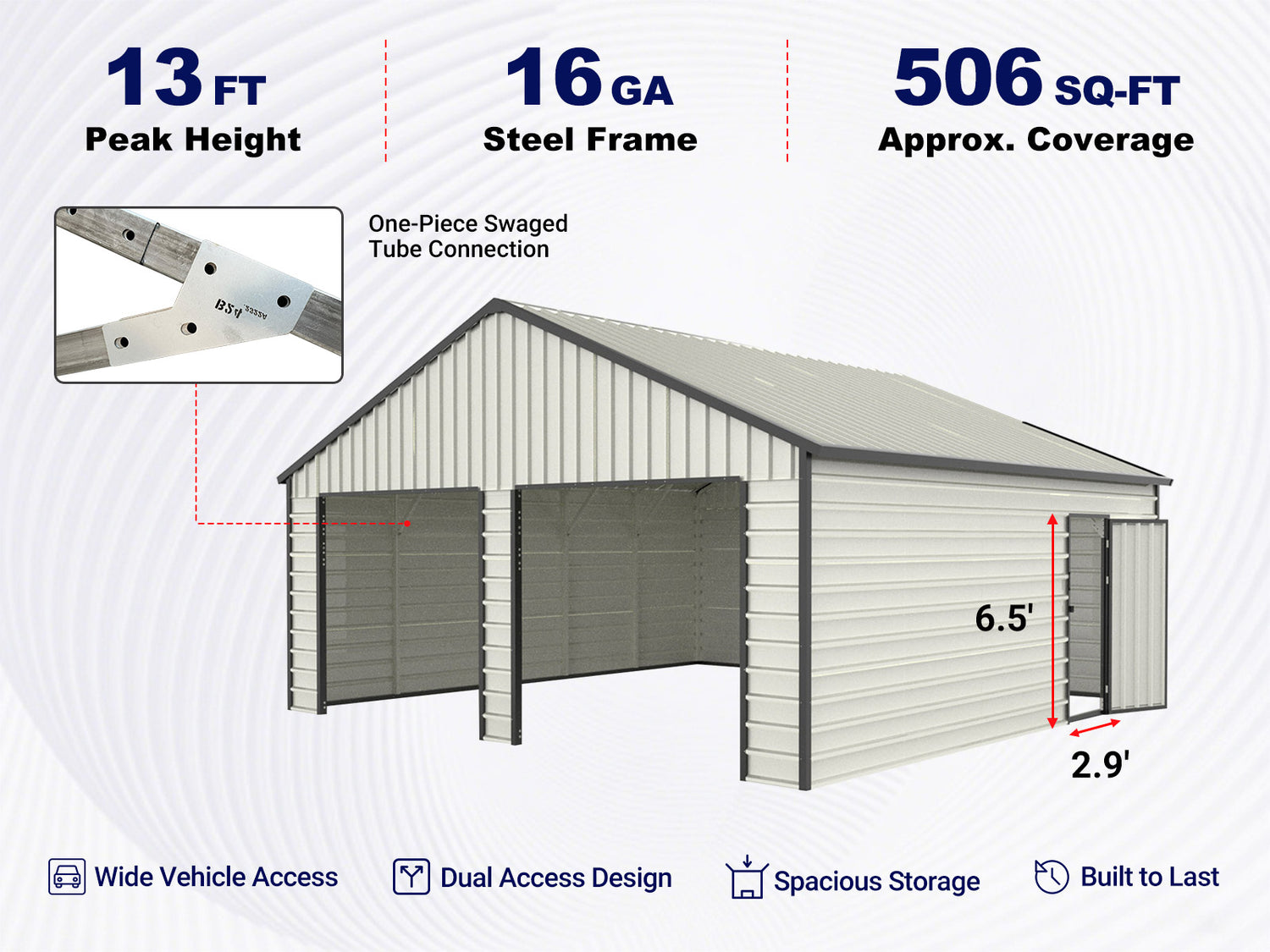

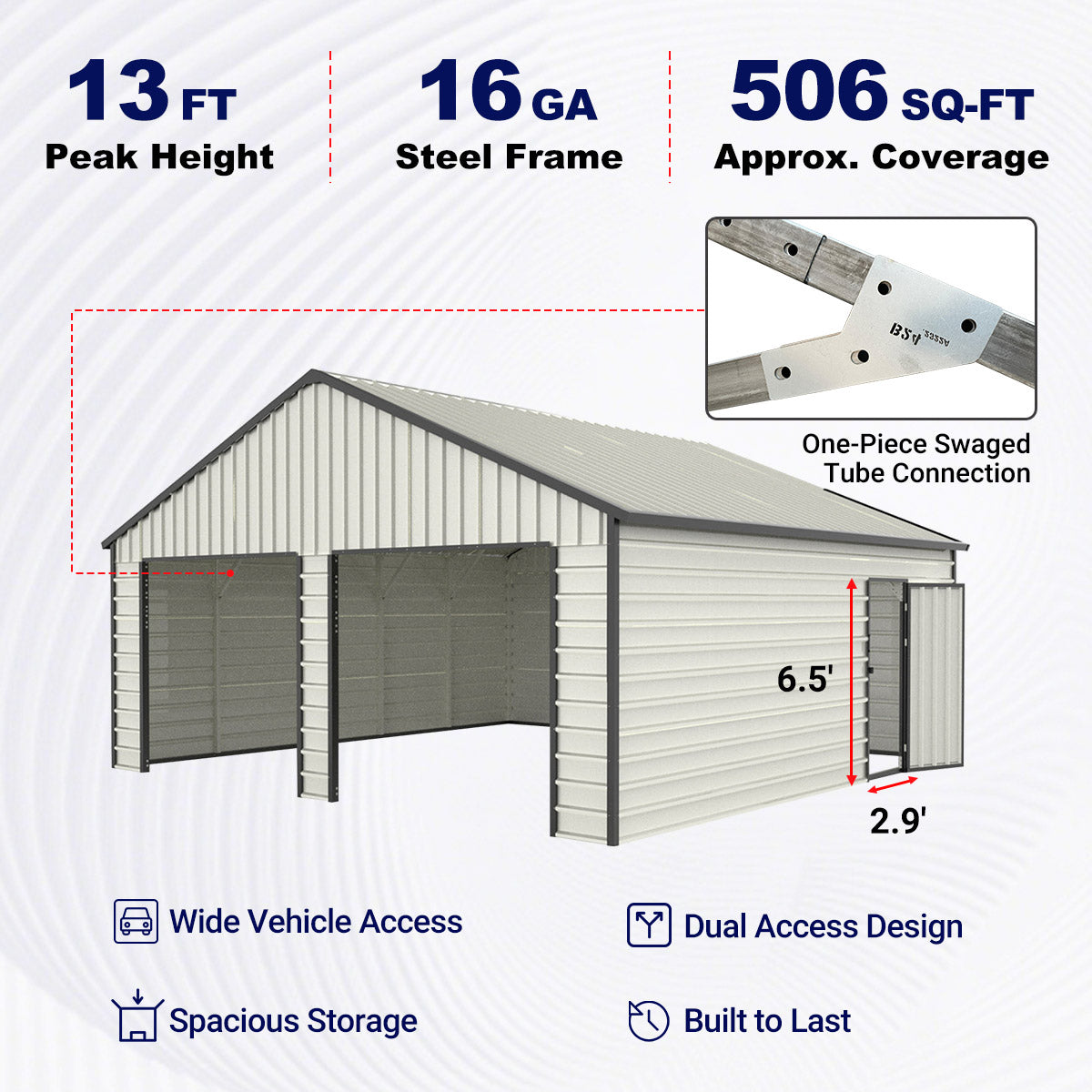

This Upgraded W23.3'xL22'xH13' double garage metal shed features a convenient side entry door and 8ft high walls with horizontal grain 3-layer splicing for enhanced strength. Constructed with a durable 16 GA galvanized steel frame, it offers superior protection, making it ideal for vehicle storage or other outdoor needs. Different from original metal‑sheet garage, this upgraded model adopts Swaged Tube Connection.

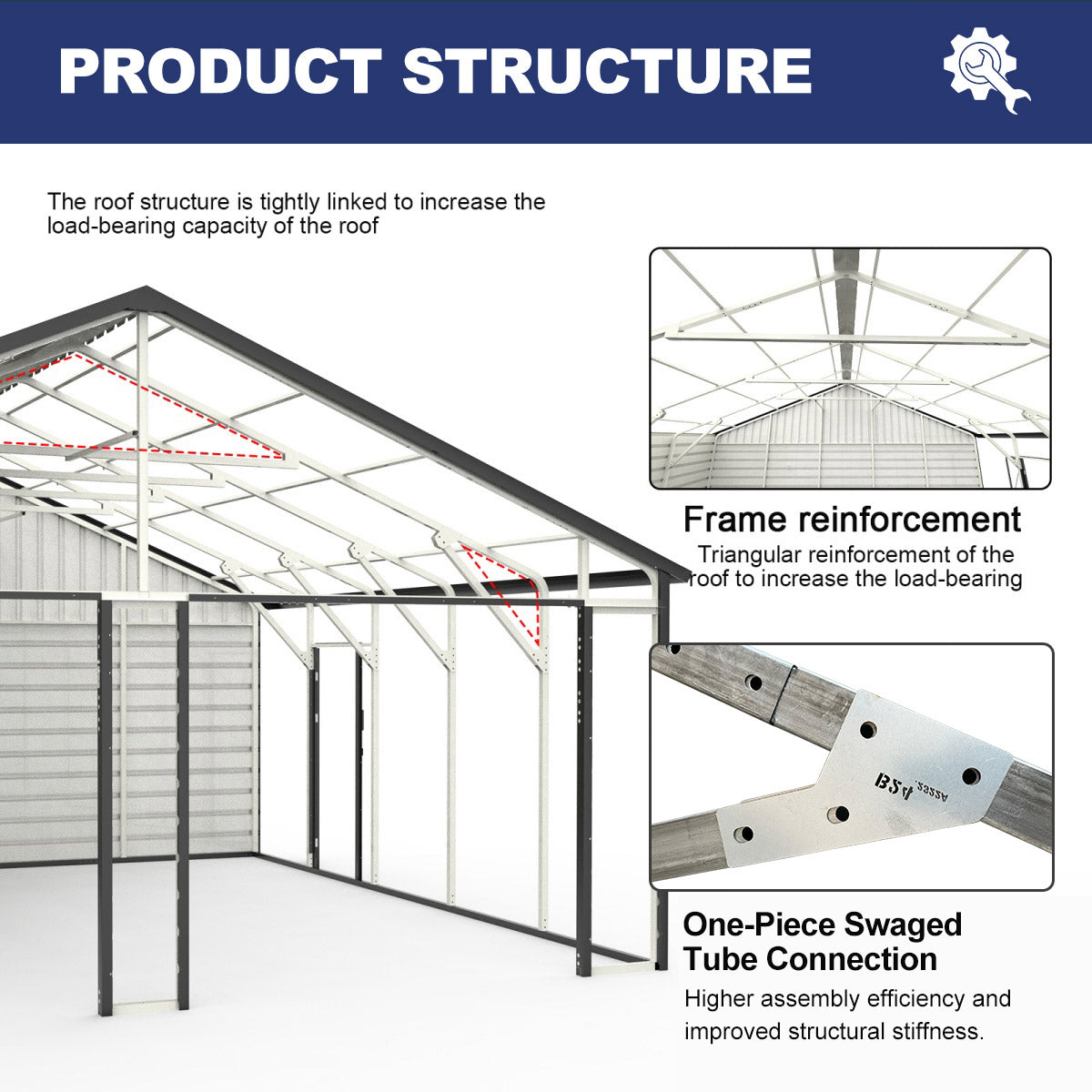

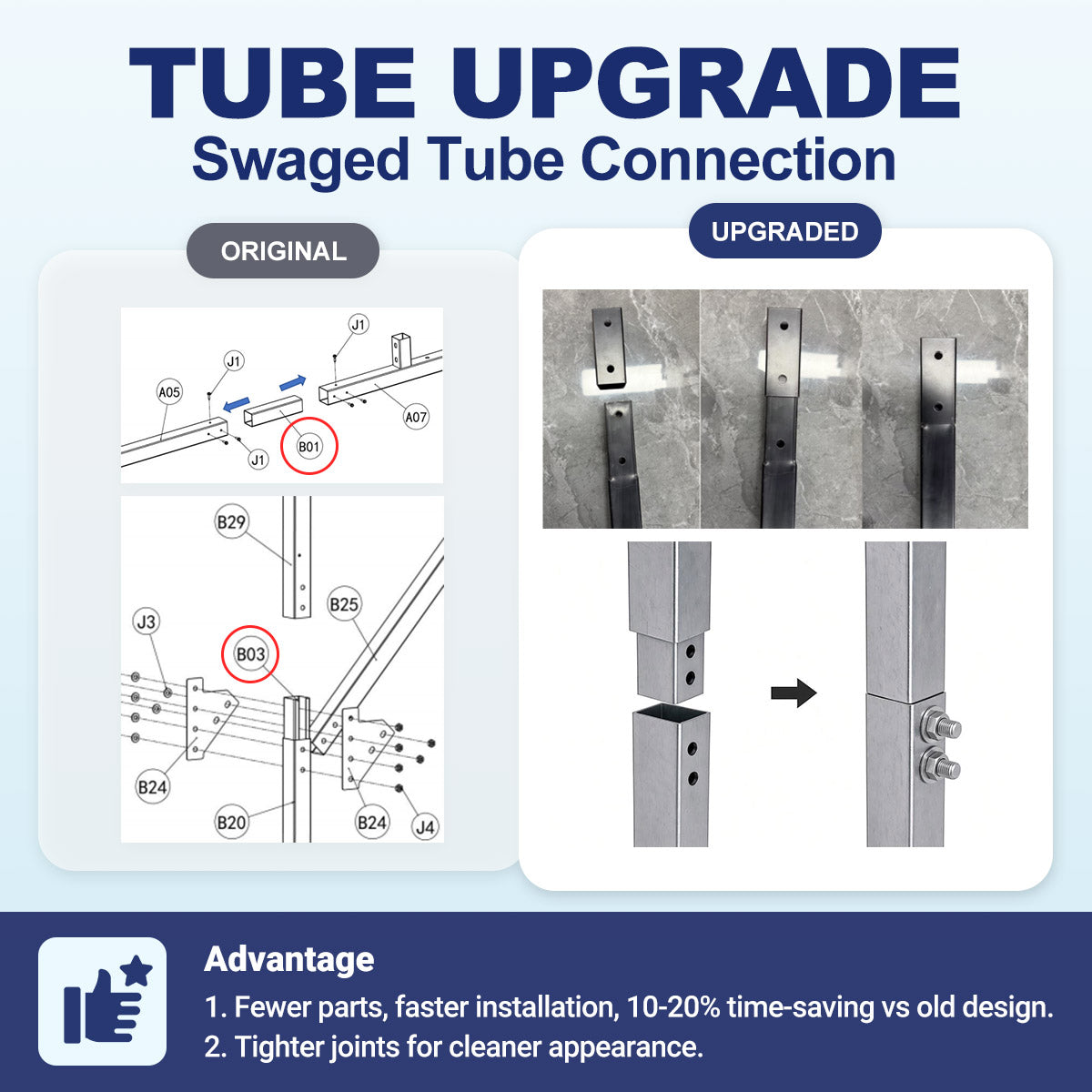

New Upgrade: One‑piece Swaged Tube Connection
Eliminate the separate inner sleeve. The end of upper column is cold‑formed to smaller diameter. This reduced section acts as the insert spigot, directly fitting into the lower square tube. Bolts fasten the two tube walls together.
✅ Fewer components: Remove inner sleeve from BOM, simplify part management
✅ Higher assembly efficiency: No pre‑mounting of sleeve. On‑site installation time reduced by 10‑20%
✅ Tight & neat joints: One less tolerance stack‑up, better alignment, cleaner appearance
✅ Improved structural stiffness: Integral tube body, no internal shifting, better anti‑wobble performance

Specifications

Dimension (ft)
W23.3'xL21.7'xH13'
Steel Frame
16 GA
Peak Height
13'
Eave Height
8'
Each Door Opening
W8.4' x H7.4'
Side Entry Door
W2.9' x H6.5'
Anchoring
Sleeve anchor bolts
Wind Load
46.6 miles/h
Snow Load
20.5 lbs/ft²
Foundation Required
Concrete slabs, solid wood, or equivalent
Roof Slope
5:12 pitch or 22.5 degrees

Shipping

IUS warehouse dispatch, 1-2 days processing, 10-15 days delivery.

• LxWxH (inch): 85x37x31
• Weight (lb): 1808
• A forklift or equivalent is required for unloading. Liftgate delivery is NOT available for this item due to the size and weight.

For additional shipping information, please visit our Shipping Policy.

Assembly

Installation Instruction

Installation Notes

  1. Teamwork: You need two or more people to work together to assemble and finish your building.
  2. Please check all parts one by one according to the Parts List and make sure no parts are missing.
  3. Make sure the colored panels are facing outwards and all the holes match. The panels are textured, Please install the panels in the order specified in the instructions. All lines and holes should be matched to make the storage shed more stable.
  4. For waterproof purpose, pls make sure use waterproof gasketsfor each screw. Waterproof tape must be applied when assembling the ridge.
  5. Please ensure that all screws are tightened to prevent theproduct from falling apart.

For regions with heavy snowfall, it is essential to clear snow from the roof promptly to prevent structural damage.

Product Document Download
