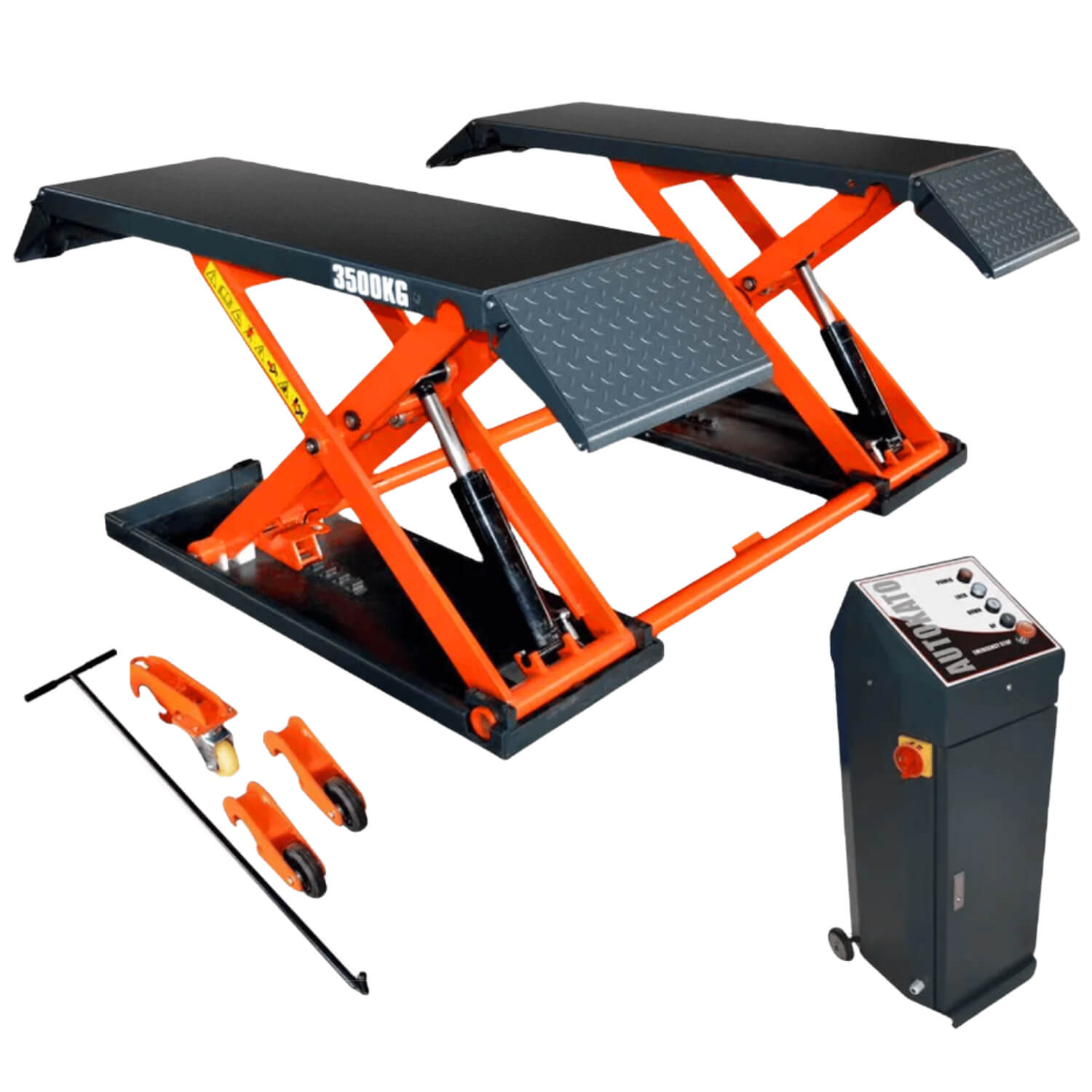

KT-X80 Mid-rise Scissor Lift, Pneumatic Release (Two variations for voltage, 110v and 220v)

KATOOLSKU: KT-X80-110 pneumatic

Motor: 110V
Sale price$2,999

In stock

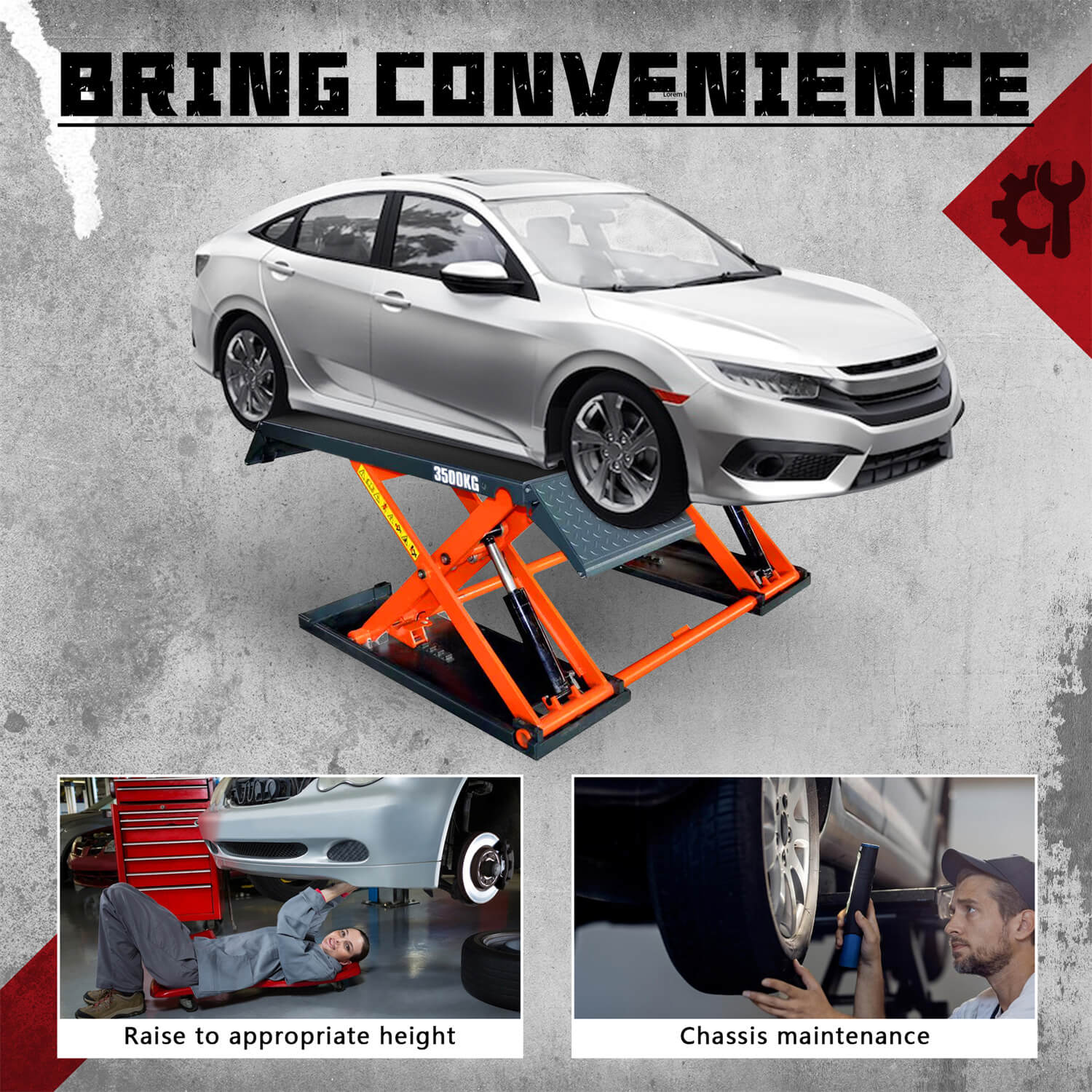

Elevate your workspace with this compact yet powerful lift, boasting pneumatic efficiency for quick and hassle-free operation. With a generous lifting capacity, the X80 effortlessly raises your vehicle to a comfortable working height, perfect for tire changes, brake repairs, and more. The scissor lift design ensures stability, while the pneumatic mechanism adds a touch of convenience to your garage. Embrace efficiency without compromising on performance – the X80-Pneumatic Mid-Rise Scissor Lift is your go-to choice for precision and ease in automotive care.
User Manual

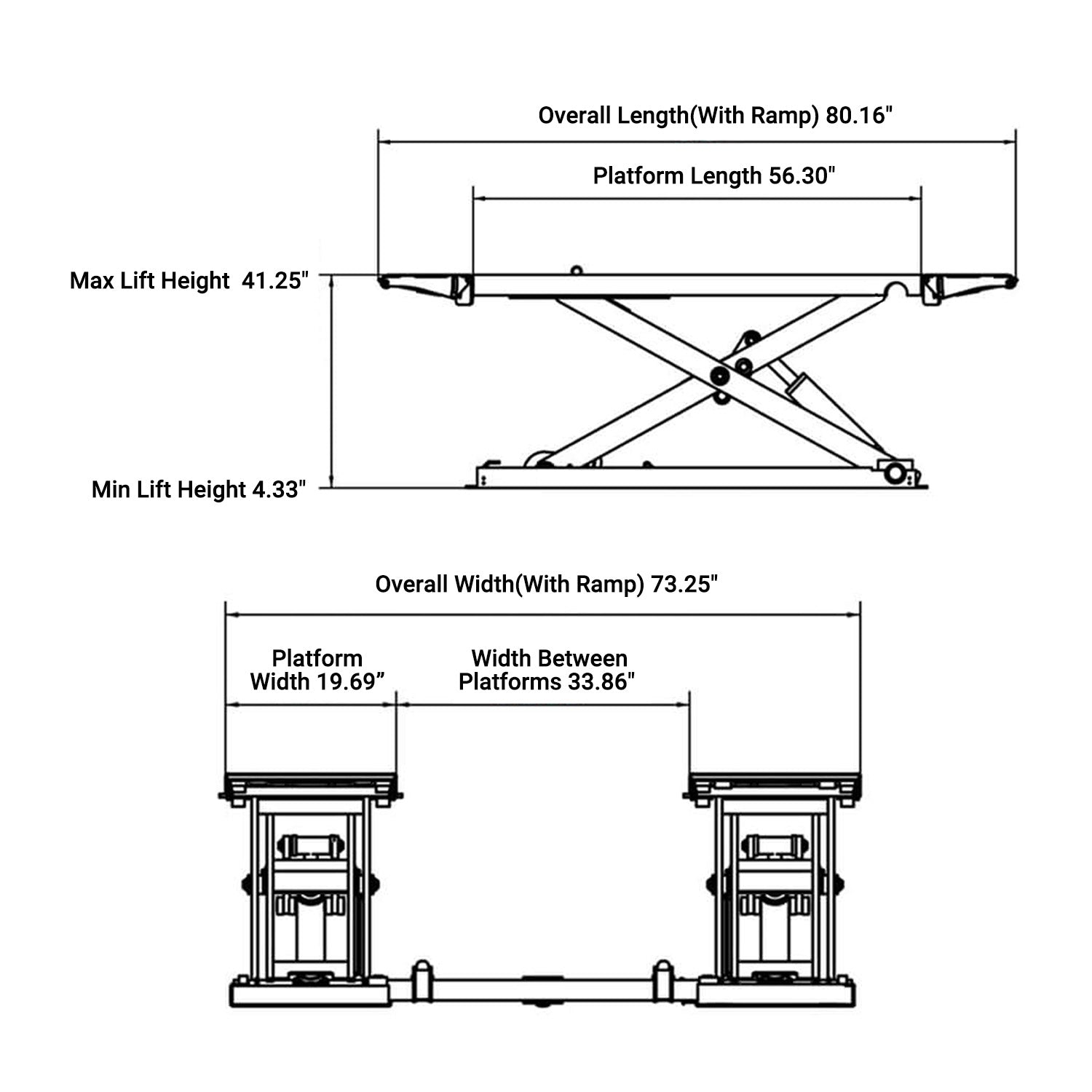

Net weight 1213 lbs
Lifting Capacity 8000lbs/3500KG
Max. Lifting Height 41.25"/1050mm
Min. Height 4.25"/110mm
Length Overall 80"/2036mm
Width Overall 73.25"/1860mm
Platform Length 56.25"/1430mm
Platform Width 19.5"/500mm
Motor 110/220VAC/60HZ/1PH

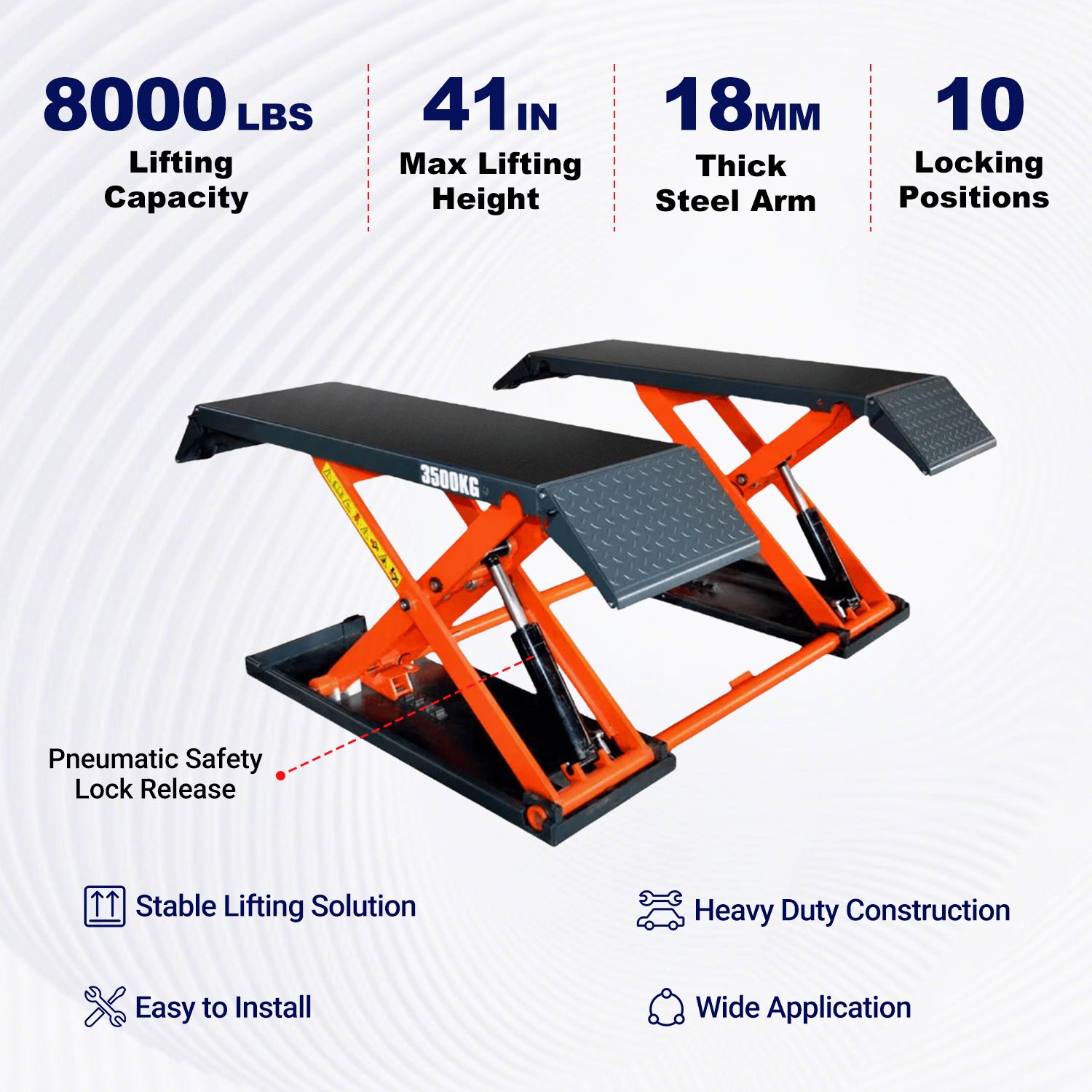

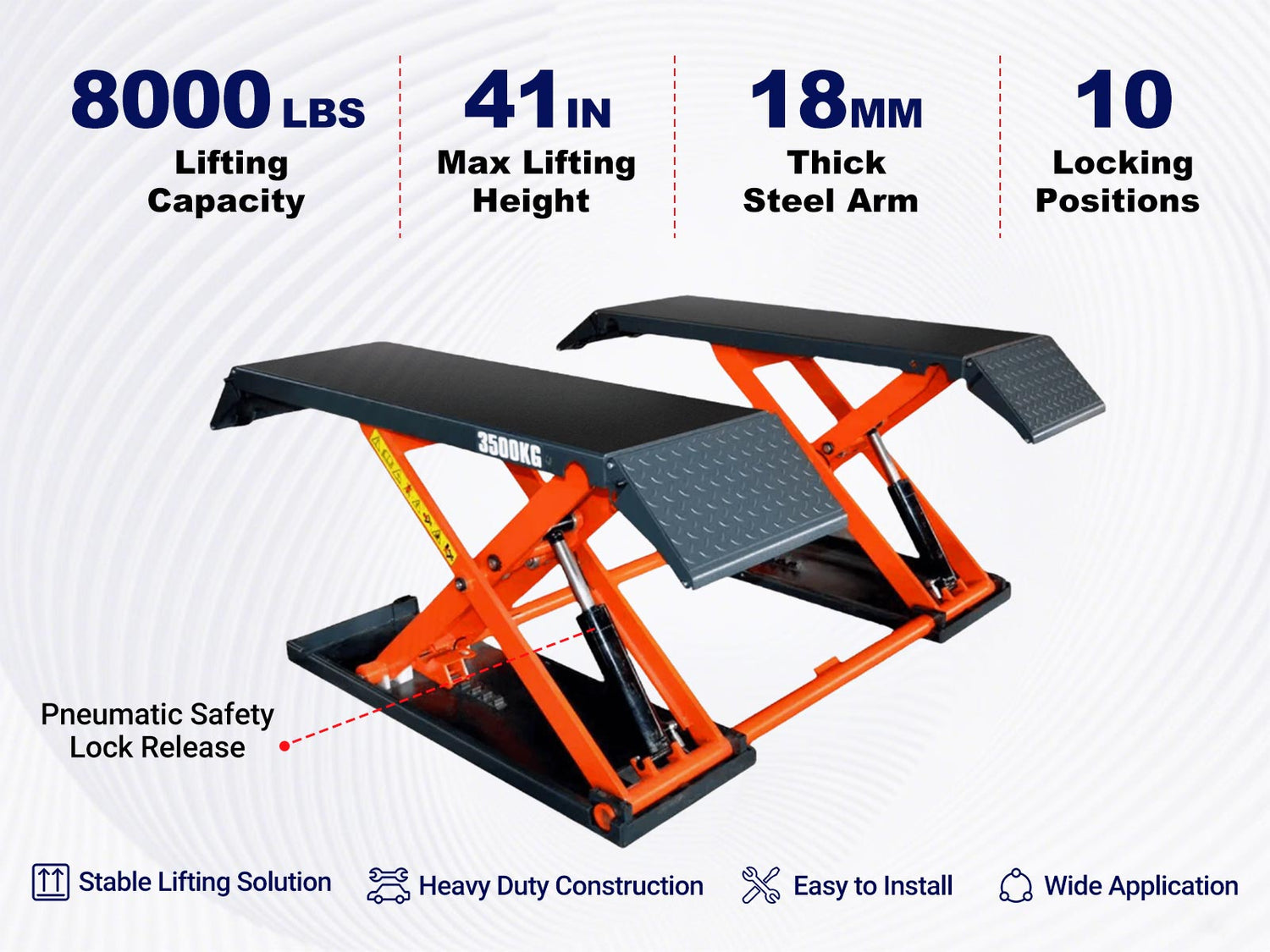

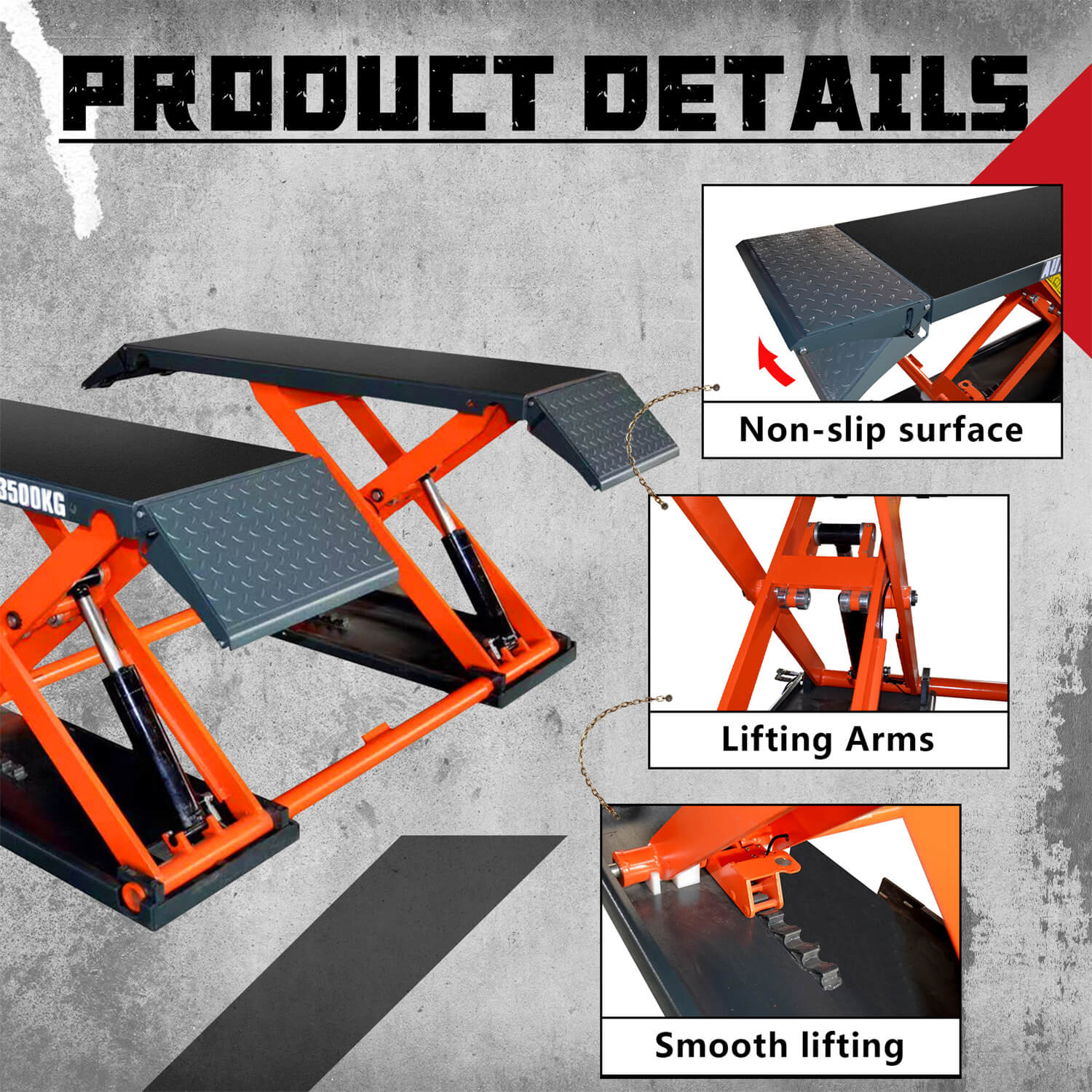

  • 8000lbs(3500KG) lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Mobile or fixed mount design.
  • Starting-up system design.
  • Pneumatic safety release.
  • 24V safe control system.
  • Height limit switch.
  • Composite rubber lifting blocks included.
  • Comes with self-lubricated bushing and bearing.
  • Drive-up ramps lock design as platform extension for long vehicles.
  • The portable, mobile kit included making the lift move in your garage easily.
  • Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH.
  • The unit needs to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

                              Package Size

                              • LxWxH (inch):
                                Box A: 78x63x9;
                                Box B: 17x15x43.
                              • Weight (lb):
                                Box A: 1190;
                                Box B: 132.
                              • A forklift or equivalent is required for unloading
