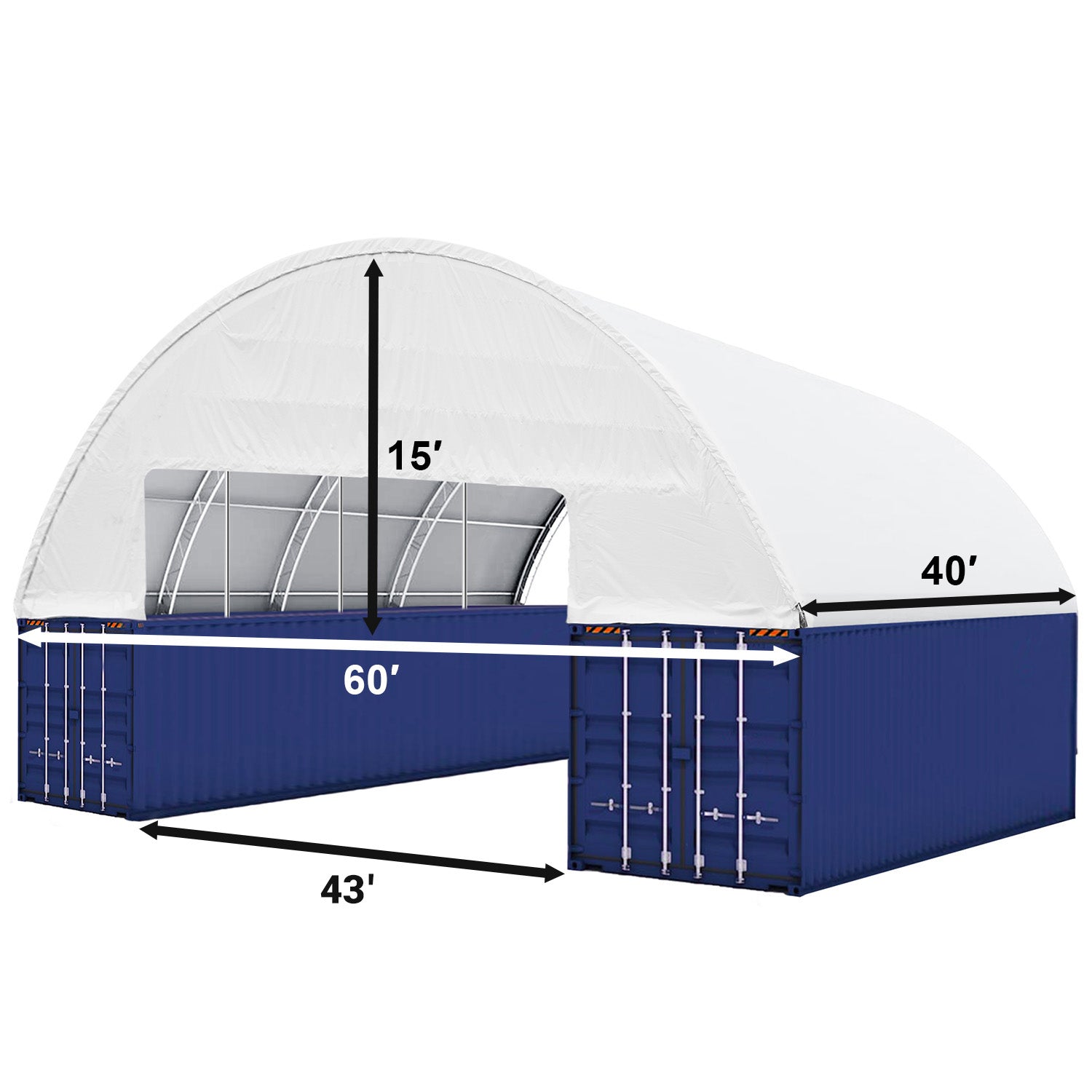

Double Truss Shipping Container Canopy Shelter 60'x40'x15'

Gold MountainSKU: SUICS60401522

Material: 22oz PVC
Sale price$11,599

In stock


Seamlessly fusing with standard shipping containers, this canopy shelter spans 60'x40'x15' to redefine your space. Crafted for durability, its heavy-duty PVC construction and double truss design ensure unwavering strength. Ideal for storage, workshops, or events, it's a versatile container shelter solution. Elevate your outdoor potential with this remarkable option, now available for sale. Experience the epitome of space enhancement with the Heavy-duty PVC Double Truss Shipping Container Canopy Shelter 60'x40'x15' – the ultimate choice for optimizing your environment.

How to Install the Container Canopy Shelter?

Installation Manual





Description Specifications
Model C604015 Dome Container Shelter
Dimension (ft) W60xL40xH15
Frame Double Truss Galvanized Tube
Steel Structure High-Grade Hot Dip Galvanized Steel
  • Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
  • Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
Fabric Feature Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property
Temperature resistance -22 - +158 °F
Front/back walls (optional)
Arch Interval 9.8 ft
Arch Ø (mm) Ø60x1.8
Purlin Ø (mm) Ø60x1.5
Tension System Pipe and Ratchet Tie-Down System
Easy Installation Twist lock and clamp installation
Weld Base plates need to be welded on the Containers.
Snow Load 52 lbs/ft²
Wind Load 56 miles/h
Average assembly time for DIY with 4 persons
  • Shelter: 2 days
  • Front or back wall: ½ day per wall
Safety The tarpaulin is PFAS-free and EU REACH compliant.
Tarp Lifespan 7-10 years, depending on the type of fabric and environmental conditions.
Frame Lifespan 15+ years
  • PE: 2 Years Warranty
  • PVC: 8 Years Warranty


  • The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
  • The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
  • Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.


  • CSA/TUV Snow Rating Report, heavy-duty PVC cover designed specifically for winter to withstand strong winds and snow.
  • SGS fabric Certificate. The tarpaulin is PFAS-free and EU REACH compliant.
  • No pole inside, and 100% of the interior space is available.
  • Usage: ideal for industrial, commercial, and agricultural applications. You can also use it for a warehouse, storage tent, garden and lawn equipment, backyard items, firewood, vehicle shed, etc.

Package Size

    • LxWxH (inch): 131x44.1x61.4
    • Weight (lb): 4149
    • A forklift or equivalent is required for unloading



(1) Keep the work area clean. Cluttered areas invite injuries.

(2) Keep children away. Be aware of personal safety.

(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.

(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.

(5) Clean off snow in time and do not allow snow to sit for extended periods of time.

(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.

(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.

C6040,60x40, C604015, 60x40x15, shipping container storm shelter, canopy, container shelter, shipping container shelter, container canopy

Product FAQ

Customer Reviews

Based on 4 reviews
Felix Polanco
The Mega Canopy Shelter

This Gold Mountain Shipping Container Canopy Shelter is a beast! Sturdy as heck, and it laughs in the face of bad weather. Quality is top-notch – totally exceeded my expectations.

Mark Brinkley
Super large storage space!

Since I'm storing wood, I needed a lot of storage space, and this Canopy Shelter 60'x40'x15' fits my needs perfectly, and it's great!

Dave Enterline
Canopy Received

It has been installed and good so far. Thank you.

Josh Putnam
Works great easy to assemble

Works great easy to assemble
