Double Truss Shipping Container Canopy Shelter 60'x40'x20'

Save $2,500
Gold MountainSKU: SUICS60402022

Material: 22oz PVC
Price:
Sale price$10,199 Regular price$12,699

Stock:
In stock

Description

Introducing the Container Shelter: a remarkable fusion of innovation and practicality that sets a new standard for outdoor coverage. Standing at an impressive 60'x40'x20', the Double Truss Shipping Container Canopy Shelter redefines the realm of protection and versatility. Crafted to address a myriad of needs, this cutting-edge shelter promises to revolutionize the way we safeguard assets, projects, and events against the elements.

How to Install the Container Canopy Shelter?

Installation Manual

DoubleTruss-Container-Canopy-Shelter-W60xL40xH20ft-A+

Shelter-Certificate-Logo

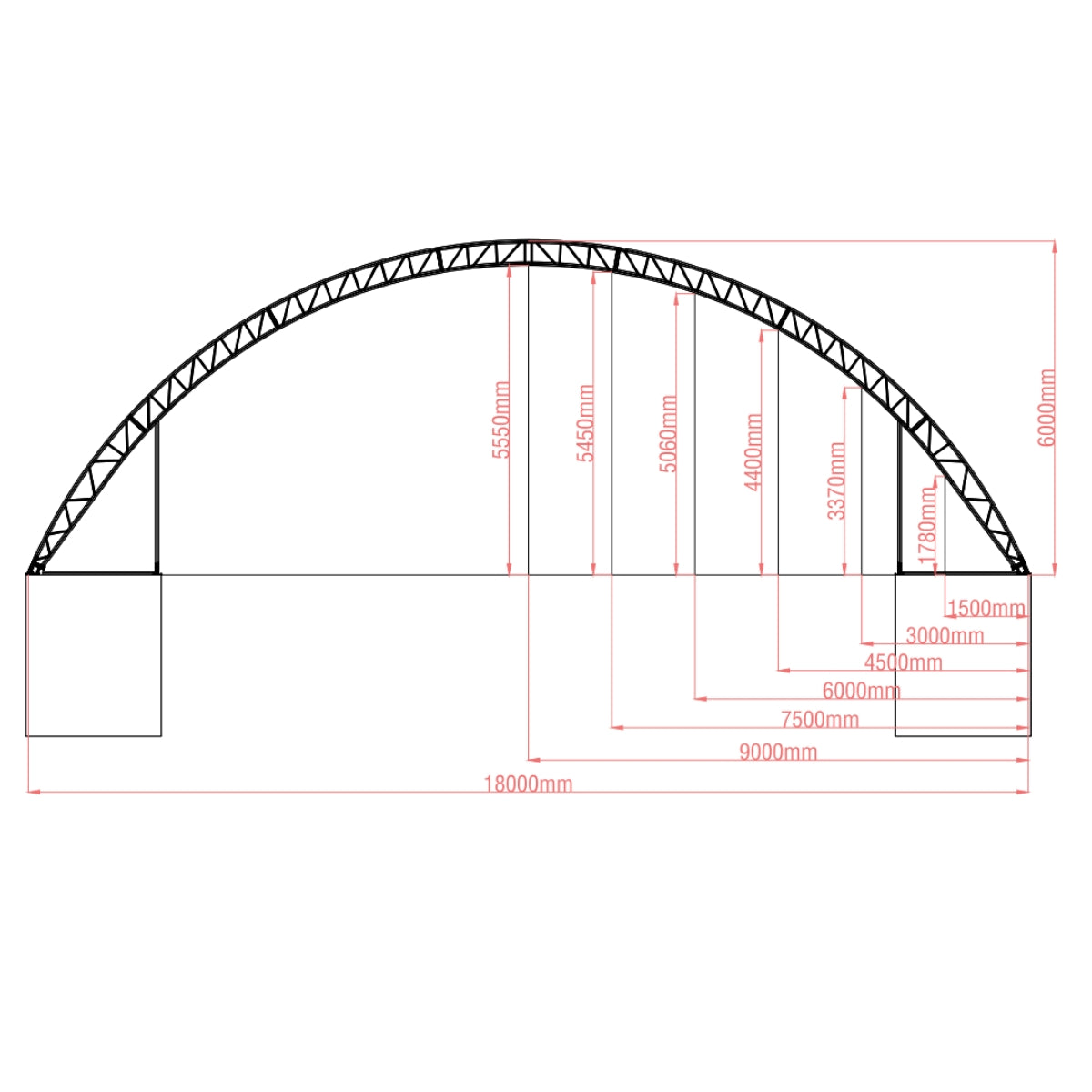

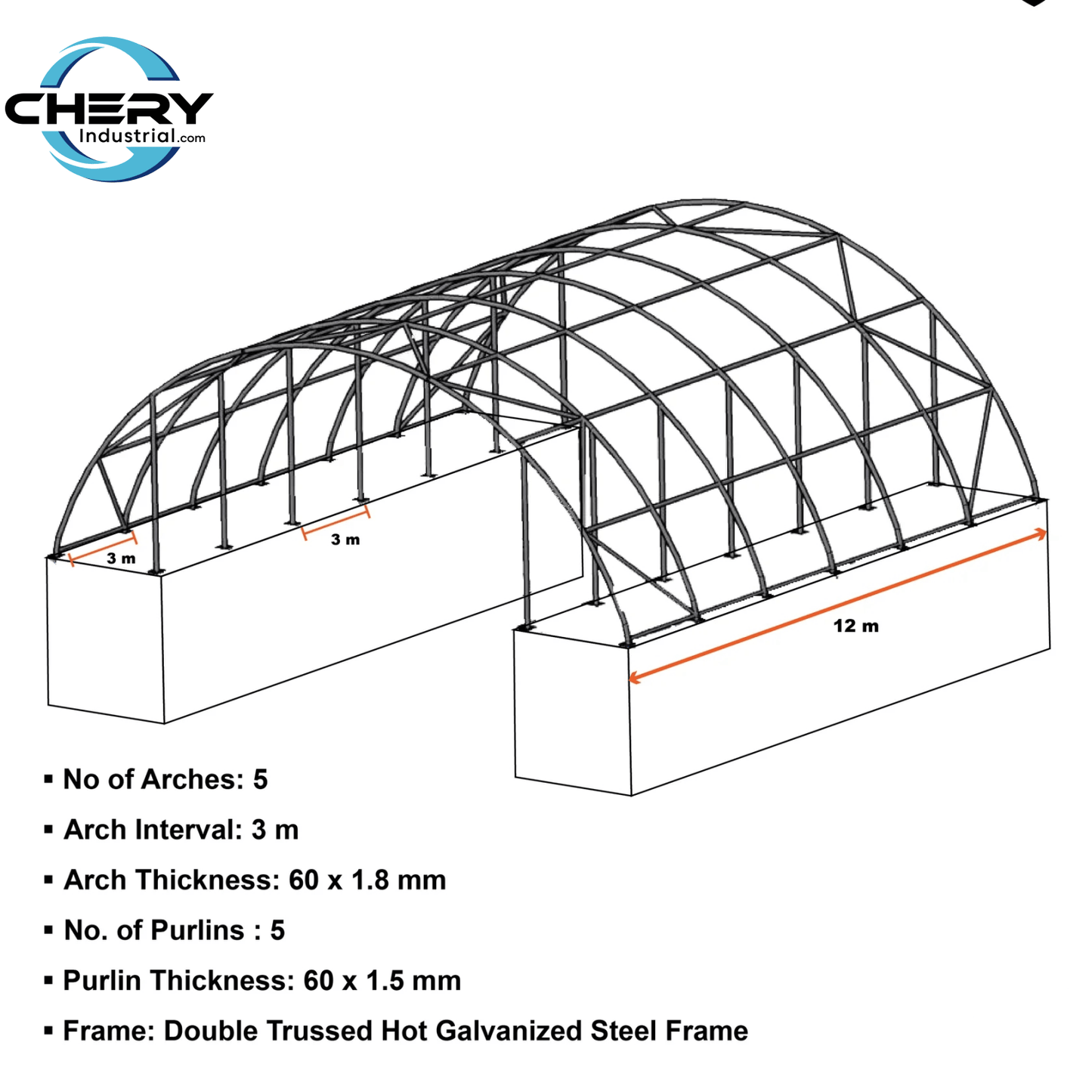

Specification



Description Specifications
Model C604020 Dome Container Shelter
Dimension (ft) W60xL40xH20
Frame Double Truss Galvanized Tube
Steel Structure High-Grade Hot Dip Galvanized Steel

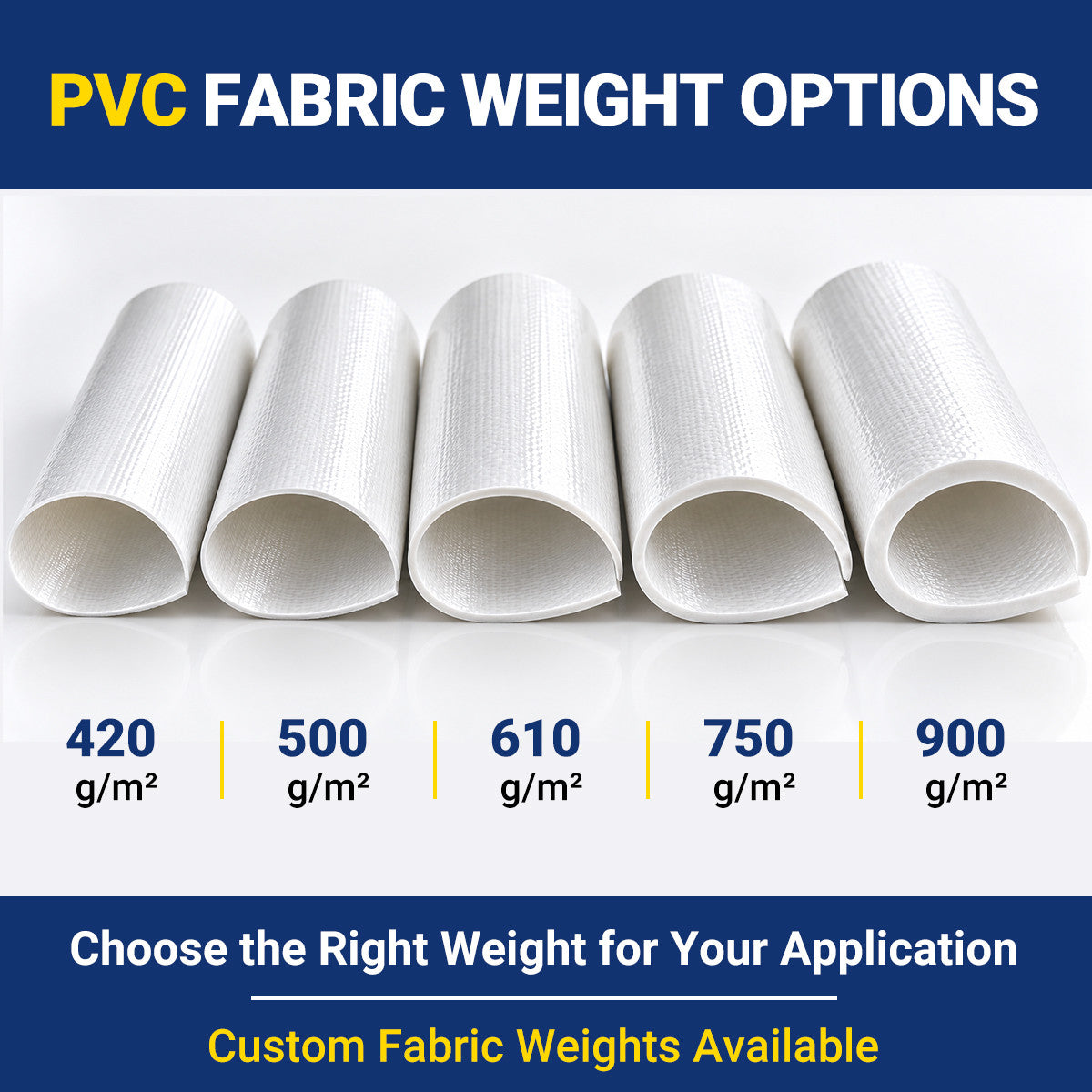

Fabric
  • Economical - 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
  • Heavy Duty - 15oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 22oz/m²(610 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
Fabric Feature Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property
Temperature resistance -22 - +158 °F
Front/back walls (optional)
Arch Interval 9.8 ft
Arch Ø (mm) Ø60x1.8
Purlin Ø (mm) Ø60x1.5
Tension System Pipe and Ratchet Tie-Down System
Easy Installation Twist lock and clamp installation
Weld Base plates need to be welded on the Containers.
Snow Load 52 lbs/ft²
Wind Load 56 miles/h
Average assembly time for DIY with 4 persons
  • Shelter: 2 days
  • Front or back wall: ½ day per wall
Safety The tarpaulin is PFAS-free and EU REACH compliant.
Tarp Lifespan 7-10 years, depending on the type of fabric and environmental conditions.
Frame Lifespan 15+ years
Warranty
  • PE: 2 Years Warranty
  • PVC: 8 Years Warranty
Double Truss Shipping Container Canopy Shelter 60'x40'x20'

Note

  • The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
  • The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
  • Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.

Feature

  • CSA/TUV Snow Rating Report.
  • SGS fabric Certificate.
  • The tarpaulin is PFAS-free and EU REACH compliant.
  • There is no pole inside, and 100% of the interior space is available
  • Heavy-duty PVC cover specially designed for winter.
  • The durable frame is more stable and can resist strong wind and snow.
  • Usage: ideal for industrial, commercial, and agricultural applications. You can also use it for a warehouse, storage tent, garden and lawn equipment, backyard items, firewood, vehicle shed, etc.

Package Size

  • LxWxH (inch): 131x44.1x63.8
  • Weight (lb): 4299
  • A forklift or equivalent is required for unloading
    Double-Truss-Shelter-C604020-Shipping

Attention

(1) Keep the work area clean. Cluttered areas invite injuries.

(2) Keep children away. Be aware of personal safety.

(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.

(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.

(5) Clean off snow in time and do not allow snow to sit for extended periods of time.

(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.

(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.


C6040,60x40, C604020, 60x40x20, shipping container storm shelter, canopy, container shelter, shipping container shelter, container canopy

Product FAQ

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Chato Salisbury
Awesome!

Thanks guys! The Canopy is provided to accommodate our large range of goods and provide simple loading options for materials requiring covering on our jobsites.

j
javier vargas
Nice design

Nice design, Convenient to install
