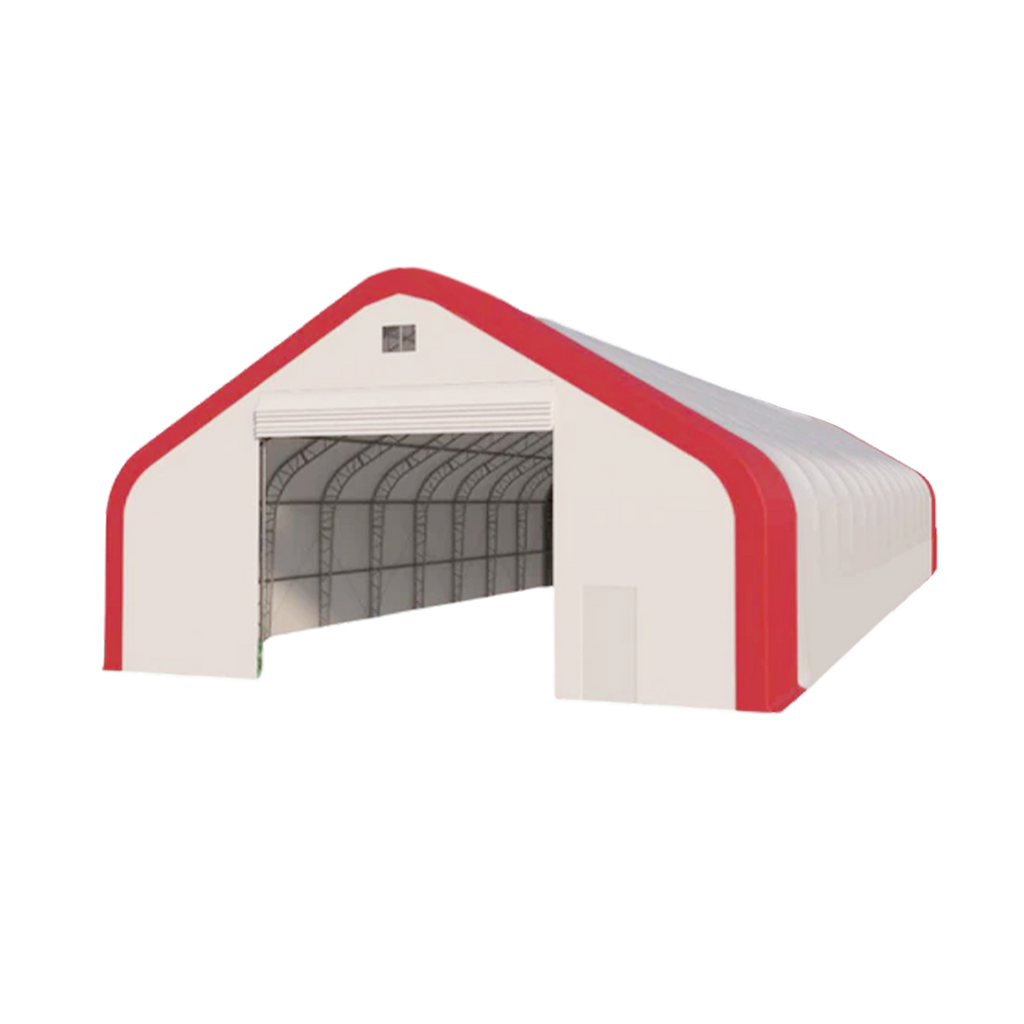

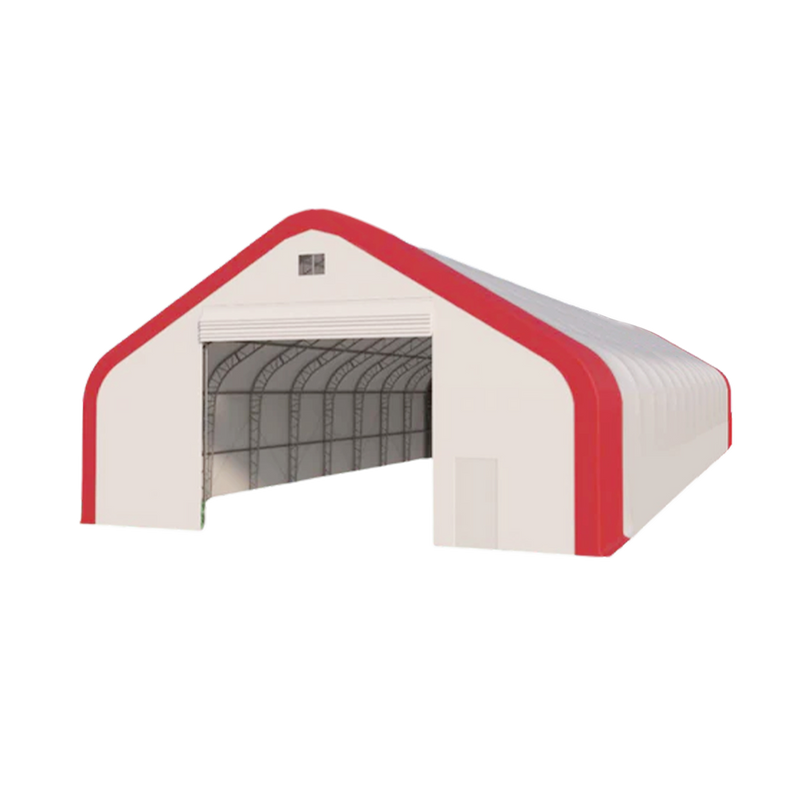

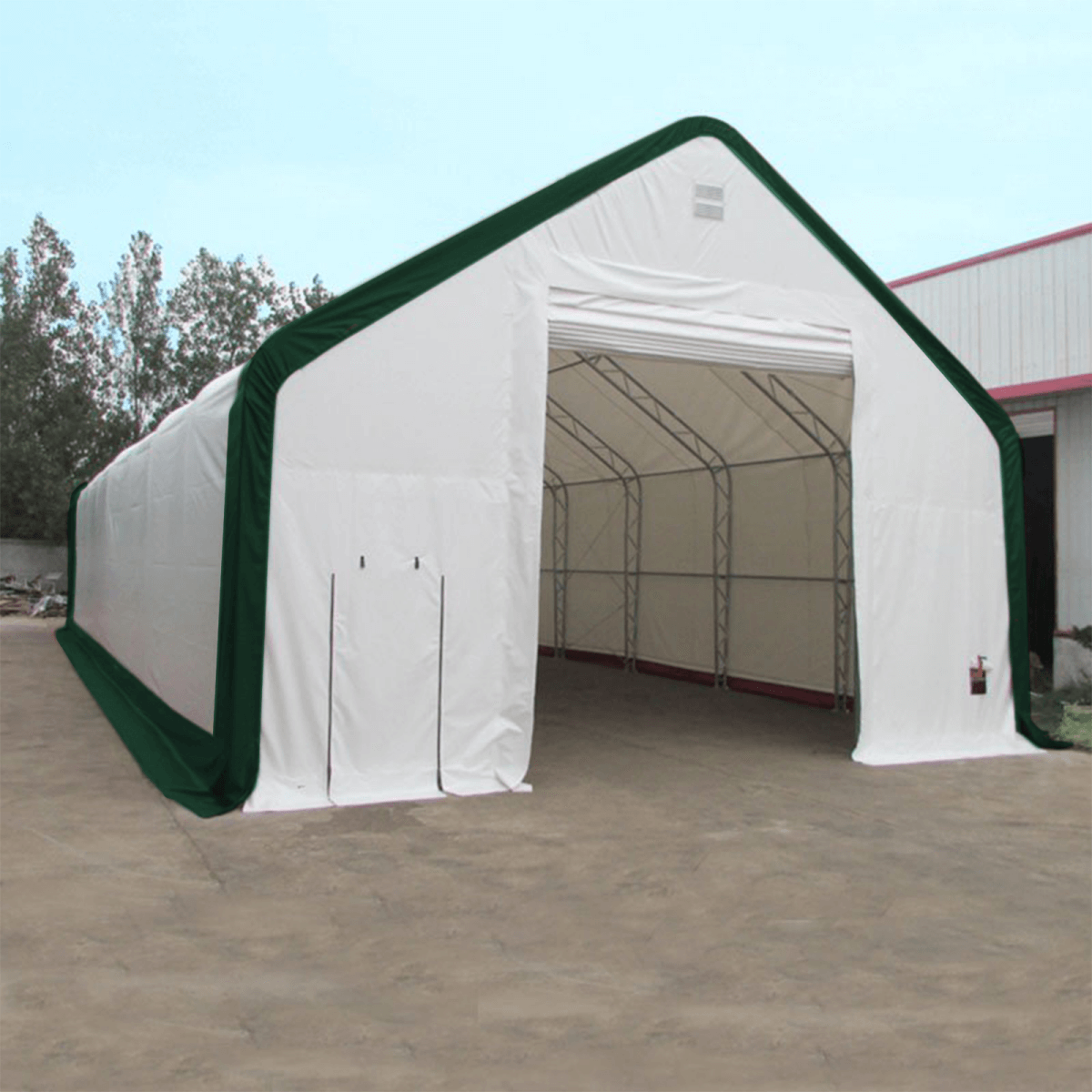

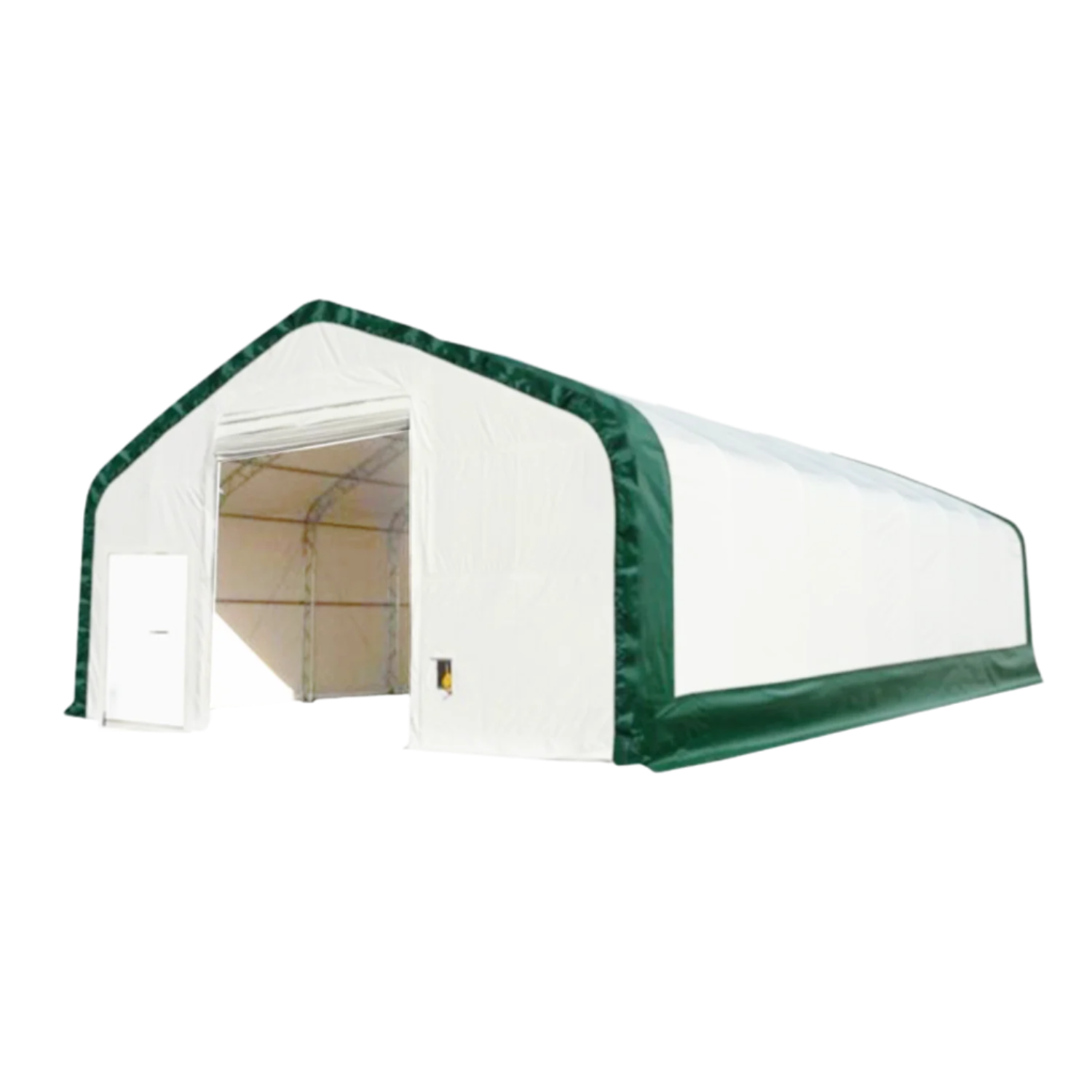

Double Truss Storage Shelter W40'xL80'xH23'

Gold MountainSKU: SS000134

Material Weight: 22oz PVC
Sale price$25,999

In stock

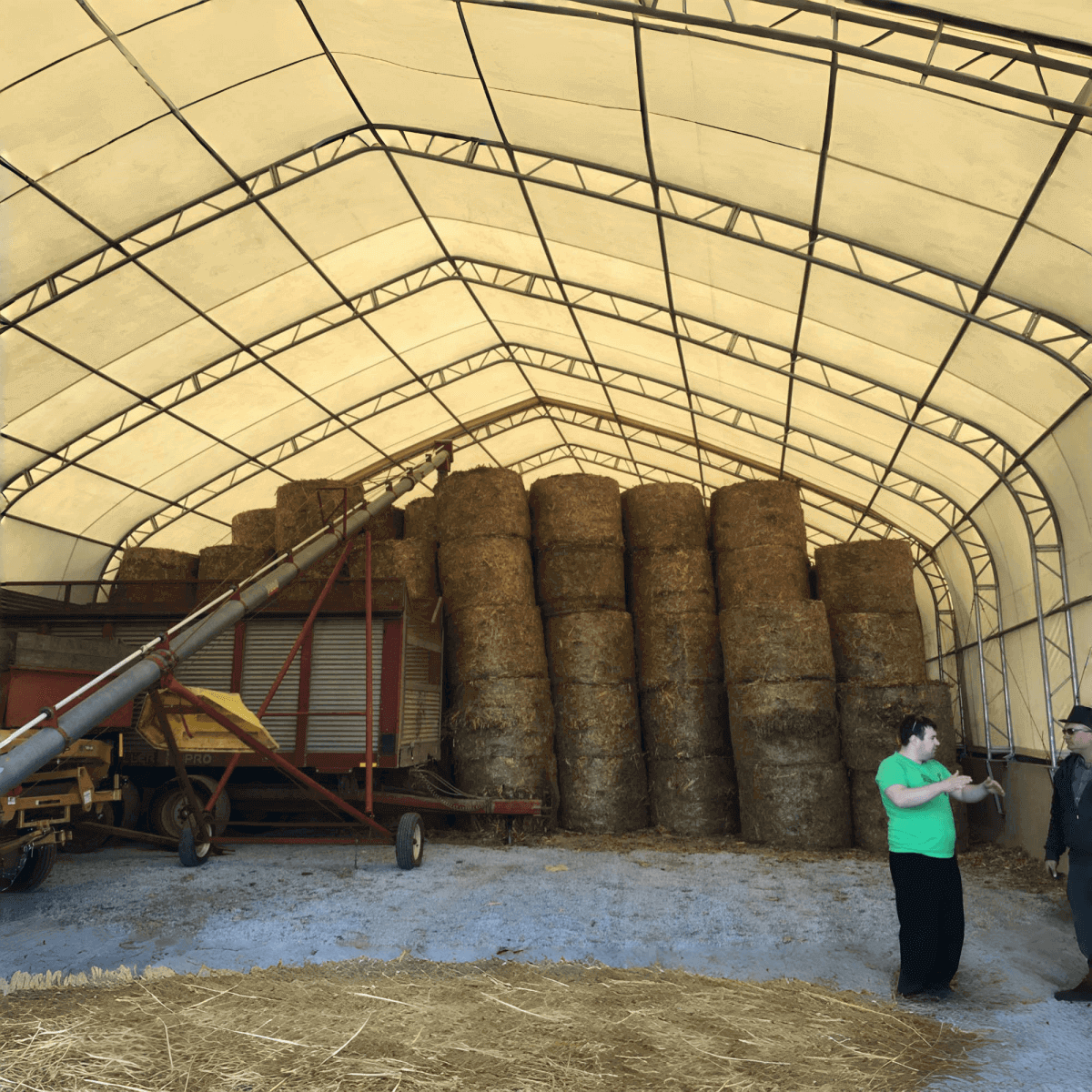

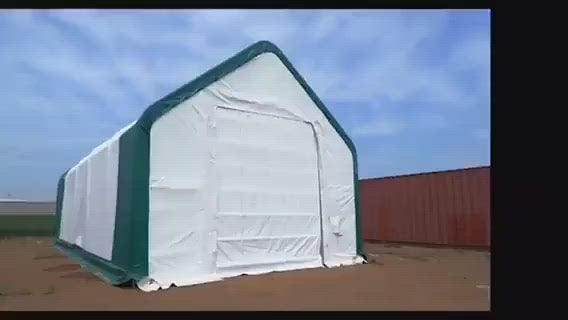

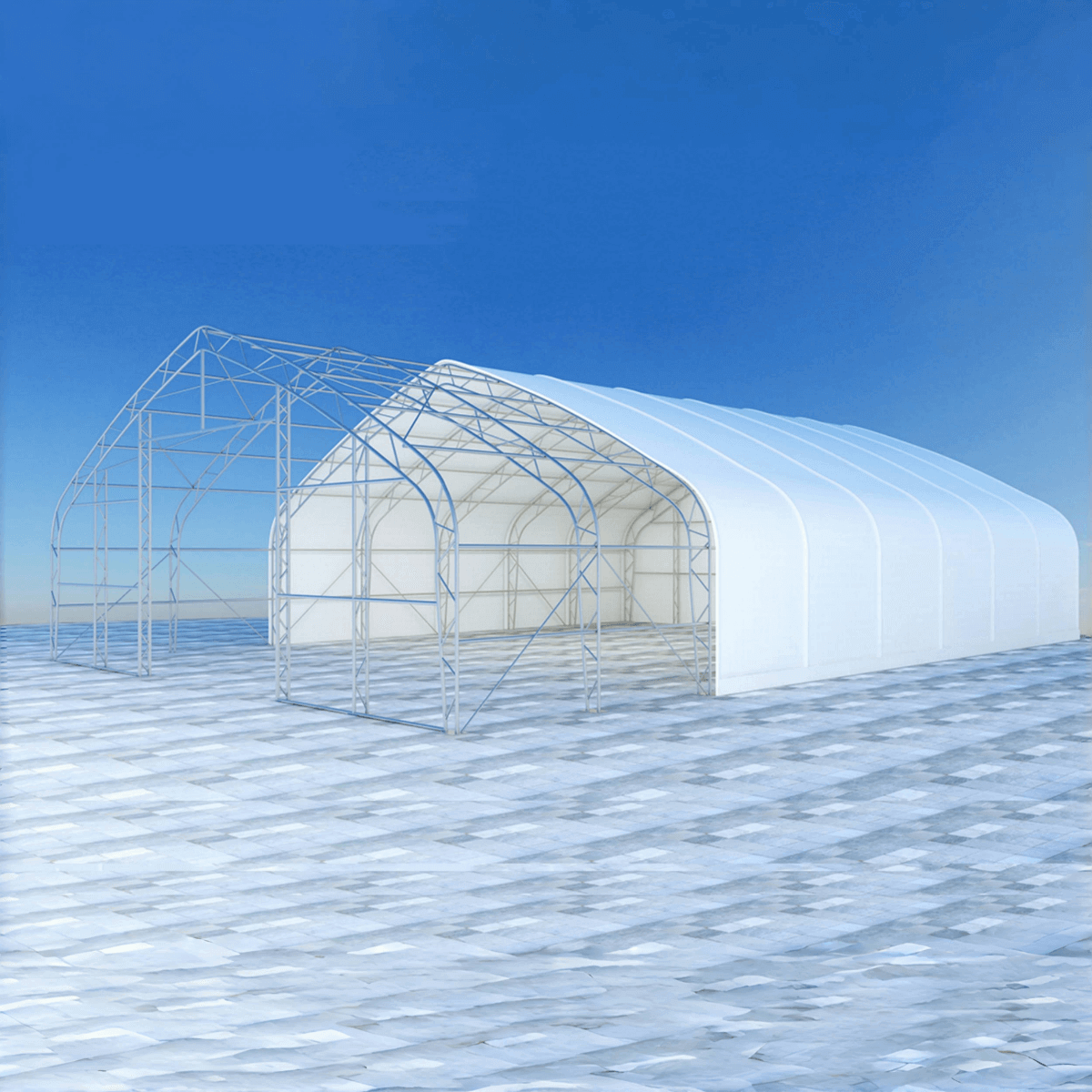

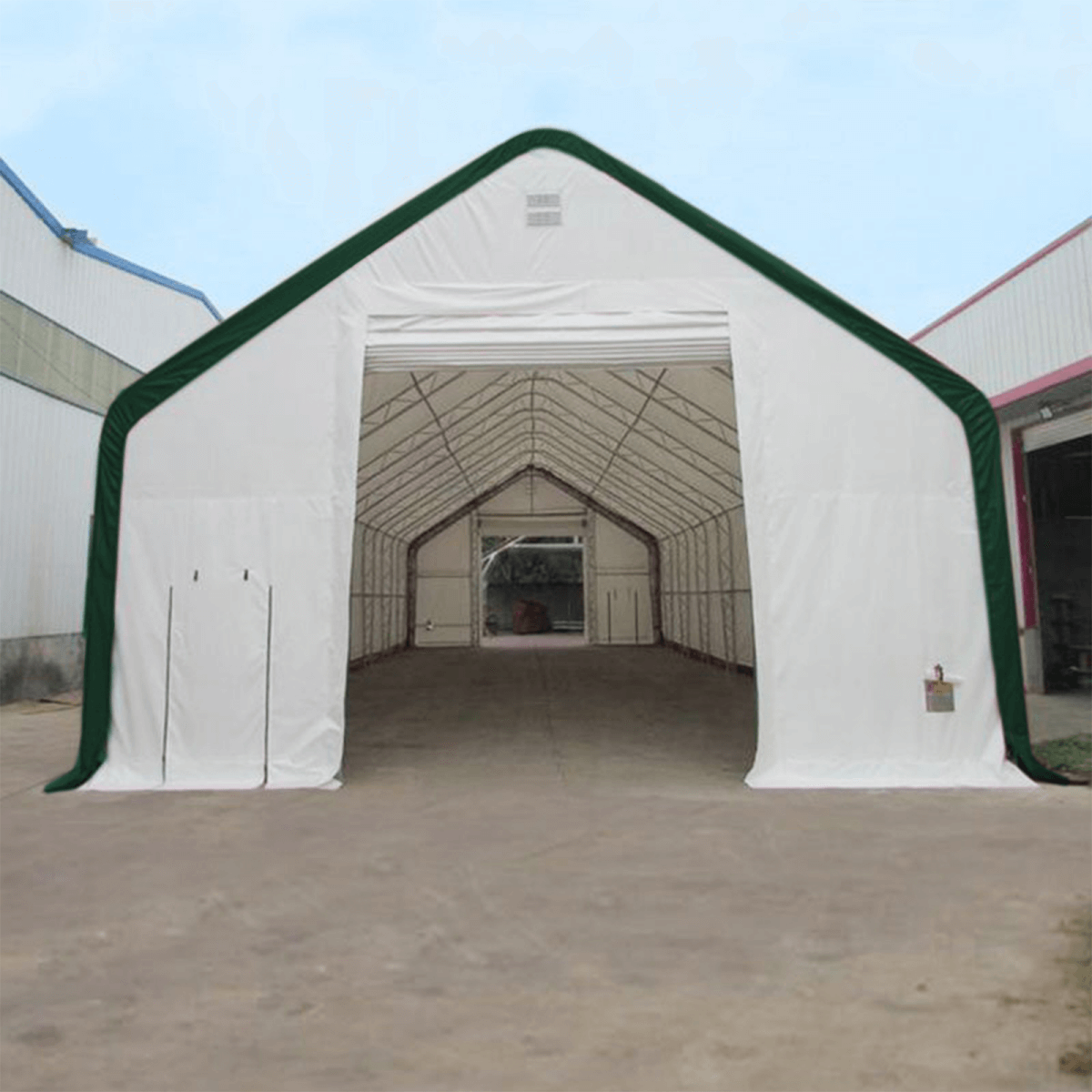

The Gold Mountain Storage Shelter W40’xL80’xH23’ - Double Truss PVC Cover is ideal for agriculture, farms, vehicle storage, events, and more. Its steel construction withstands up to 50 mph winds, scorching sun, heavy snow, and tough weather. Perfect for protecting cars, boats, RVs, buses, helicopters, equipment, and supplies, it offers both peak and dome designs for snow removal and extra space. The durable PVC fabric outlasts PE and resists weather effects, ensuring a long lifespan.

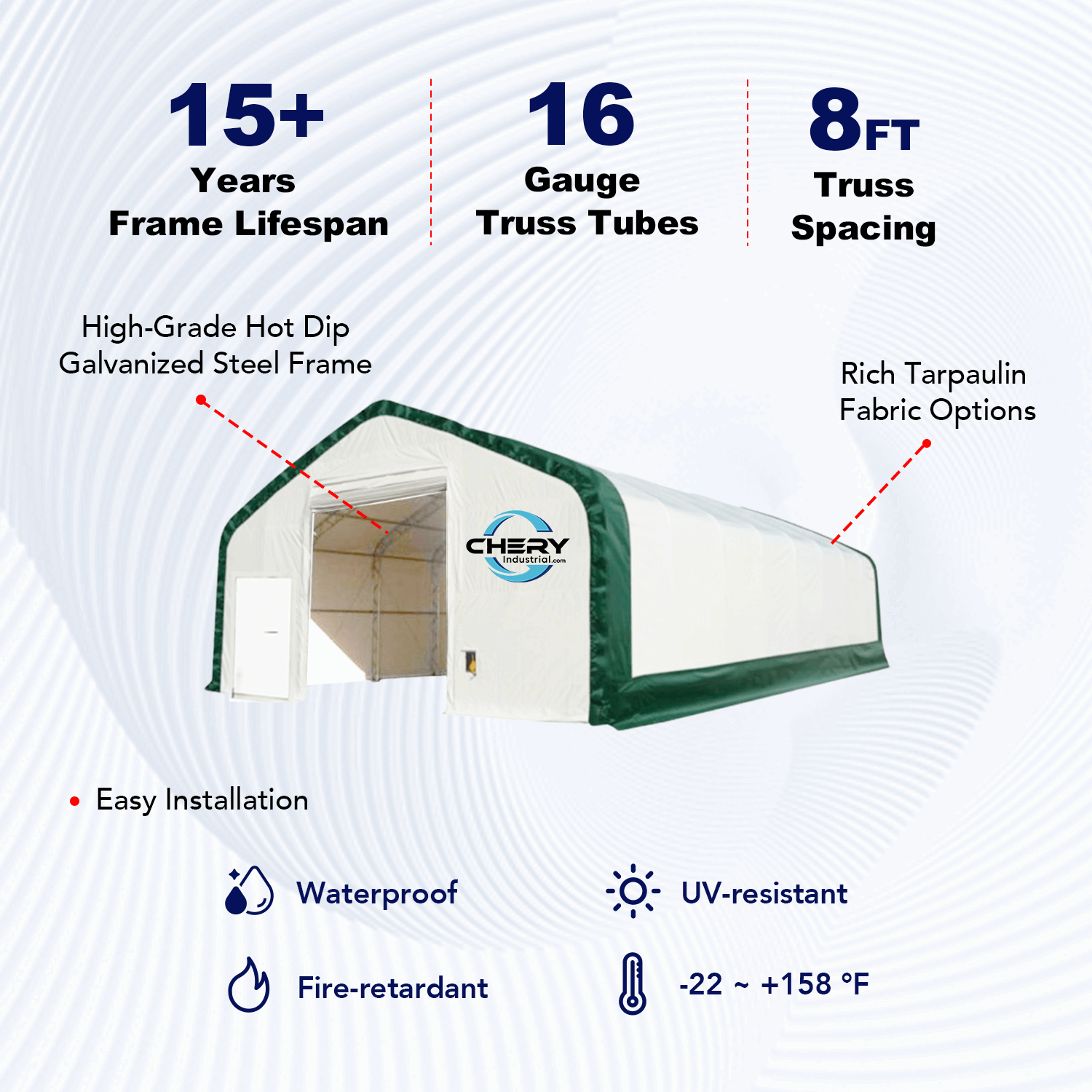

Double Truss Storage Shelter W40'xL80'xH23' Feature

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.

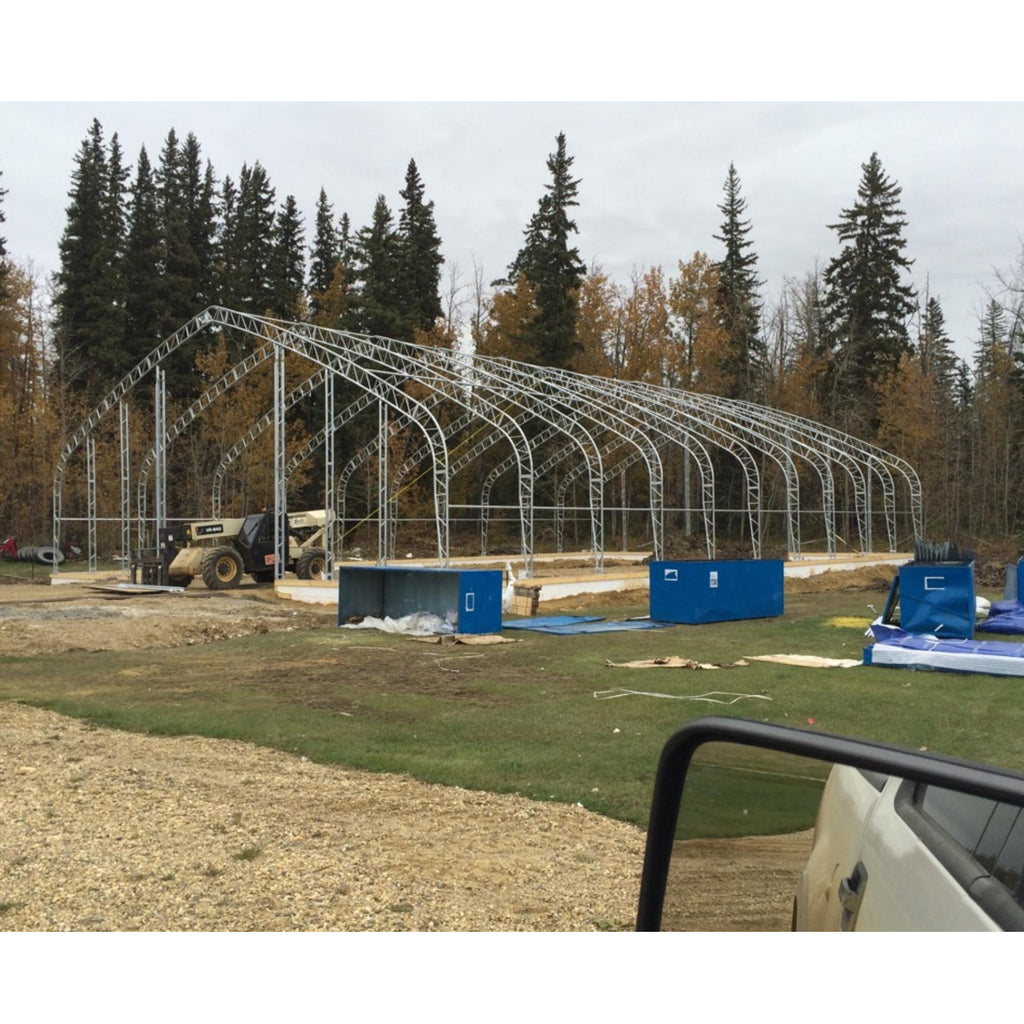

How to build a Storage Shelter?

Installation Manual


Description Specifications

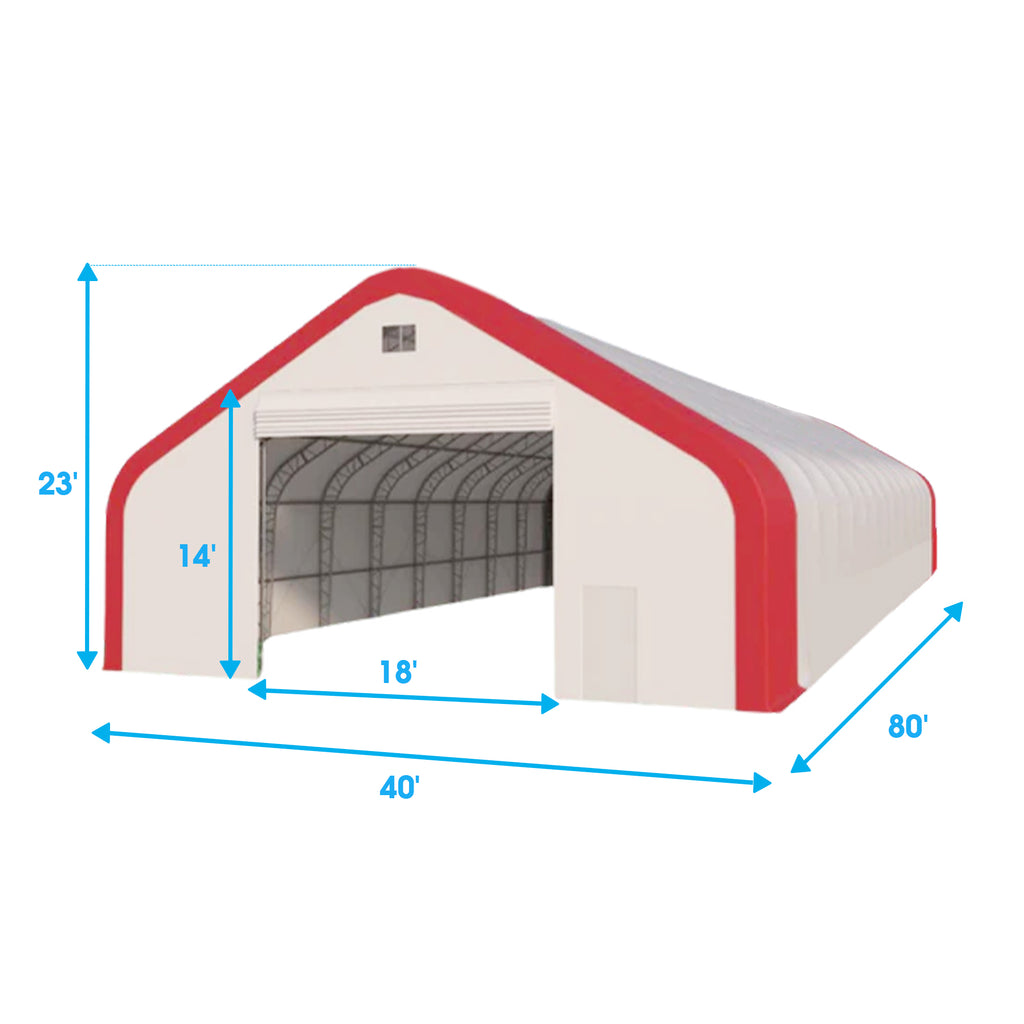

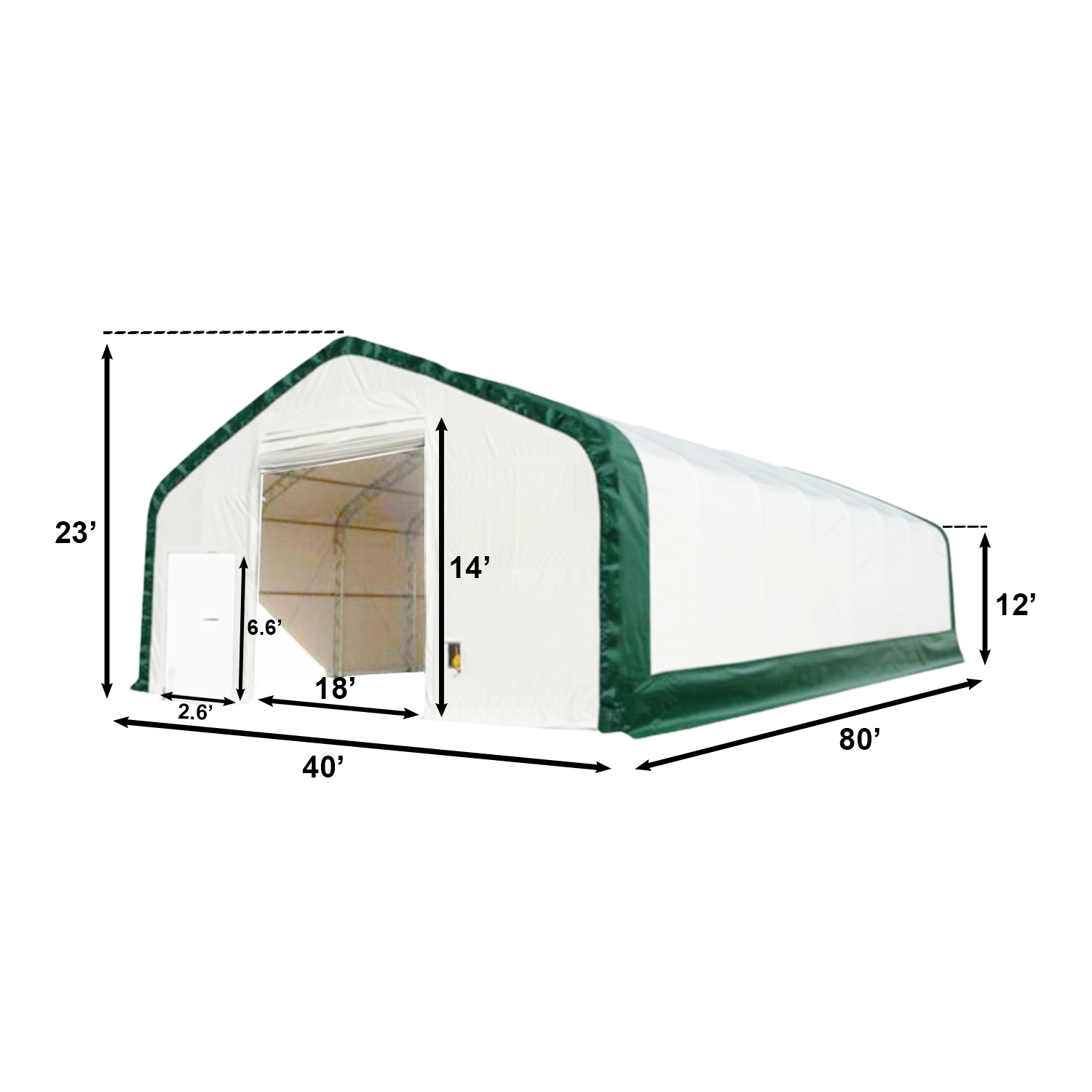

Dimensions (WxLxH) 40'x80'x23'
Side-wall Height 12 ft

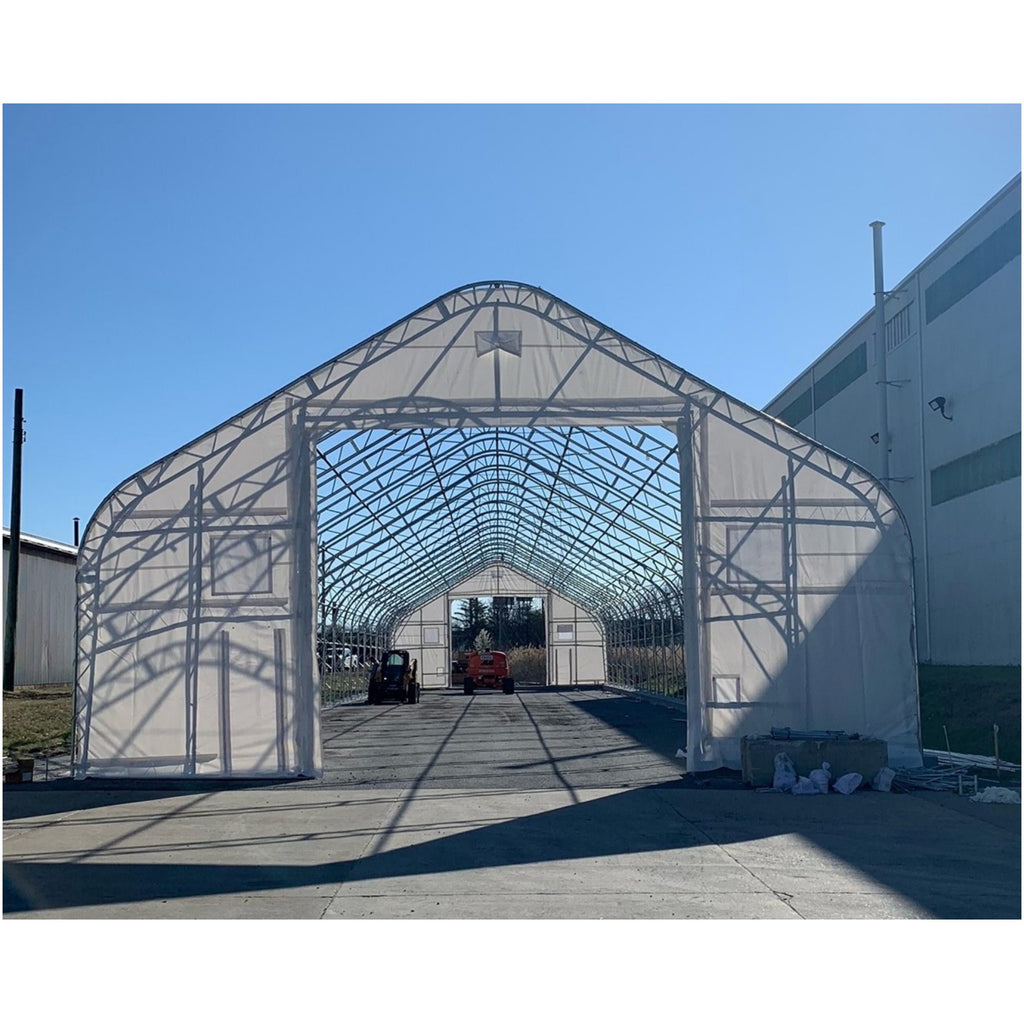

Door size (WxH) (Front & Rear) 18'x14'

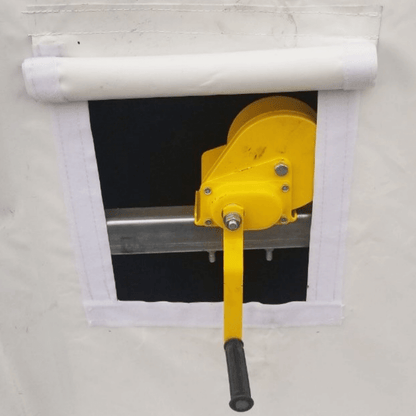

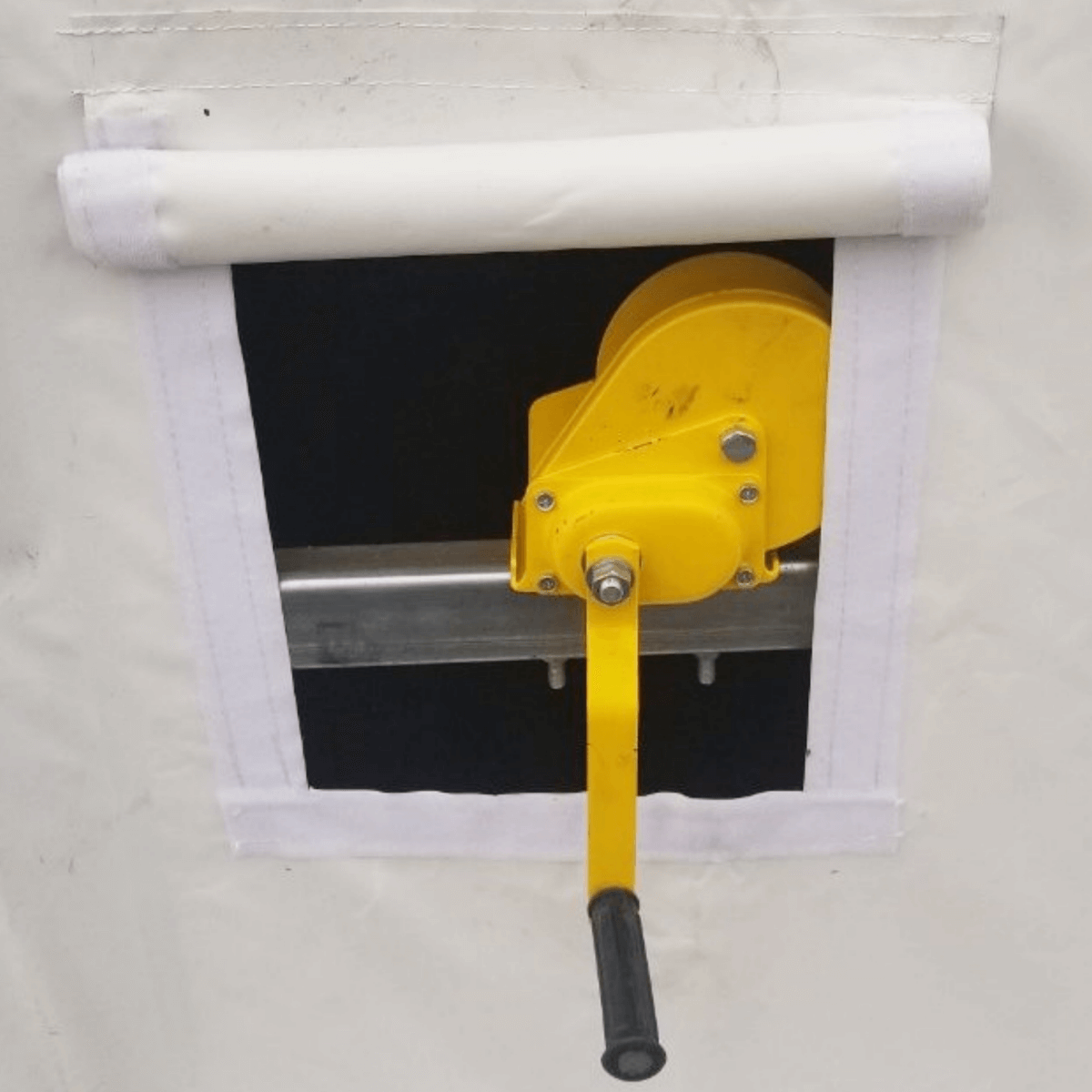

Door Type Mechanical Rollup Door
Man Door (WxH) 2.6'x6.6'

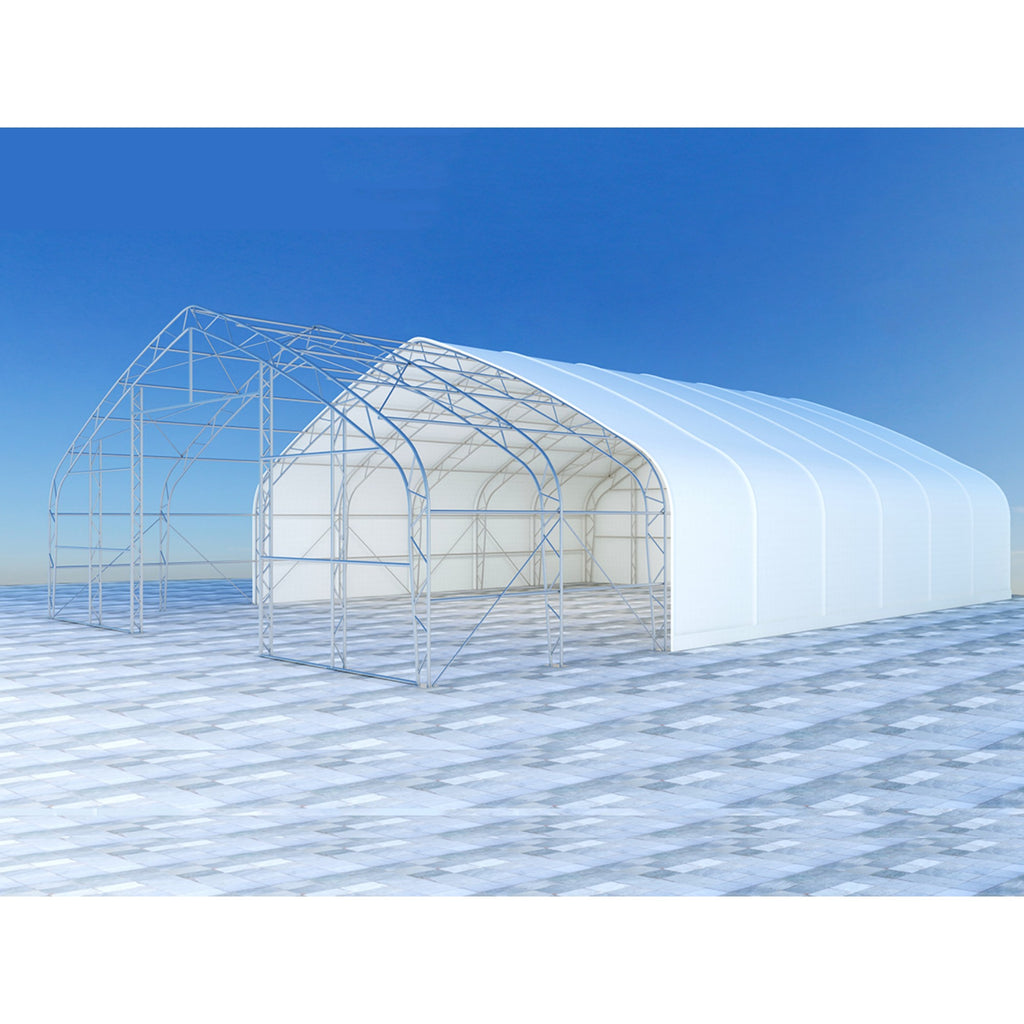

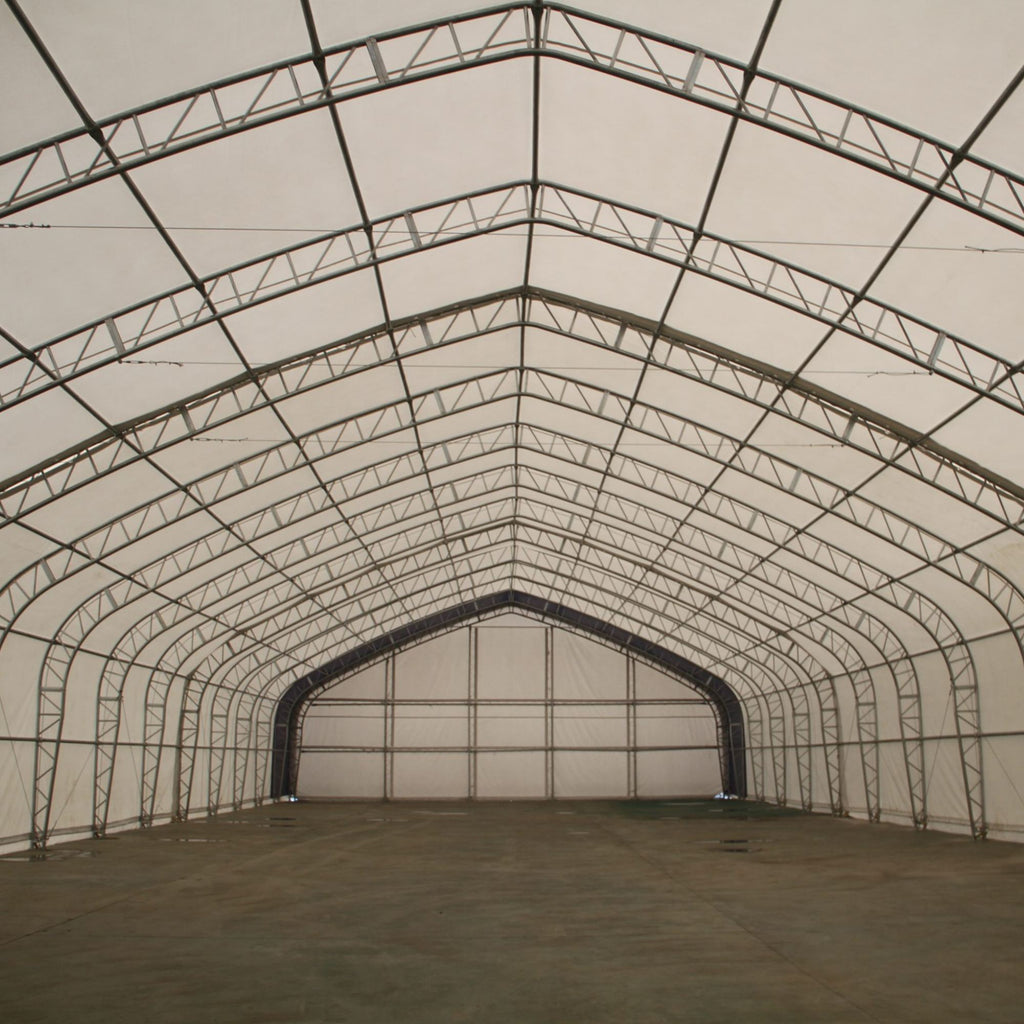

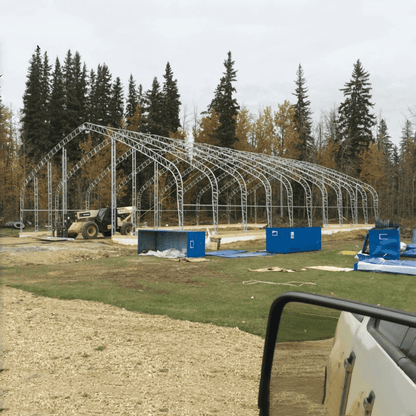

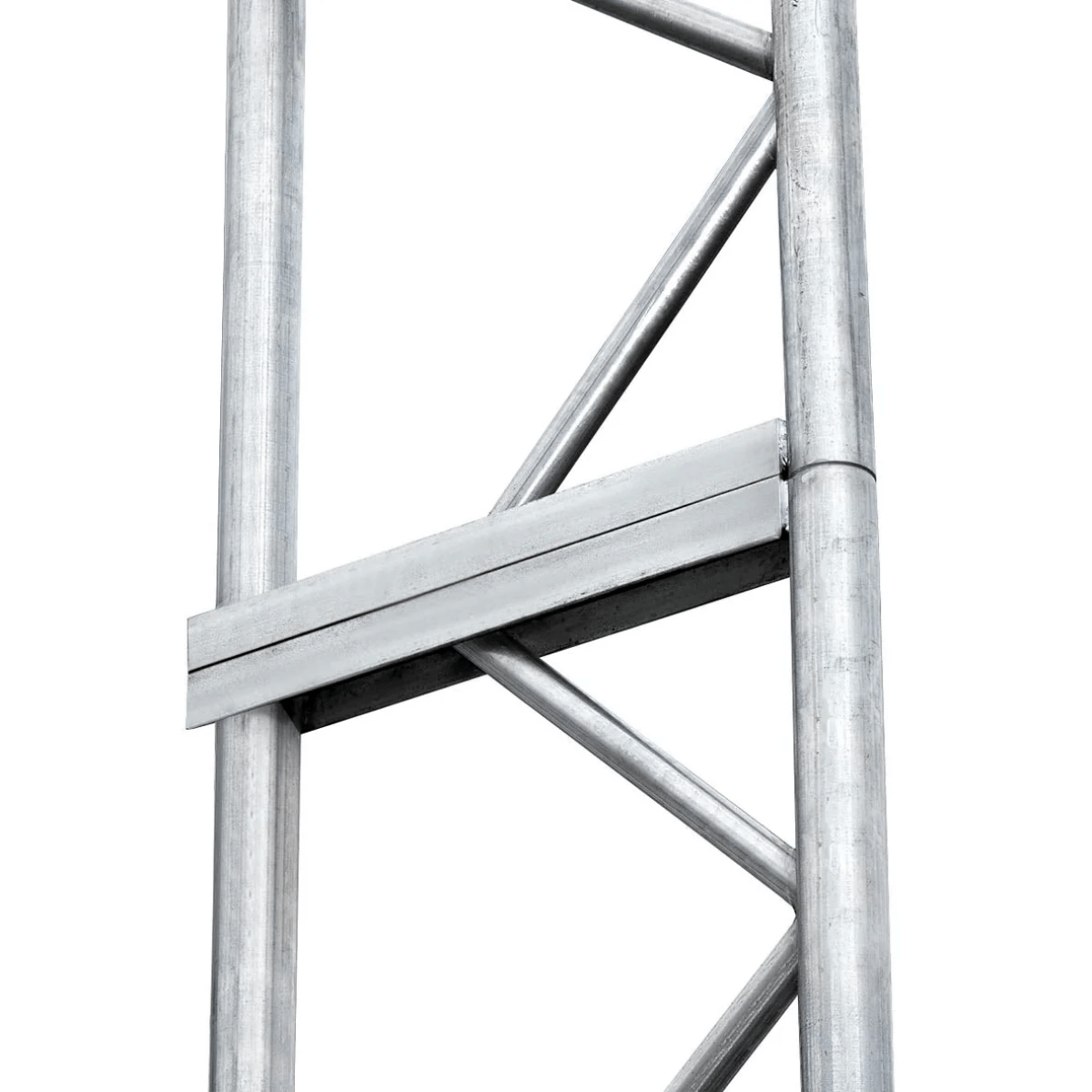

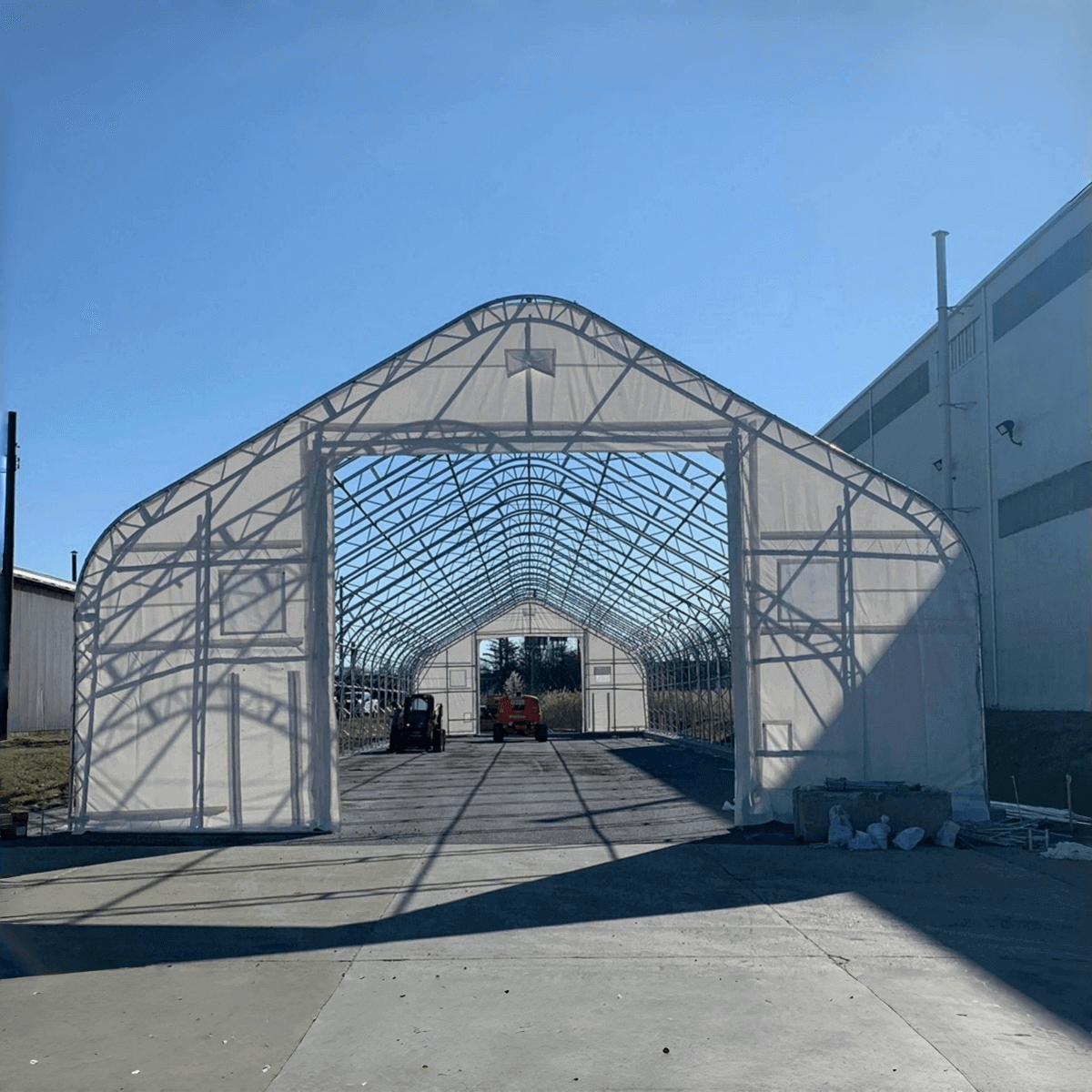

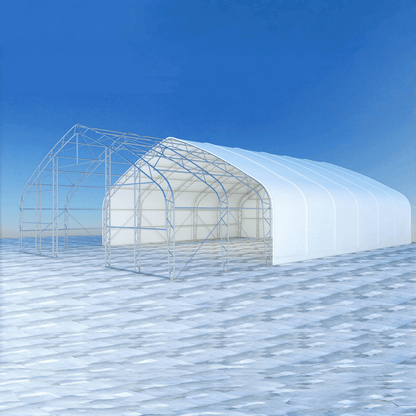

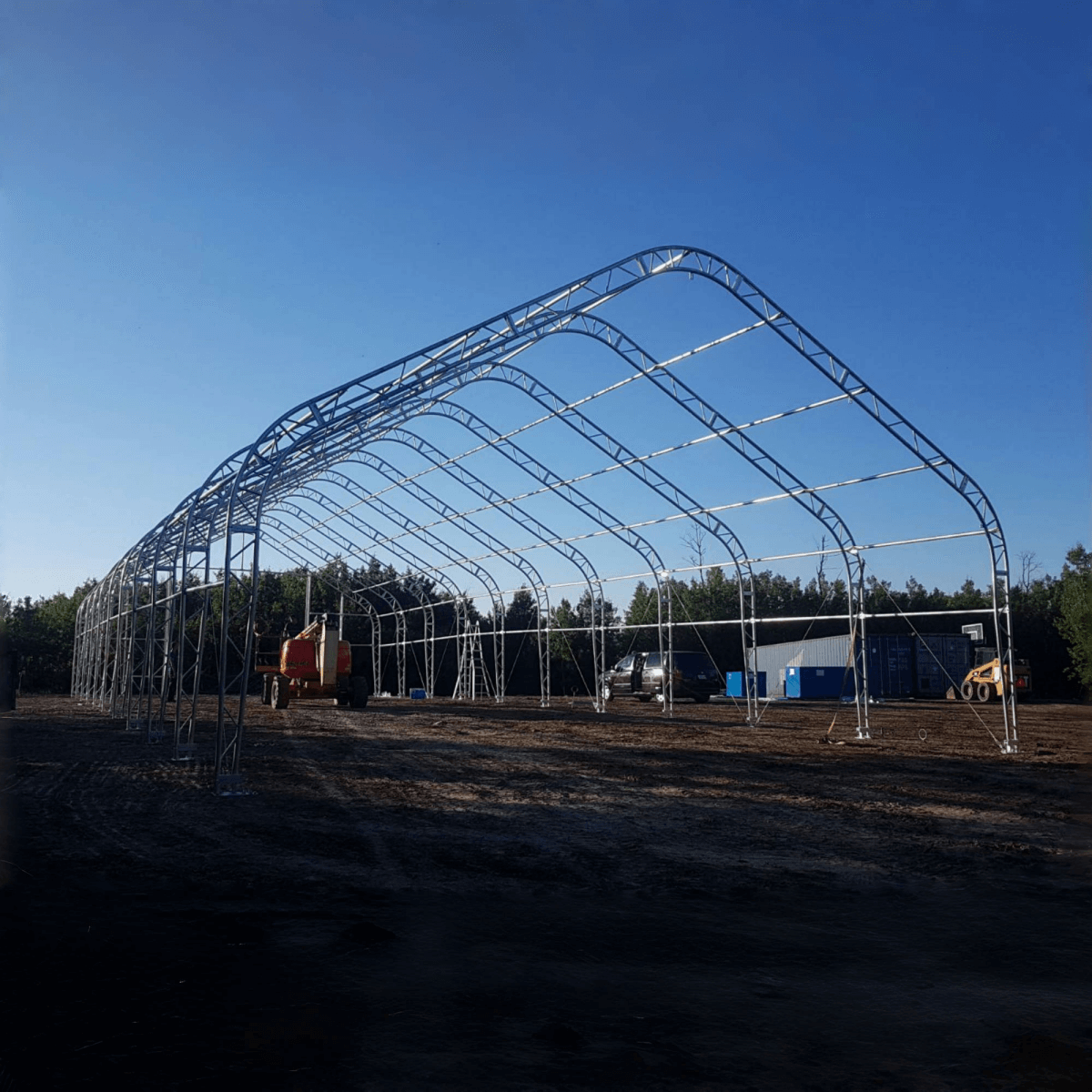

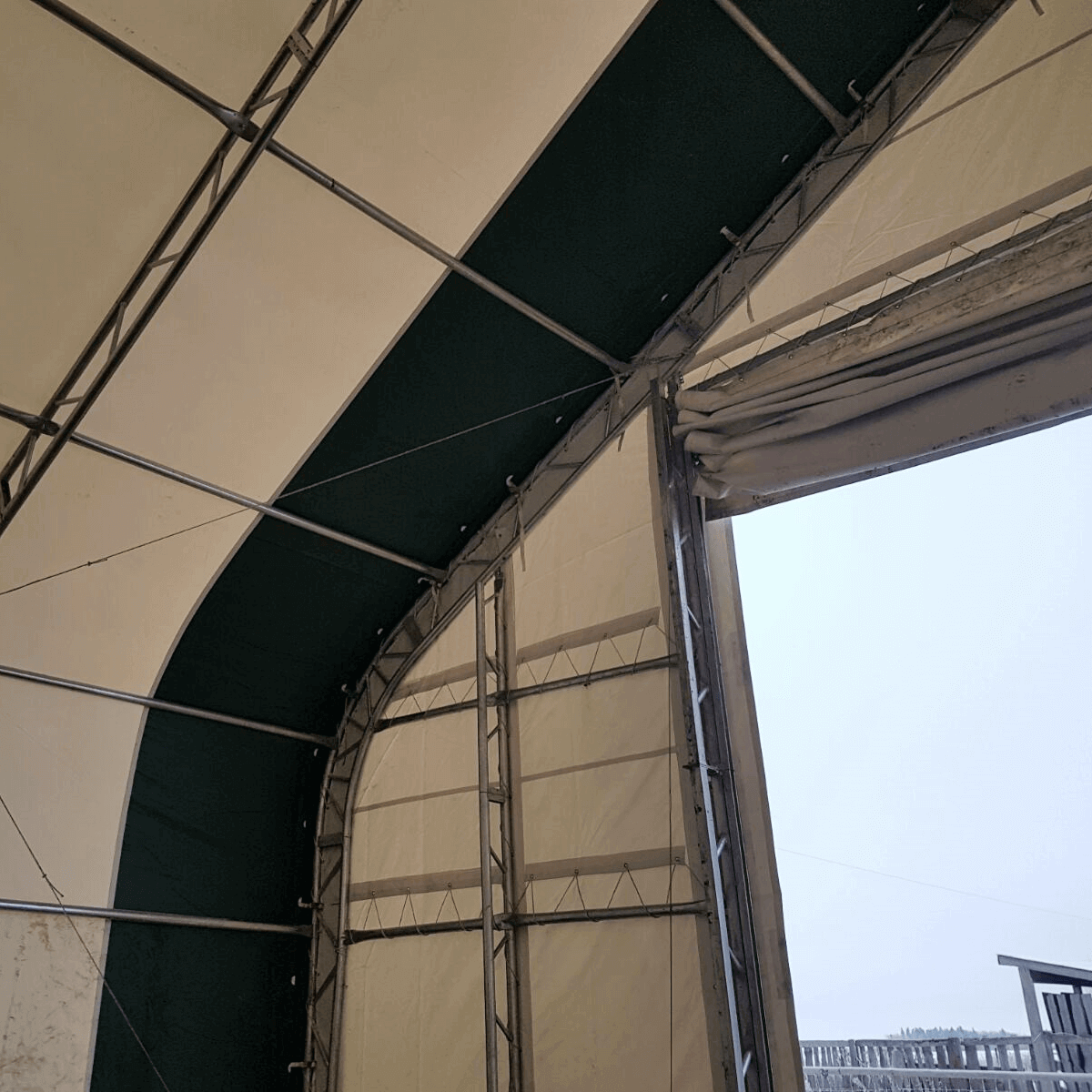

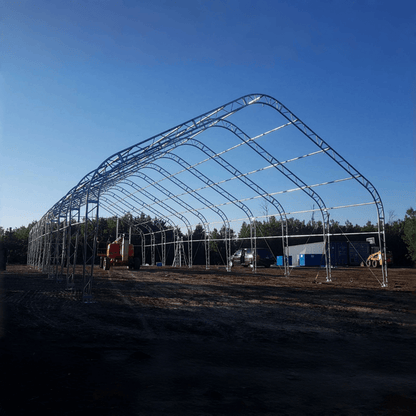

Frame Double Truss Galvanized Tube
Steel Frame Hot Dip Galvanized Steel
Truss tube 16 Gauge
Tarp Fabric PE or PVC
Tarp Color (customizable) White with Green/Red Edge
Temperature resistance -22 - +158 °F
Arch Ø Φ 60x1.5mm
Purlin Ø  Φ 60x1.5mm
Arch Spacing 8 ft
Number of Arch 11
Number of Anchor plates 22

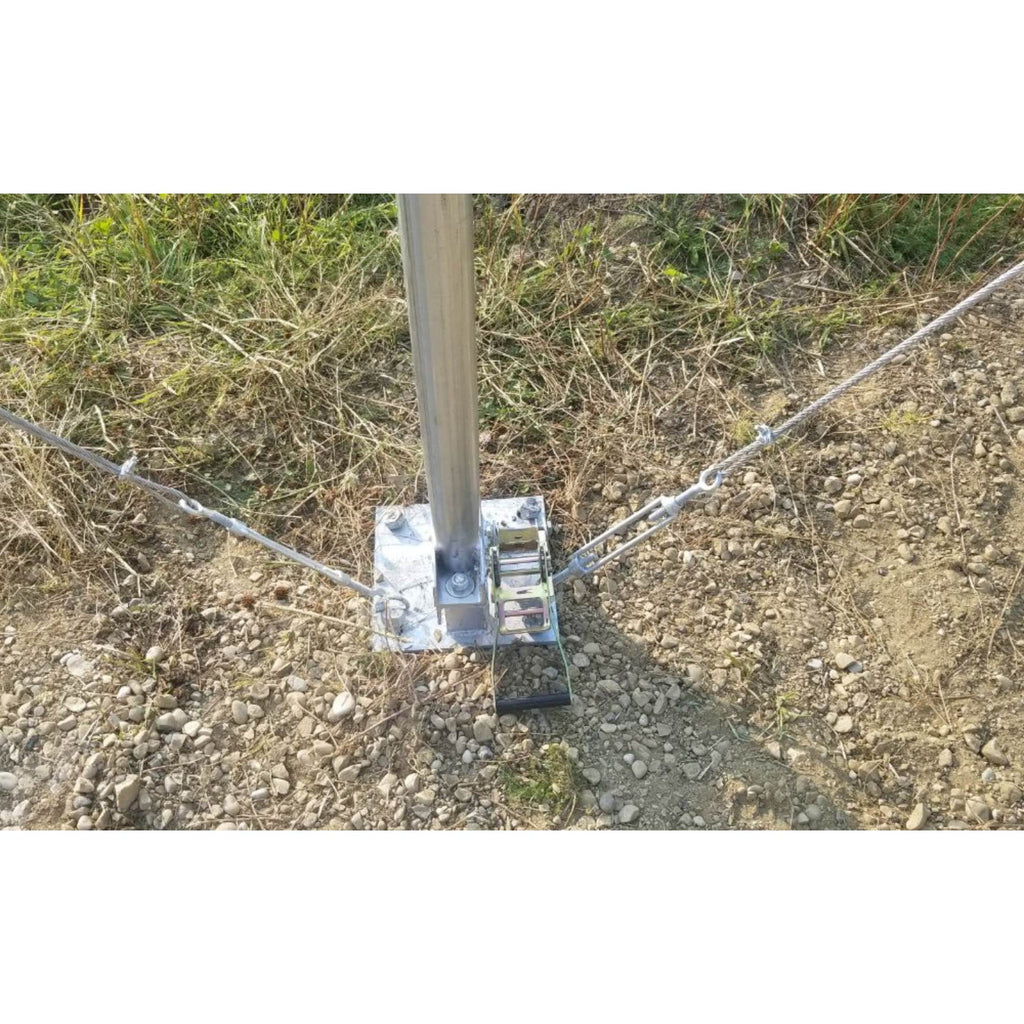

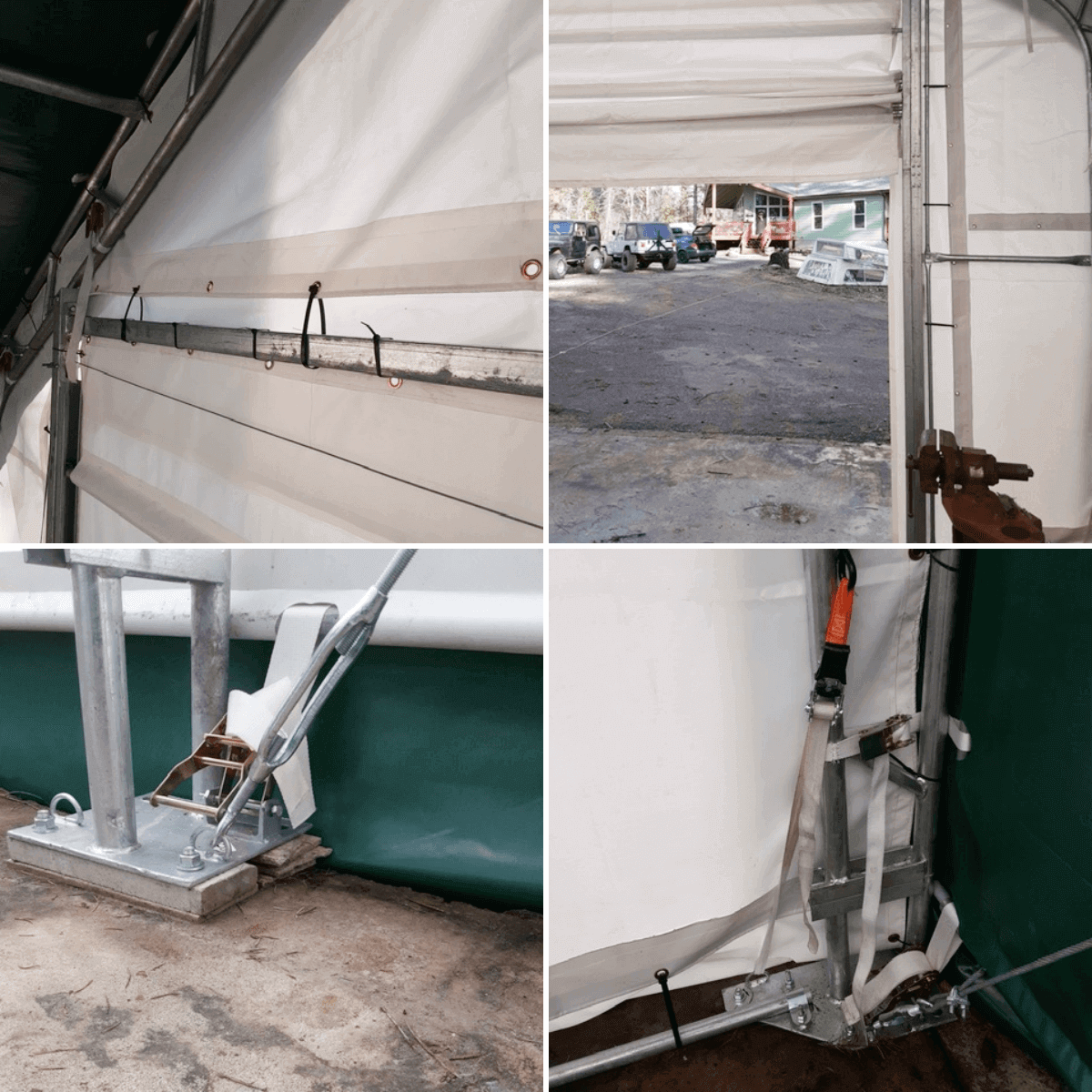

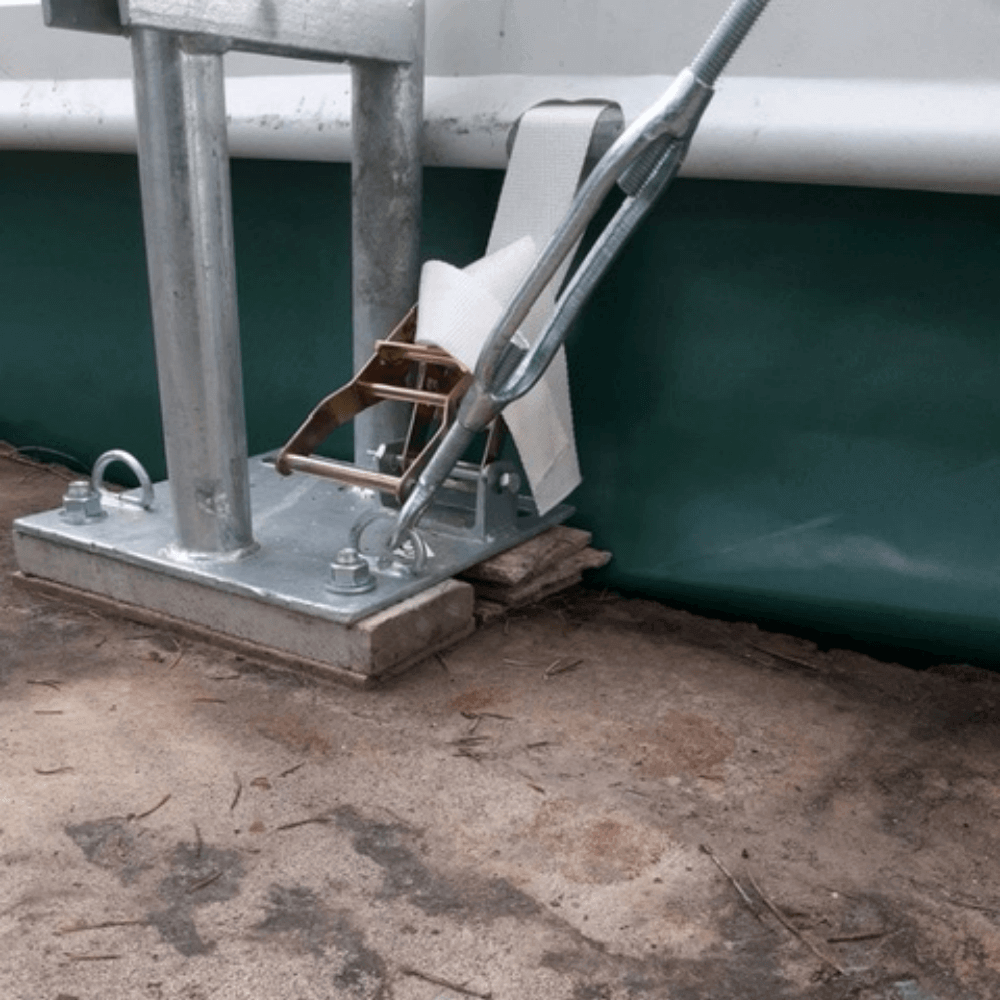

Tension System Pipe and Ratchet Tie-Down System
Average assembly time for DIY with 4 persons 4 Days
Snow Load 48 lbs/ft²
Wind Load 60 miles/h
Tarp lifespan 7-10 years, depending on the type of fabric and environmental conditions.

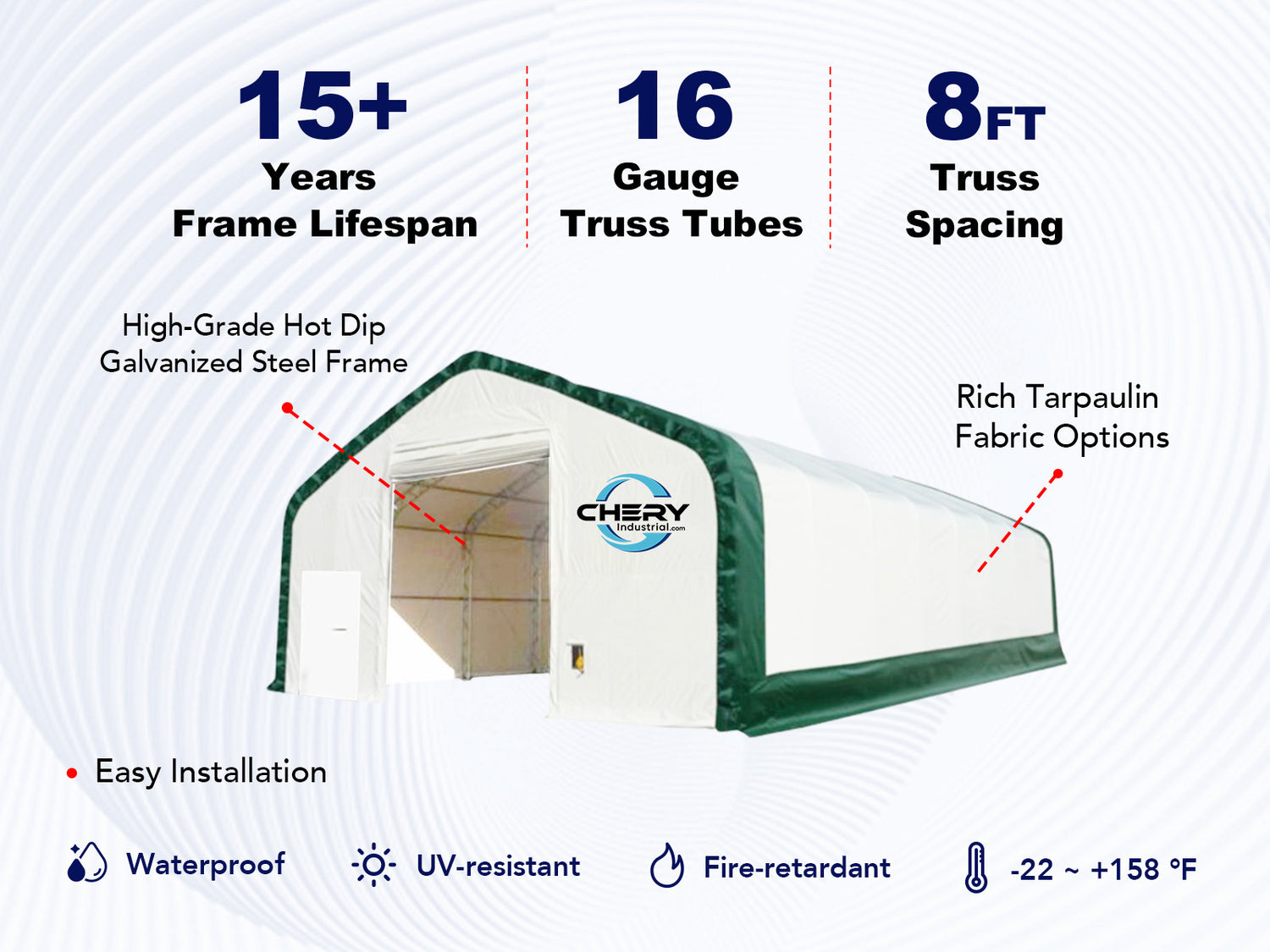

Frame lifespan

15+ Years


- PE: 2 Years Warranty.
- PVC: 8 Years Warranty.

Fabric (Optional)

  • Economical - 11oz/m²(300 gsm) PE Tarpaulin Fabric
  • Heavy Duty - 16oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 26oz/m²(750 gsm) PVC Tarpaulin Fabric
  • Heavy Duty - 32oz/m²(900 gsm) PVC Tarpaulin Fabric
  • Please contact us to order.
Country of Origin China

Installation Tips

1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.

2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.

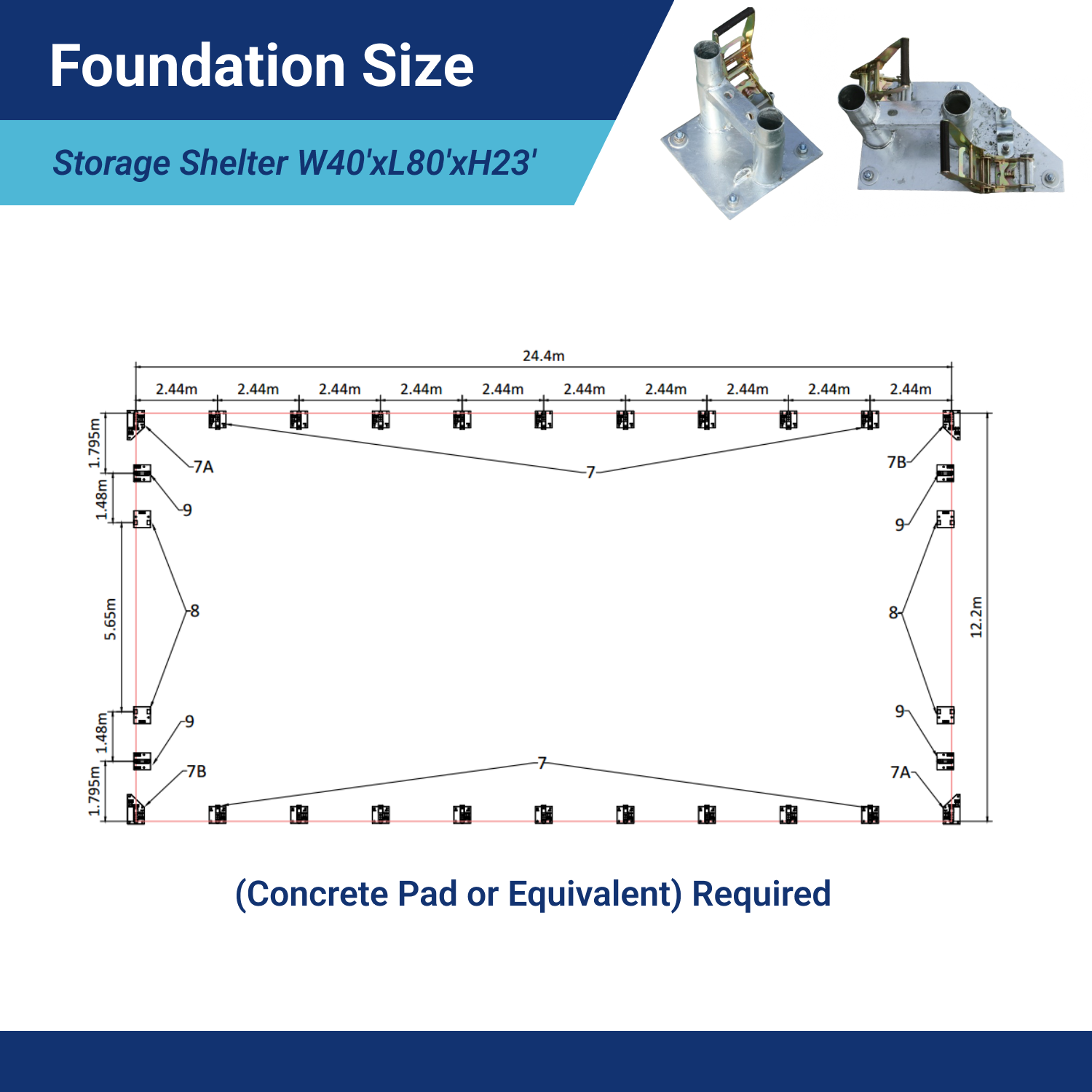

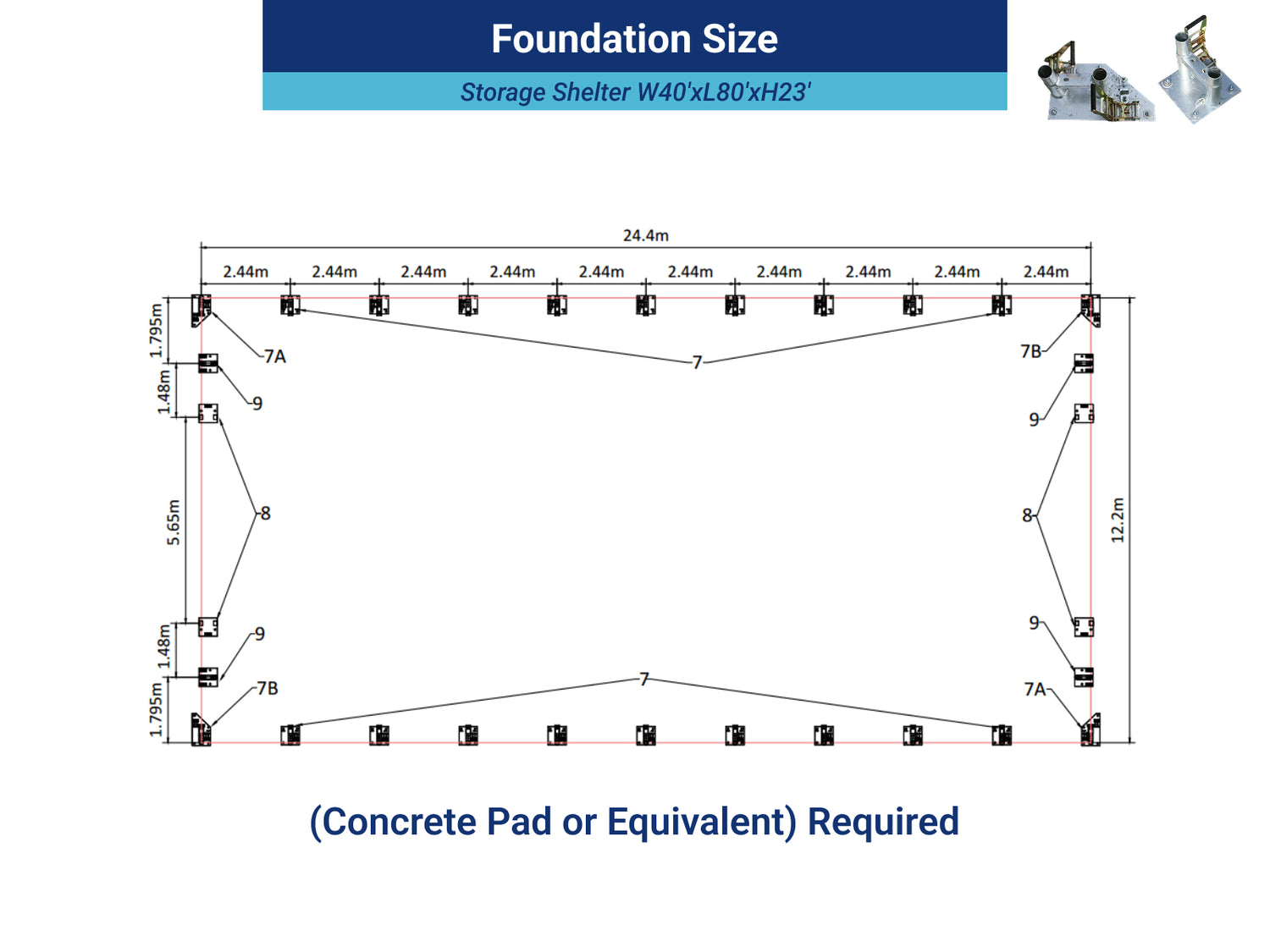

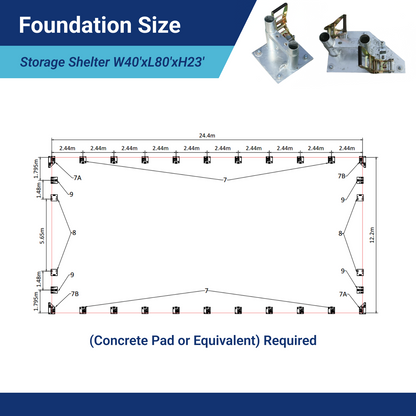

Storage Shelter Foundation


  • No building permits required*.
  • Easy to set up and install.
  • Portable for moving to new locations.
  • Two large doors allow entry and exit more easily.
  • Fabric cover blocks UV radiation and provides natural light.
  • A galvanized steel frame helps the shelter to resist terrible weather conditions.
  • Suitable for several purposes.

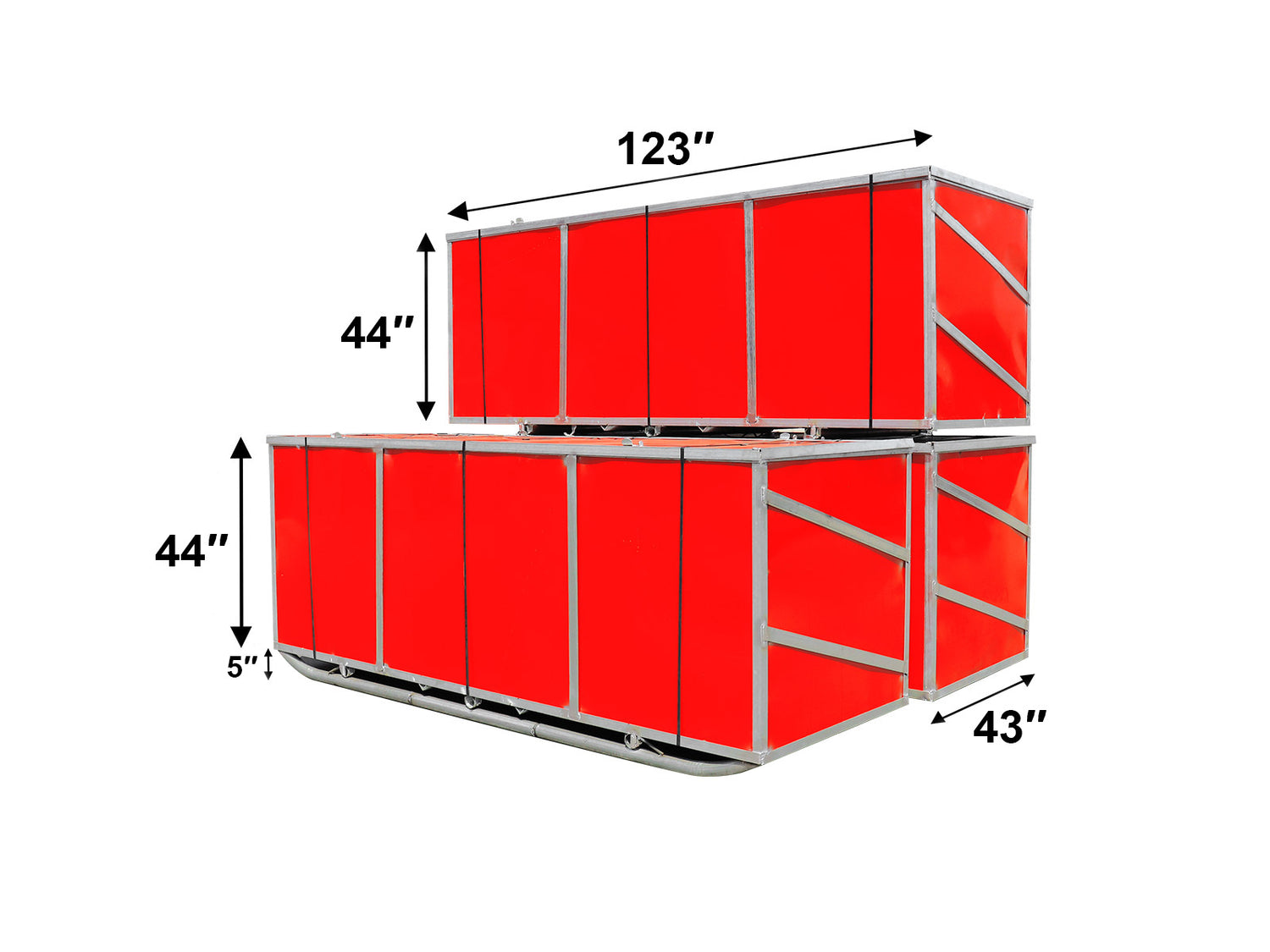

Package Size

  • LxWxH (inch): box A: 131x44x32; box B: 131x44x32; box C: 131x44x32
  • Weight (lb): 8144
  • Forklift or equivalent is required for unloading


Delivery and Unloading

  • The product will be either loaded onto a box or flatbed truck, depending on its size.
  • A forklift or equivalent is required for unloading.
Chery Industrial Storage Shelter deliveryChery Industrial Storage Shelter unloading
